Description

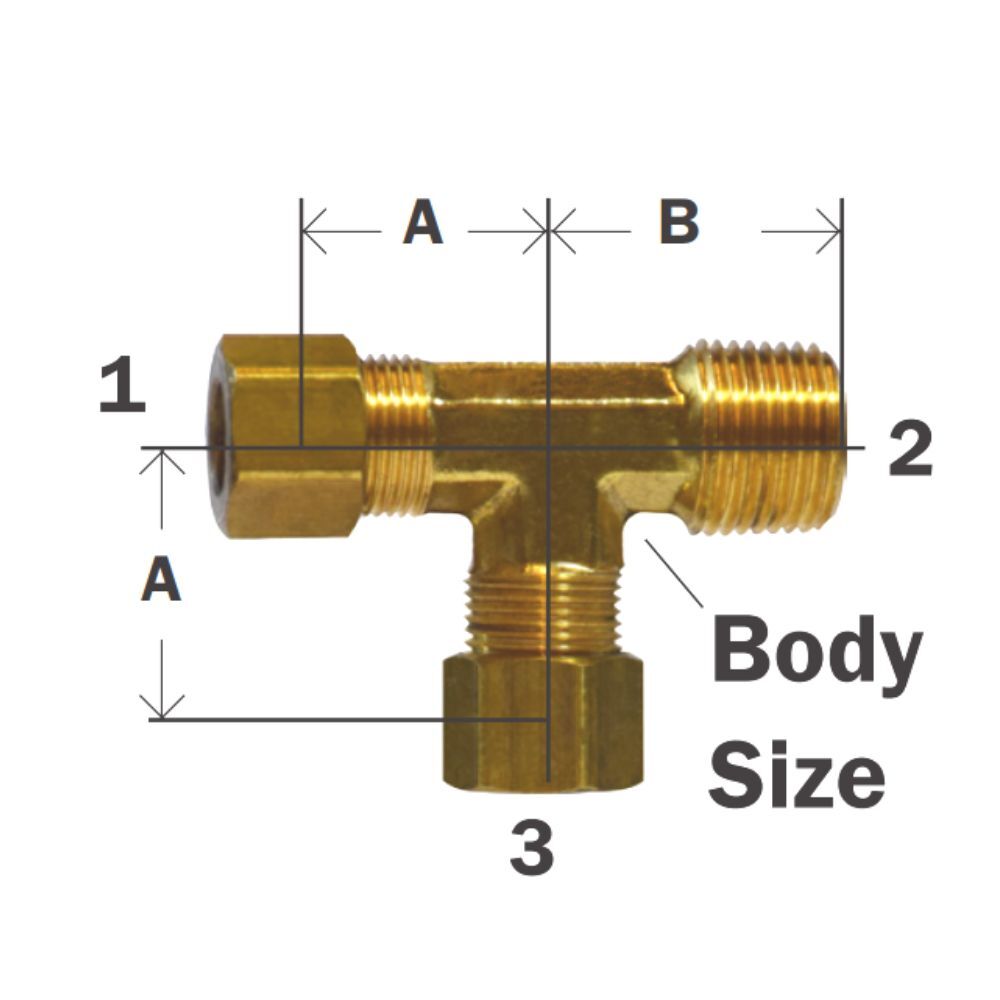

Part # | Comp. X Male NPTF (1&3) X 2 | A | B | Body Size | Approx. Wt. Lbs. |
18-272 | 1/8” x 1/8” | 0.63 | 0.69 | 0.36 | 0.06 |
18-273 | 3/16” x 1/8” | 0.63 | 0.69 | 0.36 | 0.07 |
18-274 | 1/4” x 1/8” | 0.63 | 0.75 | 0.36 | 0.08 |
18-275 | 1/4” x 1/4” | 0.69 | 0.88 | 0.44 | 0.10 |
18-276 | 5/16” x 1/8” | 0.72 | 0.75 | 0.50 | 0.10 |
18-277 | 5/16” x 1/4” | 0.75 | 0.88 | 0.44 | 0.10 |
18-278 | 3/8” x 1/8” | 0.75 | 0.75 | 0.50 | 0.14 |
18-279 | 3/8” x 1/4” | 0.79 | 0.87 | 0.44 | 0.18 |
18-280 | 3/8” x 3/8” | 0.88 | 1.00 | 0.47 | 0.20 |
18-281 | 1/2” x 3/8” | 0.94 | 1.09 | 0.59 | 0.24 |
18-282 | 1/2” x 1/2” | 0.97 | 1.19 | 0.69 | 0.26 |
18-283 | 5/8” x 1/2” | 1.06 | 1.31 | 0.69 | 0.28 |
18-284 | 3/4” x 1/2” | 1.22 | 1.34 | 0.88 | 0.30 |
Compression Brass Tee-Male Run Tee Video
This video shows information about compression brass tee-forged male run tee.
Brass compression male run tees are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.
If you have any questions about male brass compression tee adapter, please contact us.
