Compression Brass Tees

Description:

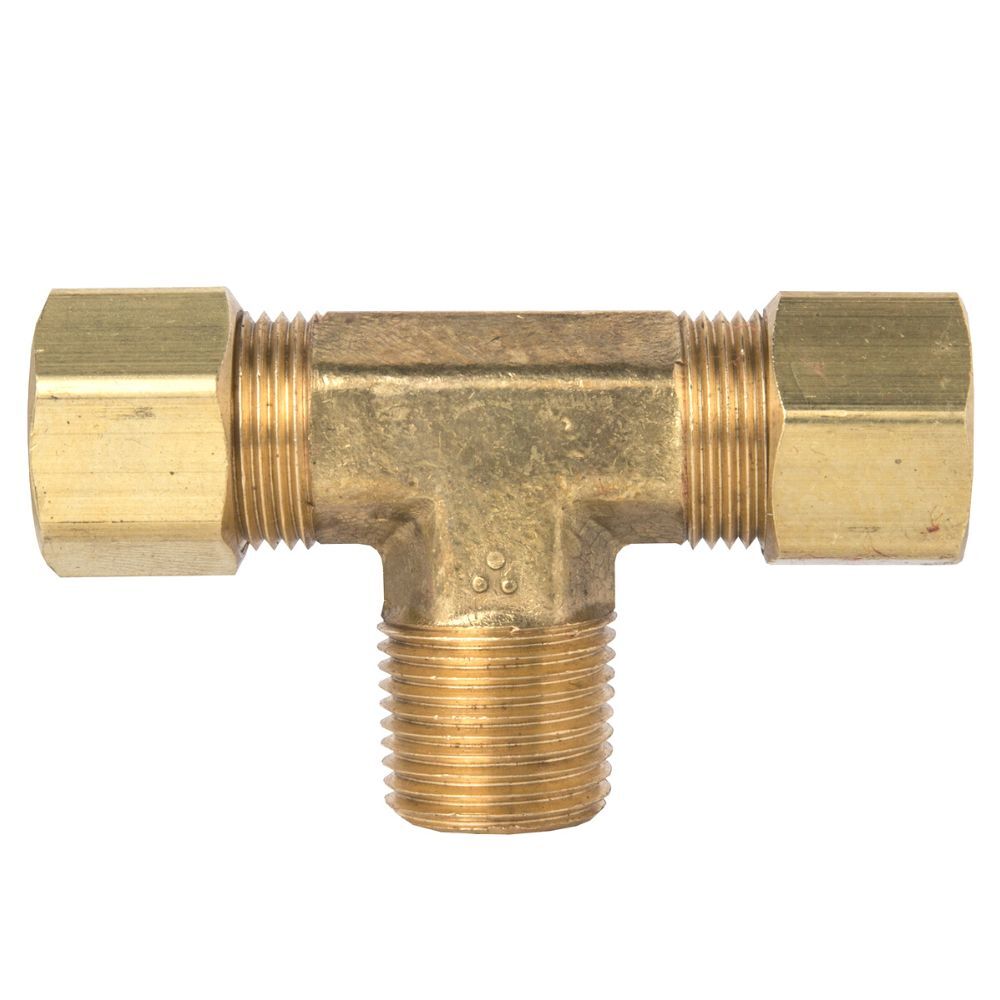

A brass compression forged male branch tee is a type of compression tee fitting that is used to join three pipes together at a right angle.

Male compression branch tee commonly creates a branch connection, allowing fluid or gas to flow in multiple directions.

If you have any questions about the brass compression fittings tee, feel free to ask.

Features and Benefits:

• Lead-free
• Reusable
• Easy to assemble
• Strong seal

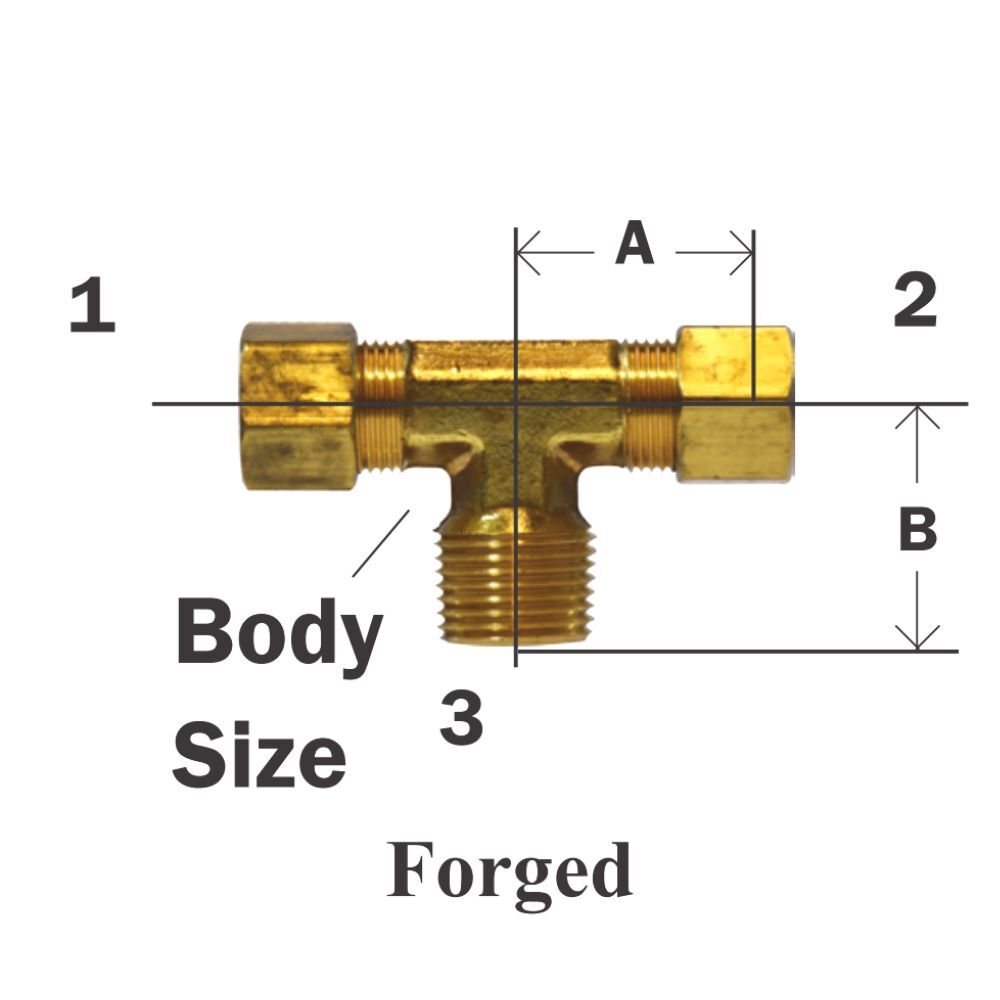

Description

Part #

Comp. X

Male NPTF (1&2) X 3

A

B

Body Size

Approx. Wt. Lbs.

18-290

3/16” x 1/8”

0.63

0.69

0.36

0.08

18-291

1/4” x 1/8”

0.62

0.75

0.36

0.10

18-291B*

1/4” x 1/8”

0.64

0.73

0.45

0.10

18-292

1/4” x 1/4”

0.69

0.86

0.44

0.10

18-293

5/16” x 1/8”

0.72

0.75

0.50

0.11

18-294

5/16” x 1/4”

0.75

0.88

0.44

0.12

18-295

3/8” x 1/8”

0.75

0.75

0.50

0.14

18-296

3/8” x 1/4”

0.78

0.88

0.44

0.16

18-297

3/8” x 3/8”

0.78

0.97

0.47

0.18

18-298

3/8” x 1/2”

0.88

1.22

0.69

0.20

18-304

1/2” x 1/4”

0.94

0.97

0.59

0.22

18-299B*

1/2” x 3/8”

0.96

1.09

0.70

0.24

18-299

1/2” x 3/8”

0.94

1.12

0.59

0.24

18-300

1/2” x 1/2”

0.97

1.19

0.69

0.30

18-301

5/8” x 1/2”

1.06

1.31

0.69

0.32

18-302

3/4” x 1/2”

1.22

1.34

0.88

0.50

18-303

3/4” x 3/4”

1.25

1.50

0.88

0.54

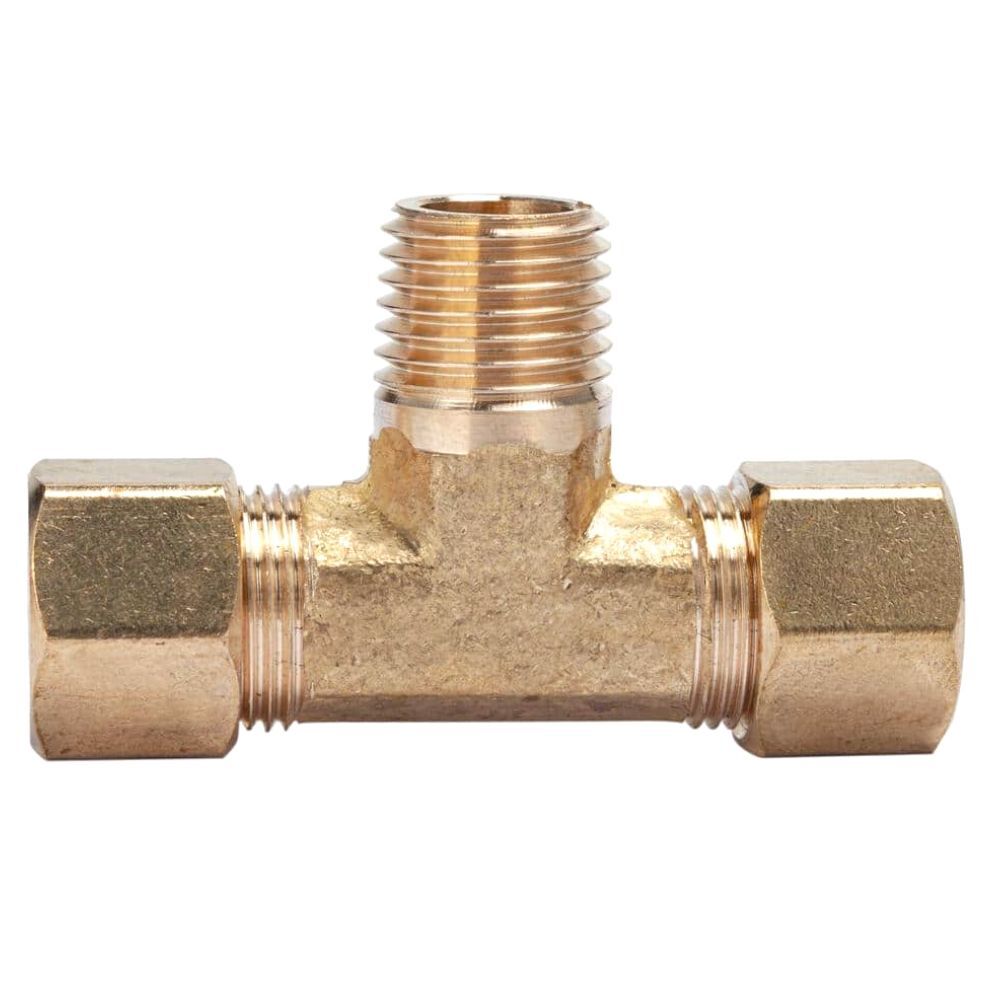

Compression Brass Tees-Male Branch Tee Video

This video shows information about compression brass tees-male branch tee.

Brass compression male branch tees are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.

If you have any questions about brass tee compression for pipes, please contact us.
