Description

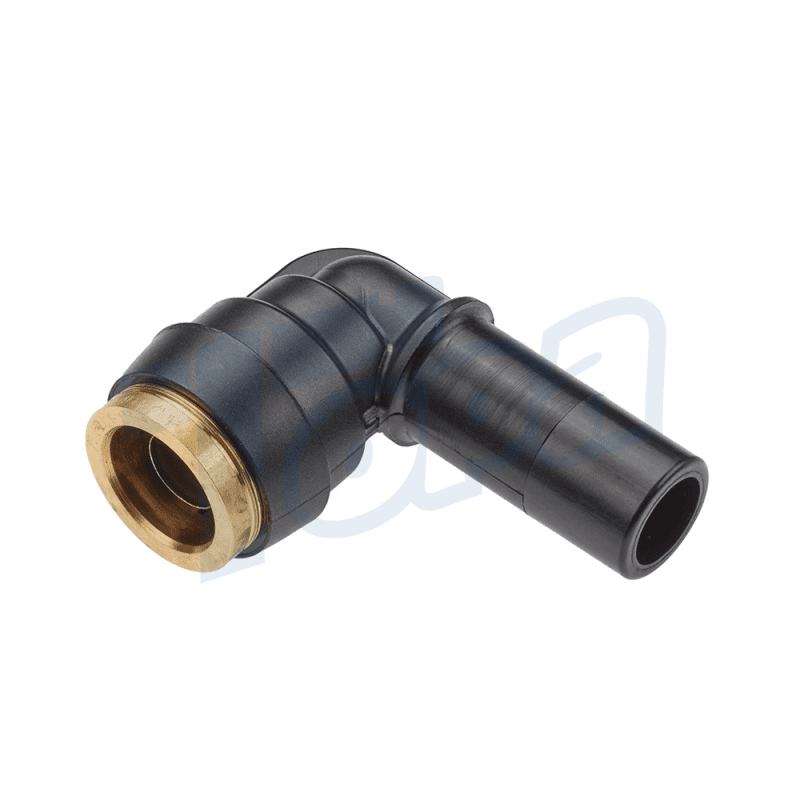

Plug in Elbow Composite PTC Fittings
This is a plug-in stem adapter, it is a 90-degree elbow composite push-in fitting. These plug-in PTC fittings are the epitome of convenience, allowing for fast and efficient work. DOT push-on connectors are made of strong, lightweight composite materials that are impact and corrosion-resistant and meet strict SAE and D.O.T. compliance.
Applications:
• Air brake systems
• Tire inflation
• Sliders
If you need more information, or to take an order, please contact us! Topa will make sure you get the quality and efficiency you deserve.

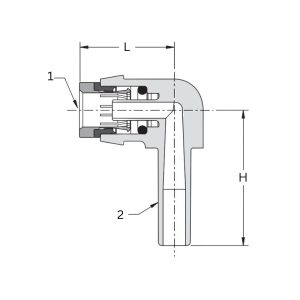

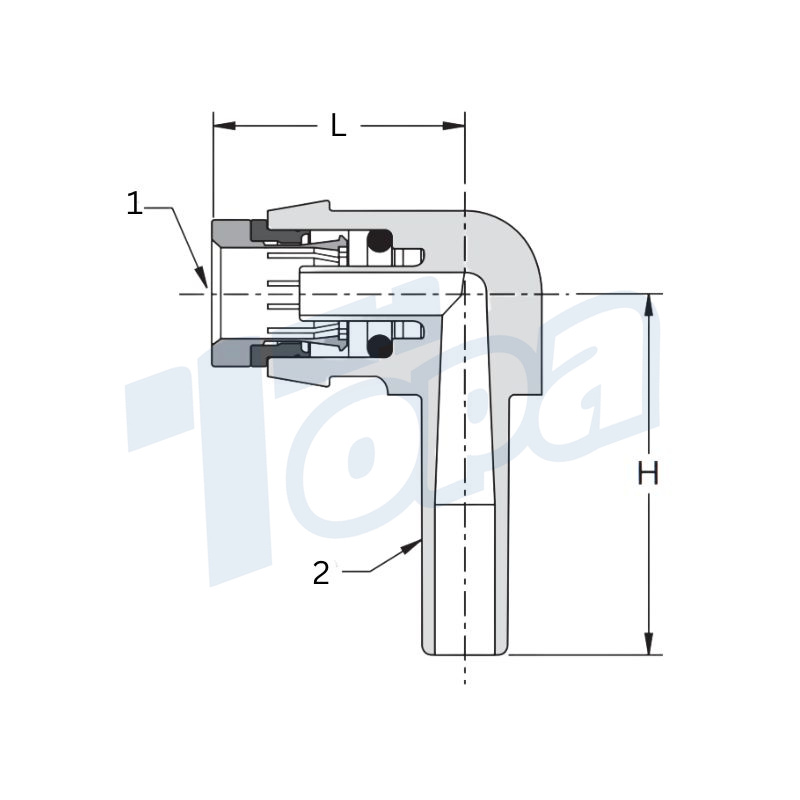

Dimensional Drawings:
Part# | Tube Size(1*2) | H | L | Description |
362PTC-04-04 | 1/4*1/4 | 1.06 | 0.74 | Plug-In Elbow |
362PTC-04-06 | 1/4*3/8 | 1.20 | 0.74 | |
362PTC-06-04 | 3/8*1/4 | 1.18 | 0.96 | |
362PTC-06-06 | 3/8*3/8 | 1.32 | 0.96 | |
362PTC-06-08 | 3/8*1/2 | 1.52 | 0.96 | |
362PTC-08-04 | 1/2*1/4 | 1.16 | 1.12 | |
362PTC-08-06 | 1/2*3/8 | 1.30 | 1.12 | |
362PTC-08-08 | 1/2*1/2 | 1.50 | 1.12 | |
362PTC-10-08 | 5/8*1/2 | 1.57 | 1.36 | |
362PTC-10-10 | 5/8*5/8 | 1.75 | 1.36 |
Plug in Elbow Composite PTC Fittings Video
This video is about the 90-degree elbow DOT push-in fittings. All of our DOT push in fittings are manufactured by CNC machines, and each one is heavily tested to meet your needs.
This DOT fitting meets SAE as well as DOT international standards and is ideal for all your air brake and airline needs. We also offer custom configurations and sizes to meet your unique needs.
If you need composite dot air line fittings or have doubts, welcome to contact us!
