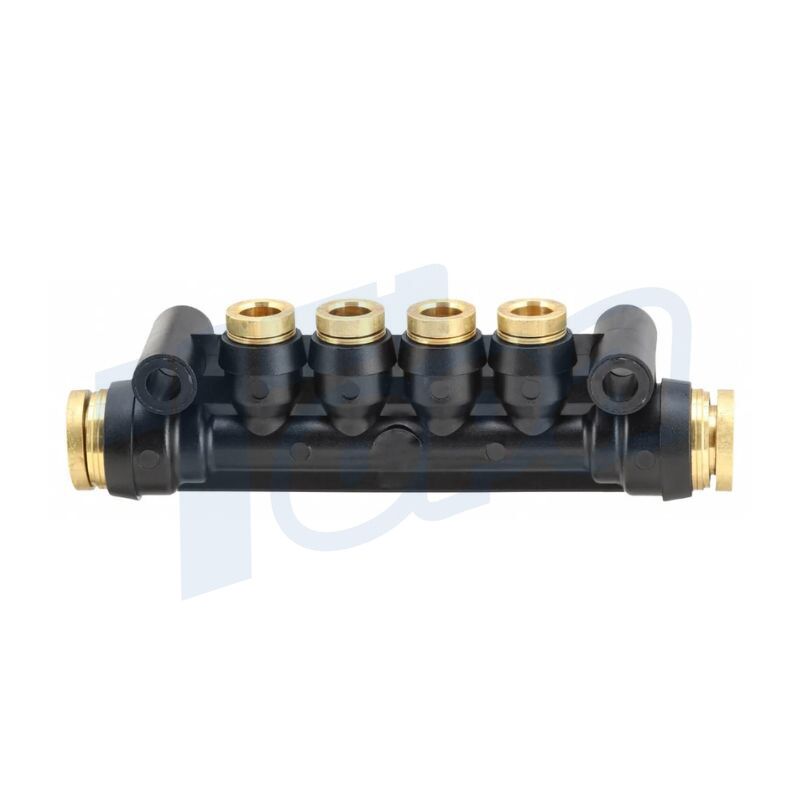

Presto Manifold 24M Composite Brass DOT Fitting
This is a composite brass DOT fitting, it is a composite push-in fitting. This DOT push-in fitting is the epitome of convenience, allowing for fast and efficient work. DOT push-on PTC connectors are made of strong, lightweight composite materials that are impact and corrosion-resistant and meet strict SAE and D.O.T. compliance.
Applications:
• Air brake systems
• Truck
• Sliders
If you need more information, or to take an order, please contact us! Topa will make sure you get the quality and efficiency you deserve.

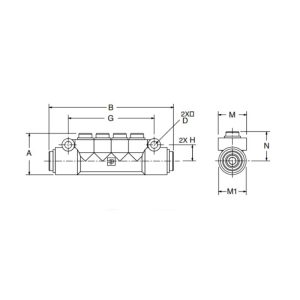

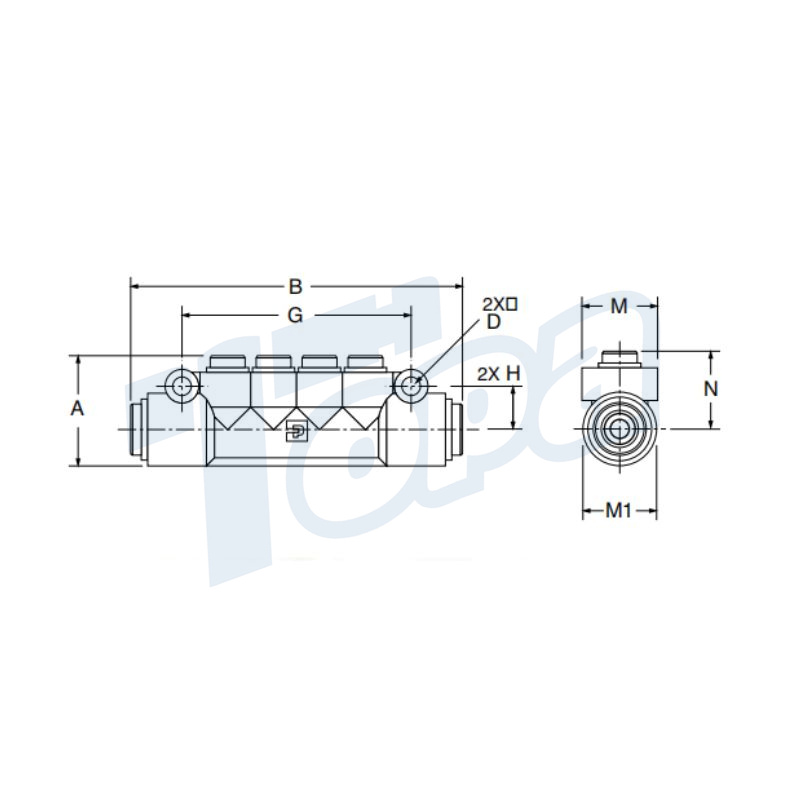

Dimensional Drawings:
Part# | Tube O.D. INLET | Tube O.D. OUTLET | A | B | D | G | H | M | M1 | N | Description |
365PTC-04 | 1/4 | 1/4 | 1.33 | 3.98 | 0.21 | 2.75 | 0.53 | 0.90 | 0.88 | 0.89 | Presto Manifold 24M |
365PTC-06 | 3/8 | 1/4 | 1.33 | 4 | 0.21 | 2.75 | 0.53 | 0.90 | 0.88 | 0.89 | |
365PTC-06 | 3/8 | 3/8 | 1.65 | 6.49 | 0.22 | 4.55 | 0.60 | 1.02 | 1.02 | 1.33 | |
365PTC-08 | 1/2 | 1/2 | 1.65 | 6.49 | 0.22 | 4.55 | 0.60 | 1.02 | 1.02 | 1.33 | |
365PTC-08 | 1/2 | 3/8-1/4 | 1.65 | 6.49 | 0.22 | 4.55 | 0.64 | 1.02 | 1.02 | 1.17 |
Presto Manifold 24M Composite Brass DOT Fitting Video
This video is about the Presto Manifold 24M fitting. All of our DOT fittings are manufactured by CNC machines, and each one is heavily tested to meet your needs.
This DOT push lock fitting meets SAE as well as DOT international standards and is ideal for all your air brake and airline needs. We also offer custom configurations and sizes to meet your unique needs.
If you need composite dot air line fittings or have doubts, welcome to contact us!
