Brass DOT Compression Fittings

Description:

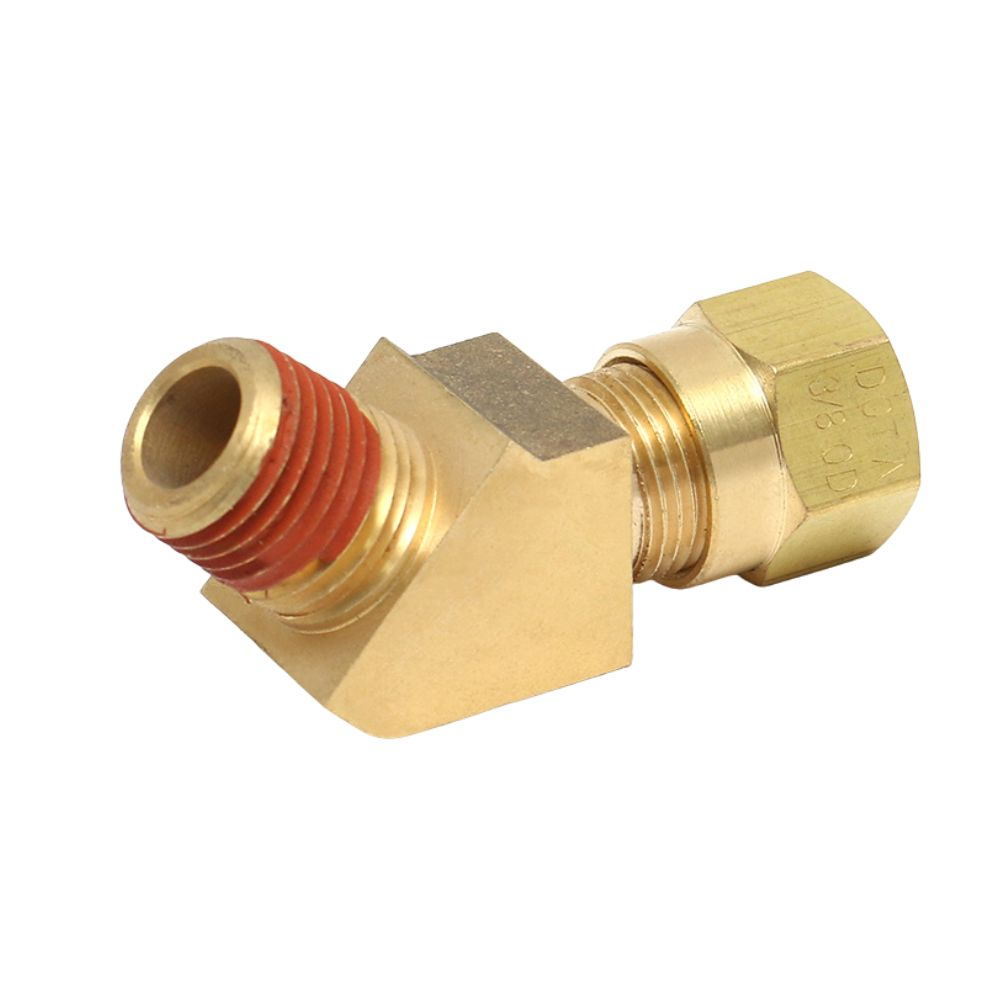

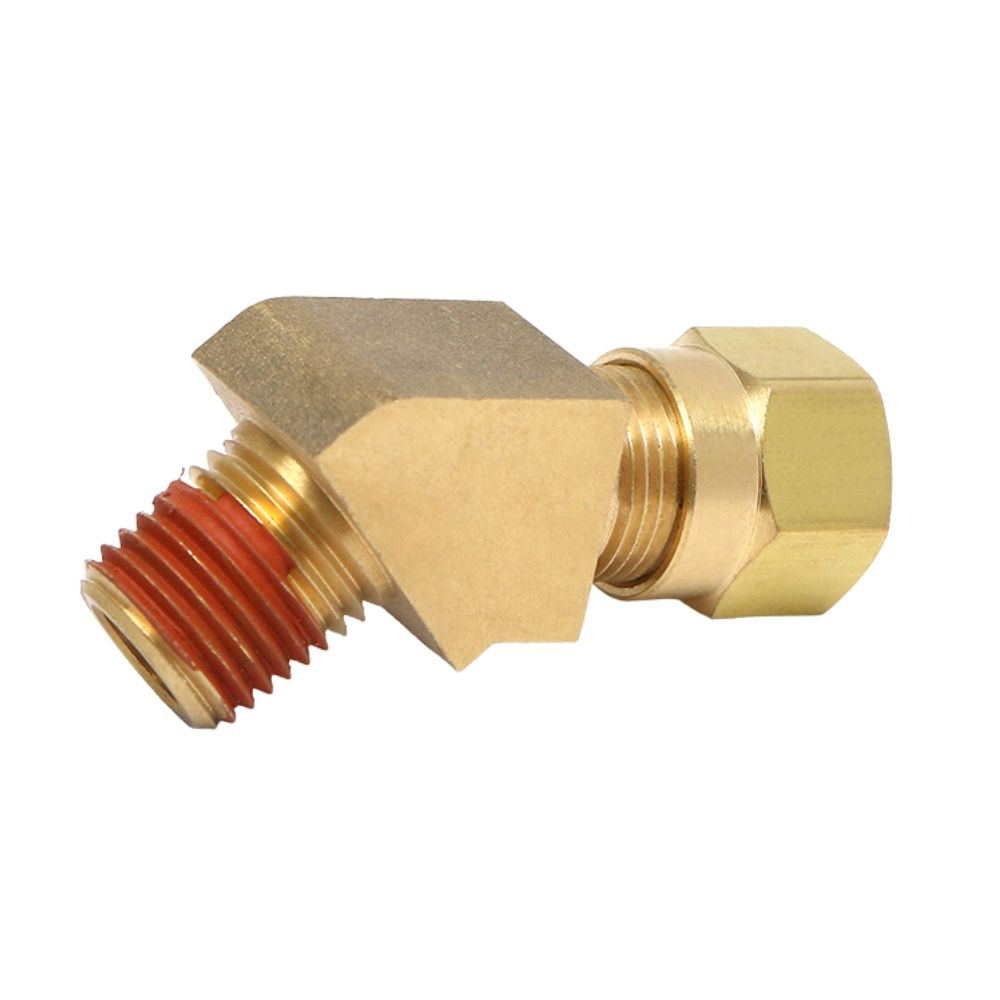

The male 45° elbow has a male NPTF thread and a 45-degree elbow. Brass DOT compression fittings are a type of elbow fitting used in air brake systems.

The male 45° elbow can be applied in many applications, and it can provide a secure, leak-tight connection.

If you have any further questions about the air brake tube fittings, feel free to ask.

Features and Benefits:

• Easy to maintain
• Durability
• Corrosion-resistance
• Quick

Description

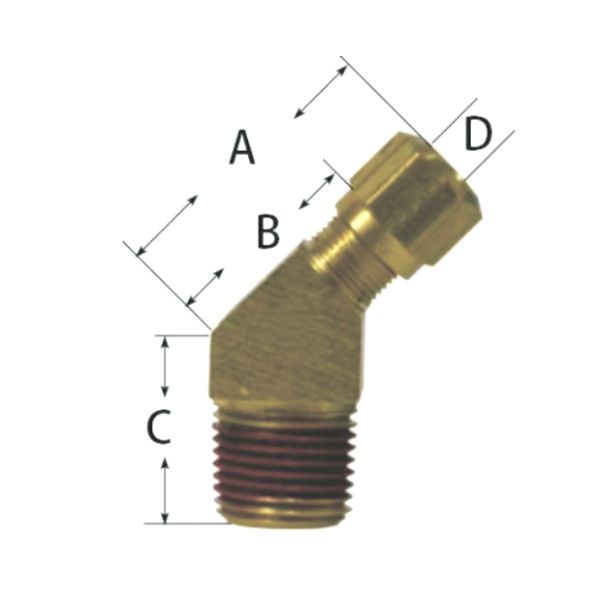

Part#	Tube O.D* Male NPTF	A	B	C	D	Approx Wt.Lbs
1585-4C	1/4*1/8	0.81	0.49	0.63	0.137	0.06
1585-4D	1/4*1/4	1.93	0.60	0.85	0.137	0.08
1585-6C	3/8*1/8	1.17	0.71	0.68	0.217	0.09
1585-6D	3/8*1/4	1.17	0.71	0.85	0.217	0.11
1585-6E	3/8*3/8	1.21	0.75	0.94	0.217	0.14
1585-6F	3/8*1/2	1.24	0.78	1.16	0.217	0.24
1585-8D	1/2*1/4	1.36	0.84	0.94	0.338	0.18
1585-8E	1/2*3/8	1.36	0.84	0.94	0.338	0.19
1585-8F	1/2*1/2	1.39	0.87	1.16	0.338	0.25
1585-10E	5/8*3/8	1.43	0.94	0.98	0.398	0.27
1585-10F	5/8*1/2	1.42	0.93	1.16	0.398	0.30
1585-12F	3/4*1/2	1.61	1.10	1.18	0.523	0.38

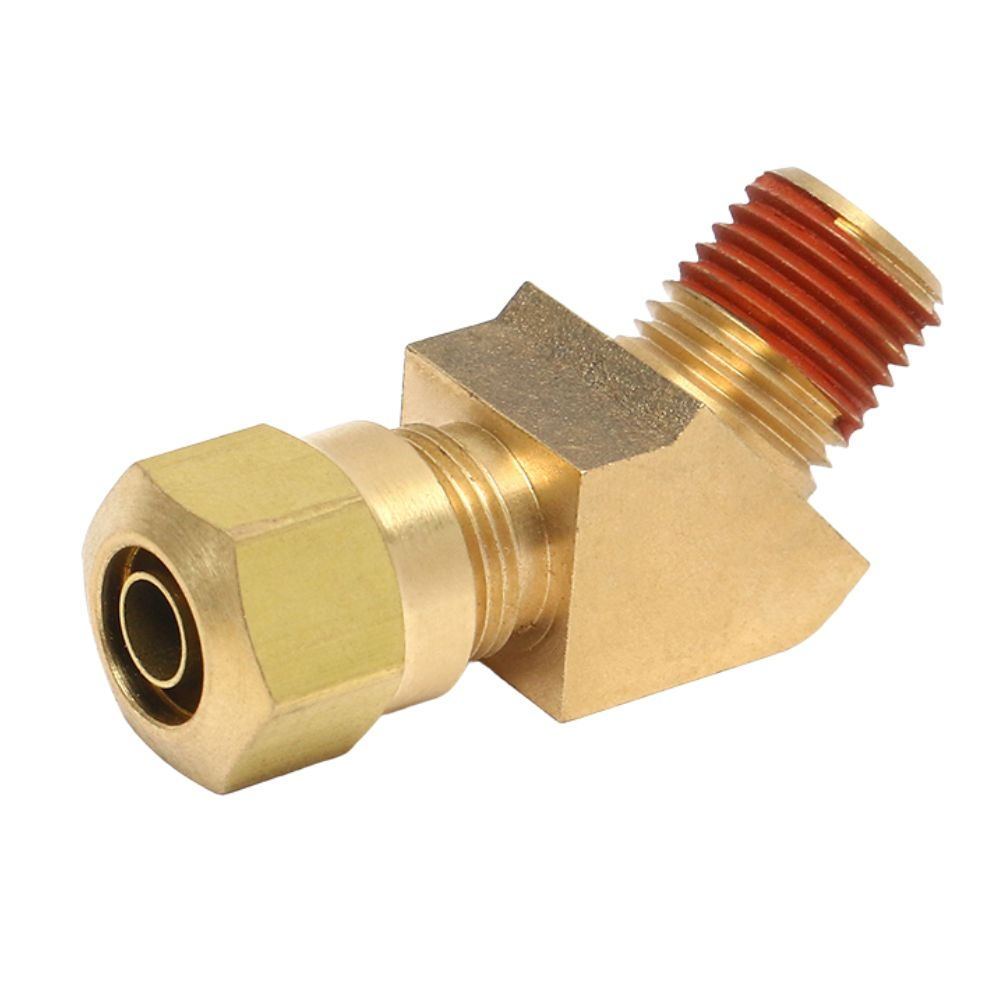

Brass DOT Compression Fittings - Nylon Tubing 45° Elbow Video

This video shows the information on the male 45° elbow brass dot compression fittings.

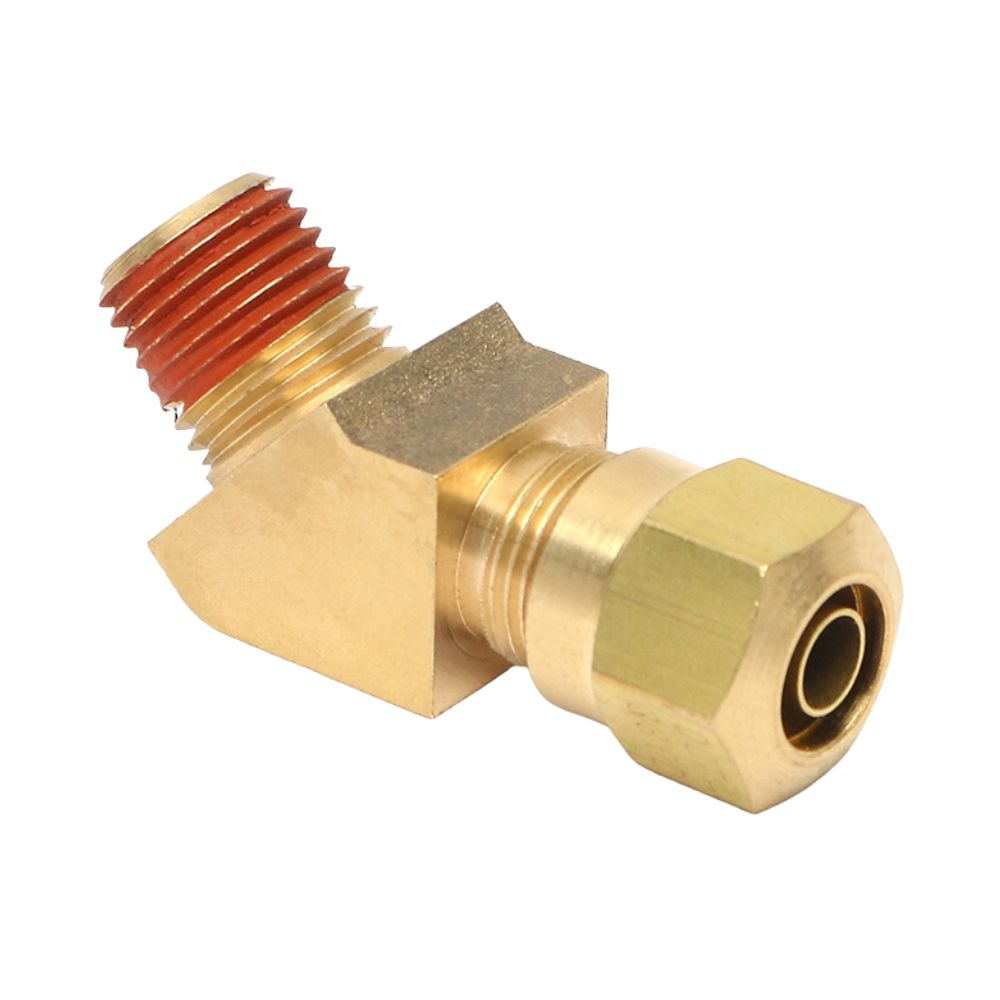

Additionally, brass male 45° elbows can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the dot approved brake line compression fittings.
