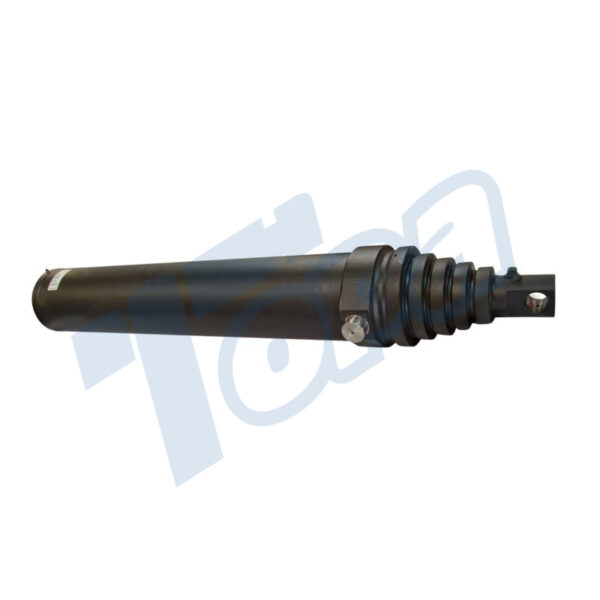

5 Stage Hydraulic Dump Cylinder

Nested Barrels: It has five telescoping barrels, each nested within the other. This design allows the cylinders to maintain a compact size when retracted while extending significantly.

Rods: These rods are interconnected to ensure synchronized, smooth movement at all levels.

Seals: To prevent leakage and maintain pressure, each stage is fitted with robust seals.

Hydraulic Chambers: Separate chambers in each cylinder control extension and retraction by hydraulic fluid pressure.

Sturdy Mounting Points: The cylinders are fitted with sturdy mounting points to ensure they are securely mounted on dump trucks or other machinery.

Barrel: The external enclosure protects the internal components from damage and external elements.

Ports: These ports allow hydraulic fluid to flow efficiently into and out of the cylinder and are critical to its operation.

Description

The 5 stage hydraulic dump cylinder can be extended in five stages to reach the tipping height. When retracted, it is compact and takes up minimal space, making it ideal for size-constrained equipment.

The hydraulic tipping cylinder operates with a focus on smooth and precise movement to ensure safe and efficient dumping of materials. It has a sturdy, professional appearance with distinct phases that demonstrate its retracting capabilities.

The cylinder efficiently converts hydraulic power into mechanical force, ensuring maximum productivity with minimum wasted energy. All in all, the 5 stage hydraulic cylinder stands out for its large extension range, compact design when retracted and robust construction.

Advantages

Extended Reach: Its five stages allow for a significant extension, ideal for reaching higher heights for dumping.

High Lifting Power: Capable of handling heavy loads, essential for demanding lifting tasks.

Smooth Operation: Designed for controlled and stable movement, enhancing precision and safety.

Durable Build: Constructed to withstand tough conditions, ensuring longevity and reliability.

Efficient Performance: Converts hydraulic power into mechanical force efficiently, maximizing productivity.

Applications

Construction Equipment: Used in heavy-duty construction vehicles for transporting and dumping materials like soil and gravel.

Waste Management: Ideal for garbage trucks, facilitating efficient waste collection and disposal.

Mining Operations: Essential in mining dump trucks for handling and transporting large quantities of earth and ore.

Agricultural Machinery: Utilized in large-scale farming equipment for tasks such as soil movement and crop handling.

Industrial Manufacturing: Applied in manufacturing settings for material handling and transportation.

5 Stage Hydraulic Dump Cylinder

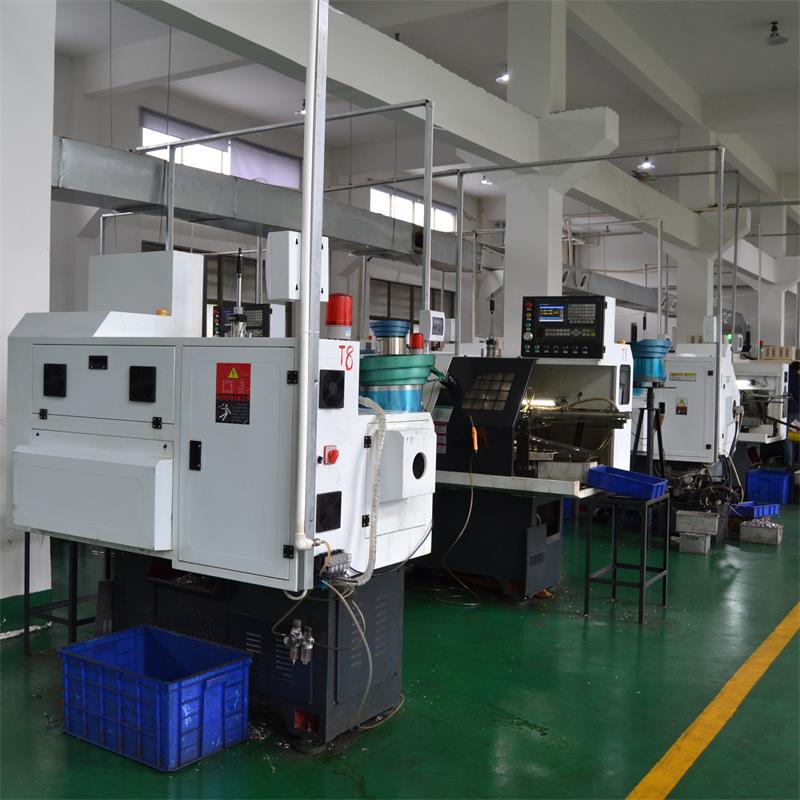

The core process of the Topa Manufacturing 5 Hydraulic Dumper Cylinder is the use of state-of-the-art CNC machines to ensure that every part of the cylinder is manufactured to exacting specifications. In addition, we only use high quality materials, often robust steel. This ensures that the cylinders are able to withstand high pressures and harsh working conditions, ensuring longevity and reliability even in demanding environments.

Each cylinder is rigorously tested to ensure perfect operation under all conditions. We specialize in manufacturing cylinders that are not only efficient, but also reliable and durable. This makes Topa cylinders the first choice for industries such as construction, waste management and mining.

Customers who choose Topa will benefit from hydraulic cylinders that deliver superior performance and improved operational efficiency. You are welcome to order hydraulic cylinders from Topa.

Topa's Customized Services

Topa’s custom 5-stage hydraulic cylinders offer a number of unique advantages that make them an excellent choice for specific needs:

Customized design: We design each cylinder to meet the specific requirements of our customers, ensuring a perfect fit for their unique application.

Material Selection: Based on the intended use, we select the materials with the best durability and performance to ensure that the cylinders will stand up to the rigors of demanding conditions.

Advanced Manufacturing: We utilize state-of-the-art CNC technology, which is critical to the efficient and smooth operation of our cylinders.

Wide range of applications: Our products are used in a variety of industries, from construction to waste management, ensuring that our cylinders meet a wide range of operational needs.

Rigorous Testing: Each customized cylinder undergoes extensive testing. This includes pressure and leakage tests to ensure top quality and reliability.

Customer Involvement: We involve our customers in every stage of the process, from design to testing, to ensure that their needs are fully met and their expectations are exceeded.

Topa not only provides products, but also customized solutions to improve the efficiency and effectiveness of our customers’ operations. Feel free to contact us!



Other Products

Contact Topa for Hydraulic Cylinder Catalog!
