Description:

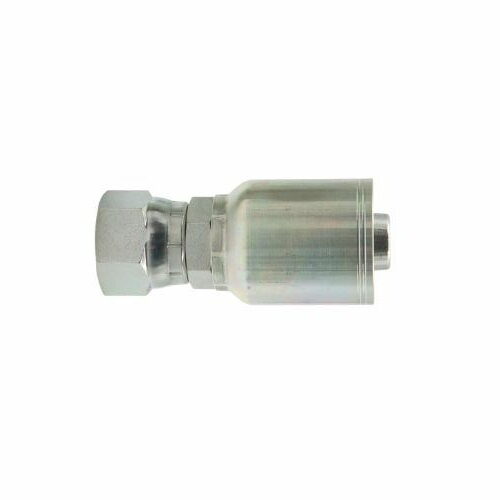

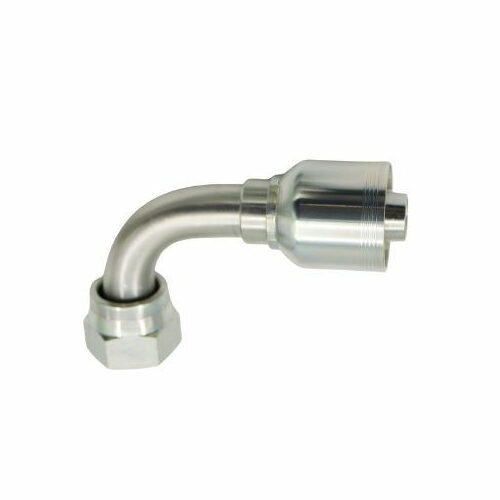

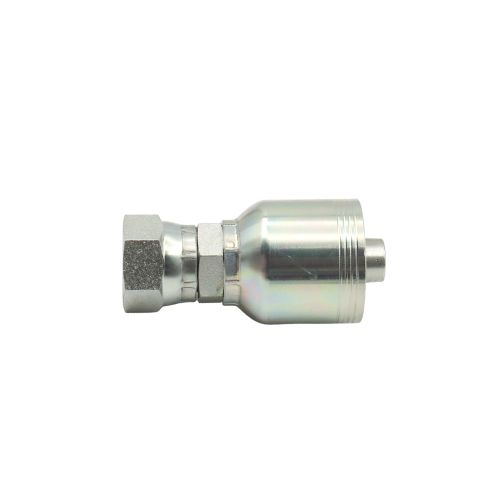

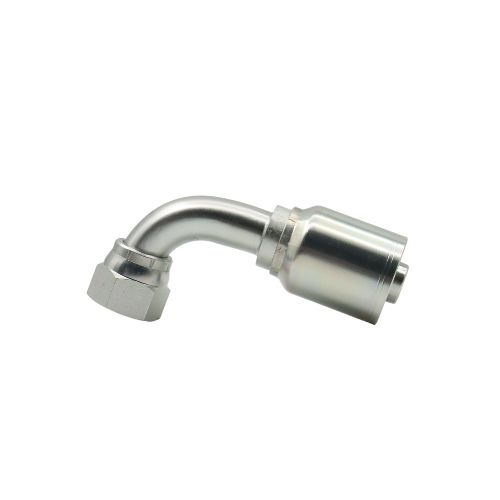

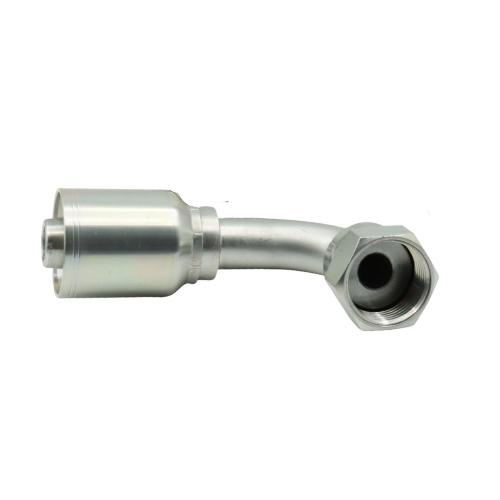

FFX hose fittings is crimp style hydraulic hose fitting 43 series. Our company can make different standards to match Parker, Eaton, Gates hydraulic hose, and so on.
The 43 Series hydraulic fittings are easy to assemble, have a wide selection of shapes and end forms, and are highly hose compatible.
If you want free samples, please contact us.
Features and Benefits:
• Corrosion resistant
• Strong seal
• Easy operation
• Quick assembly
• Carbon steel and stainless steel
Categories: hydraulic fittings, ORFS thread, Products
Part No. | 1- Hose Bore | 2- Thread | W- HEX (mm) | Dimensions | ||||
Size | Inch | DN | A(mm) | B(mm) | E(mm) | |||
TP43-04-04FF9 | 4 | 1/4″ | 6 | 9/16″-18 | 17.4 | 51 | 30 | 24 |
TP43-04-06FF9 | 4 | 1/4″ | 6 | 11/16″-16 | 20.6 | 51 | 30 | 26 |
TP43-04-08FF9 | 4 | 1/4″ | 6 | 13/16″-16 | 23.8 | 51 | 30 | 28 |
TP43-06-04FF9 | 6 | 3/8″ | 10 | 9/16″-18 | 17.4 | 69 | 42 | 25 |
TP43-06-06FF9 | 6 | 3/8″ | 10 | 11/16″-16 | 20.6 | 69 | 42 | 29 |
TP43-06-08FF9 | 6 | 3/8″ | 10 | 13/16″-16 | 23.8 | 69 | 42 | 29 |
TP43-08-06FF9 | 8 | 1/2″ | 12 | 11/16″-16 | 20.6 | 70 | 38 | 35 |
TP43-08-08FF9 | 8 | 1/2″ | 12 | 13/16″-16 | 23.8 | 70 | 38 | 35 |
TP43-08-10FF9 | 8 | 1/2″ | 12 | 1″-14 | 28.5 | 70 | 38 | 35 |
TP43-08-12FF9 | 8 | 1/2″ | 12 | 1.3/16″-12 | 34.9 | 70 | 38 | 35 |
TP43-10-08FF9 | 10 | 5/8″ | 16 | 13/16″-16 | 23.8 | 71 | 42 | 45 |
TP43-10-10FF9 | 10 | 5/8″ | 16 | 1″-14 | 28.5 | 71 | 42 | 45 |
TP43-10-12FF9 | 10 | 5/8″ | 16 | 1.3/16″-12 | 34.9 | 71 | 42 | 45 |
TP43-12-10FF9 | 12 | 3/4″ | 20 | 1″-14 | 28.5 | 101 | 61 | 50 |
TP43-12-12FF9 | 12 | 3/4″ | 20 | 1.3/16″-12 | 34.9 | 101 | 61 | 50 |
TP43-12-16FF9 | 12 | 3/4″ | 20 | 1.7/16″-12 | 41.2 | 101 | 61 | 50 |
TP43-16-12FF9 | 16 | 1″ | 25 | 1.3/16″-12 | 34.9 | 126 | 81 | 71 |
TP43-16-16FF9 | 16 | 1″ | 25 | 1.7/16″-12 | 41.2 | 126 | 81 | 71 |
TP43-16-20FF9 | 16 | 1″ | 25 | 1.11/16″-12 | 47.6 | 126 | 81 | 71 |
TP43-20-16FF9 | 20 | 1.1/4″ | 32 | 1.7/16″-12 | 41.2 | 140 | 93 | 78 |
TP43-20-20FF9 | 20 | 1.1/4″ | 32 | 1.11/16″-12 | 47.6 | 140 | 93 | 78 |
TP43-20-24FF9 | 20 | 1.1/4″ | 32 | 2″-12 | 57.1 | 140 | 93 | 78 |
TP43-24-24FF9 | 24 | 1.1/2″ | 40 | 2″-12 | 57.1 | 151 | 91 | 80 |

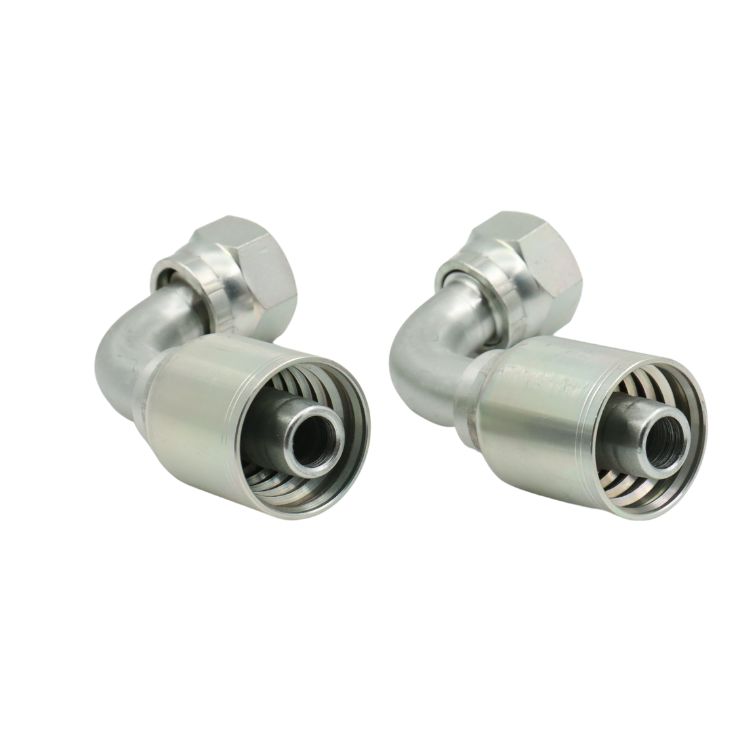

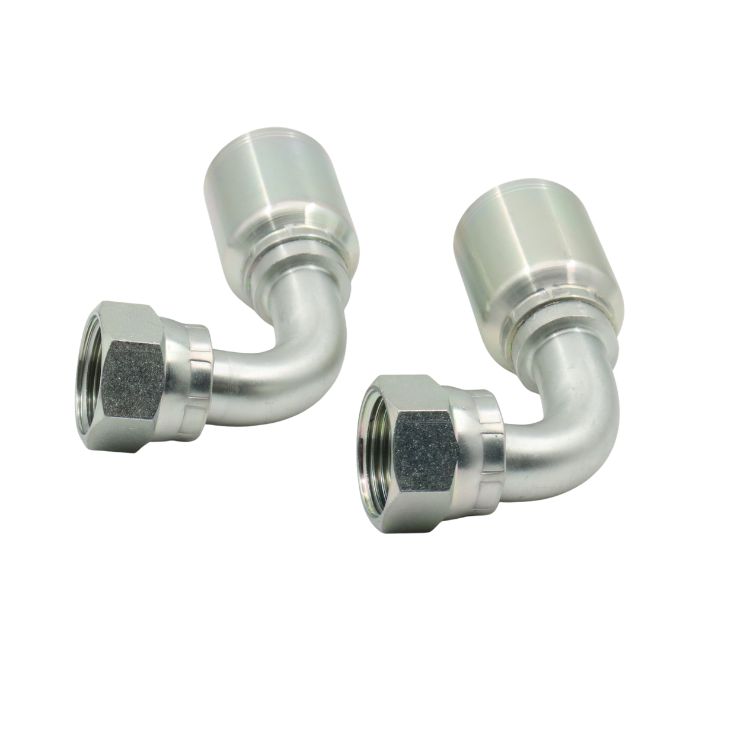

This video is about the infomation of 1J943 ORFS hydraulic one-piece fitting. 1J943 ORFS one-piece hydraulic fittings have many different sizes and dimensions, they can used to connect hydraulic hoses and pipes. If you need more information, please contact us.
