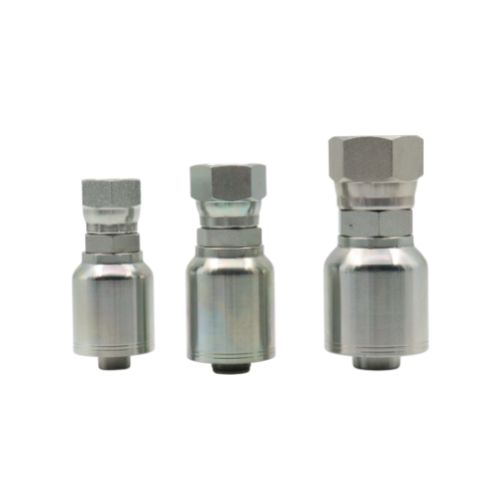

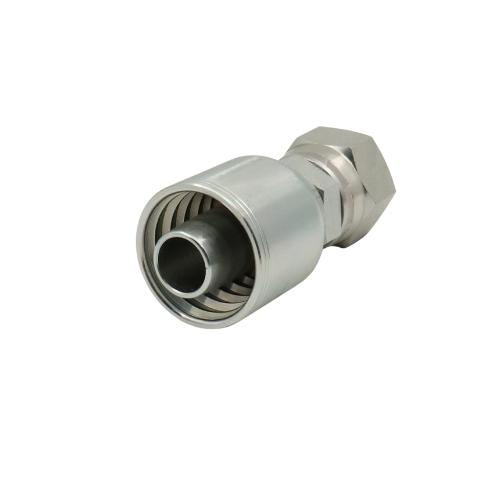

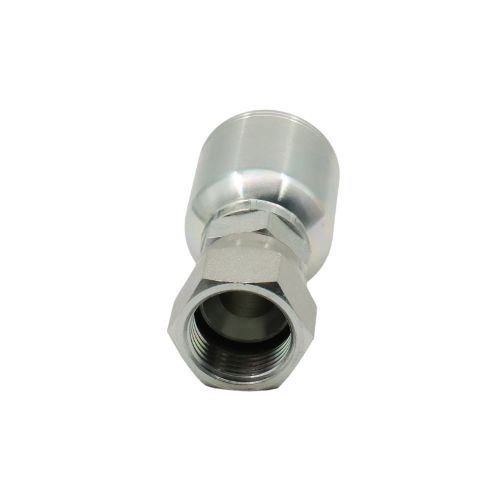

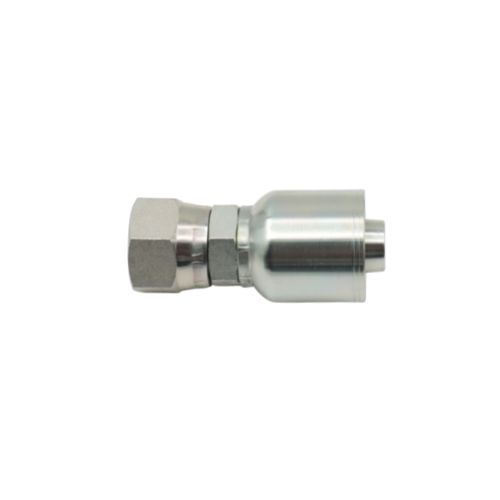

TP-10643 JIC hydraulic fitting
Description:
FJX hose fittings is 43 Series crimp-style hydraulic fittings,37 deg Female JIC Swivel. We could make different standards to match Parker, Eaton, Gates hydraulic hose, and so on.
It is the best sell in the North American market. If you want free samples, please contact us.
Features and Benefits:
• No skive
• Zero leak
• Easy and efficient
• Quick assembly
• Carbon steel and stainless steel
Categories: hydraulic flanges, JIC thread, Products
Part No. | 1- Hose Bore | 2- Thread | W- HEX | Dimensions | ||||
Size | Inch | DN | A(mm) | B(mm) | H(mm) | |||
TP43-04-04FJX | 4 | 1/4″ | 6 | 7/16″-20 | 14.2 | 41 | 21 | 14.2 |
TP43-04-05FJX | 4 | 1/4″ | 6 | 1/2″-20 | 14.2 | 42 | 22 | 14.2 |
TP43-04-06FJX | 4 | 1/4″ | 6 | 9/16″-18 | 17.4 | 42 | 22 | 14.2 |
TP43-05-05FJX | 5 | 5/16″ | 8 | 1/2″-20 | 14.2 | 44 | 22 | 17.4 |
TP43-05-06FJX | 5 | 5/16″ | 8 | 9/16″-18 | 17.4 | 44 | 22 | 17.4 |
TP43-06-06FJX | 6 | 3/8″ | 10 | 9/16″-18 | 17.4 | 50 | 23 | 17.4 |
TP43-06-08FJX | 6 | 3/8″ | 10 | 3/4″-16 | 22.2 | 50 | 23 | 17.4 |
TP43-06-10FJX | 6 | 3/8″ | 10 | 7/8″-14 | 25.4 | 50 | 23 | 22.2 |
TP43-08-08FJX | 8 | 1/2″ | 12 | 3/4″-16 | 22.2 | 54 | 23 | 22.2 |
TP43-08-10FJX | 8 | 1/2″ | 12 | 7/8″-14 | 25.4 | 55 | 24 | 22.2 |
TP43-10-10FJX | 10 | 5/8″ | 16 | 7/8″-14 | 25.4 | 63 | 25 | 22.2 |
TP43-10-12FJX | 10 | 5/8″ | 16 | 1.1/16″-12 | 31.7 | 65 | 27 | 26.9 |
TP43-12-12FJX | 12 | 3/4″ | 20 | 1.1/16″-12 | 31.7 | 66 | 27 | 26.9 |
TP43-16-16FJX | 16 | 1″ | 25 | 1.5/16″-12 | 34.9 | 78 | 33 | 38.1 |
TP43-16-20FJX | 16 | 1″ | 25 | 1.5/8″-12 | 50.8 | 80 | 34 | 41.2 |
TP43-20-20FJX | 20 | 1.1/4″ | 32 | 1.5/8″-12 | 50.8 | 82 | 35 | 47.6 |
TP43-24-24FJX | 24 | 1.1/2″ | 40 | 1.7/8″-12 | 53.9 | 102 | 43 | 53.9 |
TP43-32-32FJX | 32 | 2″ | 50 | 2.1/2″-12 | 73 | 126 | 55 | 63.5 |
JIC 10643 one-piece hydraulic fitting
10643 JIC one-piece hydraulic fittings have many different sizes, they can used in lots of applications.If you need more information, please contact us.
