Description:

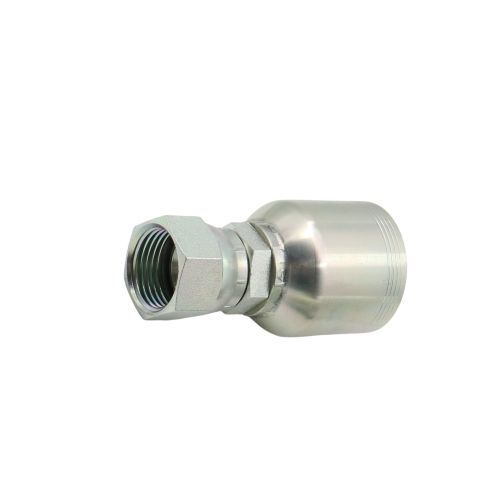

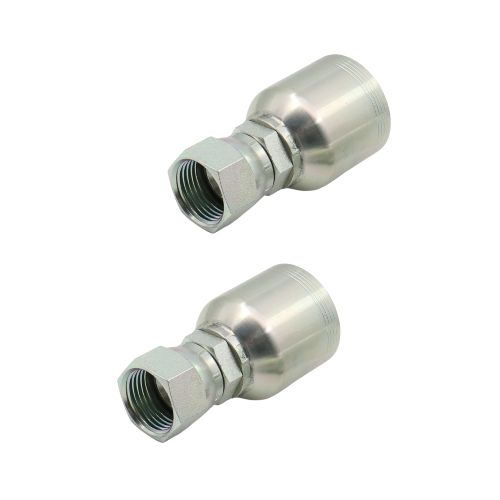

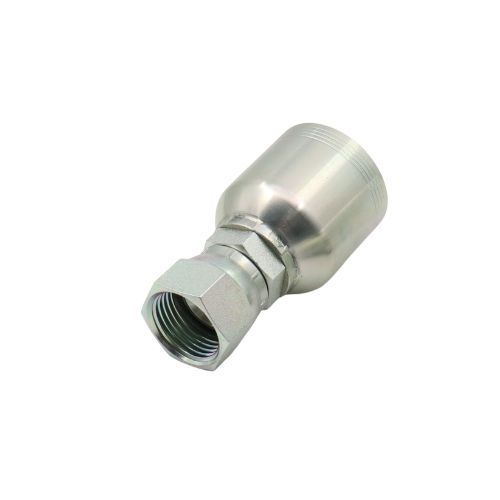

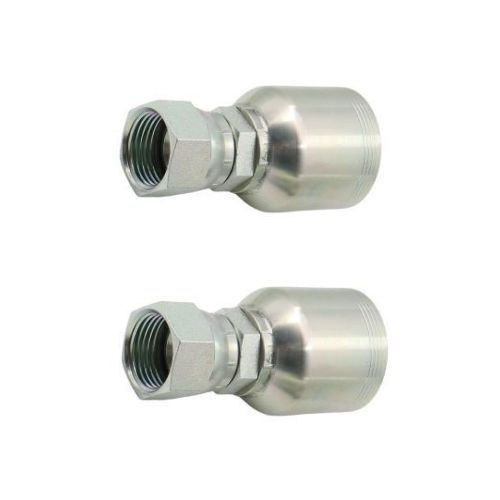

Series 71 fittings are permanent nibbled fittings that can be assembled quickly, easily and in a time-saving manner. 71 Series fittings are compatible with hydraulic industry standards, constant working pressures and phosphate ester hoses. 71 Series fittings are available in a variety of end configurations from 3/8″ to 2″.
If you want free samples, please contact us.
Features and Benefits:
• Save time
• Zero leak
• Efficient
• Quick assembly
• Carbon steel and stainless steel
Categories: hydraulic flanges, JIC thread, Products
Part No. | 1- Hose Bore | 2- Thread | W- HEX | Dimensions | ||||
Size | Inch | DN | A(mm) | B(mm) | H(mm) | |||
TP71-06-06FJX | 6 | 3/8″ | 10 | 9/16″-18 | 17.4 | 51 | 23 | 17.4 |
TP71-06-08FJX | 6 | 3/8″ | 10 | 3/4″-16 | 22.2 | 51 | 23 | 17.4 |
TP71-06-10FJX | 6 | 3/8″ | 10 | 7/8″-14 | 25.4 | 51 | 23 | 22.2 |
TP71-08-08FJX | 8 | 1/2″ | 12 | 3/4″-16 | 22.2 | 54 | 23 | 22.2 |
TP71-08-10FJX | 8 | 1/2″ | 12 | 7/8″-14 | 25.4 | 56 | 24 | 22.2 |
TP71-12-12FJX | 12 | 3/4″ | 20 | 1.1/16″-12 | 31.7 | 67 | 27 | 26.9 |
TP71-16-16FJX | 16 | 1″ | 25 | 1.5/16″-12 | 34.9 | 79 | 33 | 38.1 |
TP71-20-16FJX | 16 | 1″ | 25 | 1.5/8″-12 | 50.8 | 82 | 34 | 41.2 |
TP71-20-20FJX | 20 | 1.1/4″ | 32 | 1.5/8″-12 | 50.8 | 82 | 35 | 47.6 |
TP71-24-24FJX | 24 | 1.1/2″ | 40 | 1.7/8″-12 | 53.9 | 102 | 43 | 53.9 |
TP71-32-32FJX | 32 | 2″ | 50 | 2.1/2″-12 | 73 | 126 | 55 | 63.5 |
If you need more information about our 10671 JIC one-piece hydraulic fittings, or if you would like to request free samples, please do not hesitate to contact us. Our expert team is always available to provide personalized assistance and answer any questions you may have.
Thank you for considering Topa for your hydraulic fitting needs. We are committed to delivering high-quality products and exceptional customer service to ensure your complete satisfaction.
