Description

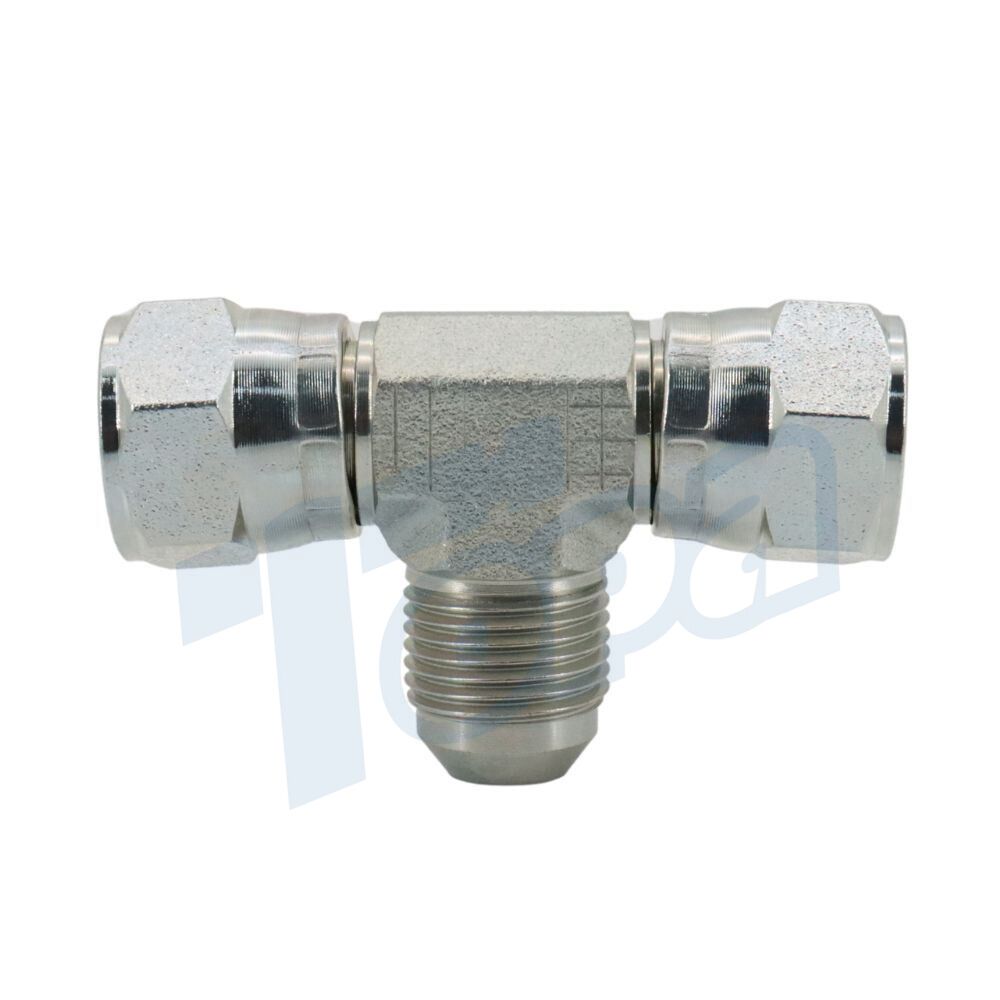

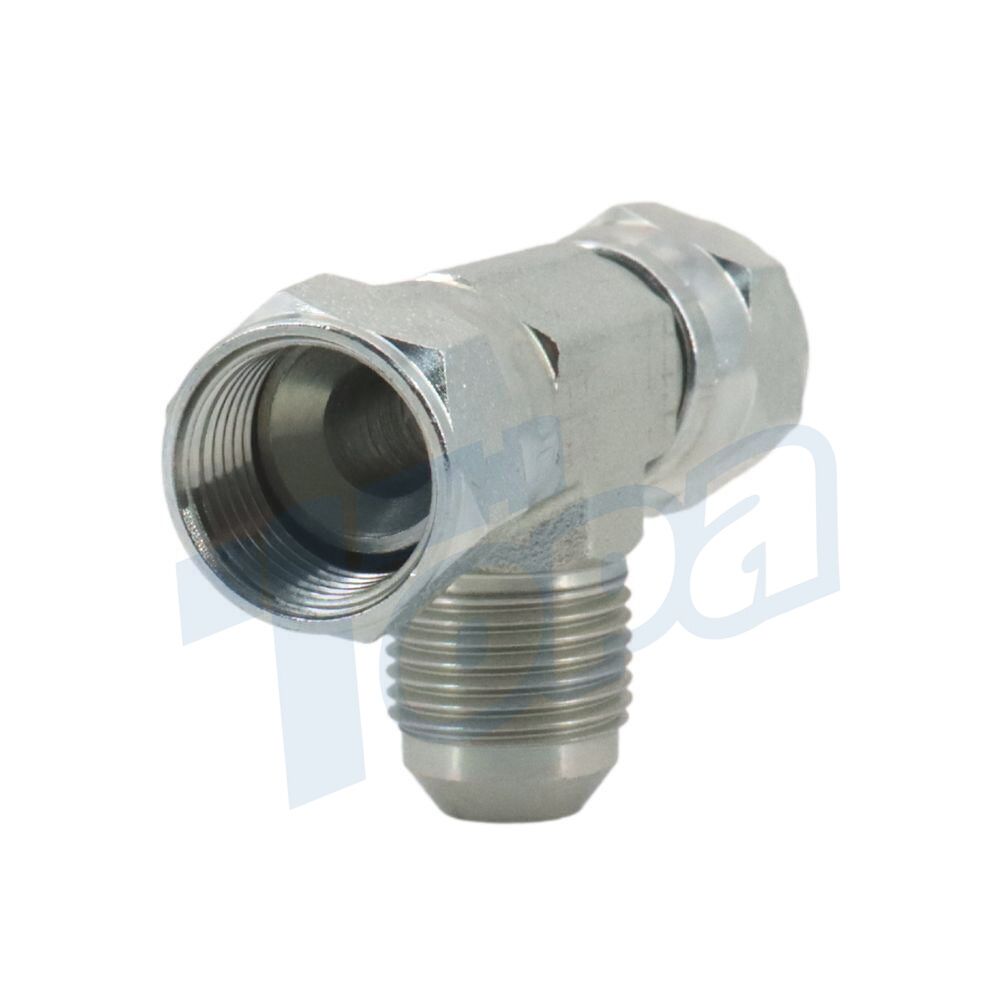

JIC Branch T Hydraulic Fitting

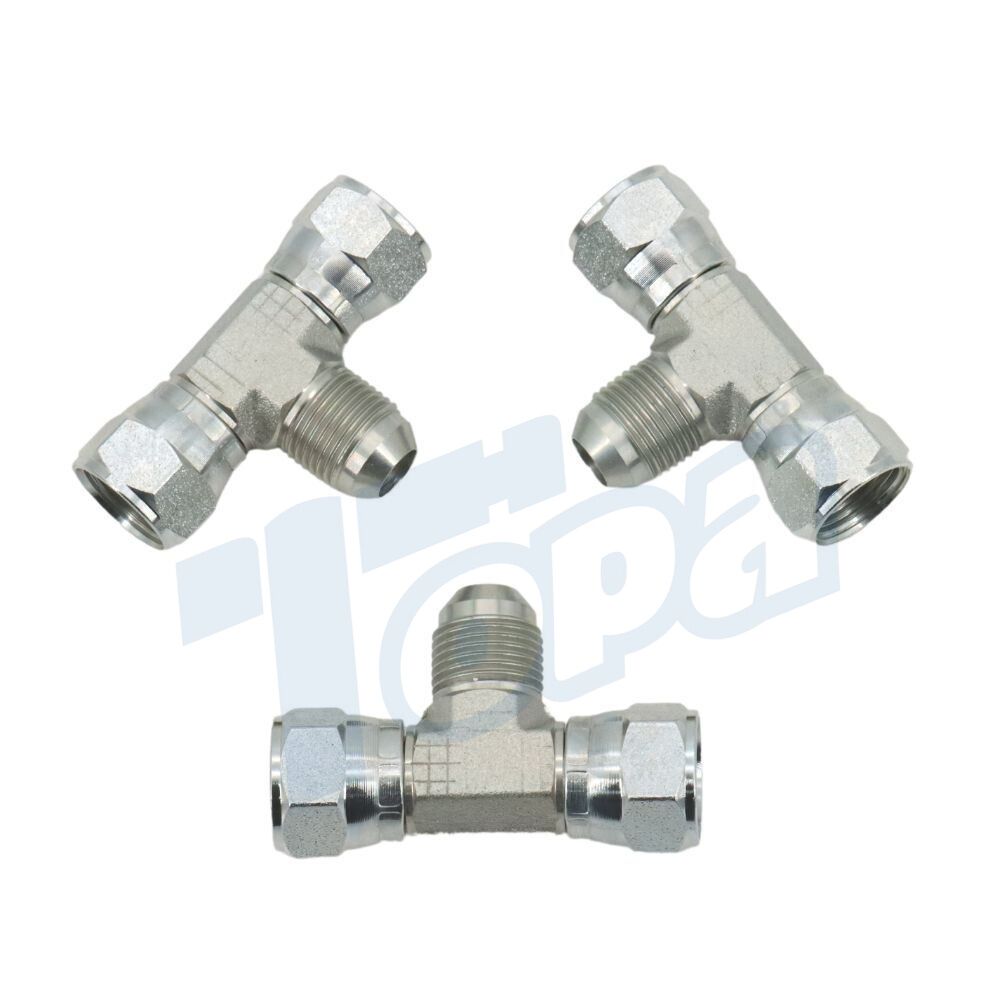

6603 hydraulic swivel nut branch tee fittings are JIC tee hydraulic adapters. They are made of best-quality carbon steel, steel, and stainless steel, strength, and reliability. If you need more information about JIC fittings, please contact us!

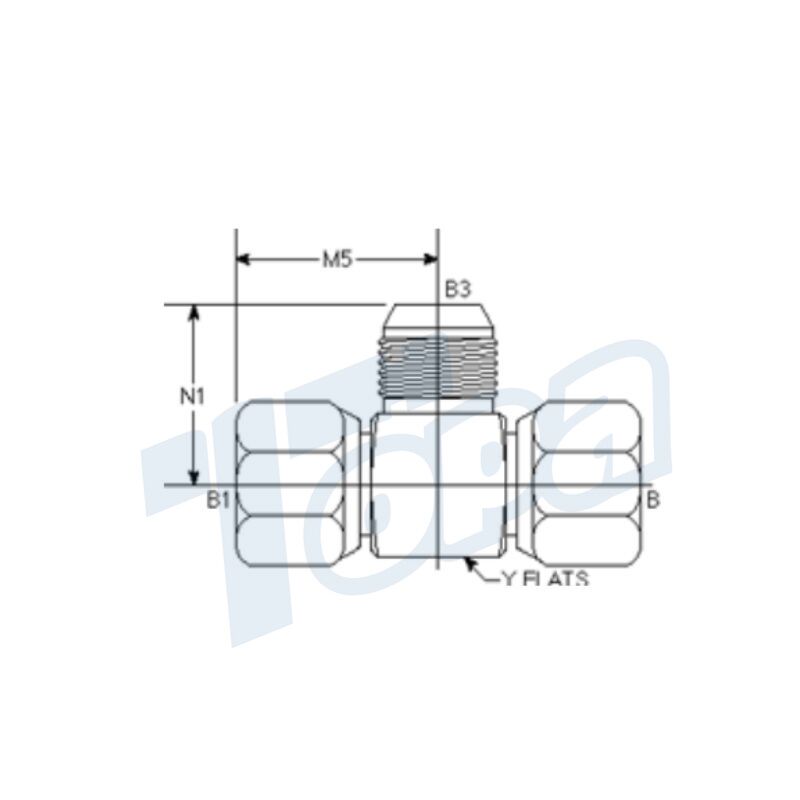

Dimensional Drawings:
Part# | TUBE | B1 SAE 37 | B2 SAE 37 | B3 SAE 37 | M5 | M.M. | N1 | M.M. | Y | Y | M.M. |
6603-04-04-04 | 1/4 | 7/16-20 | 7/16-20 | 7/16-20 | 0.997 | 25.32 | 0.889 | 22.58 | 1/2 | 0.500 | 12.70 |
6603-08-08-08 | 1/2 | 3/4-16 | 3/4-16 | 3/4-16 | 1.380 | 35.05 | 1.250 | 31.75 | 13/16 | 0.812 | 20.62 |
6603-10-10-10 | 5/8 | 7/8-14 | 7/8-14 | 7/8-14 | 1.550 | 39.37 | 1.457 | 37.01 | 15/16 | 0.937 | 23.81 |
6603-12-12-12 | 3/4 | 11/16-12 | 11/16-12 | 11/16-12 | 1.750 | 44.45 | 1.660 | 42.16 | 1 1/8 | 1.125 | 28.58 |
6603-16-16-16 | 1 | 15/16-12 | 15/16-12 | 15/16-12 | 2.010 | 51.05 | 1.794 | 45.57 | 1 3/8 | 1.375 | 34.93 |
6603 JIC Swivel T Hydraulic Fitting Video
As a hydraulic adapters manufacturer, Topa can supply hydraulic fittings in various sizes. Our products can be used in multiple hydraulic fluid environments, and are resistant to high pressure and temperature.
Topa’s factory has several CNC machines to produce fittings strictly according to your data. Our JIC hydraulic swivel t fittings will undergo strict quality inspection to ensure the product meets your usage requirements.
If you want more information about hydraulic tube fittings, please contact us!
