JIC Hydraulic T Fittings

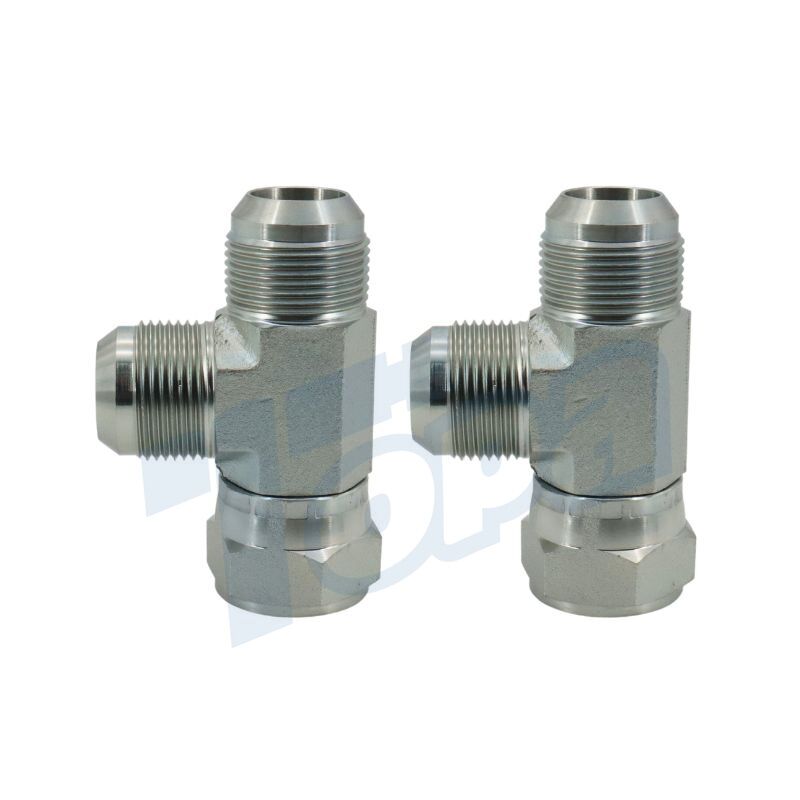

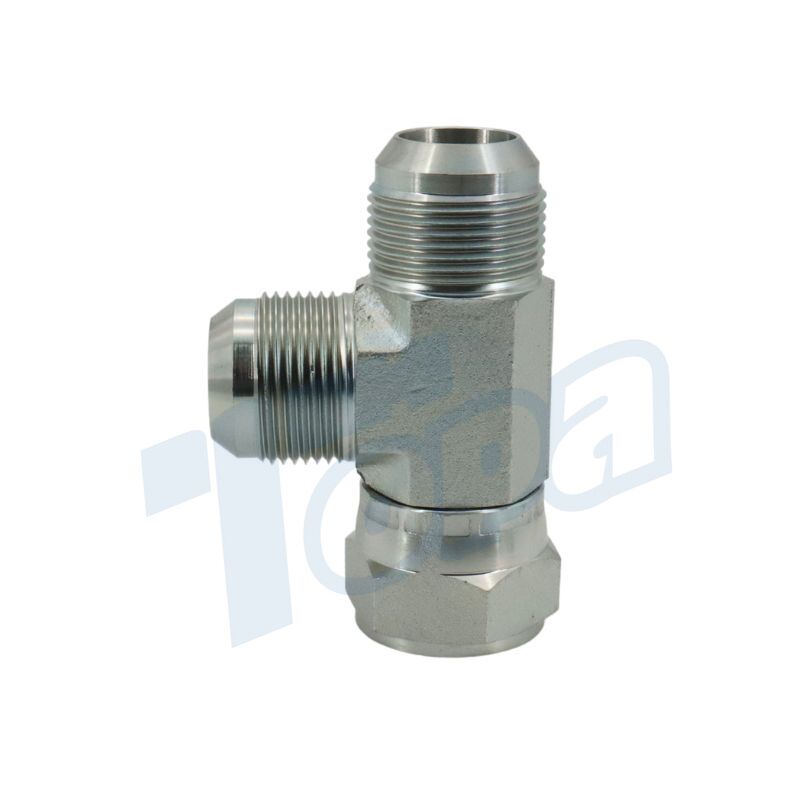

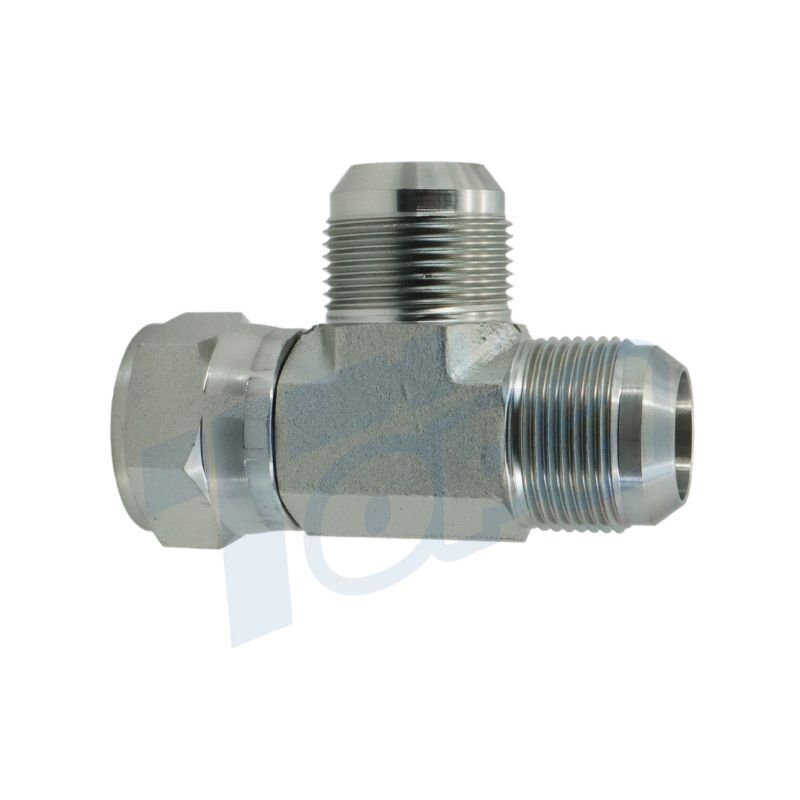

6602 hydraulic swivel nut run tee fittings are JIC tee hydraulic adapters. They are made of best-quality carbon steel, steel, and stainless steel, strength, and reliability. If you need more information about JIC swivel nut fittings, please contact us!

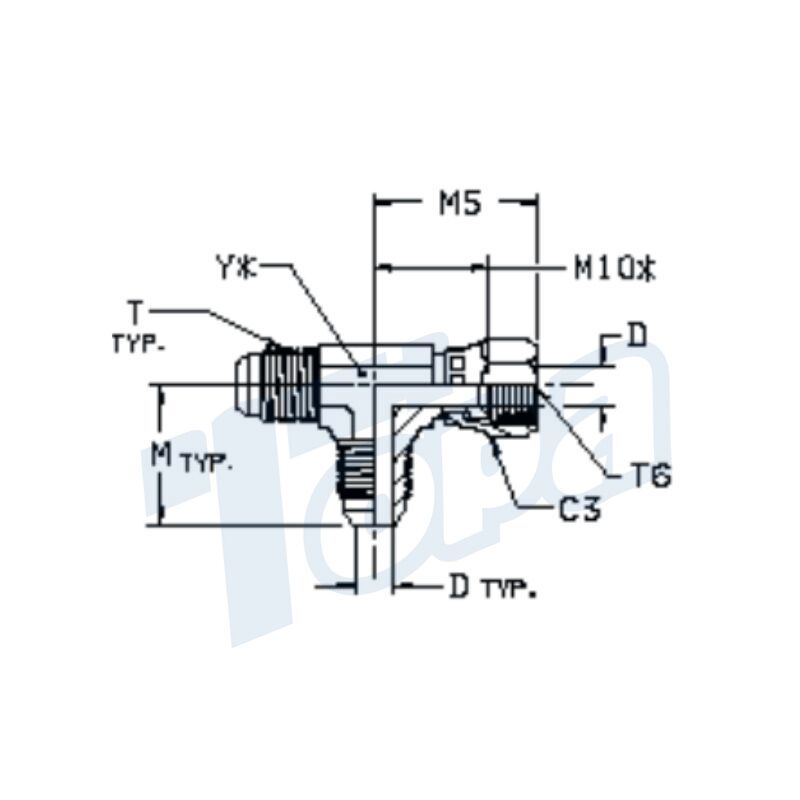

Dimensional Drawings:
HOSE FITTING PART # | TUBE O.D. (inch) | T TUBE END UN/UNF-2A | T6 SWIVEL UN/UNF-2B | C3 HEX (inch) | D DRILL (inch) | M (inch) | M5 (inch) | M10 (inch) | Y (inch) |
6602-4-4-4 | 1/4 | 7/16-20 | 7/16-20 | 9/16 | 0.172 | 0.89 | 1.00 | 0.66 | 7/16 |
6602-5-5-5 | 5/16 | 1/2-20 | 1/2-20 | 5/8 | 0.234 | 0.95 | 1.06 | 0.78 | 9/16 |
6602-6-6-6 | 3/8 | 9/16-18 | 9/16-18 | 11/16 | 0.297 | 1.06 | 1.25 | 0.88 | 9/16 |
6602-8-8-8 | 1/2 | 3/4-16 | 3/4-16 | 7/8 | 0.391 | 1.25 | 1.38 | 0.95 | 3/4 |
6602-10-10-10 | 5/8 | 7/8-14 | 7/8-14 | 1 | 0.484 | 1.45 | 1.62 | 1.13 | 7/8 |
6602-12-12-12 | 3/4 | 11/16-12 | 11/16-12 | 1 1/4 | 0.609 | 1.66 | 1.75 | 1.19 | 11/16 |
6602-14-14-14 | 7/8 | 13/16-12 | 13/16-12 | 1 3/8 | 0.718 | 1.80 | 1.78 | 1.33 | 15/16 |
6602-16-16-16 | 1 | 15/16-12 | 15/16-12 | 1 1/2 | 0.844 | 1.81 | 2.00 | 1.41 | 5/16 |
6602-20-20-20 | 1 1/4 | 1 5/8-12 | 1 5/8-12 | 2 | 1.078 | 2.06 | 2.31 | 1.69 | 1 5/8 |
6602-24-24-24 | 1 1/2 | 1 7/8-12 | 1 7/8-12 | 2 1/4 | 1.312 | 2.33 | 2.59 | 1.86 | 1 7/8 |
6602 JIC Swivel Hydraulic T Fittings Video
As a hydraulic adapters manufacturer, Topa can supply hydraulic fittings in various sizes. Our products can be used in multiple hydraulic fluid environments, and are resistant to high pressure and temperature.
Topa’s factory has several CNC machines to produce fittings strictly according to your data. Our JIC hydraulic swivel t fittings will undergo strict quality inspection to ensure the product meets your usage requirements.
If you want more information about hydraulic tube fitting, please contact us!
