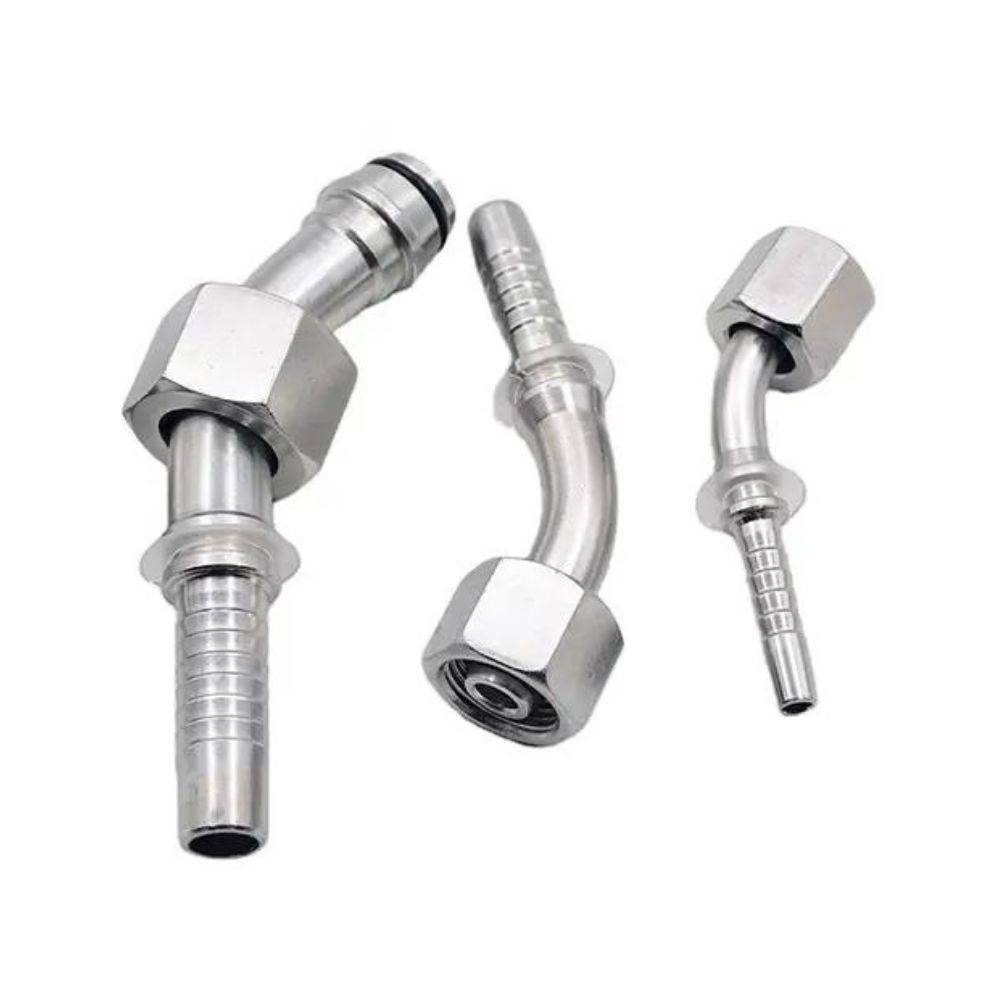

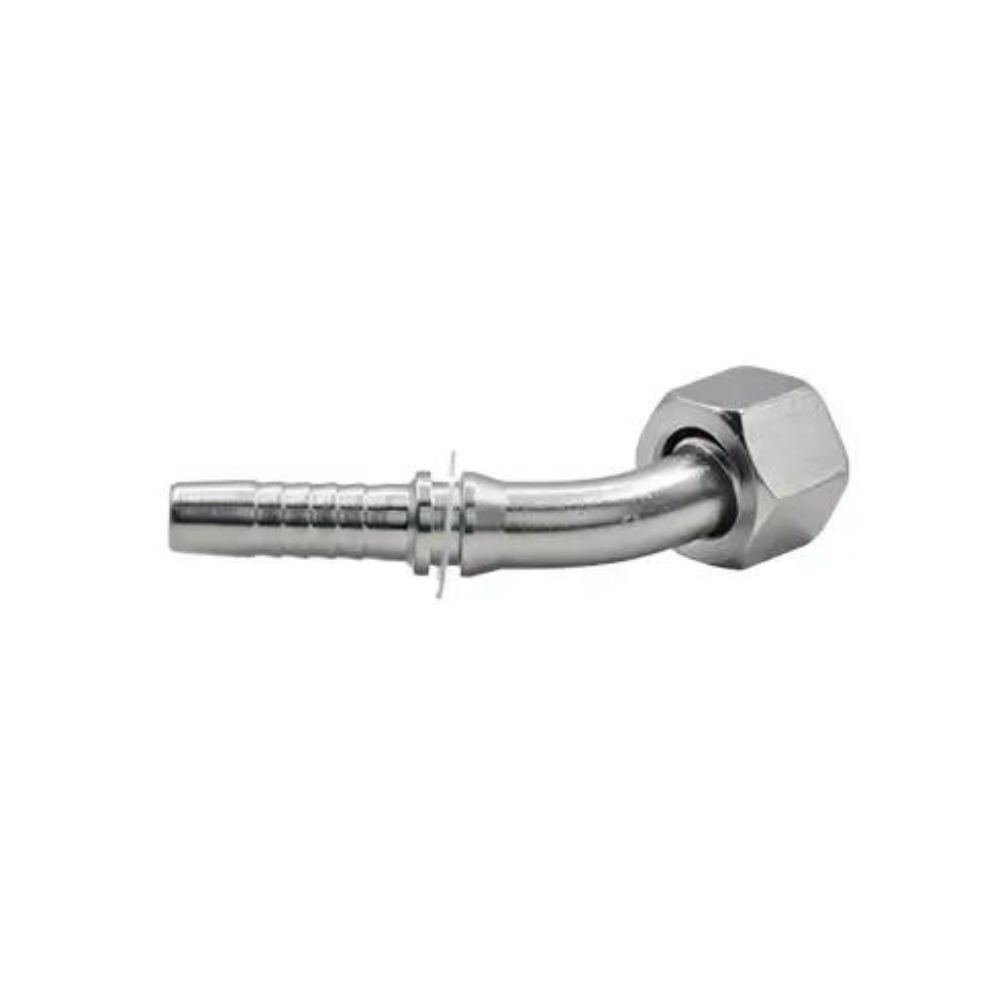

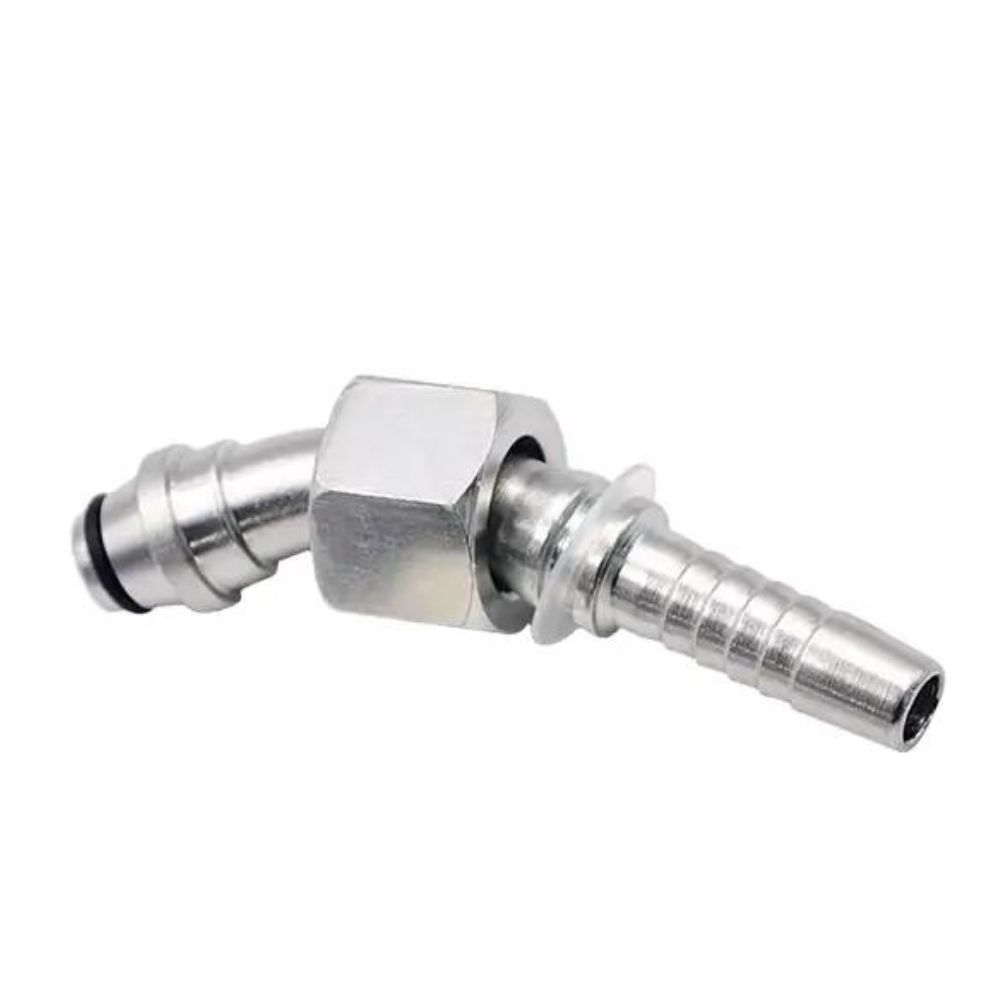

20541 Metric Hydraulic Hose Fitting-45° Female 24° Cone H.T.

Metric Hydraulic Hose Fitting

Description:

20541 45-degree elbow female 24-degree cone H.T. hydraulic hose fitting has a female metric thread that can be screwed onto other fittings, and it has an o-ring that can create a leak-free seal.

The heavy-type fittings are designed for use in high-pressure applications and are constructed with thicker walls and stronger materials to withstand the stresses and forces of hydraulic systems.

Feel free to ask if you have any questions about the hydraulic metric fitting adapter.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

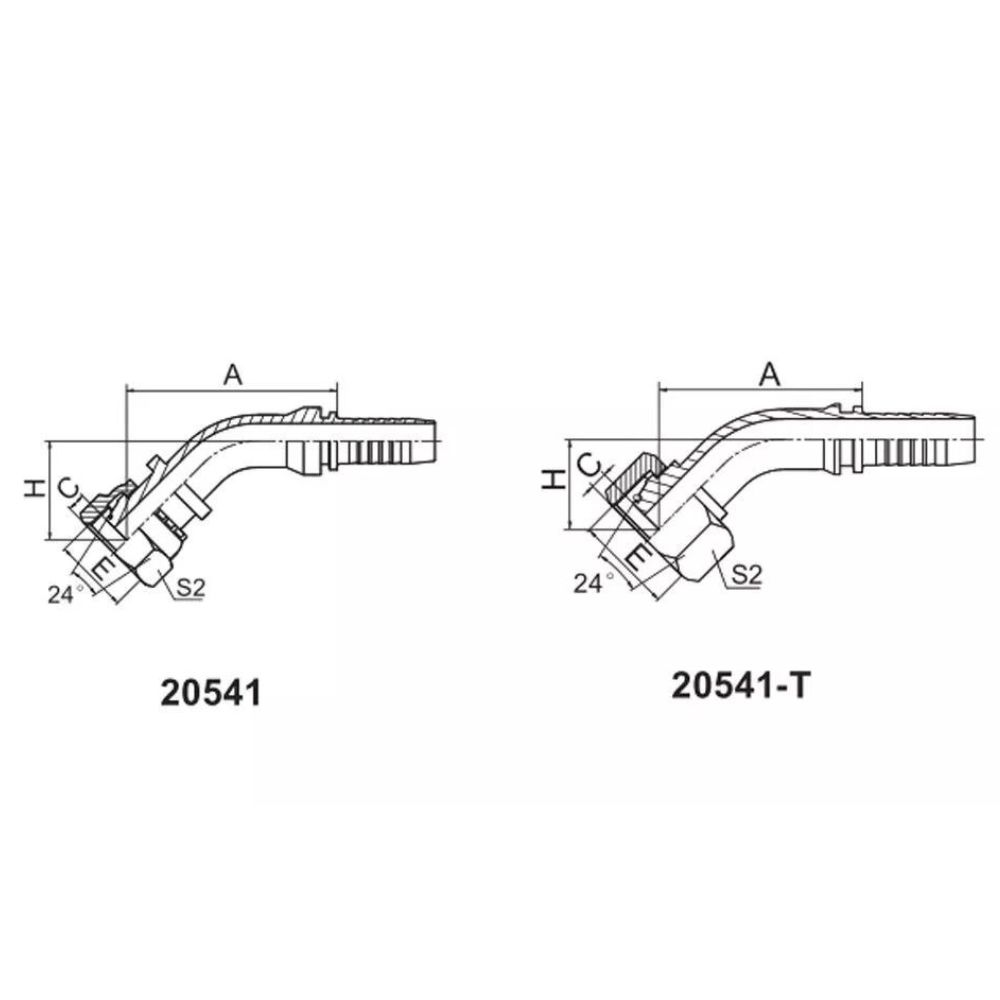

E	HOSE BORE			DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	C	H	S
20541-14-04	M14X1.5	6	04	6	1.1	28	19
20541-16-04	M16X1.5	6	04	8	1.5	28.3	22
20541-16-05	M16X1.5	8	05	8	1.5	28.9	22
20541-20-08	M20X1.5	12	08	12	2.5	32.8	27
20541-18-04T	M18X1.5	6	04	10	2	22	22.3
20541-20-05T	M20X1.5	8	05	12	2.5	24	24.3
20541-20-06T	M20X1.5	10	06	12	2.5	24	25
20541-22-06T	M22X1.5	10	06	14	2.5	27	25.3
20541-22-08	M22X1.5	12	08	14	2.5	33.2	27
20541-24-08T	M24X1.5	12	08	16	3	30	27.5
20541-24-10	M24X1.5	16	10	16	2.5	35.9	30
20541-30-12	M30X2	20	12	20	3	42.4	36
20541-36-12T	M36X2	20	12	25	3	41	34.6
20541-42-16T	M42X2	25	16	30	5	50	36.8
20541-52-20T	M52X2	32	20	38	6.5	60	41.2

20541 45° Female 24° Cone H.T. Metric Hydraulic Hose Fittings Video

This video shows information about 20541 24° cone seat H.T. metric hydraulic hose fitting.

The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems,industrial machinery, and construction equipment.

If you have any questions about metric hydraulic hose fittings, please contact us.
