Description

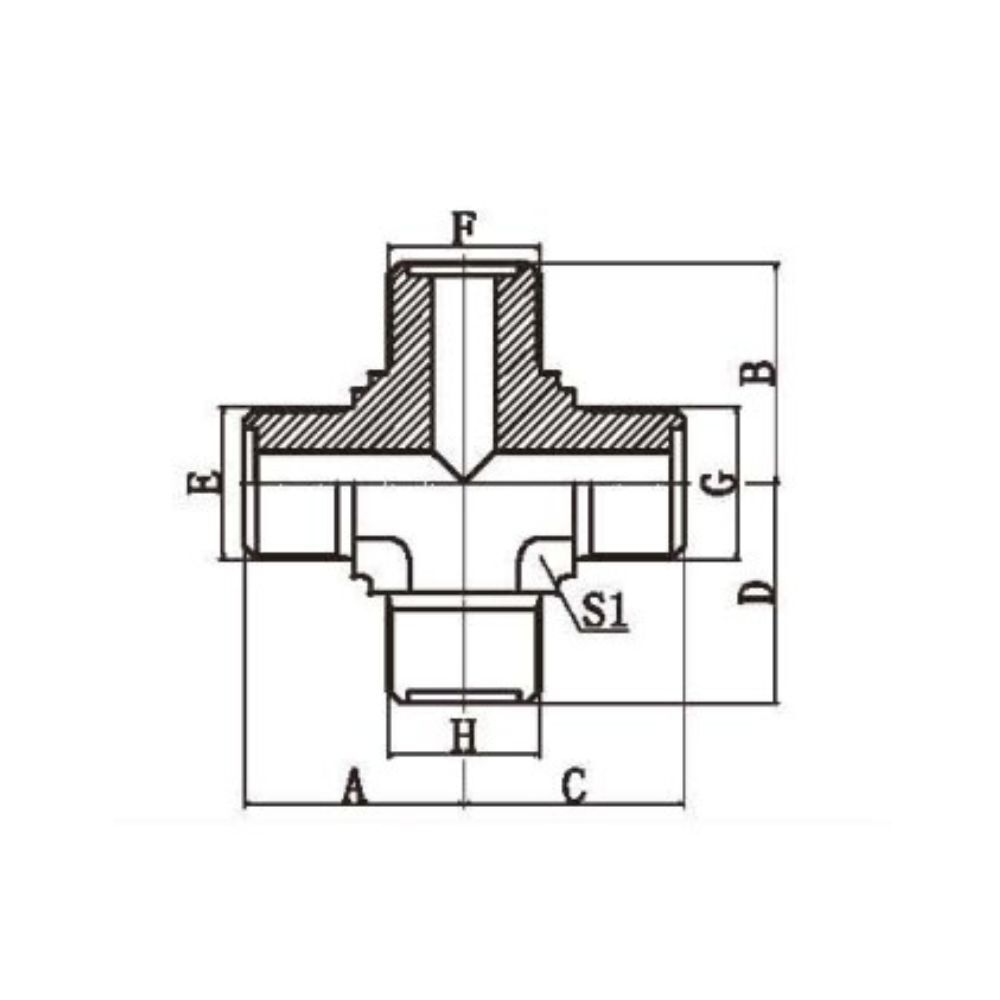

THREAD | O-RING | DIMENSIONS | |||||
PART NO. | EFGH | EFGH | A | B | C | D | S1 |
XE-14 | M14X1.5 | 10X1.9 | 22.5 | 22.5 | 22.5 | 22.5 | 14 |
XE-16 | M16X1.5 | 11X1.9 | 24 | 24 | 24 | 24 | 17 |
XE-18 | M18X1.5 | 13X1.9 | 26 | 26 | 26 | 26 | 19 |
XE-22 | M22X1.5 | 16X2.4 | 29 | 29 | 29 | 29 | 22 |
XE-27 | M27X1.5 | 20X2.4 | 32.5 | 32.5 | 32.5 | 32.5 | 27 |
XE-30 | M30X1.5 | 24X2.4 | 35.5 | 35.5 | 35.5 | 35.5 | 30 |
XE-36 | M36X2 | 30X3.1 | 42 | 42 | 42 | 42 | 36 |
XE-39 | M39X2 | 32X3.1 | 47.5 | 47.5 | 47.5 | 47.5 | 41 |
XE-42 | M42X2 | 35X3.1 | 49.5 | 49.5 | 49.5 | 49.5 | 41 |
XE-45 | M45X2 | 38X3.1 | 52.5 | 52.5 | 52.5 | 52.5 | 46 |
XE-52 | M52X2 | 40X3.1 | 57 | 57 | 57 | 57 | 50 |

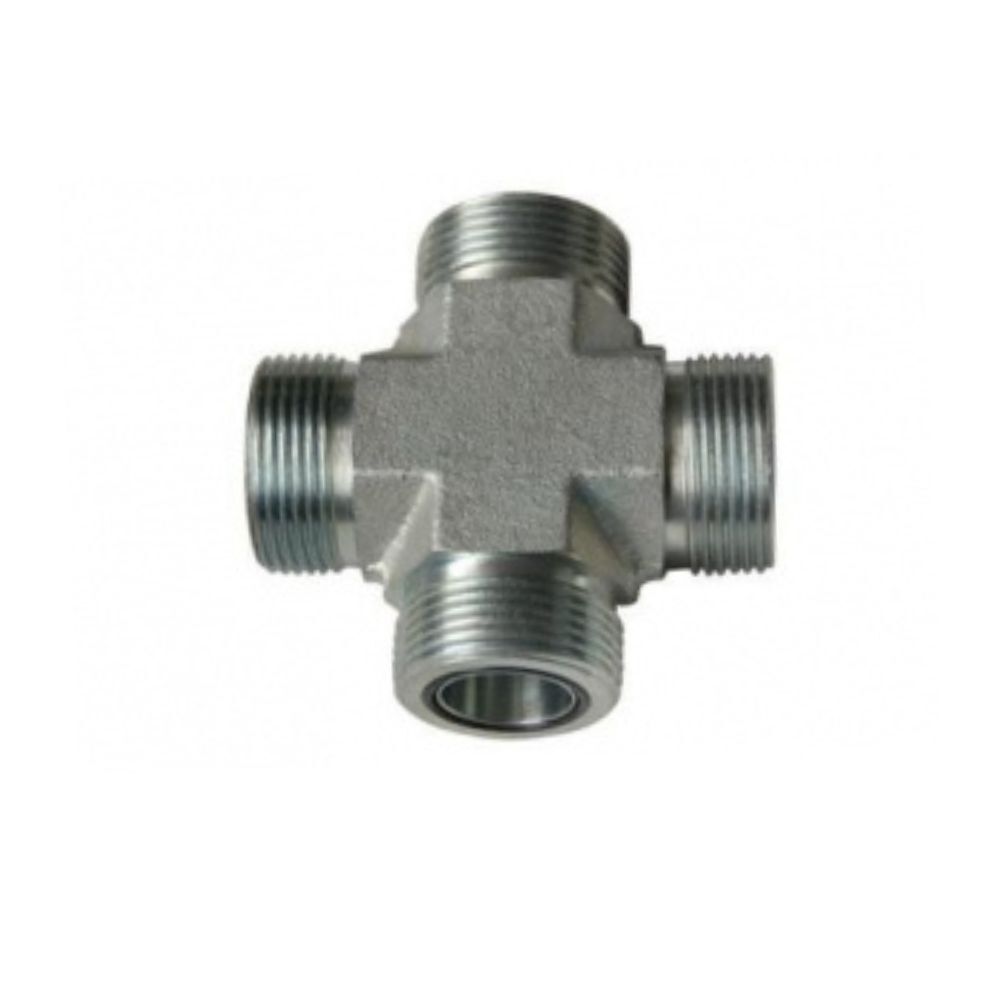

XE Male O-ring Metric Cross Fitting Video
This video shows information about the XE metric cross fitting.
Metric cross can be used in a wide range of hydraulic applications, including industrial machinery, construction equipment, and automotive systems..
If you have any questions about metric hydraulic pipe fittings, please contact us.
