Hydraulic Telescopic Cylinder

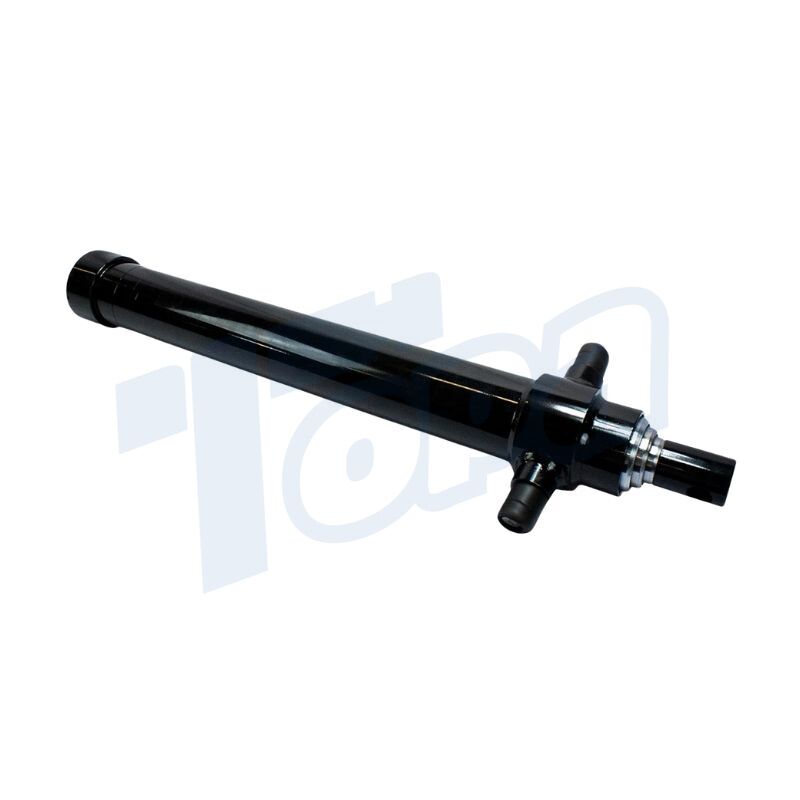

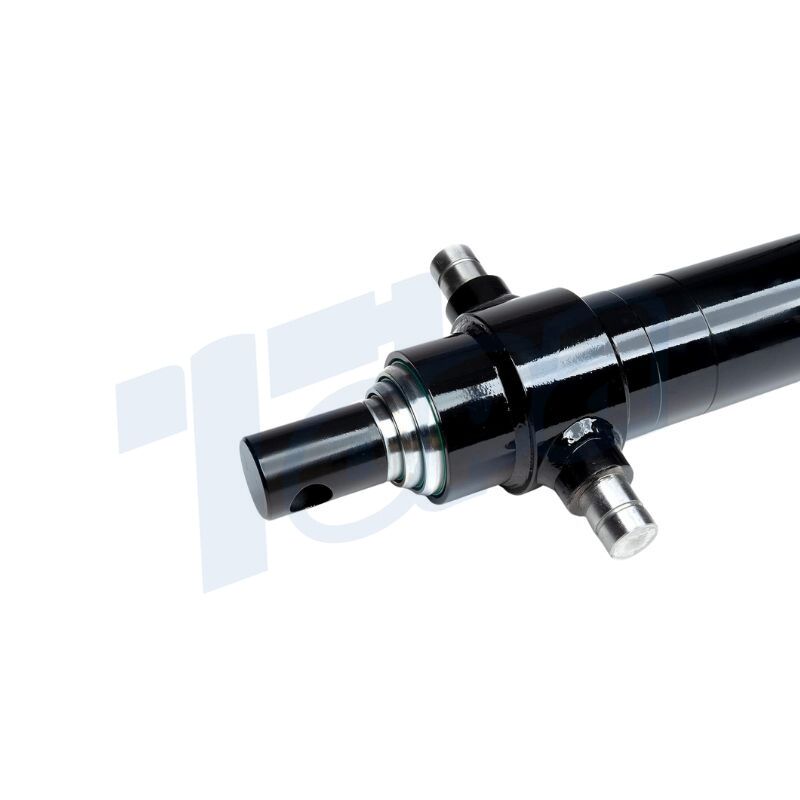

Dump Truck Hydraulic Telescopic Cylinder

Cylinder Barrel: The external housing is made of high-tensile steel that accommodates the internal components and withstands the internal pressure.

Telescopic Piston Rods: Multi-stage, concentrically nested rods that provide extended linear motion from a compact retracted length.

Piston Assembly: The actuating component situated within the barrel, is responsible for converting hydraulic energy into mechanical force.

Sealing Mechanisms: Comprising O-rings, wiper seals, and rod seals, these elements prevent fluid leakage and ingress of contaminants.

Hydraulic Ports: The apertures for fluid ingress and egress, usually designed as threaded or flanged connections for hydraulic lines.

Rod Bushings: These are wear-resistant guides that stabilize the piston rod’s linear movement and absorb transverse forces.


Dump truck hydraulic telescopic cylinders offer a comprehensive set of advantages tailored for heavy-duty applications. Their adaptive stroke length, facilitated by a multi-stage telescopic mechanism, allows for versatile dumping heights, making them incredibly adaptable. Engineered to tolerate high hydraulic pressures, they are ideal for tasks requiring significant lifting forces. Additionally, their corrosion-resistant coatings ensure durability in harsh conditions. Moreover, their single-acting design enhances energy efficiency by requiring less hydraulic fluid. All these attributes combine to make these cylinders a reliable, versatile, and cost-effective solution for a wide range of demanding tasks.


Bulk Material Handling: Ideal for transporting and unloading large volumes of materials like gravel, soil, or waste.

Heavy Construction: Frequently used in construction equipment for tasks like earthmoving or debris removal.

Industrial Use: Employed in various industrial settings for tasks that require lifting, tilting, or dumping of heavy loads.

Emergency Services: Some versions are used in fire trucks and rescue vehicles for extending ladders or stabilizing platforms.


Adaptive Stroke Length: The multi-stage telescopic mechanism allows for variable stroke lengths, providing flexibility in dumping heights.

High-Pressure Tolerance: These cylinders are engineered to withstand elevated hydraulic pressures, making them well-suited for applications that demand high lifting forces.

Corrosion Resistance: Specialized coatings and finishes provide excellent resistance to corrosion, extending the cylinder’s lifespan.

Safety Measures: Built-in safety features like velocity fuses and load-holding valves offer an added layer of protection, preventing accidental descents in the event of hydraulic failure.

Topa's Customized Services

At Topa, we offer a comprehensive customization service for hydraulic cylinders, including our specialized dump truck hydraulic telescopic cylinders. Our goal is to provide you with a product that perfectly aligns with your specific operational needs.

Material Choice: Select from a range of high-strength materials to ensure your cylinder can withstand the specific pressures and environmental conditions of your application.

Stroke Length and Load Capacity: Tailor the stroke length and load-bearing capacity to meet the unique requirements of your dumping or lifting tasks.

Seal Types and Configurations: Choose seals that are compatible with your hydraulic fluid and can withstand your operating conditions, be it extreme temperatures or corrosive substances.

Hydraulic Port Options: Customize the type, size, and location of hydraulic ports to ensure seamless integration with your existing hydraulic system.

hydraulic cylinder Welding Topa

Dump Truck Hydraulic Telescopic Cylinder

At Topa, the manufacturing process of our hydraulic cylinders is a blend of precision engineering and quality craftsmanship. Our skilled engineers assemble the components, ensuring a perfect fit and optimal performance. From the piston and barrel to the seals and hydraulic ports, each element is meticulously crafted to meet the specific needs of our clients.

Each cylinder undergoes a series of rigorous tests, including pressure and leak tests, to validate its structural integrity and performance. We adhere to international quality standards, ensuring that each product that leaves our factory is both durable and reliable.

Reach out to Topa today to discuss your specific needs and discover how our tailor-made solutions can add value to your operations.
