Description

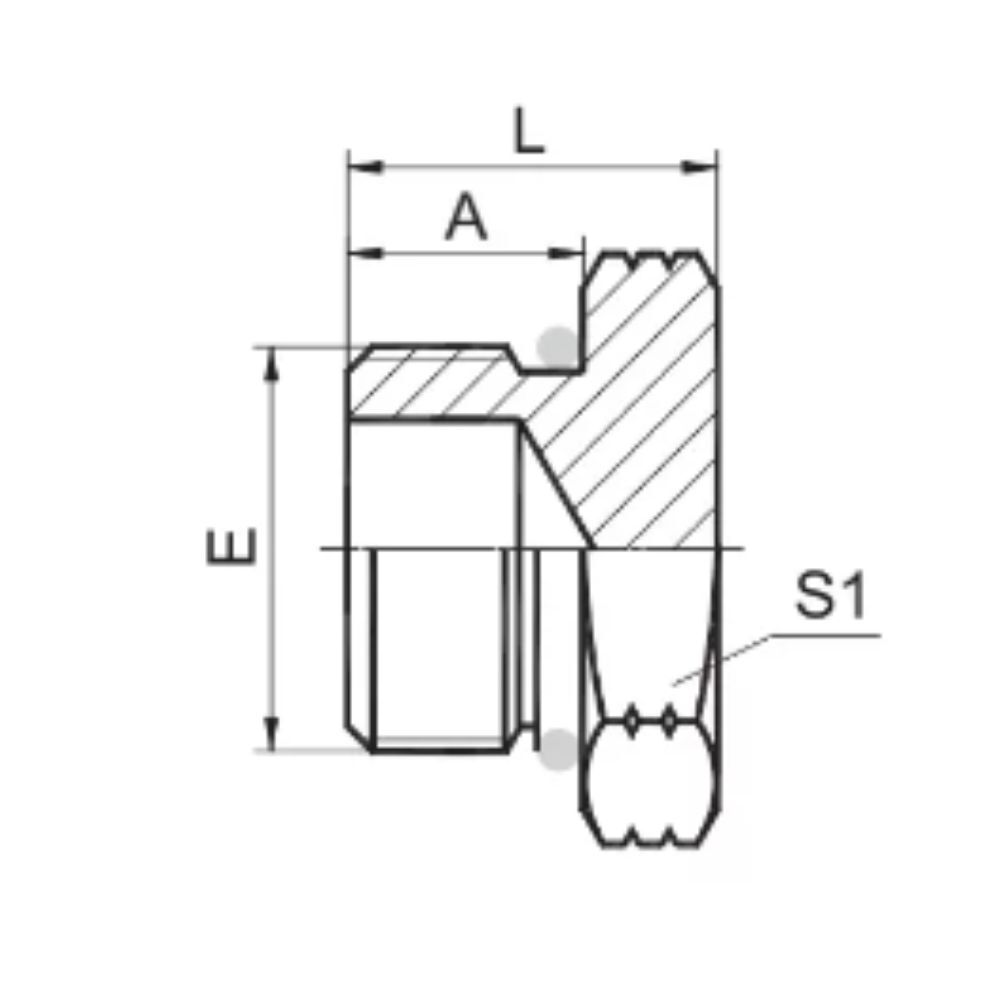

PART NO. | Thread | O-ring | Dimensions | ||
E | E | A | L | S1 | |
4O-02 | 5/16″×24 | 6.07X1.63 | 7.54 | 14.6 | 12 |
4O-03 | 3/8″X24 | 7.65X1.63 | 7.54 | 14.6 | 14 |
4O-04 | 7/16″X20 | 8.92X1.83 | 9.1 | 16 | 14 |
4O-05 | 1/2″X20 | 10.52X1.83 | 9.1 | 16 | 17 |
4O-06 | 9/16″X18 | 11.89X1.98 | 9.9 | 17.5 | 17 |
4O-08 | 3/4″X16 | 16.36X2.21 | 11.1 | 19.5 | 22 |
4O-10 | 7/8″X14 | 19.18X2.46 | 12.7 | 23 | 27 |
4O-12 | 1.1/16″X12 | 23.47×2.95 | 15.1 | 26.5 | 32 |
4O-14 | 1.3/16″X12 | 26.62X2.95 | 15.1 | 27 | 36 |
4O-16 | 1.5/16″X12 | 29.74X2.95 | 15.1 | 27.5 | 38 |
4O-20 | 1.5/8″X12 | 37.46X3.00 | 15.1 | 30 | 50 |
4O-24 | 1.7/8″X12 | 43.69X3.00 | 15.1 | 30 | 55 |
4O-32 | 2.1/2″X12 | 59.36X3.00 | 15.1 | 32 | 70 |
4O SAE ORB Hydraulic Plug Video
This video shows information about 4O SAE ORB hydraulic plug fitting.
SAE ORB hydraulic plugs are commonly used in hydraulic systems where it is necessary to stop the flow of fluid to a specific component. They are often used in industrial machinery, agricultural equipment, and construction machinery.
If you have any questions about hydraulic caps and plugs, please contact us.
