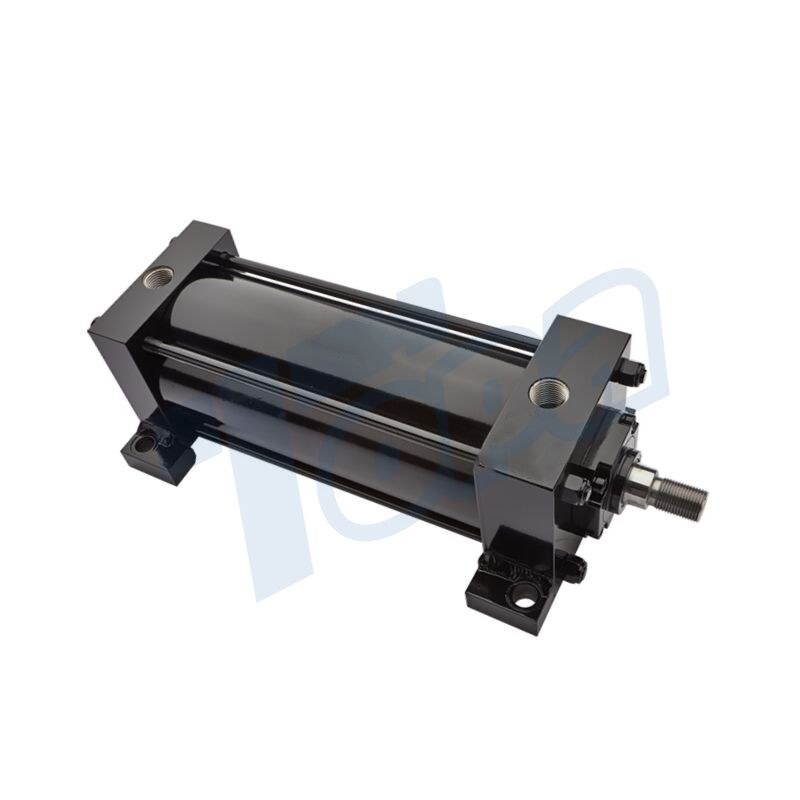

Hydraulic Cylinder NFPA Metric High Pressure (IHP Series)

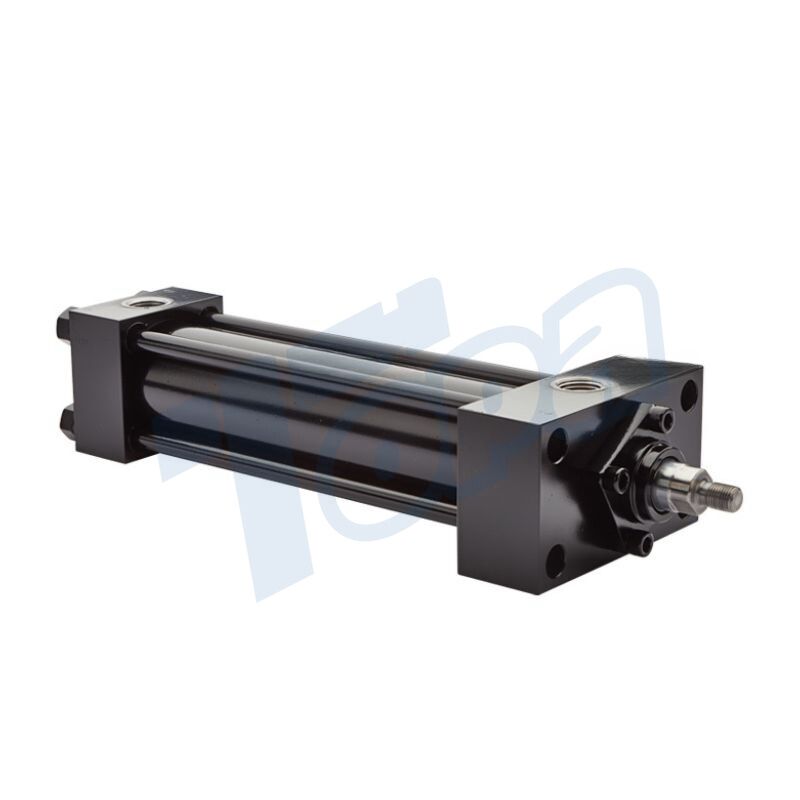

NFPA Hydraulic Cylinder(IHP Series)

Barrel: The cylinder of a hydraulic cylinder contains hydraulic fluid and is usually made of a strong material that can withstand high pressure.

Base: The base is the end closure of the body that withstands the pressure inside the cylinder.

Piston: The piston separates the pressure zones in the cylinder barrel and is driven by hydraulic fluid to convert fluid power into mechanical force.

Piston Rod: The piston rod is connected to the piston and telescopes from the cylinder to transfer force to the application.

Piston Rod Fitting: This is the part of the cylinder head where the piston rod extends from the cylinder barrel and contains seals to prevent fluid leakage.

Seals: They are critical to maintaining pressure and preventing fluid leakage to ensure cylinder efficiency.

Ports: Used for the inlet and outlet of hydraulic fluid, these parts are precision machined to ensure a secure connection.

Description

At Topa, our IHP Series metric NFPA hydraulic cylinder has a modern, square appearance and rugged construction for working in demanding conditions.

Features

Advantages

Applications

Hydraulic Cylinder NFPA Metric High Pressure (IHP Series)

At Topa, the manufacturing process for the IHP series of metric NFPA hydraulic cylinders begins with the use of high quality steel, ensuring the production of a complete and robust hydraulic cylinder. And every part is machined and molded to meet NFPA dimensional and tolerance standards. Our assembly steps are carefully monitored to ensure that each hydraulic cylinder minimizes errors.

We then perform a pressure test to verify that the cylinder can withstand the specified load without failure. Sealing is checked to ensure that the cylinders are leak-free and will not affect performance. Then, stroke accuracy is measured to confirm that it fully meets design specifications. Finally, a thorough inspection by our technicians ensures that every cylinder that leaves the factory meets the final standards.

Topa's Customized Services

Topa’s custom manufacturing process for metric NFPA hydraulic cylinders (IHP series) is designed to provide tailored solutions to meet the unique needs of each customer:

Consultation: Begin with a customer consultation to discuss specific requirements, including pressure needs, stroke length and environmental conditions.

Design: Our engineers draft a precise design to ensure that every specification is met.

Material Selection: We select materials such as high-strength steel and durable seals to meet application requirements.

Machining: Utilizing CNC machines, we manufacture parts to exact dimensions to ensure a perfect fit.

Assembly: Our skilled technicians assemble each cylinder, paying close attention to every detail for optimal performance.

Testing: Custom cylinders undergo rigorous pressure, leakage, and performance testing to ensure compliance with NFPA standards.

Feedback: We review the final product with the customer and make any necessary adjustments to ensure complete satisfaction.

For hydraulic cylinders built to your needs, work with Topa. Contact us today to begin the process of customizing your IHP Series cylinder！
