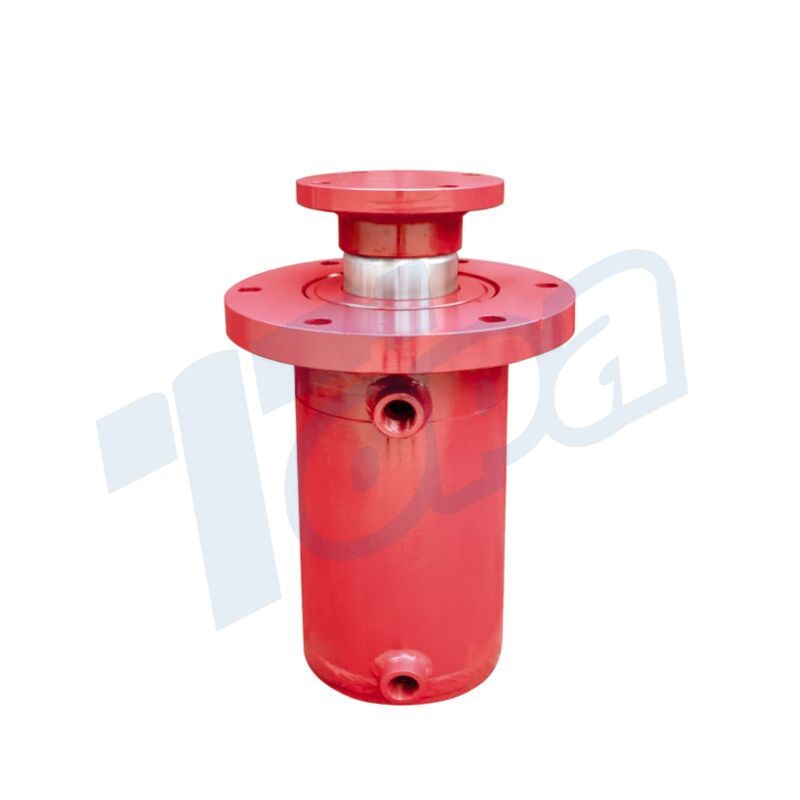

Hydraulic Cylinder Flange Mount

Flange Mount Cylinder for Press Packer

Cylinder Barrel: The main body that holds the hydraulic fluid, typically made from durable steel.

Piston: Fits snugly inside the barrel, moving up and down to create compression.

Piston Rod: Connects to the piston and extends outside the barrel to apply force to the press packer.

Mounting Flange: Located at one or both ends of the cylinder for secure attachment to the press packer frame.

Seals: Ensure that the hydraulic fluid does not leak from the cylinder, maintaining pressure and efficiency.

Rod Gland: Houses the seals and wipers at the head of the cylinder, keeping contaminants out.

Ports: Allow hydraulic fluid to enter and exit, controlling the movement of the piston and rod.

End Cap: Closes off the end of the barrel, containing the hydraulic fluid and withstanding the internal pressure.

Description

Hydraulic cylinder flange mount cylinders for pressurized packers are usually of a sturdy cylindrical shape with flanges for mounting at one or both ends. The body is usually made of high-strength steel. Standard colors are usually classic matte black or metallic silver, but may be customized to the specific requirements of the manufacturer or customer.

The primary function of this cylinder is to provide the compression force required in packaging operations. It converts hydraulic energy into mechanical force, enabling the pressure packer to compress the material efficiently. This process is vital in industries such as waste management, recycling and packaging where compacted materials are required.

In terms of pressure range, these cylinders are designed to operate at high pressures, typically 2,000 to 5,000 PSI, for the demanding task of compaction. The stroke length is designed to match the requirements of the compactor, ensuring that the material is compacted to the desired level.

Advantages

High Strength: They can withstand the high pressures needed for compacting materials.

Stable Mounting: The flange provides a secure attachment, which is crucial for consistent operation.

Durability: Made with tough materials, they last longer even in harsh working conditions.

Precision: These cylinders deliver precise movements, essential for effective compaction.

Customizable: Stroke lengths and pressure ranges can be tailored to specific press packer needs.

Efficiency: They are designed to optimize the compaction process, saving energy and time.

Applications

Waste Management: For compacting trash in garbage trucks or waste compaction facilities.

Recycling: Used in balers to compress recyclable materials like paper, plastic, and metals.

Packaging: In packing machines that require the precise application of force.

Material Handling: For pressing and packing operations in logistics and warehousing.

Manufacturing: Where materials need to be compacted as part of the production process.

Agriculture: In equipment used for compacting feed or crop waste for storage or transport.

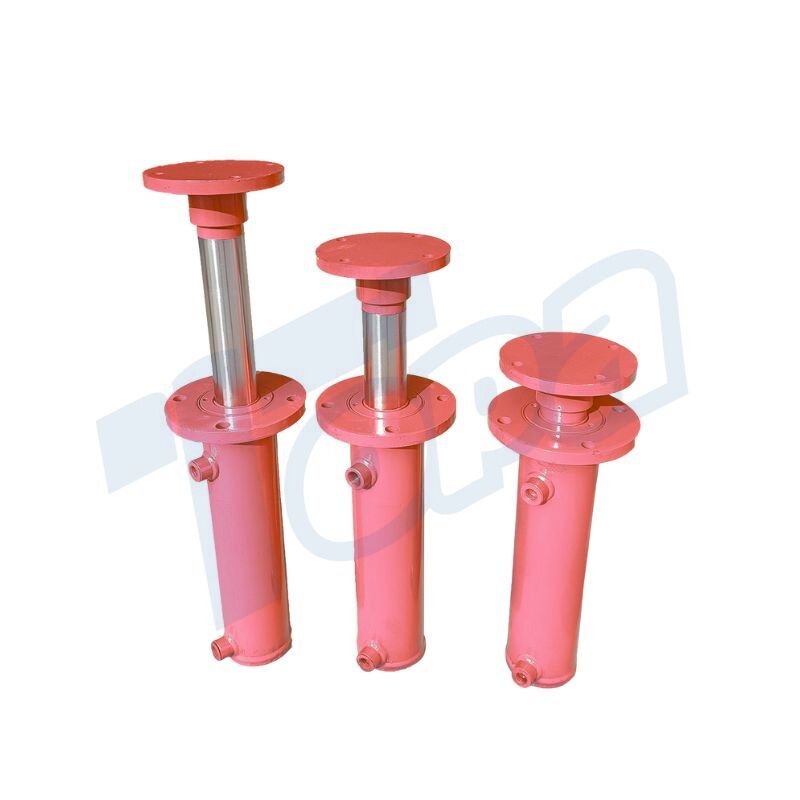

Flange Mount Hydraulic Cylinder for Press Packer

At Topa, we make sure that the specifications of our cylinders meet the requirements of our customers. Our team selects long-lasting, resilient materials to ensure that the cylinders are able to withstand the rigors of the conditions required for their function. Next comes precision engineering, where our experts carefully design each component to ensure seamless integration and optimal performance in the bale press system.

Next, each component is machined using state-of-the-art machining tools for maximum precision. Assembly is handled by experienced technicians who carefully craft the cylinders to ensure that every seal is properly installed and every component is aligned correctly. The cylinders are then rigorously tested under operating pressure to ensure consistent performance. It is only after these tests and a final quality check that the cylinders are approved by Topa for distribution to each customer.

Contact us today to place your order!

Topa's Customized Services

Tailored Design: Customized to fit the specific dimensions and force requirements of your press packer, ensuring optimal performance.

Enhanced Durability: Constructed with premium materials that withstand the demanding conditions of compaction tasks.

Precision Force Application: Engineered to deliver precise force, which is critical for efficient compaction and packing.

Versatile Compatibility: Designed to integrate seamlessly with a variety of press packer models and systems.

Reliable Operation: Tested rigorously to ensure reliable performance over long periods, reducing downtime.

Easy Maintenance: Features like accessible seals and bushings make maintenance straightforward, extending the cylinder’s lifespan.

Topa is committed to providing every customer with the best possible shopping experience, so you are welcome to contact us!
