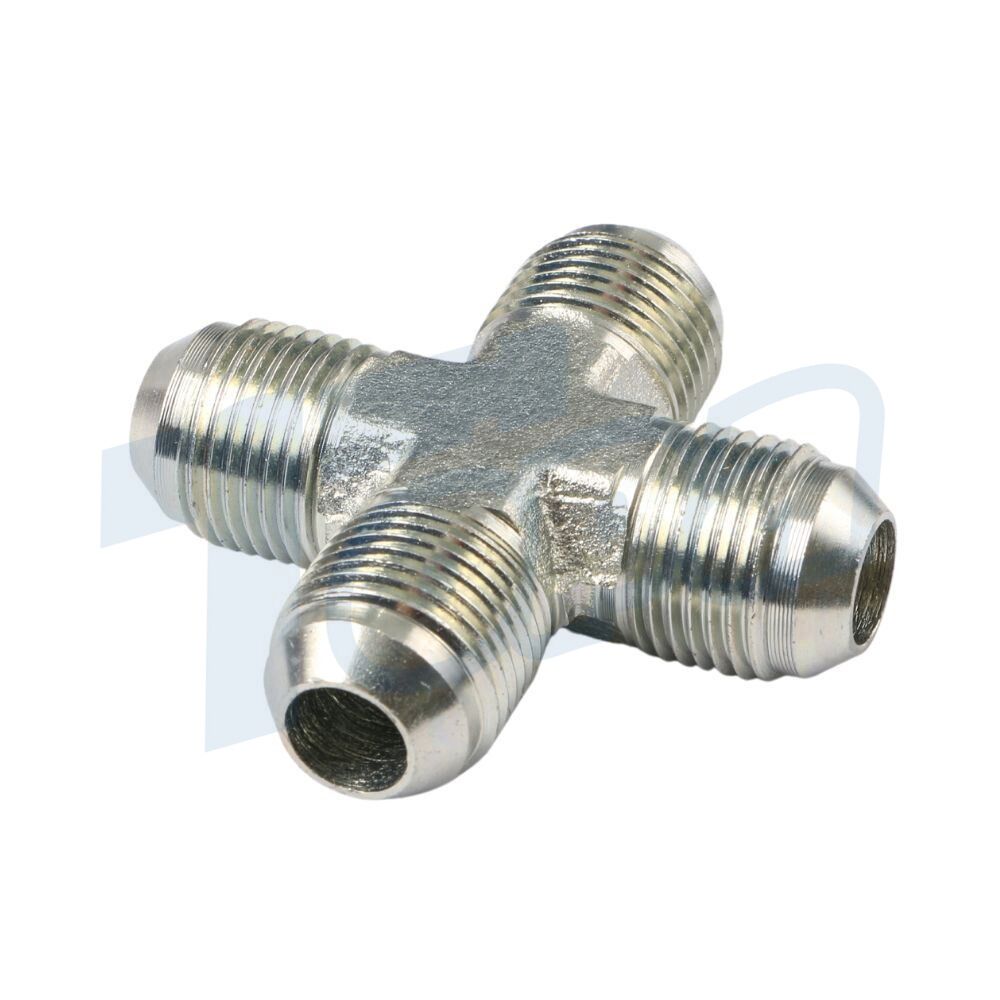

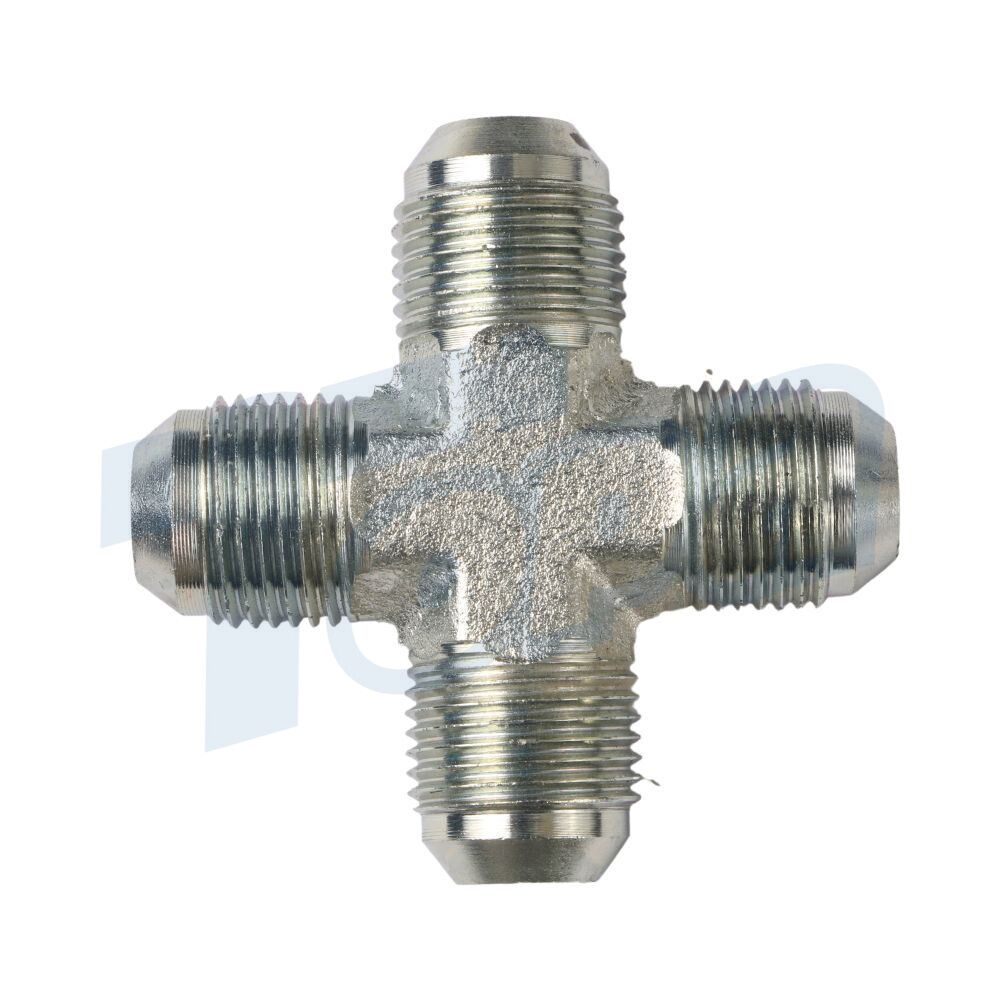

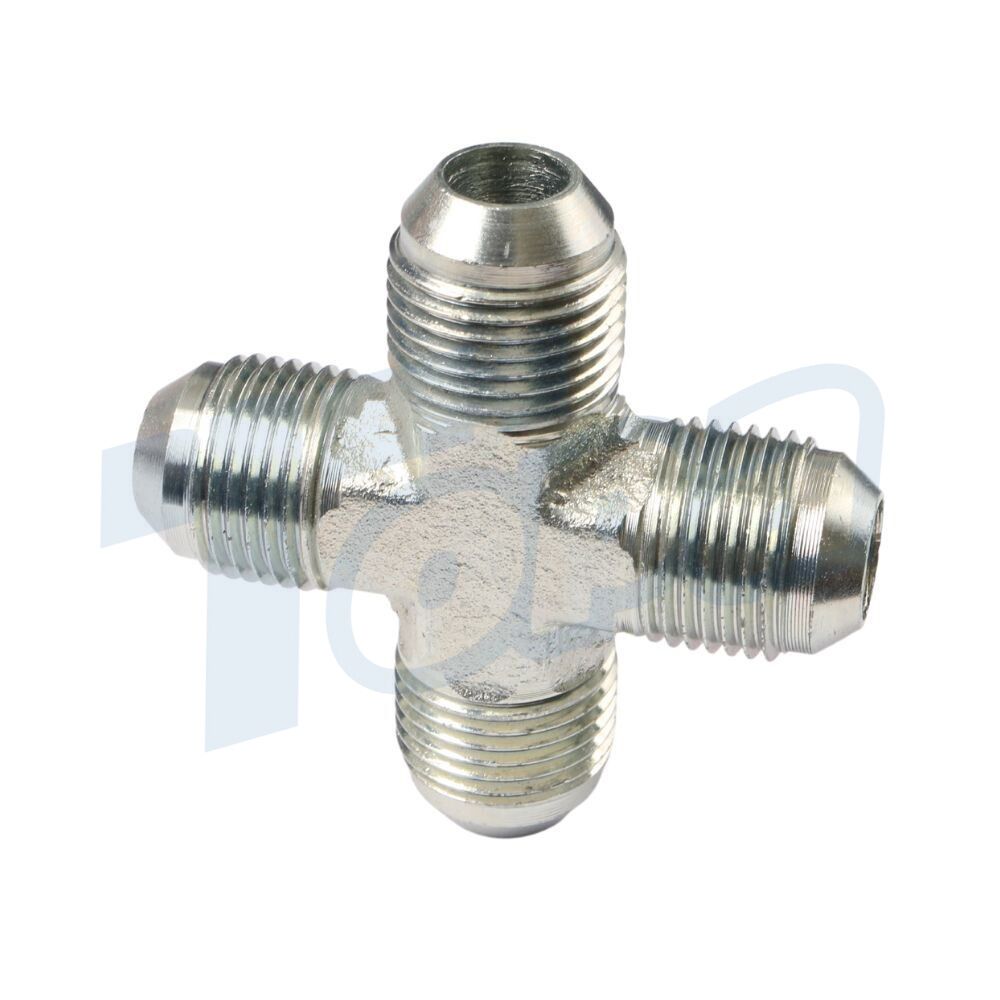

JIC Cross Hydraulic Adapters Fittings
2650 JIC hydraulic crosses with male 37° flare on all ends. They are made of high-quality metal materials, durable and high-pressure resistance. Topa can provide all sizes and materials of JIC hydraulics fitting, please contact us for more information!

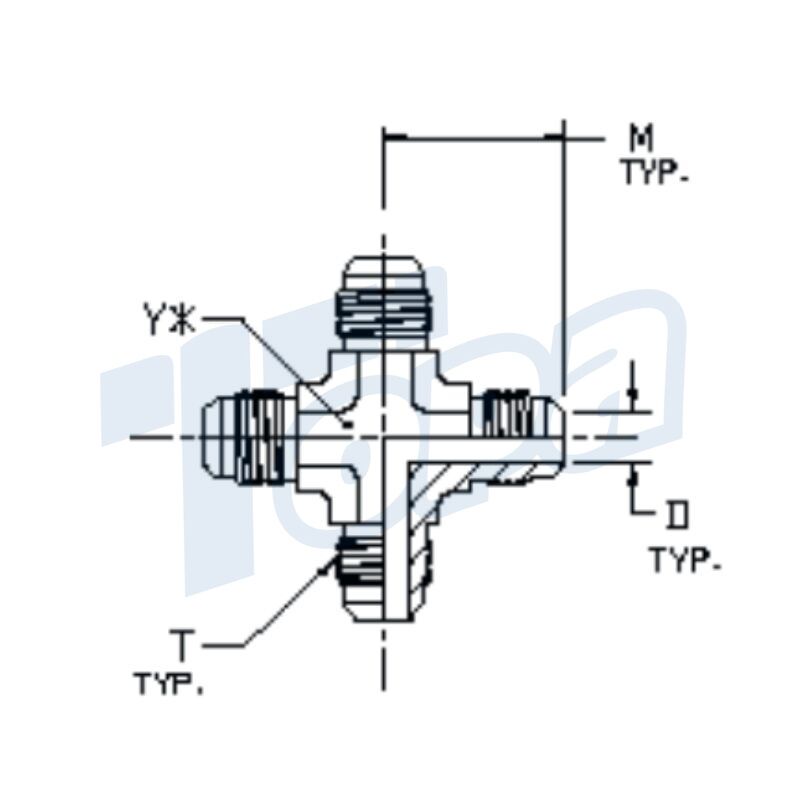

Dimensional Drawings:
TUBE FITTING PART # | TUBE O.D. (inch) | T TUBE END UN/UNF-2A | DRILL (inch) | M (inch) | Y (inch) |
2650-4-4-4-4 | 1/4 | 7/16-20 | 0.172 | 0.89 | 7/16 |
2650-5-5-5-5 | 5/16 | 1/2-20 | 0.234 | 0.95 | 9/16 |
2650-6-6-6-6 | 3/8 | 9/16-18 | 0.297 | 1.06 | 9/16 |
2650-8-8-8-8 | 1/2 | 3/4-16 | 0.391 | 1.25 | 3/4 |
2650-10-10-10-10 | 5/8 | 7/8-14 | 0.484 | 1.45 | 7/8 |
2650-12-12-12-12 | 3/4 | 11/16-12 | 0.609 | 1.66 | 11/16 |
2650-16-16-16-16 | 1 | 15/16-12 | 0.844 | 1.81 | 15/16 |
2650 JIC Hydraulic Adapters Fittings Video
As a hydraulic adapters factory, Topa can supply hydraulic fittings in various sizes. Our products can be used in multiple hydraulic fluid environments, and are resistant to high pressure and temperature.
Topa’s factory has several CNC machines to produce fittings strictly according to your data. Our JIC hydraulic adapters fittings will undergo strict quality inspection to ensure the product meets your usage requirements.
If you want more information about stainless steel hydraulic fittings, please contact us!
