Description
DN | Inch | Inside | Wire | Outside | Working- pressure | Test- pressure | Burst- pressure | Bend Radius | Weight | ||
mm | inch | dash | mm | mm | mm | bar | psi | bar | bar | mm | Kg/m |
16 | 5/8 | -10 | 15.9 | 24.3 | 28.2 | 450 | 6525 | 900 | 1800 | 250 | 1.35 |
19 | 3/4 | -12 | 19.0 | 28.4 | 32.2 | 420 | 6100 | 840 | 1680 | 280 | 1.5 |
25 | 1 | -16 | 25.4 | 35.2 | 38.7 | 380 | 5510 | 760 | 1520 | 340 | 2.14 |
31.5 | 1-1/4 | -20 | 31.8 | 41.9 | 45.5 | 325 | 4715 | 700 | 1380 | 460 |
|
38 | 1-1/2 | -24 | 38.1 | 48.8 | 53.5 | 290 | 4205 | 580 | 1160 | 560 |
|
51 | 2 | -32 | 50.8 | 63.2 | 68.1 | 250 | 3625 | 500 | 1000 | 700 |
|
64 | 2-1/2 |
| 63.5 | 78 | 83 | 225 |
|
|
|
| |
Features

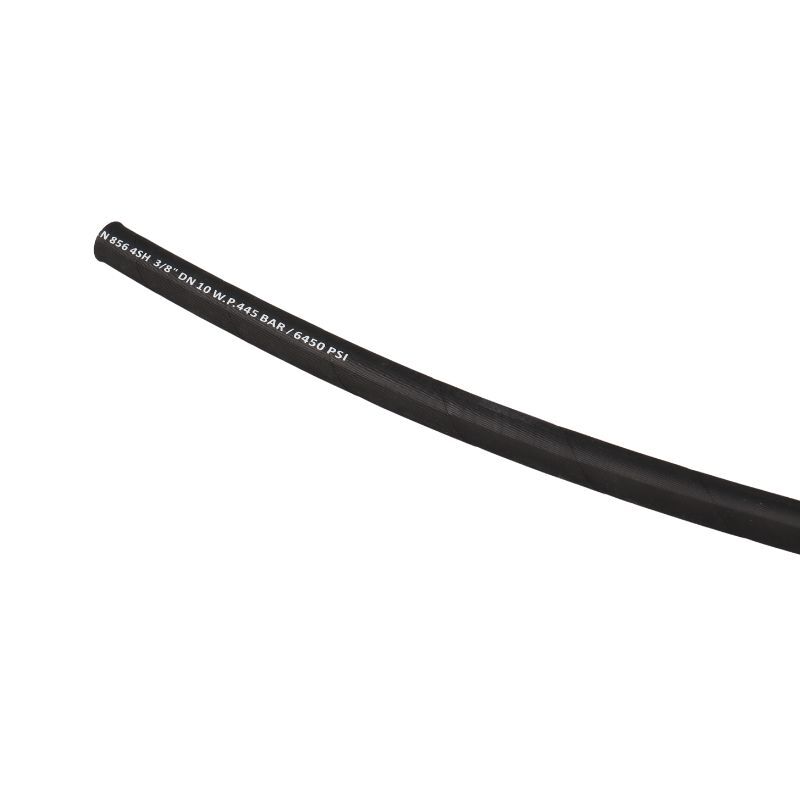

Topa’s 4SH hydraulic hose meets the international standards EN 856 – 4SH and ISO 3862, having excellent performance. It also has the advantages of high quality and safety, quicker and safer hose assembly. In addition, it also can be used for construction equipment, forestry industry, and mobile equipment. It is suitable for high-pressure hydraulic lines, transporting oil-water-emulsions, water-glycol liquids, and lubrication oils as well. It can be used with the xxxx2-xx-xx Series fitting manufactured by Topa.
4SH Hydraulic Hose Video
This video shows information about 4SH hydraulic hose.

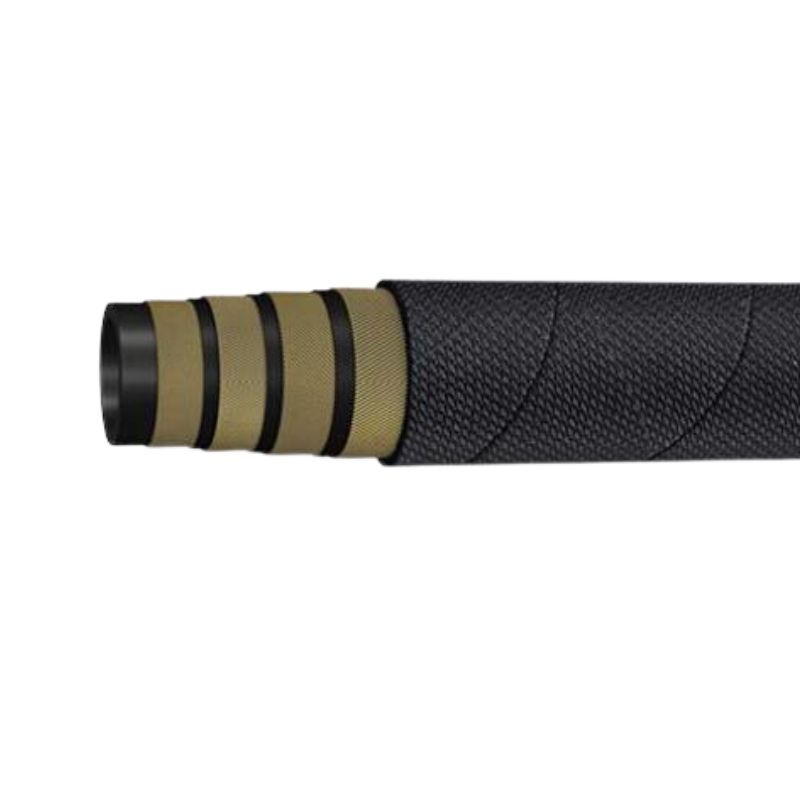

4SH hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of four high tensile steel wire spiral layers, and an outer cover of abrasion and weather resistant synthetic rubber. Topa’s 4SH hydraulic hoses with excellent performance to keep your work running smoothly.
If you have any questions about 4SH hydraulic hoses, please contact us.
