Fitting JIC

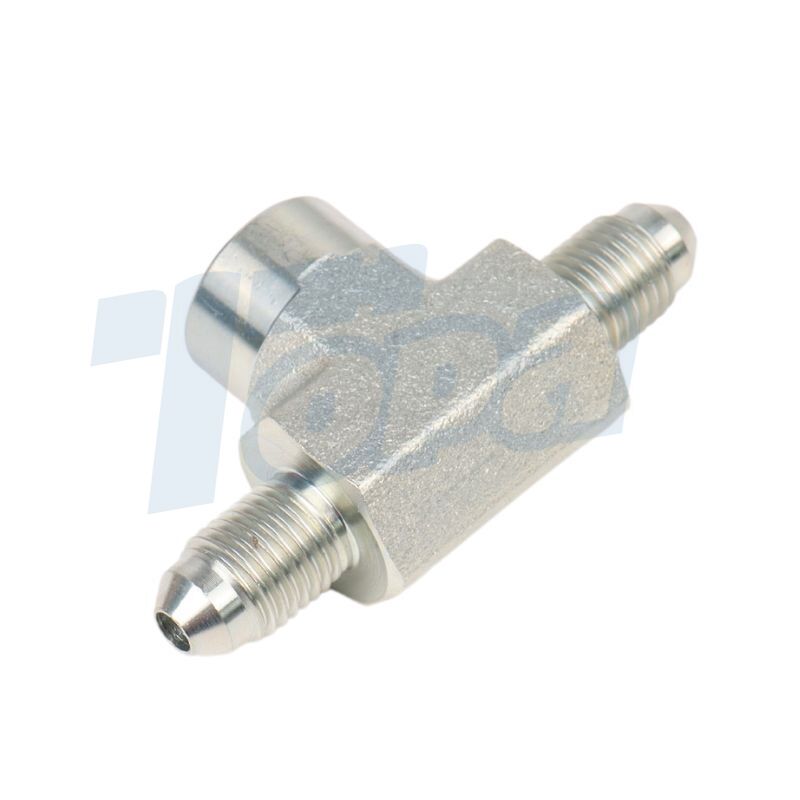

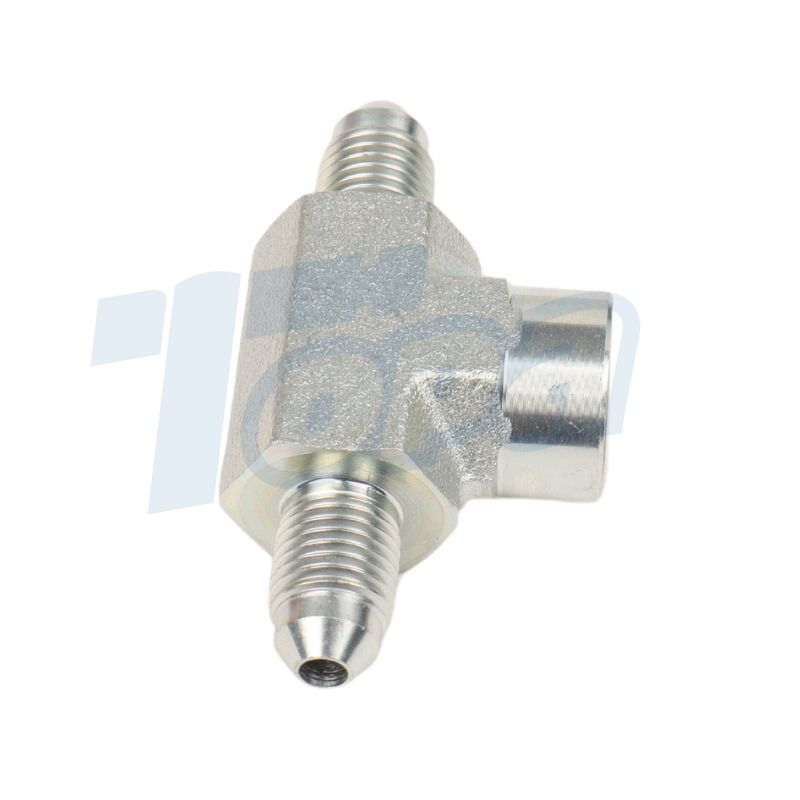

2602 Fitting JIC

Types: Female Branch Tee

Part Number:2602

Material:Carbon Steel

Thread 1 Type: Flare tube end

Thread 2 Type: Female pipe end

Standard:SAE 070427

Applications: Industry; Mining;Agriculture

Perfect quality JIC hydraulic adapter fittings, made of top-quality carbon steel and stainless steel material.

Category: Tags: , ,

Description

2602 Fitting JIC Drawing Topa
TUBE
FITTING
PART #
TUBE
O.D.
(inch)
    T
    TUBE END
    UN/UNF-2A
PT
PORT THD
NPTF
D
DRILL
(inch)
      D1
      DRILL REF
      (inch)
      M1
      (inch)
      N1
      (inch)
Y
(inch)
2602-4-4-21/4    7/16-201/8-270.172       0.328       1.08       0.66 9/16
2602-4-4-41/4    7/16-201/4-180.172       0.422       1.13       0.88 3/4
2602-5-5-25/16    1/2-201/8-270.234       0.328       1.08       0.66 9/16
2602-6-6-43/8    9/16-181/4-180.297       0.422       1.24       0.88 3/4
2602-6-6-63/8    9/16-183/8-180.297       0.563       1.23       1.02 7/8
2602-8-8-61/2    3/4-163/8-180.391       0.563       1.42       1.02 7/8
2602-8-8-81/2    3/4-161/2-140.391       0.688       1.42       1.23 1 1/16
2602-10-10-85/8    7/8-141/2-140.484       0.688       1.64       1.24 1 1/16
260212-12-123/4    1 1/16-123/4-140.609       0.891       1.89       1.36 1 5/16
2602-14-14-127/8    1 3/16-123/4-140.718       0.891       1.86       1.42 1 5/16
2602-16-16-16    1 5/16-121-11 1/20.844       1.125       2.17       1.63 1 5/8
2602-20-20-201 1/4    1 5/8-12   1 1/4-11 1/21.078       1.469       2.33       1.70 1 7/8
2602-24-24-241 1/2    1 7/8-121 1/2-11 1/21.312       1.703       2.89       2.08 2 1/2
