Double Acting Tie Rod Hydraulic Cylinder

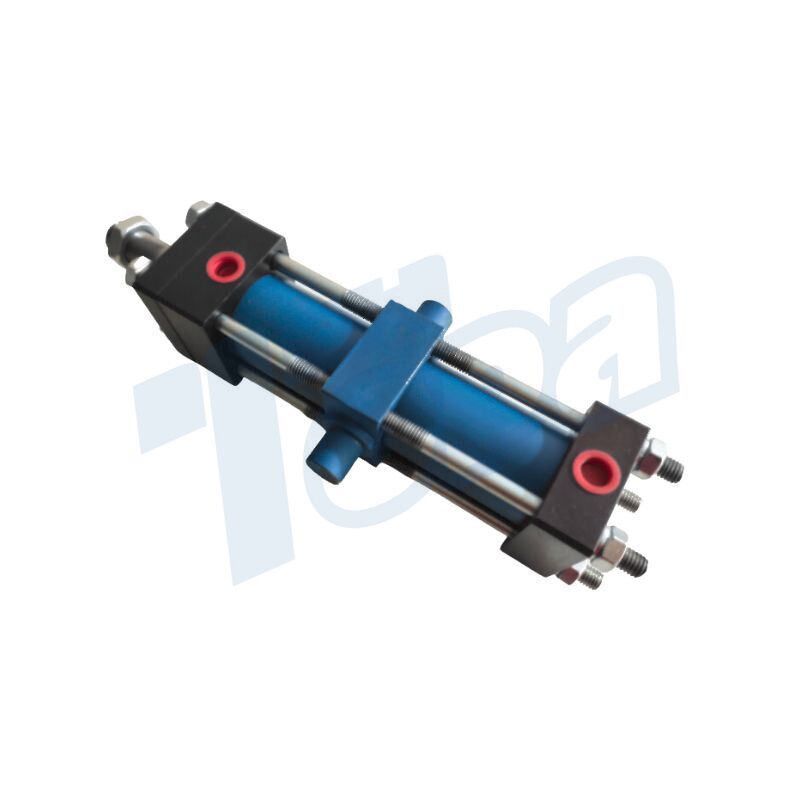

HOB Series Double Acting Tie Rod Hydraulic Cylinder

Double-Acting Design: These cylinders are double-acting, allowing for force exertion in both extending and retracting directions.

Barrel: The cylinder barrel is crafted from high-strength steel, capable of withstanding high pressures and ensuring durability.

Piston Rod: Features a polished piston rod that ensures smooth operation and minimizes wear and tear on the seals.

Seals: Utilizes high-quality seals made from materials like polyurethane or rubber to prevent hydraulic fluid leakage.

Ports: Includes two ports, one for extending and one for retracting the cylinder, facilitating the double-acting design.

End Caps: Features end caps that are securely fastened to the barrel, adding an extra layer of security and durability.

Description

The HOB series double acting tie rod hydraulic cylinders are engineered to offer both versatility and robustness. Unlike single-acting cylinders, these double-acting variants can apply force in two directions—both extension and retraction—making them ideal for a broader range of applications. The tie rods that run along the cylinder body serve to fortify the structure, ensuring it can withstand high levels of stress and pressure.

In summary, the HOB Series tie rod cylinders offer a blend of versatility and durability that sets them apart. Their double-acting nature allows for more complex operations, while the tie rod reinforcement ensures long-lasting performance. Whether you’re in manufacturing, construction, or any industry requiring reliable hydraulic systems, these cylinders are a standout choice.

Advantages

Bidirectional Force: The double-acting design allows for force application in both extending and retracting directions, offering greater operational flexibility.

Enhanced Stability: The tie rod reinforcement ensures the cylinder remains stable under high-pressure conditions.

Precision Control: The polished piston rod and quality seals allow for precise control of movement, essential for tasks requiring accuracy.

Extended Lifespan: The use of high-grade materials and construction techniques ensures a longer operational life, reducing long-term costs.

Applications

Automated Manufacturing: Ideal for use in automated systems where bidirectional force and precise control are required.

Heavy Machinery: Suitable for integration into heavy machinery like excavators and loaders, where stability and durability are crucial.

Material Handling: Perfect for conveyor systems, lifting mechanisms, and other material handling equipment requiring bidirectional movement.

Aerospace Testing: Can be used in testing equipment for aerospace components, where precise control and reliability are paramount.

Topa's Customized Services

At Topa, we understand that every client has unique requirements, and our customization services are designed to meet those specific needs.

Initial Consultation: We start with a one-on-one consultation to understand your specific hydraulic needs, whether it’s for specialized cylinders, pressure ranges, or unique mounting options.

Material Selection: You have the option to choose from a variety of materials, including different types of steel and seals, to match your application requirements.

Feature Customization: From adjustable pistons to specialized seals, we offer a range of customizable features to enhance the cylinder’s performance.

Mounting Options: We provide various mounting options like flange, trunnion, or clevis mounts to suit your specific application needs.

Pressure Range: Customization of pressure ranges to meet the specific demands of your application, whether it’s low-pressure or high-pressure systems.

Choose Topa for a truly personalized and reliable hydraulic solution.

HOB series Double Acting Tie Rod Hydraulic Cylinder

Topa has always sourced high quality materials such as high strength steel for cylinder barrels and premium seals to ensure durability and efficiency. The components are then machined to exact specifications using state-of-the-art CNC machines to ensure that each part fits perfectly into the assembly.

Once the machining phase is complete, the assembly process begins. Each part is carefully assembled by skilled technicians to ensure that each seal, piston and rod is perfectly aligned. The assembled cylinders are then subjected to a series of rigorous tests, including pressure tests and leakage tests, to verify their performance and reliability. Only after passing these rigorous quality checks do the cylinders move on to the finishing department, where they undergo a final inspection.

Contact us today to place your order and make Topa your trusted partner.
