DOT Air Line Fitting

Description:

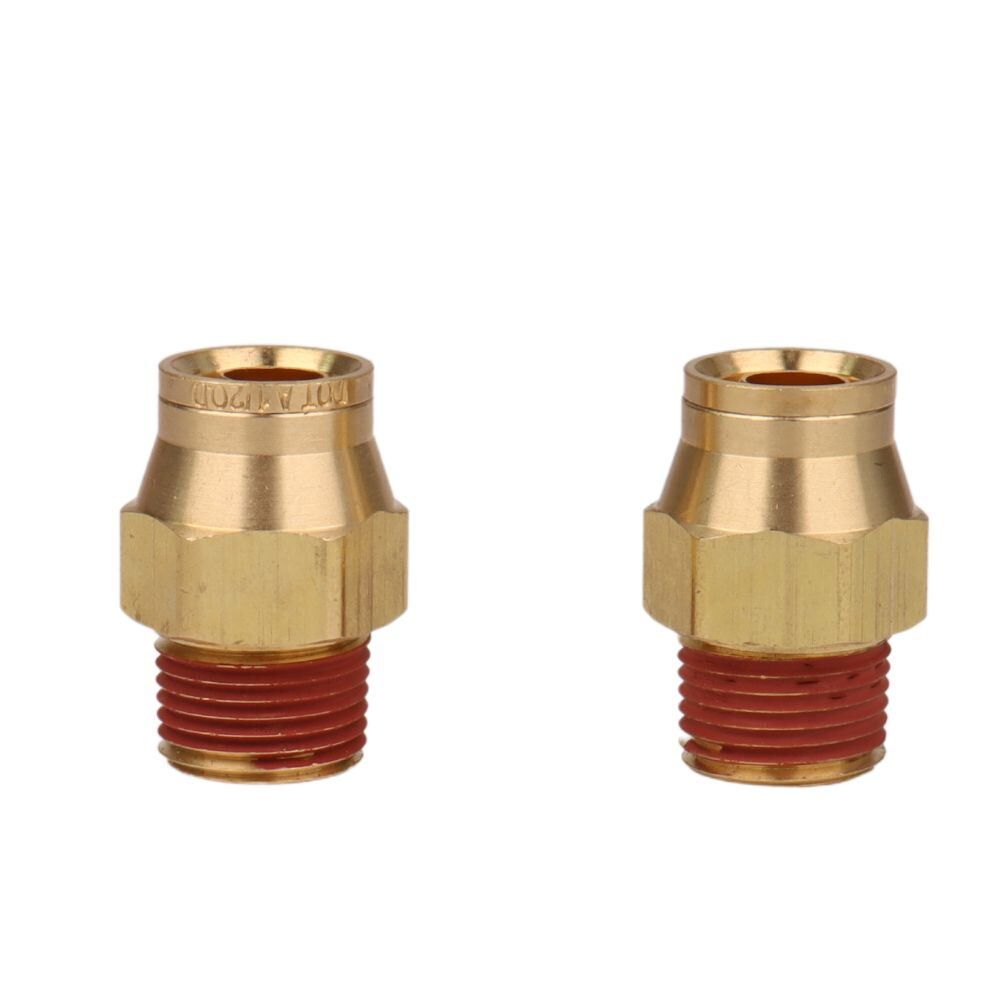

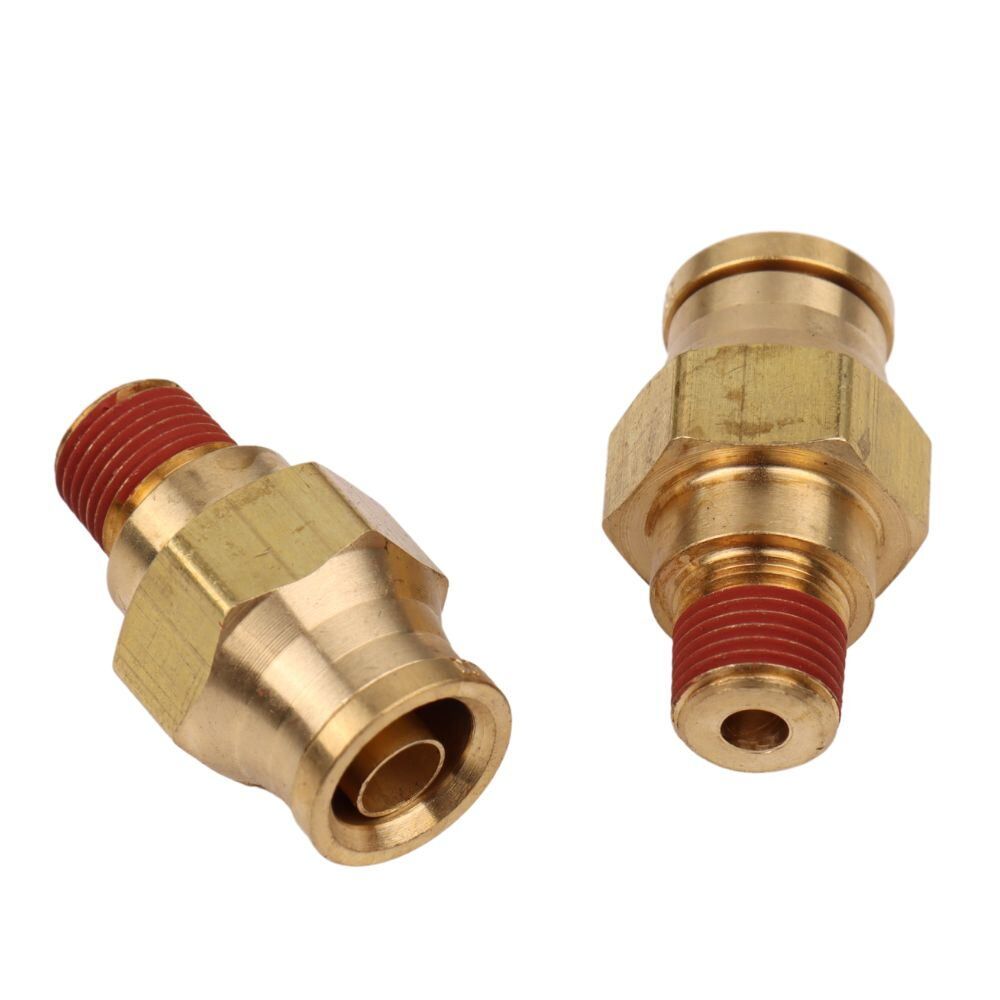

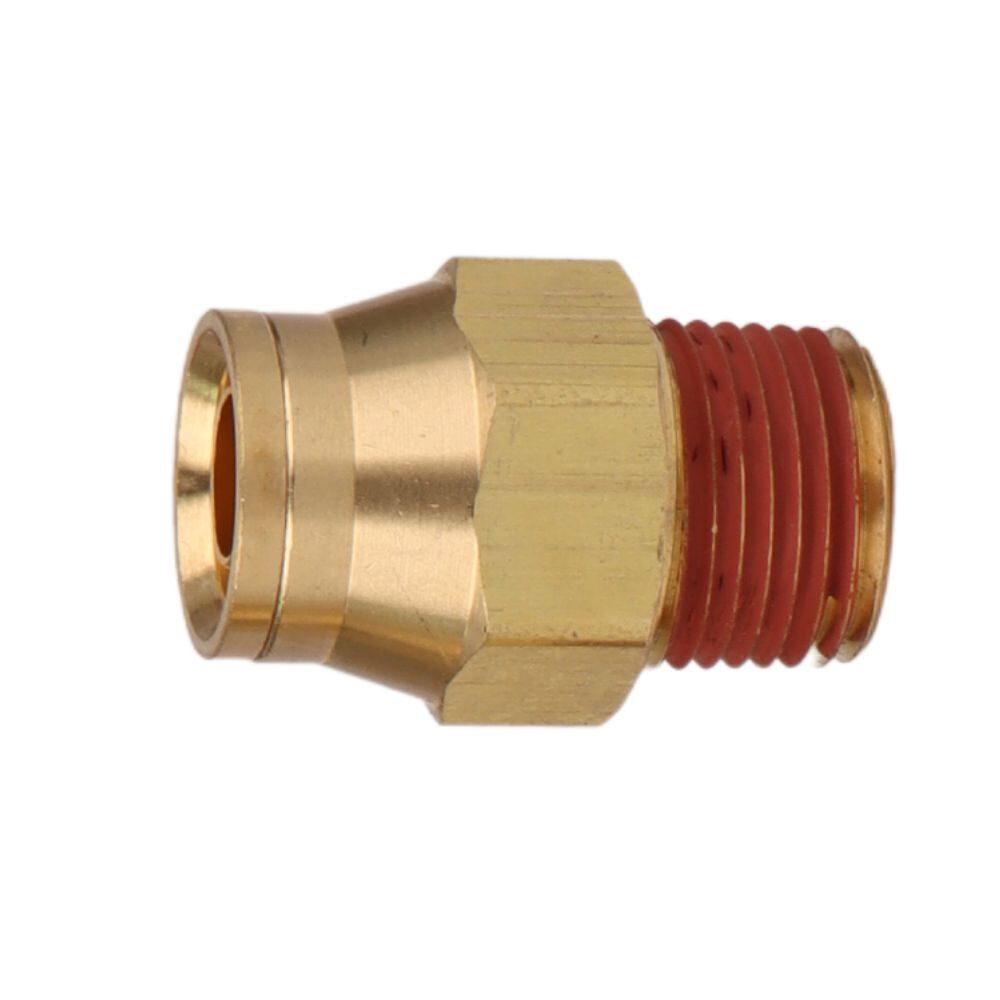

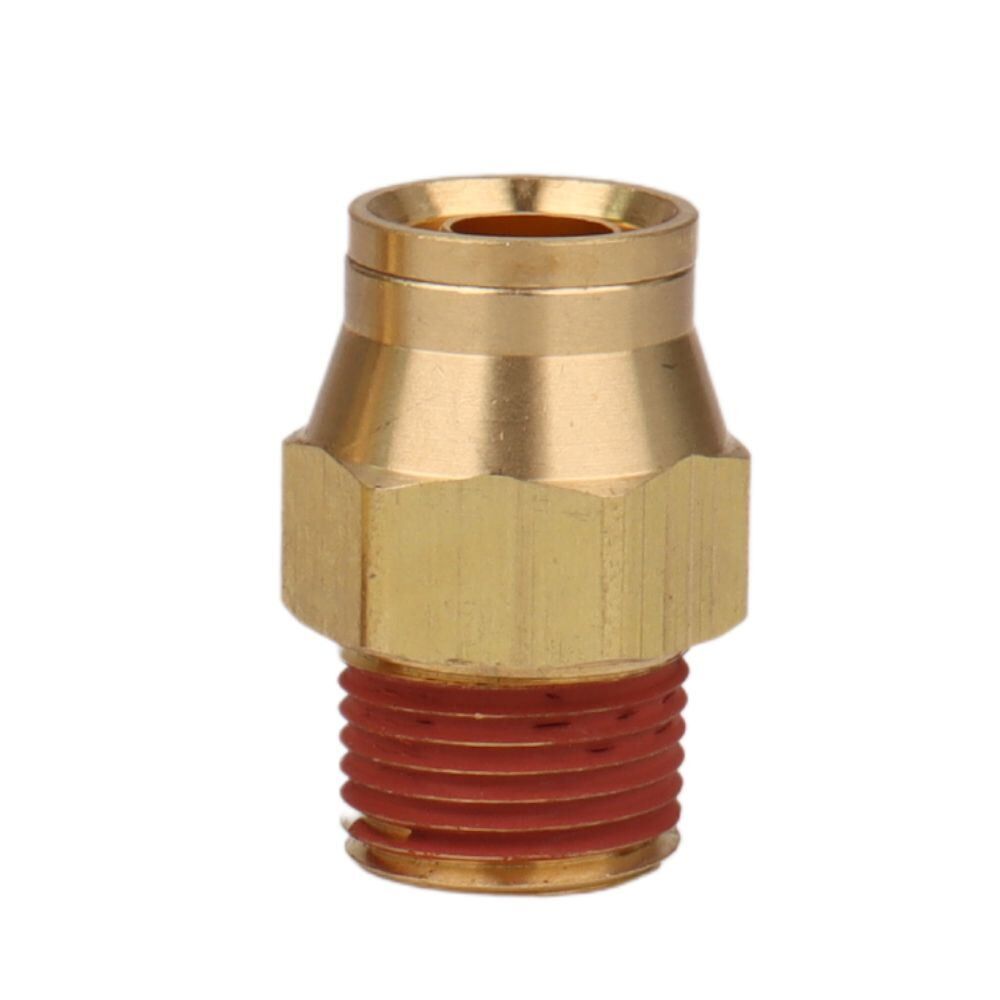

A brass DOT NPT male push-on connector is a type of plumbing fitting that is used to join a female NPT threaded pipe to a piece of tubing.

The “NPT” refers to National Pipe Tapered threads, a standard for threaded pipes in the US. A male NPT thread allows connecting with a female NPT thread.

If you have any further questions about the air line push connect fittings, feel free to ask.

Features and Benefits:

• Easy to operate
• Durability
• Corrosion-resistance
• Safety

Description

Part#	Tube O.D* Male NPTF	Approx Wt.Lbs
2696-13A	5/32*10/32	0.02
2696-13B	5/32*1/16	0.02
2696-13C	5/32*1/8	0.02
2696-3C	3/16*1/8	0.02
2696-4B	1/4*1/16	0.02
2696-4C	1/4*1/8	0.03
2696-4D	1/4*1/4	0.04
2696-4E	1/4*3/8	0.07
2696-6C	3/8*1/8	0.06
2696-6D	3/8*1/4	0.07
2696-6E	3/8*3/8	0.06
2696-6F	3/8*1/2	0.13
2696-8D	1/2*1/4	0.11
2696-8E	1/2*3/8	0.12
2696-8F	1/2*1/2	0.14
2696-10E	5/8*3/8	0.18
2696-10F	5/8*1/2	0.18
2696-12F	3/4*1/2	0.20
2696-12G	3/4*3/4	0.20
