DOT Air Line Connectors

Description:

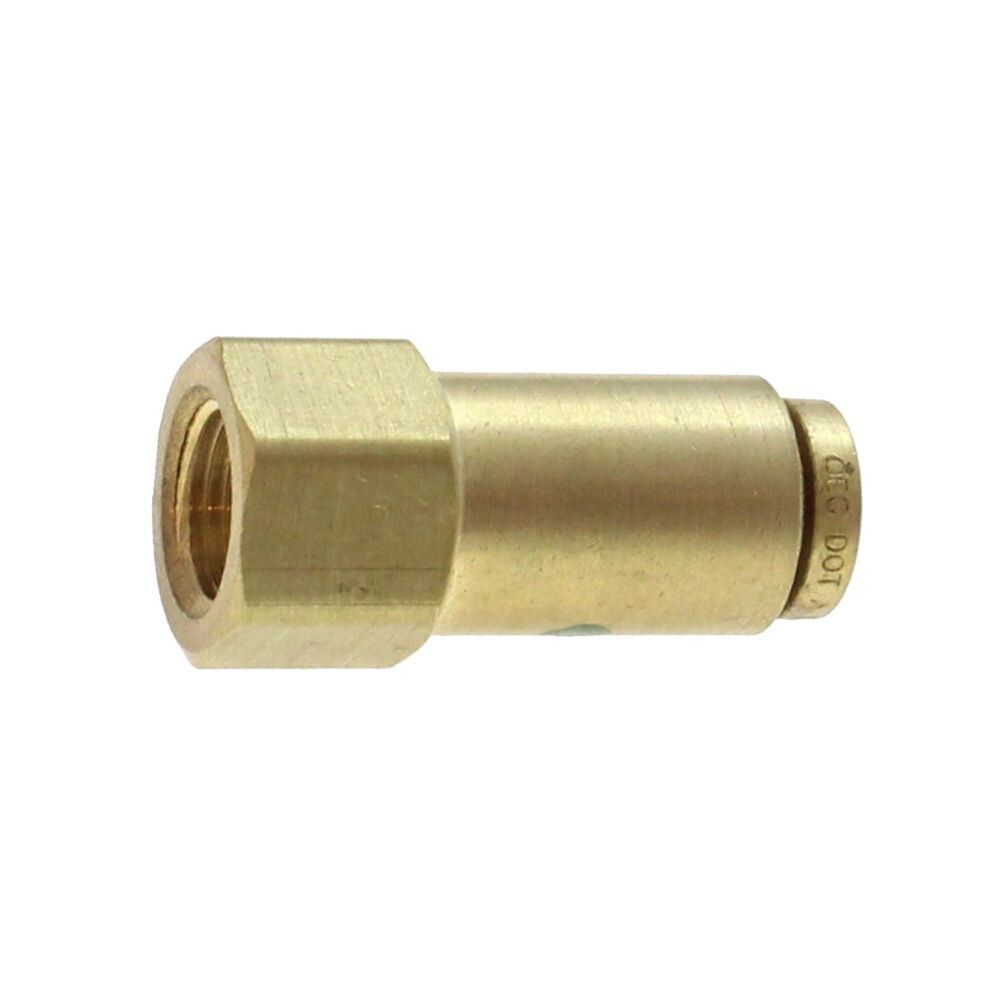

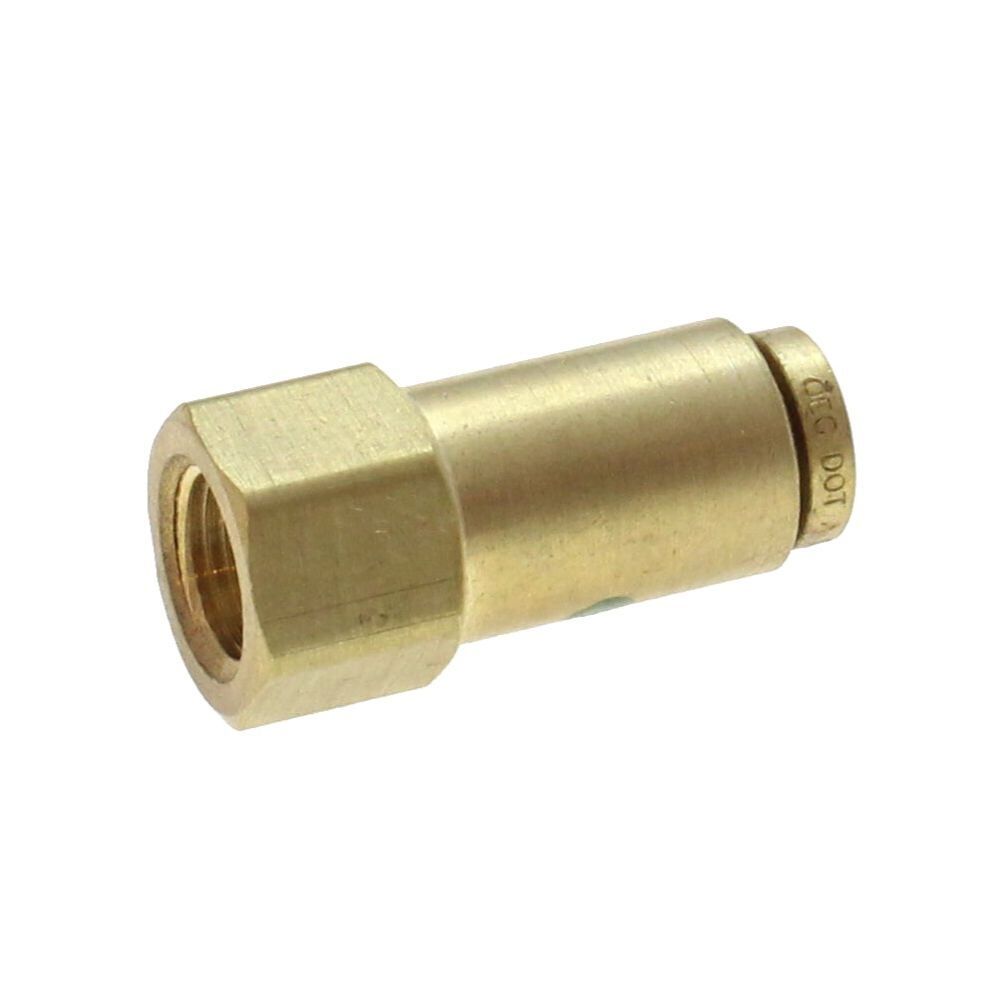

A brass DOT NPT female push-on connector is a type of plumbing fitting that is used to join a male NPT threaded pipe to a piece of tubing.

The “NPT” refers to National Pipe Tapered threads, a standard for threaded pipes in the US. A female NPT thread allows connecting with a male NPT thread.

If you have any further questions about the brass dot push-in air fittings, feel free to ask.

Features and Benefits:

• Easy to operate
• Durability
• Corrosion-resistance
• Safety

Description

Part#	Tube O.D *Female NPTF	Approx Wt.Lbs
2695-4C	1/4*1/8	0.06
2695-4D	1/4*1/4	0.10
2695-6C	3/8*1/8	0.11
2695-6D	3/8*1/4	0.11
2695-6E	3/8*3/8	0.17
2695-8D	1/2*1/4	0.14
2695-8E	1/2*3/8	0.16
2695-8F	1/2*1/2	0.25
