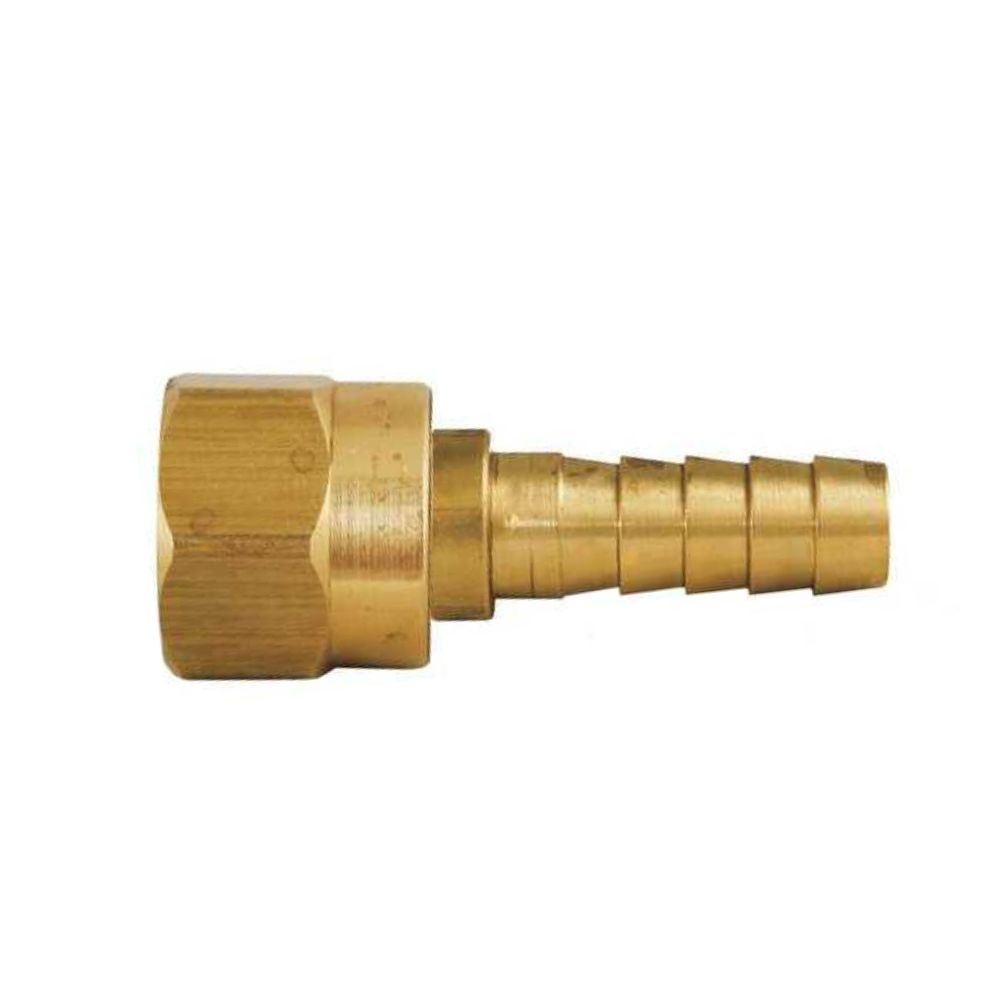

Brass Swivel Fitting Female NPTF Adapter

Description:

A brass swivel female adapter is a type of fitting that is used to connect two pipes or a pipe and a valve or other device.

It is similar to a rigid male adapter, but it has a swivel feature that allows it to rotate or pivot in order to align with the female fitting or pipe that it is connecting to. This can be helpful in situations where the pipes or fittings are not perfectly aligned or where the connection needs to be made at an angle.

If you need more information about brass fittings or want to know more about other fittings, please ask our staff.

Features and Benefits:

• Corrosion resistance
• Durability
• Multiple usages
• Strength

Categories: NPTF, Adapter, Brass, Hose Barb, Straight

Part #

Hose I.D. x Female NPTF

A

B

Hex

Approx. Wt. Lbs.

32-470

1/4″ x 1/4″

1.80

0.97

0.62

0.06

32-472

3/8″ x 1/4″

1.80

0.97

0.62

0.06

32-473

3/8″ x 3/8″

1.82

0.97

0.75

0.09

32-475

1/2″ x 3/8″

1.82

0.97

0.75

0.09

32-476

1/2″ x 1/2″

1.86

0.97

0.93

0.14

Brass Swivel Fitting Female NPTF Adapter Video

This video shows the information on the brass swivel fitting female NPTF adapter.

Additionally, brass swivel fitting female NPTF adapters are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.

Please contact us if you have any questions about the brass hose pipe fitting.
