Description:

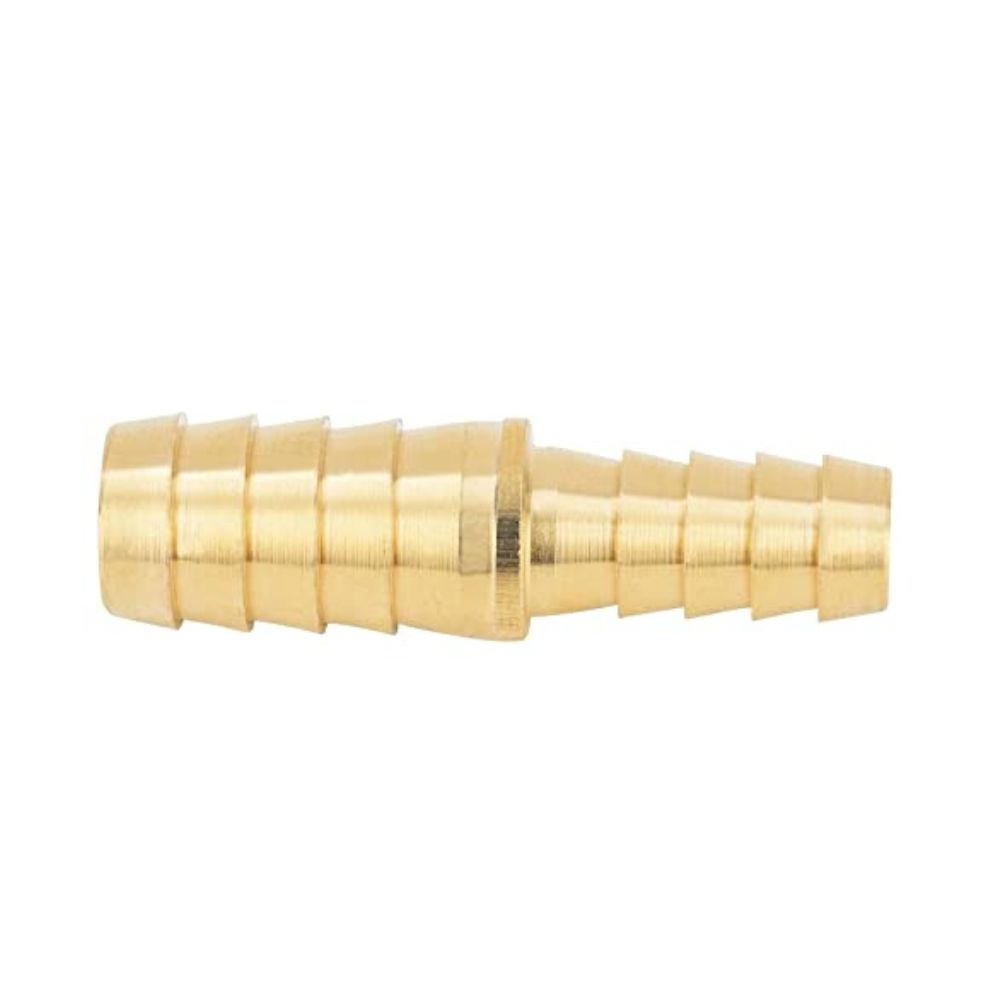

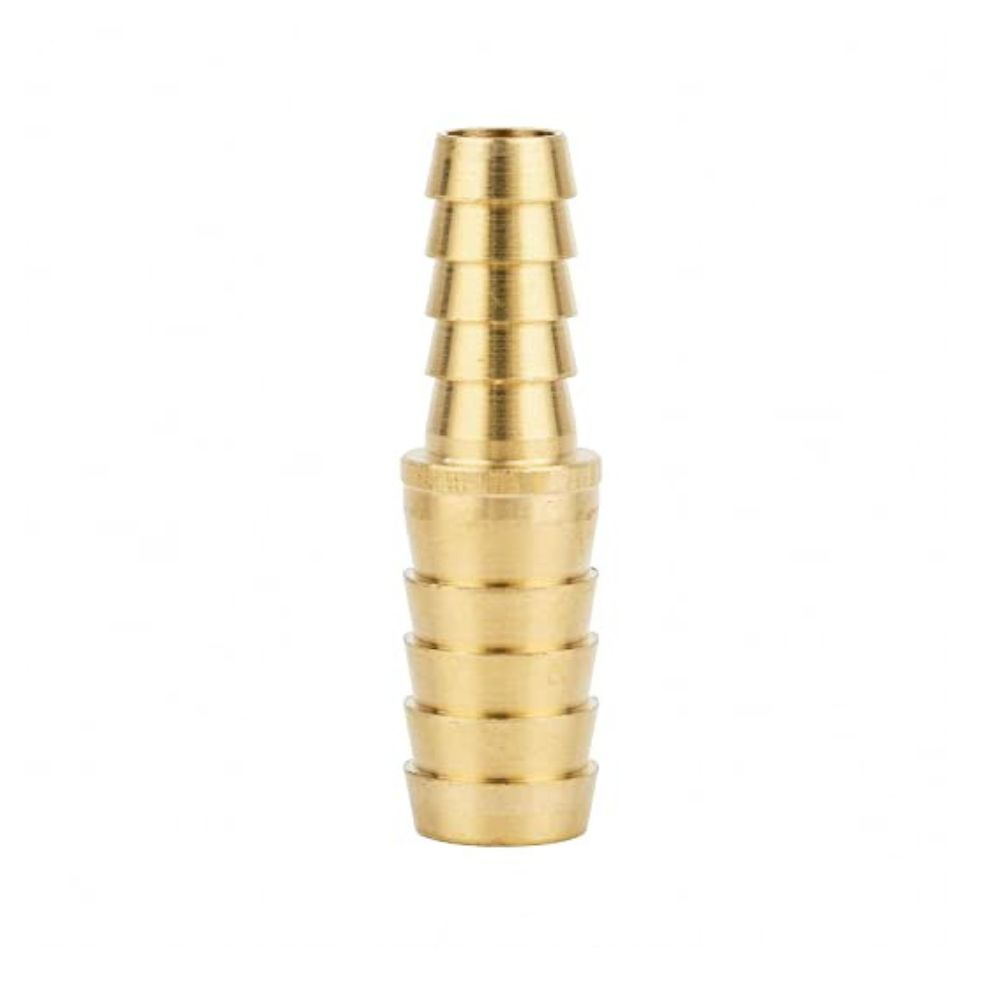

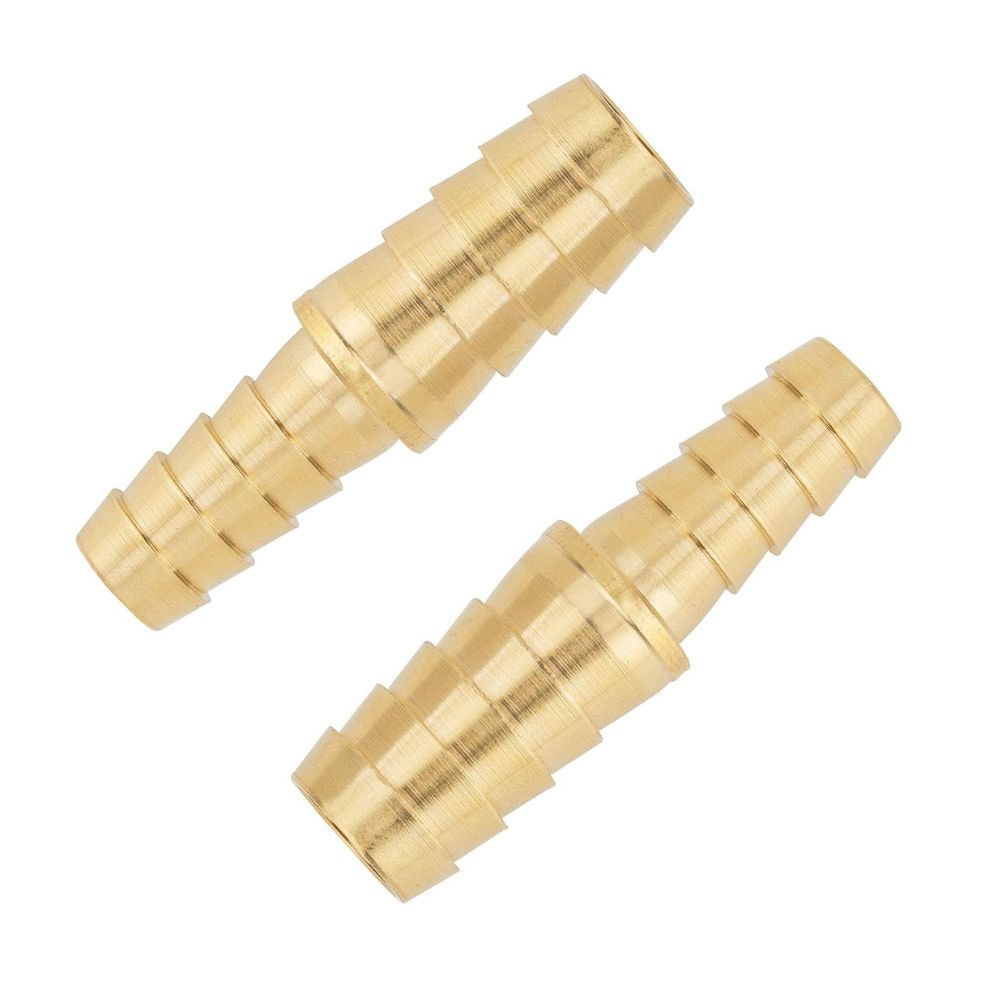

A brass splicer is a type of fitting that is used to connect two pipes or tubes together in a plumbing or piping system.
The brass splicer has external ends that allow it to be pushed onto the ends of two pipes or tubes, creating a secure and leak-free connection.
If you need more information about brass fittings or want to know more about other fittings, please ask our staff.
Features and Benefits:
• Corrosion resistance
• Durability
• Multiple usages
• Strength
Categories: Adapter, Brass, Hose barb, Straight

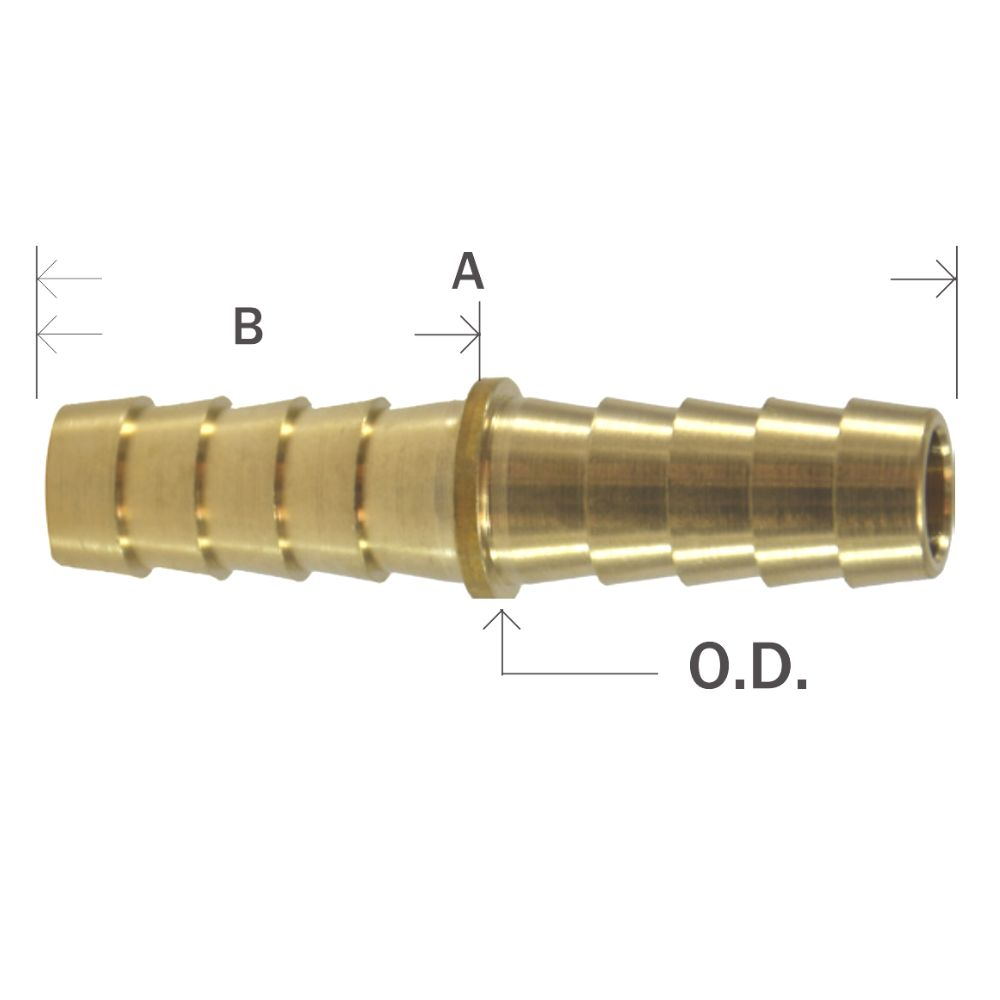

Part # | Hose I.D. x Hose I.D. | A | B | O.D. | Approx. Wt. Lbs. |
32-091 * | 1/8” | 0.98 | 0.45 | 0.31 | 0.01 |
32-092 | 3/16” | 1.62 | 0.77 | 0.36 | 0.02 |
32-093 * | 1/4” | 2.00 | 0.96 | 0.37 | 0.02 |
32-079 * | 1/4″ x 1/8″ | 1.50 | 0.97 | 0.37 | 0.02 |
32-094 * | 5/16” | 2.00 | 0.96 | 0.39 | 0.02 |
32-090 * | 5/16″ x 1/4″ | 2.00 | 0.97 | 0.50 | 0.03 |
32-095 * | 3/8″ | 2.00 | 0.97 | 0.51 | 0.04 |
32-080 ** | 3/8″ x 1/4″ | 2.06 | 0.97 | 0.56 | 0.03 |
32-375 * | 3/8″ x 5/16″ | 2.00 | 0.97 | 0.50 | 0.03 |
32-096 * | 1/2” | 2.00 | 0.96 | 0.62 | 0.06 |
32-087 * | 1/2″ x 3/8″ | 2.06 | 0.97 | 0.71 | 0.06 |
32-097 | 5/8” | 2.05 | 0.96 | 0.75 | 0.08 |
32-088 | 5/8″ x 3/8″ | 2.06 | 0.97 | 0.75 | 0.06 |
32-376 | 5/8″ x 1/2″ | 2.06 | 0.97 | 0.75 | 0.07 |
32-098 * | 3/4” | 2.50 | 1.15 | 0.87 | 0.10 |
32-089 | 3/4″ x 1/2″ | 2.28 | 1.19 | 0.87 | 0.10 |
32-379 | 3/4″ x 5/8″ | 2.02 | 0.96 | 0.87 | 0.10 |
32-380 | 1″ x 3/4″ | 2.58 | 1.19 | 1.12 | 0.18 |
32-099 | 1″ | 3.00 | 1.44 | 1.02 | 0.23 |
This video shows the information on the brass fitting adapters splicer.
Additionally, brass splicer adapters are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.
Please contact us if you have any questions about the hose with brass fitting.
