Description:

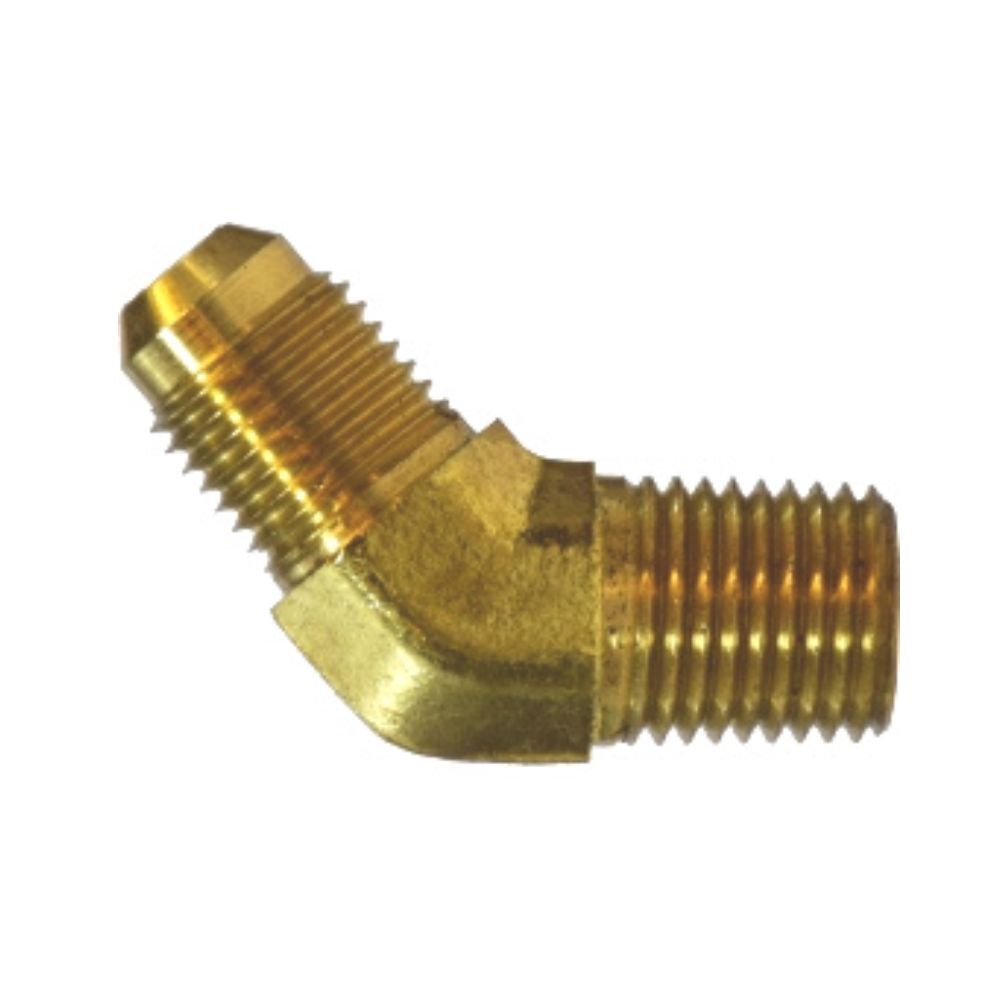

The brass JIC 45° elbow adapter is a male elbow fitting with a male JIC thread and a male NPT thread, it is commonly used in hydraulic systems for piping and hydraulic applications.

The brass JIC elbow fitting is designed to connect two tubing sections at a 37-degree angle to provide a secure and leak-proof seal.

If you have any questions about the brass flare fittings, feel free to ask.

Features and Benefits:

• Easy to assemble
• Durability
• Leak free
• Strong seal

Description

Part #	Tube O.D	Tube Thread	A NPTF	M	N	Y	Working Pressure
28-722F	1/4	7/16-20	1/8-27	0.72	0.64	0.5	4367 psi
28-724F	1/4	7/16-20	1/4-18	0.81	0.84	0.53	3750 psi
28-729F	3/8	9/16-18	1/8-27	0.83	0.65	0.63	3128 psi
28-731F	3/8	9/16-18	1/4-18	0.83	0.86	0.63	3128 psi
28-733F	3/8	9/16-18	3/8-18	0.91	0.95	0.81	3100 psi
28-734F	3/8	9/16-18	1/2-14	1.03	1.17	0.94	2826 psi
28-736F	1/2	3/4-16	3/8-18	0.98	0.95	0.75	2938 psi
28-738F	1/2	3/4-16	1/2-14	1.13	1.17	0.86	2826 psi
28-742F	3/4	1 1/16-12	3/4-14	1.28	1.2	1.13	2442 psi

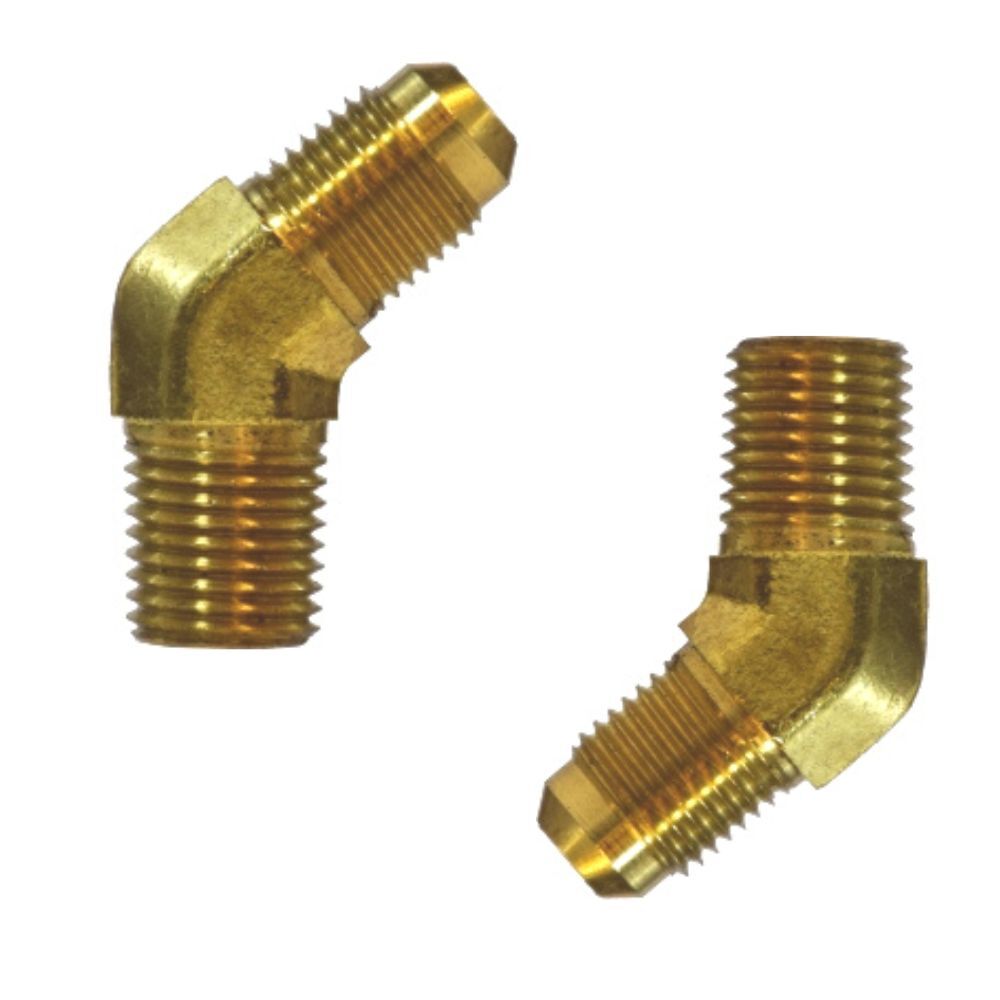

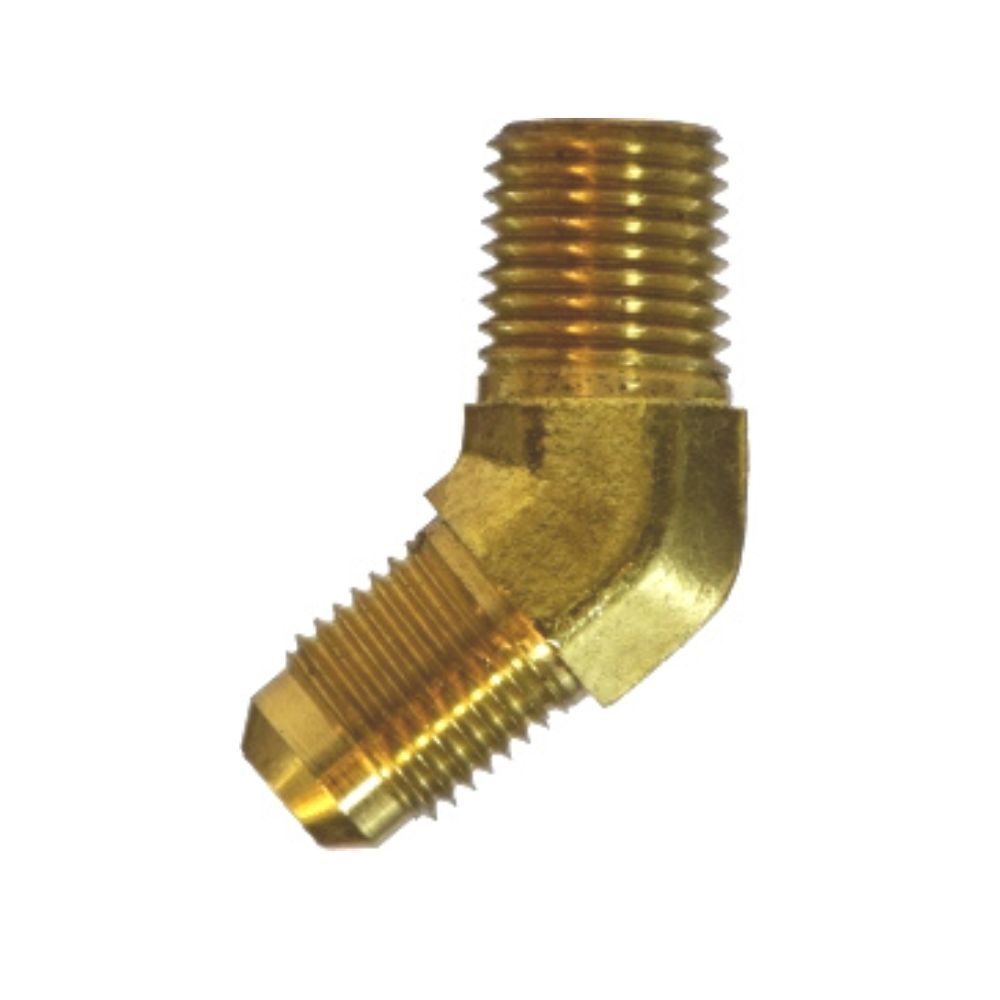

Brass JIC Fittings - Forged 45° Elbow Video

This video shows information about forged 45° elbow brass JIC fittings.

We can offer different sizes and types of JIC brass elbow adapter, such as 1/2, 1/4, 3/8, etc. These JIC fittings play an essential role in fluid systems.

If you have any questions about brass 45 degree elbow flare fittings, please contact us.
