JIC Brass Flare Fitting

Description:

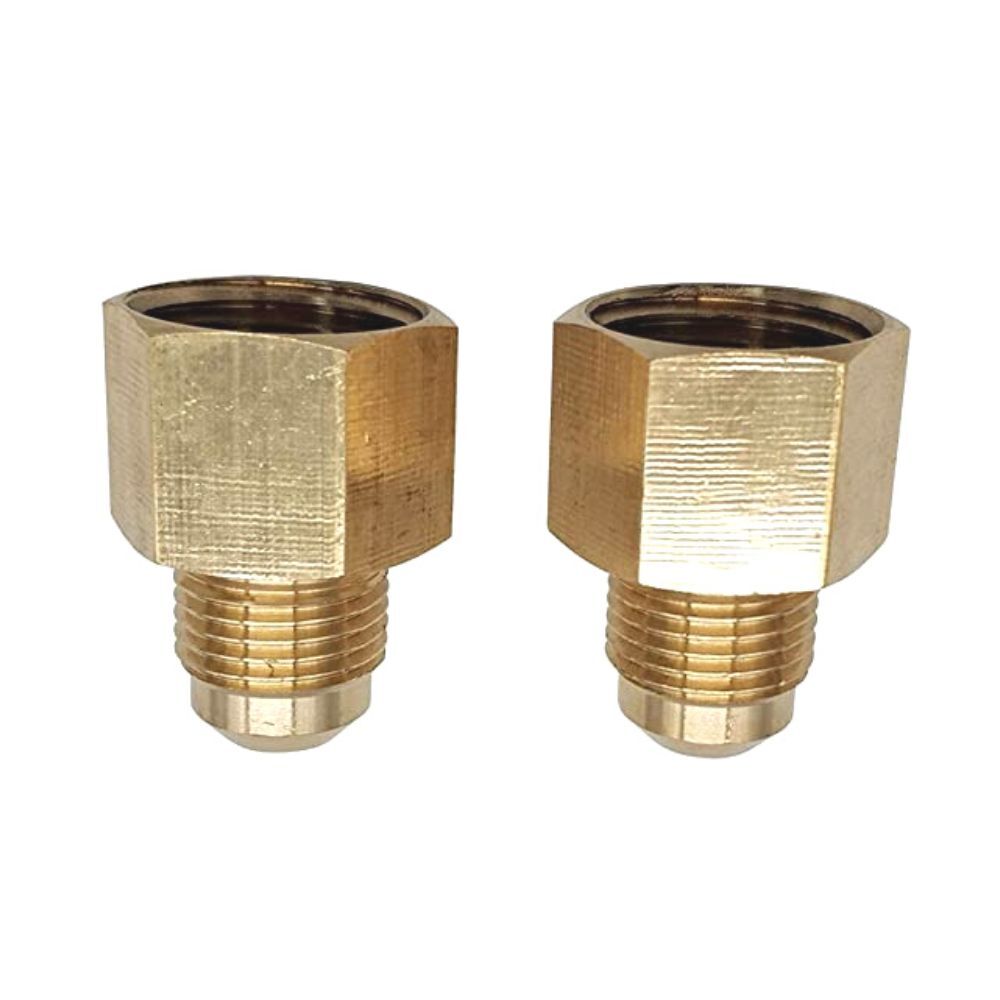

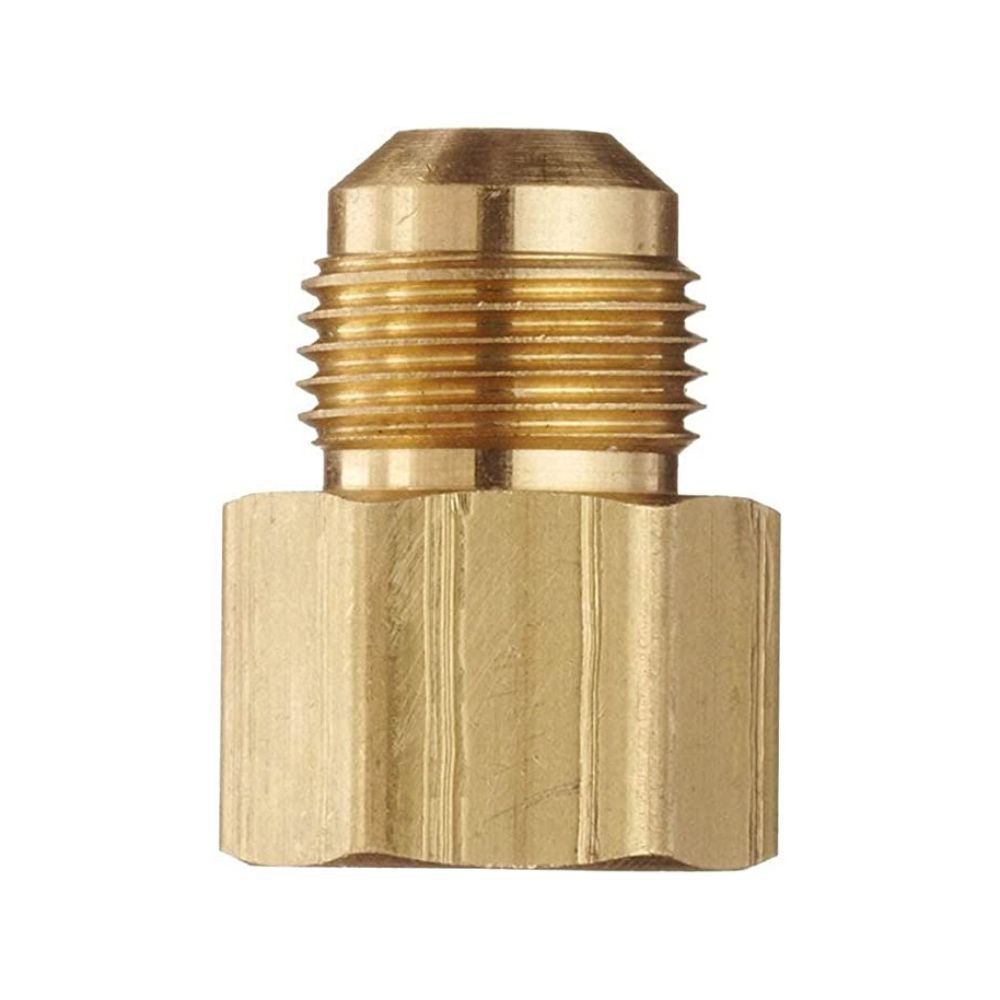

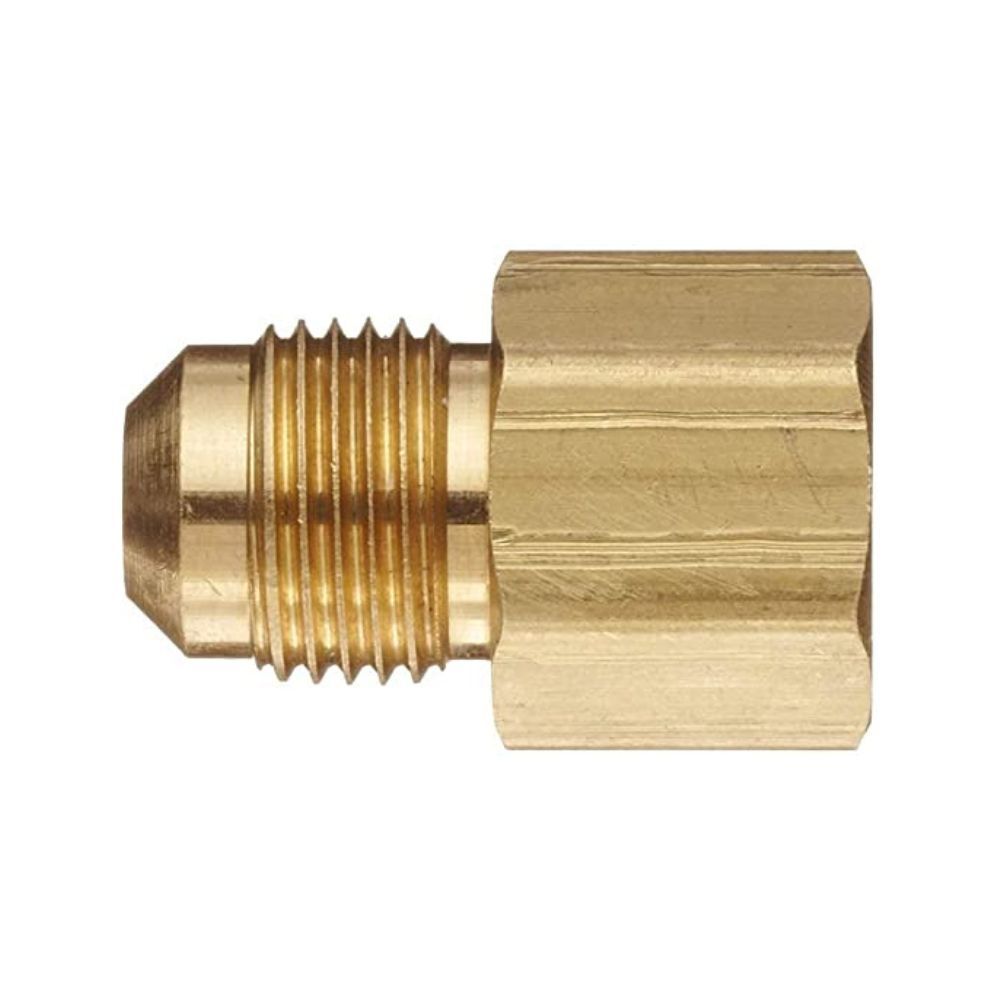

The brass JIC female adapter is a flare fitting that has a male JIC thread and a female NPT thread, it is commonly used in hydraulic systems for piping and hydraulic applications.

The JIC brass flare fitting is designed to connect two sections of tubing at a 37-degree angle to provide a secure and leak-proof seal.

If you have any further questions about the jic brass fittings, feel free to ask.

Features and Benefits:

• Easy to assemble
• Durability
• Leak free
• Strong seal



Description

Part #

Tube OD

Pipe

Tube Thread

L

Hex

Working Pressure

28-957

1/4

1/8-27

7/16-20

1.19

0.56

3250 psi

28-958

1/4

1/4-18

7/16-20

1.40

0.75

3250 psi

28-959

3/8

1/4-18

9/16-18

1.40

0.75

3250 psi

28-960

3/8

3/8-18

9/16-18

1.40

0.88

3250 psi

28-961

1/2

3/8-18

3/4-16

1.56

0.88

3250 psi

28-962

1/2

1/2-14

3/4-16

1.79

1.13

3250 psi

28-963

5/8

1/2-14

7/8-14

1.87

1.13

3250 psi

28-964

3/4

3/4-1/4

1-1/16-12

2.06

1.38

2600 psi



JIC Brass Flare Fitting - Female Straight Adapter Video

This video shows information about JIC brass flare fitting – female straight adapter.

We can offer different sizes and types of  JIC brass adapter, such as 1/2, 1/4, 3/8, etc. These JIC fittings play an essential role in automotive, construction, and manufacturing applications.

If you have any questions about brass jic adapters, please contact us.
