Description

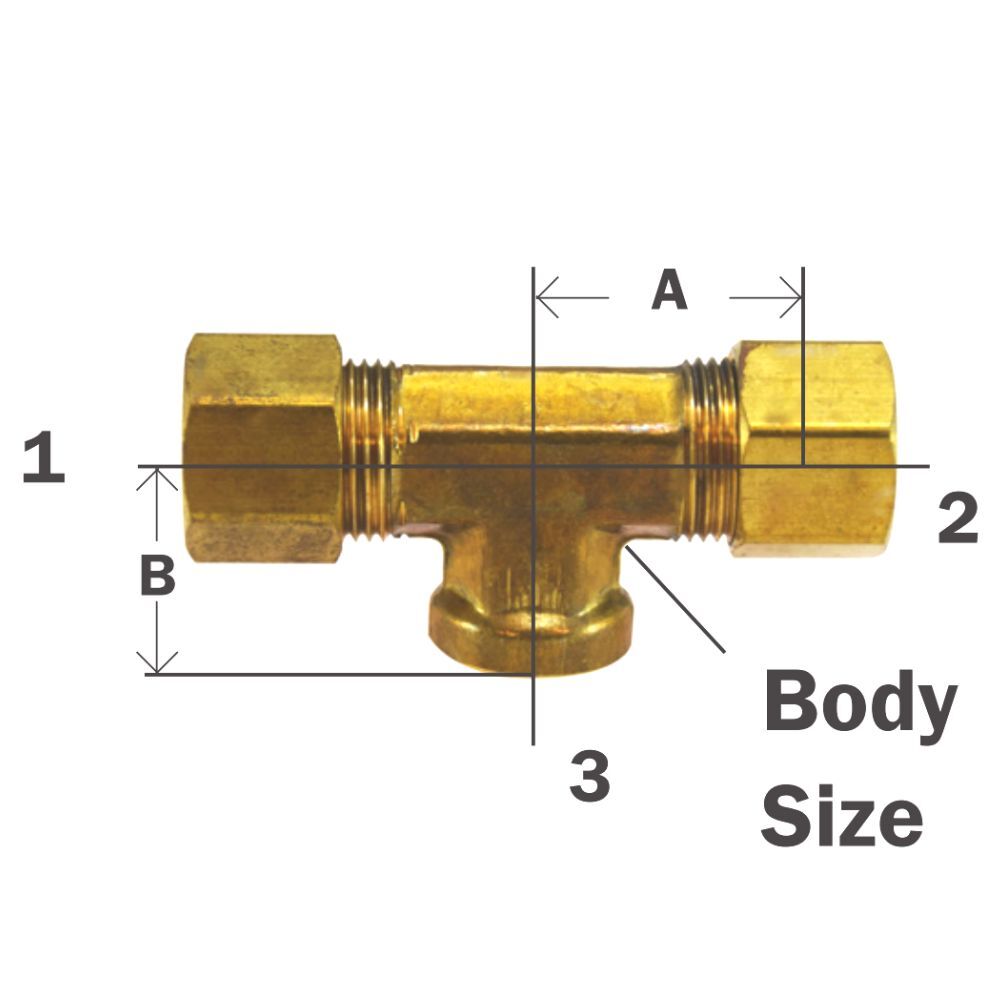

Part # | Comp. X Female NPTF (1&2)x3 | A | B | Body Size | Approx. Wt. Lbs. |
18-321 | 1/4” x 1/8” | 0.78 | 0.75 | 0.45 | 0.10 |
18-328 | 1/4” x 1/4” | 0.78 | 0.75 | 0.44 | 0.12 |
18-325 | 3/8” x 1/8” | 0.75 | 0.63 | 0.50 | 0.12 |
18-322 | 3/8” x 1/4” | 0.81 | 0.97 | 0.47 | 0.14 |
18-323 | 3/8” x 3/8” | 0.97 | 0.69 | 1.05 | 0.16 |
18-326 | 1/2” x 1/8” | 0.94 | 0.75 | 0.59 | 0.20 |
18-324 | 1/2” x 3/8” | 1.00 | 0.72 | 0.88 | 0.22 |
18-327 | 5/8” x 1/8” | 1.06 | 0.81 | 0.69 | 0.26 |

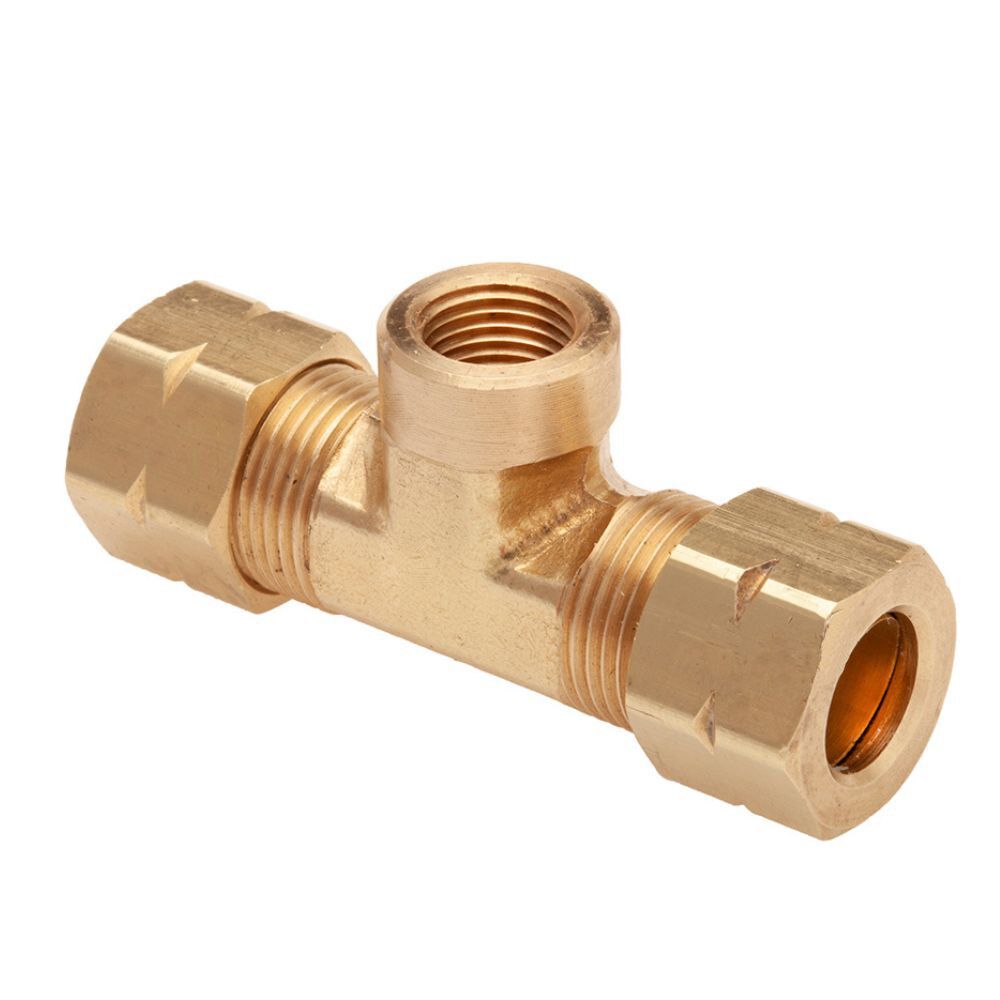

Brass Compression Tees-Female Branch Tee Video
This video shows information about brass compression tees-female branch tee.
Brass compression female branch tees are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.
If you have any questions about brass compression fitting, please contact us.
