Description:

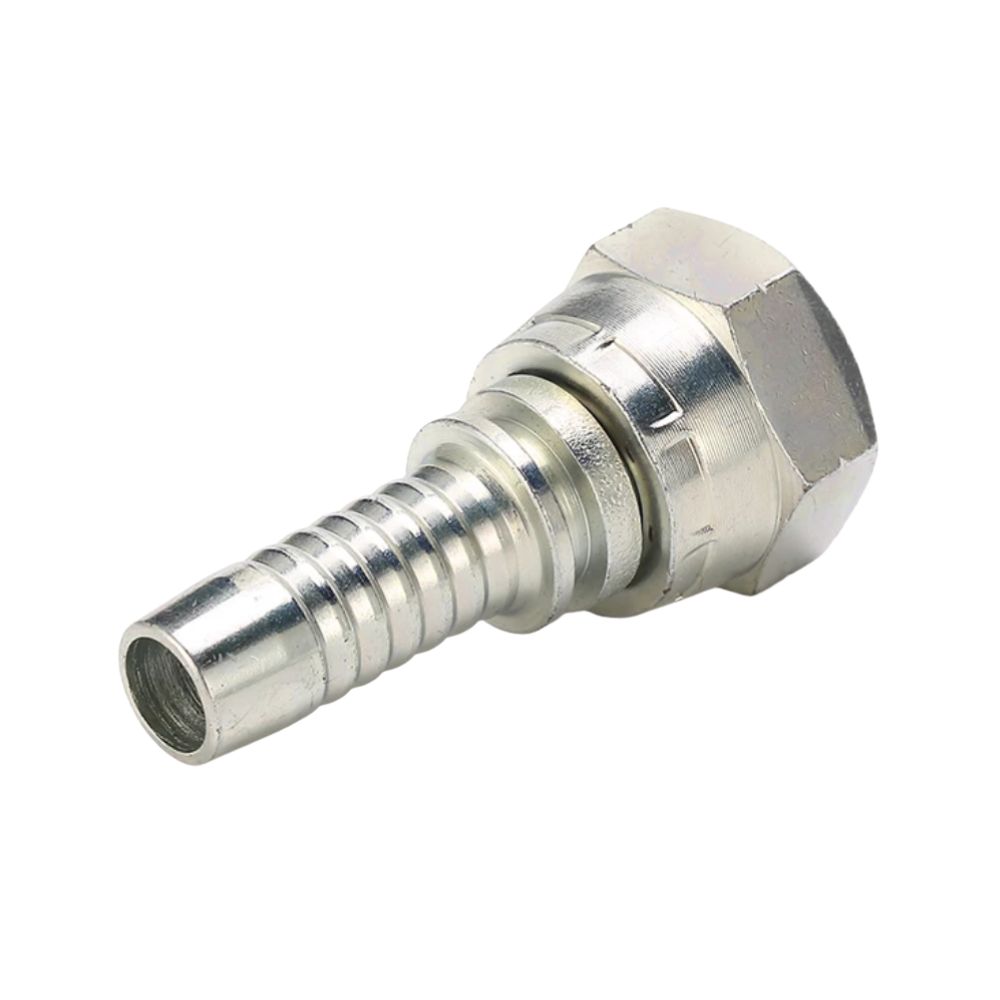

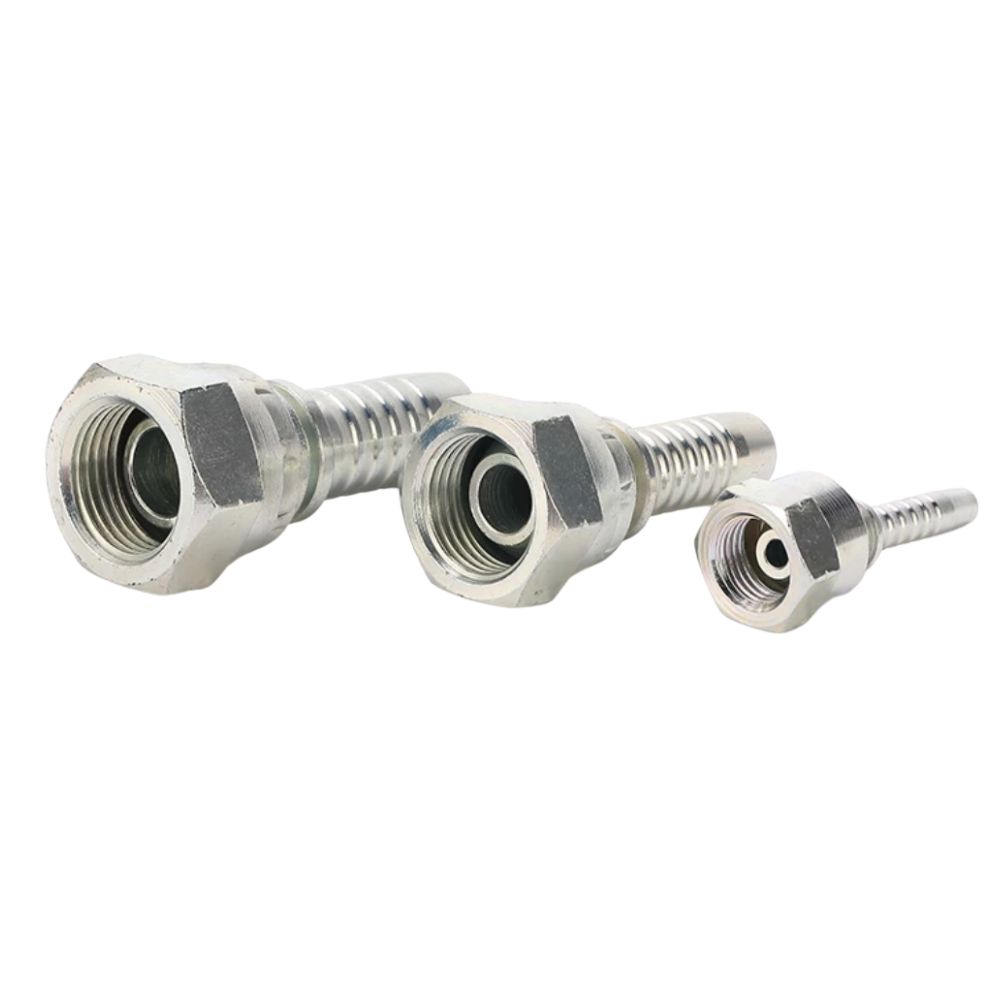

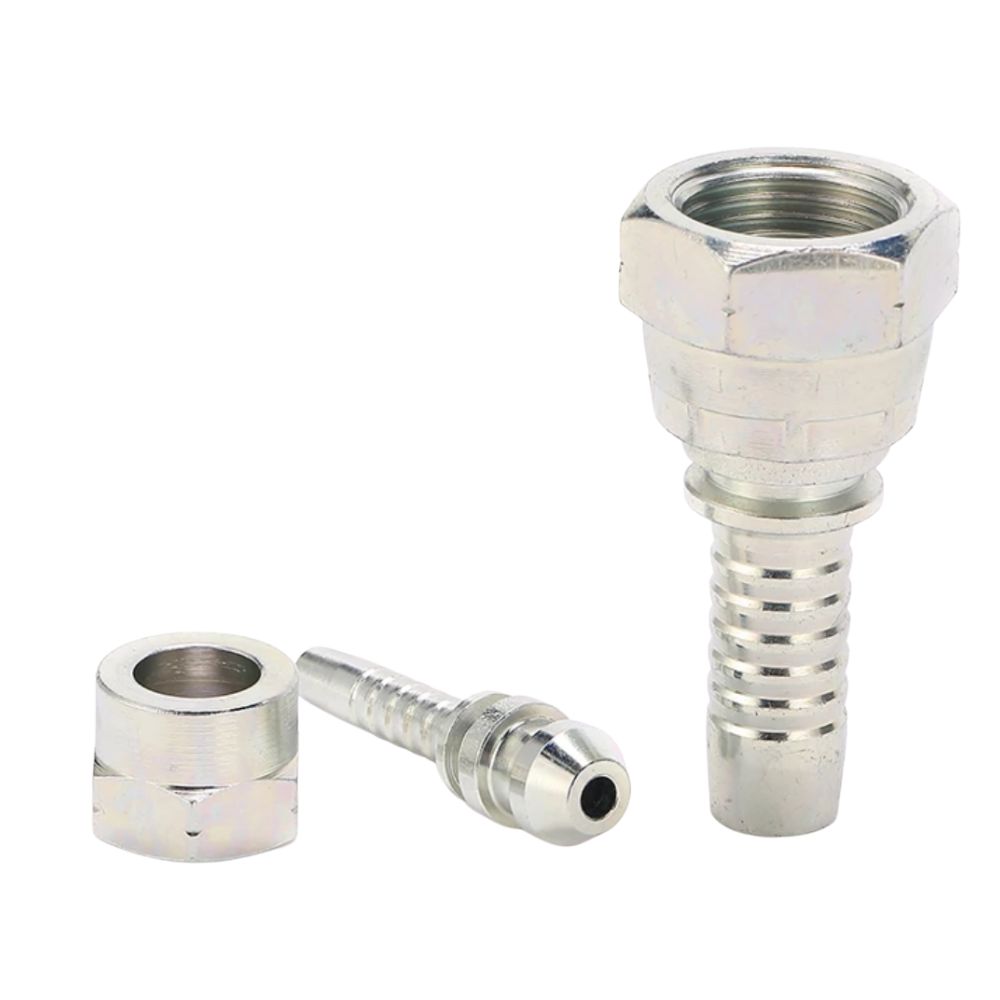

22611-BSP hydraulic hose fitting is the female fitting with a 60-degree cone seat. They can be applied in many hydraulic fluid systems.
BSP (British Standard Pipe) is the name of a set of technical standards that define a specific thread. These standards have been adopted worldwide for the interconnection and sealing of pipes and fittings.
If you want free samples or want to know more information about british pipe thread fittings, please contact us.
Features and Benefits:
• Affordable
• Practicality
• No rust
• Tight seal
Categories: hydraulic fitting, BSP thread
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
DN | DASH | A | C | S2 | ||
22611-02-03 | G1/8″*28 | 5 | 03 | 15 | 5.5 | 14 |
22611-02-04 | G1/8″*28 | 6 | 04 | 15 | 5.5 | 14 |
22611-04-03 | G1/4″*19 | 5 | 03 | 17 | 5.5 | 19 |
22611-04-04 | G1/4″*19 | 6 | 04 | 18 | 5.5 | 19 |
22611-04-05 | G1/4″*19 | 8 | 05 | 18 | 5.5 | 19 |
22611-04-06 | G1/4″*19 | 10 | 06 | 18 | 5.5 | 19 |
22611-06-04 | G3/8″*19 | 6 | 04 | 19 | 6.3 | 22 |
22611-06-05 | G3/8″*19 | 8 | 05 | 19 | 6.3 | 22 |
22611-06-06 | G3/8″*19 | 10 | 06 | 19.5 | 6.3 | 22 |
22611-06-08 | G3/8″*19 | 12 | 08 | 19.5 | 6.3 | 22 |
22611-08-06T | G1/2″*14 | 10 | 06 | 21 | 7.5 | 27 |
22611-08-08 | G1/2″*14 | 12 | 08 | 21.5 | 7.5 | 27 |
22611-10-08 | G5/8″*14 | 12 | 08 | 22 | 9.5 | 30 |
22611-10-10 | G5/8″*14 | 16 | 10 | 23.5 | 9.5 | 30 |
22611-12-08T | G3/4″*14 | 12 | 08 | 22 | 10.9 | 32 |
22611-12-10 | G3/4″*14 | 16 | 10 | 24 | 10.9 | 32 |
22611-12-12 | G3/4″*14 | 20 | 12 | 24 | 10.9 | 32 |
22611-16-12T | G1″*11 | 20 | 12 | 24 | 11.7 | 41 |
22611-16-14 | G1″*11 | 22 | 14 | 26 | 11.7 | 41 |
22611-16-16 | G1″*11 | 25 | 16 | 27 | 11.7 | 41 |
22611-20-16T | G1.1/4″*11 | 25 | 16 | 27.5 | 11 | 50 |
22611-20-20W | G1.1/4″*11 | 32 | 20 | 30.5 | 11 | 50 |
22611-24-20T | G1.1/2″*11 | 32 | 20 | 32 | 13 | 55 |
22611-24-24W | G1.1/2″*11 | 40 | 24 | 32 | 13 | 55 |
22611-32-24T | G2″*11 | 40 | 24 | 30 | 16 | 70 |
22611-32-32W | G2″*11 | 50 | 32 | 31.9 | 16 | 70 |
This video is about the details of the 22611 BSP hydraulic hose fitting. The main feature of BSP hydraulic hose fittings 22611 is their 60-degree cone seat.
They have many usages, sizes, and dimensions and can also play an essential role in many hydraulic systems.
And if you want more information about bsp hose ends female fitting, don’t hesitate to contact us.
