Description:

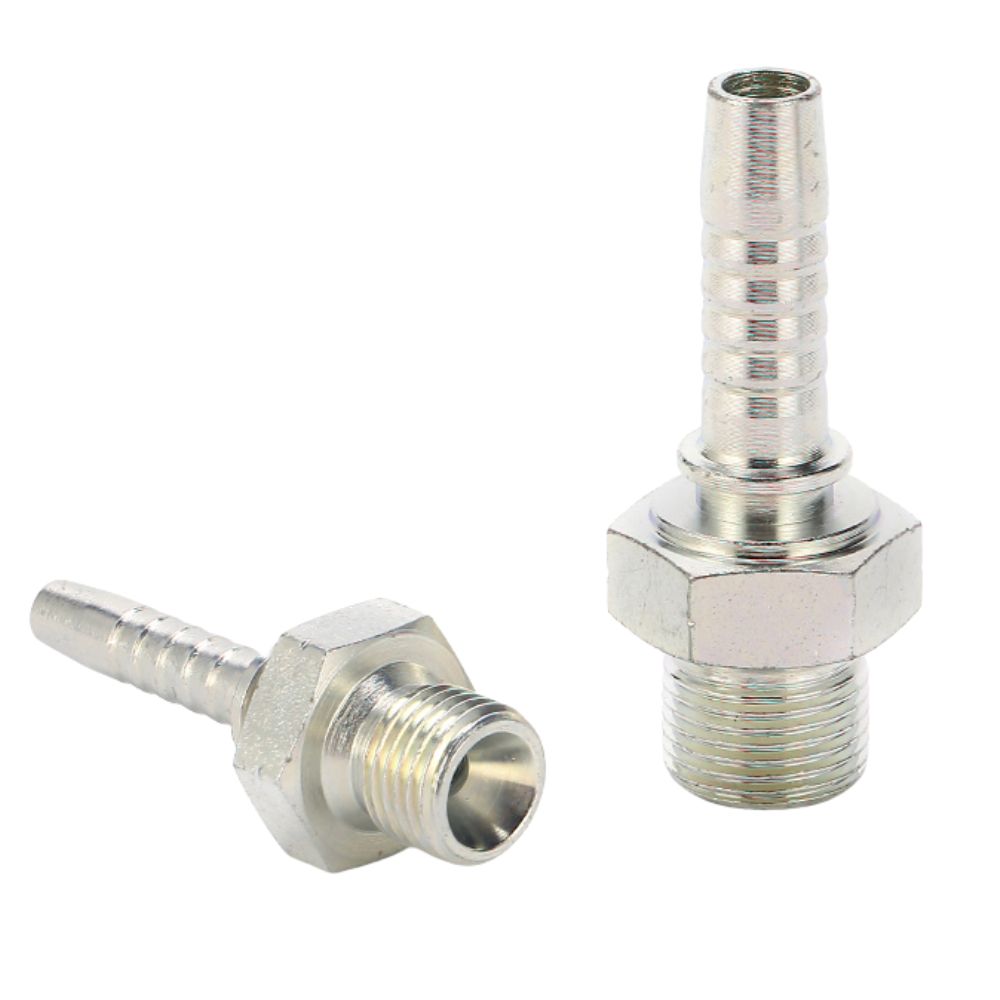

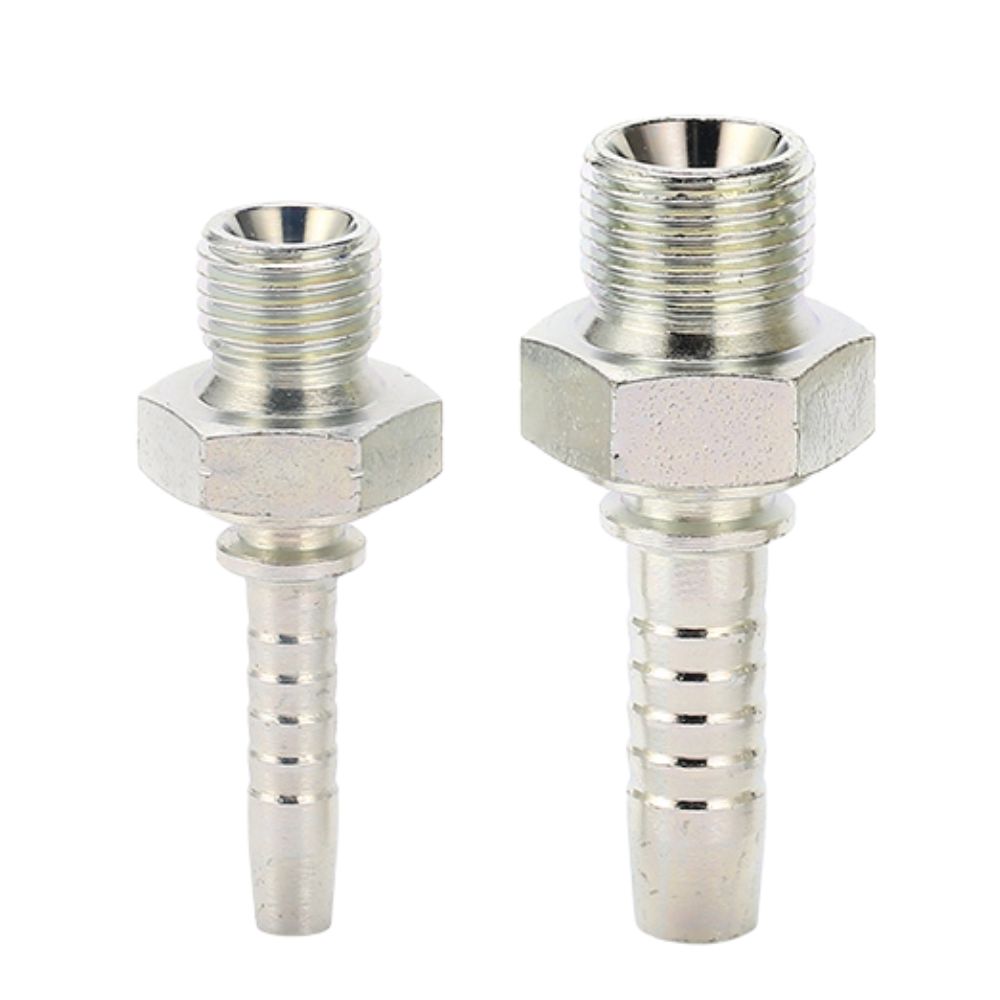

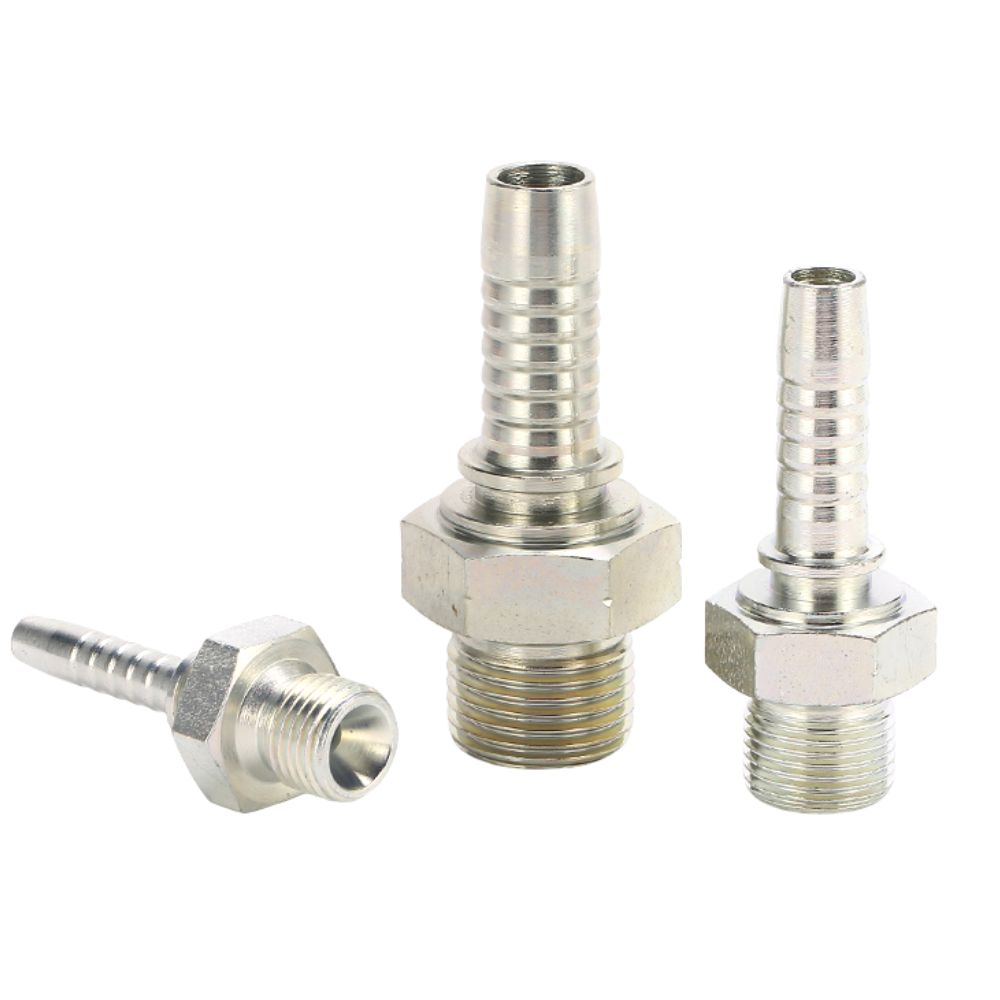

12611A-BSP hydraulic hose fitting is the male fitting with a 60-degree cone seat. They can be applied in many hydraulic fluid systems.
BSP (British Standard Pipe) is the name of a set of technical standards that define a specific thread. These standards have been adopted worldwide for the interconnection and sealing of pipes and fittings.
If you want free samples or want to know more information about bsp hose fittings, please contact us.
Features and Benefits:
• Securely
• Practicality
• No rust
• Strong seal
Categories: hydraulic fitting, BSP thread
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
DN | DASH | A | C | S2 | ||
12611A-02-03 | G1/8″*28 | 5 | 03 | 22 | 10 | 12 |
12611A-04-04 | G1/4″*19 | 6 | 04 | 24.5 | 12 | 14 |
12611A-06-05 | G3/8″*19 | 8 | 05 | 26 | 13.5 | 17 |
12611A-06-06 | G3/8″*19 | 10 | 06 | 27.5 | 13.5 | 17 |
12611A-06-08 | G3/8″*19 | 12 | 08 | 26.5 | 13.5 | 19 |
12611A-08-06 | G1/2″*14 | 10 | 06 | 30.5 | 16 | 22 |
12611A-08-08 | G1/2″*14 | 12 | 08 | 31 | 16 | 22 |
12611A-10-08 | G5/8″*14 | 12 | 08 | 32.5 | 17.5 | 24 |
12611A-10-10 | G5/8″*14 | 16 | 10 | 33.5 | 17.5 | 24 |
12611A-12-08 | G3/4″*14 | 12 | 08 | 35.5 | 18.5 | 27 |
12611A-12-10 | G3/4″*14 | 16 | 10 | 37 | 18.5 | 27 |
12611A-12-12 | G3/4″*14 | 20 | 12 | 36.5 | 18.5 | 27 |
12611A-16-12 | G1″*11 | 20 | 12 | 40.5 | 20.5 | 36 |
12611A-16-16 | G1″*11 | 25 | 16 | 41.5 | 20.5 | 36 |
12611A-20-16 | G1.1/4″*11 | 25 | 16 | 43.5 | 20.5 | 46 |
12611A-20-20 | G1.1/4″*11 | 32 | 20 | 44.5 | 20.5 | 46 |
12611A-24-20 | G1.1/2″*11 | 32 | 20 | 49 | 23 | 50 |
12611A-24-24 | G1.1/2″*11 | 40 | 24 | 46 | 23 | 50 |
12611A-32-32 | G2″*11 | 50 | 32 | 53.5 | 25.5 | 65 |
This video is about the details of the 12611A BSP hydraulic hose fitting. The main feature of BSP hydraulic hose fittings is their 60-degree cone seat.
They have many usages, sizes, and dimensions and can also play an essential role in many fluid systems.
