Description:

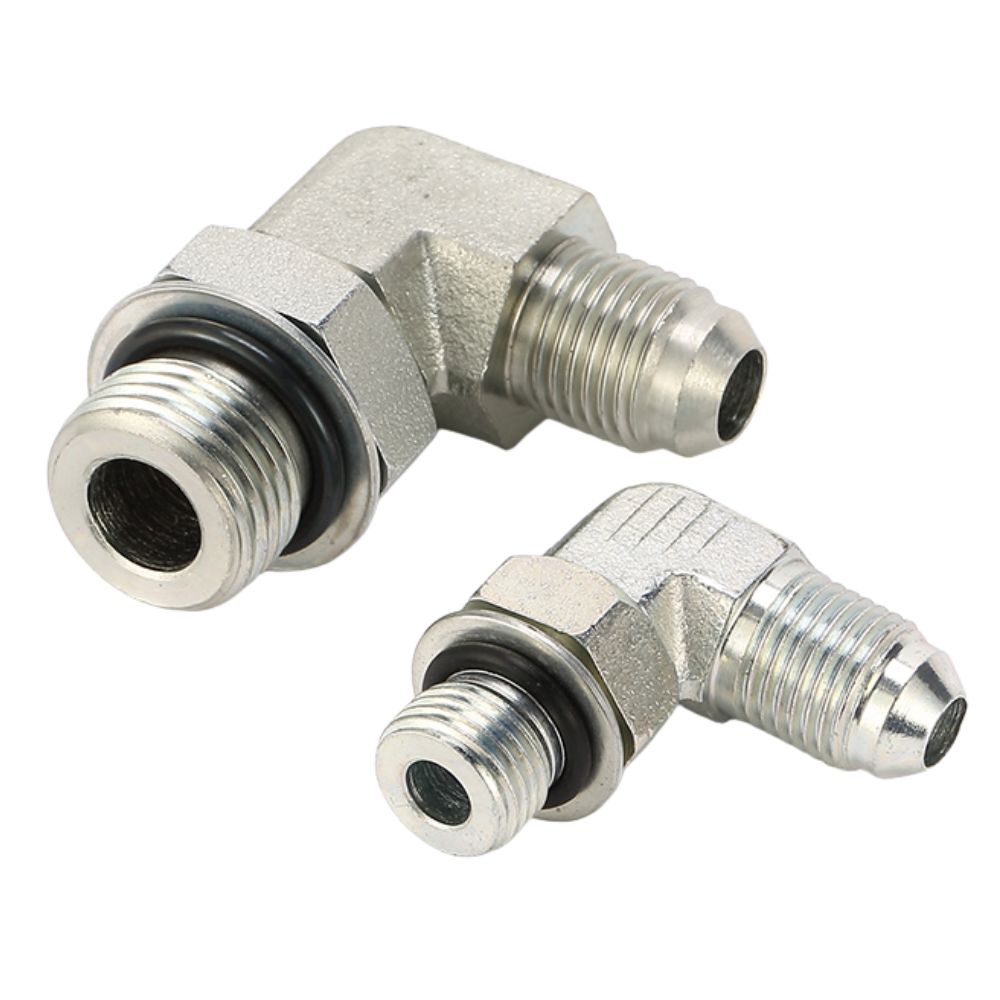

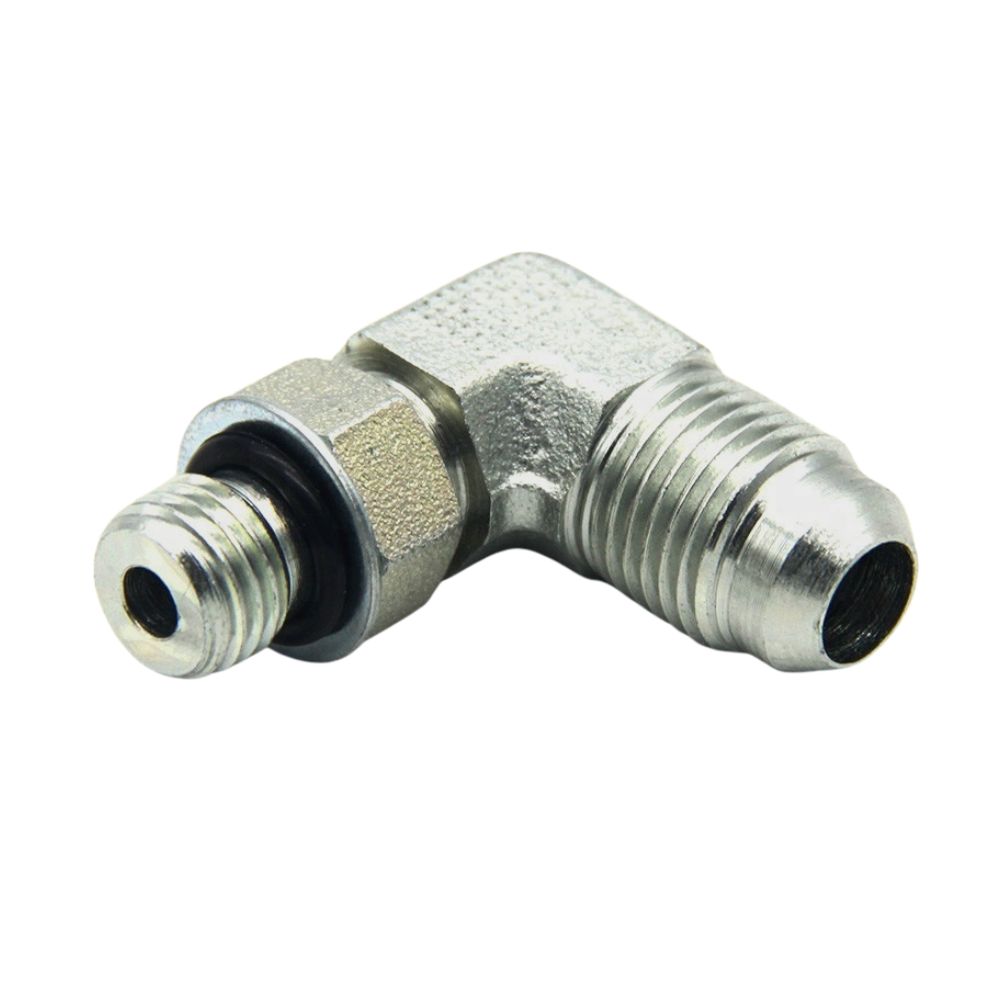

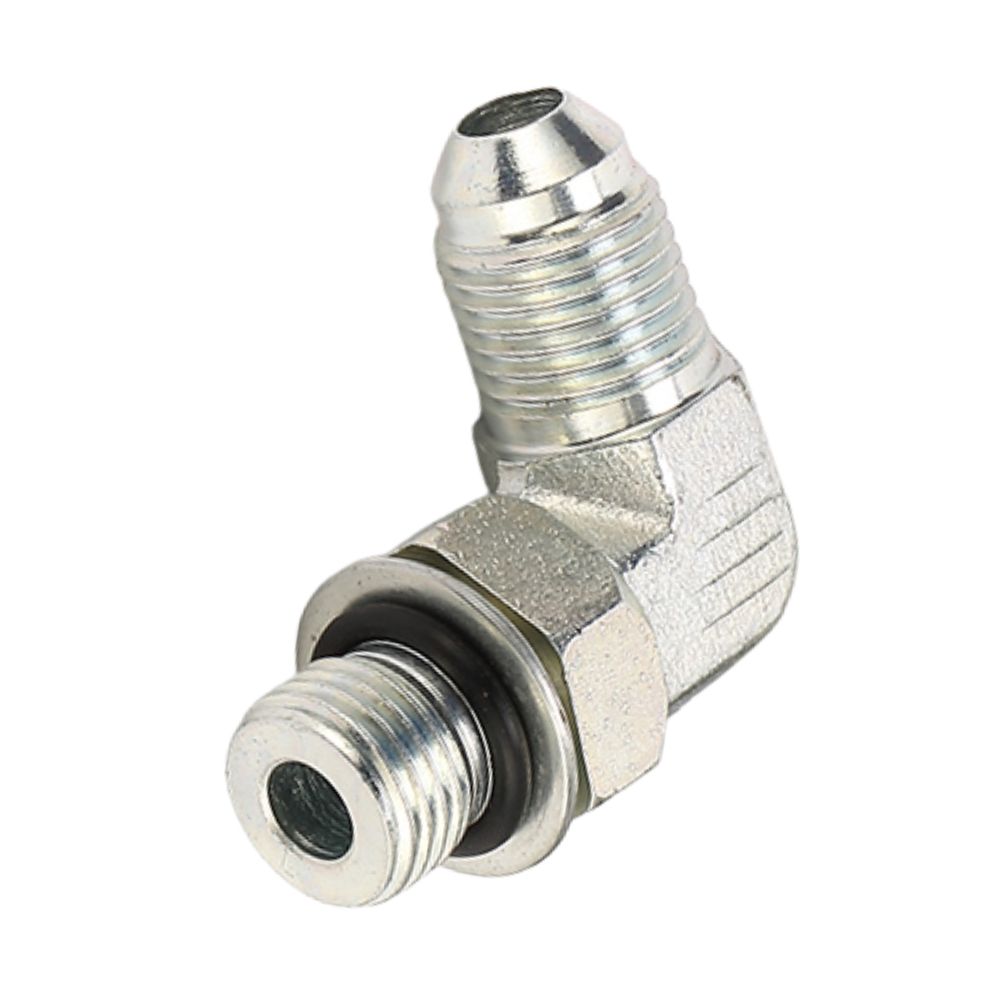

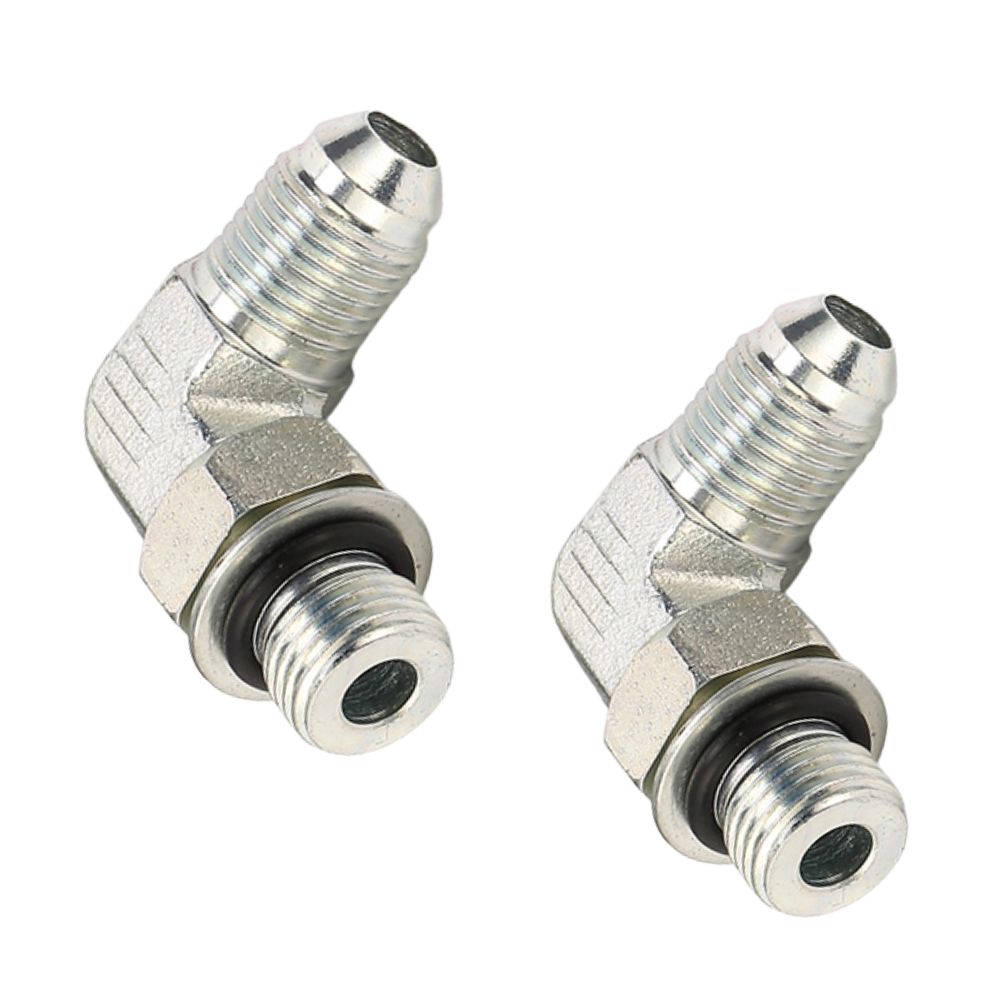

1JO9-OG-JIC to ORB hydraulic fitting is a 90-degree elbow fitting with two types of thread. JIC 37 hydraulic tube fittings 1JO9-OG are hose fittings with an o-ring boss seal.
JIC hose end fitting is an excellent choice for preventing leaks and can be used for higher-pressure applications.
If you want free samples or want to know more information about jic hydraulic hose fittings, please contact us.
Features and Benefits:
• Durable
• Leak-free
• Tight seal
• High-pressure resistance
Categories: hydraulic fitting, JIC thread, ORB fitting
PART NO. | THREAD | DIMENSIONS | WEIGHT(g) | WORKING PRESSURE(MPa) | ||||
T1 | T2 | L1 | L2 | S1 | S2 | |||
1JO9-04OG | 7/16＂X20 | 7/16＂X20 | 22.6 | 26.2 | 11 | 17 | 33 | 31.5 |
1JO9-04-05OG | 7/16＂X20 | 1/2＂X20 | 24.1 | 28.7 | 14 | 17 | 40 | |
1JO9-04-06OG | 7/16＂X20 | 9/16＂X18 | 24.1 | 29.3 | 14 | 22 | 44 | |
1JO9-05-04OG | 1/2＂X20 | 7/16＂X20 | 24.1 | 28.7 | 14 | 17 | 39 | |
1JO9-05OG | 1/2＂X20 | 1/2＂X20 | 24.1 | 28.7 | 14 | 19 | 42 | |
1JO9-05-06OG | 1/2＂X20 | 9/16＂X18 | 24.5 | 31.8 | 14 | 19 | 50 | |
1JO9-06-04OG | 9/16＂X18 | 7/16＂X20 | 26.9 | 31.2 | 14 | 17 | 46 | |
1JO9-06-05OG | 9/16＂X18 | 1/2＂X20 | 26.9 | 31.2 | 14 | 17 | 50 | |
1JO9-06OG | 9/16＂X18 | 9/16＂X18 | 26.9 | 31.8 | 14 | 19 | 56 | |
1JO9-06-08OG | 9/16＂X18 | 3/4＂X16 | 29 | 36.8 | 19 | 24 | 92 | |
1JO9-08-04OG | 3/4＂X16 | 7/16＂X18 | 32 | 33 | 19 | 17 | 78 | |
1JO9-08-06OG | 3/4＂X16 | 9/16＂X18 | 32 | 33.5 | 19 | 19 | 87 | |
1JO9-08OG | 3/4＂X16 | 3/4＂X16 | 31.8 | 36.8 | 19 | 24 | 120 | 31 |
1JO9-08-10OG | 3/4＂X16 | 7/8＂X14 | 34 | 43.5 | 22 | 27 | 153 | 25 |
1JO9-08-12OG | 3/4＂X16 | 1.1/16＂X12 | 36.5 | 49.5 | 27 | 32 | 218 | |
1JO9-10-08OG | 7/8＂X14 | 3/4＂X16 | 38 | 40 | 22 | 27 | 152 | 24 |
1JO9-10OG | 7/8＂X14 | 7/8＂X14 | 36.8 | 43.2 | 22 | 27 | 173 | |
1JO9-10-12OG | 7/8＂X14 | 1.1/16＂X12 | 41 | 51 | 27 | 32 | 247 | |
1JO9-12-08OG | 1.1/16＂X12 | 3/4＂X16 | 42.2 | 44 | 27 | 24 | 208 | |
1JO9-12-10OG | 1.1/16＂X12 | 7/8＂X14 | 42.2 | 47 | 27 | 27 | 232 | |
1JO9-12OG | 1.1/16＂X12 | 1.1/16＂X12 | 42.2 | 49.3 | 27 | 32 | 284 | |
1JO9-12-16OG | 1.1/16＂X12 | 1.5/16＂X12 | 47.8 | 54.5 | 33 | 41 | 387 | 20 |
1JO9-14OG | 1.3/16＂X12 | 1.3/16＂X12 | 45.7 | 51 | 30 | 36 | 370 | |
1JO9-14-16OG | 1.3/16＂X12 | 1.5/16＂X12 | 45.7 | 54.5 | 33 | 41 | 414 | 16 |
1JO9-16-12OG | 1.5/16＂X12 | 1.1/16＂X12 | 45.7 | 54.5 | 33 | 32 | 370 | 21 |
1JO9-16-14OG | 1.5/16＂X12 | 1.3/16＂X12 | 46 | 56 | 33 | 36 | 416 | 20 |
1JO9-16OG | 1.5/16＂X12 | 1.5/16＂X12 | 46 | 52.1 | 33 | 41 | 430 | |
1JO9-16-20OG | 1.5/16＂X12 | 1.5/8＂X12 | 52.3 | 59 | 41 | 50 | 603 | 16 |
1JO9-20-16OG | 1.5/8＂X12 | 1.5/16＂X12 | 52.3 | 57.2 | 41 | 41 | 582 | 17 |
1JO9-20OG | 1.5/8＂X12 | 1.5/8＂X12 | 52.3 | 57.2 | 41 | 50 | 694 | 16 |
1JO9-20-24OG | 1.5/8＂X12 | 1.7/8＂X12 | 56 | 60.7 | 48 | 55 | 834 | |
1JO9-24OG | 1.7/8＂X12 | 1.7/8＂X12 | 59.2 | 60.7 | 48 | 55 | 920 | 14 |
1JO9-32OG | 2.1/2＂X12 | 2.1/2＂X12 | 77.7 | 73.4 | 63 | 70 | 2034 | 10.5 |
This video is about the details of the 1JO9-OG-JIC to ORB hydraulic fittings.
They have many usages and have lots of sizes and dimensions, and they also can play an essential role in many hydraulic systems.
We also supply other jic hydraulic fittings, and if you want more information about other products or free samples don’t hesitate to get in touch with us.
