Description:

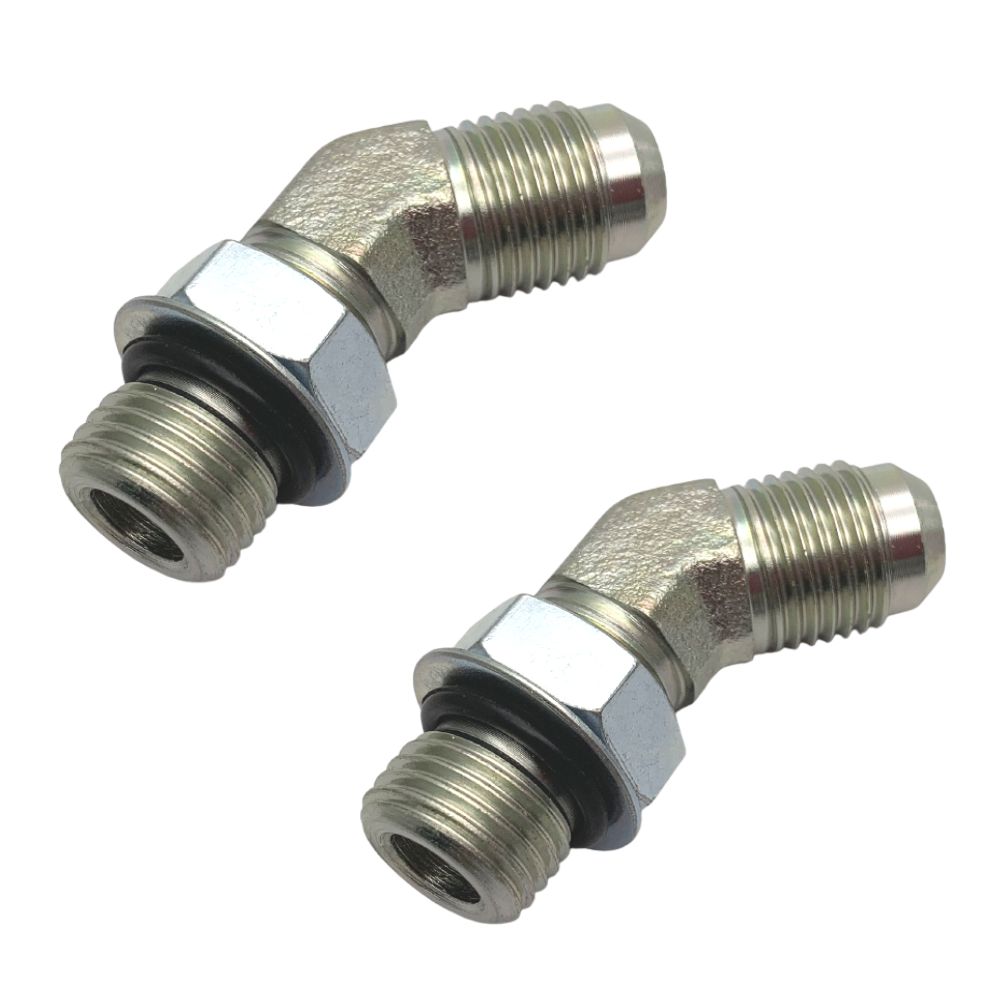

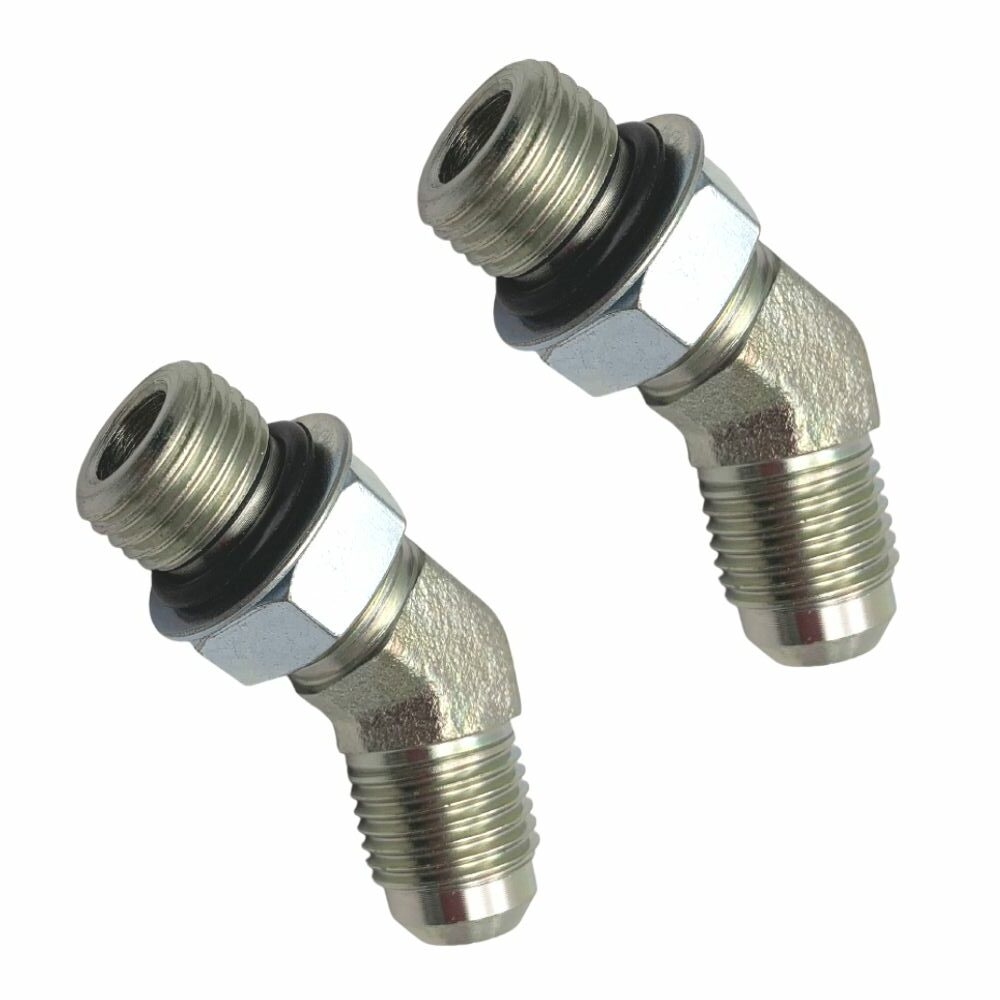

1JO4-OG-JIC to ORB hydraulic fitting is a 45-degree elbow fitting with two types of thread. JIC 37 hydraulic tube fittings 1JO4-OG are hose fittings with an o-ring boss seal.
JIC hose end fitting is an excellent choice for preventing leaks and can be used for higher-pressure applications.
If you want free samples or want to know more information about jic hydraulic hose fittings, please contact us.
Features and Benefits:
• Durable
• No leak
• Tight seal
• High-pressure resistance
Categories: hydraulic fitting, JIC thread, ORB fitting
PART NO. | THREAD | DIMENSIONS | WEIGHT(g) | WORKING PRESSURE(MPa) | ||||
T1 | T2 | L1 | L2 | S1 | S2 | |||
1JO4-04OG | 7/16"X20 | 7/16"X20 | 20.6 | 24.7 | 11 | 17 | 30 | 31.5 |
1JO4-04-06OG | 7/16"X20 | 9/16"X18 | 21.1 | 29 | 17 | 19 | 42 | |
1JO4-04-08OG | 7/16"X20 | 3/4"X16 | 24.5 | 32.5 | 19 | 24 | 73 | |
1JO4-05OG | 1/2"X20 | 1/2"X20 | 19.6 | 26.7 | 14 | 17 | 38 | |
1JO4-05-04OG | 1/2"X20 | 7/16"X20 | 19.6 | 26.7 | 14 | 17 | 34 | |
1JO4-06OG | 9/16"X18 | 9/16"X18 | 21.1 | 29 | 14 | 19 | 48 | |
1JO4-06-04OG | 9/16"X18 | 7/16"X20 | 21.1 | 26.7 | 14 | 17 | 38 | |
1JO4-06-05OG | 9/16"X18 | 1/2"X20 | 21.1 | 26.7 | 17 | 17 | 42 | |
1JO4-06-08OG | 9/16"X18 | 3/4"X16 | 25 | 32.5 | 19 | 24 | 80 | |
1JO4-06-10OG | 9/16"X18 | 7/8"X14 | 25.5 | 38.5 | 22 | 27 | 108 | 25 |
1JO4-08OG | 3/4"X16 | 3/4"X16 | 25 | 33 | 19 | 24 | 100 | 31 |
1JO4-08-06OG | 3/4"X16 | 9/16"X18 | 25 | 28 | 19 | 19 | 70 | |
1JO4-08-10OG | 3/4"X16 | 7/8"X14 | 27.5 | 38.7 | 22 | 27 | 131 | 25 |
1JO4-08-12OG | 3/4"X16 | 1.1/16"X12 | 30 | 43.9 | 27 | 32 | 188 | |
1JO4-10OG | 7/8"X14 | 7/8"X14 | 28.5 | 38.7 | 22 | 27 | 145 | 24 |
1JO4-10-08OG | 7/8"X14 | 3/4"X16 | 28.5 | 34.5 | 22 | 24 | 121 | |
1JO4-10-12OG | 7/8"X14 | 1.1/16"X12 | 31 | 43.9 | 27 | 32 | 203 | |
1JO4-12OG | 1.1/16"X12 | 1.1/16"X12 | 32.5 | 43.9 | 27 | 32 | 237 | |
1JO4-12-10OG | 1.1/16"X12 | 7/8"X14 | 32.5 | 39.8 | 27 | 27 | 186 | |
1JO4-12-16OG | 1.1/16"X12 | 1.5/16"X12 | 37 | 45.5 | 33 | 41 | 315 | 20 |
1JO4-14OG | 1.3/16"X12 | 1.3/16"X12 | 37 | 47.5 | 33 | 36 | 234 | |
1JO4-16OG | 1.5/16"X12 | 1.5/16"X12 | 37.5 | 47.5 | 33 | 41 | 372 | |
1JO4-16-12OG | 1.5/16"X12 | 1.1/16"X12 | 37.5 | 45 | 33 | 32 | 305 | 21 |
1JO4-16-20OG | 1.5/16"X12 | 1.5/8"X12 | 40.5 | 47 | 41 | 50 | 475 | 16 |
1JO4-20OG | 1.5/8"X12 | 1.5/8"X12 | 40.5 | 48.5 | 41 | 50 | 564 | |
1JO4-20-24OG | 1.5/8"X12 | 1.7/8"X12 | 45.5 | 50 | 48 | 55 | 671 | |
1JO4-24OG | 1.7/8"X12 | 1.7/8"X12 | 45.5 | 48.5 | 48 | 55 | 721 | 14 |
1JO4-32OG | 2.1/2"X12 | 2.1/2"X12 | 56.5 | 54 | 63 | 70 | 1487 | 10.5 |
