The clutch hose serves as the conduit for hydraulic fluid, transmitting it from the clutch master cylinder to the clutch slave cylinder. This fluid transmission is crucial because it allows the hydraulic pressure generated by the clutch pedal to be effectively transferred to the slave cylinder, which in turn engages and disengages the clutch. Without a properly functioning clutch hose, the hydraulic system cannot operate efficiently, leading to potential failures in clutch operation.
Clutch Pedal: The clutch pedal is the driver-operated pedal that initiates the clutch disengagement process. When the driver presses down on the clutch pedal, it creates the necessary force to start the disengagement of the clutch, allowing for a smooth transition between gears.
Clutch Master Cylinder: The clutch master cylinder is a crucial component that converts the mechanical pressure applied to the clutch pedal into hydraulic pressure. When the clutch pedal is pressed, the master cylinder pushes hydraulic fluid through the system, generating the pressure needed to operate the clutch.
Clutch Slave Cylinder: The clutch slave cylinder receives the hydraulic pressure from the master cylinder and uses it to engage or disengage the clutch. This cylinder translates the hydraulic pressure into mechanical movement, which then acts on the clutch to either connect or disconnect the engine from the transmission.
Clutch Hose: The clutch hose is an essential link in the hydraulic clutch system, connecting the master cylinder to the slave cylinder. Its primary role is to transmit hydraulic fluid between these two cylinders, ensuring that the hydraulic pressure created by the master cylinder reaches the slave cylinder without loss or delay.
Connection Between Master and Slave Cylinder: The clutch hose serves as a vital connection between the clutch master cylinder and the clutch slave cylinder. It facilitates the seamless flow of hydraulic fluid, which is crucial for the proper operation of the clutch. This connection ensures that the hydraulic pressure generated in the master cylinder is efficiently transferred to the slave cylinder.
Fluid Transmission: The clutch hose is responsible for ensuring that hydraulic pressure is delivered efficiently from the master cylinder to the slave cylinder. It must maintain the integrity of the hydraulic fluid without any leaks or blockages, as any disruption in the fluid transmission can lead to clutch operation issues. The clutch hose’s ability to handle high-pressure fluid transmission is essential for the smooth engagement and disengagement of the clutch, which in turn affects the vehicle’s ability to shift gears effectively.
Natural Aging Process: Over time, the material of the clutch hose can naturally degrade. This aging process can lead to the development of small cracks and leaks within the hose. As the rubber or synthetic materials used in the hose lose their flexibility and resilience, they become more susceptible to damage. This gradual deterioration is a common cause of clutch hose failure, especially in older vehicles.
Environmental Factors: Exposure to extreme temperatures and harsh environmental conditions can significantly accelerate the wear and tear of a clutch hose. High heat can cause the hose material to expand and contract, leading to brittleness and cracking. Similarly, cold temperatures can make the hose material more rigid and prone to fractures. Additionally, exposure to chemicals, oils, and other corrosive substances can further deteriorate the hose material, compromising its integrity and functionality.
Physical Abrasions: The clutch hose is often routed through areas where it can come into contact with other moving parts or sharp edges within the vehicle. This contact can cause physical abrasions, leading to cuts and wear on the hose surface. Over time, these abrasions can penetrate deeper into the hose, causing it to weaken and eventually leak hydraulic fluid.
Impact from Debris: Road debris and impacts from stones, rocks, or other objects can cause direct damage to the clutch hose. These impacts can create punctures or tears in the hose, leading to immediate fluid leaks. The clutch hose, being a relatively exposed component, is particularly vulnerable to such mechanical damage, especially in off-road or harsh driving conditions.
Effects of Dirty or Old Fluid: Hydraulic fluid that is dirty or old can have a detrimental effect on the clutch hose material. Contaminants in the fluid, such as dirt, metal particles, and degraded fluid residues, can cause the hose material to break down and degrade. Over time, this contamination can lead to blockages within the hose, restricting the flow of hydraulic fluid and causing pressure build-up, which can result in hose failure.
Importance of Regular Fluid Replacement: Maintaining clean and fresh hydraulic fluid is crucial for the longevity and integrity of the clutch hose. Regular fluid replacement helps prevent the build-up of contaminants that can damage the hose material. By following the manufacturer’s recommended fluid replacement intervals and using the correct type of hydraulic fluid, vehicle owners can ensure that the clutch hose remains in good condition and operates efficiently.
Visible Signs of Fluid Leakage: One of the most apparent signs of a failing clutch hose is the presence of hydraulic fluid leaks. Drivers should look for puddles or wet spots under the vehicle, particularly around the area where the clutch components are located. The fluid may appear as a clear or slightly yellowish liquid, depending on the type of hydraulic fluid used.
Locations to Check for Leaks: When inspecting for hydraulic fluid leaks, it’s essential to check specific areas. Start by examining the clutch master cylinder, which is typically located near the firewall in the engine compartment. Next, inspect the clutch slave cylinder, usually found near the transmission. Finally, carefully check along the entire length of the clutch hose for any signs of damage or leakage. Leaks can occur at any point where the hose connects to other components or along its body.
Causes of a Soft Pedal Feel: A soft or spongy clutch pedal is a common symptom of a failing clutch hose. This condition can be caused by air entering the hydraulic system through a damaged hose. When air is present in the hydraulic fluid, it compresses under pressure, leading to a soft or spongy pedal feel. Another cause can be the deterioration of the hose material, which may allow fluid to seep out and air to seep in.
Connection to Clutch Hose Issues: A damaged clutch hose directly affects the hydraulic system’s ability to maintain proper pressure. As the hose deteriorates or develops leaks, it can allow air to enter the system. This air compromises the hydraulic pressure required for efficient clutch operation, resulting in a soft or spongy pedal. Addressing the hose damage is crucial to restoring the proper feel and functionality of the clutch pedal.
Impact on Gear Engagement: A failing clutch hose can significantly impact the ease of shifting gears. The clutch system relies on consistent hydraulic pressure to disengage and engage the clutch. When the clutch hose is compromised, it can lead to inadequate hydraulic pressure, making it difficult to shift gears smoothly. Drivers may experience grinding noises, resistance, or complete inability to shift into certain gears.
Troubleshooting Gear Shift Problems: If shifting gears becomes difficult, it’s important to check the clutch hose and hydraulic fluid levels as part of the troubleshooting process. Inspect the hose for any signs of wear, damage, or leaks, and ensure that the hydraulic fluid reservoir is filled to the recommended level. Addressing any issues with the clutch hose can restore proper hydraulic pressure and resolve gear shift problems.
Sounds Indicating Clutch Hose Problems: Unusual noises during clutch operation can also indicate problems with the clutch hose. Drivers should listen for hissing, squeaking, or grinding noises when pressing the clutch pedal. These sounds can be a sign of fluid escaping through a damaged hose or air entering the hydraulic system.
Diagnosing Noises Related to Clutch Operation: To diagnose noises related to clutch hose issues, start by performing a visual inspection of the hose for any obvious signs of damage or leaks. Next, listen carefully when operating the clutch pedal. Hissing noises may indicate a fluid leak, while squeaking or grinding sounds could be a result of air in the system or insufficient hydraulic pressure. Identifying and addressing these noises early can prevent further damage to the clutch system and ensure smooth operation.

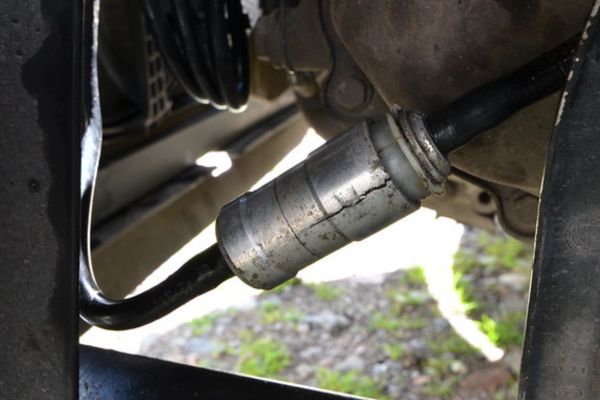

Checking for Visible Damage: Begin by thoroughly inspecting the clutch hose for any visible signs of damage. Look for cracks, bulges, or wear marks along the length of the hose. These signs often indicate that the hose material has deteriorated or been compromised. Pay special attention to areas where the hose may be in contact with other components or surfaces, as friction can cause abrasions and damage over time.
Inspecting for Leaks: After checking for physical damage, examine the hose and surrounding areas for any signs of hydraulic fluid leaks. Fluid leaks can appear as wet spots or stains near the clutch components. Check the connections at both ends of the hose, as well as any points where the hose may bend or flex since these are common areas for leaks to develop. The presence of hydraulic fluid leaks is a clear indicator that the hose may be failing and requires further investigation or replacement.
Performing a Hydraulic Pressure Test: To accurately diagnose a failing clutch hose, perform a hydraulic pressure test. This involves using a pressure gauge to measure the pressure within the clutch hydraulic system. Attach the gauge to the system and press the clutch pedal to generate pressure. The gauge should display a consistent reading that matches the manufacturer’s specifications for your vehicle.
Interpreting Test Results: If the pressure reading is inconsistent or lower than expected, this may indicate a failing clutch hose. Inconsistent pressure can be caused by leaks or blockages within the hose, while low pressure often results from air entering the system through a damaged hose. Compare the test results to the normal operating pressure for your vehicle to determine if there is a significant deviation that warrants further action.
Monitoring Hydraulic Fluid Levels: Regularly check the hydraulic fluid levels in the clutch reservoir to ensure they are at the recommended level. Low fluid levels can cause a range of clutch problems, including difficulty in shifting gears and a soft clutch pedal. If the fluid level is low, top it up to the correct level as specified in your vehicle’s manual.
Identifying Fluid Loss Patterns: Pay attention to any patterns of fluid loss over time. Frequent drops in the hydraulic fluid level can signal a leak in the clutch hose or other components of the hydraulic system. Record the fluid levels at regular intervals to identify any consistent decrease, which may indicate a slow leak that needs to be addressed.
Assessing Pedal Resistance: The feel of the clutch pedal can provide valuable clues about the condition of the clutch hose. Test the clutch pedal by pressing it down and releasing it several times. A healthy clutch pedal should offer firm and consistent resistance throughout its travel.
Comparing Normal vs. Abnormal Pedal Feel: Compare the current feel of the clutch pedal to how it normally feels. If the pedal feels soft, spongy, or has excessive travel before engaging the clutch, this could indicate issues with the clutch hose. Air in the hydraulic system, resulting from a damaged hose, can cause these abnormal pedal sensations. Addressing the root cause of these symptoms can restore proper pedal feel and clutch operation.
Recommended Inspection Intervals: It is essential to check the clutch hose during regular vehicle maintenance. This should be done typically every six months to ensure the hose remains in good condition and to catch any potential issues early. Regular inspections can prevent unexpected failures and prolong the lifespan of the clutch hose.
Key Areas to Focus On: During the inspection, focus on examining the entire length of the clutch hose. Pay close attention to the connections at both ends, where the hose attaches to the clutch master cylinder and the clutch slave cylinder. These connection points are common areas for leaks and wear. Look for any signs of cracks, bulges, abrasions, or other visible damage along the hose.
Best Practices for Fluid Replacement: Maintaining the hydraulic fluid is crucial for the proper functioning of the clutch system. Replace the hydraulic fluid according to the vehicle manufacturer’s recommendations, which is typically every 2 to 3 years. Regular fluid replacement ensures that the hydraulic system operates smoothly and helps prevent contamination that can degrade the clutch hose.
Choosing the Right Fluid Type: Always use the specified hydraulic fluid type recommended by the vehicle manufacturer. Different vehicles may require different types of hydraulic fluid, and using the wrong type can lead to compatibility issues and reduced performance. Check the vehicle’s manual for the correct fluid specification and ensure that the fluid you use meets these requirements.
Shielding the Hose from Environmental Damage: To protect the clutch hose from environmental damage, consider using protective sleeves or rerouting the hose to minimize its exposure to heat and debris. High temperatures and debris can accelerate wear and tear on the hose material. Protective sleeves can provide an additional layer of defense against these elements, helping to extend the hose’s lifespan.
Using Protective Coverings: Apply protective coverings to areas of the hose that are particularly prone to damage. This includes sections of the hose that may be close to moving parts, sharp edges, or other potential hazards. Protective coverings can prevent physical abrasions and impacts from debris, reducing the risk of leaks and other failures. By taking these preventative measures, you can help ensure the longevity and reliability of your vehicle’s clutch hose.
At the first sign of any clutch hose problem, immediate action should be taken to diagnose and repair the problem. Solving the problem early will prevent further damage to the clutch system and ensure the safety and performance of your vehicle. By being vigilant and proactive, you can keep your clutch running smoothly and efficiently, resulting in a more reliable and enjoyable driving experience.
Common symptoms include hydraulic fluid leaks, a soft or spongy clutch pedal, difficulty shifting gears, and unusual noises during clutch operation.
It is recommended to inspect your clutch hose every six months as part of regular vehicle maintenance.
Clutch hose failure can be caused by material wear and tear, environmental factors, mechanical damage, and hydraulic fluid contamination.
Regular inspections, maintaining clean hydraulic fluid, using protective coverings, and adhering to the manufacturer’s maintenance schedule can help prevent clutch hose failure.
If you notice a hydraulic fluid leak, inspect the clutch hose and surrounding components for damage and replace or repair the hose as necessary.
If you have the necessary tools and mechanical knowledge, you can replace a clutch hose yourself. However, for complex or uncertain repairs, it is best to seek professional help.
