How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Troubleshoot Reusable Hydraulic Hose Fittings?

Introduction

Reusable hydraulic hose fittings provide a sustainable and cost-effective solution for adjustments and repairs without having to replace the entire hose. However, like all components, these fittings can fail, resulting in downtime and costly repairs. This guide is designed to give you the knowledge you need to identify, diagnose, and resolve problems with reusable hydraulic hose fittings, ensuring that your operations run smoothly and interruptions are minimized.

Common Problems and Diagnostics

Reusable hydraulic hose fittings are essential for various applications, providing flexibility and cost savings. However, they can fail due to several reasons, from normal wear and tear to improper installation. Recognizing the signs of failure early can help prevent costly repairs and system downtime. Here are some of the most common symptoms to watch for:

Leaks

Description: Leaking is the most noticeable sign of a problem in hydraulic systems. Fluid escaping from the connection points can indicate issues such as worn seals or improper fitting. It’s essential to address leaks immediately to prevent system inefficiencies and potential safety hazards.

Detection Tips:

Check for Wetness: Regularly inspect the areas around hose fittings for any signs of wetness or puddles of hydraulic fluid.

Use Dye: Introduce a colored dye into the hydraulic fluid which can make leaks easier to detect visually.

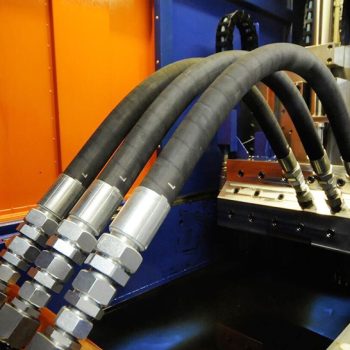

Pressure Testing: Perform a pressure test by applying internal pressure to the system and observing if it maintains pressure over time.

Poor Connection

Description: A secure connection is vital for the proper function of hydraulic systems. If the fittings do not securely connect, it can lead to slips or disconnections under pressure, which are hazardous and can cause system failures.

Detection Tips:

Manual Testing: Gently tug on the hose to ensure that the fitting is secure and does not move or detach.

Inspect Installation: Double-check if the hose fittings are aligned correctly and tightened to the manufacturer’s specifications. Incorrect alignment can prevent a secure connection.

Visible Wear and Tear

Description: Over time, fittings may exhibit visible signs of wear such as cracks, rust, or other damage. These physical damages can compromise the integrity of the connection.

Detection Tips:

Visual Inspection: Regularly examine the fittings for any signs of physical damage. Look for cracks in the metal or plastic, rust on metal surfaces, and wear on sealing surfaces.

Surface Checks: Feel the surface of the fittings for any irregularities that might not be immediately visible.

Unusual Noises

Description: Noises such as squeaking or popping during operation can indicate that a fitting is not seating correctly or that there is movement between components under pressure.

Detection Tips:

Listen During Operation: Pay close attention to the sounds coming from the hydraulic system during normal operation. Unusual noises are often the first sign of a problem.

Check Under Load: Operating the hydraulic system under load can exacerbate fitting issues, making them easier to detect.

How to Fix Common Issues

Maintaining reusable hydraulic hose fittings involves regular inspections and addressing issues as they arise. This section details practical repair techniques for common problems, the tools you’ll need for these repairs, and guidance on deciding when to repair versus replace a fitting.

When managing and maintaining reusable hydraulic hose fittings, one of the most common issues you might encounter involves compromised O-rings.

Replacing O-rings

a. Remove Old O-rings

Tools Required: O-ring pick, gloves.

Safety First: Before beginning, ensure the system pressure is relieved and the area is safe to work in.

Access the O-ring: Depending on the fitting design, you may need to disassemble parts of the fitting to access the O-ring.

Remove with Care: Use the O-ring pick to hook the old O-ring. Carefully lift it out of its seat without gouging or scratching any surfaces of the fitting, as this could impair reassembly and lead to leaks.

Dispose Properly: Consider environmental regulations and safety practices when disposing of hydraulic fluid-soaked O-rings.

b. Clean the Groove

Tools Required: Soft bristle brush, cleaning solvent, lint-free cloth.

Apply Solvent: Use a suitable cleaning solvent to loosen any stubborn debris or residue within the groove that held the O-ring.

Scrub Gently: With a soft bristle brush, clean the groove thoroughly to ensure no particulate matter remains that could damage the new O-ring.

Wipe Down: Use a lint-free cloth to dry and remove any remaining solvent or debris from the groove and surrounding area, preparing it for the new O-ring.

c. Apply Lubricant

Materials Needed: Appropriate hydraulic fluid or O-ring lubricant.

Select the Right Lubricant: Ensure the lubricant is compatible with both the O-ring material and the hydraulic fluid. Incompatibility can cause O-ring swelling or degradation.

Apply Sparingly: Dab a small amount of lubricant on your fingertips and gently apply it around the new O-ring. Avoid over-lubrication, which can attract dirt or cause the O-ring to sit improperly.

d. Install New O-rings

Check O-ring Size: Ensure the replacement O-ring matches the size and specification of the old one. Using an incorrect size can result in poor sealing and increased wear.

Position Correctly: Carefully place the lubricated O-ring into the cleaned groove. Ensure it lays flat and even all around without any twists or kinks, which could compromise the seal.

Final Check: Once installed, give the O-ring a gentle tug to make sure it is seated correctly and securely.

Cleaning Threads

Proper thread maintenance is crucial for the longevity and efficiency of reusable hydraulic hose fittings. Ensuring that the threads are clean and properly sealed can prevent leaks and other common issues.

a. Initial Cleaning

Tools Needed: Clean rag, small wire brush (optional).

Remove Debris: Begin by wiping the threads with a clean, lint-free rag to remove any loose debris or dirt. If the threads are particularly dirty or if there is hardened residue, use a small wire brush to gently scrub the threads.

Inspect the Threads: After cleaning, inspect the threads closely for any signs of damage or wear, such as stripping or cross-threading. Damaged threads can compromise the integrity of the fitting and should be addressed immediately.

b. Apply New Thread Tape (PTFE Tape，if necessary)

Materials Needed: PTFE thread tape.

Select the Right Tape: Ensure that the PTFE tape is appropriate for hydraulic applications. Some tapes are better suited for different types of fluids and pressures.

Wrap the Tape: Start wrapping the tape at the end of the thread nearest the fitting body, overlapping each wrap by about half the width of the tape. Wrap in the direction of the thread’s spiral—this ensures that the tape will tighten onto the thread as the fitting is screwed in, rather than bunching up or unwrapping.

Cover All Threads: Continue wrapping until all the threads are covered with one to two layers of tape. Be careful not to overwrap, as too much tape can make screwing the fitting together difficult and may promote leaking rather than prevent it.

c. Final Tightening

Tools Needed: Suitable wrench or socket.

Hand Tightening: Initially, reconnect the fittings by hand to prevent cross-threading. Screw the fitting together until it is hand-tight.

Use a Wrench: Use the appropriate wrench or socket to tighten the fitting according to the manufacturer’s specifications. It’s important not to over-tighten, as this can damage the threads and the seal, potentially leading to leaks.

Double-Check for Leaks: After the system is repressurized, check around the fitting for any signs of leaks. If leaks are detected, slightly increase the tightness of the fitting, but be cautious not to over tighten.

Tightening Connections

Ensuring that Reusable hydraulic fittings are properly tightened is crucial for maintaining system integrity and preventing leaks. Over-tightening can damage fittings and threads, leading to system failures, while under-tightening may result in leaks.

a. Inspect the Fittings

Tools Needed: None required for inspection, but a flashlight or magnifying glass can help.

Visual Inspection: Carefully examine the threads and the sealing surfaces of the fittings for any signs of wear, damage, or contamination. Look for burrs, cracks, or stripped threads.

Clean if Necessary: If debris or old thread sealant is present, clean the threads and sealing surfaces before proceeding. This ensures that the fitting will seat properly and form a tight seal.

Check for Compatibility: Make sure that the fittings are compatible in terms of size, thread type, and material specifications. Mismatched or incompatible fittings can cause improper threading and sealing.

b. Use Proper Tools

Tools Needed: Correct size wrench or socket set.

Select the Right Tool: Use a wrench or socket that fits the fittings snugly. Avoid using adjustable wrenches or pliers, which can slip and damage the fittings.

Tighten Gradually: Start by hand-tightening the fitting to ensure it is not cross-threaded. Once hand-tight, use the wrench to tighten further.

Avoid Over-Tightening: Apply steady pressure and avoid sudden force. Over-tightening can strip threads or crack the fittings, especially if they are made of softer materials like brass or aluminum.

c. Follow Specifications

Tools Needed: Torque wrench (if specific torque is recommended).

Consult Manufacturer’s Specifications: Before tightening, refer to the manufacturer’s torque specifications for the specific type of fitting. These specifications are designed to ensure optimal tightness without damaging the fittings.

Use a Torque Wrench: For critical connections, using a torque wrench is advisable to apply the exact amount of force recommended. Adjust the torque wrench to the correct setting based on the specifications.

Double-Check Tightness: After the initial tightening, it may be wise to check the tightness again after a short period of operation. This is because vibrations and pressure changes can affect the fittings.

When to Replace vs Repair

In the lifecycle of hydraulic hose fittings, determining when to replace a component versus when to repair it is critical for maintaining system reliability and operational efficiency. This decision impacts not only the safety and performance of the hydraulic system but also the cost-effectiveness of its maintenance.

Age and Wear

Assessment:

Evaluate the Lifespan: Understand the typical lifespan of the hydraulic reusable fittings used in your system. Each component has a manufacturer-specified service life which should guide your maintenance schedule.
Check for Wear and Tear: Regularly inspect your fittings for signs of wear. This includes looking for any deformations, erosion, or general degradation. Materials can weaken over time due to pressure fluctuations, temperature changes, and chemical interactions.
Historical Performance: Consider the history of the fitting. Components that have repeatedly failed or required frequent repairs might be nearing the end of their useful life.

Decision Criteria:

Replace: If the fitting has reached or exceeded its expected service life, or shows significant wear that could compromise its function, it’s safer and more cost-effective to replace it.
Repair: Minor wear that does not affect the integrity of the fitting might be manageable with appropriate repairs or adjustments.

Severity of Damage

Assessment:

Visual Inspection: Conduct a thorough inspection of the fittings for any visible damage such as cracks, severe corrosion, or stripped threads. Use tools like magnifying glasses or ultrasonic testers for a detailed examination if necessary.
Assess the Impact: Determine whether the observed damage affects critical aspects of the fitting’s performance, such as its ability to maintain a seal or withstand the system’s operating pressure.

Decision Criteria:

Replace: If the damage compromises the fitting’s structural integrity or poses a risk of failure during operation, replacing the fitting is advisable. This is particularly true for critical system components where failure could result in significant downtime or safety hazards.
Repair: If the damage is superficial and does not impact the fitting’s core functionality, repairs may be sufficient. This might include re-threading a fitting with minor thread damage or cleaning and resealing a component with non-critical wear.

Cost-Benefit Analysis

In addition to assessing the physical condition of the fittings, a cost-benefit analysis should be conducted to determine the most economically viable option:

Downtime Costs: Consider how long the system will be out of operation for both repair and replacement. Downtime can often be more costly than the fitting itself.

Repair Costs vs. Replacement Costs: Evaluate the cost of repairing the fitting (including labor and parts) against the cost of a new fitting and installation. Factor in the likelihood of future repairs or potential failures.

Risk Assessment: Weigh the risks associated with a potential failure of a repaired fitting versus a new one, especially in critical applications.

Conclusion

Troubleshooting and maintaining reusable hydraulic hose fittings is critical to the life and efficiency of your hydraulic system. Reliable system performance can be ensured by understanding common problems, employing effective diagnostic and repair strategies, and adhering to routine maintenance practices. Employing these techniques will minimize downtime and extend the life of hydraulic components. We invite you to share your experiences and other tips with us; your insights may be helpful to others!

FAQ

What are the most common signs that a reusable hydraulic hose fitting is failing?

Common signs of failure include noticeable leaks at the connection points, poor connection integrity (e.g., the fitting slips or disconnects under pressure), visible wear and tear such as cracks or rust on the fitting, and unusual noises like squeaking or popping during operation.

How often should reusable hydraulic hose fittings be inspected?

It’s recommended to inspect these fittings at regular intervals, which depend on their usage and environmental conditions. A general rule is to check them during routine maintenance of the hydraulic system, or at least every six months.

What should I do if I notice a leak in a reusable hydraulic hose fitting?

If a leak is detected, immediately shut down the system to prevent further damage or safety hazards. Inspect the fitting for any signs of wear, damage, or improper installation. Depending on the condition, tighten the fitting, replace the seals, or replace the entire fitting if necessary.

Can I repair a cracked reusable hydraulic hose fitting?

Generally, a cracked fitting should be replaced rather than repaired. Cracks can compromise the structural integrity of the fitting, leading to potential failures under pressure, which could be hazardous.

What tools are needed for repairing or replacing reusable hydraulic hose fittings?

Basic tools required include wrenches or sockets that match the fitting size, an O-ring pick for seal replacement, cleaning rags, and possibly PTFE tape or suitable sealant for threading. A torque wrench may also be needed to ensure connections are tightened to the manufacturer’s specifications.

How do I decide whether to repair or replace a reusable hydraulic hose fitting?

Evaluate the fitting based on its age, the severity of any damage, and the cost-effectiveness of repair versus replacement. If the fitting shows significant wear or damage, or if the cost of frequent repairs exceeds the cost of replacement, it’s advisable to replace the fitting.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Apr, 2024

How to Select the Right Reusable Hydraulic Hose Fittings

Introduction

In industrial and mechanical systems, the efficiency and safety of hydraulic circuits largely depend on the quality and appropriateness of the hose fittings used. Reusable hydraulic fittings offer a flexible and economical solution, allowing for the repeated assembly and disassembly of hose connections without damage. This guide will explore how to select the right hydraulic reusable hose fittings to ensure operational reliability and cost-effectiveness.

Understanding Reusable Hydraulic Hose Fittings

Reusable hydraulic fittings represent a versatile and economical choice for managing fluid conveyance in hydraulic systems. Unlike traditional crimped hose fittings, which require special machinery to attach and cannot be reused once removed, reusable fittings offer a distinct advantage by allowing for manual assembly and disassembly without any damage to the fitting itself.

What are Reusable Hydraulic Fittings?

Reusable hydraulic fittings consist of several components that can be screwed together manually to secure the hose into the fitting. Typically, these fittings are composed of a nipple (or insert), a socket, and a threaded cap or nut. The hose is placed over the nipple, and the socket is then threaded onto the nipple, capturing the hose between them. The nut is used to secure the entire assembly together, ensuring a tight seal that can withstand high pressure.

Design Features

The design of hydraulic reusable hose fittings is aimed at providing robustness and ease of use. The materials used are typically high-grade metals such as stainless steel, brass, or aluminum, chosen for their strength, durability, and resistance to corrosion. The threading on these fittings is meticulously designed to ensure a secure fit and to prevent leaks under pressure.

One of the notable design aspects of reusable fittings is their adaptability to different types of hoses and hydraulic requirements. They are available in various shapes and sizes, including straight, elbow (angled), and T-shaped configurations, catering to specific routing and space requirements in complex hydraulic systems.

Factors to Consider When Selecting Reusable Hose Fittings

Selecting the right reusable hose fittings is crucial for maintaining system integrity and ensuring leak-free performance in hydraulic systems. This section explores the key considerations necessary to make informed choices, including material types, size and fitting type, pressure ratings, and the operational environment.

Material Types

Selecting the appropriate material for reusable hydraulic hose fittings is critical due to the demanding conditions often encountered in industrial settings. The material must be capable of withstanding mechanical stresses and environmental challenges without degrading. Here’s a deeper dive into the common materials used for these fittings and considerations for their application:

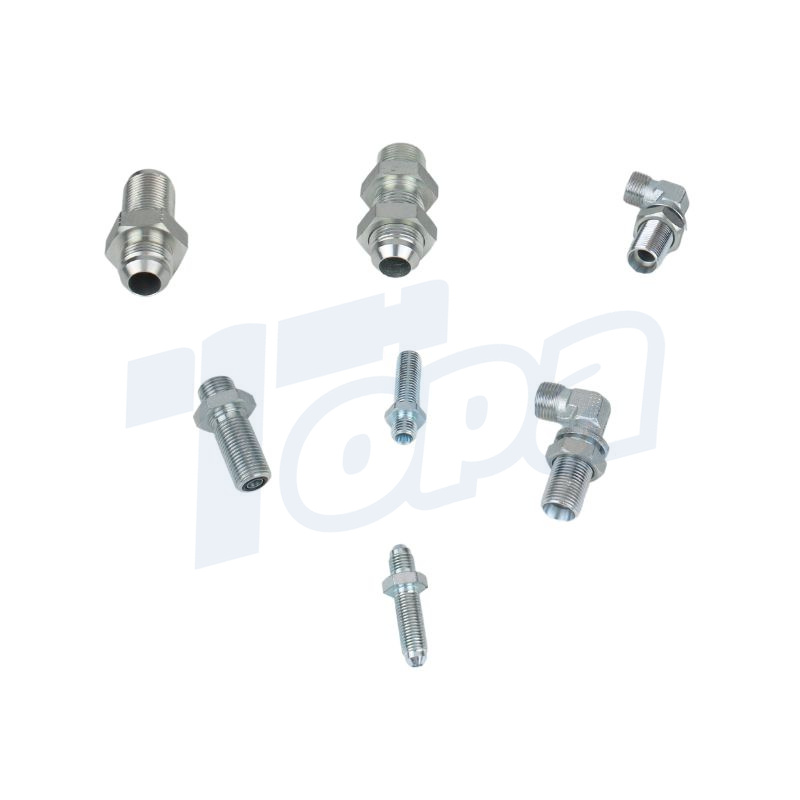

Steel

Predominantly used in high-pressure environments, steel fittings are valued for their immense strength and durability. They can withstand significant mechanical stress, making them suitable for heavy machinery and industrial applications where hydraulic systems are exposed to extreme pressures. Steel’s high tolerance to abrasion and its ability to handle dynamic loads without failing make it a reliable choice for demanding applications.

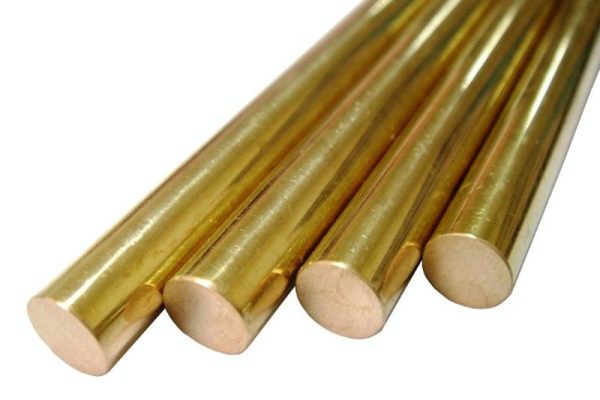

Brass

Known for its excellent corrosion resistance, brass is the material of choice for hydraulic systems operating in corrosive environments. This includes marine settings, where saltwater exposure is a constant challenge and chemical processing plants where chemicals could degrade lesser materials. Brass fittings are not only resistant to rust but also do not spark, which is an essential safety feature in potentially explosive environments.

Stainless Steel

Combining the best properties of steel and brass, stainless steel fittings offer both high strength and exceptional resistance to corrosion. This makes them ideal for a broad range of applications, including those requiring stringent hygiene standards such as food processing and pharmaceuticals. Stainless steel’s non-corrosive qualities ensure that it maintains its integrity even when exposed to a wide variety of chemical agents, and its cleanability supports compliance with strict sanitary regulations.

When selecting materials for hydraulic hose fittings, it is also essential to consider the compatibility of the material with the types of hydraulic fluids used. Different hydraulic fluids have varying chemical compositions that can react differently with certain metals. For example, some synthetic hydraulic fluids can cause corrosion in metals like aluminum or standard steel, which would necessitate the use of stainless steel or coated fittings to prevent degradation.

Furthermore, environmental factors such as temperature variations, ultraviolet (UV) light exposure, and ozone concentrations can also influence the choice of fitting material. For instance, certain plastics and rubbers used in less critical components might degrade under intense UV light or extreme temperatures, leading to system failures. Therefore, understanding the specific conditions your hydraulic system will operate in is crucial in choosing the most suitable material for your fittings.

Size and Fitting Type

Selecting the correct size and type of reusable hose fittings is crucial for creating secure, leak-free connections in hydraulic systems. This subsection delves deeper into how to properly measure for size and choose the fitting type that best suits the specific needs of the system, enhancing both performance and reliability.

Measuring for Size

Proper measurement is the first critical step in selecting the right hydraulic hose fitting. This ensures that the fitting can snugly accommodate the hose, which is crucial for maintaining system integrity and operational efficiency. Here are key measurement guidelines:

Outer Diameter (OD): This measurement is crucial for ensuring that the fitting will appropriately fit around the hose. Accurately measuring the OD of the hose helps in selecting a fitting that matches precisely, avoiding any loose connections that could lead to leaks.

Inner Diameter (ID): The ID of the hose needs to match the fitting’s nipple size to ensure a tight seal. A mismatch here can result in inadequate flow or leaks under pressure.

Hose Length: While often overlooked, knowing the exact length needed helps in selecting fittings that will accommodate the necessary bends and reaches without stressing the hose.

Using calipers for these measurements is recommended for precision. Ensuring that these dimensions are accurately noted will guide the selection process, aiding in the choice of the most suitable fittings.

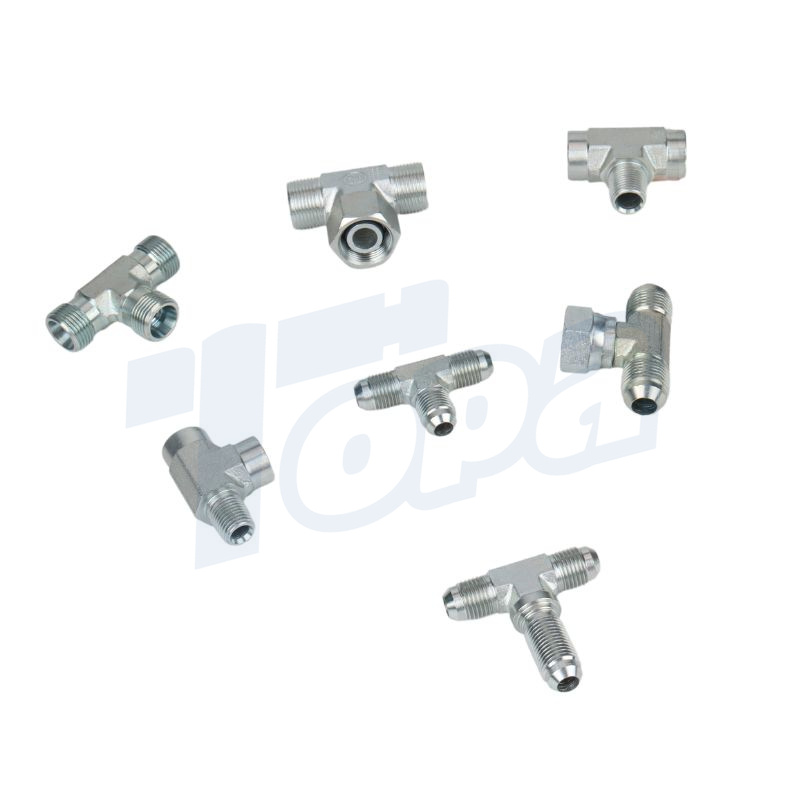

Choosing the Right Type

The type of fitting required depends largely on the layout of the hydraulic system and the specific demands of the application:

Straight Fittings: These are used where the hose runs straight without any need for redirection. Their simplicity makes them a common choice for uncomplicated layouts.

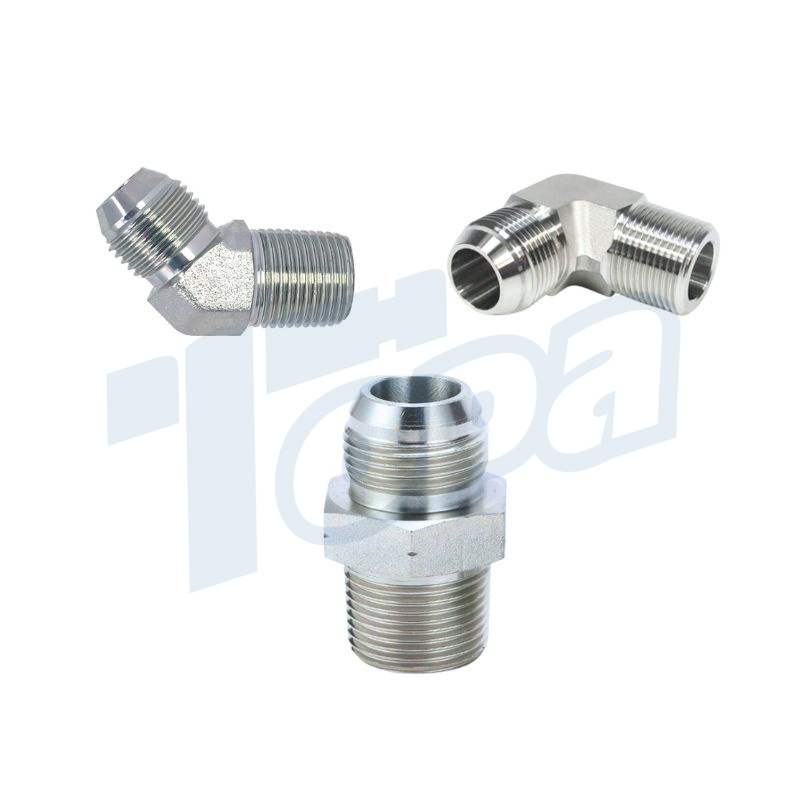

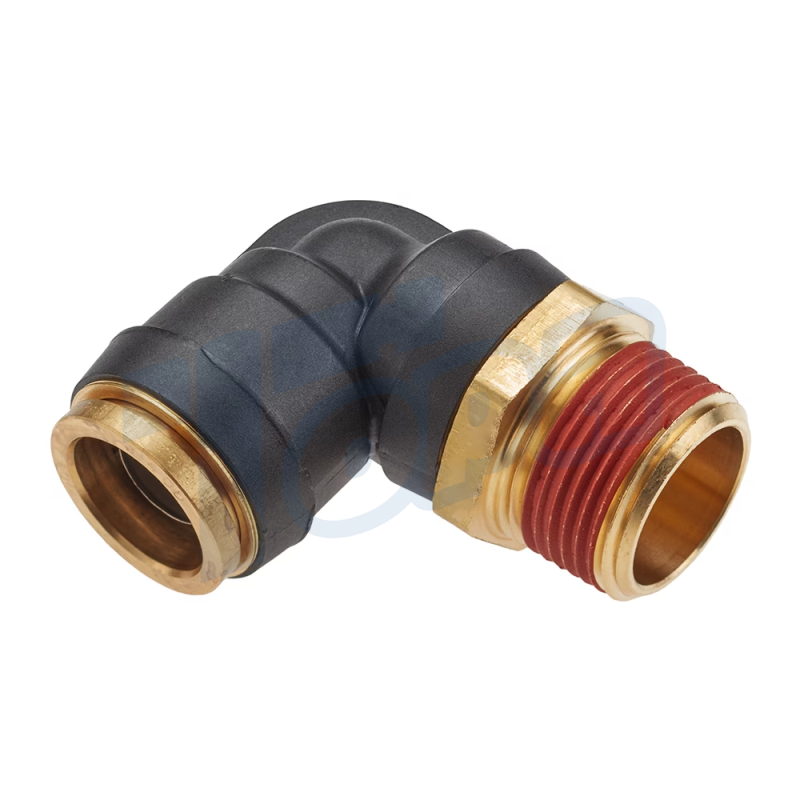

Elbow Fittings: These fittings, which include angles like 45° or 90°, are essential when hoses need to bend to connect to components. They help prevent hose kinking and allow for smoother flow dynamics in constrained spaces.

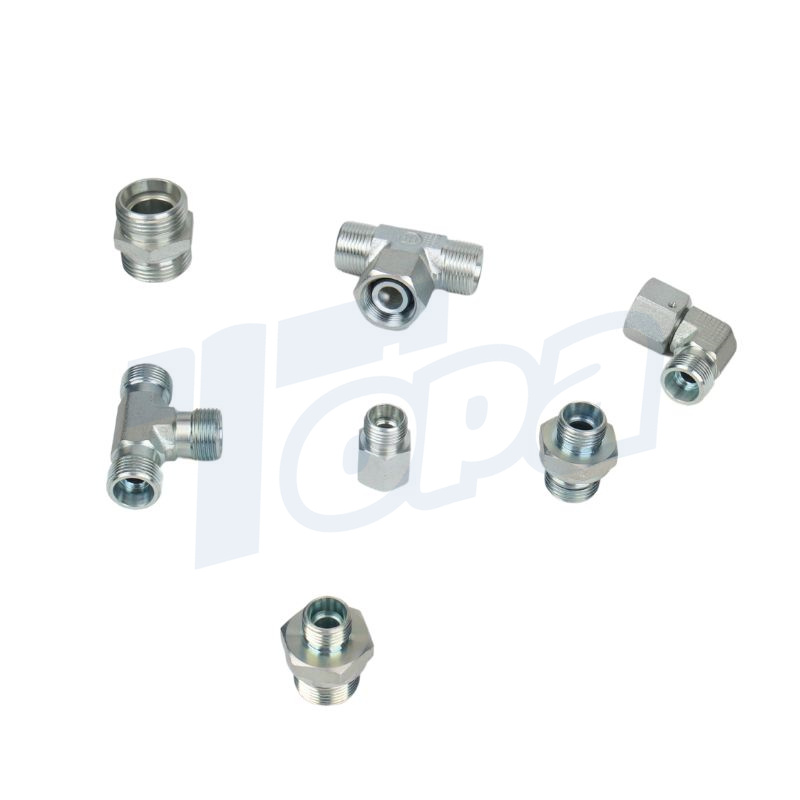

Thread Types and Compatibility

Choosing the right thread type is equally important for ensuring compatibility and secure connections:

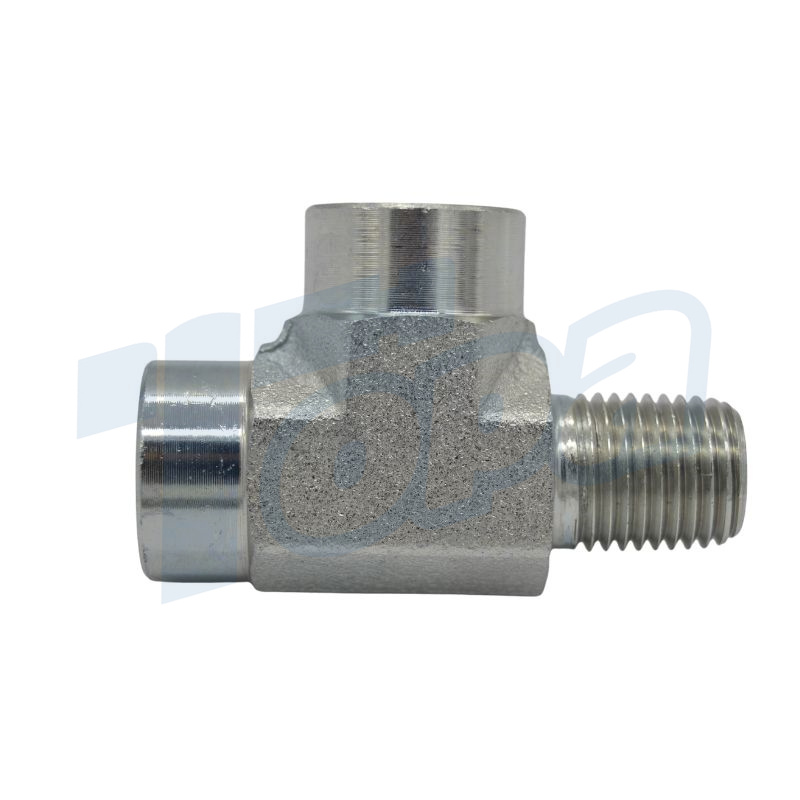

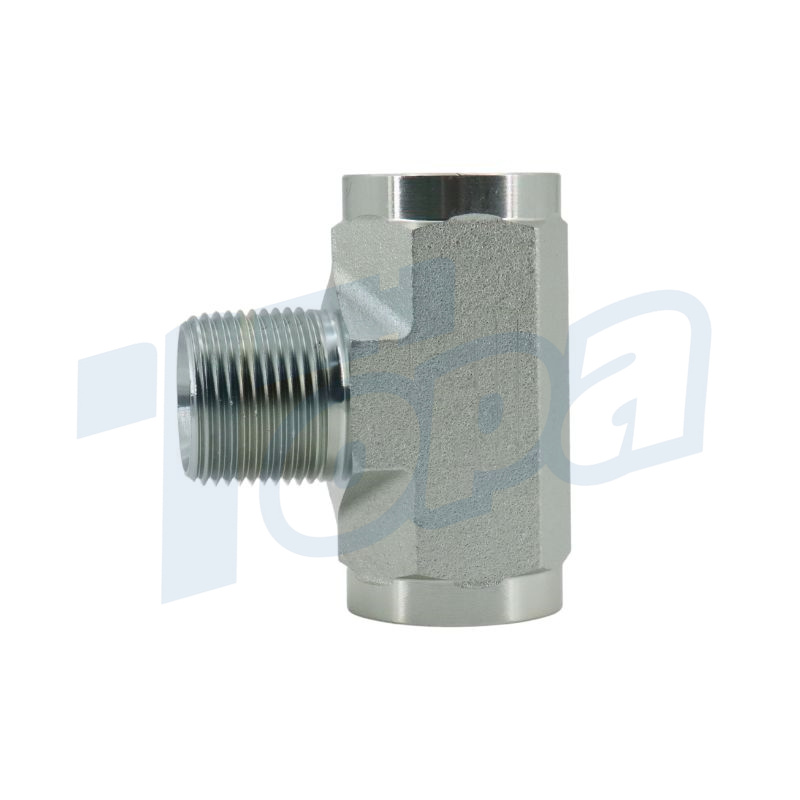

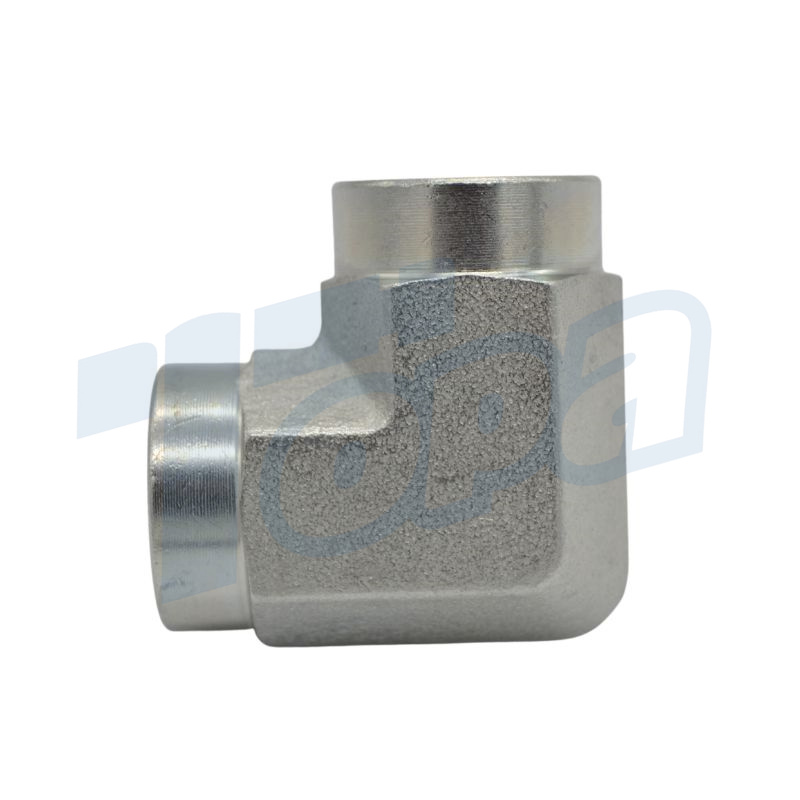

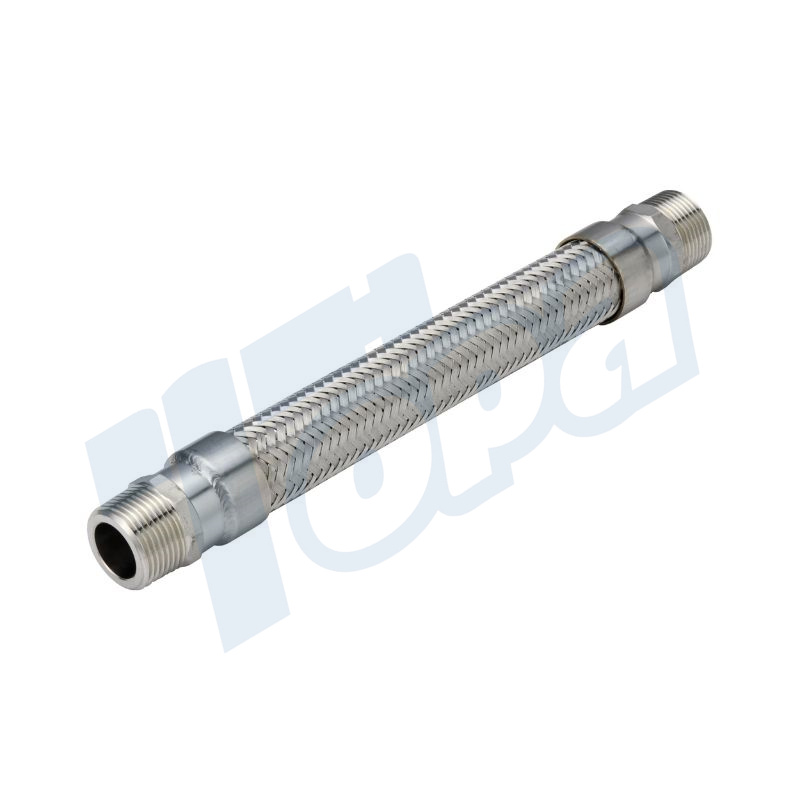

NPT (National Pipe Tapered): Common in North American applications, these threads create a tight seal through the taper and are generally sealed with thread tape or sealant.

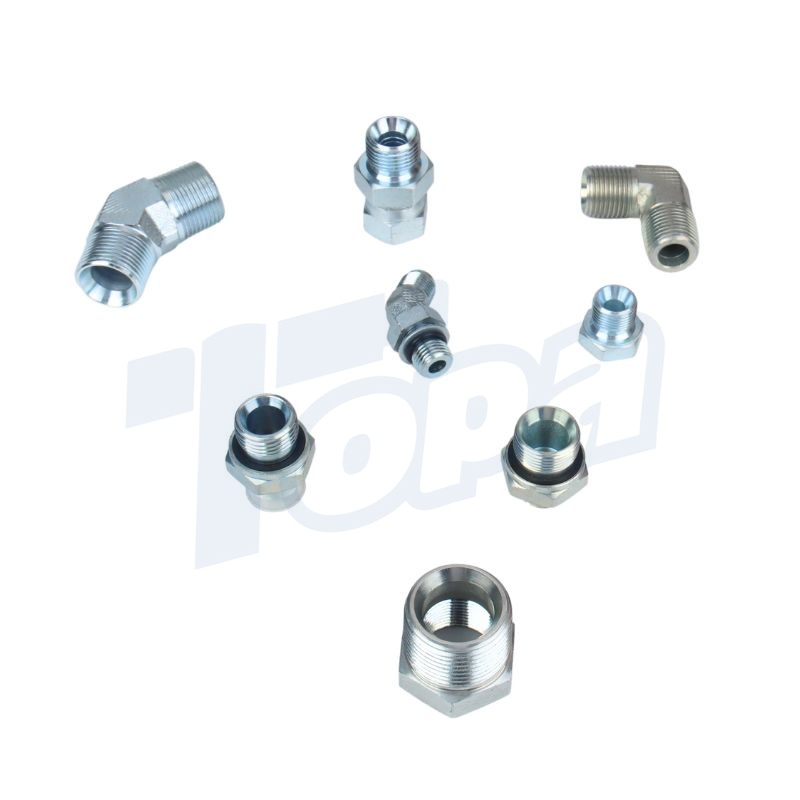

BSP (British Standard Pipe): These threads are popular in Europe and come in two types—tapered (BSPT) for creating pressure-tight seals on threads and parallel (BSPF) for use with joined washers or O-rings.

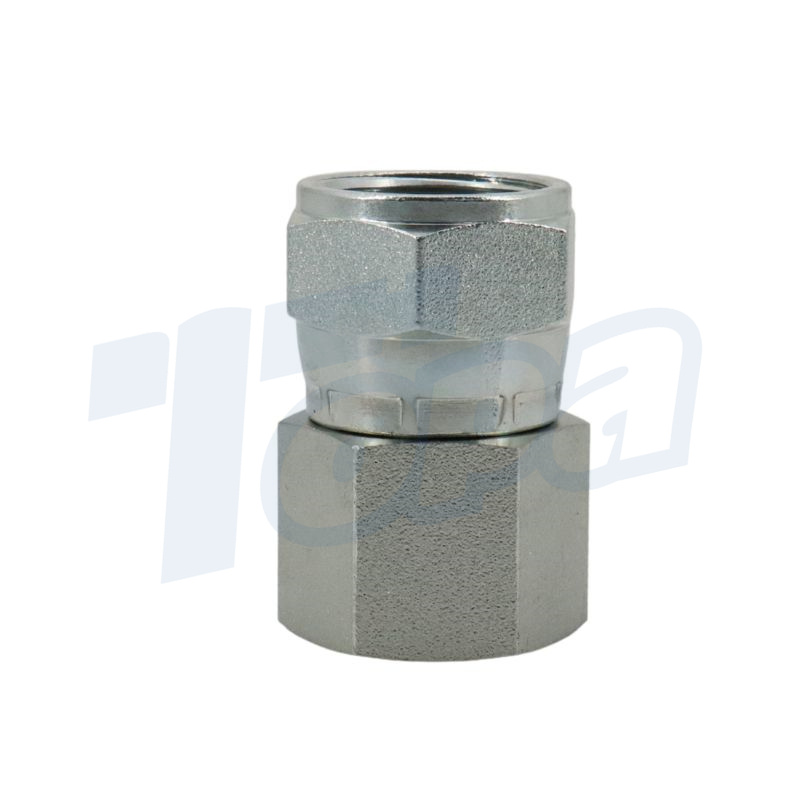

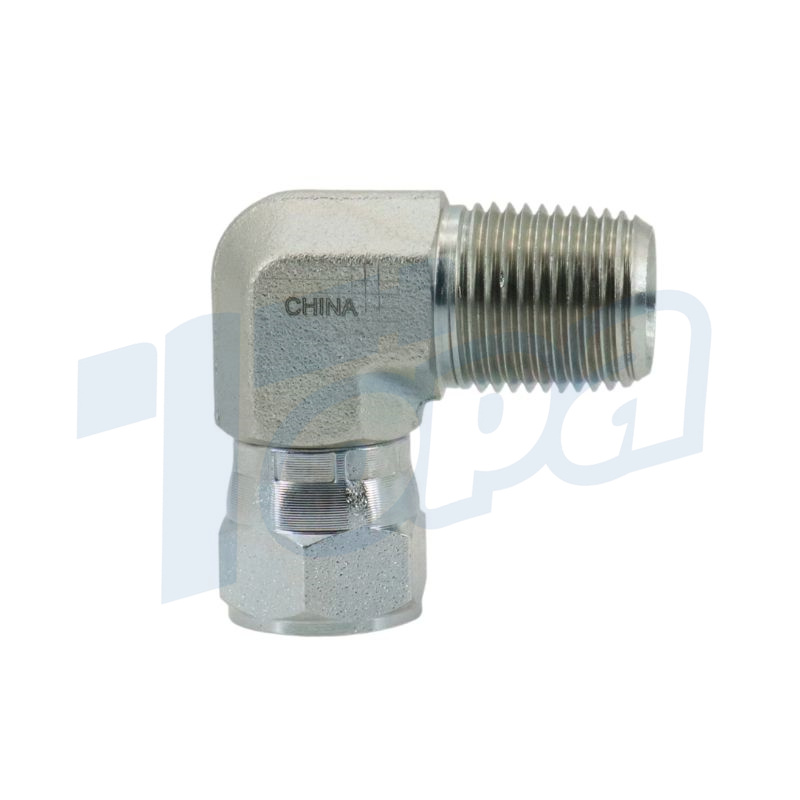

JIC (Joint Industry Council): These fittings use a 37-degree flare sealing surface and are widely used because of their effectiveness in blocking leaks and their versatility in various applications.

Pressure Ratings and Compatibility

When selecting reusable hose fittings, understanding and adhering to the pressure ratings and compatibility requirements are crucial for ensuring the hydraulic system’s safety and efficiency. This subsection explores the importance of these factors in detail.

Pressure Ratings

Every hydraulic fitting is assigned a maximum operating pressure rating, which indicates the maximum pressure it can safely handle. Choosing fittings that meet or exceed the hydraulic system’s maximum pressure is vital to prevent failures that could result in leaks, system downtime, or safety hazards. Here’s how to ensure proper pressure handling:

Check the Rating: Always verify the pressure rating of the fittings and ensure they are suitable for your system’s requirements. This rating should be clearly marked on the fittings or documented in product specifications.

Safety Margin: Consider selecting fittings with a pressure rating higher than the system’s maximum to provide a safety margin, especially in applications where pressure spikes may occur.

Regular Inspection: Even fittings that are adequately rated can fail due to wear and tear or damage. Regular inspection and maintenance of hose fittings are essential to ensure they continue to handle the required pressures safely.

Compatibility

The compatibility of hose fittings extends beyond pressure ratings to include the fit with the hose type and size, as well as the compatibility with the hydraulic fluid used. Proper compatibility is essential to maintain an efficient and reliable hydraulic system:

Hose and Fitting Size Compatibility: Ensure that the hose and fittings are of compatible sizes to avoid leaks or fitting failures. The ID of the hose should match the fitting’s designated size, and the OD should be suitable for the fitting to secure it properly.

Type Compatibility: Different types of fittings may be required based on the hydraulic system’s design and the specific application’s needs. For example, high-vibration environments might benefit from fittings that are designed to resist loosening.

Material Compatibility with Hydraulic Fluids: Different hydraulic fluids may have specific compatibility requirements with certain materials used in fittings. For example, some synthetic fluids can degrade standard rubber used in some hose types or react with certain metal alloys used in fittings. It’s crucial to ensure that the materials of the fittings are compatible with the type of hydraulic fluid used to avoid chemical degradation and ensure long-term performance.

Thermal Compatibility: The operating temperature of the hydraulic system can affect both the pressure capacity and the compatibility of the fittings. Materials and designs suitable for high temperatures should be chosen for applications involving elevated temperatures to ensure that the integrity of the hydraulic connections is maintained.

Environment and Application

The selection of reusable hose fittings must also take into account the specific environmental conditions and application requirements they will face. This ensures that the fittings perform reliably under all operating conditions, from extreme temperatures to highly corrosive environments.

Temperature Extremes

Reusable hose fittings must be capable of performing under the specific temperature conditions of their application, whether these involve extreme heat or subzero environments:

Material Expansion and Contraction: Temperature changes can lead to material expansion or contraction, which may affect the integrity of the fitting. It is crucial to select materials that can maintain their mechanical properties and dimensional stability across the expected temperature range.

High Temperatures: For high-temperature applications, such as near engines or in industrial furnaces, fittings made from materials like stainless steel or high-grade alloys are recommended. These materials can withstand the heat without losing their strength or deforming.

Low Temperatures: In cold environments, materials should be selected for their toughness and resistance to brittleness. Low-temperature grades of materials like stainless steel or brass are effective in preventing cracking under mechanical stress when temperatures drop.

Corrosive Environments

In environments where chemical exposure is a concern, the choice of fitting material is critical to prevent rapid degradation:

Chemical Resistance: Materials like stainless steel, brass, and certain plastics offer resistance to a variety of corrosive substances. The specific chemicals present in the environment should guide the material selection to ensure compatibility and longevity.

Marine Applications: For applications exposed to saltwater, such as marine hydraulics, brass or marine-grade stainless steel are preferable due to their ability to resist salt corrosion.

Vibration

Applications that involve significant vibration, such as mobile machinery or industrial equipment, require fittings that can maintain a secure connection despite constant movement:

Anti-Vibration Designs: Some fittings are specifically designed to resist loosening under vibration. Features like locking threads or flexible hose materials can help absorb and dissipate the forces associated with movement.

Application-Specific Considerations

Beyond environmental factors, the specific operational requirements of the application also play a critical role in fitting selection:

Pressure Cycles: In systems experiencing frequent pressure cycles, fittings must be durable enough to handle the stress of repeated expansions and contractions without failure.

Flow Requirements: The configuration of the fitting should not impede the flow of hydraulic fluid. Considerations include the inner diameter of the fittings and the presence of any bends or restrictions that could reduce efficiency.

Common Mistakes to Avoid

When it comes to hydraulic systems, ensuring the correct selection and installation of hose fittings is crucial for system integrity and operational efficiency. However, common mistakes can lead to system failures, safety issues, and increased maintenance costs.

Incorrect Sizing

One of the most frequent errors is selecting fittings that do not properly match the hose size. This mismatch can lead to leaks, hose blow-offs, or restricted fluid flow, all of which compromise system performance.

Avoidance Tip: Always double-check the inner diameter and outer diameter specifications of both the hose and the fittings. Use precise measuring tools and refer to the manufacturer’s sizing charts to ensure compatibility.

Overlooking Material Compatibility

Choosing a fitting material without considering the hydraulic fluid type or the environmental conditions can lead to premature corrosion, degradation, and failure of the fittings.

Avoidance Tip: Select materials based on the type of hydraulic fluid used and the environmental conditions such as temperature extremes, presence of corrosive substances, or exposure to UV light. Consult with material compatibility charts or specialists when in doubt.

Inadequate Installation

Improper installation techniques can also lead to failures. Common issues include over-tightening, which can strip threads or crack fittings, and under-tightening, which can cause leaks.

Avoidance Tip: Follow the manufacturer’s instructions for torque requirements. Use proper tools to ensure that fittings are tightened to the correct specifications without exceeding them.

Ignoring System Changes

Failing to consider changes in the hydraulic system’s operating conditions, such as increases in pressure, changes in temperature, or alterations in the chemicals used, can lead to the selection of inappropriate fittings.

Avoidance Tip: Regularly review and assess the operating conditions. If changes are made to the system, re-evaluate the suitability of the existing fittings and make replacements if necessary.

Neglecting Routine Inspections

Skipping regular maintenance checks can prevent the early detection of issues such as wear, leaks, and fitting corrosion, which can evolve into more serious problems.

Avoidance Tip: Implement a routine inspection and maintenance schedule. Check for signs of wear, leaks, corrosion, and other damage at regular intervals and replace any faulty components immediately.

Conclusion

Selecting the right reusable hydraulic hose fittings is essential for maintaining the efficiency, safety, and cost-effectiveness of hydraulic systems. By understanding the various factors involved in fitting selection and following the step-by-step guide provided, technicians and engineers can ensure optimal system performance. Remember, the correct fitting not only fits your hose—it fits your application and environment as well.

FAQ

What are reusable hydraulic fittings?

Reusable hydraulic fittings are components that can be detached and reattached to a hydraulic hose without the need for crimping equipment. They are designed for easy assembly and disassembly, allowing for quick repairs and adjustments.

How do I determine the correct size of reusable hose fittings?

To determine the correct size, measure both the inner diameter (ID) and outer diameter (OD) of your hydraulic hose. Ensure that the fittings you choose are compatible with these measurements to guarantee a secure and efficient connection.

How can I ensure my hose fittings are compatible with the hydraulic system’s pressure?

Check the pressure rating of the fittings to ensure they can handle the maximum pressure of your hydraulic system. It’s advisable to choose fittings with a pressure rating higher than the system’s maximum to accommodate any pressure spikes.

What types of reusable hose fittings are available?

There are several types of reusable fittings including straight, elbow (such as 45° and 90°), and flange fittings. The type needed depends on the layout of your hydraulic system and the required flow dynamics.

What routine checks should I perform on reusable hose fittings?

Regularly inspect reusable fittings for signs of wear, leaks, or damage. Check the tightness of the connections, especially in systems subject to vibration or dynamic loads, to ensure they remain secure and leak-free. Replace any fittings that show signs of corrosion or damage immediately.

Why is the material of the hose fittings important?

The material of the hose fittings affects their durability and suitability for different environments. Choose materials based on the hydraulic fluid type, environmental conditions (like corrosion, temperature, and exposure to chemicals), and the mechanical demands of your application.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Apr, 2024

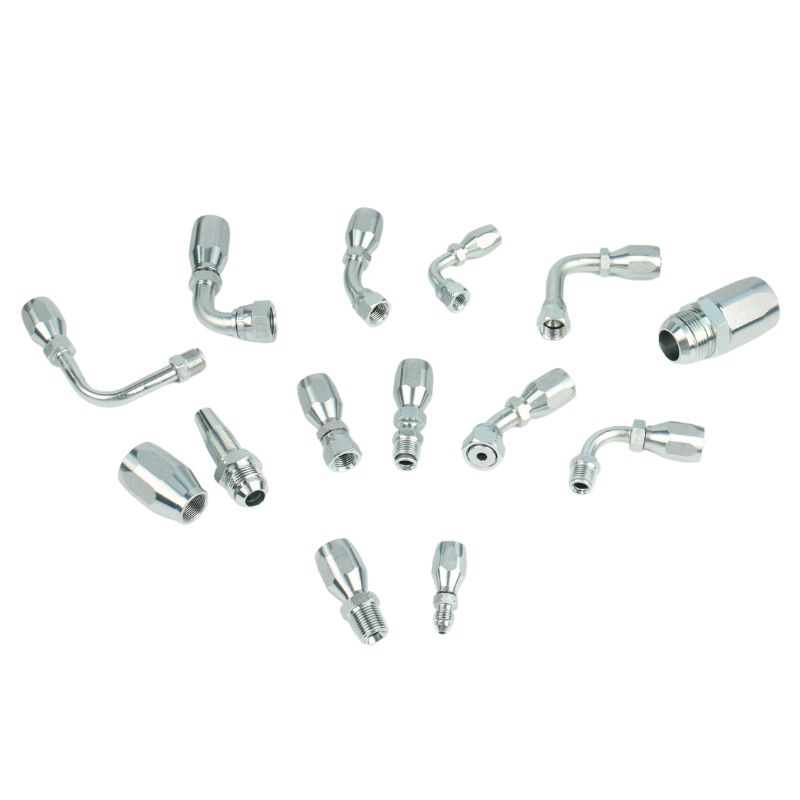

How to Maintain Reusable Hydraulic Hose Fittings

Introduction

Reusable hydraulic hose fittings, known for their versatility and cost-effectiveness, allow for quick modifications and repairs in the field without the need for specialized tools. Proper care of these fittings is essential to prevent system failures, reduce downtime, and ensure the safety of operations. This article delves into the best practices for maintaining reusable hydraulic fittings, helping you extend their life span and optimize your hydraulic system’s performance.

How to maintain reusable hose fitting?

To maintain reusable hose fittings, ensure proper installation and regular inspections for leaks and wear. Use compatible hoses, clean fittings regularly, and apply the correct torque during assembly. Replace worn parts promptly to prevent system failures and extend fitting lifespan.

Common Reusable Fitting Problems

In hydraulic systems, reusable hose fittings are a critical component, but they are susceptible to several common issues that can compromise their efficiency and the overall system integrity. Identifying and addressing these issues promptly is key to maintaining system performance. Below are detailed descriptions of typical problems that occur with reusable hydraulic fittings:

Leakage Issues

Leakage is one of the most frequent problems in hydraulic systems, particularly with reusable fittings. Several factors contribute to leaks:

Improper Installation: Incorrect fitting installation, such as inadequate tightening or not following the correct threading procedures, can lead to gaps or misalignment, causing leaks.

Worn-Out Seals: Over time, seals can degrade due to mechanical wear, exposure to extreme temperatures, or contact with corrosive fluids. This deterioration compromises the seal, allowing fluid to escape.

Loose Connections: Vibration and regular system operation can loosen fittings over time, necessitating regular checks to ensure tightness.

Corrosion and Wear

Reusable fittings can suffer from corrosion and general wear, which diminish their effectiveness and can lead to system failures:

Environmental Exposure: Conditions such as high humidity, saltwater exposure, and contact with aggressive chemicals can accelerate the corrosion of metal components.

Fluid Contamination: Hydraulic fluids contaminated with water, dirt, or other particulates can corrode fittings from the inside, often going unnoticed until a failure occurs.

Material Degradation: Some materials used in fittings can degrade over time, especially if the wrong type of hydraulic fluid is used or if they are exposed to high temperatures frequently.

Misalignment and Vibration

Misalignment and vibration can also lead to significant issues in the integrity and functionality of hydraulic fittings:

System Vibration: Machinery and equipment vibrations can cause fittings to shift out of alignment, leading to uneven wear and potential failures.

Improper Alignment at Installation: If fittings are not aligned correctly during installation, it can result in uneven force distribution when the system is pressurized, which may lead to leaks or ruptures.

Thermal Expansion: Differences in thermal expansion rates between materials can lead to misalignment over time, especially in systems experiencing wide temperature fluctuations.

Abrasive Wear

Aside from the typical wear and tear, abrasive wear is a specific type of deterioration that affects reusable fittings:

Abrasive Particles: Particles in the hydraulic fluid can wear down the fitting surfaces, especially in systems without adequate filtration.

High-Velocity Fluids: In systems where fluid is moved at high velocities, the increased turbulence can accelerate the wear on fittings, reducing their lifespan.

Benefits of Proper Maintenance

Proper maintenance of reusable hydraulic hose fittings is essential for maximizing the efficiency, safety, and longevity of hydraulic systems. Here are the key benefits of adhering to a rigorous maintenance schedule:

Extended Equipment Lifespan

Durability: Regular maintenance ensures that fittings and hoses are in optimal condition, which reduces the likelihood of premature failure. By addressing issues like minor leaks or wear before they escalate, the components last significantly longer.

System Integrity: Maintaining hose fittings properly helps in preserving the structural integrity of the entire hydraulic system. This is crucial in applications where system failure could lead to significant operational disruptions.

Reduced Downtime and Costs

Preventive Measures: Scheduled inspections and maintenance allow for the identification and rectification of potential issues before they develop into major problems. This proactive approach minimizes unexpected breakdowns.

Cost Efficiency: Although maintenance involves some upfront costs, it is far less expensive than the costs associated with system downtime, emergency repairs, or complete replacements of major components due to neglect.

Enhanced Safety

Leak Prevention: Proper maintenance includes ensuring all fittings are tightly secured and seals are in good condition, which significantly reduces the risk of dangerous leaks. Hydraulic fluid leaks can create slip hazards and pose fire risks in certain environments.

System Reliability: A well-maintained hydraulic system is more reliable. Reliability is crucial in applications such as industrial machinery, automotive hydraulics, and agricultural equipment where safety and operational continuity are paramount.

Improved System Performance

Efficiency: Clean and well-maintained components function more efficiently. Regular maintenance ensures that hydraulic fluids are free of contaminants that can reduce efficiency and increase wear on system components.

Response Time: Hydraulic systems with well-maintained fittings respond more quickly and perform better, which is crucial in applications where precision and responsiveness are necessary.

Sustainability

Resource Conservation: By extending the life of existing components and reducing the need for replacements, maintenance practices contribute to sustainability. This is particularly important in industries looking to reduce their environmental footprint.

Waste Reduction: Proper maintenance reduces the need for new parts, which in turn decreases the waste associated with disposing of old, worn-out components.

Routine Maintenance Procedures

Maintaining reusable hose fittings involves a series of routine checks and procedures designed to ensure optimal performance and prevent failures. Here is a detailed breakdown of essential maintenance actions:

Inspection Routines

Visual Inspection:

Regularly examine the external condition of the fittings for signs of wear, corrosion, or damage.

Check for cracks, dents, or any deformations on the fitting surfaces.

Ensure that the fittings are not leaking any fluid.

Thread and Seal Inspection:

Inspect the threads for any signs of stripping or cross-threading that could impair the fitting’s integrity.

Check the condition of all seals and O-rings, looking for cracks, brittleness, or other signs of deterioration.

Tightness and Alignment Check:

Ensure all fittings are tightened to the manufacturer’s specifications using appropriate tools.

Check the alignment of connected components to ensure there is no undue stress on the fittings.

Cleaning and Care

Cleaning Procedures:

Clean the fittings regularly using appropriate solvents that do not degrade the material of the fittings or seals.

Remove any debris, dirt, or contamination that could enter the hydraulic system.

Lubrication:

Apply suitable lubricants to the threads and moving parts of the fittings to ensure smooth operation and prevent corrosion.

Use lubricants that are compatible with the hydraulic fluid used in the system.

Protective Coatings:

Apply anti-corrosion sprays or protective coatings if the fittings are exposed to harsh environmental conditions.

Replacement Schedules

Seal Replacement:

Replace seals and O-rings at intervals recommended by the manufacturer or sooner if any signs of wear or leakage are detected.

Fitting Replacement:

Establish a schedule for inspecting and possibly replacing critical fittings based on their operating environment and frequency of use.

Replace any fittings that show signs of significant wear, corrosion, or damage immediately to prevent system failures.

Record Keeping

Maintenance Logs:

Keep detailed records of all inspections, cleanings, and replacements. This documentation will help in tracking the lifespan of each component and planning future maintenance activities.

System Performance Monitoring:

Regularly check the performance of the hydraulic system to identify any changes that might indicate issues with fittings or other components.

By following these detailed maintenance steps, the longevity and reliability of reusable hydraulic fittings can be significantly enhanced, ensuring that the hydraulic systems they serve operate smoothly and efficiently.

Means of Repair after a Failure

Tools and Equipment for Repair

Hydraulic Wrenches and Sockets

Purpose and Usage: Hydraulic wrenches and sockets are essential for applying the correct torque to hydraulic fittings. These tools help prevent over-tightening and under-tightening, which can lead to leaks or damage to components.

Calibration: Regularly calibrate torque tools to maintain accuracy in torque application, which is crucial for the longevity and reliability of the fittings.

Seal Installation Tools

Types of Tools: Seal installation tools include cone-shaped and cylindrical seal drivers and picks used for removing old seals and seating new ones properly.

Preventing Damage: These tools are designed to apply even pressure to seals during installation, preventing damage such as stretching, tearing, or pinching, which could compromise the seal’s effectiveness.

Material Considerations: Choose tools made from materials that are softer than the metal of the fittings, such as plastic or coated metals, to avoid scratching or damaging the surface of the fittings or seals.

Cleaning Supplies

Selection of Cleaners: Choose cleaners that are specifically formulated for use in hydraulic systems. These should effectively remove oils, greases, and other contaminants without degrading the hydraulic fluids or damaging the system components.

Brushes and Cloths: Include various sizes of brushes and non-abrasive cloths for cleaning different parts of the fittings and nearby areas. Brushes should have bristles that are stiff enough to remove debris but not so hard as to scratch metal surfaces.

Safety and Handling: Ensure that all cleaning supplies are used in a well-ventilated area and stored safely. Use appropriate personal protective equipment (PPE) such as gloves and goggles when handling chemical cleaners.

Additional Useful Tools

Pressure Gauges: Use these to test system pressure after repairs to ensure that it is within operational specifications.

Leak Detection Equipment: In cases where leaks are not visually apparent, using ultrasonic leak detectors or dye injection kits can help in identifying and locating leaks.

Immediate Response to Failure

System Shutdown:

Safety First: As soon as a failure is detected, the first step is to ensure the safety of all personnel by shutting down the hydraulic system. This prevents the system from operating under faulty conditions, which can exacerbate the problem and pose serious safety risks.
Control Panel Operation: Use the system’s control panel to execute an immediate shutdown. In systems without an automated shutdown process, manual valve closures may be necessary.
Pressure Release: Safely release any stored pressure in the system to prevent accidental discharges or further damage during the repair process.

Leak Containment:

Identify the Source: Quickly identify the source of the leak. This may involve visual inspections or using leak detection equipment if the source is not immediately apparent.
Containment Measures: Use drip pans or absorbent materials to contain the hydraulic fluid. In cases where there is a significant spill, deploy environmental containment measures such as booms or absorbent barriers.
Fluid Collection: Collect the leaking hydraulic fluid for proper disposal or recycling. Ensure that all collected fluid is handled according to local environmental regulations.

Damage Assessment:

Visual Inspection: Begin with a visual inspection to assess the extent of damage. Look for signs of wear, fatigue, or mechanical failure on the fittings and surrounding components.
Component Testing: Employ testing methods such as pressure tests or ultrasonic testing to evaluate the integrity of the fittings and detect any hidden damages.

Repair Techniques for Different Failures

Leakage at Fitting Joints

Tightening:

Tools and Techniques: Use torque wrenches to ensure that fittings are tightened according to the manufacturer’s specified torque settings. This prevents over-tightening, which can damage threads and seals.
Regular Monitoring: After tightening, monitor the joints during initial system re-pressurization to ensure that the leak has been effectively sealed.

Seal Replacement:

Identify Seal Type: Determine the type of seal used in the fitting—whether an O-ring, gasket or another type—and check its compatibility with the hydraulic fluid and operating temperature.
Proper Installation: When replacing seals, clean all contact surfaces thoroughly to remove any residue or particulates. Lubricate new seals lightly with hydraulic fluid before installation to prevent damage during fitting.

Thread Repair:

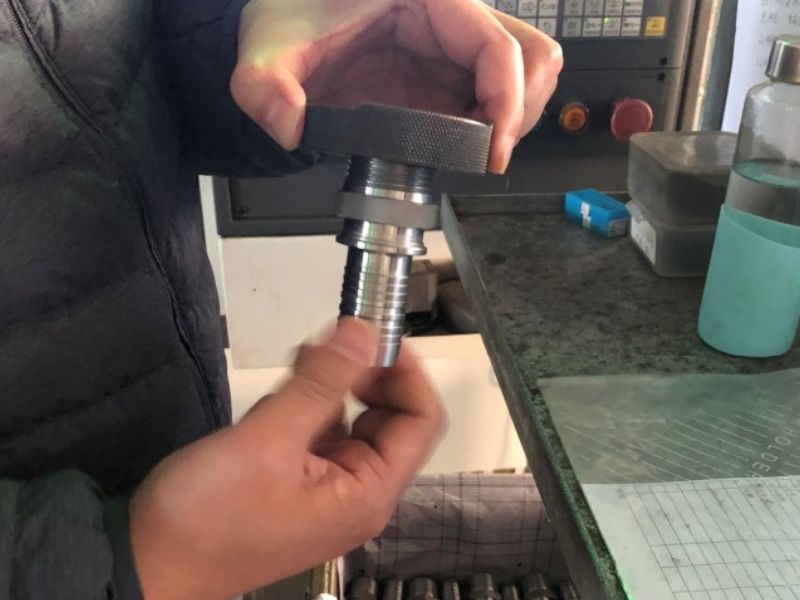

Thread Inspection Tools: Use thread gauges to assess the extent of thread damage. This will help determine whether the threads can be repaired or if the fitting needs to be replaced.
Using Thread Repair Kits: If threads are slightly damaged, use thread repair kits, such as thread inserts or taps, to restore the original thread profile, ensuring a secure fit.

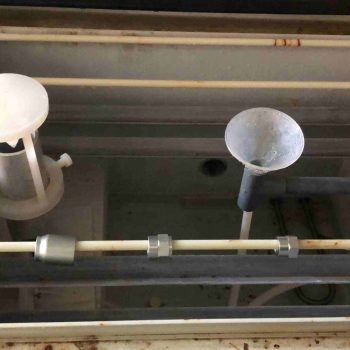

Corrosion-Related Failures

Cleaning and Coating:

Corrosion Removal: Use wire brushes, sandblasting, or chemical rust removers to clean the corroded areas thoroughly. Ensure that all loose material is removed to provide a clean surface for coating.
Application of Coatings: Apply corrosion-resistant coatings such as zinc or epoxy-based paints, which provide a durable barrier against environmental factors that cause corrosion.

Component Replacement:

Assessment of Structural Integrity: Evaluate whether the corrosion has affected the structural integrity of the fitting. Pay particular attention to pits or material loss that might compromise the fitting’s strength.
Installation of New Fittings: Choose materials that offer better corrosion resistance suitable for the specific environmental conditions of the system.

Cracks and Breaks

Welding or Brazing:

Feasibility Assessment: Assess the feasibility of welding or brazing based on the material of the fitting and the nature of the crack. Not all materials are suitable for these repair methods.
Professional Repair: Ensure that welding or brazing is done by certified professionals who can guarantee the strength and durability of the repair.

Replacement:

Safety and Reliability: Consider the safety and reliability of the hydraulic system as the primary factors in deciding whether to repair or replace a fitting. In most cases, replacement is recommended for fittings with visible cracks or breaks.
Upgrade Options: When replacing, consider upgrading to higher-quality materials or designs that might offer improved performance and longer lifespan.

When to Replace Rather than Repair？

Deciding whether to replace or repair hydraulic hose fittings is crucial for maintaining the safety, efficiency, and longevity of hydraulic systems. Here are the key scenarios when replacement is recommended over repair:

Extent of Damage: If the damage to a fitting is extensive, such as deep cracks, breakage, or severe deformation, repair may not restore the fitting to a fully functional state. In such cases, replacement is necessary to ensure the integrity and safety of the system.

Long Term Problems: Repeatedly failing fittings may indicate a potential problem with the type of fitting, the material, or the specific requirements of the design and application. Continuing to repair such fittings is not only uneconomical, it can jeopardize the integrity of the system.

Signs of Wear: Fittings that show signs of significant wear, such as erosion, thread wear, or persistent leakage, should be replaced. Wear can affect the proper and safe operation of fittings.

Conclusion

Maintaining reusable hydraulic hose fittings is essential for ensuring the efficiency, reliability, and safety of hydraulic systems. Implementing a structured maintenance program can significantly reduce operational costs and enhance system longevity. For any uncertainties or complex issues, seeking professional advice is recommended to maintain system integrity.

FAQ

How often should reusable hose fittings be inspected?

It’s advisable to inspect reusable hose fittings regularly, typically every three to six months, depending on their usage frequency and the environmental conditions they are exposed to. Regular inspections help identify wear and tear early, preventing leaks and potential system failures.

What signs of wear should I look for on reusable hose fittings?

Key signs of wear include cracks, corrosion, and any deformation such as stretching or bending in the fittings. Also, check for any signs of leakage around the fittings, which can indicate a seal failure or damage to the fitting itself.

How can I clean reusable hose fittings?

Clean reusable hose fittings using a mild soap solution and warm water to remove any dirt, grime, or residual hydraulic fluid. Avoid using harsh chemicals or abrasive tools that could damage the fitting’s surface. Ensure the fittings are completely dry before reassembly and reuse.

When should reusable hose fittings be replaced?

Replace reusable hose fittings if they show signs of significant wear, such as deep scratches, cracks, or irreversible corrosion. Also, replace them if they have been involved in a system failure or if they no longer provide a secure and leak-free connection even after proper installation.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Apr, 2024

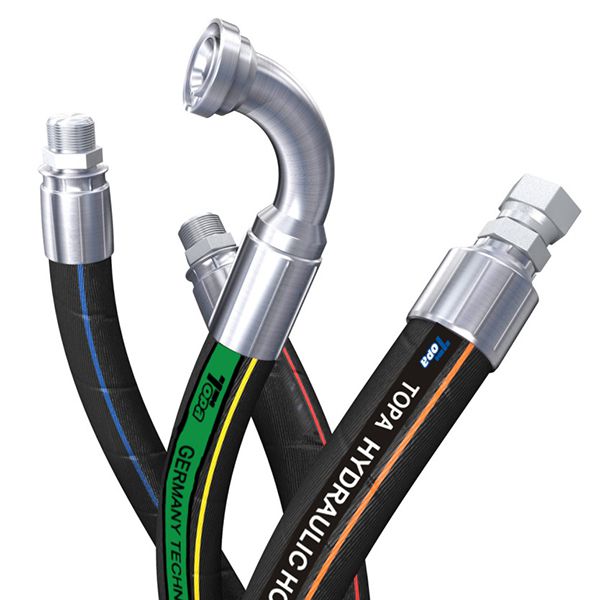

Hydraulic Hose Identification

Hydraulic Hose Identification: Using the STAMP Method

Introduction

Incorrect hose selection can lead to catastrophic failures, costly downtime, and even serious safety hazards. This article will introduce a systematic approach known as the STAMP method, which is the cornerstone of selecting the correct hydraulic hose for any application, ensuring that all critical factors are systematically considered.

The Significance of Proper Hydraulic Hose Identification

When it comes to maintaining and operating hydraulic systems, the importance of correctly identifying hydraulic hoses cannot be overstated. Misidentifying a hydraulic hose might seem like a small oversight, but it can have disastrous consequences. Here’s why proper hose identification is absolutely crucial:

Preventing Equipment Damage: Imagine a scenario where a hydraulic hose that is not suited for high pressure is mistakenly used in a high-pressure application. The hose could burst, leading not only to system downtime but also to potential damage to expensive machinery. By ensuring each hose matches the system’s requirements, you drastically reduce the risk of damaging critical components.

Enhancing Safety: Hydraulic hose failures can be dangerous. In high-pressure applications, a burst hose can fling about violently, posing serious risks to operator safety. Correct hose identification helps prevent these kinds of accidents, ensuring a safer work environment.

Optimizing System Efficiency: A hydraulic system is only as good as its weakest component. Using hoses that perfectly match the specifications of the system helps maintain optimal efficiency. Whether it’s the right material to handle the fluid type, the correct diameter to manage fluid flow, or the appropriate length to fit the system layout, each factor plays a part in system performance.

Understanding the STAMP Method

Navigating the complexities of hydraulic hose selection is made simpler with the STAMP method. This approach breaks down into five crucial elements—Size, Temperature, Application, Material, and Pressure—each accompanied by Ends considerations for fitting types. Here’s how each component plays a critical role in ensuring the right hose selection:

S=Size

When considering the size of a hydraulic hose, it’s essential to focus on both the inner diameter and the length. These dimensions are not arbitrary; they are chosen based on the specific requirements of the hydraulic system they will serve.

Inner Diameter: The diameter must be adequate to accommodate the flow rate of the fluid without causing excessive friction or heat buildup, which can degrade the hose over time. If the diameter is too small, it will restrict flow, resulting in a high velocity that can erode the inner lining of the hose and lead to premature failure. Conversely, a hose that is too large for the system can result in insufficient fluid velocity, leading to inefficiencies such as poor hydraulic response and increased energy consumption to move the fluid.

Length: The length of the hose also plays a crucial role. It should be long enough to connect the necessary components without stressing the hose, which can occur if the hose is stretched to meet connection points. However, excessive length can lead to complications such as pressure drops, potential kinks, and greater overall system complexity. Additionally, longer hoses contain more fluid and therefore add to the hydraulic fluid’s compressibility factor, which can affect the performance and responsiveness of the system.

T=Temperature

Hoses are exposed to various temperatures based on the fluid they carry and their environmental conditions.

Operating Temperature Range: Each hose is designed to operate within a specific temperature range. This range includes the minimum and maximum temperatures the hose material can withstand without degradation. If a hose is subjected to temperatures outside this range, the material may become too soft or too brittle, leading to structural failures such as cracks, leaks, or bursts.

Material Selection: The material composition of the hose is critical in determining its temperature tolerance. Common materials include synthetic rubbers like Nitrile and Neoprene, which offer good resistance to oil-based hydraulic fluids and can handle a broad range of temperatures. For higher temperature applications, hoses made from materials like EPDM (ethylene propylene diene monomer) or Silicone might be necessary due to their ability to withstand higher heat without degrading.

Heat-induced Expansion and Contraction: Thermal expansion and contraction can affect hose integrity and fitting security. Materials that expand significantly with temperature increases might compromise the tightness of the connection points, potentially leading to leaks. Similarly, contraction in cold environments can make the hoses stiff and brittle, increasing the risk of cracking.

Environmental Considerations: External environmental conditions also play a role in hose selection. For instance, hoses used outdoors in regions with extreme temperature variations need to be durable enough to handle these changes without failing. Hoses used near hot machinery or in direct sunlight must also be resistant to ambient heat sources.

Application-specific Requirements: Certain applications may require hoses that can handle extreme bursts of heat, such as those found near engines or exhaust systems. In these cases, specialized high-temperature hoses with reinforced heat resistance need to be used to ensure safety and functionality.

A=Applications

Selecting the right hydraulic hose for a specific application involves a detailed understanding of the hydraulic system’s requirements and the operational environment. Here’s how to ensure the hose you choose meets your applications:

System Design Requirements: Each hydraulic system is designed for specific tasks and operational parameters. The chosen hose must accommodate the system’s pressure ratings, flow rates, and fluid type. For instance, a system designed for high-pressure operations such as hydraulic jacks or industrial machinery will require hoses with strong reinforcement layers that can handle the pressure without bursting.

Environmental Conditions: The operating environment plays a critical role in hose selection. Hoses exposed to harsh chemicals, and abrasive materials need materials specifically designed to withstand these conditions. For example, hoses used in a marine environment should have excellent resistance to water, salt, and possibly UV light, while hoses used in mining or construction need to be highly abrasion-resistant.

Flexibility and Space Constraints: In many hydraulic systems, especially in complex machinery or compact spaces, the hoses must be flexible enough to fit into tight spaces or around corners without kinking or bending in ways that impede fluid flow. Flexibility is also important to accommodate the movement of machine parts relative to each other.

Rigidity for High-Pressure Operations: While flexibility is important, certain high-pressure applications may require more rigid hoses to ensure stability and durability under pressure. Hoses with multiple reinforcement layers or stiffer materials may be needed to prevent expansion under pressure, which can affect the hydraulic system’s efficiency and responsiveness.

Custom Requirements: Some systems may have specific requirements based on their operational needs, such as non-conductive hoses for use in electrical environments or food-grade hoses for applications involving food products. Each of these scenarios demands hoses designed with particular characteristics to safely and efficiently handle the job.

M=Material

Choosing the correct material for a hydraulic hose is paramount because the hose needs to handle the specific chemical properties of the fluid it transports. Chemical incompatibility can lead to severe issues, such as degradation of the hose material, which compromises the integrity and safety of the entire hydraulic system. Here’s how to ensure the hose material is appropriate for the application:

Understanding Fluid Types: Hydraulic systems can use a variety of fluids, including mineral oils, synthetic oils, glycol-water-based fluids, and more. Each type of fluid has specific chemical properties that can affect the inner lining of the hose. For instance, synthetic oils can degrade certain types of rubber that are stable with mineral oils.

Hose Material Selection: The most common materials for hydraulic hose liners are synthetic rubbers like Nitrile, which is resistant to oil-based hydraulic fluids, and Polytetrafluoroethylene (PTFE), which is compatible with more aggressive chemicals like acids and alkalis.

Nitrile Rubber (NBR): Good for oils and fuels because of its resistance to swelling. It performs well with most mineral and oil-based hydraulic fluids but is not suitable for phosphates-ester-based fluids.
Polytetrafluoroethylene (PTFE): Known for its high chemical resistance, it can handle nearly all industrial chemicals, making it ideal for applications involving corrosive fluids.
Chloroprene (Neoprene): Offers good weather resistance and handles moderate acids and other chemicals. It is often used in refrigerants in air conditioning systems.
Ethylene Propylene Diene Monomer (EPDM): Excellent for glycol-based brake fluids and steam applications but not suitable for oil-based fluids.

P=Pressure

The working pressure of a hydraulic hose must match or exceed the maximum operating pressure of the system. It’s essential to consider not just the normal operating pressure but also any transient spikes that can occur during operations. These spikes can result from rapid changes in load or sudden obstructions, like when a backhoe strikes a rock, causing a sharp, short-lived increase in pressure.

Static vs Dynamic Systems

Hydraulic systems can be categorized into static and dynamic:

Static Systems: These systems use non-moving fluids to transmit force. An example is a hydraulic jack, where pressure applied to a confined liquid is used to lift heavy loads.
Dynamic Systems: In these systems, fluid is in motion, driven by pumps to transfer energy to various components. Backhoes and other heavy machinery typically operate on dynamic hydraulic systems.
Operating Pressure: Each hydraulic hose is rated for a specific maximum operating pressure. It’s essential that the hose’s rating meets or exceeds the highest pressure expected in the hydraulic system under normal conditions. Using a hose with a pressure rating lower than the system’s requirement can lead to hose rupture, leakage, or complete failure.

Pressure Spikes

Hydraulic systems can experience transient pressure spikes that exceed the normal operating pressure, often due to sudden changes in load or velocity. These spikes can be significantly higher than the average working pressure and can cause damage if the hose is not designed to handle such stress. Therefore, it’s important to choose a hose that can tolerate these occasional increases. Many hoses are designed to handle pressure spikes up to a certain percentage of their rated capacity without sustaining damage.

Managing Pressure Drop

Pressure drop within hydraulic systems can significantly affect performance and is influenced by several factors:

Friction and Viscosity: As fluid moves through a hose, it experiences friction, particularly if the hose’s inner diameter (ID) is too small, leading to increased resistance and heat. The viscosity of the fluid also plays a role, with thicker fluids slowing down the flow and increasing pressure drop.

Ambient and Fluid Temperatures: Temperature affects fluid viscosity. In colder environments, fluids thicken, increasing pressure drop, whereas they thin out in warmer conditions, potentially reducing pressure drop but also leading to other risks like seal damage.

Hose Length and Diameter: Longer hoses increase the surface area where friction can occur, elevating pressure drop. Similarly, a hose with a small diameter can restrict flow, increasing velocity and pressure drop. Conversely, a larger diameter hose reduces pressure drop, allowing for smoother fluid flow.

Couplings and Adapters: Changes in direction or reductions in hose bore size at couplings and adapters can create turbulence or restrictions, increasing pressure drop.

Safety Factor: Typically, hydraulic hoses are selected with a safety factor in mind. This factor generally ranges from 4:1 to 8:1, meaning the hose is capable of withstanding four to eight times its rated working pressure before failing. This safety factor accounts for variations in pressure, weaknesses in the hose material over time, and unforeseen spikes in pressure.

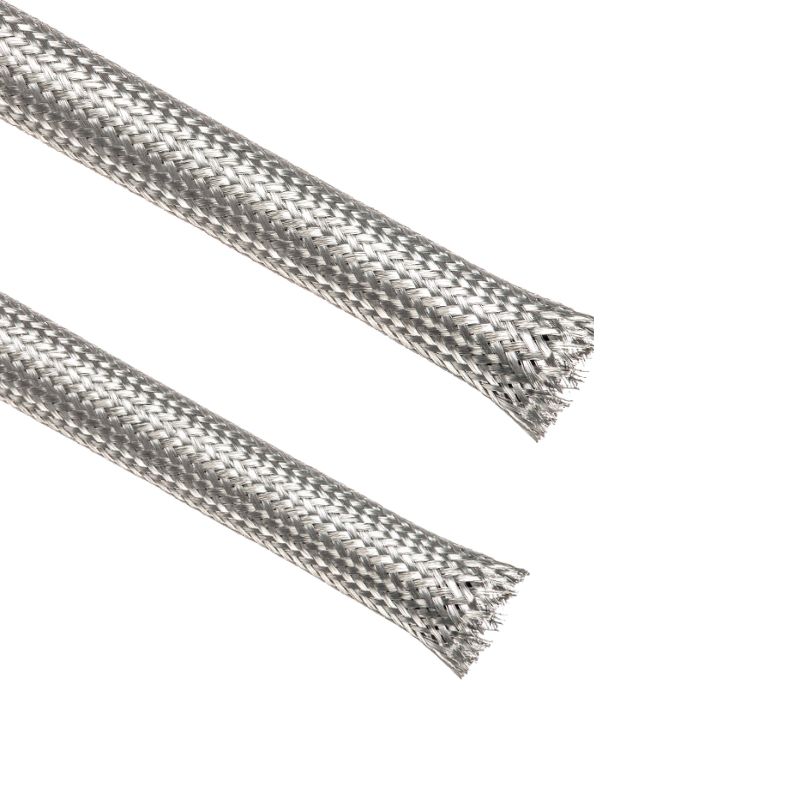

Reinforcement Layers: Hoses are reinforced with layers of wire braid or spiral-wound wire to strengthen them against high pressure. The number of layers and the strength of the reinforcement will determine the maximum pressure the hose can withstand. High-pressure applications typically require hoses with multiple layers of reinforcement.

Practical Guide to Applying the STAMP Method

The STAMP method provides a structured approach to selecting the right hydraulic hose for specific applications. Here’s a step-by-step guide to effectively apply this method, ensuring that your hydraulic system operates safely and efficiently:

Measure the Hose Size Accurately

Proper hose size is crucial for system efficiency and preventing leaks. Use precise measuring tools like calipers to determine the inner diameter (ID) and outer diameter (OD) of the hose. This measurement ensures that the hose can accommodate the flow rate without excessive pressure loss or velocity that might lead to hose wear or failure.

Consult Material Compatibility Charts

Different hydraulic fluids require hoses made from materials that can resist the chemical properties of the fluid. Consult material compatibility charts to ensure the hose material is suitable for the type of fluid in your system. These charts are typically provided by hose manufacturers and detail how different materials react to various hydraulic fluids, including oils, solvents, and acids.

Check Temperature and Pressure Ratings

Verify that the hose can withstand the maximum operating temperature and pressure of the hydraulic system. Hoses are rated for specific temperature ranges and maximum pressures. Exceeding these ratings can lead to hose degradation, loss of integrity, and potential failure. Consider both the fluid temperature and the ambient temperature in which the hose will operate.

Select Appropriate Fittings

Choosing the right fittings is just as important as selecting the hose. Ensure the fittings you choose match the hose in terms of size, material, and design. This compatibility is crucial to create a secure, leak-free connection. The fittings should also be suitable for the system’s pressure and not introduce any weak points.

Common Mistakes in Hydraulic Hose Identification

In the selection and maintenance of hydraulic hoses, certain pitfalls can lead to system inefficiencies, premature hose failure, or even dangerous blowouts. Recognizing these common mistakes can significantly improve the reliability and safety of hydraulic systems. Here’s an overview of typical errors and how to avoid them:

Mismatching Material Compatibility

One of the most critical mistakes in hydraulic hose selection is the failure to match hose materials with the chemical properties of the fluid being transported. This oversight can lead to:

Chemical Degradation: Certain hose materials may degrade when exposed to specific chemicals in hydraulic fluids, such as oils, solvents, or acids.

Corrosion: Incompatible materials can corrode when exposed to certain fluids, leading to weakened hose structure and eventual failure.

Prevention Tip: Always consult material compatibility charts provided by manufacturers to ensure that the hose material is suitable for the type of fluid used in your system.

Underestimating Pressure Spikes

Another frequent error is neglecting to account for pressure spikes in hydraulic systems. These spikes can occur due to sudden changes in load or blockages and may exceed the normal operating pressure by a significant margin.

Hose Bursts: If a hose is not rated to handle occasional spikes, it may burst under pressure, leading to potential safety hazards and system downtime.

System Stress: Even if the hose does not burst, pressure spikes can stress other components of the hydraulic system, reducing overall life expectancy.

Prevention Tip: Ensure that the chosen hose has a maximum pressure rating that accommodates potential spikes, typically by selecting a hose with a burst pressure rating at least four times higher than the system’s maximum operating pressure.

Ignoring Installation Errors

Improper installation of hydraulic hoses can also lead to issues such as leaks, restricted flow, or hose damage:

Improper Routing: Hoses that are bent too tightly, or routed near sharp edges or high-heat areas, can degrade faster or become damaged.

Inadequate Length: Hoses that are too short may be subject to excessive tension, whereas hoses that are too long can kink or tangle.

Prevention Tip: Follow proper routing practices as specified in installation manuals, and ensure that there is enough hose length to allow for movement without stretching or compressing the hose excessively.

Overlooking Environmental Factors

The environment in which a hydraulic hose operates can significantly affect its durability and performance. Common oversights include:

Temperature Extremes: Failing to consider the ambient temperature range can lead to improper hose selection.

Abrasive Conditions: Exposure to abrasive materials can wear down the hose cover and eventually the reinforcement layers.

Prevention Tip: Choose hoses with protective covers suitable for the operating environment and consider using additional protective sleeves or guards where necessary.

By following these guidelines, you can improve the reliability, efficiency and safety of your hydraulic system, avoid costly failures and maximize operational efficiency.

FAQ

What factors should I consider when selecting a hydraulic hose?

Consider the STAMP factors: Size, Temperature, Application, Material, and Pressure, to ensure the hose meets the specific requirements of your hydraulic system.

How do I ensure the hose material is compatible with my hydraulic fluid?

Refer to material compatibility charts to verify that the hose material can resist the chemical properties of the fluid used in your system.

What should I do to accommodate pressure spikes in my hydraulic system?

Choose a hose with a burst pressure rating at least four times higher than the maximum operating pressure to handle pressure spikes safely.

How can incorrect hose fittings affect my hydraulic system?

Mismatched or improper fittings can introduce weak points, leading to potential leaks and hose failures, so ensure fittings match the hose in terms of size, material, and design.

What common mistakes should I avoid when selecting hydraulic hoses?

Avoid mismatches in material compatibility and underestimating pressure requirements. Also, ensure proper installation to prevent physical damage and premature wear.

How does environmental exposure affect hydraulic hose selection?

Consider the operational environment, such as temperature extremes and exposure to abrasive elements, and select hose materials and coverings that can withstand these conditions.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Apr, 2024

Hydraulic Fitting Types

The Comprehensive Guide to Hydraulic Fitting Types

Our Blog

Comprehensive Guide

A comprehensive guide to hydraulic fitting types can help you learn more about threads such as JIC, BSP, SAE, JIS and NPT. This guide provides clear and practical advice to help you choose the right fitting for your hydraulic system. This guide all ensures that you have the knowledge you need to make informed decisions and maintain efficient, reliable operation.

Your Questions？

Confused about the content of the article? Have any suggestions? Contact us and Topa will get back to you as soon as possible!

Mar, 2024

Compression Fitting Types and Applications The Ultimate Guide

Hydraulic Compression Fitting Types and Applications

Introduction

Compression fittings are essential components in various industries, offering a reliable and secure method for connecting tubes and pipes. These fittings are integral in systems that require the transport of liquids or gases, providing a tight seal and preventing leaks. Their application spans numerous sectors, including hydraulic systems in manufacturing, fluid delivery in the medical field, fuel lines in aerospace, and water distribution in plumbing. The widespread use of compression fittings underscores their significance in maintaining the functionality and safety of these vital systems. Their adaptability to different materials and pressures makes them indispensable in diverse industrial environments.

History of Compression Fittings

Early Development

The origins of compression fittings are closely linked to the infancy of plumbing and gas systems. In these early stages, the primary goal was to ensure a reliable connection between pipes, often in basic infrastructure such as water supply and rudimentary gas lines.

These initial fittings were simple in design, primarily focusing on functionality over sophistication. They often utilized softer metals like copper or lead, which were more pliable and easier to work with. This choice of materials was crucial as it allowed for manual manipulation to create a sufficient seal, albeit basic by today’s standards.

The simplicity of these early fittings reflected the limited scope of plumbing and gas systems of the time. They were designed to cater to low-pressure applications, mostly in residential or small-scale commercial settings. This era laid the groundwork for more advanced developments in the field of pipe connections.

Technological Evolution

As the demands of industry and technology grew, the limitations of early compression fittings became apparent. This period saw a shift towards more robust and adaptable designs to meet these increasing demands.

Innovations in both the materials used and the engineering processes marked this era. The introduction of harder metals, such as steel and brass, revolutionized the capabilities of these fittings. These materials could endure higher pressures and were more resistant to wear and tear, significantly extending the lifespan and reliability of the connections.

The advancement in engineering precision played a crucial role as well. These included variations in the shape and size of the fittings, catering to a wider range of applications, from industrial machinery to intricate piping systems in large buildings.

This period also witnessed the introduction of synthetic materials like plastics and rubber compounds in the sealing mechanisms. These materials offered improved durability and resistance to various chemicals, expanding the use of compression fittings in more specialized fields such as chemical processing and laboratory setups.

Modern Advancements

Cutting-edge innovations in engineering and materials science have driven the most recent advancements in compression fitting technology. Modern compression fittings are characterized by their ability to withstand extreme conditions. They are designed to endure high pressures, extreme temperatures, and corrosive environments, making them indispensable in sectors like aerospace, deep-sea exploration, and high-tech manufacturing.

The integration of smart technology into compression fittings is a notable modern development. This includes the incorporation of sensors and monitoring systems that can provide real-time data on pressure, flow, and temperature, enhancing the safety and efficiency of fluid and gas transport systems.

Types of Hydraulic Compression Fittings

Single Ferrule Fittings

Single ferrule fittings, valued for their straightforward design, use one ferrule to secure and seal the tube. This simplicity translates into fewer parts to manage and an easier installation process, making them an optimal choice in space-constrained environments or situations where quick setup is essential.

Double Ferrule Fittings

These fittings use a dual ferrule system, offering a superior seal and increased grip strength. The front ferrule forms a seal against both the fitting body and the tube, while the back ferrule reinforces the tube grip. This dual action makes them particularly suitable for applications involving high pressure or significant vibration, providing a more secure and stable connection.

Flare Fittings

With their unique design utilizing a flared end of the tubing for sealing, flare fittings are tailored for high-pressure and high-temperature conditions. They are a common choice in systems where a robust seal is paramount, such as in fuel and oil lines.

Other Varieties

This category encompasses specialized types like bite-type fittings, which use a sharp ferrule to grip the tube, and mechanical grip fittings, designed for specific applications where traditional compression fittings may not be suitable. Each type offers distinct advantages and is chosen based on the specific needs of an application.

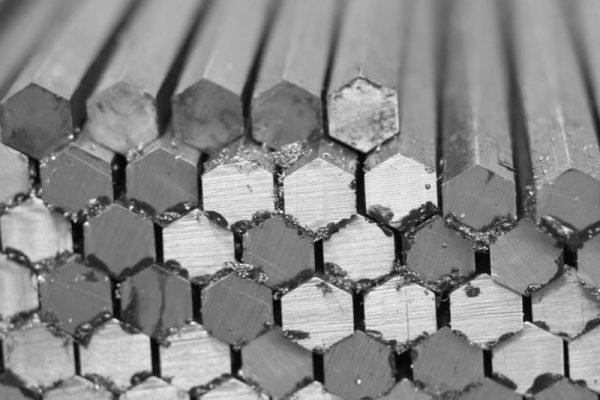

Material and Design

In the realm of compression fittings, the choice of materials and design considerations are pivotal for their functionality and application range. The most common materials used are:

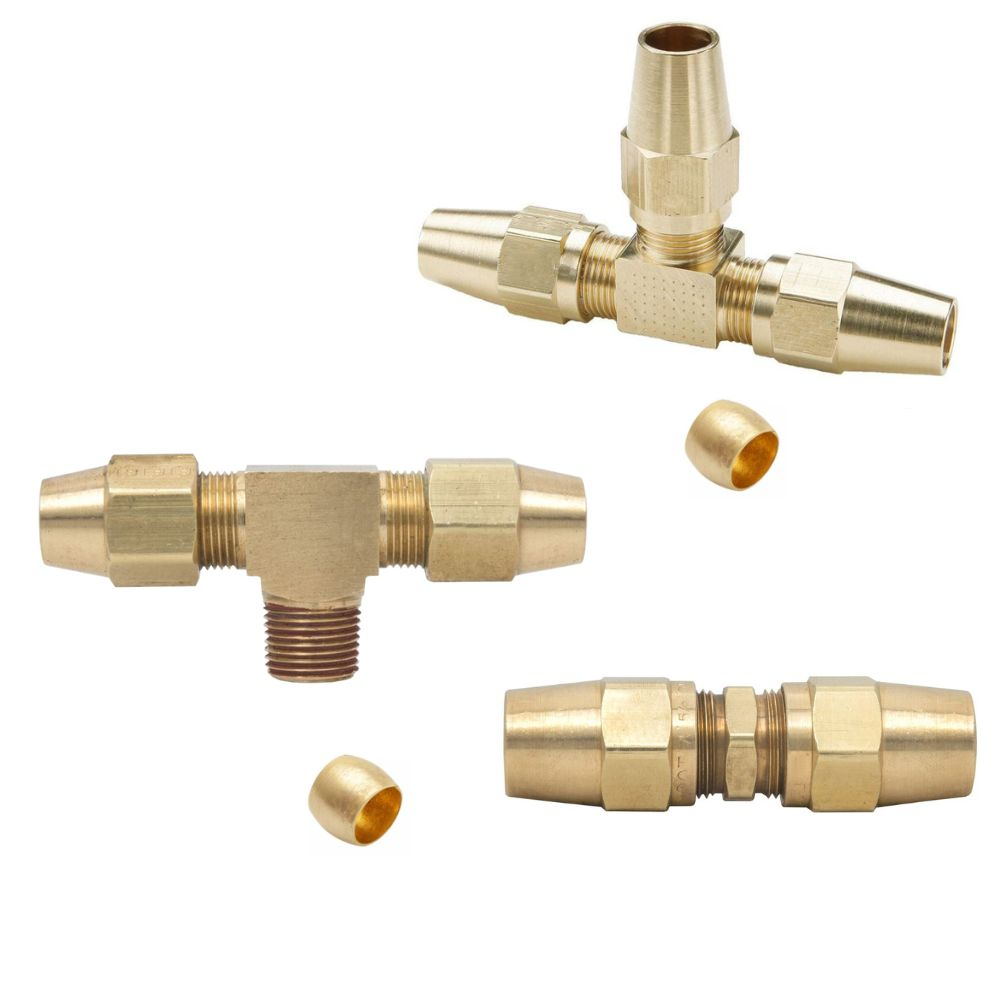

Brass

This material is widely chosen for its corrosion-resistant properties and flexibility, making it suitable for applications ranging from water supply systems to heating solutions. Brass fittings are appreciated for their malleability, which facilitates easy installation and a reliable seal.

Stainless Steel

With its high resistance to corrosion, heat, and chemical exposure, stainless steel is ideal for more demanding environments. This material is often employed in industrial settings, such as in chemical processing plants or offshore marine operations, where durability and longevity are essential.

In terms of design, two main aspects are considered:

Durability: The design of compression fittings is focused on ensuring that they can withstand various environmental conditions, including pressure fluctuations, temperature extremes, and chemical exposure. This involves precision engineering to ensure that the fittings maintain their integrity over time, even in challenging situations.

Efficiency: Efficiency in compression fittings refers to their ability to maintain a consistent and leak-proof seal. The design is optimized to ensure that the fittings can be easily installed and provide a reliable seal, minimizing potential for leaks, which is crucial in systems where safety and fluid integrity are paramount.

Application in Different Industries

The versatility of compression fittings allows for their widespread use across diverse industries, each with unique requirements and challenges:

Hydraulic Systems

In hydraulic systems, which are fundamental in the construction and manufacturing sectors, compression fittings are used to ensure leak-proof and reliable connections in high-pressure environments. Their role is crucial in maintaining the efficiency and safety of hydraulic machinery, which is often subjected to rigorous operating conditions.

Gas Lines

The safe transport and distribution of gas, whether in urban infrastructure or industrial settings, relies heavily on the integrity of compression fittings. These fittings are critical in preventing leaks, thereby ensuring safety and operational continuity in gas transportation systems.

Medical Equipment

In the healthcare industry, the reliability of compression fittings is paramount, particularly in life-support systems and diagnostic equipment. The precision and quality of these fittings contribute significantly to the overall performance and reliability of medical devices.

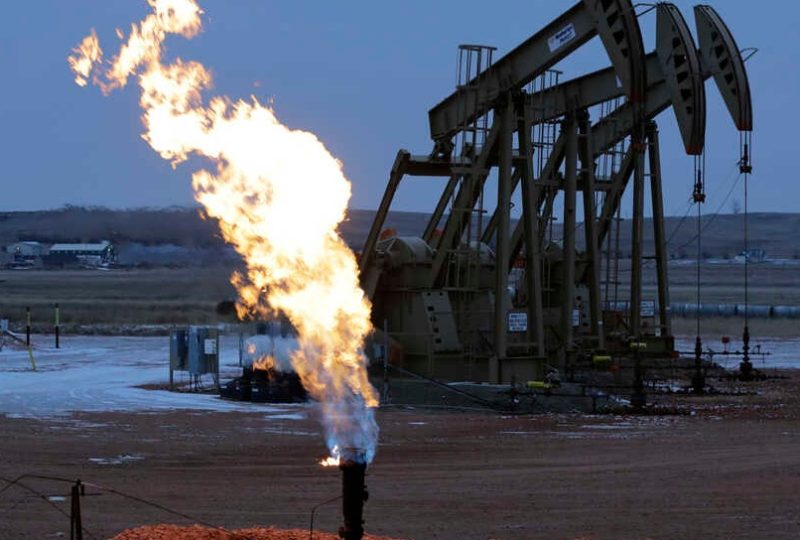

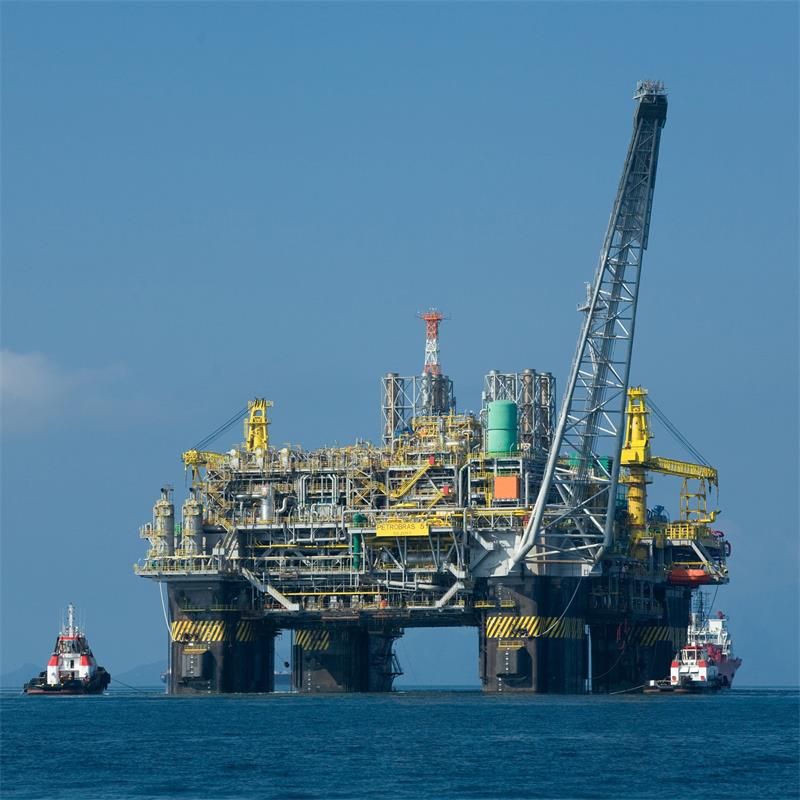

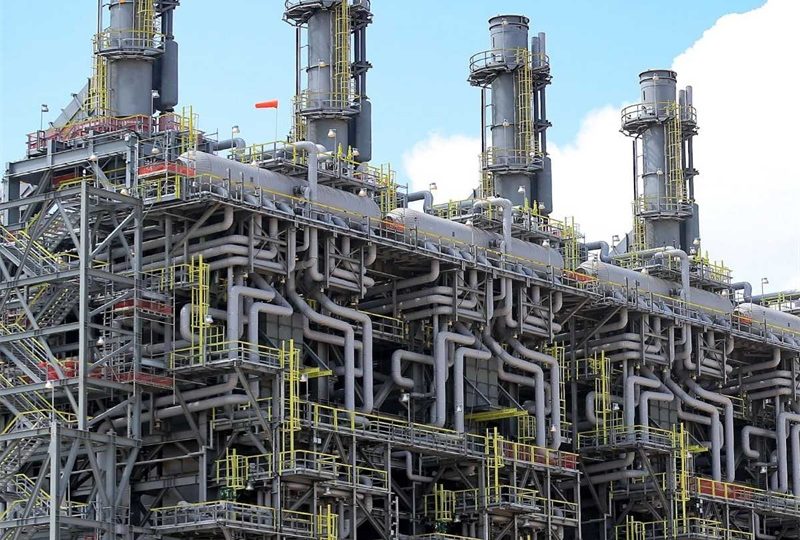

Oil and Gas Industry

The oil and gas sector relies on compression fittings for their robustness in handling high-pressure flows. These fittings are key components in oil and gas extraction and transportation systems, where they help in managing the flow and maintaining the integrity of pipelines and drilling equipment.

Installation and Maintenance

Step-by-Step Instructions for Fitting Installation

Preparation: Begin with a thorough inspection of the tubing and fitting components. Ensure that the tubing is cut squarely and deburred, creating a smooth end that will not compromise the fitting’s integrity.

Component Assembly: Assemble the fitting according to the manufacturer’s instructions. This usually involves sliding the nut, followed by the ferrule, onto the tubing.

Insertion: Carefully insert the tubing into the fitting body until it bottoms out. This ensures a proper initial engagement between the tubing and the fitting.

Tightening Technique: Follow the recommended tightening procedure, which typically involves hand-tightening the nut until snug, then applying a specific number of turns with a wrench. This process compresses the ferrule onto the tubing, creating a leak-proof seal.

Final Inspection: After installation, visually inspect the assembly for alignment and proper seating. A correctly installed compression fitting should be securely fastened without any signs of distortion or leakage.

Maintenance Tips for Ensuring Longevity

Regular Inspections: Schedule routine inspections to identify any signs of wear, corrosion, or damage. Early detection of potential issues can significantly reduce the risk of system failures.

Cleaning and Lubrication: Keep the fittings clean from debris and corrosive substances. Apply lubrication where specified by the manufacturer to maintain smooth operation and prevent rust.

Component Replacement: Replace worn or damaged components promptly. Using original parts ensures compatibility and maintains the system’s integrity.

Addressing Common Issues with Troubleshooting

Leak Detection: Regularly check for signs of leaks. If a leak is detected, first ensure the fitting is properly tightened. Over-tightening can damage the fitting and tubing, so adhere to the manufacturer’s specifications.

Corrosion and Wear: Inspect for signs of corrosion or wear, especially in harsh environments. Replace any corroded or worn parts immediately to prevent system degradation.

Improper Sealing: If leaks persist, disassemble the fitting and inspect for improper seating or damage to the tubing and ferrule. Reassemble according to the guidelines, ensuring a clean, debris-free connection.

Environmental Considerations and Sustainability

Eco-Friendly Material Usage

The compression fittings industry, like many others, is increasingly aware of its environmental impact. There is a growing trend towards the use of eco-friendly materials in the manufacturing of compression fittings. These include biodegradable plastics, recycled metals, and other sustainable alternatives that have a lower environmental footprint.

The adoption of these materials is not only beneficial for the environment but also aligns with the global push towards sustainable development. By using materials that are less harmful to the environment, the industry is contributing to the reduction of pollution and the conservation of natural resources.

Sustainable Manufacturing Processes

The industry is also transforming its manufacturing processes to be more energy-efficient and environmentally friendly. This includes optimizing production lines to reduce waste and conserve resources.

Advanced technologies, such as automation and precision engineering, are being employed to minimize errors and excess material usage. This not only enhances efficiency but also significantly reduces the environmental impact of production.

Recycling and Reusability Initiatives

Recycling and reusability are key components of the industry’s approach to environmental sustainability. Many companies are now designing compression fittings that are easier to disassemble and recycle, thereby extending their lifecycle and reducing waste. This not only reduces environmental impact but also offers cost savings for both manufacturers and consumers.

The promotion of reusable fittings, which can be easily adjusted or reconfigured for different applications, is also gaining traction. This approach not only conserves resources but also provides flexibility and cost-effectiveness for users.

Contributing to a Sustainable Future

The compression fittings industry’s commitment to environmental sustainability is part of a broader movement within the industrial sector to address global environmental challenges.

Conclusion

In conclusion, this comprehensive overview of compression fittings has delved into various types, their essential role in numerous industries, and the specific considerations for their material and design. We’ve covered the critical aspects of installation, maintenance, and the adherence to necessary regulations and standards. It’s imperative for professionals in this field to keep abreast of the latest advancements and continue innovating in their application of compression fittings. This ongoing commitment to knowledge and innovation is key to maintaining safety, efficiency, and reliability in their use across diverse industrial applications.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Mar, 2024

All Hydraulic Fittings Used in Tractors

Introduction

Hydraulic systems power attachments such as tractor steering, brakes, loaders, and plows. The efficiency of these systems depends on small hydraulic fittings. These fittings ensure the flow of hydraulic fluid and are vital to the operation of the tractor. This guide provides an in-depth look at the types of hydraulic connections used in tractors, their importance, and best practices for selection, installation, and maintenance.

Hydraulic Fittings in Tractors

Hydraulic connections are important joints that connect the various components of a tractor’s hydraulic system, such as hoses, pipes, and hydraulic machinery. These fittings can withstand high pressures and ensure a safe and leak-free connection. In a tractor’s hydraulic system, these fittings play a key role in the efficient transfer of hydraulic fluid. This process is the basis for converting mechanical energy into hydraulic energy, which is then utilized to power the operation of the tractor. These systems affect the operation of the tractor from raising and lowering implements to steering and braking.

Hydraulic systems in tractors are designed to operate in demanding conditions, handle heavy loads and work in a variety of environments. The reliability of these systems depends greatly on the quality and compatibility of the hydraulic connectors used. These fittings come in different shapes, sizes and materials, each suited to specific applications and pressure requirements.

The operation of hydraulic systems in tractors is a complex interplay of mechanical and hydraulic components. At the heart of this system is the hydraulic fluid, which is pushed through the system under pressure. The hydraulic connections ensure that this fluid remains under pressure, directing it through the system’s various components to perform the desired tasks. Whether lifting heavy loads, adjusting implements, or steering the tractor, the hydraulic system’s efficiency is directly influenced by the effectiveness of its fittings.

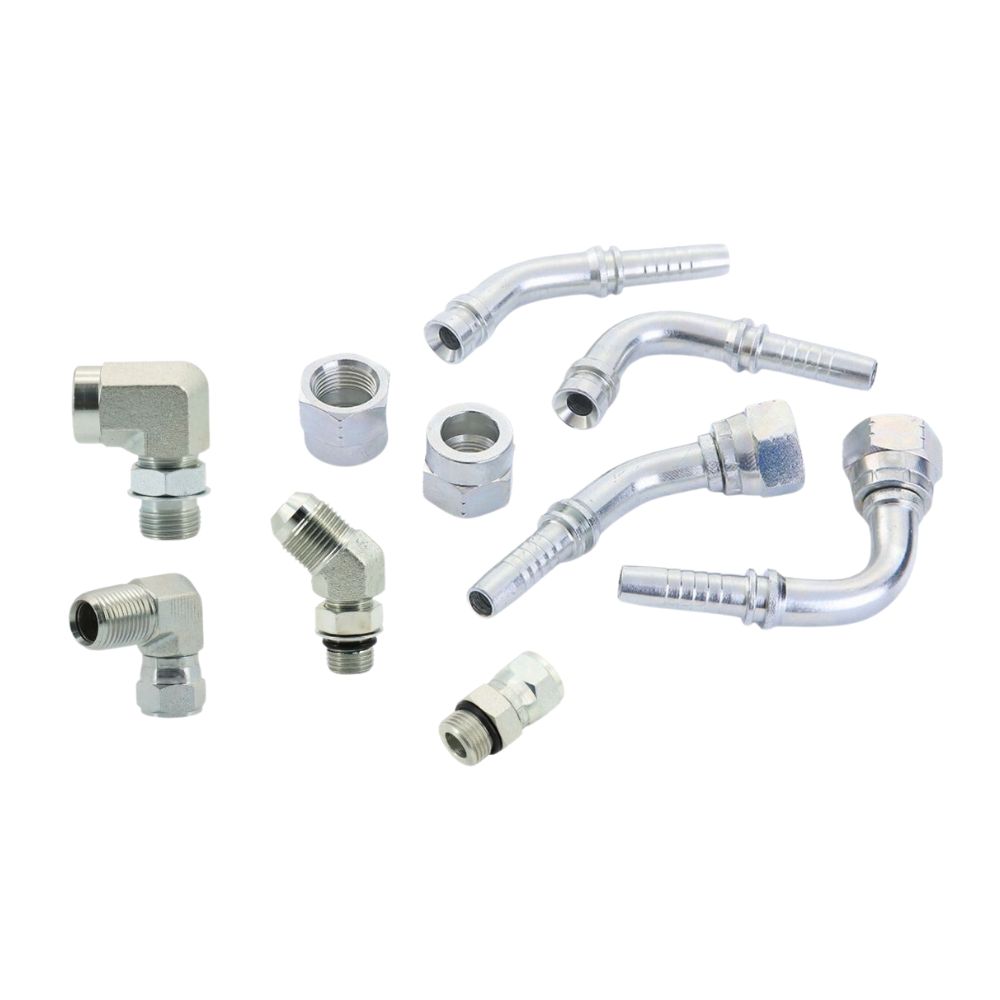

Types of Hydraulic Fittings Used in Tractors

In the tractor world, there is a wide variety of hydraulic connections, each type designed to fulfill a specific role in the different hydraulic systems of a tractor. Understanding these fittings can help you make better choices.

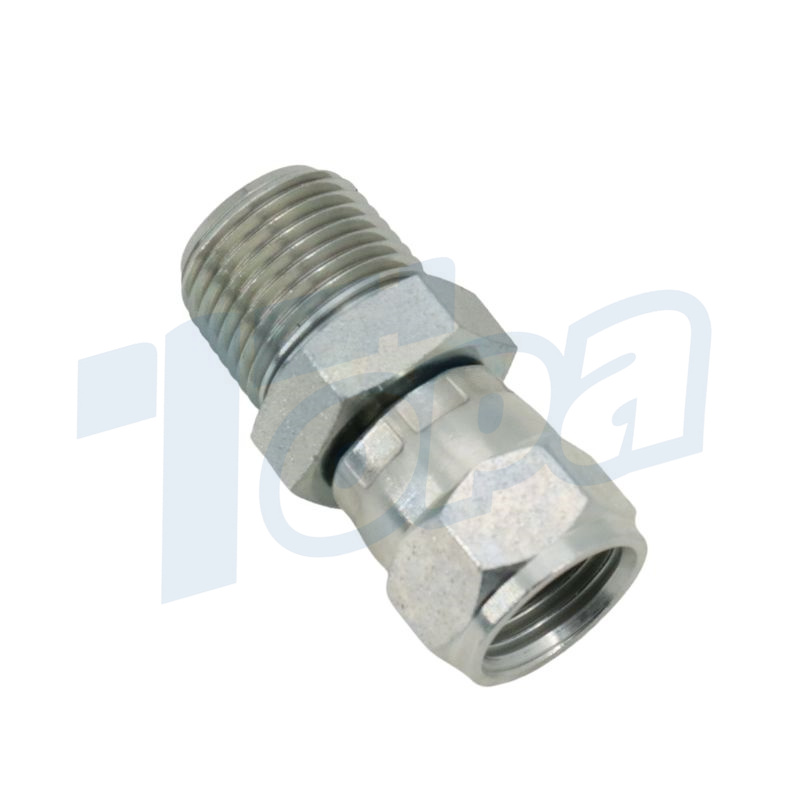

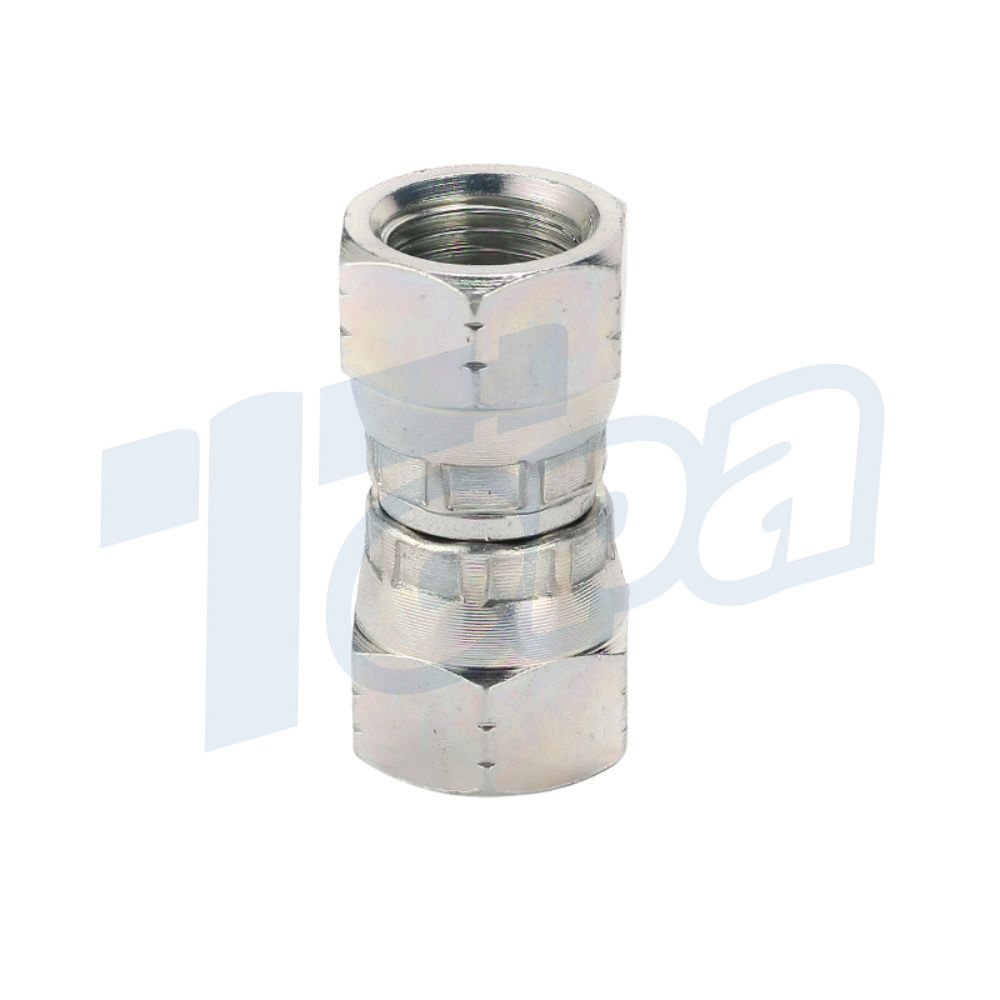

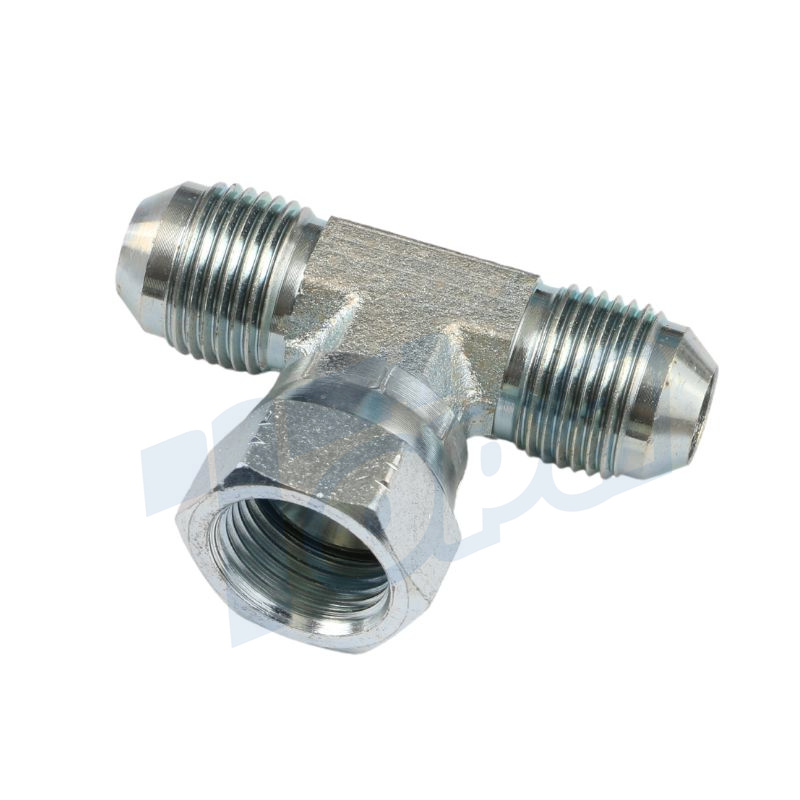

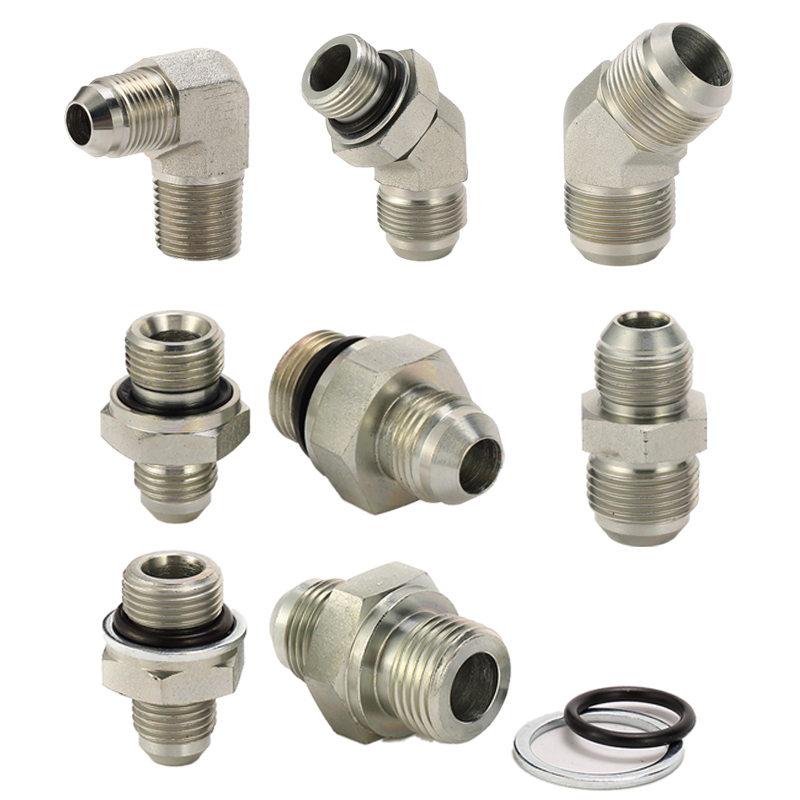

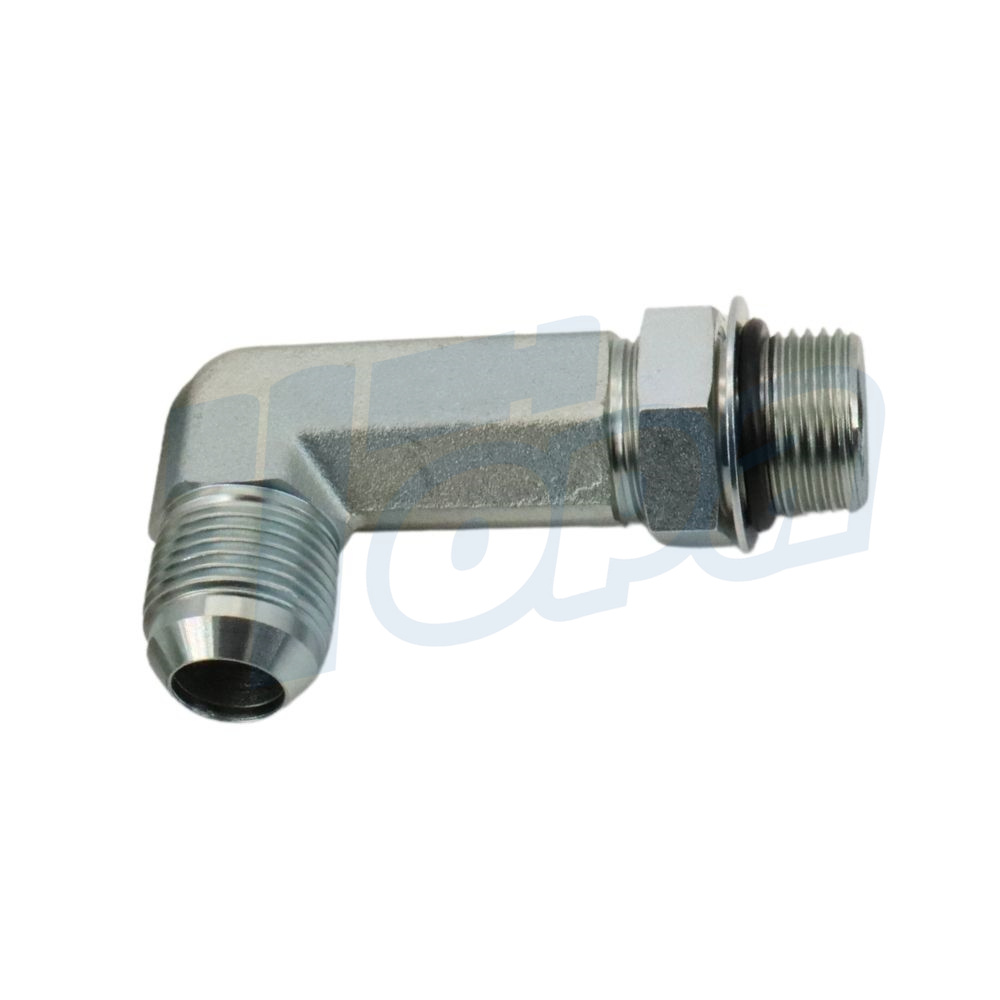

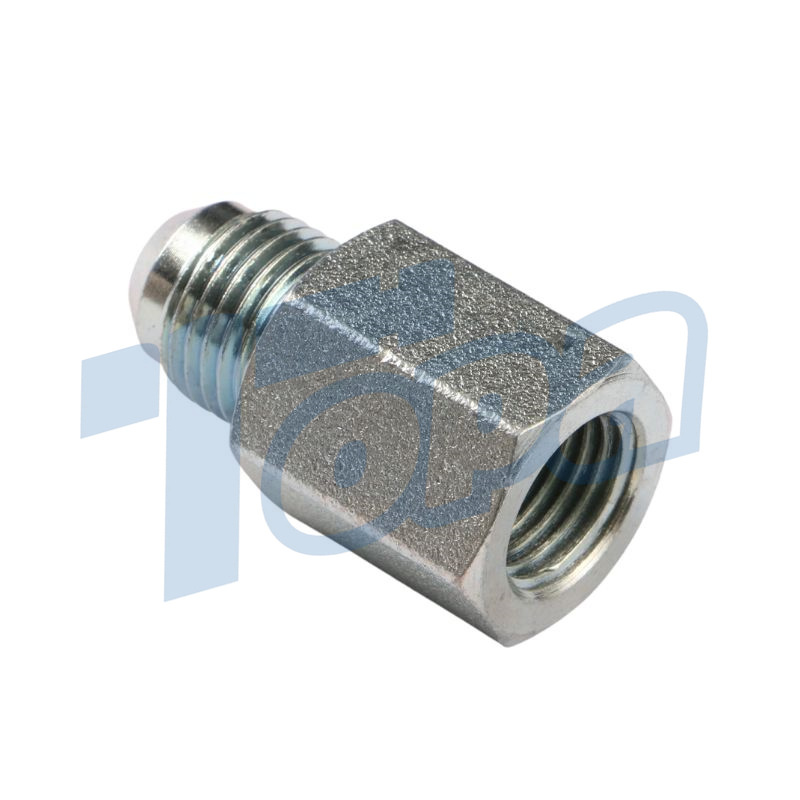

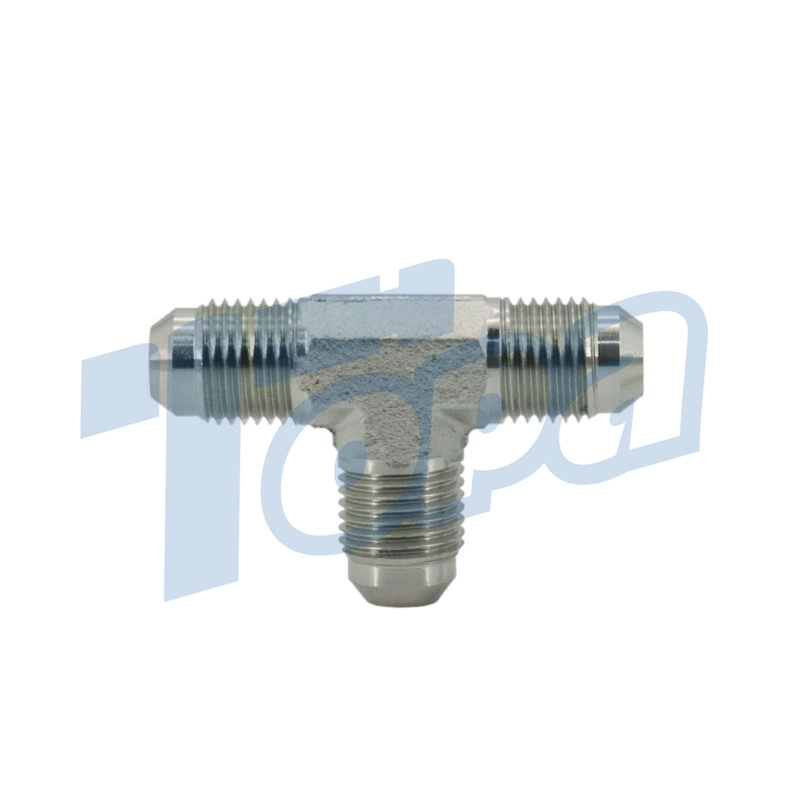

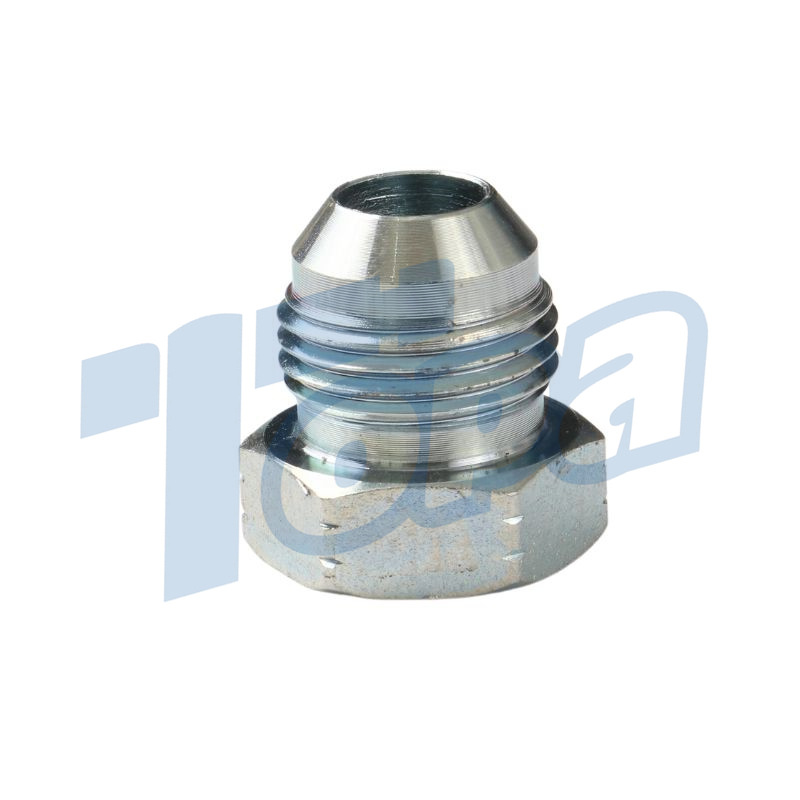

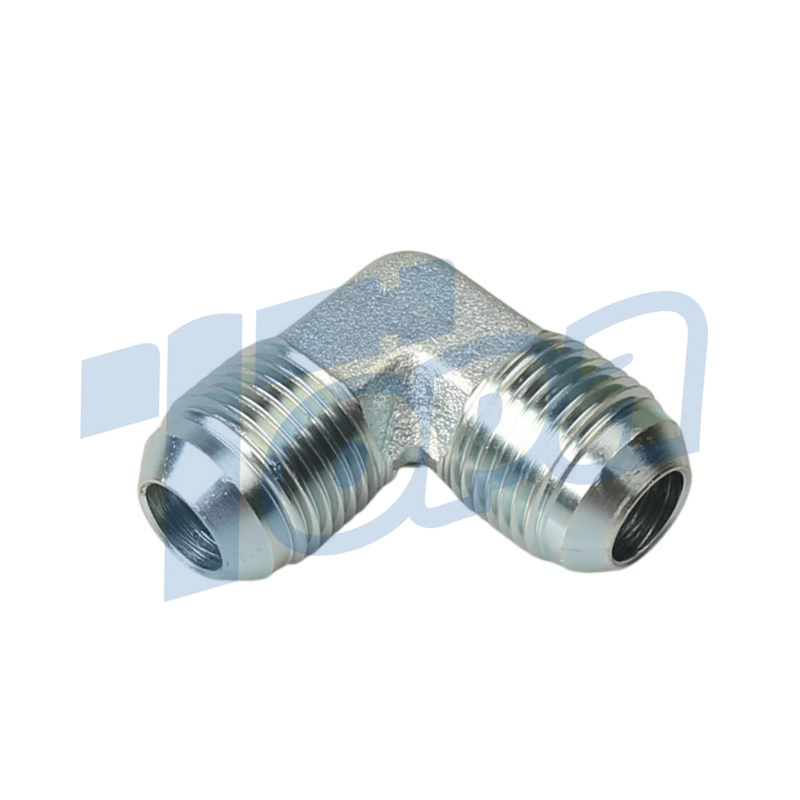

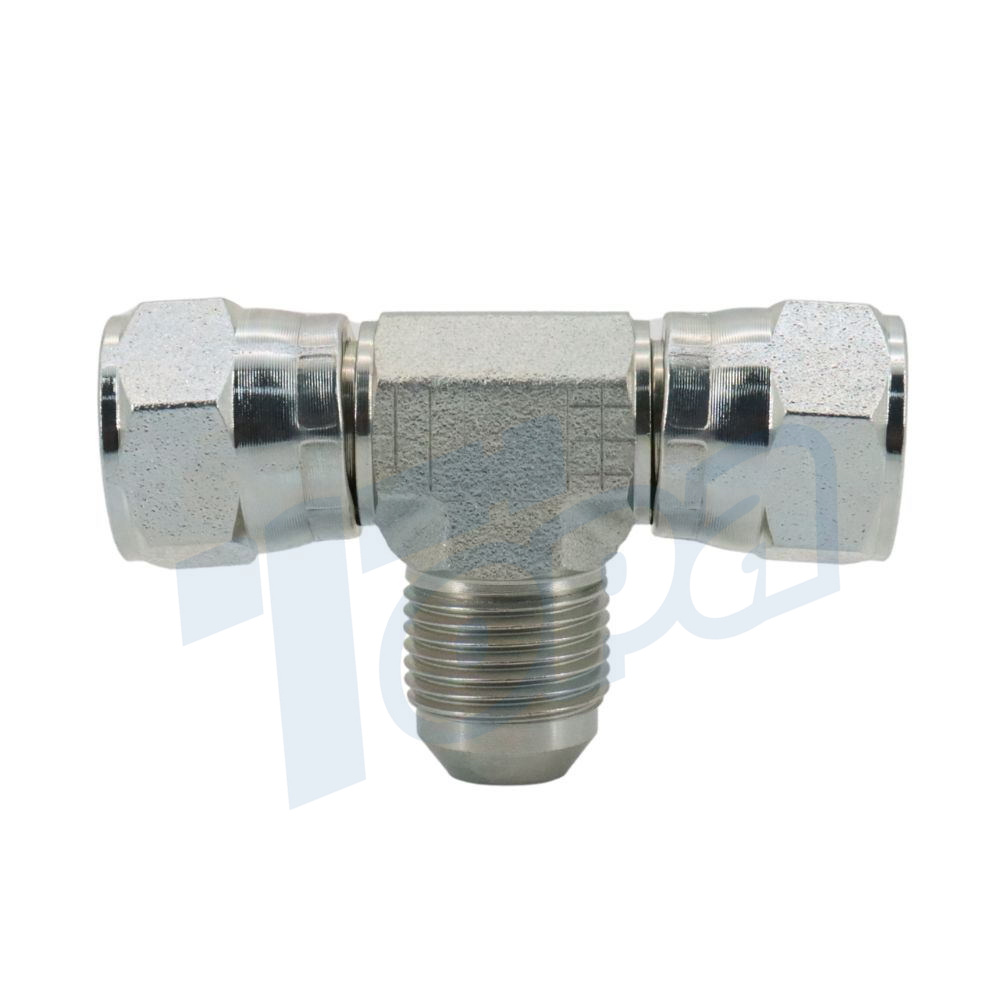

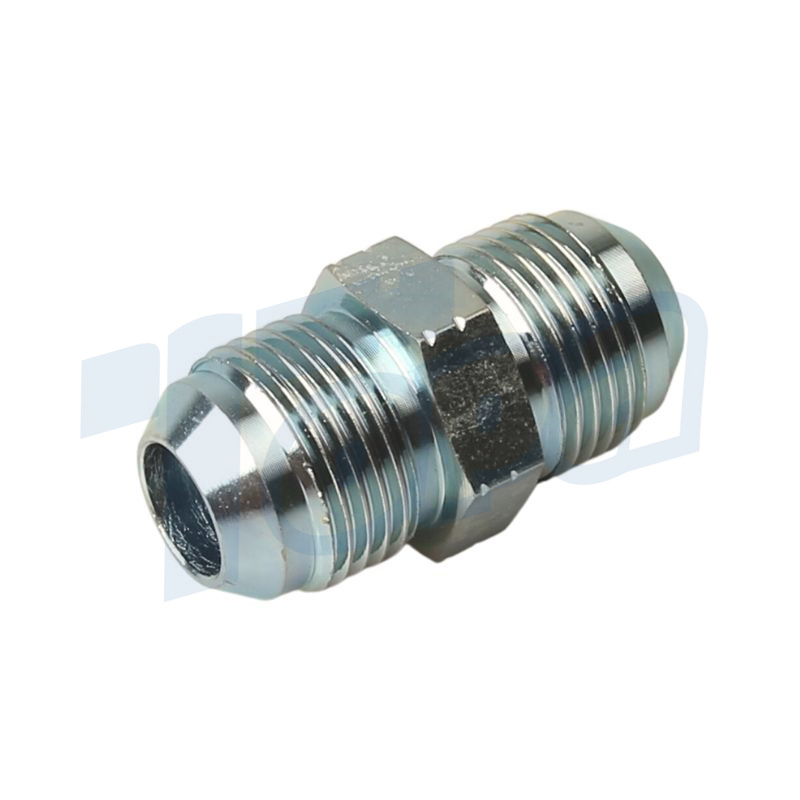

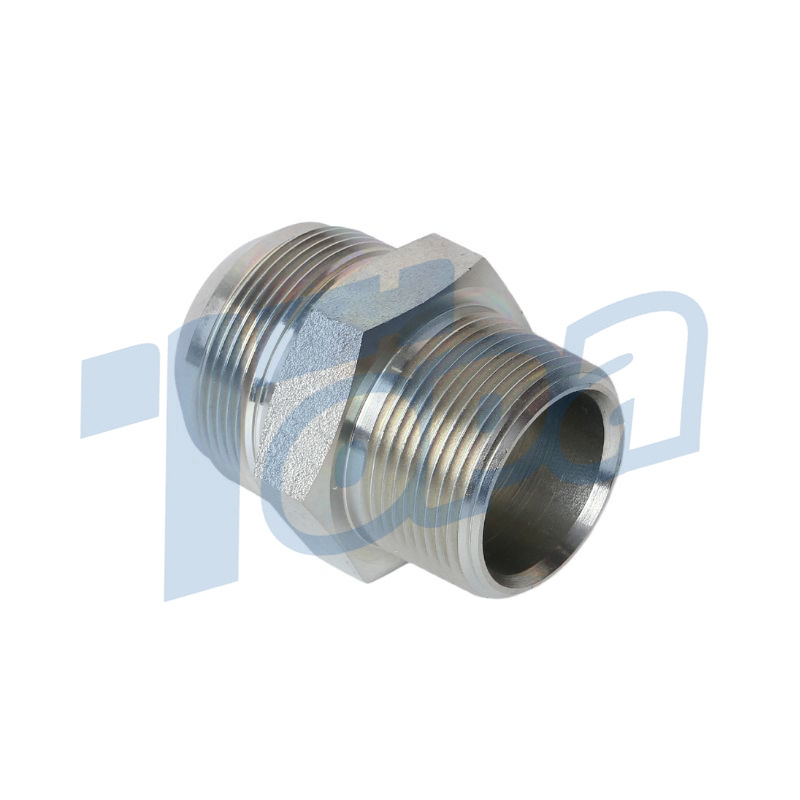

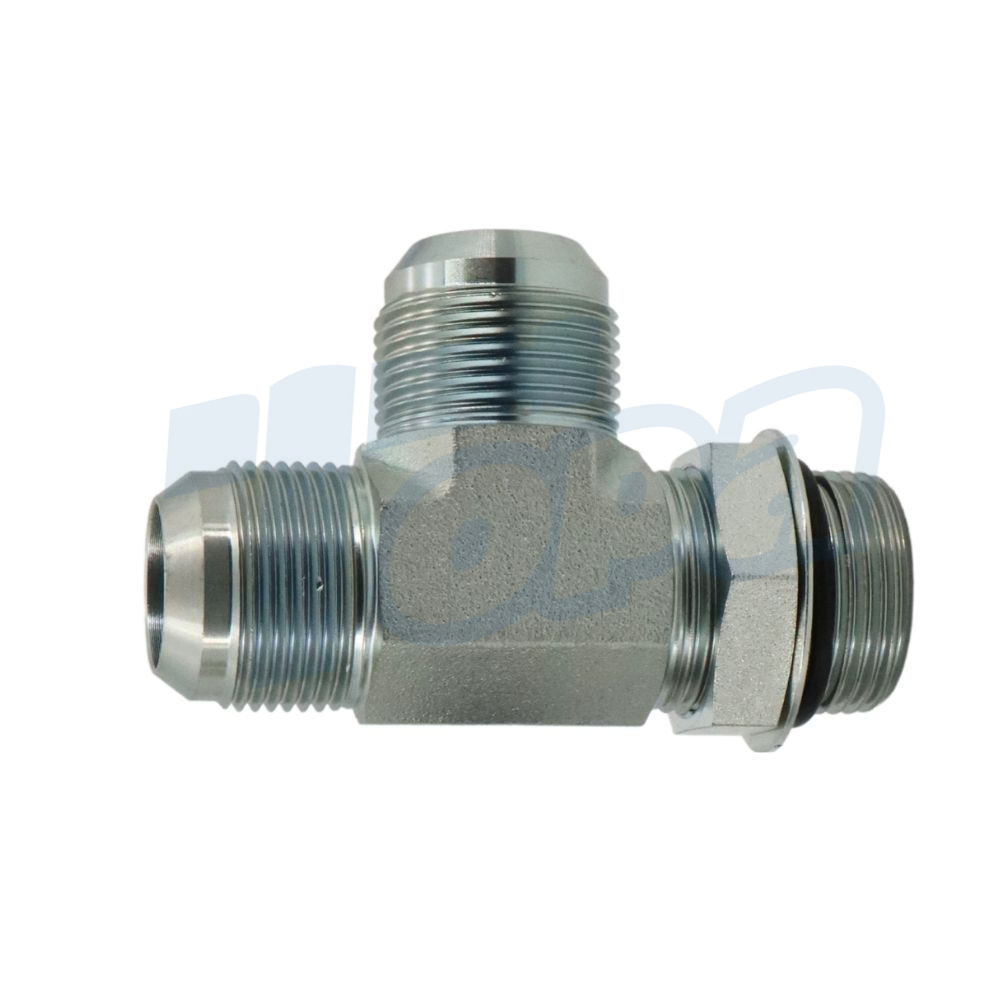

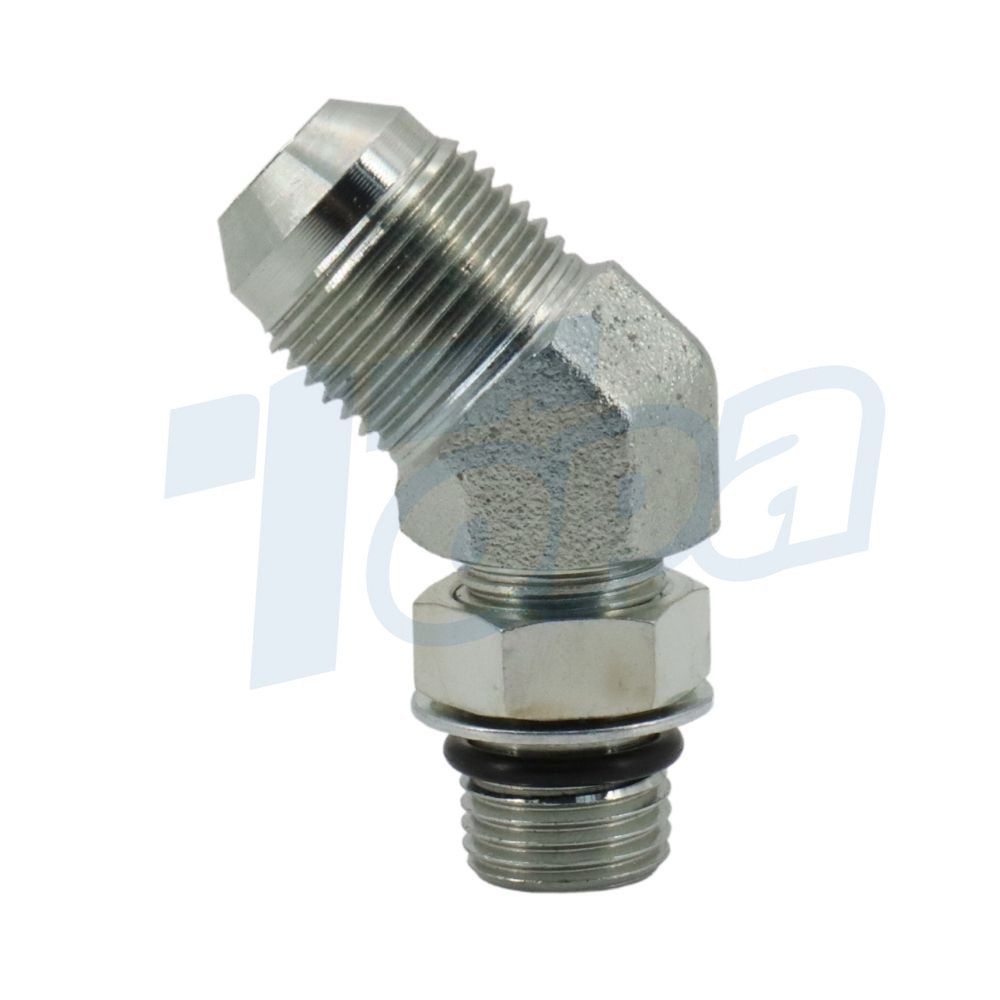

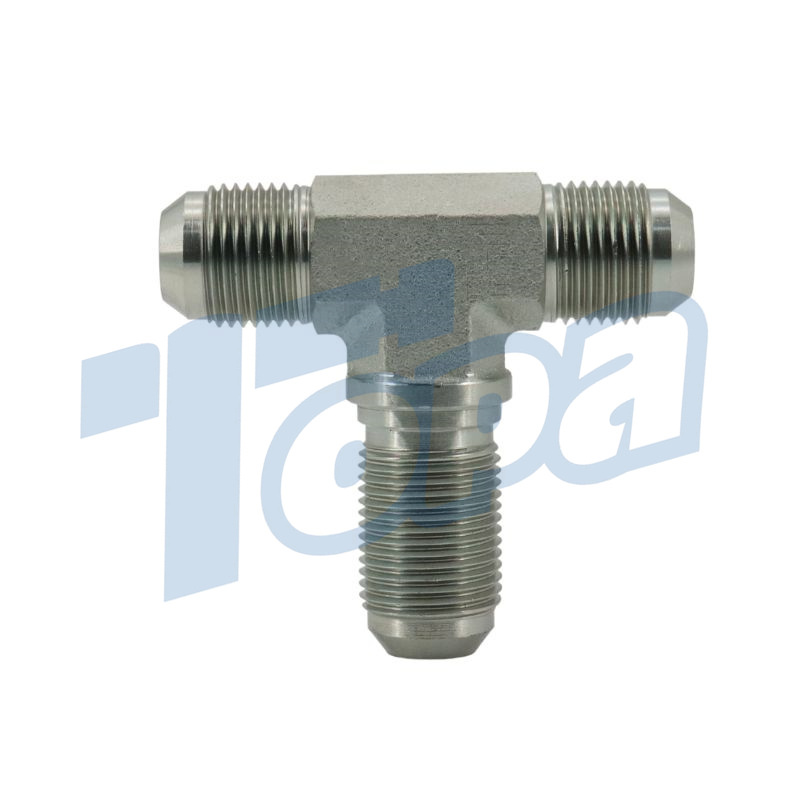

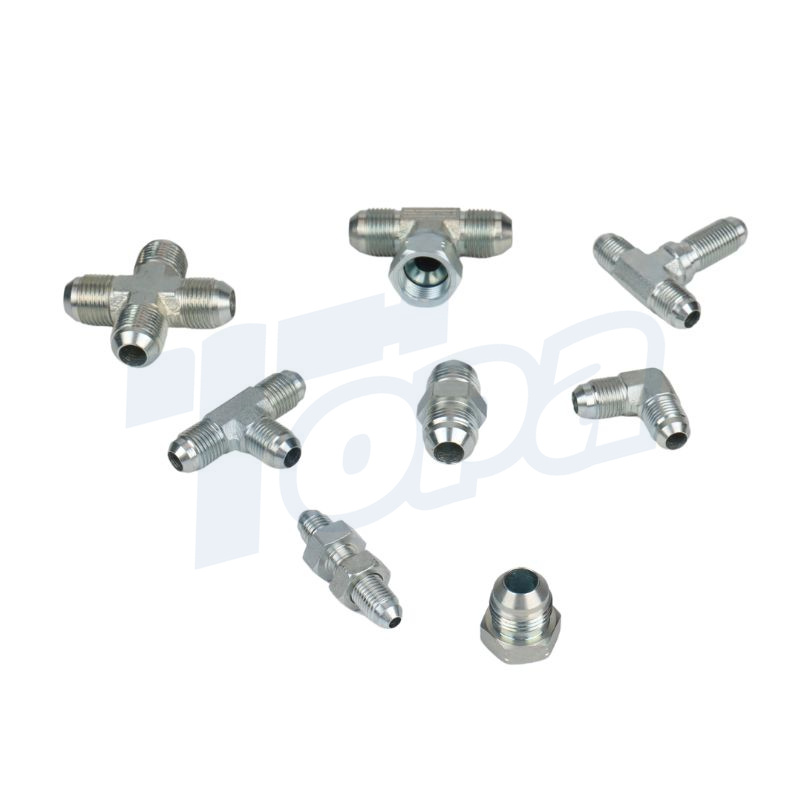

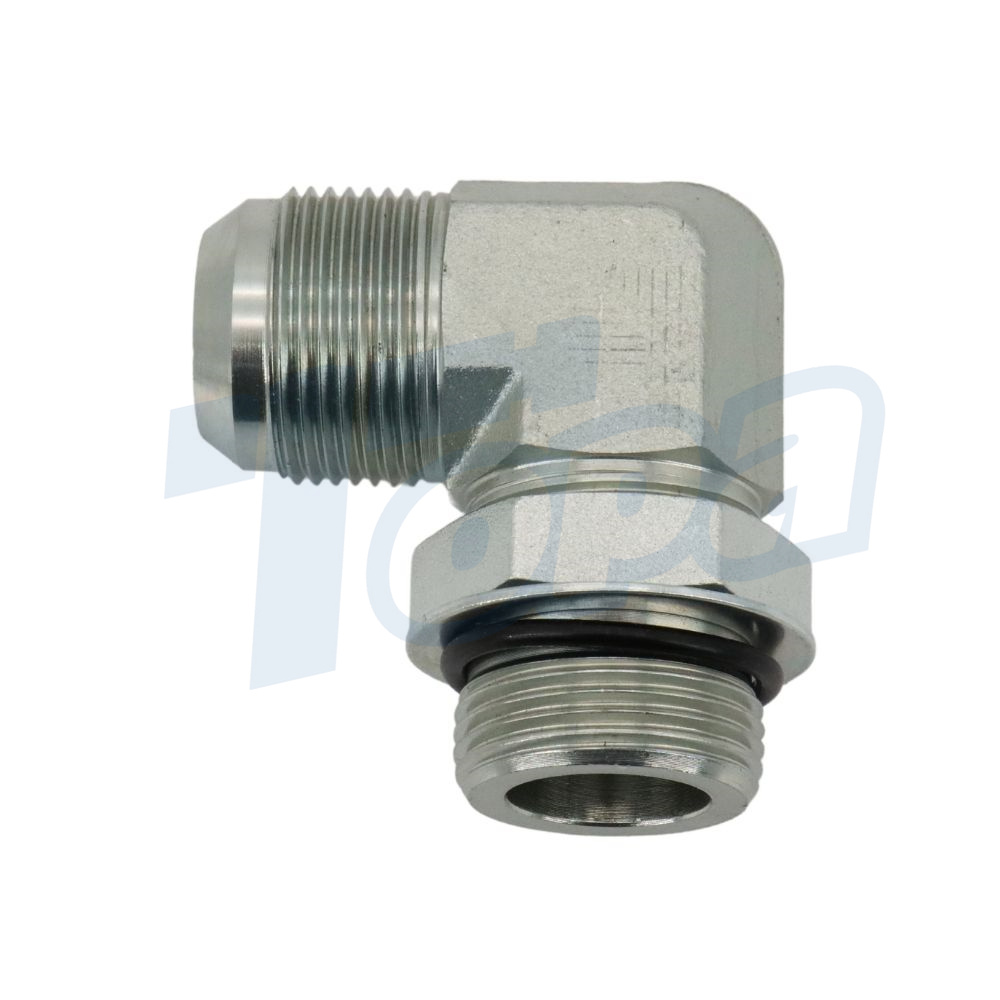

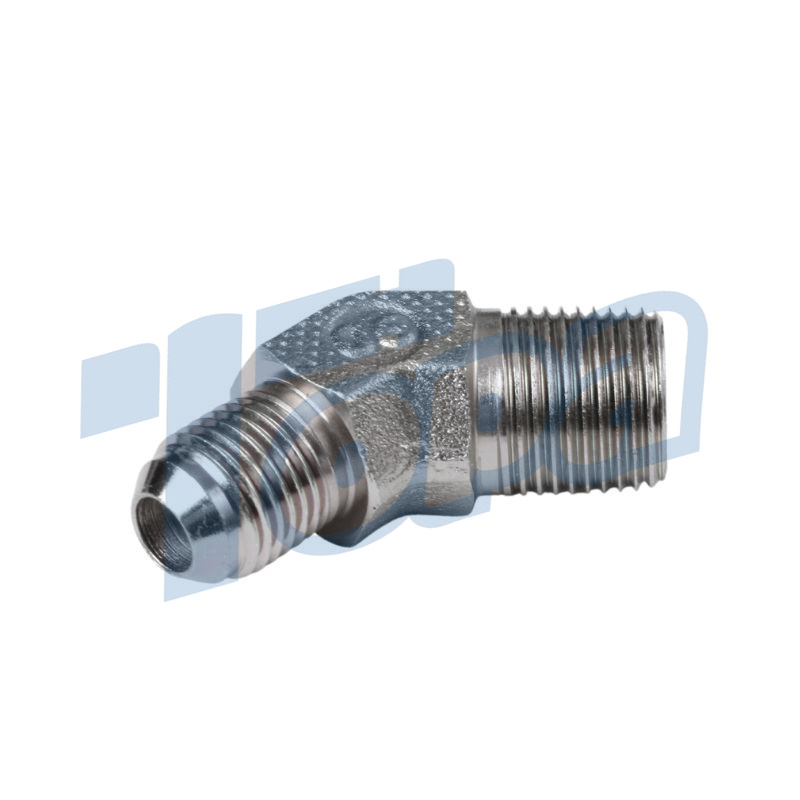

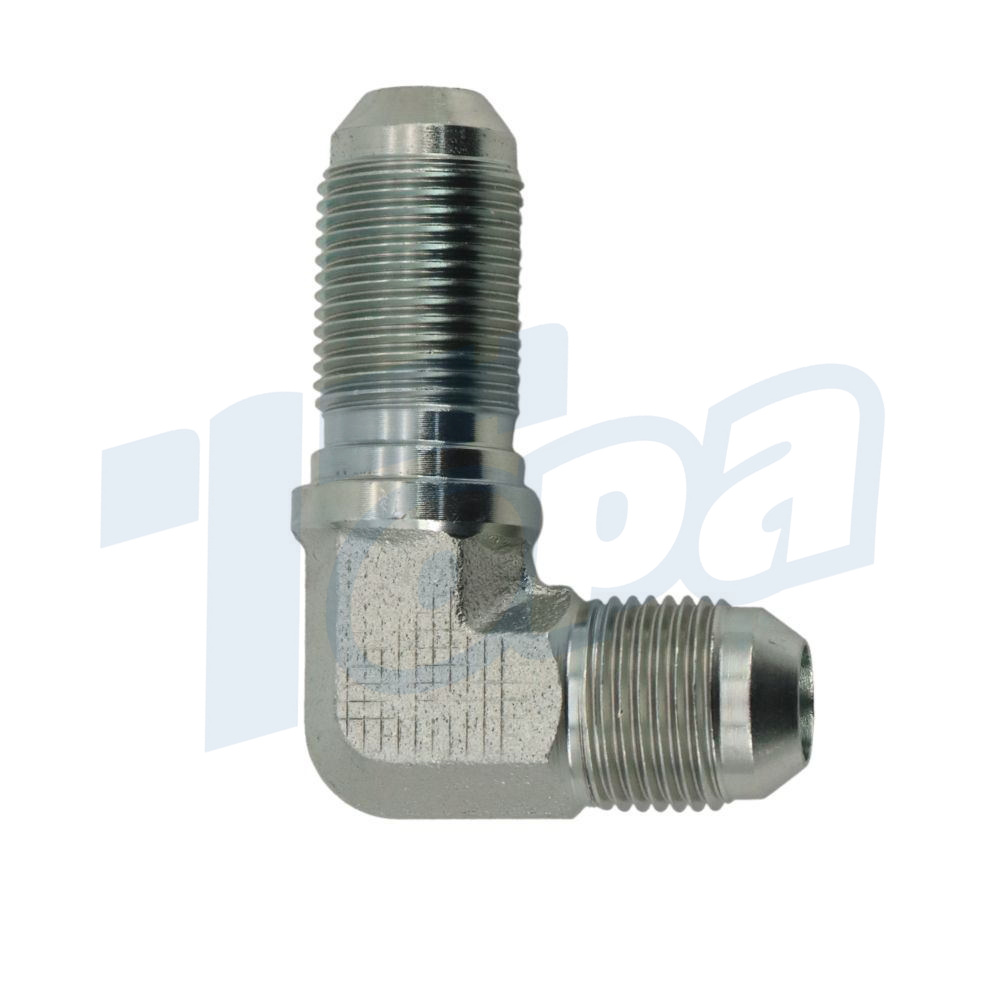

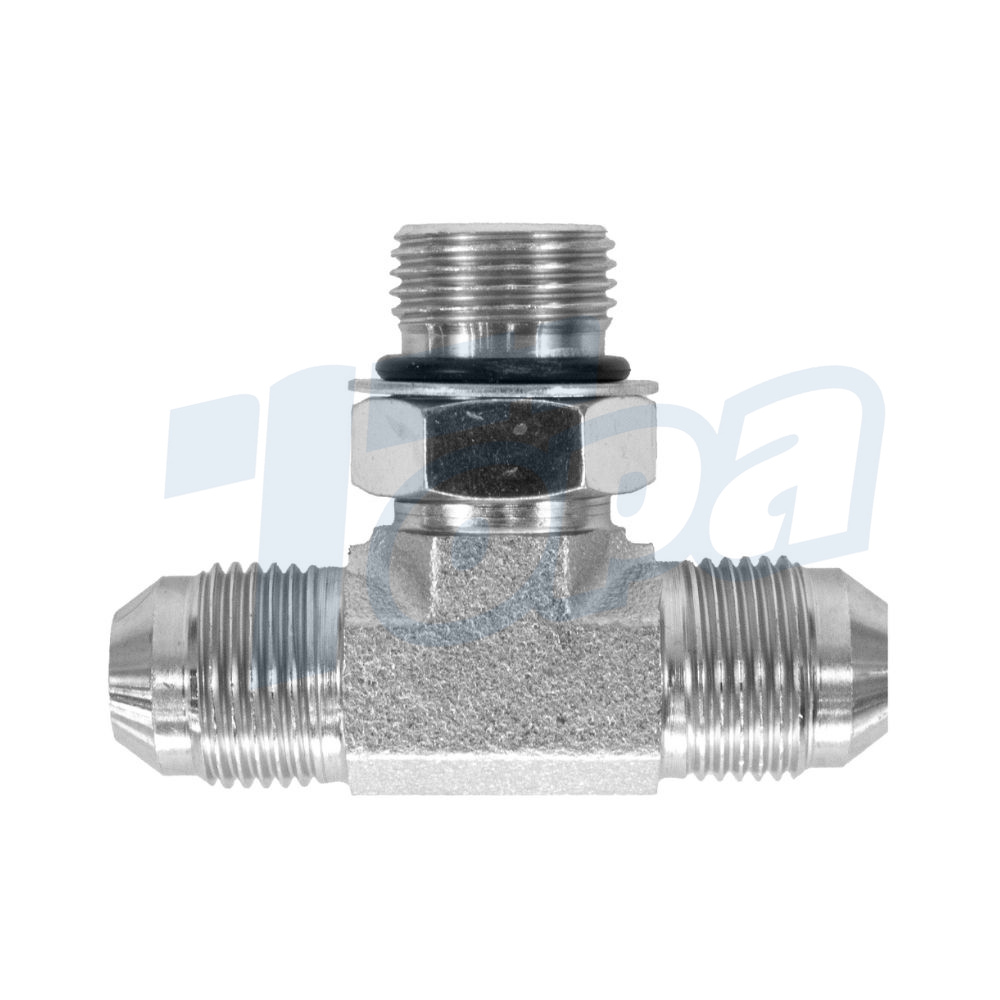

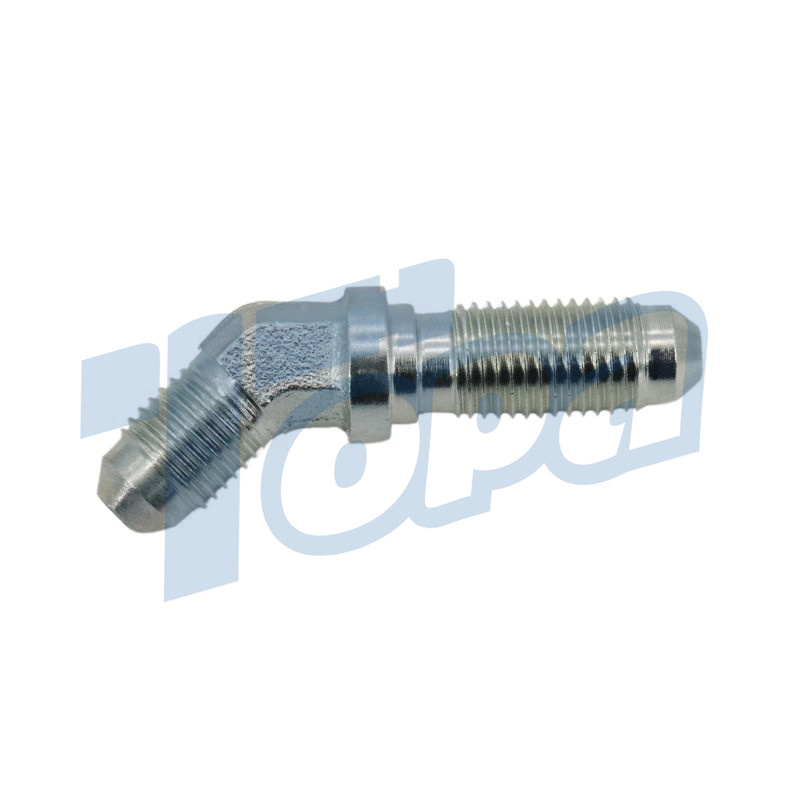

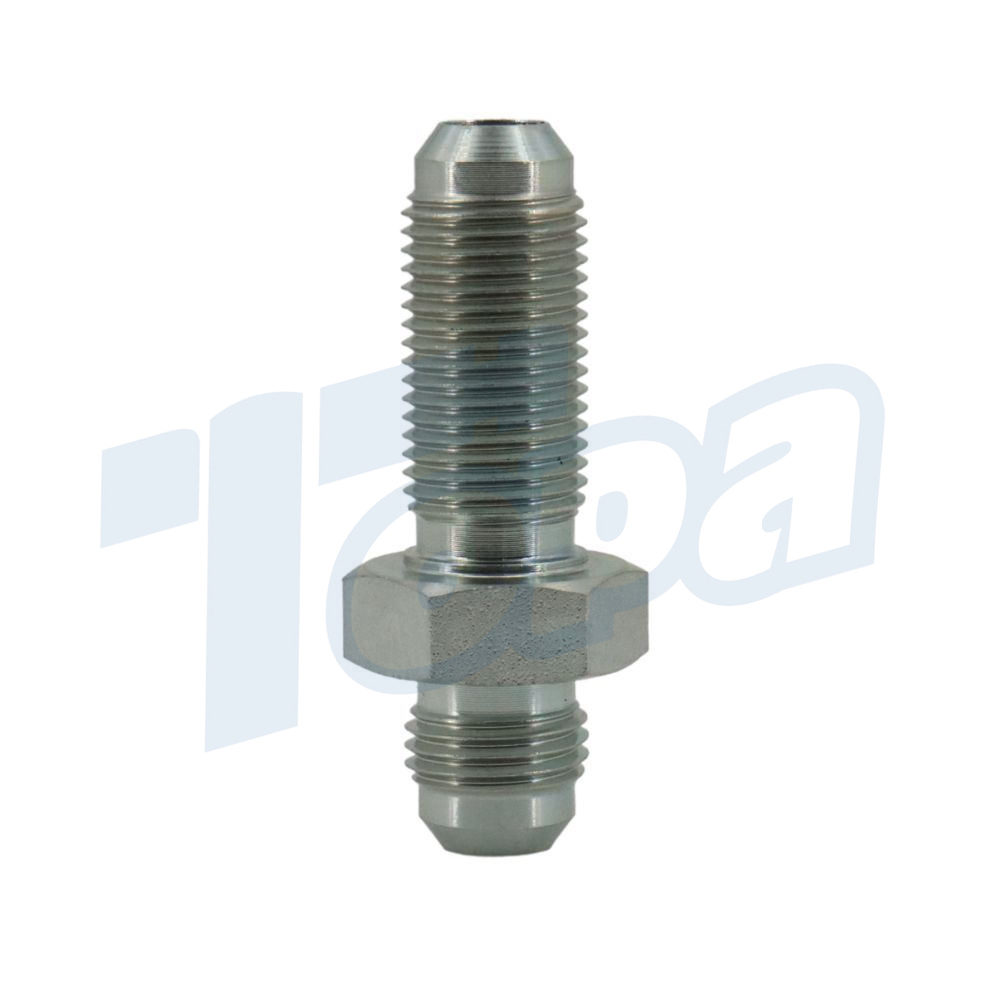

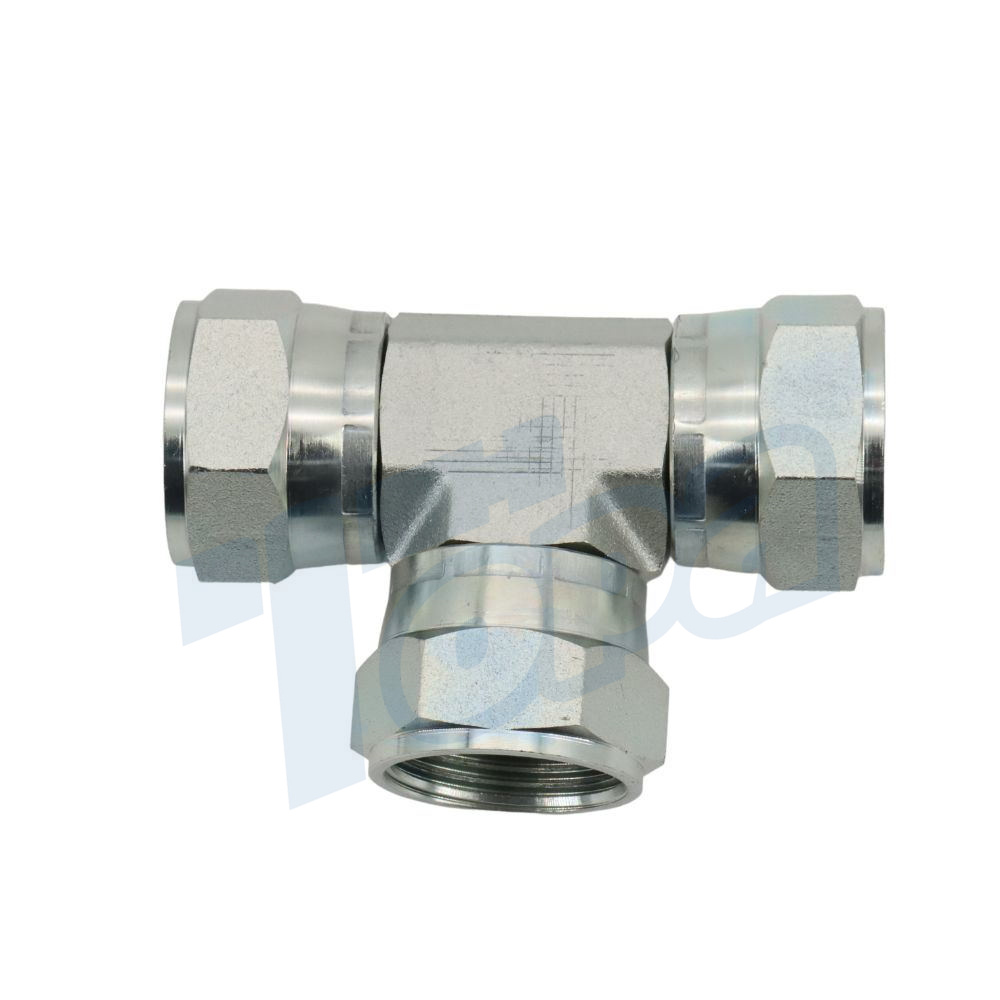

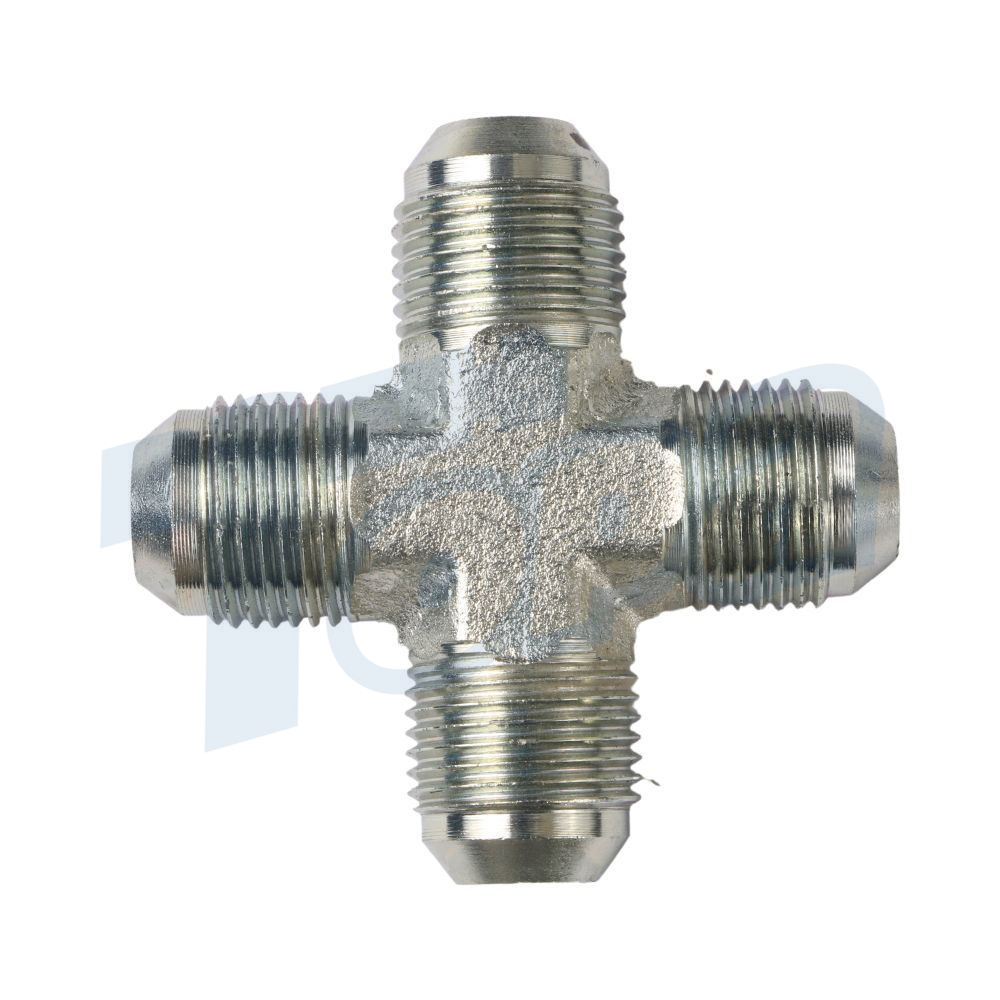

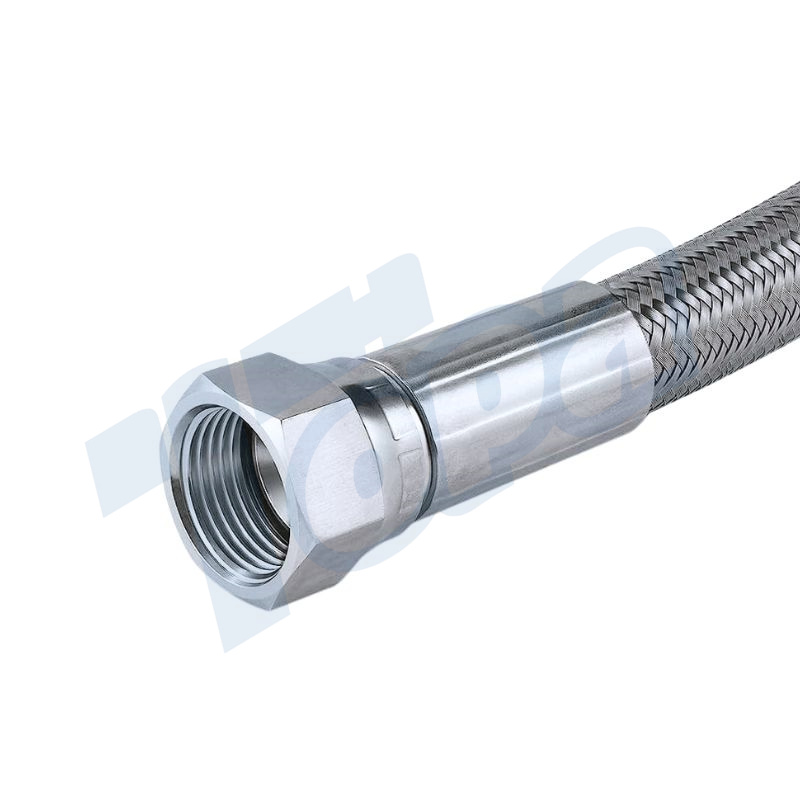

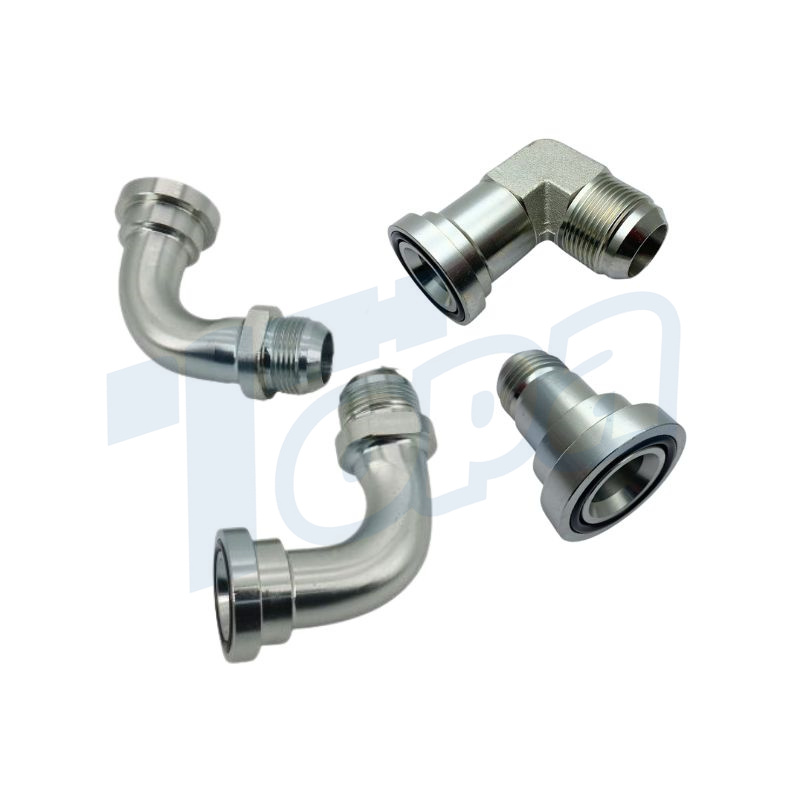

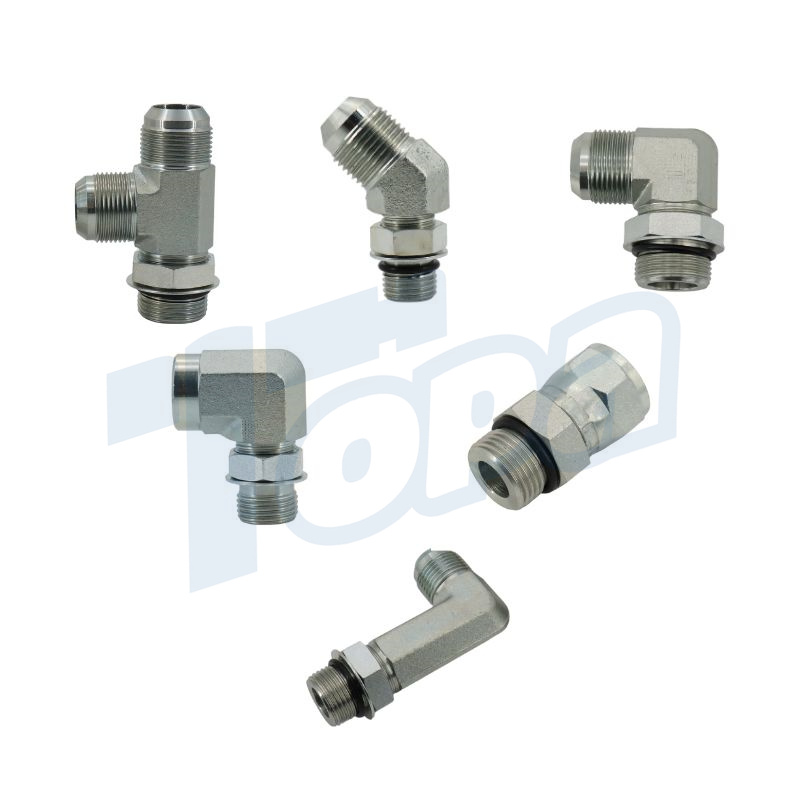

JIC 37 Degree Flare Fittings

JIC 37 degree flare fittings provide metal-to-metal contact with flared ends to ensure a strong, durable connection. With the ability to withstand high pressure, shock and vibration, these fittings are ideal for critical hydraulic lines such as power steering and braking systems.The reliability and leak-free performance of JIC fittings make them the preferred choice for agricultural machinery, ensuring the smooth operation of tractors in a variety of conditions.

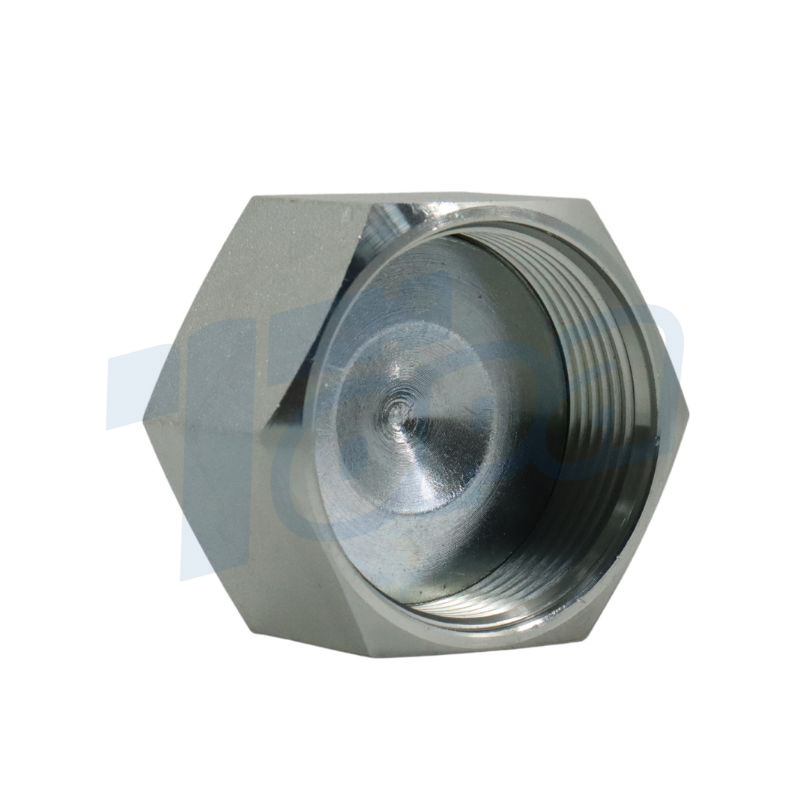

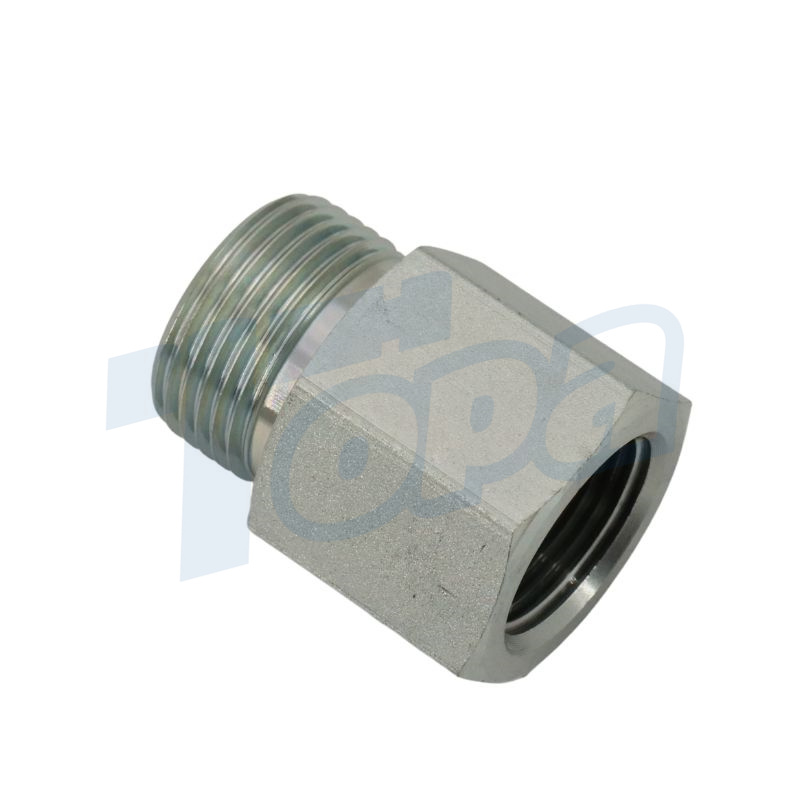

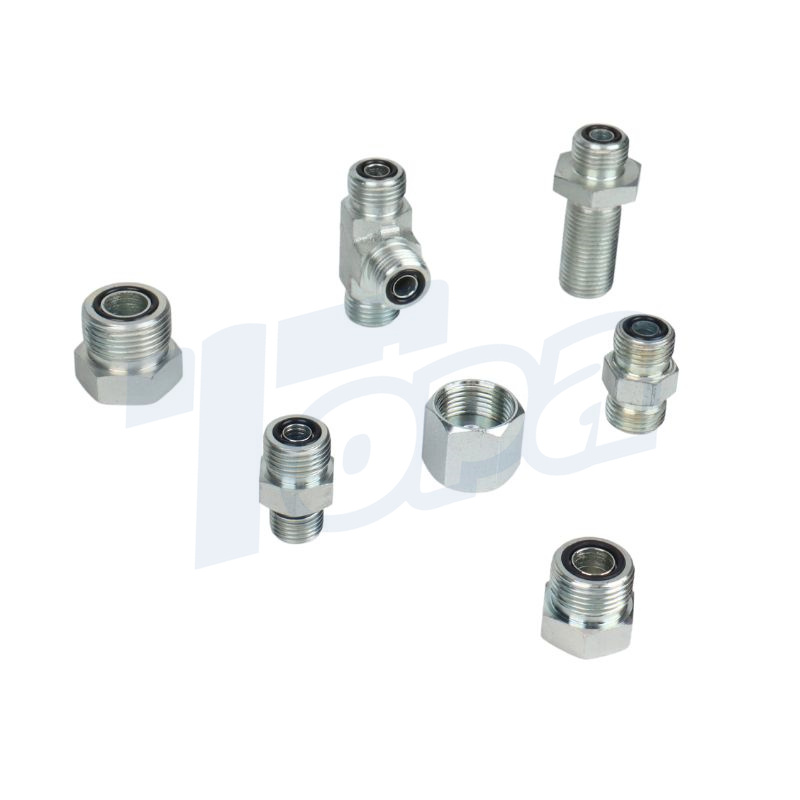

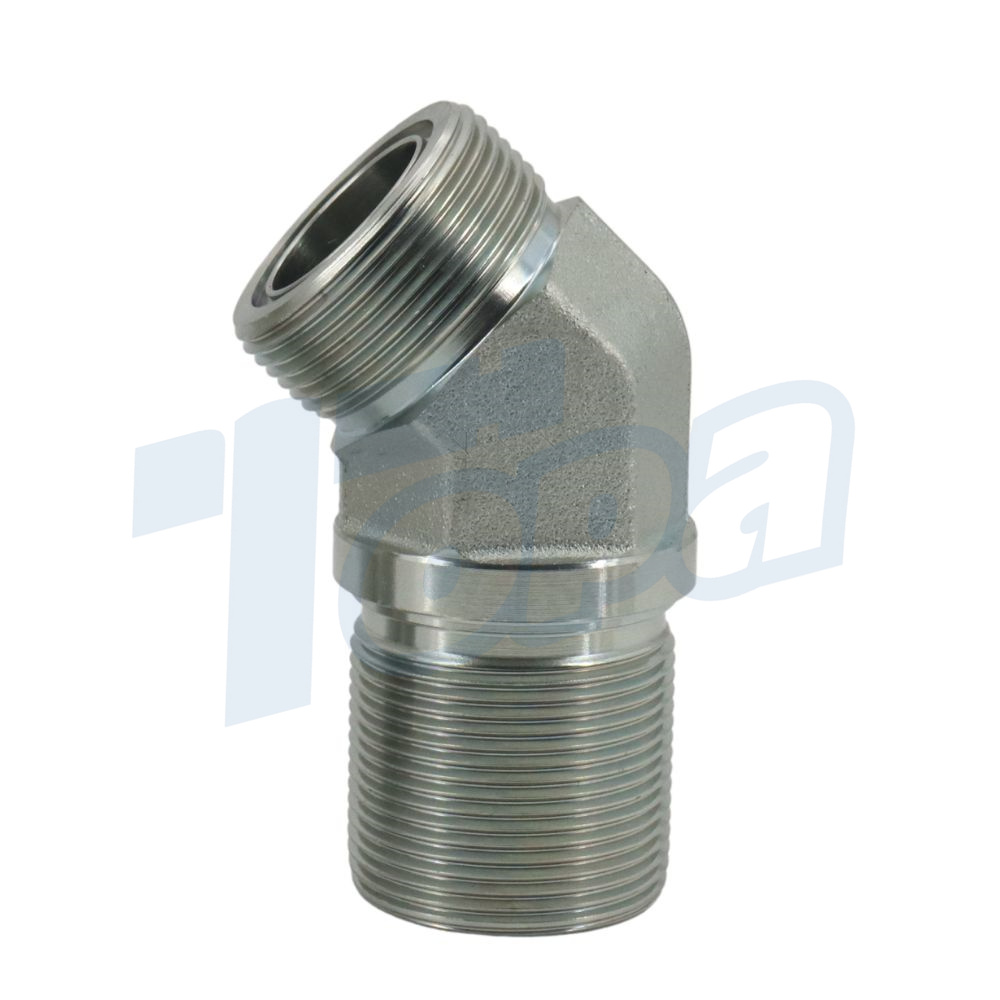

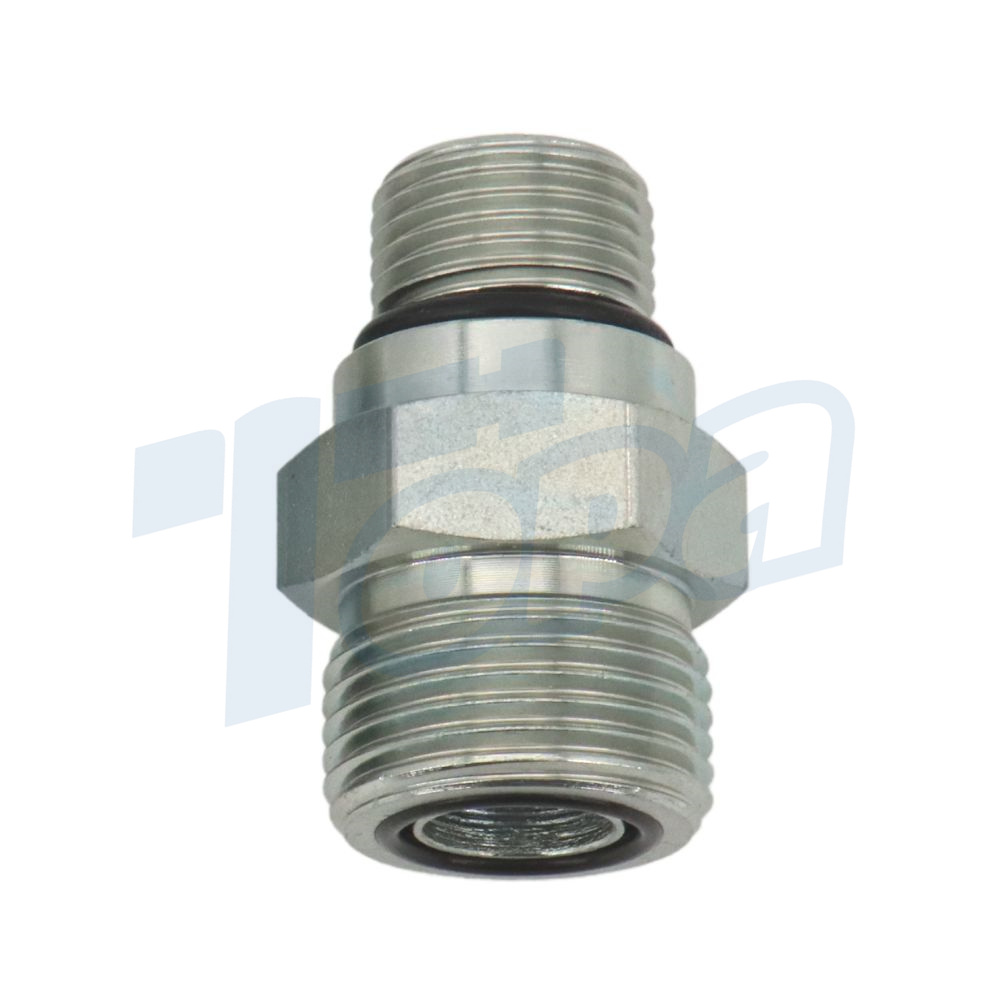

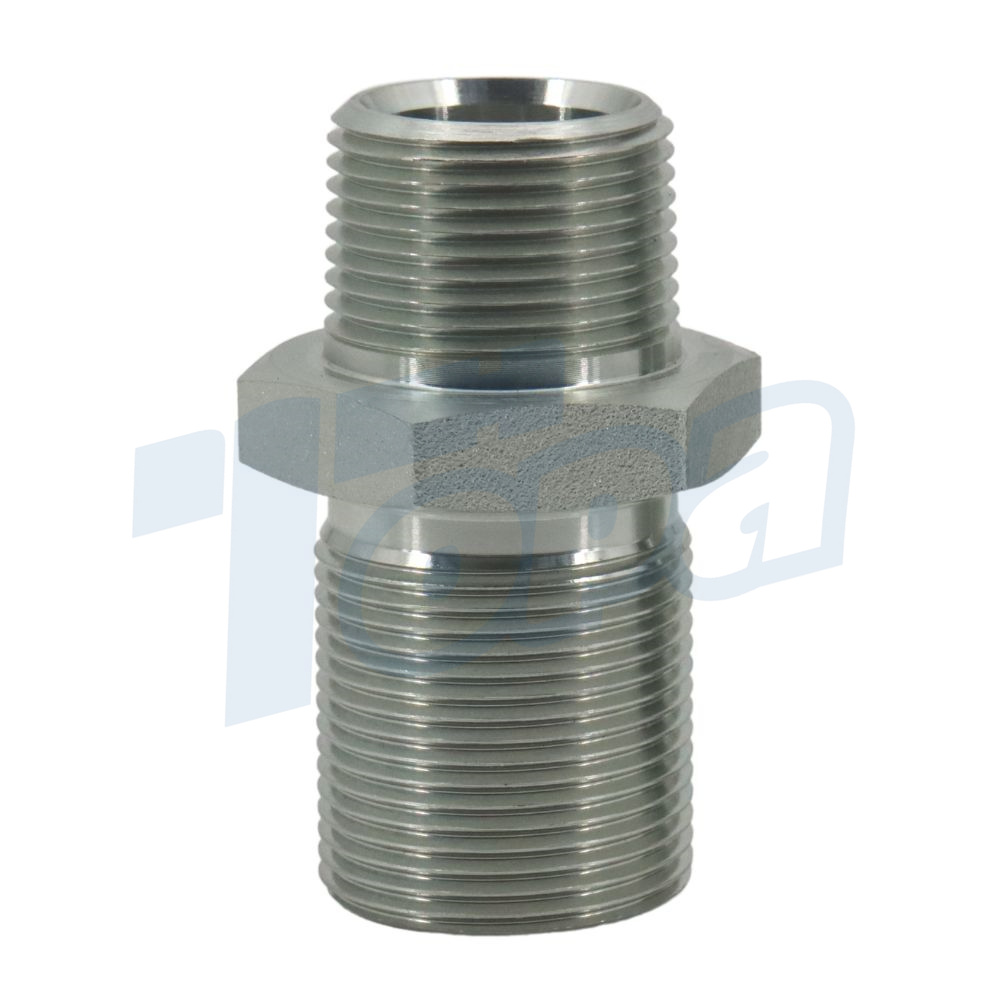

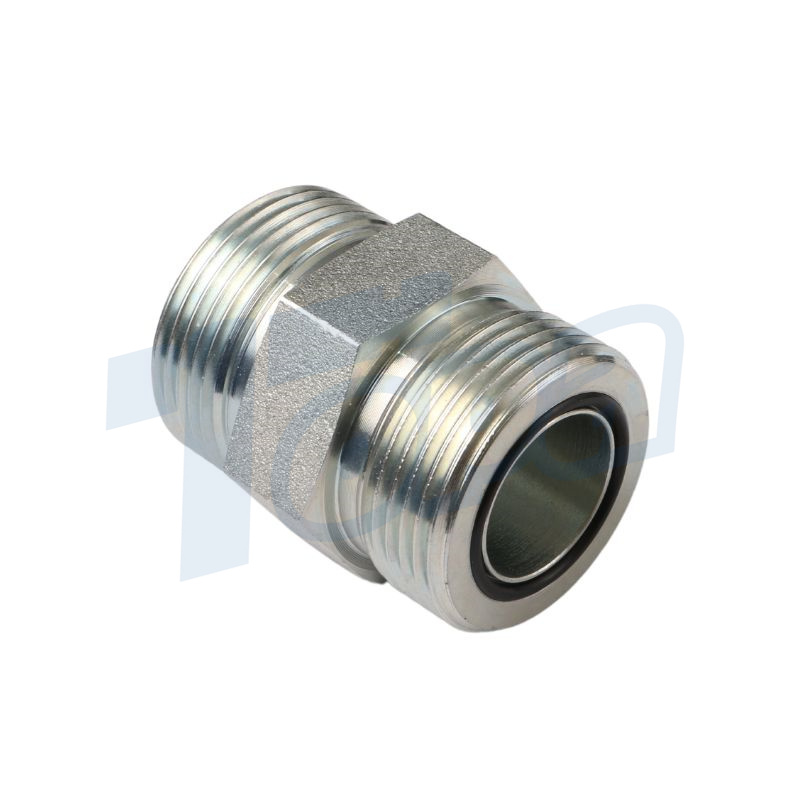

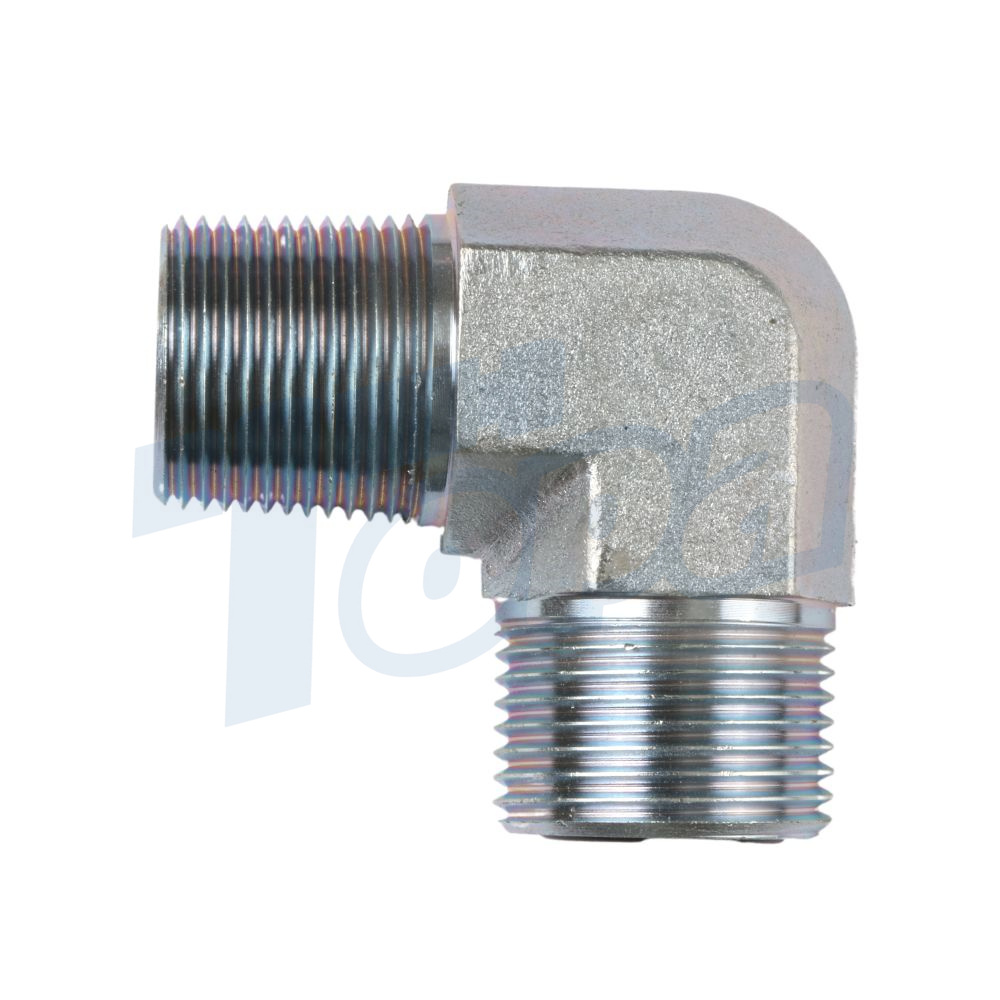

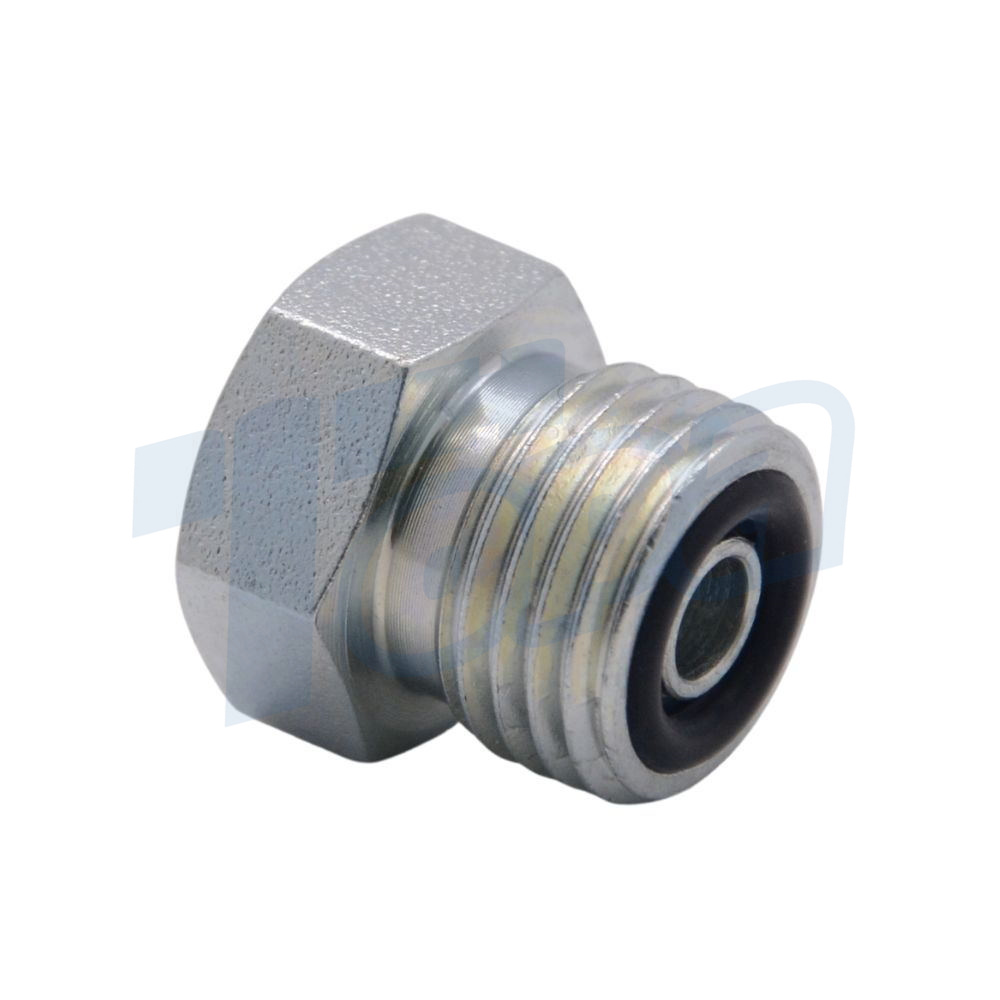

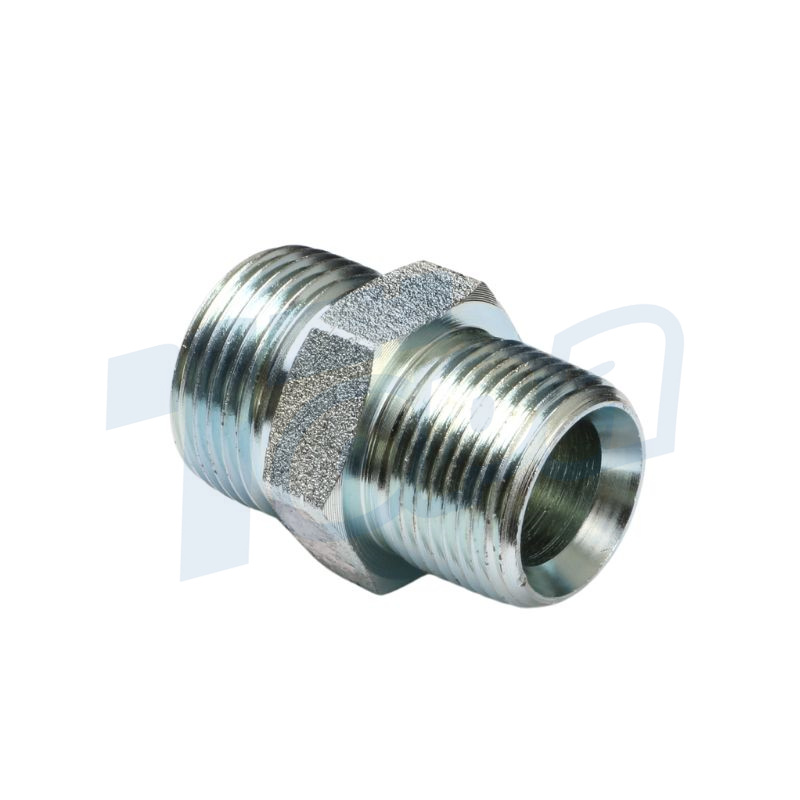

O-Ring Face Seal (ORFS) Fittings

Equipped with an O-ring located at the fitting’s face, they provide a tight and leak-proof seal, making them highly effective in high-pressure applications. This sealing method minimizes the risk of hydraulic fluid leakage, thereby enhancing the overall efficiency and safety of the hydraulic system. ORFS fittings are commonly employed in areas of the hydraulic system that are subjected to extreme pressures and where a robust seal is paramount.

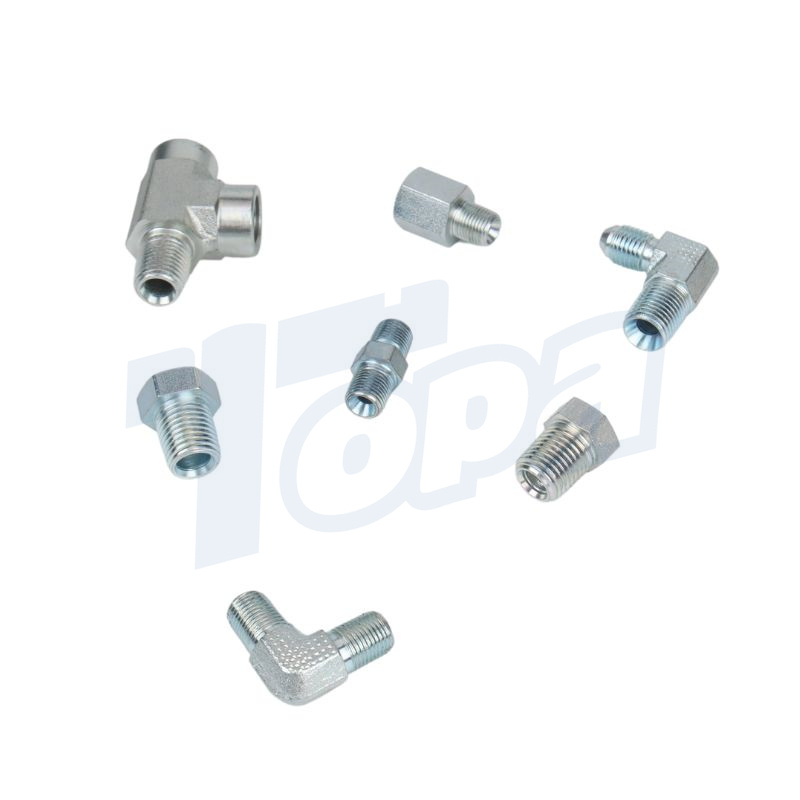

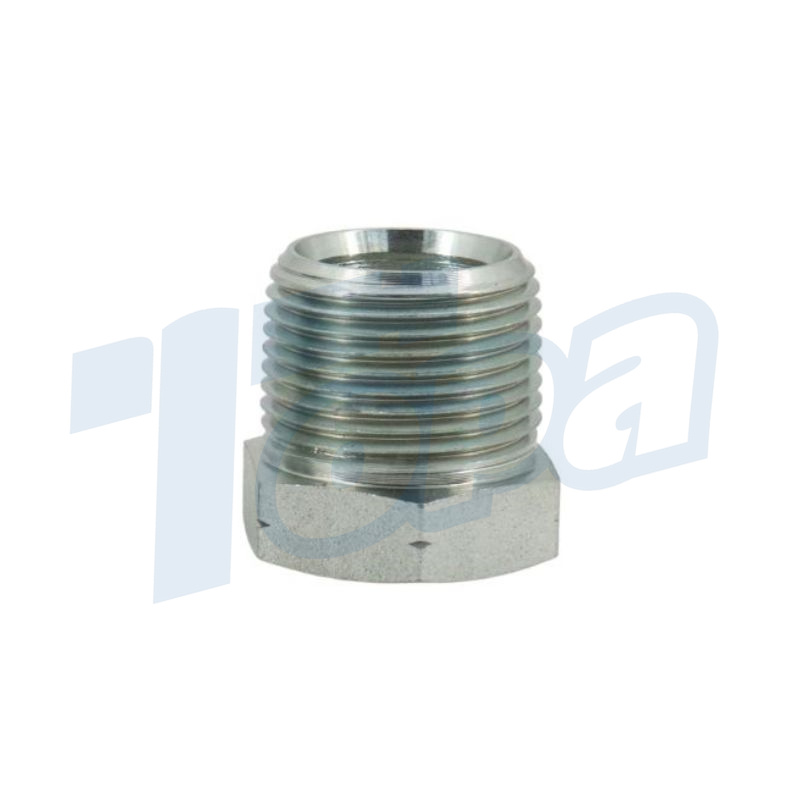

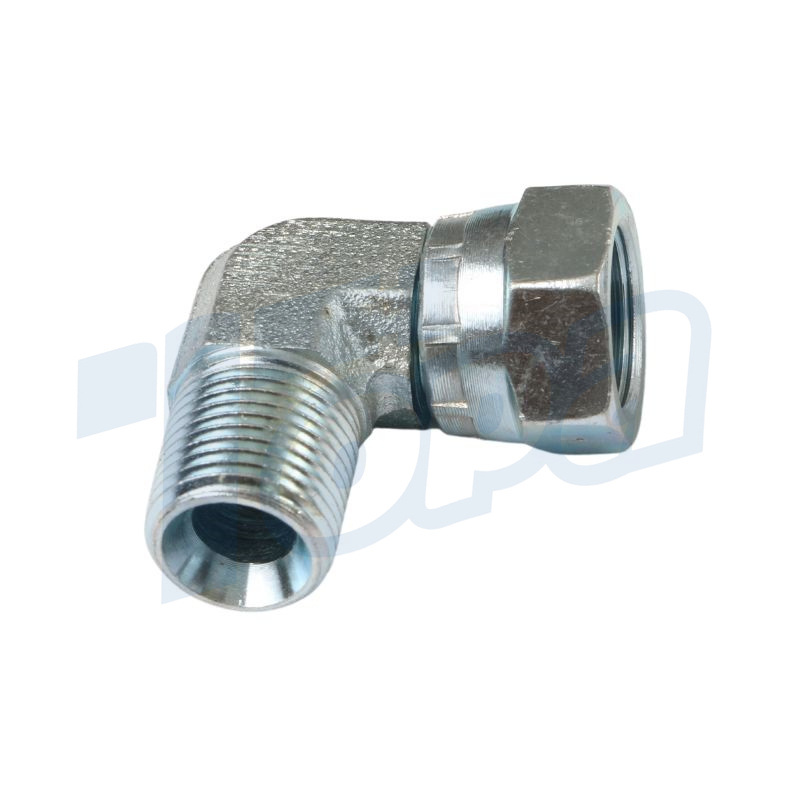

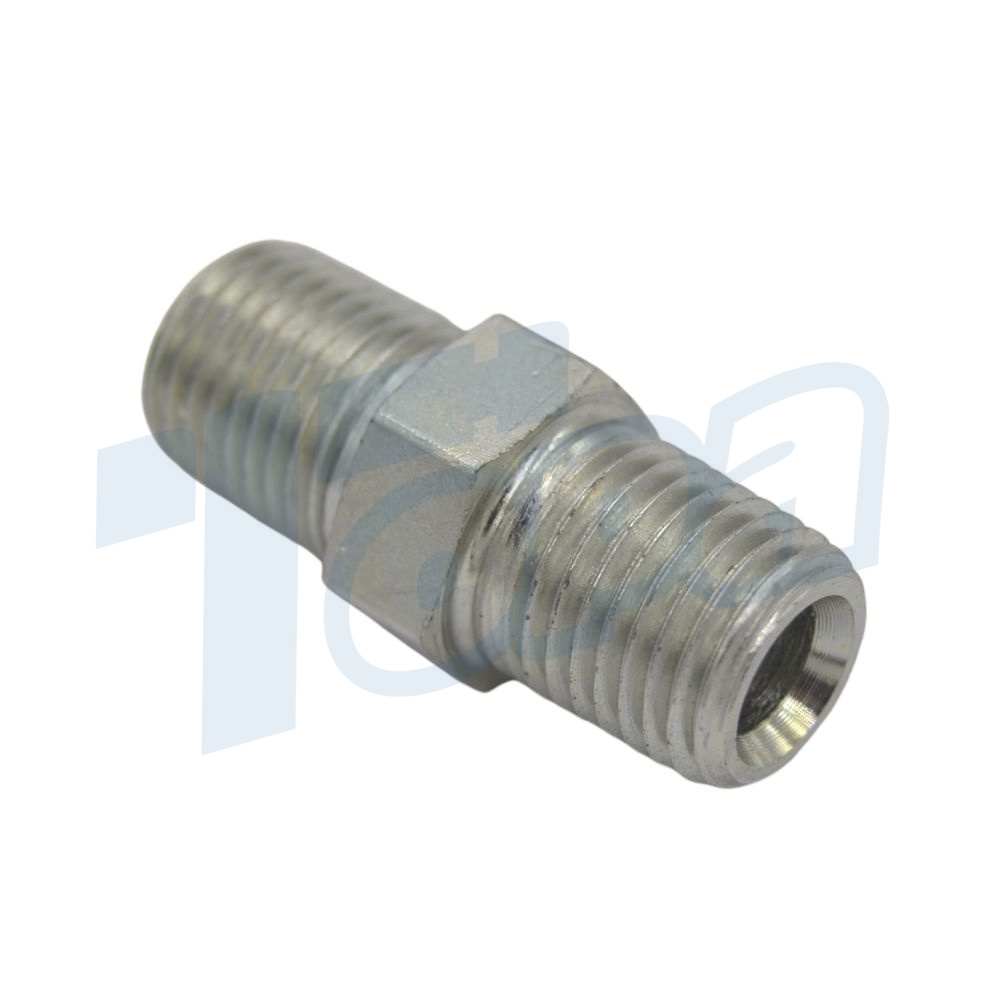

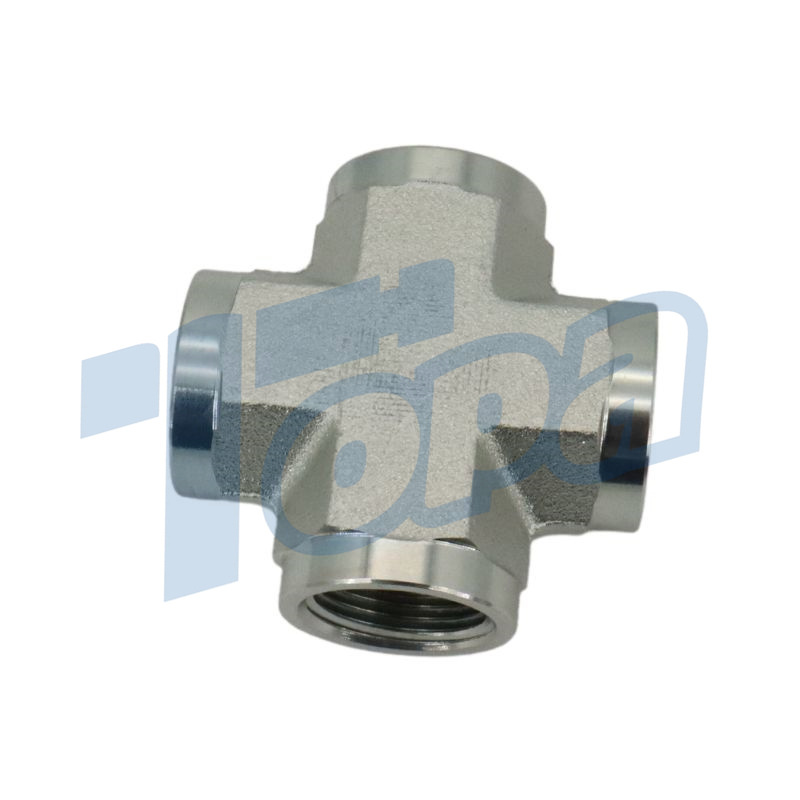

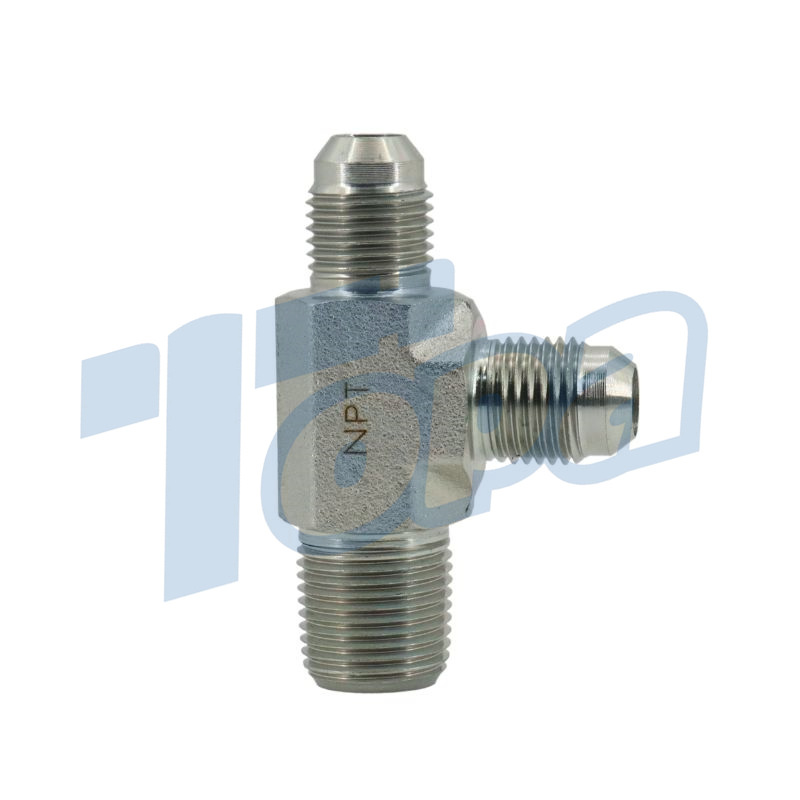

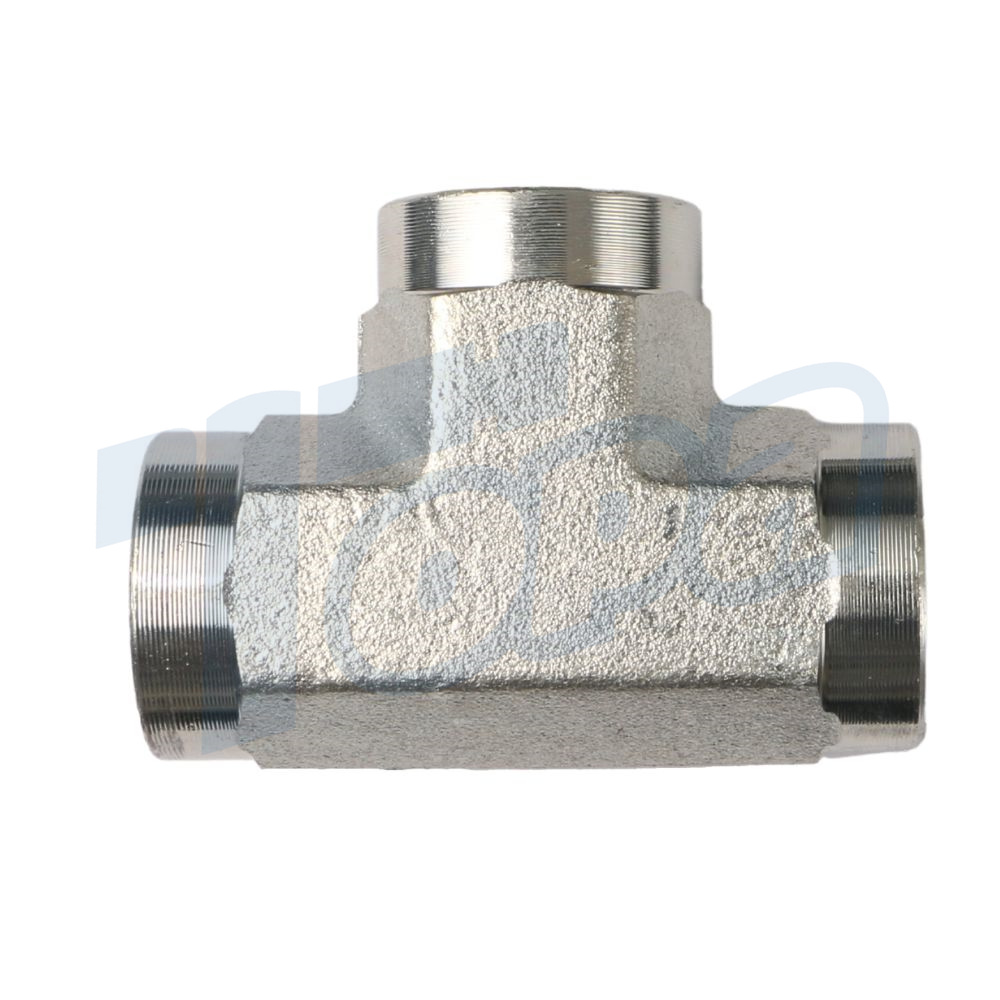

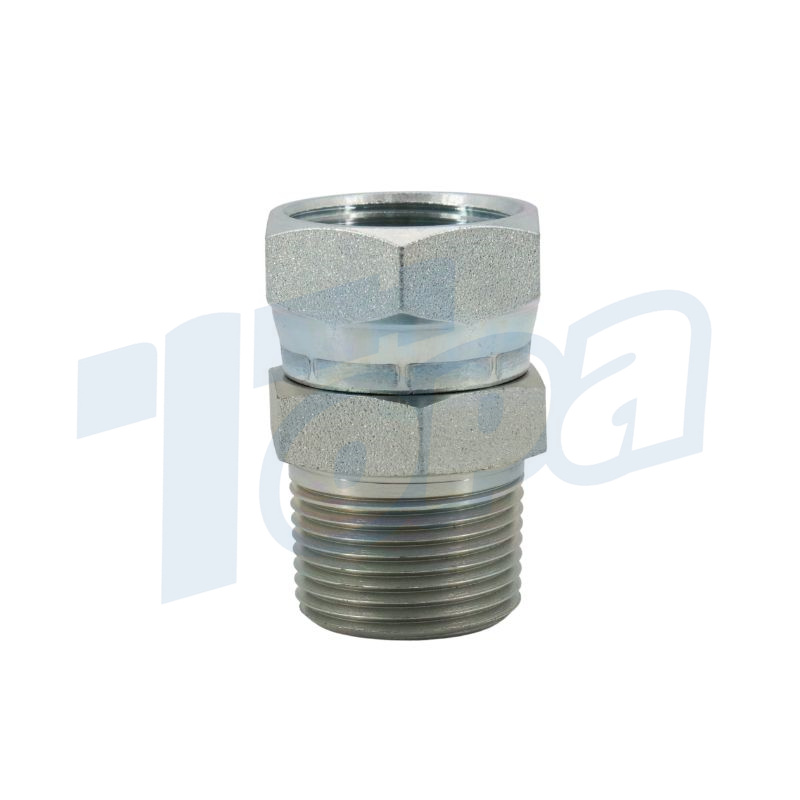

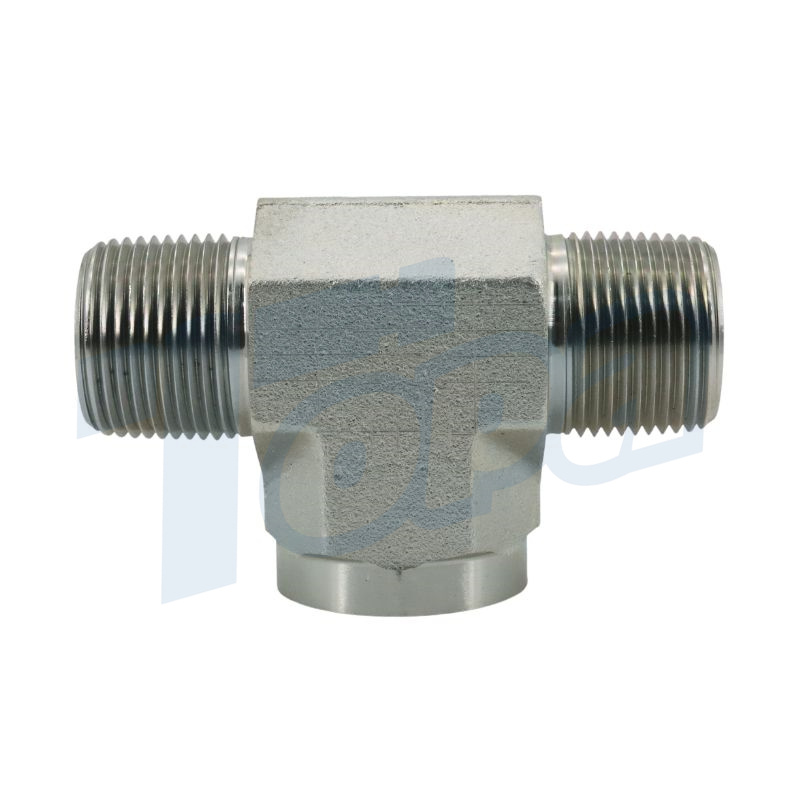

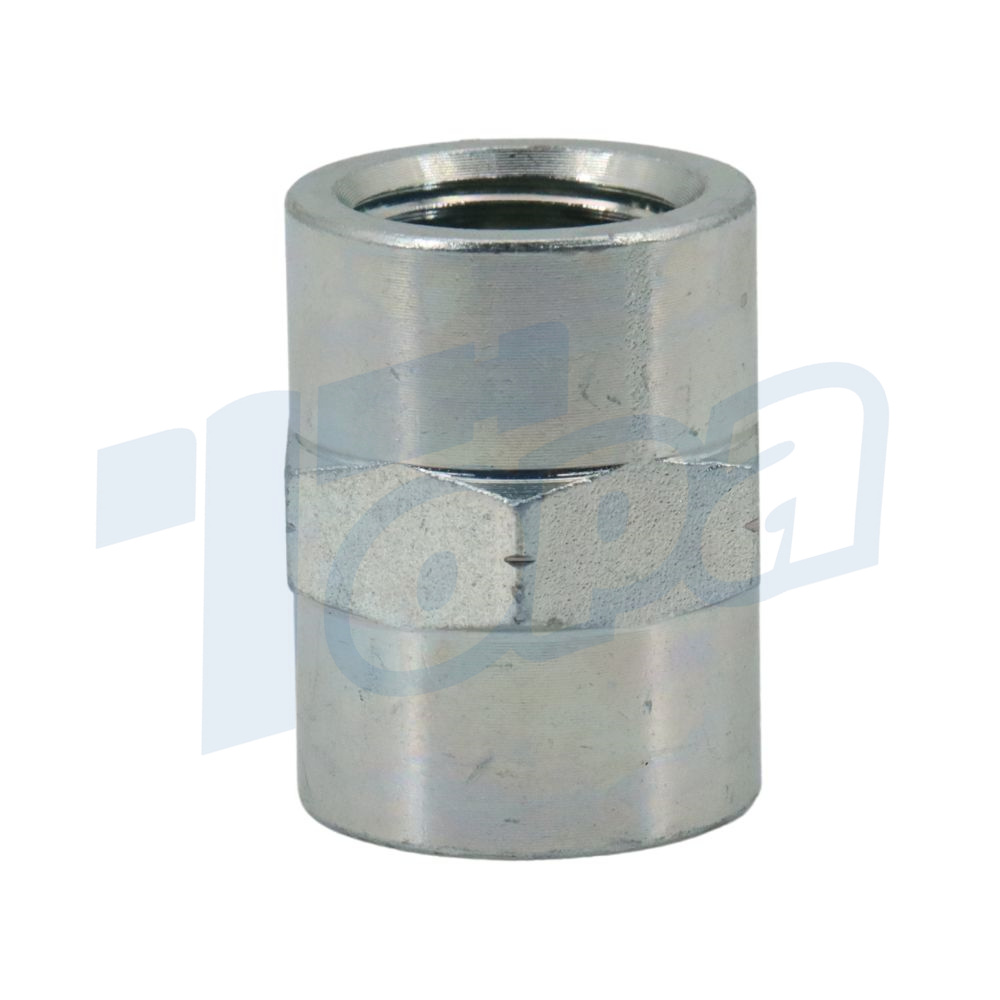

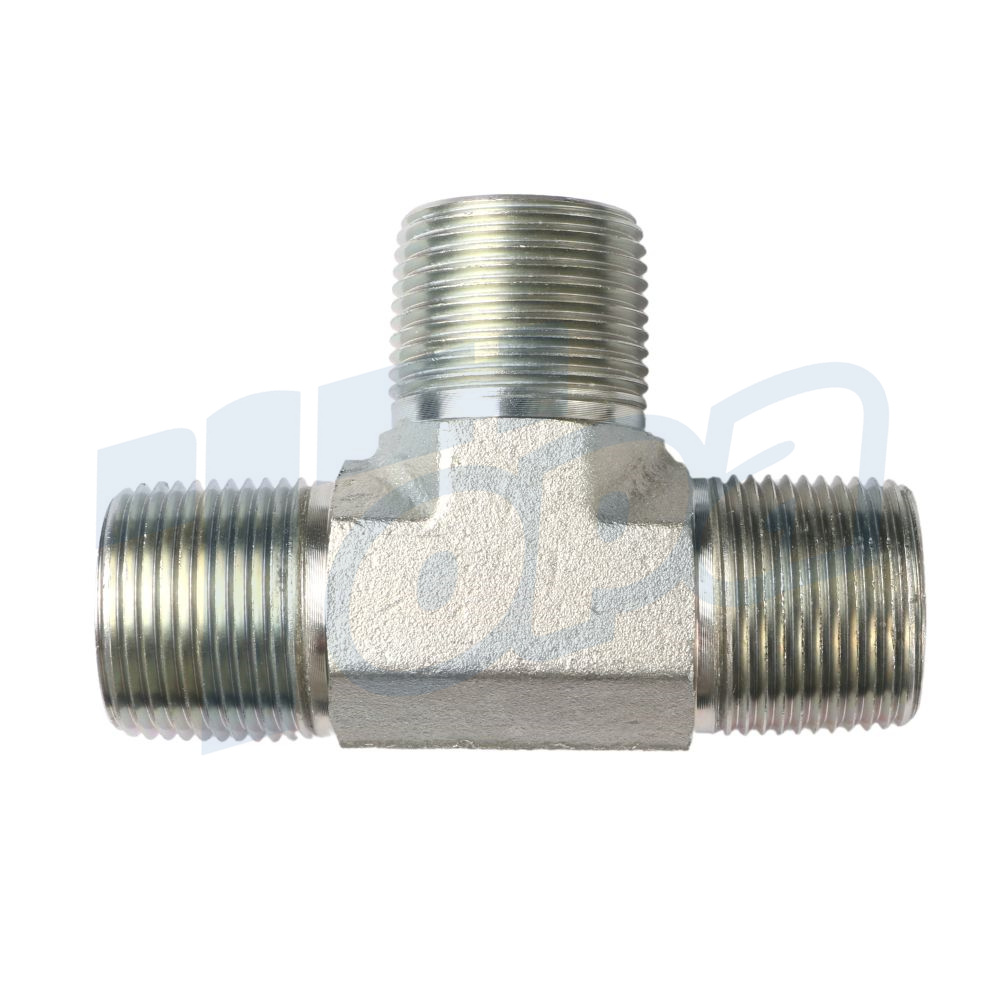

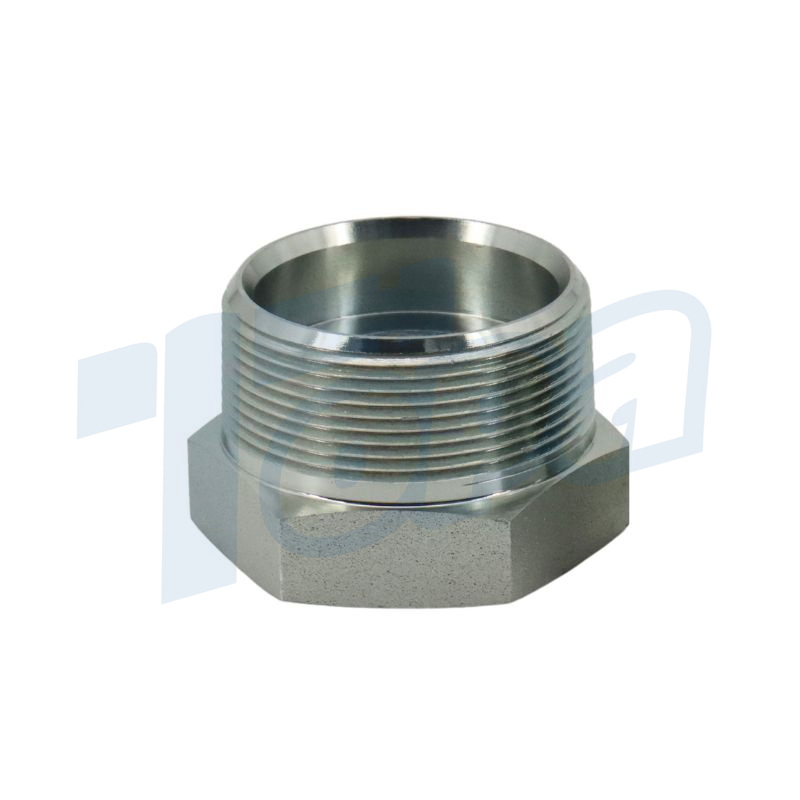

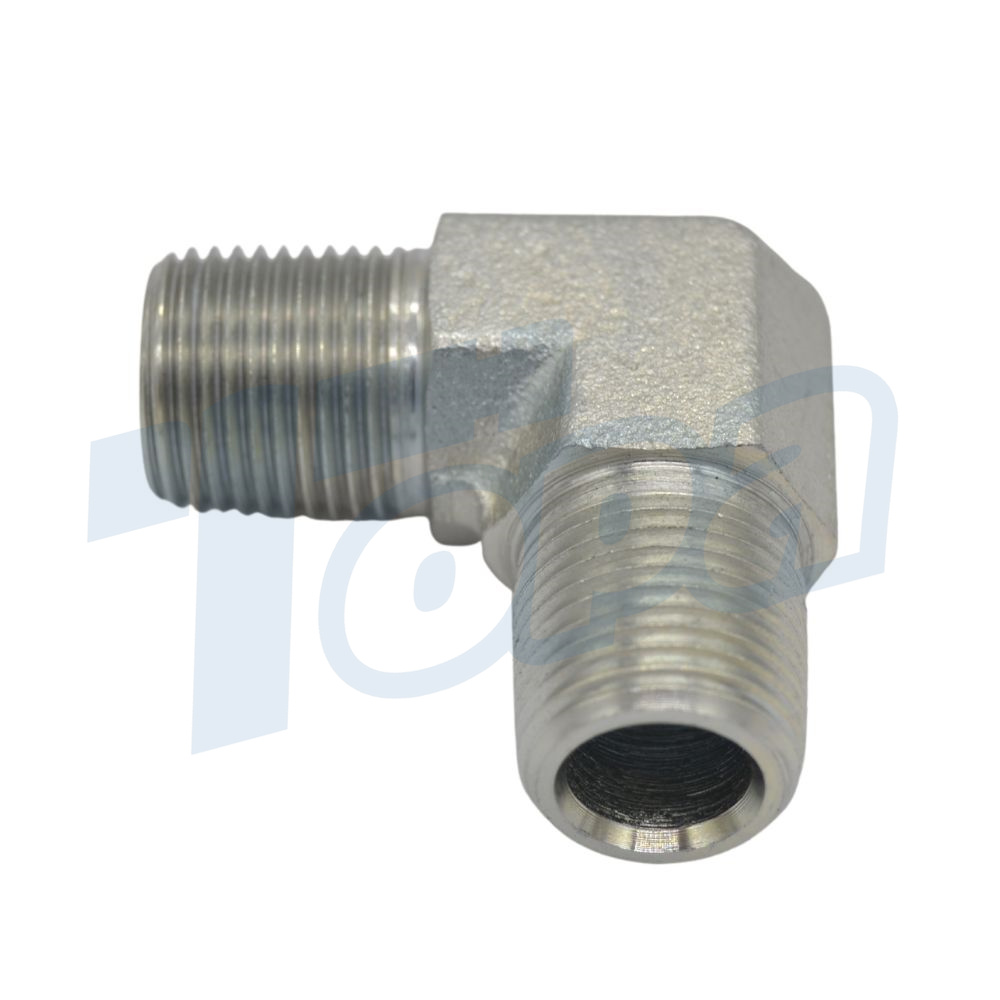

NPT Pipe Fittings

NPT (National Pipe Taper) pipe fittings are characterized by their tapered threads, which create a tighter and more secure seal as they are tightened. Their adaptability and ease of installation have made them a ubiquitous choice in tractor hydraulic systems. NPT fittings’ versatility extends beyond hydraulic lines, finding utility in a broad array of applications including general plumbing connections. Their widespread use is a testament to their reliability and effectiveness in maintaining a leak-free system.

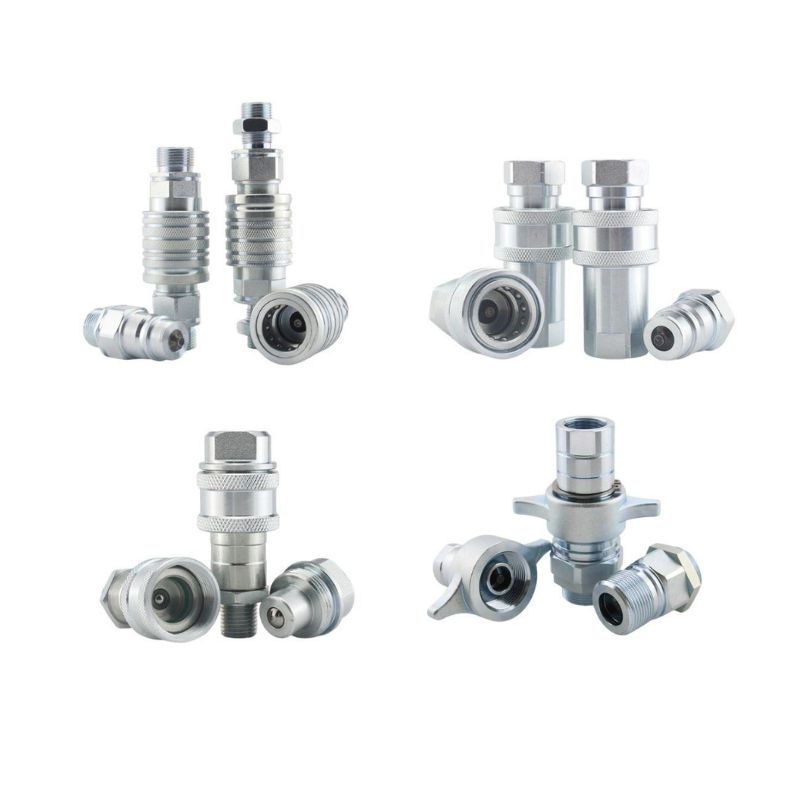

Quick Connect Couplers

Quick connect couplers are designed for efficiency and convenience, enabling rapid connection and disconnection of hydraulic lines. This feature is particularly beneficial for tasks requiring frequent changes of hydraulic attachments or during routine maintenance. Available in various designs, such as flat face couplers that minimize hydraulic fluid spillage and ball valve couplers known for their durable sealing capabilities, quick connect couplers streamline the process of managing hydraulic connections, saving time and reducing the risk of leaks.

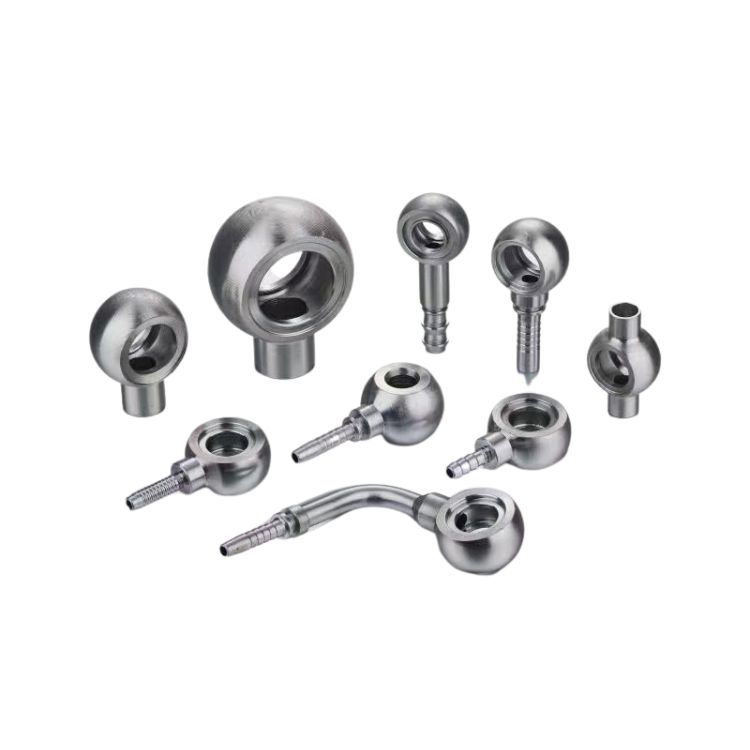

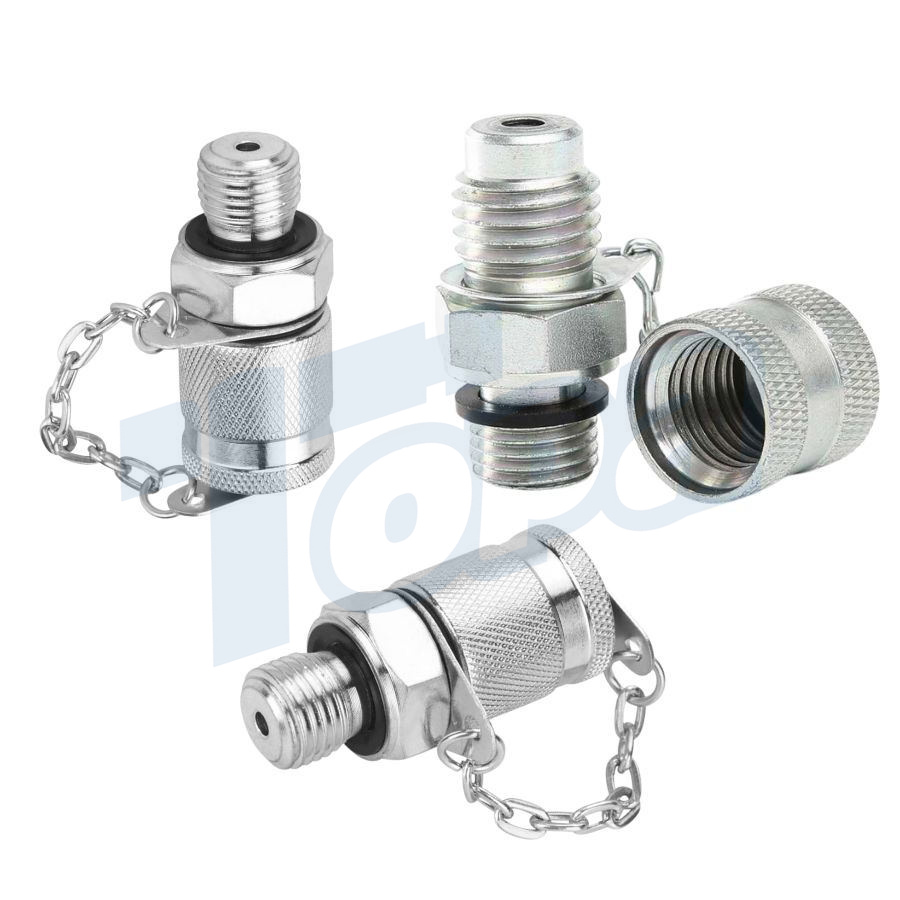

Other Fittings

While JIC, ORFS, NPT, and quick connect couplers are among the most commonly used fittings in tractor hydraulic systems, other types such as DIN (Deutsches Institut für Normung) fittings and BSP (British Standard Pipe) threaded fittings are also utilized in specific scenarios. These less common fittings are selected based on the unique requirements of the tractor’s hydraulic system, compatibility with existing components, and adherence to international or manufacturer-specific standards.

Selecting the Right Fittings for Your Tractor

Selecting the appropriate hydraulic connections for your tractor is not merely about finding a piece that fits. It’s about ensuring compatibility, efficiency, and reliability within your tractor’s hydraulic system. To navigate this selection process effectively, several key factors must be considered:

Size and Pressure Ratings

The correct selection of hydraulic connectors is paramount for the safe and efficient operation of tractor hydraulic systems. Two of the most critical factors in this selection process are the size and pressure ratings of the fittings.

Size

The size of a hydraulic fitting is determined by the dimensions of the hose, pipe, or component it connects to. It is crucial that the fitting matches these dimensions exactly. Using a fitting of the wrong size can result in poor performance, leaks, or even damage to the hydraulic system. The size is typically specified based on the inner and outer diameters of hoses or the thread size for threaded fittings. It is important to use precise measurement tools and refer to manufacturer specifications to ensure a correct match.

Pressure Ratings

Hydraulic systems operate under a range of pressures, and every component, including the fittings, must be capable of withstanding the system’s maximum pressure. The pressure rating of a fitting refers to the maximum pressure it can handle without failing. This rating must meet or exceed the highest pressure anticipated in the hydraulic system to prevent catastrophic failures under load. Pressure ratings are determined by factors such as the material of the fitting, its design, and its size.

Using fittings with inadequate pressure ratings can lead to leaks, bursts, and system failures, posing safety risks to operators and potentially causing significant damage to the tractor. Therefore, it is essential to understand the pressure demands of your tractor’s hydraulic system and select fittings that are rated appropriately.

Material Considerations

When selecting hydraulic connections for tractors, the material from which these fittings are made is a critical factor that impacts their performance, durability, and suitability for specific environments. The most common materials used for hydraulic fittings include steel, stainless steel, and brass, each offering distinct advantages and considerations.

Steel

Steel fittings are widely used due to their strength and durability. They are particularly suited for high-pressure applications, making them a common choice for the rigorous demands of tractor hydraulic systems. Steel fittings can handle the mechanical stresses and pressures encountered in agricultural settings. However, they are susceptible to corrosion if not properly coated or if used in corrosive environments, such as those involving fertilizers or chemicals.

Stainless Steel

Stainless steel fittings offer the resilience and strength of steel but with superior corrosion resistance. This makes them ideal for use in harsh, corrosive environments where exposure to chemicals, moisture, or saline conditions is common. Stainless steel fittings are more expensive than their steel counterparts but are invaluable in applications where corrosion could compromise the system’s integrity and reliability.

Brass

Brass fittings are known for their corrosion resistance and ductility, making them easier to tighten without the risk of cracking. They are typically used in low to medium-pressure applications and are favored in environments where corrosion resistance is needed but without the high pressures that would necessitate stainless steel. Brass fittings are commonly found in hydraulic systems that do not experience the extreme pressures or loads that are typical in some agricultural applications.

Compatibility with Tractor Model and Hydraulic Systems

Each tractor model may come with its own set of specifications and requirements that dictate the type of hydraulic fittings that can be used. Ensuring that the hydraulic fittings are compatible with your tractor’s model and its hydraulic system is not just about fit; it’s about maintaining the system’s integrity and operational efficacy.

Tractor-Specific Requirements

Manufacturers design their tractors with specific hydraulic systems that may require unique fittings. These proprietary systems ensure that the tractor operates at its peak efficiency but also mean that not every fitting will work with every model. Using the incorrect fitting can lead to leaks, decreased performance, and even system failures.

Consulting Manuals and Manufacturer Recommendations

Manufacturers often provide detailed specifications about the hydraulic system, including the types and sizes of fittings that are compatible. If the manual is not available, many manufacturers offer this information online or through customer support channels. Consulting these resources ensures that you select fittings that are designed to work with your tractor’s specific hydraulic system.

Understanding the Hydraulic System

The tractor’s hydraulic system’s complexity means that fittings need to match not just in size but also in type and material. Factors such as the system’s pressure, the type of hydraulic fluid used, and the environmental conditions the tractor operates in all influence the choice of fitting. For example, high-pressure systems may require fittings with higher pressure ratings, while systems exposed to corrosive materials may need fittings made from more resistant materials.

Environmental Conditions

The environmental conditions under which a tractor operates can significantly impact the selection of hydraulic fittings. These conditions can vary widely, from extreme temperatures to exposure to corrosive substances and abrasives like dust and sand. Each of these factors can influence the durability, performance, and longevity of hydraulic fittings, making it crucial to consider them during selection.

Temperature Extremes

Hydraulic fittings must be able to withstand the temperature extremes they will be exposed to, both in operation and at rest. Materials like steel and stainless steel are generally good at handling a wide range of temperatures without losing integrity. However, extreme cold can make some materials brittle, while extreme heat can cause expansion and potential leaks. Therefore, the temperature tolerance of fittings must match the environmental conditions they will face.

Corrosive Substances

Exposure to corrosive substances, such as chemicals used in agriculture or saltwater in coastal areas, can rapidly degrade the wrong type of hydraulic fittings. Stainless steel fittings, known for their corrosion resistance, are often the best choice in these environments. Alternatively, coatings and treatments can sometimes be applied to less resistant materials to improve their durability under corrosive conditions.

Abrasives

Dust, sand, and other abrasives can wear down fittings over time, leading to leaks or failure. In environments where abrasives are prevalent, fittings with protective coatings or made from harder materials that resist abrasion should be considered. Additionally, the design of the fitting, such as those with fewer external crevices, can minimize the accumulation of abrasives.

Moisture and Humidity

High levels of moisture and humidity can also affect hydraulic fittings, particularly in terms of corrosion. Even materials that are generally resistant to corrosion may degrade faster in high humidity environments unless properly selected or treated to withstand these conditions.

Application-Specific Requirements

The specific applications for which a tractor is used can greatly influence the choice of hydraulic fittings. Different tasks and attachments may impose varying demands on the hydraulic system, necessitating the use of specialized fittings to ensure efficiency, reliability, and ease of use. Here are a couple of examples illustrating how application-specific requirements can dictate the choice of hydraulic fittings:

Quick Connect Couplers

For tractors that frequently change attachments, such as switching between a plow, loader, and other implements, quick connect couplers are invaluable. These fittings allow for the rapid connection and disconnection of hydraulic lines without the need for tools or significant downtime. This feature is particularly beneficial in agricultural or construction settings where time is of the essence, and productivity depends on the swift interchange of attachments. Quick connect couplers come in several designs, including flat-face models that minimize hydraulic fluid spillage and leakage, enhancing environmental safety and reducing waste.

O-Ring Face Seal (ORFS) Fittings

In high-pressure applications, where maintaining a robust seal is critical to preventing leaks and ensuring system integrity, O-Ring Face Seal (ORFS) fittings are preferred. These fittings feature an O-ring at the sealing face, providing a tighter and more reliable seal than traditional metal-to-metal contact fittings. ORFS fittings are ideal for use in hydraulic systems that operate under high pressure or in applications where leaks could pose significant safety or environmental hazards.

Custom and Proprietary Fittings

Some tractor models or specific applications may require custom or proprietary fittings. These specialized fittings are designed to meet unique requirements of certain hydraulic systems, providing solutions that standard fittings cannot. It’s essential to consult the tractor’s manufacturer or a hydraulic system specialist when dealing with unique or highly specialized applications.

Conclusion

Hydraulic connections play an important role in the performance and reliability of tractor hydraulic systems. Understanding the types of accessories, their applications, and best practices for selection, installation, and maintenance can greatly impact the efficiency of the system. Tractor owners and operators can reduce downtime and increase productivity by considering the information provided to ensure their hydraulic systems are well maintained.

If you still have any questions about tractor couplings or hoses, please contact Topa and we’ll do our best to help you!

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

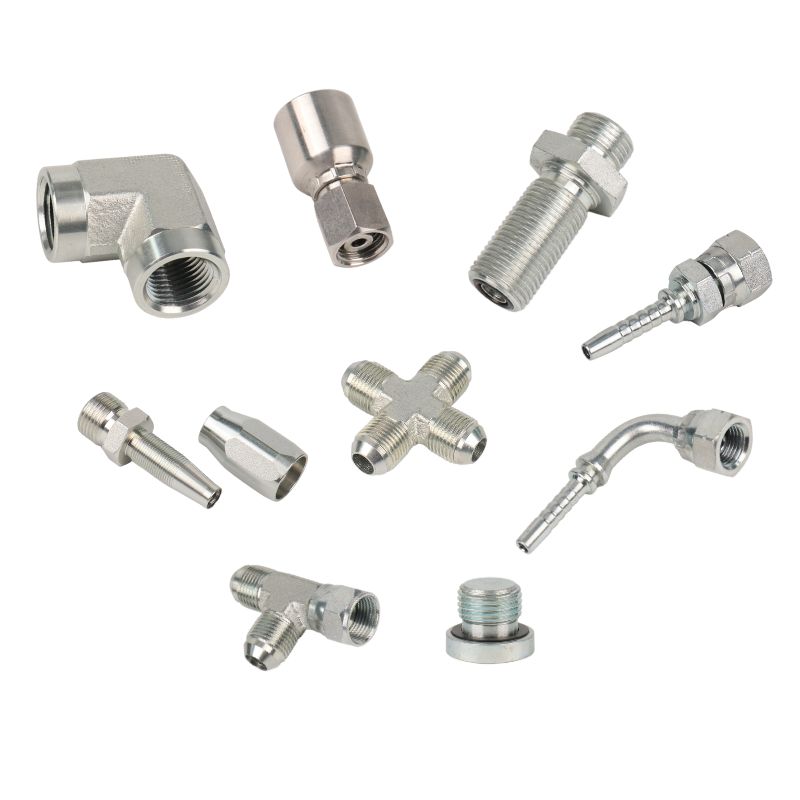

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Mar, 2024

Brass vs Stainless Steel Hydraulic Fittings

Introduction

Choosing the right material for hydraulic fittings is not just a technical decision, it also has a significant impact on the efficiency of the hydraulic system. Choosing between brass and stainless steel is not an easy task, as each material has its own unique strengths and limitations that can greatly affect the performance of a hydraulic system under a variety of operating conditions. Understanding the nuances of each material is critical to optimizing system design, ensuring operational integrity, and extending system life cycles.

Understanding Brass Fittings

Brass fittings hold a notable position in the hierarchy of materials used for hydraulic fittings, thanks to their balanced properties of durability, machinability, and corrosion resistance. Predominantly composed of copper and zinc, brass exhibits characteristics that make it an attractive choice for a wide range of hydraulic applications.

Composition and Properties

Brass, an alloy primarily made up of copper and zinc, is known for its golden hue and remarkable machinability. The proportion of copper and zinc can be varied to create a range of brass types, each with unique properties tailored for specific applications. For instance, the addition of elements like lead can improve machinability, whereas aluminum in the mix can enhance corrosion resistance and strength. This versatility allows engineers to select a brass alloy that best meets the requirements of their hydraulic systems.

Benefits

The widespread use of brass fittings in hydraulic systems can be attributed to several key benefits:

Corrosion Resistance: Brass exhibits good corrosion resistance, especially from water, making it suitable for systems that are exposed to moisture or are used in marine environments. This property ensures a longer lifespan for hydraulic fittings, reducing the need for frequent replacements.

Cost-Effectiveness: Compared to other materials such as stainless steel, brass fittings are generally more affordable. This cost advantage makes brass an appealing choice for projects with tight budgets, without significantly compromising on quality or performance.

Machinability: Brass is easy to machine, allowing for the production of precision components with relatively low tool wear. This ease of fabrication contributes to lower manufacturing costs and the ability to create complex shapes and threads.

Limitations

Despite its advantages, brass fittings are not without their limitations:

Pressure and Temperature Sensitivity: Brass fittings may not be suitable for high-pressure applications due to their comparatively lower strength and hardness. Similarly, extreme temperatures can affect their integrity, limiting their use in high-heat environments.

Dezincification: A significant drawback of brass is its vulnerability to dezincification, a form of corrosion where zinc is selectively leached from the alloy. This process can weaken the fitting, leading to failures in critical applications. Environments with high chloride levels, such as seawater, can accelerate dezincification, posing a risk to hydraulic systems operating in such conditions.

Enhancing Brass Fittings

To mitigate some of these limitations, manufacturers have developed specialized brass alloys, such as those with added arsenic or antimony, which are more resistant to dezincification. Additionally, surface treatments and coatings can be applied to brass fittings to improve their corrosion resistance.

The Case for Stainless Steel Hydraulic Fittings

The material choice for hydraulic fittings is a critical decision point in the design and operation of hydraulic systems. Stainless steel, with its unique blend of strength, durability, and corrosion resistance, stands out as a superior choice for many demanding applications.

Material Properties

Stainless steel is an alloy that primarily consists of iron, chromium (at least 10.5%), nickel, and other elements such as molybdenum, which enhance its ability to resist corrosion. The addition of chromium is particularly crucial as it forms a passive layer of chromium oxide on the surface of the steel, effectively shielding it from various forms of corrosion. This protective layer is self-healing, meaning that if scratched or damaged, it can reform in the presence of oxygen from air or water.

Key Properties of Stainless Steel

Corrosion Resistance: The most notable advantage of stainless steel is its exceptional resistance to a wide range of corrosive environments, attributed to its chromium content. This makes it an ideal material for applications exposed to corrosive chemicals, saline solutions, or other harsh conditions.

High Strength and Durability: Stainless steel fittings are known for their strength, which allows them to withstand high pressure and mechanical stresses. This strength does not diminish significantly even under high temperatures, contributing to their longevity and reliability.

Temperature Resistance: Stainless steel can maintain its integrity over a wide temperature range, from cryogenic levels up to several hundred degrees Celsius, making it suitable for applications with extreme temperature conditions.

Applications and Advantages

The unique properties of stainless steel make it an excellent material choice for hydraulic fittings in a variety of demanding applications. Its strength, combined with superior corrosion resistance, ensures reliability and longevity in environments where other materials might fail.

Critical Applications:

Marine Applications: The saline or seawater environment is highly corrosive, but stainless steel fittings can resist such conditions, making them ideal for marine hydraulics, offshore oil rigs, and shipbuilding.

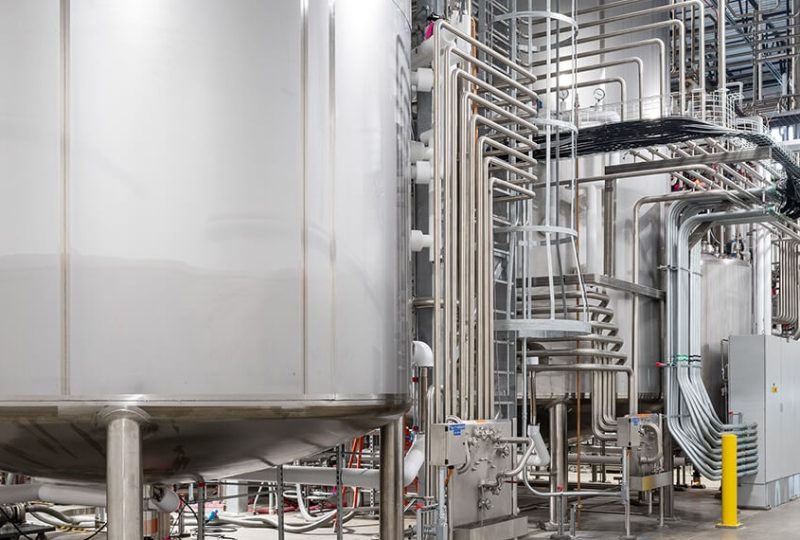

Chemical Processing: In industries where chemical exposure is a daily occurrence, stainless steel fittings provide the necessary resistance to avoid corrosion, which could lead to leaks or system failures.

High-Temperature Operations: For hydraulic systems operating at high temperatures, stainless steel maintains its strength and corrosion resistance, ensuring system integrity.

Advantages:

Reduced Maintenance and Replacement Costs: The durability and corrosion resistance of stainless steel fittings mean that they require less maintenance and have longer intervals between replacements, offering significant long-term savings.

Enhanced Safety and Reliability: In critical applications where failure could result in significant safety hazards or downtime, stainless steel fittings provide peace of mind with their reliable performance.

Versatility: The wide range of stainless steel grades available allows for tailored solutions to specific environmental challenges, ensuring optimal performance across various applications.

Factors to Consider When Choosing Hydraulic Fittings

The selection of hydraulic fittings is a nuanced process that involves several critical considerations. These considerations ensure that the chosen fittings not only meet the immediate requirements of the hydraulic system but also align with long-term performance and cost-efficiency goals.

Application Requirements

When selecting hydraulic fittings, the specific demands of the hydraulic system play a decisive role. Factors such as the operating pressure, temperature range, and chemical exposure of the system dictate the choice between brass and stainless steel fittings.

Pressure: High-pressure systems require fittings that can withstand the force exerted by the hydraulic fluid. Stainless steel, known for its strength and durability, is often the preferred choice for such applications.

Temperature: Systems operating at extreme temperatures benefit from fittings that maintain their integrity under such conditions. Stainless steel fittings offer superior temperature tolerance, making them suitable for both high and low-temperature applications.

Chemical Exposure: The presence of corrosive chemicals necessitates the use of fittings that can resist such environments. Stainless steel’s excellent corrosion resistance makes it ideal for systems exposed to harsh chemicals, while brass may be sufficient for less aggressive environments.

Cost Considerations

The decision between brass and stainless steel fittings also hinges on cost considerations, encompassing both the initial investment and the long-term operational costs.

Upfront Costs: Brass fittings typically offer a lower initial cost compared to stainless steel, making them an attractive option for budget-sensitive projects. However, the choice of material should not be based solely on initial costs but also on the overall value proposition.

Long-term Value: Stainless steel fittings, though more expensive upfront, can offer significant cost savings over time. Their durability and lower maintenance requirements reduce the need for frequent replacements and repairs, translating into better long-term value.

Compatibility and Interchangeability

Ensuring material compatibility within the hydraulic system is crucial to prevent issues such as galvanic corrosion, which can occur when dissimilar metals are in contact in the presence of an electrolyte.

Hydraulic Fluids: The compatibility of fittings with the hydraulic fluid used in the system is essential to prevent chemical reactions that could degrade the fittings or fluid.

Material Mixing: Mixing materials within a hydraulic system requires careful consideration to avoid galvanic corrosion. If brass and stainless steel fittings are used together, measures such as isolators or coatings may be necessary to prevent direct contact and ensure system integrity.

Making the Decision: Brass or Stainless Steel?

The selection between brass and stainless steel hydraulic fittings represents a critical decision point in the engineering and maintenance of hydraulic systems. This choice should be carefully considered, taking into account the specific needs and operational conditions of the system. The decision ultimately hinges on balancing performance requirements with cost considerations, ensuring that the chosen material aligns with the overall objectives of the hydraulic system.

Brass Fittings: When to Choose?

Brass fittings are best suited for applications where the hydraulic system does not face extreme conditions such as high pressures, aggressive chemicals, or extreme temperatures. Their cost-effectiveness makes them an attractive option for systems where budget constraints are a primary concern. Brass fittings are adequate for moderate conditions, offering good corrosion resistance to water and certain chemicals, ease of machining, and a satisfactory level of durability for many applications. They are an excellent choice for:

Systems operating under lower pressures
Environments with minimal exposure to corrosive substances
Applications where cost is a significant consideration

Stainless Steel Fittings: When to Choose?

Stainless steel fittings are the preferred choice for hydraulic systems that operate under demanding conditions. Their superior strength, exceptional corrosion resistance, and ability to withstand temperature extremes make them ideal for applications requiring utmost reliability and durability. Stainless steel is particularly suited for:

High-pressure systems where material strength is critical
Harsh environmental conditions, including exposure to corrosive chemicals or saltwater
Applications with extreme temperature ranges, both high and low

Stainless steel’s longevity and lower maintenance requirements often justify its higher initial cost, providing better long-term value and reducing the total cost of ownership.

The choice between brass and stainless steel hydraulic fittings should be based on a thorough evaluation of the specific requirements of the hydraulic system. It is not by carefully weighing factors such as application requirements, cost and compatibility that you can make an informed decision and ensure the efficiency of your hydraulic system.

Are Stainless Steel and Brass Fittings Compatible?

When it comes to combining different materials in hydraulic systems, compatibility is crucial to ensure system integrity and prevent failure. Stainless steel and brass fittings each offer unique advantages, as previously discussed, but their compatibility when used together in a single system warrants careful consideration due to the potential for galvanic corrosion.

Understanding Galvanic Corrosion

Galvanic corrosion occurs when two dissimilar metals are in electrical contact in the presence of an electrolyte, leading to the corrosion of the more anodic material. Stainless steel and brass can form such a galvanic couple, with brass acting as the anode and stainless steel as the cathode. The risk of galvanic corrosion increases in environments with high conductivity, such as those with moisture, salt, or acidic conditions.

Factors Influencing Compatibility

Electrolyte Presence: The risk of galvanic corrosion is significantly lower in dry conditions. In environments exposed to electrolytes, such as water or other fluids, precautions should be taken.

Surface Area Ratio: The effect of galvanic corrosion is more pronounced when a small anode (brass) is coupled with a large cathode (stainless steel), accelerating the corrosion of the anodic material.

Isolation: Using non-conductive materials or coatings to electrically isolate the dissimilar metals can effectively prevent galvanic corrosion.

Mitigation Strategies

To use stainless steel and brass fittings together safely, consider the following strategies:

Isolation: Employing physical barriers, such as non-conductive gaskets or washers, can prevent direct metal-to-metal contact, minimizing the risk of galvanic corrosion.

Protective Coatings: Applying protective coatings to the fittings can shield the metals from the electrolyte, reducing the galvanic effect.

Environmental Control: In controlled environments where exposure to electrolytes is minimized, the risk of galvanic corrosion can be significantly reduced.

While stainless steel and brass fittings can be used together, the potential for galvanic corrosion means that careful consideration must be given to the specific conditions of their application. By understanding the mechanisms of galvanic corrosion and employing appropriate mitigation strategies, it is possible to safely incorporate both materials into a hydraulic system, leveraging their respective strengths. Always consult with a corrosion specialist or a hydraulic system engineer to ensure the compatibility and longevity of your hydraulic system components.

Conclusion

In summary, when selecting hydraulic fittings, it’s essential to consider the long-term benefits and suitability of the material for the specific application. Stainless steel hydraulic fittings, with their strength, corrosion resistance, and durability, often present the best option for ensuring the reliability and longevity of hydraulic systems. Users are encouraged to weigh the initial cost against the long-term advantages to make an informed decision that meets their system’s requirements.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Mar, 2024

How to Choose Air Brake Fittings

Introduction

In the world of heavy-duty trucks, air brake systems play a crucial role in ensuring safety and reliability on the road. Central to these systems are air brake fittings, which connect various components together, allowing for the controlled distribution of air pressure needed to operate the brakes effectively. This article aims to guide readers through the intricacies of selecting the best air brake fittings for their needs, ensuring their heavy-duty trucks remain safe and responsive under all conditions.

Introduction to Air Braking Systems for Heavy Duty Trucks

Air braking systems are the foundation of safety for heavy-duty trucks, providing the braking power needed to effectively maneuver these large vehicles. Unlike passenger cars, which typically use hydraulic braking systems, heavy-duty trucks rely on compressed air braking. These vehicles have larger loads and longer stopping distances, so there is a greater need for superior braking systems. An air braking system consists of several key components, including the air compressor, reservoir (gas tank), brake valves, brake chambers and brakes, all connected by a network of hoses and fittings.

The Role of Fittings in an Air Brake System

Fittings in an air brake system are critical for several reasons. They are the fittings that connect the various components of the system, ensuring a tight and secure fit and preventing air leaks. Air leaks can greatly reduce the efficiency and effectiveness of the system, leading to increased stopping distances or complete brake failure. Therefore, the integrity of these joints is critical to the safe operation of your vehicle.

Basics of Air Brake Systems

The operation of an air brake system begins with the air compressor, which generates and supplies compressed air. This air is stored in reservoirs until needed. When the brake pedal is pressed, air is released into the brake chambers, causing the brake shoes to expand and make contact with the drum or disc, thereby slowing the vehicle. The amount of pressure applied controls the braking force, allowing for smooth and gradual stops.

Components Interconnected Through Fittings

The efficiency of an air brake system relies on the seamless interaction between its components, facilitated by air brake fittings. These fittings must withstand high pressure and be resistant to corrosion and wear. They come in various shapes and sizes to accommodate the specific design and layout of the brake system.

Types of Air Brake Fittings

Air brake systems rely on a variety of fittings to ensure tight, leak-free connections between system components. The choice of fittings directly affects the efficiency and reliability of your braking system. Here, we’ll take an in-depth look at the common types of air brake fittings, exploring their advantages and disadvantages to help you choose the most appropriate fittings for your specific needs.

Compression fittings

Benefits

Tight Seal: This design ensures a tight seal by compressing a metal ring onto the tubing, which is critical to maintaining the pressure integrity of the system.

Easy to install: These fittings can be installed quickly and without special tools, making them a practical option for quick repairs and maintenance.

Disadvantages

Requires Regular Maintenance: To maintain an airtight seal, compression fittings may need to be tightened and inspected regularly, which can add to the overall maintenance effort.

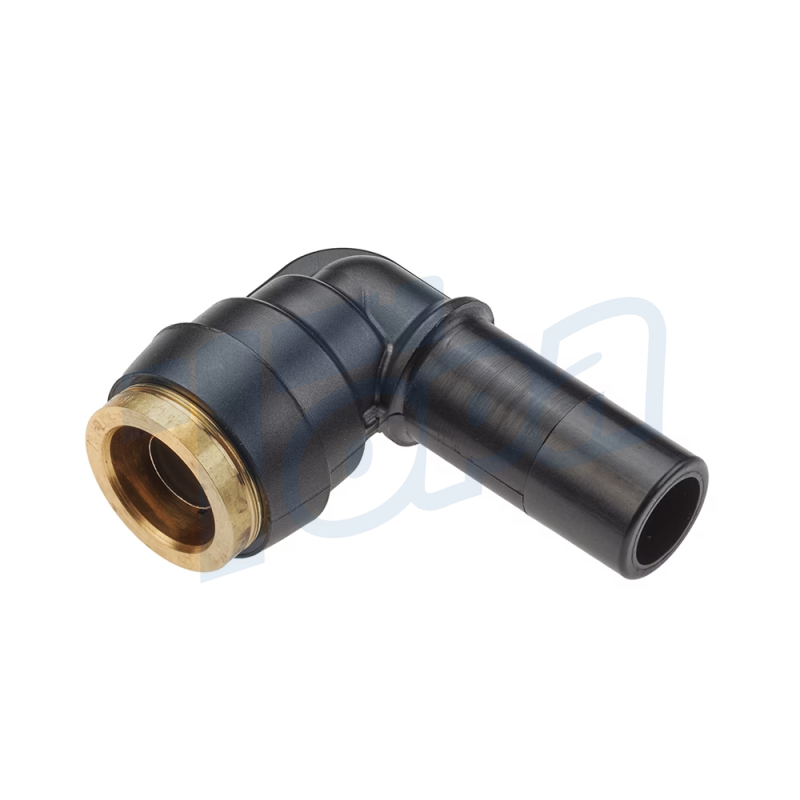

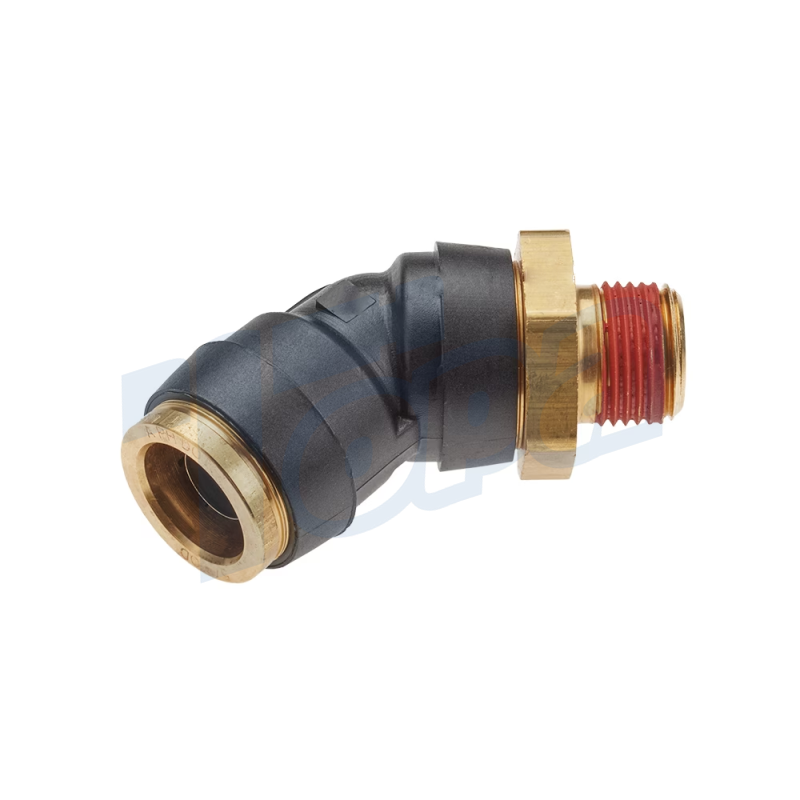

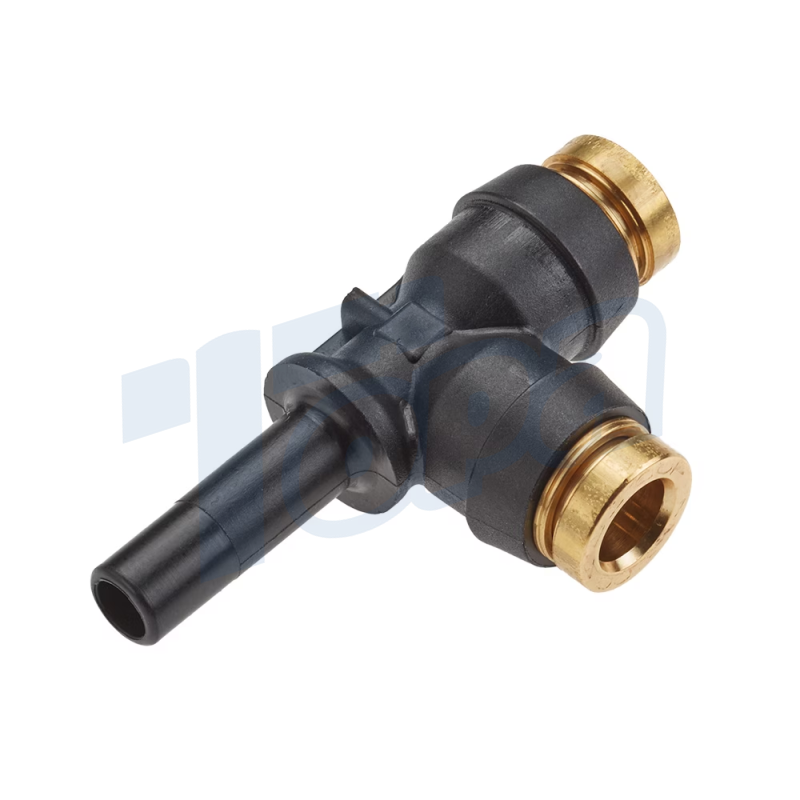

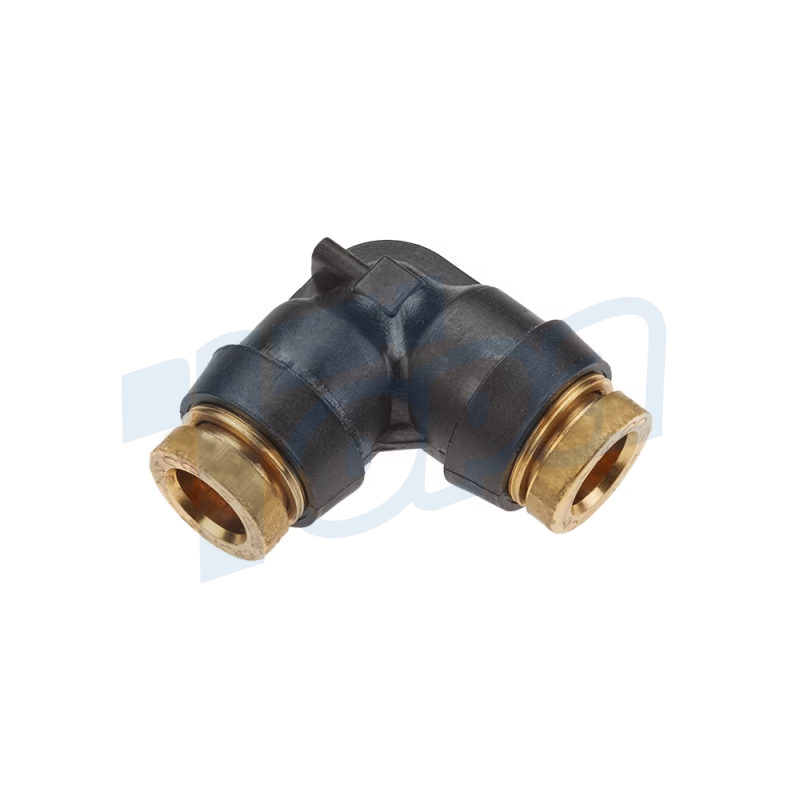

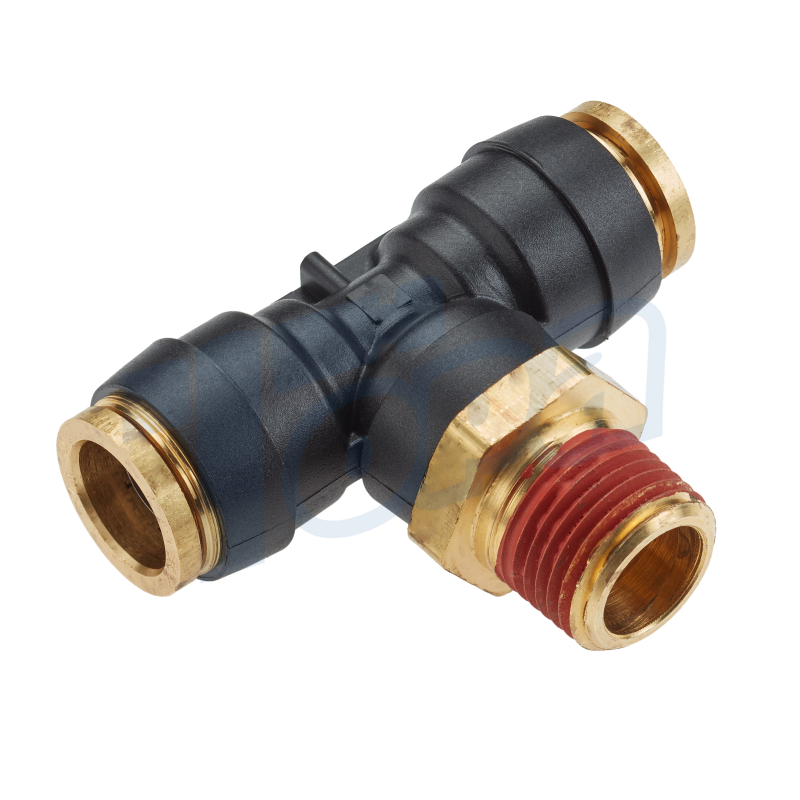

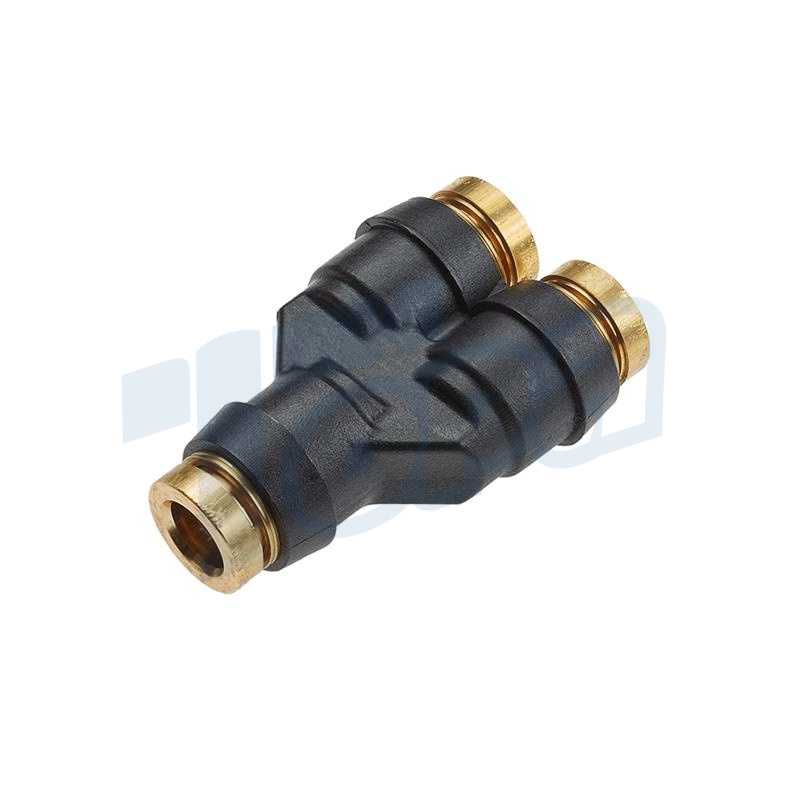

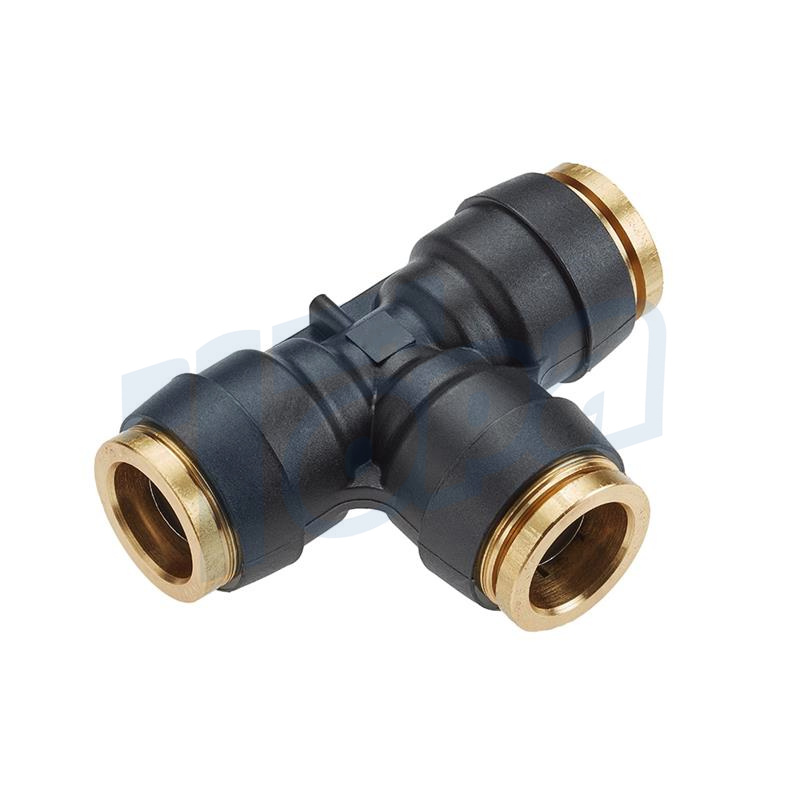

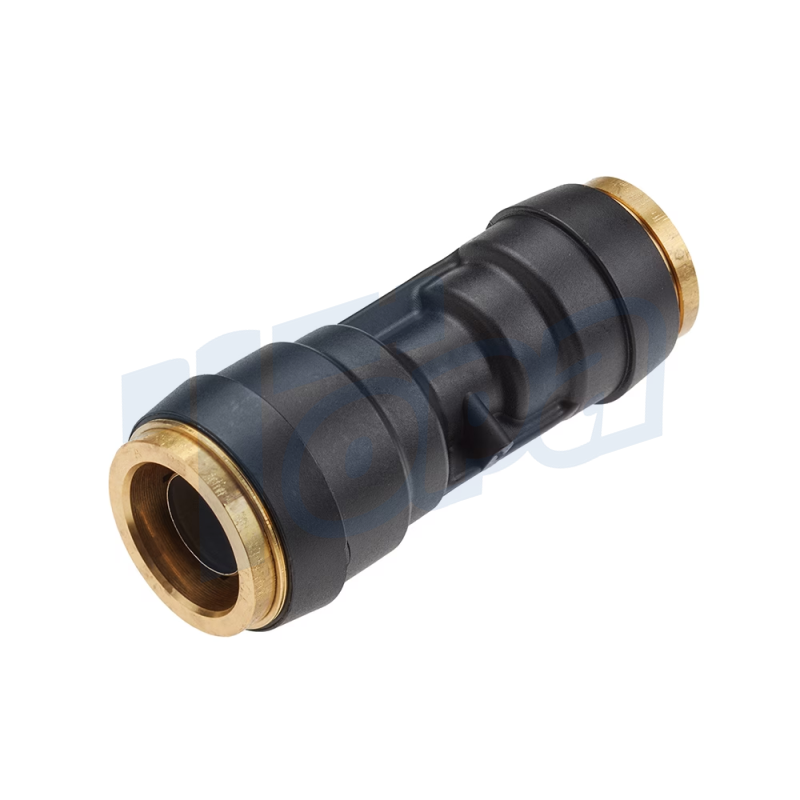

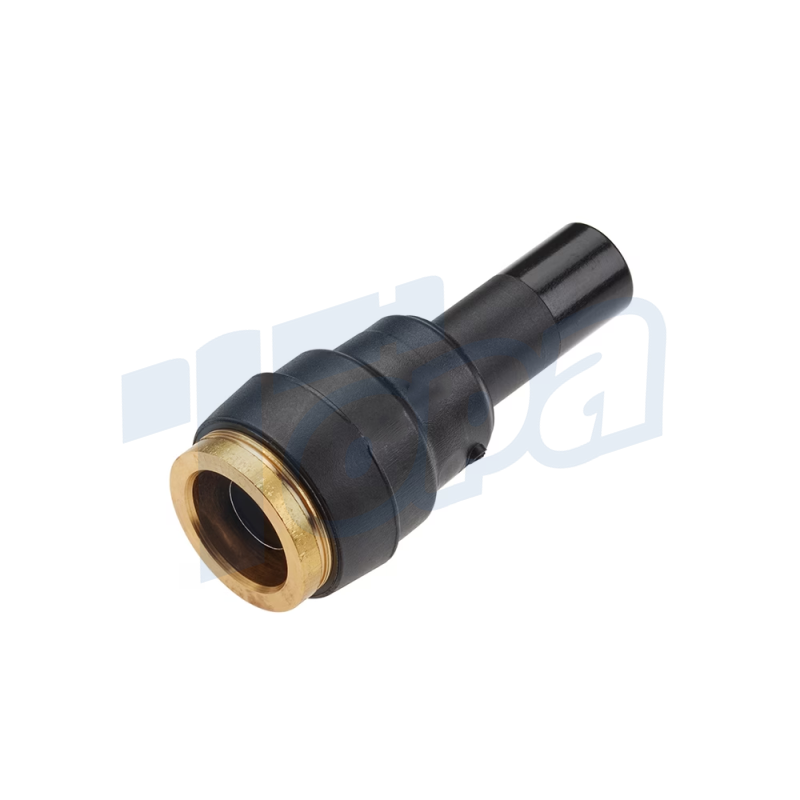

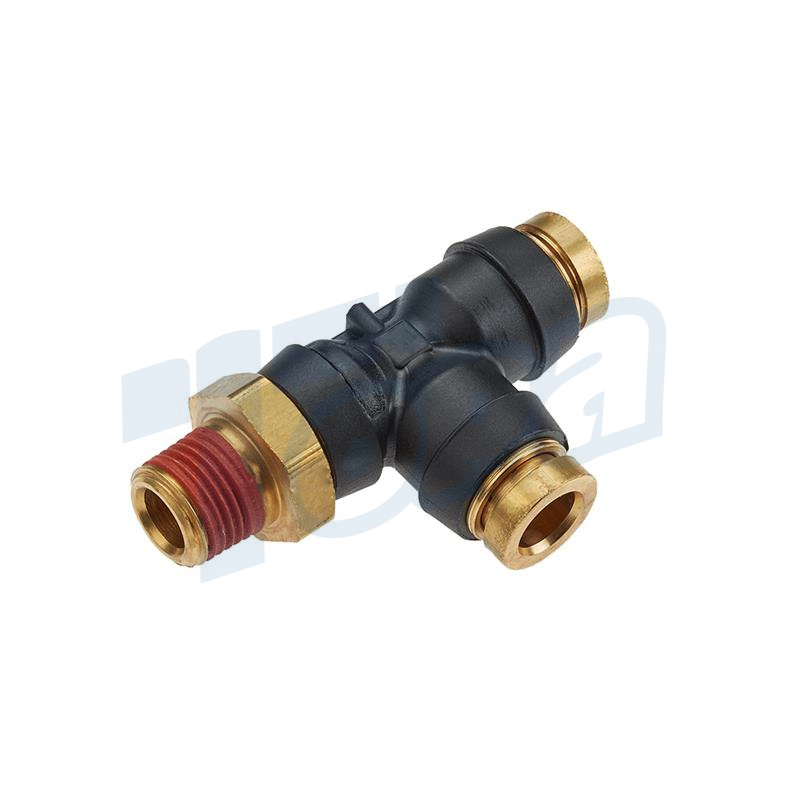

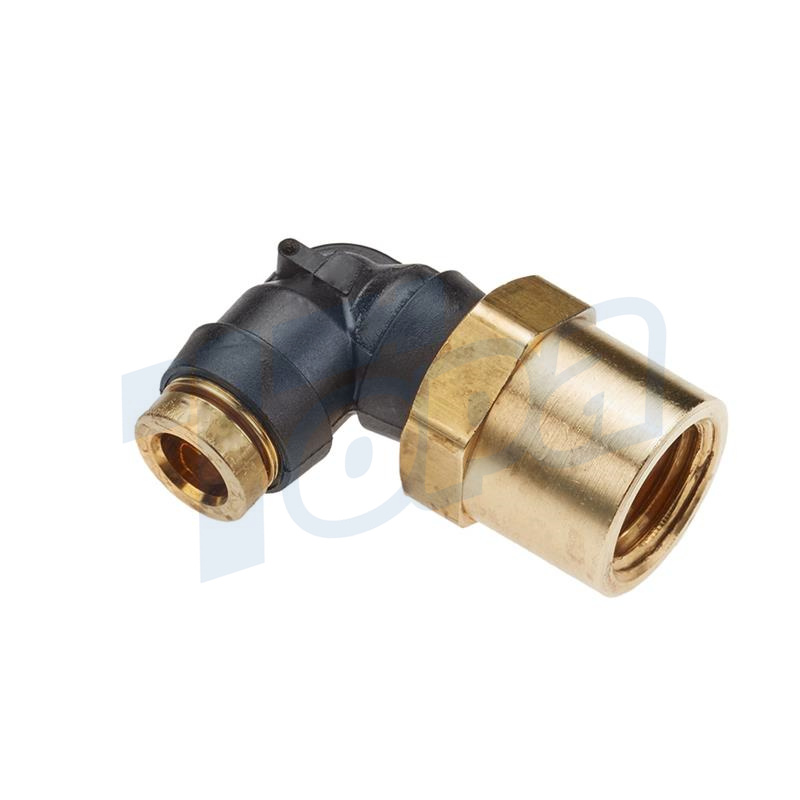

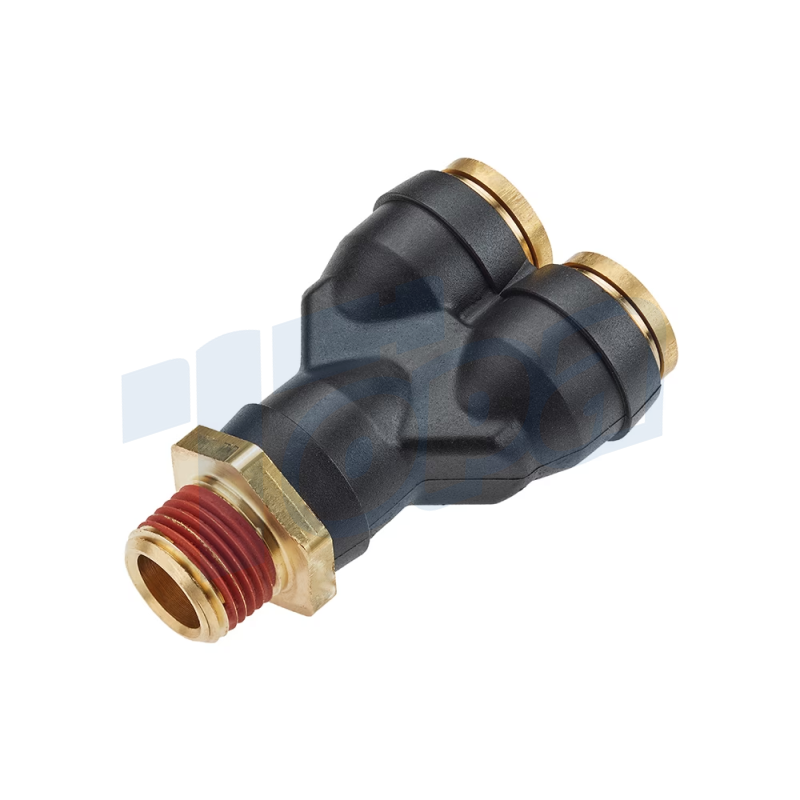

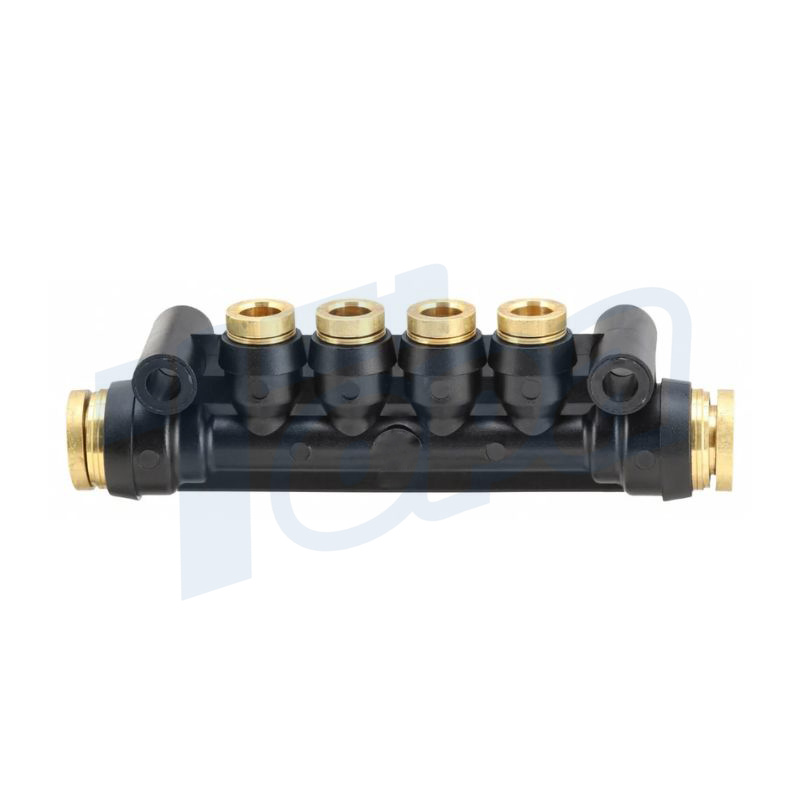

Push-to-Connect Fittings

Advantages:

Convenience: Push-to-connect fittings allow for quick and easy assembly and disassembly, significantly reducing installation time and effort.

Tool-Free: Their design eliminates the need for tools during installation, facilitating faster and more efficient repairs.

Disadvantages:

High-Pressure Limitations: While suitable for many applications, push-to-connect fittings may not perform as well under extreme high-pressure conditions, limiting their use in certain parts of the air brake system.

Threaded Fittings

Advantages:

Robust Connection: Threaded fittings provide a strong, durable connection ideal for permanent installations where a secure seal is paramount.

Versatility: These fittings can be used in a variety of applications, offering flexibility in system design and repair.

Disadvantages:

Complex Installation and Removal: The need to thread these fittings into place can make installation and removal more time-consuming and may require special tools or skills.

Making an Informed Decision

Selecting the right type of air brake fitting involves considering the specific requirements of the air brake system, including pressure levels, exposure to vibration, and the need for maintenance access. Each fitting type offers a unique set of benefits and challenges, making it important to weigh these factors carefully to ensure optimal performance and reliability of the air brake system.

Material Considerations for Air Brake Fittings

The materials used in manufacturing air brake fittings are crucial for the performance, durability, and reliability of air brake systems in heavy-duty trucks. Two of the most common materials used are brass and stainless steel, each offering unique benefits and drawbacks depending on the application’s specific requirements.

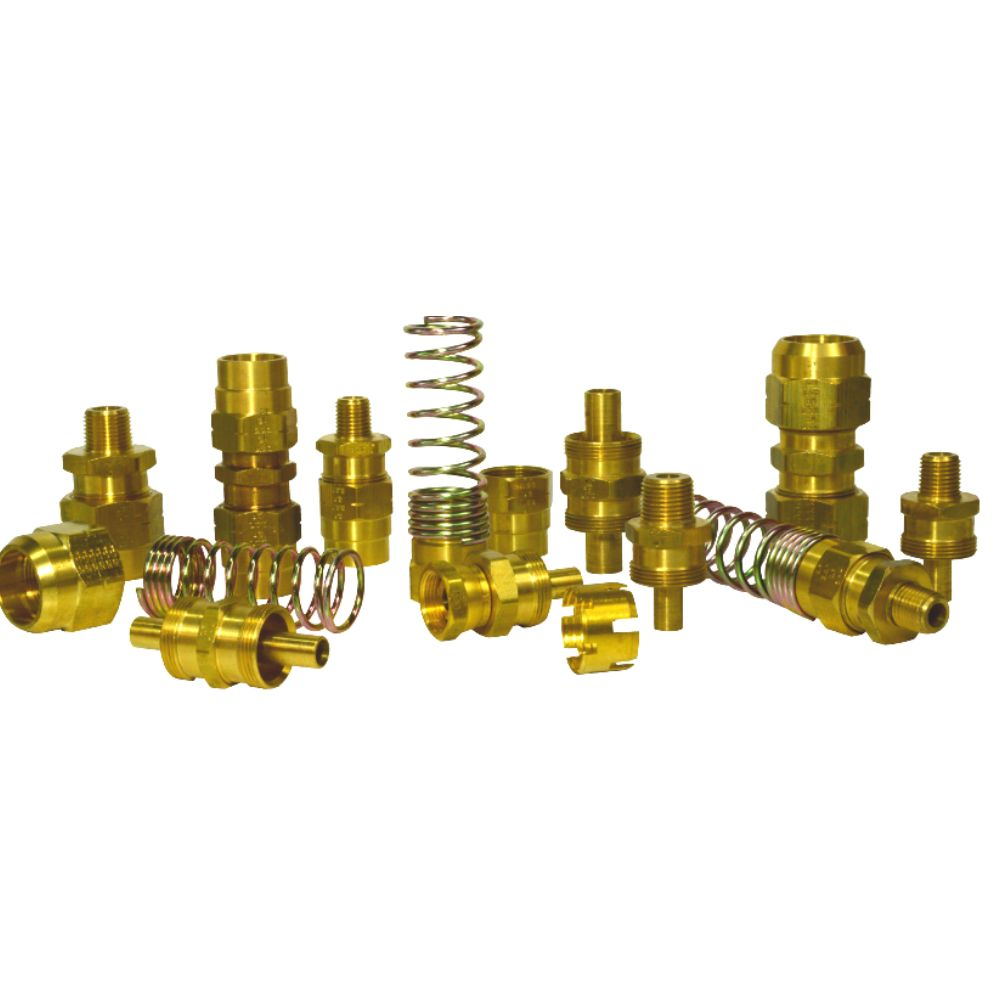

Brass Fittings

Advantages:

Corrosion Resistance: Brass is highly resistant to corrosion, which is essential for longevity and reliability, especially in environments where moisture or corrosive substances are present.

Temperature Versatility: Brass fittings can effectively handle a wide range of temperatures, making them suitable for various climatic conditions without compromising their integrity or performance.

Malleability: Brass is relatively easy to shape and machine, allowing for the production of fittings with precise specifications for leak-proof connections.

Disadvantages:

Cost: While generally more cost-effective than stainless steel, brass can still be pricier than other materials, impacting the overall cost of the air brake system.

Zinc Leaching: Under certain corrosive conditions, the zinc in brass can leach out (dezincification), weakening the fitting and leading to failures.

Stainless Steel Fittings

Advantages:

Superior Strength: Stainless steel offers exceptional strength and durability, making it ideal for applications that require resistance to high pressures and mechanical stresses.

Extreme Condition Resistance: It can withstand aggressive environments, including exposure to salt, chemicals, and extreme temperatures, without corroding or degrading.

Longevity: Stainless steel fittings have a long service life, often outlasting the components they connect, which can reduce long-term maintenance and replacement costs.

Disadvantages:

Cost: Stainless steel fittings are more expensive than brass, which can increase initial system costs. However, their longevity and reliability may offset these costs over time.

Fabrication Challenges: Stainless steel is harder to machine and fabricate than brass, which can complicate the manufacturing process and increase production costs.

Compatibility and Standards for Air Brake Fittings

Ensuring compatibility between air brake fittings and the rest of the air brake system is crucial for the safe and efficient operation of heavy-duty trucks. The compatibility encompasses not only the physical dimensions and thread patterns but also the material compatibility to prevent corrosion and the ability to withstand the system’s pressure requirements.

Importance of Compatibility

Leak Prevention: Proper compatibility ensures that fittings seal correctly, preventing air leaks that can compromise braking performance.

System Integrity: Using compatible fittings maintains the integrity of the air brake system, ensuring that all components work harmoniously.

Safety: Incompatibilities can lead to catastrophic failures, posing significant safety risks to the vehicle, its occupants, and others on the road.

Standards and Regulations

Compliance with standards and regulations is paramount in the selection and use of air brake fittings. These standards ensure that fittings meet specific safety, performance, and quality criteria.

DOT Standards: In the United States, the Department of Transportation (DOT) specifies requirements for air brake systems and components, including fittings. DOT-approved fittings have undergone rigorous testing to ensure they can withstand the demands of heavy-duty trucking applications.

SAE Standards: The Society of Automotive Engineers (SAE) also sets standards for air brake fittings, covering aspects like thread configurations, material specifications, and performance requirements. SAE standards help ensure that fittings are interchangeable and meet industry-accepted levels of quality and performance.

ISO Standards: The International Organization for Standardization (ISO) provides additional guidelines and standards that may apply to air brake fittings, especially in international contexts or for vehicles and components manufactured outside the United States.

Ensuring Compliance

Manufacturer Specifications: Always refer to the manufacturer’s specifications for compatibility and standard compliance when selecting fittings for an air brake system.

Regular Inspections: Regular inspections of air brake fittings for signs of wear, damage, or incompatibility can help prevent failures. This includes checking for leaks, and corrosion, and ensuring that all fittings are securely fastened.

Professional Guidance: When in doubt, consult with a professional or the original equipment manufacturer (OEM) for advice on selecting and installing the correct air brake fittings.

Factors to Consider When Choosing Air Brake Fittings

Pressure Ratings

Pressure ratings are a critical factor to consider when selecting air brake fittings for heavy-duty trucks. This rating indicates the maximum pressure that the fitting can withstand without failing, which is essential for ensuring the safety and efficiency of the air brake system.

Why Pressure Ratings Matter

Air brake systems utilize compressed air to operate the brakes of heavy-duty trucks. These systems are designed to handle high pressures to generate the necessary force to slow down or stop a large vehicle effectively. Fittings that connect the various components of the air brake system must be able to withstand these pressures to prevent leaks and potential system failure.

Selecting Fittings Based on Pressure Ratings

Exceed or Meet System Requirements: The selected fittings should have a pressure rating that meets or exceeds the maximum operating pressure of the air brake system. This ensures that the fittings can handle the highest pressures they are likely to encounter without compromising integrity.

Safety Margin: Choosing fittings with a pressure rating slightly higher than the system’s maximum pressure can provide an additional safety margin, helping to accommodate unexpected pressure surges or spikes.

Consistency Across the System: It is important to ensure that all fittings in the system have adequate pressure ratings. A system is only as strong as its weakest component, so every fitting must be capable of handling the required pressures.

Temperature Ranges

The operational temperature range of air brake fittings is a crucial factor to consider during selection. This range defines the minimum and maximum temperatures within which the fittings can function without degradation of material or performance.

Why Temperature Ranges Matter

Environmental Conditions: Air brake systems are exposed to a wide range of environmental temperatures, from freezing cold to extreme heat, depending on geographic location and operational conditions.

System-Generated Heat: Braking generates considerable heat, which can affect the performance and integrity of the fittings. Fittings must withstand these temperatures to maintain a secure, leak-free connection.

Material Expansion and Contraction: Materials expand and contract with temperature changes. Fittings need to accommodate these changes without losing their seal or compromising the system.

Selecting Fittings Based on Temperature Ranges

Material Choice: The material of the fitting plays a significant role in its temperature tolerance. Brass and stainless steel, for example, have different thermal properties. Brass fittings offer excellent thermal conductivity and can handle a wide range of temperatures, making them suitable for most environments. Stainless steel, known for its strength, also has a high melting point, making it ideal for extreme conditions.

Application-Specific Requirements: Consider the specific conditions the air brake system will face. For instance, vehicles operating in colder climates may require fittings with lower temperature thresholds to prevent brittleness and cracking.

Vibration Resistance

Vibration resistance is a critical factor to consider when selecting air brake fittings for heavy-duty trucks. This attribute determines the ability of fittings to maintain their structural integrity and connectivity in the presence of continuous vibration.

The Importance of Vibration Resistance

Operational Integrity: Heavy-duty trucks are subjected to constant vibration during operation, which can compromise the connections made by fittings, leading to leaks or component failure.

Safety Considerations: A fitting that cannot withstand the rigors of daily vibration may lead to a loss of air pressure in the brake system, reducing braking efficiency and potentially leading to unsafe driving conditions.

Durability: Fittings with high vibration resistance are less likely to require frequent tightening or replacement, reducing maintenance time and costs.

Selection Tips for High Vibration Resistance

Material Selection: Certain materials, such as brass and stainless steel, inherently possess good vibration resistance due to their mechanical properties. The choice of material can significantly impact the fitting’s ability to resist vibration-induced stress.

Design Features: Some fittings are specifically designed to resist vibration, incorporating features such as locking mechanisms or flexible sections that absorb vibration without loosening.

Testing and Certification: Look for fittings that have been tested and certified for use in high-vibration environments. Manufacturers often conduct rigorous testing to ensure their products meet specific standards for vibration resistance.

Conclusion

Choosing the right air brake fittings is a vital part of maintaining an efficient and safe air brake system in heavy-duty trucks. By understanding the different types of fittings, materials, compatibility requirements, and other factors involved, operators and mechanics can ensure their vehicles operate safely and reliably under all conditions. Remember, the right fittings not only contribute to the performance of the air brake system but also to the safety of the vehicle on the road.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Mar, 2024

How to Install and Tighten JIC Hydraulic Fittings

Introduction

JIC Hydraulic Fittings are an essential part of the hydraulic system and are the backbone of many operations in various industries. These fittings ensure the flow of hydraulic fluid, which is vital to the operation of a machine. This article is intended to guide readers through the meticulous process of properly installing and tightening JIC hydraulic fittings, an essential skill for maintaining the efficiency and safety of your hydraulic system.

Understanding JIC Hydraulic Fittings

The Basics of JIC Hydraulic Fittings

Hydraulic JIC fittings, standing for Joint Industry Council, are paramount in the hydraulic systems landscape, celebrated for their exceptional reliability and robustness. These fittings are engineered to endure high pressures and adverse conditions, a testament to their origins in the aerospace industry. The hallmark of JIC fittings is their 37-degree flare seating surface, a critical feature that facilitates the creation of secure, leak-proof connections.

Types of Hydraulic JIC Fittings

The diversity of JIC fittings serves as a cornerstone for their widespread application across various hydraulic systems, ensuring that there is a fitting type for virtually every possible scenario.

Straight Fittings

Straight JIC fittings are the most basic and commonly used type. They provide a direct connection between hydraulic hoses and components such as pumps, cylinders, and valves. They offer a straightforward solution for transferring fluid in a linear path without altering direction.

45-Degree Fittings

45-degree JIC fittings are designed to change the direction of the hydraulic line by 45 degrees. These fittings are invaluable in systems where space constraints prevent the use of straight lines or where a more gradual change in direction is beneficial to fluid dynamics. They help in minimizing the pressure drops and turbulence that can occur with sharper bends, ensuring a smoother flow of hydraulic fluid.

90-Degree Fittings

90-degree JIC fittings are essential for creating right-angle connections in hydraulic systems. They are particularly useful in tight spaces where bending a hose at a 90-degree angle would be impractical or could cause damage to the hose.

Bulkhead Fittings

Bulkhead JIC fittings are used to pass hydraulic lines safely and without leakage through bulkheads such as tanks or walls. They ensure system integrity while effectively separating components or parts of a hydraulic system.

Swivel Fittings

Swivel JIC fittings provide a pivoting connection point that can be rotated or moved without disassembling the fitting or twisting the hydraulic hose. These fittings reduce the risk of hose wear and leakage in applications where components need to move or rotate freely.

Tee and Cross Fittings

Tee and cross JIC fittings are used to branch hydraulic lines to distribute fluid from one source to multiple locations.

Applications of Hydraulic JIC Fittings

The utility of JIC fittings stretches across a broad spectrum of industries, marking them as indispensable components in fields as varied as agriculture, construction, and manufacturing. This widespread applicability is a testament to their versatility and the reliability they bring to hydraulic systems. Among the myriad advantages of JIC fittings are their ease of assembly and disassembly, which greatly simplifies maintenance and repair tasks. Additionally, their inherent resistance to vibration makes them an ideal choice for applications subject to constant movement or mechanical shock, ensuring that connections remain secure even in the most challenging conditions. The extensive range of sizes and configurations available further underscores the adaptability of JIC fittings, enabling their use in virtually any hydraulic system configuration one might encounter.

Pre-Installation Checklist

Before diving into the installation of hydraulic JIC fittings, it’s crucial to undertake thorough preparation. This preparation not only sets the stage for a smooth installation process but also ensures the safety and reliability of the hydraulic system. Let’s explore the essential steps, tools, and safety measures required to get started.

Tools Required

The installation of JIC fittings demands precision and the right set of tools. Each tool plays a significant role in ensuring that the fittings are installed correctly and securely. Here are some of the essential tools and their purposes:

Wrenches: Adjustable wrenches are indispensable for tightening and loosening fittings. Using two wrenches simultaneously — one to hold the fitting and the other to turn the nut — helps prevent the twisting of lines.

Tube Cutters: A clean, square cut on the hydraulic tube is vital for a leak-free connection. Tube cutters provide a precise cut, reducing the risk of leaks at the fitting interface.

Flaring Tools: For creating the 37-degree flare on tubing, a flaring tool is necessary. This flare matches the angled surface of the JIC fitting, ensuring a tight, leak-proof seal.

Deburring Tools: After cutting the tube, it’s essential to remove any sharp edges or burrs. Deburring tools ensure a smooth surface that won’t damage the sealing surface or O-ring.

Inspection Tools: Gauges and calipers are useful for verifying the dimensions of fittings and tubes, ensuring they meet the required specifications for a secure fit.

Safety Measures

Working with hydraulic systems requires a keen awareness of safety to prevent accidents and injuries. Here are some critical safety measures to observe:

Protective Gear: Always wear appropriate protective gear, including gloves, safety glasses, and steel-toed boots, to protect against hydraulic fluid spills and flying debris.

Depressurizing the System: Before starting any work, ensure the hydraulic system is fully depressurized. This step is crucial to prevent accidental discharge of hydraulic fluid under pressure.

Awareness of Surroundings: Be conscious of your environment, especially the potential for slipping on hydraulic fluids or tripping over equipment.

Fire Safety: Because hydraulic fluid is flammable, keep a fire extinguisher nearby and ensure the work area is well-ventilated to prevent the buildup of fumes.

Preparing the Fittings and Hydraulic Lines

Proper preparation of the fittings and hydraulic lines is foundational to a successful installation. This process includes several key steps:

Inspection: Carefully inspect all fittings and hydraulic lines for any signs of damage, such as cracks, nicks, or corrosion. Damaged components should be replaced to avoid leaks or system failures.

Compatibility Check: Ensure that the fittings and hydraulic lines are compatible in size, material, and pressure rating. Mismatched components can lead to leaks or damage under pressure.

Cleaning: Remove any contaminants from the fittings and tubing. Cleanliness is critical to prevent dirt or debris from entering the system, which can cause wear or blockages.

Deburring: After cutting the tubing to the desired length, use a deburring tool to smooth the cut edge. This step is crucial to prevent damage to the sealing surfaces and ensure a leak-free connection.

Flaring: For tubing that requires flaring, use a flaring tool to create a 37-degree flare that matches the fitting. This precise angle is critical for a secure fit and leak-proof seal.

Step-by-Step Installation Guide

Inspection

Objective: Ensure the compatibility and integrity of both hydraulic lines and fittings before installation.

Process: Carefully examine the hydraulic lines and fittings for any signs of damage, such as cracks, nicks, or any form of debris that might compromise the installation. Verify that the fittings match the hydraulic line in terms of size, type, and material.

Preparation

Objective: Prepare the hydraulic line for fitting installation.

Process: If necessary, use a tube cutter to cut the hydraulic line to the required length, ensuring a clean, square cut. After cutting, use a deburring tool to remove any sharp edges or burrs from the cut end of the line, creating a smooth surface for fitting installation.

Flaring (If Applicable)

Objective: Create a 37-degree flare on the hydraulic line to match the JIC fitting angle.

Process: Utilize a flaring tool to form a precise 37-degree flare at the end of the hydraulic line. This flare is essential for establishing a leak-proof seal with the JIC fitting.

Fitting Installation

Objective: Securely connect the fitting to the hydraulic line.

Process: Start by threading the fitting nut onto the hydraulic line, followed by threading the fitting itself. It’s important to hand-tighten the fitting initially to ensure proper engagement and alignment, avoiding cross-threading.

Tightening

Objective: Secure the fitting to the correct torque specification to ensure a leak-proof connection.

Process: Use two wrenches for this step — one to hold the fitting in place and the other to tighten the nut. This prevents the fitting from turning and potentially damaging the hydraulic line. Tighten the nut to the manufacturer’s recommended torque specification, being careful not to over-tighten, as this could strip the threads or damage the fitting and the line.

Common Mistakes to Avoid

When installing JIC fittings, certain pitfalls can compromise the integrity and performance of the hydraulic system. Awareness and proactive measures can prevent these issues:

Cross-threading: This occurs when the fitting is not properly aligned with the thread of the port or hose. To avoid cross-threading, start threading by hand to ensure proper alignment. If resistance is felt, backtrack and realign rather than forcing the fitting.

Over-tightening: Excessive force can strip threads or deform the fitting and the sealing surface, leading to leaks or fitting failure. Adhering to the manufacturer’s torque specifications is crucial. Use a torque wrench whenever possible to apply the correct amount of torque.

Under-tightening: Insufficient torque can lead to leaks due to inadequate seal compression. Ensure that fittings are tightened to the recommended torque value, checking for leaks under pressure after installation.

Using Damaged Components: Inspecting all fittings and hydraulic lines for damage before installation is essential. Damaged threads, cracks, or deformities can prevent a proper seal, leading to leaks or system failure. Replace any damaged components before proceeding with the installation.

Troubleshooting Installation Issues

Leaks

Immediate Action: Verify that the fitting is tightened to the manufacturer’s recommended torque. Over- or under-tightening can lead to leaks.

Further Steps: If leaks persist after ensuring proper torque, disassemble the connection for a thorough inspection. Look for signs of damage to the threads, fitting, or tubing. Ensure no foreign material is present on the sealing surfaces. Re-install after ensuring all components are clean and undamaged.

Poor Fit

Verification: Double-check the compatibility of the fitting with the hydraulic line. This includes checking the size, type (male or female), thread pattern, and material. Incorrectly matched components can lead to poor fit and potential system failure.

Resolution: Replace any components that do not match exactly. Always refer to the manufacturer’s specifications for both the fittings and the hydraulic lines.

Pressure Drop

Investigation: A significant pressure drop post-installation could indicate several issues, such as under-tightening, which might not create a proper seal, or using an incorrect fitting type that does not match system requirements.

Diagnostic Steps: Check the entire system for any signs of leaks or improper fittings. Ensure all fittings are correctly tightened. If the issue persists, consult the system’s hydraulic schematic to verify that the correct type of fittings is used and that they are installed in the correct orientation.

Additional Troubleshooting Tips

Cross-Contamination: Ensure that different materials (e.g., stainless steel and carbon steel) are not used together in the same system to prevent galvanic corrosion.

Thread Damage: Inspect threads on both the fittings and the hydraulic lines for any signs of damage. Even minor thread damage can prevent a proper seal.

Use of Sealants: While JIC fittings are designed to seal without additional sealants, ensure no unauthorized sealants have been used, as they can cause issues with the hydraulic fluid and system performance.

Tightening Hydraulic JIC Fittings

Understanding the Tightening Process

The correct tightening of JIC hydraulic fittings is crucial to prevent leaks and ensure the longevity of both the fitting and the hydraulic system. Over-tightening can be as detrimental as under-tightening. The former can lead to deformation of the fitting, damage to the threads, or even cracking, while the latter may result in leaks or disconnection under pressure. Therefore, understanding and applying the correct torque is essential for a secure and reliable connection.

Tools for Tightening JIC Fittings

Torque wrenches are highly recommended for the tightening process as they allow for precise application of torque. These tools are critical in preventing over-tightening, ensuring that each fitting is tightened to the manufacturer’s specified torque value.

The Flats Method

The flats method is a commonly used technique for achieving the correct torque without a torque wrench, particularly in field conditions where precise tools may not be available. This method involves tightening the nut by a specific number of flat surfaces on the hex nut after finger-tightening. While useful, it’s less precise than using a torque wrench and can potentially lead to over-tightening if not done with care.

Final Inspection and Testing

After installation and tightening, conducting a thorough inspection and testing phase is critical. This includes checking for any signs of over-tightening such as thread damage, leaks, or any deformation of the fitting and tubing. Pressure testing the system can help verify that connections are secure and there are no leaks, ensuring everything is assembled correctly and functioning as intended.

Over-tightening JIC Hydraulic Fittings

Over-tightening JIC fittings can compromise the integrity of the hydraulic system. It can lead to damaged threads, compromised seal integrity, and even cracking of the fitting or flared end of the tubing. These issues can result in leaks and reduced system performance, and they may necessitate costly repairs or replacements. Therefore, it’s essential to follow the specified torque values and use the appropriate tools and techniques to avoid over-tightening.

Conclusion

The correct installation and tightening of JIC hydraulic fittings is vital to the efficiency of your hydraulic system. By following this guide, you can ensure that your systems are maintained to a high standard. If you still have any questions, feel free to contact Topa with your confusion!

Apr, 2024

How to Troubleshoot Reusable Hydraulic Hose Fittings?

Introduction

Common Problems and Diagnostics

Leaks

Poor Connection

Visible Wear and Tear

Unusual Noises

How to Fix Common Issues

Replacing O-rings

a. Remove Old O-rings

b. Clean the Groove

c. Apply Lubricant

d. Install New O-rings

Cleaning Threads

a. Initial Cleaning

b. Apply New Thread Tape (PTFE Tape，if necessary)

c. Final Tightening

Tightening Connections

a. Inspect the Fittings

b. Use Proper Tools

c. Follow Specifications

When to Replace vs Repair

Age and Wear

Severity of Damage

Cost-Benefit Analysis

Conclusion

FAQ

What are the most common signs that a reusable hydraulic hose fitting is failing?

How often should reusable hydraulic hose fittings be inspected?

What should I do if I notice a leak in a reusable hydraulic hose fitting?

Can I repair a cracked reusable hydraulic hose fitting?

What tools are needed for repairing or replacing reusable hydraulic hose fittings?

How do I decide whether to repair or replace a reusable hydraulic hose fitting?

More Posts

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Apr, 2024

How to Select the Right Reusable Hydraulic Hose Fittings

Table of Contents

Introduction

Understanding Reusable Hydraulic Hose Fittings

What are Reusable Hydraulic Fittings?

Design Features

Factors to Consider When Selecting Reusable Hose Fittings

Material Types

Steel

Brass

Stainless Steel

Size and Fitting Type

Measuring for Size

Choosing the Right Type

Pressure Ratings and Compatibility

Pressure Ratings

Compatibility

Environment and Application

Temperature Extremes

Corrosive Environments

Vibration

Application-Specific Considerations

Common Mistakes to Avoid

Incorrect Sizing

Overlooking Material Compatibility

Inadequate Installation

Ignoring System Changes

Neglecting Routine Inspections

Conclusion

FAQ

More Posts

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Apr, 2024
