Metric Compression Fittings: Everything You Need to Know

Metric Compression Fittings: Everything You Need to Know

Introduction

Metric Compression Fittings are critical components used to create secure, leak-proof connections in various piping and tubing systems. These fittings are designed to withstand high pressure and temperature, making them indispensable in industries such as hydraulics, pneumatics, automotive, plumbing, HVAC, aerospace, and defense. This post aims to provide a comprehensive understanding of metric compression hydraulic fittings, covering their definition, advantages, applications, working principles, and selection criteria. By exploring these aspects, we aim to equip you with the knowledge needed to make informed decisions when choosing and using Metric compression hydraulic fittings in your projects.

What Are Metric Compression Hydraulic Fittings?

Metric compression hydraulic fittings are specialized connectors used to join sections of tubing or piping securely and without leakage. They are commonly utilized in various applications where maintaining the integrity of fluid or gas systems is crucial. The primary components of a metric compression fitting include a compression nut, a compression ring (or ferrule), and a fitting body. When the nut is tightened, it compresses the ring onto the tubing, creating a tight, secure seal that prevents leaks.

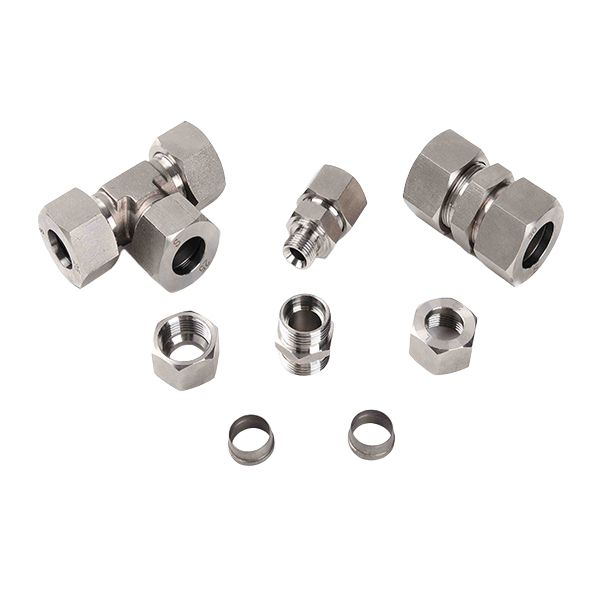

Metric Compression hydraulic fitting

Types

Metric compression hydraulic fittings come in two main types: single ferrule and double ferrule.

Single Ferrule

Single ferrule fittings use one compression ring to create a seal between the tubing and the fitting body. The single ferrule design is simple and effective, providing a strong grip and seal with fewer components. These fittings are often chosen for applications where ease of installation and cost-effectiveness are priorities. They are widely used in various industries due to their reliability and straightforward design.

Double Ferrule

Double ferrule fittings feature two compression rings: a front ferrule and a back ferrule. The front ferrule creates a seal on the tubing surface while the back ferrule provides additional support and grip, enhancing the fitting’s overall performance. This design ensures a more secure connection and is particularly useful in high-pressure and high-vibration environments. Double ferrule fittings are known for their superior sealing capabilities and resistance to mechanical stress, making them ideal for critical applications.

Common Materials Used

Metric compression fittings are manufactured from various materials, each chosen for its specific properties and suitability for different applications. The most common materials include:

Stainless Steel: Known for its excellent corrosion resistance, strength, and durability, stainless steel is often used in harsh environments and applications requiring high levels of hygiene, such as in food processing, pharmaceutical, and chemical industries.

Brass: Brass fittings are popular for their good corrosion resistance, machinability, and thermal conductivity. They are widely used in plumbing, HVAC, and automotive applications due to their cost-effectiveness and reliability.

Other Materials: Depending on the specific requirements, Metric compression hydraulic fittings can also be made from other materials like plastic, copper, and various alloys. Each material offers unique advantages in terms of performance, cost, and suitability for different operating conditions.

Advantages

Leak-Proof Connections

One of the most significant advantages of Metric hydraulic compression fittings is their ability to create leak-proof connections. The compression mechanism ensures a tight seal between the fitting and the tubing, preventing any fluid or gas from escaping. This feature is critical in applications where even a minor leak can lead to significant safety hazards or operational inefficiencies.

High Pressure and Temperature Tolerance

Metric compression hydraulic fittings are designed to withstand high pressures and temperatures, making them suitable for demanding environments. They are constructed from robust materials like stainless steel and brass, which can endure extreme conditions without compromising performance. This high tolerance makes them ideal for applications in hydraulic systems, where pressures can be exceptionally high, and in environments with significant temperature variations, such as automotive or industrial processes.

Easy Installation and Maintenance

Another notable advantage of Metric compression hydraulic fittings is their ease of installation and maintenance. Unlike welded or soldered joints, compression fittings do not require specialized tools or equipment for installation. They can be quickly assembled using basic tools, which simplifies the installation process and reduces labor costs. Additionally, their design allows for easy disassembly and reassembly, facilitating straightforward maintenance and replacement without the need for complex procedures or significant downtime.

Applications

Hydraulic Systems

In hydraulic systems, where fluid power is used to perform various functions, maintaining high-pressure integrity is vital. Metric compression hydraulic fittings are commonly used to connect hydraulic lines and components, ensuring that the hydraulic fluid remains contained within the system. Their ability to withstand high pressures and prevent leaks makes them indispensable in heavy machinery, construction equipment, and industrial automation systems.

Automotive Applications

In the automotive industry, Metric compression hydraulic fittings are used in various systems, including fuel lines, brake systems, and air conditioning units. Their robust construction and ability to withstand high pressures and temperatures make them suitable for the demanding conditions encountered in vehicles. The fittings ensure that fluids, such as fuel and brake fluid, are securely transported without leaks, contributing to the overall safety and performance of the vehicle.

Plumbing and HVAC Systems

Metric compression hydraulic fittings are also extensively used in plumbing and HVAC (Heating, Ventilation, and Air Conditioning) systems. In plumbing, they provide secure connections for water supply lines, ensuring leak-free performance in residential, commercial, and industrial settings. In HVAC systems, these fittings are used to connect refrigerant lines, ensuring the efficient transfer of cooling or heating fluids. Their versatility and ease of installation make them a preferred choice for contractors and engineers in these applications.

Choosing the Right Metric Compression Fitting

Selecting the appropriate metric compression fitting for your application is crucial to ensure system integrity, safety, and performance. Several key factors must be taken into account during the selection process:

Material Compatibility

The material of the compression fitting must be compatible with the fluid or gas it will be in contact with and the operating environment. For example, stainless steel is often chosen for its excellent corrosion resistance, making it ideal for harsh environments and applications requiring high levels of hygiene, such as food processing and pharmaceuticals. Brass is favored for its good corrosion resistance, machinability, and thermal conductivity, making it suitable for plumbing, HVAC, and automotive applications. Choosing the wrong material can lead to premature failure, corrosion, or chemical reactions that compromise the system’s integrity.

Pressure and Temperature Ratings

It is essential to choose fittings that can withstand the maximum pressure and temperature conditions of your application. Each fitting comes with specified pressure and temperature ratings, which indicate the limits within which the fitting can operate safely. Exceeding these limits can lead to leaks, bursts, or other catastrophic failures. Therefore, always ensure that the selected fitting meets or exceeds the required specifications for your system’s operating conditions.

Metric Compression ferrule Fittings

Sizing and Thread Type

Proper sizing is crucial for ensuring a secure and leak-free connection. Metric compression hydraulic fittings are available in various sizes, and selecting the correct size involves matching the fitting to the outside diameter of the tubing. Additionally, the thread type and pitch must be compatible with the mating components. Mismatched threads can lead to improper sealing, leaks, and mechanical failure. Always verify the thread type (e.g., parallel or tapered) and ensure it matches the mating parts.

Common Standards and Specifications

Metric compression hydraulic fittings are manufactured according to various standards and specifications to ensure compatibility and performance. Understanding these standards can help you select the right fittings for your application:

DIN (Deutsches Institut für Normung)

DIN standards are widely recognized and used in many industries worldwide. They cover various aspects of compression fittings, including dimensions, materials, and performance requirements. DIN-compliant fittings ensure high quality and compatibility with other DIN-standard components, making them a reliable choice for many applications.

ISO (International Organization for Standardization)

ISO standards provide internationally recognized guidelines for the design, manufacturing, and testing of compression fittings. ISO-compliant fittings are designed to meet stringent global standards, ensuring consistency, reliability, and interoperability across different regions and industries. Choosing ISO-compliant fittings can simplify sourcing and ensure compatibility with other ISO-standard components.

EN (European Norm)

EN standards are specific to the European Union and cover a wide range of industrial products, including compression fittings. EN standards ensure that fittings meet the necessary safety, quality, and performance criteria required in the European market. Using EN-compliant fittings can facilitate compliance with regional regulations and ensure high-quality performance.

Metric vs. Imperial Compression Fittings

Key Differences in Sizing and Standards

Metric and imperial compression fittings differ primarily in their sizing conventions and the standards they adhere to. Metric fittings are measured using the metric system, which uses millimeters (mm) as the unit of measurement for tubing outer diameters (OD). In contrast, imperial fittings use the imperial system, measuring tubing OD in inches.

Sizing

Metric Fittings: Sizes are expressed in millimeters (e.g., 6mm, 8mm, 10mm). This provides a more precise measurement system, particularly advantageous in applications requiring exact dimensions and tight tolerances.

Imperial Fittings: Sizes are expressed in fractions of an inch (e.g., 1/4″, 1/2″, 3/4″). The imperial system, while still widely used in certain regions and industries, offers less precision compared to the metric system.

Standards

Metric Standards: Adherence to standards such as DIN (Deutsches Institut für Normung), ISO (International Organization for Standardization), and EN (European Norm) ensure consistency, quality, and compatibility across a wide range of applications and regions.

Imperial Standards: These fittings typically adhere to standards set by organizations like SAE (Society of Automotive Engineers) and ASTM (American Society for Testing and Materials). While these standards are robust, they are primarily used in regions where the imperial system is predominant, such as the United States.

3420 BSPP Hydraulic Fittings drawing

Advantages of Metric Fittings Over Imperial

Precision and Compatibility

Metric fittings offer greater precision due to their smaller unit measurements. This precision is crucial in applications requiring tight tolerances and exact dimensions, such as in high-performance hydraulic and pneumatic systems.

The widespread international adoption of the metric system facilitates easier sourcing and compatibility across different regions and industries, reducing the risk of mismatched components and improving supply chain efficiency.

Ease of Conversion and Standardization

The metric system’s simplicity, based on multiples of ten, makes calculations and conversions more straightforward compared to the imperial system, which uses fractions and different base units. This ease of use simplifies engineering design, manufacturing processes, and inventory management.

Global standardization around the metric system allows for more consistent manufacturing practices and quality control, ensuring that metric fittings meet stringent international standards and perform reliably in diverse applications.

Situations Where Imperial Fittings Might Be Preferred

Regional Preferences and Legacy Systems

In regions where the imperial system is still predominant, such as the United States, imperial fittings may be preferred due to existing infrastructure and legacy systems. Many industries and applications in these regions have long histories of using imperial measurements and switching to metric fittings might require significant changes to existing processes and equipment.

Maintenance and replacement parts for older systems designed with imperial fittings will often necessitate the continued use of imperial fittings to ensure compatibility.

Industry-Specific Requirements

Certain industries, particularly in North America, have specific standards and practices built around the imperial system. For example, the aerospace and automotive industries in the United States often use imperial fittings to comply with local standards and regulations.

In applications where equipment and components are primarily sourced from imperial-standard suppliers, maintaining consistency with imperial fittings can simplify procurement and reduce the risk of compatibility issues.

In summary, while Metric compression hydraulic fittings offer advantages in terms of precision, global compatibility, and ease of use, imperial fittings may still be preferred in regions with established legacy systems, industry-specific requirements, and user familiarity. Understanding the key differences and advantages of each system can help you make informed decisions when selecting the appropriate fittings for your specific applications.

Conclusion

In summary, Metric compression hydraulic fittings are essential components known for their precision, reliability, and versatility across various industries. They offer leak-proof connections, withstand high pressures and temperatures, and are easy to install and maintain. Understanding the differences between metric and imperial fittings, along with the importance of choosing the right materials and adhering to standards, ensures optimal performance in any application. For further information or to find the right fittings for your needs, consider contacting Topa.

FAQ

Metric compression hydraulic fittings are connectors used to join sections of tubing or piping securely, creating leak-proof connections in various fluid and gas systems.

Common materials include stainless steel, brass, and sometimes plastic or copper, each chosen based on the specific application requirements such as corrosion resistance and strength.

They provide leak-proof connections, high pressure and temperature tolerance, easy installation and maintenance, and versatility across different applications.

Consider factors such as material compatibility, pressure and temperature ratings, sizing, thread type, and adherence to relevant standards like DIN, ISO, and EN.

These fittings are used in hydraulic and pneumatic systems, automotive applications, plumbing, HVAC, aerospace, and defense industries.

Single ferrule fittings use one compression ring to seal the connection, while double ferrule fittings use two rings for enhanced sealing and grip, offering better performance in high-pressure and high-vibration environments.

Contact Topa

Have a question or suggestion? Fill out the form below to get in touch with one of our experts.

Metric Bite Type Fittings A Comprehensive Guide

Metric Bite Type Fittings: A Comprehensive Guide

Metric Bite Type Fittings: A Comprehensive Guide

Introduction

Metric bite type fittings are essential components in fluid and gas systems, renowned for their reliability and versatility. These fittings provide a secure and leak-proof connection, making them indispensable in industries such as hydraulics, pneumatics, automotive, and more. This guide delves into the different types of metric bite type fittings, their specific applications, and the best practices for their selection, installation, and maintenance. By understanding these aspects, professionals can make informed decisions that enhance the efficiency and safety of their systems.

Understanding Metric Bite Type Fittings

Definition and Basic Concept

Metric bite type fittings are mechanical connectors designed to join sections of tubing in a secure and leak-proof manner. The term “bite type” refers to the way the fitting interacts with the tube. When the nut of the fitting is tightened, the ferrule (a ring-like component within the fitting) bites into the outer surface of the tube. This action creates a strong mechanical grip and a gas-tight or liquid-tight seal. These fittings are often used in high-pressure applications due to their ability to maintain integrity under stress.

The basic concept behind metric bite type fittings revolves around their ability to provide a reliable and efficient connection without the need for welding or soldering. This makes them particularly advantageous in applications where disassembly and reassembly are required, or where heat-sensitive materials are involved. The metric specification indicates that the dimensions and tolerances of these fittings adhere to the metric system, which is widely used in international applications and industries.

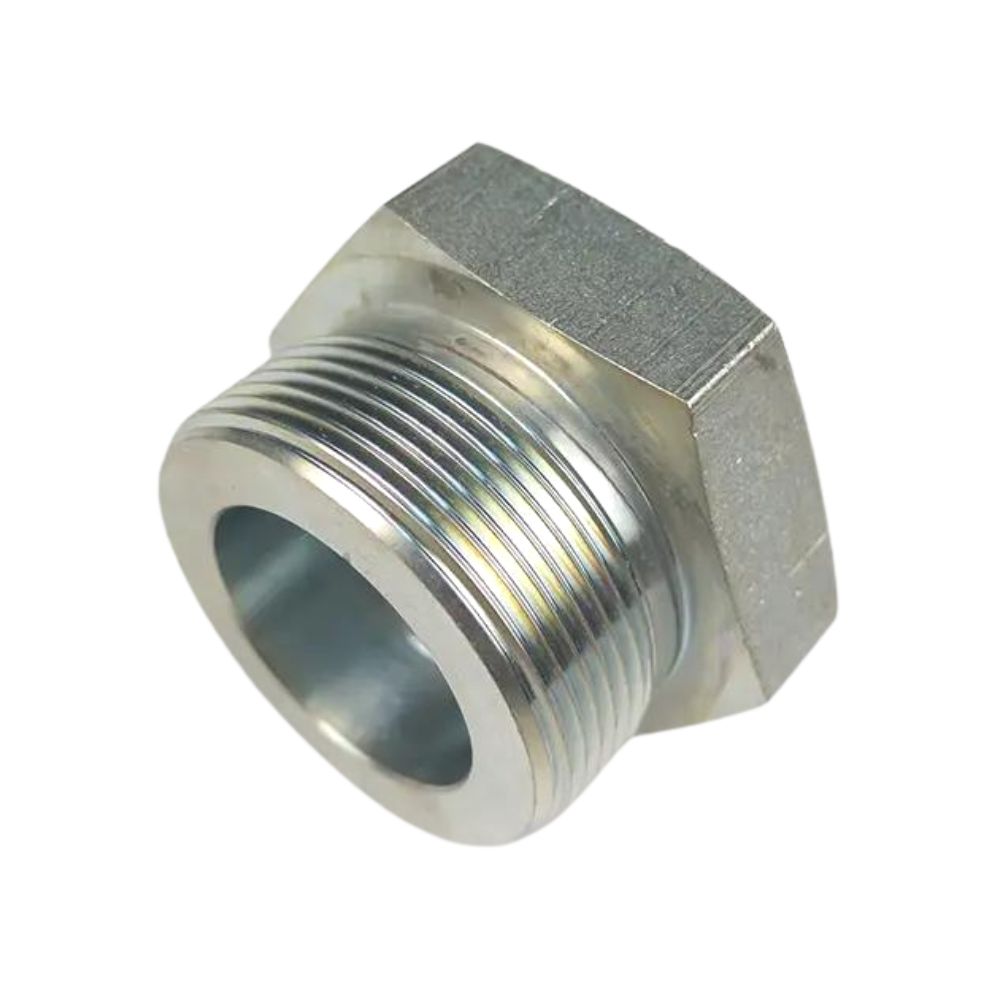

4C Bite Type Tube Plug Topa

History and Development

The history of metric bite type fittings dates back to the mid-20th century when the need for reliable and easy-to-install connections in hydraulic and pneumatic systems became increasingly apparent. Early versions of these fittings were developed to address the limitations of traditional threaded and welded connections, which often required specialized skills and tools.

The development of bite type fittings was driven by the demands of industries such as aerospace, automotive, and manufacturing, where high-pressure systems are common. Engineers sought a solution that could offer both reliability and ease of use. The introduction of the ferrule-based design marked a significant advancement, providing a secure grip on the tubing without compromising the flow of fluids or gases.

Over the years, advancements in materials science and manufacturing techniques have further refined the design and performance of metric bite type fittings. Modern fittings are made from a variety of materials, including stainless steel, brass, and carbon steel, each selected for their specific properties and suitability for different applications. Innovations such as improved ferrule designs and enhanced sealing technologies have continued to enhance the performance and reliability of these fittings.

Key Features and Benefits

Metric bite type fittings offer several key features and benefits that make them a preferred choice in many applications:

Leak-Proof Seal: The biting action of the ferrule creates a tight seal that prevents leaks, even under high pressure. This ensures the integrity of the fluid or gas system, reducing the risk of contamination and loss of efficiency.

High Pressure and Temperature Tolerance: These fittings are designed to withstand extreme conditions, making them suitable for use in demanding environments such as hydraulic systems, automotive applications, and industrial machinery.

Ease of Installation: Unlike welded or soldered connections, metric bite type fittings can be installed quickly and easily with standard tools. This reduces installation time and costs, making them an attractive option for both initial installations and maintenance.

Versatility: Available in a wide range of sizes and configurations, metric bite type fittings can be used in various applications. They are compatible with different types of tubing materials, including metal and plastic.

Standardization: Adhering to metric standards ensures compatibility and interchangeability with other components, simplifying the design and maintenance of fluid and gas systems.

Types of Metric Bite Type Fittings

Metric bite type fittings come in various configurations to meet the diverse needs of fluid and gas systems. These fittings are engineered to provide reliable and leak-proof connections in a range of applications, from industrial machinery to automotive systems. The primary types of metric bite type fittings include male fittings, female fittings, elbow fittings, tee fittings, and cross fittings. Additionally, these fittings are available in different materials, such as stainless steel and brass, to suit specific requirements and environments.

Male Fittings

Male fittings, also known as male connectors, feature external threads that allow them to be screwed into female fittings or ports. These fittings are commonly used to connect tubing to other components in a system, such as valves, pumps, and cylinders. The external threading ensures a secure and tight connection, preventing leaks and maintaining system integrity.

Female Fittings

Female fittings, or female connectors, have internal threads that receive the external threads of male fittings. These fittings are designed to connect tubing to male-threaded components, creating a seamless and reliable connection. Female fittings are widely used in systems where quick disassembly and reassembly are required, as they provide a straightforward and secure method for joining components.

Elbow Fittings

Elbow fittings are designed to change the direction of tubing in a fluid or gas system. These fittings are available in different angles, most commonly 45 degrees and 90 degrees, allowing for precise routing of tubing around obstacles and within confined spaces. Elbow fittings are essential in applications where space constraints or specific flow directions must be accommodated. They are available in both male and female configurations, as well as in various sizes and materials.

Metric Bite Type Fittings type

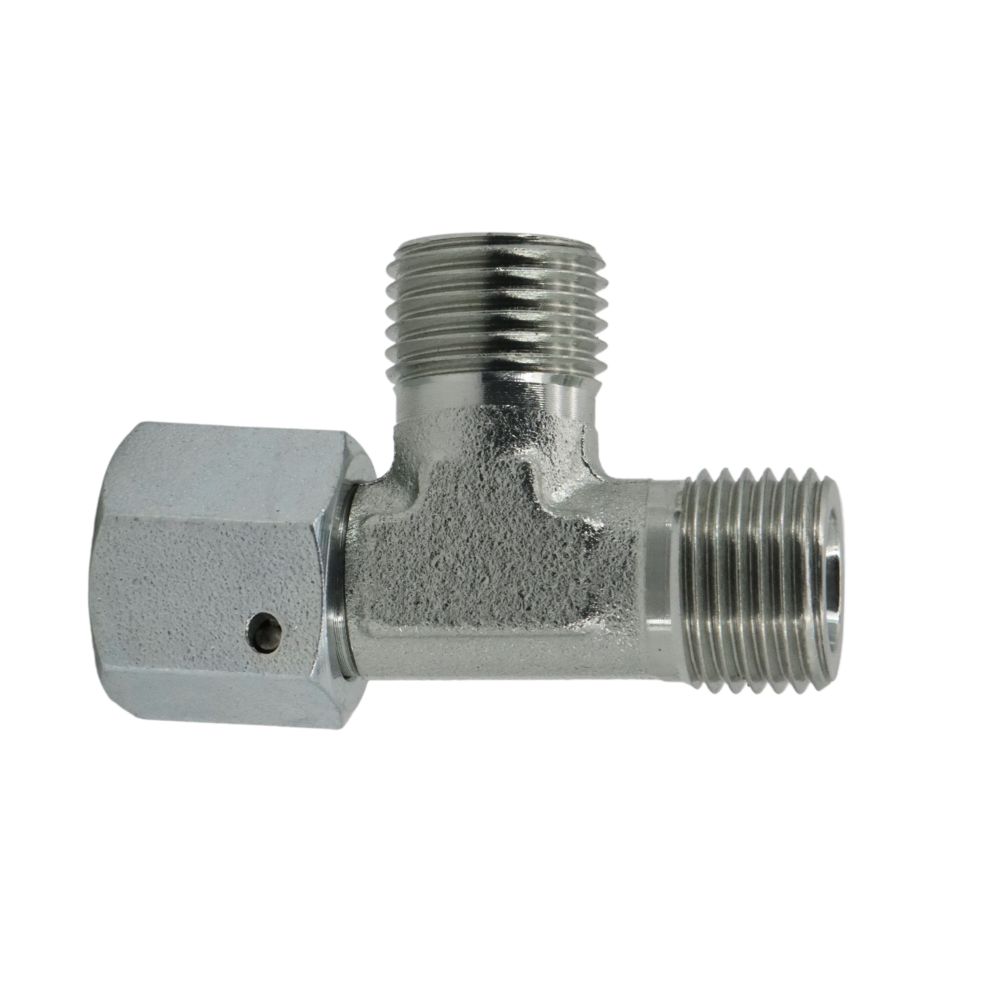

Tee Fittings

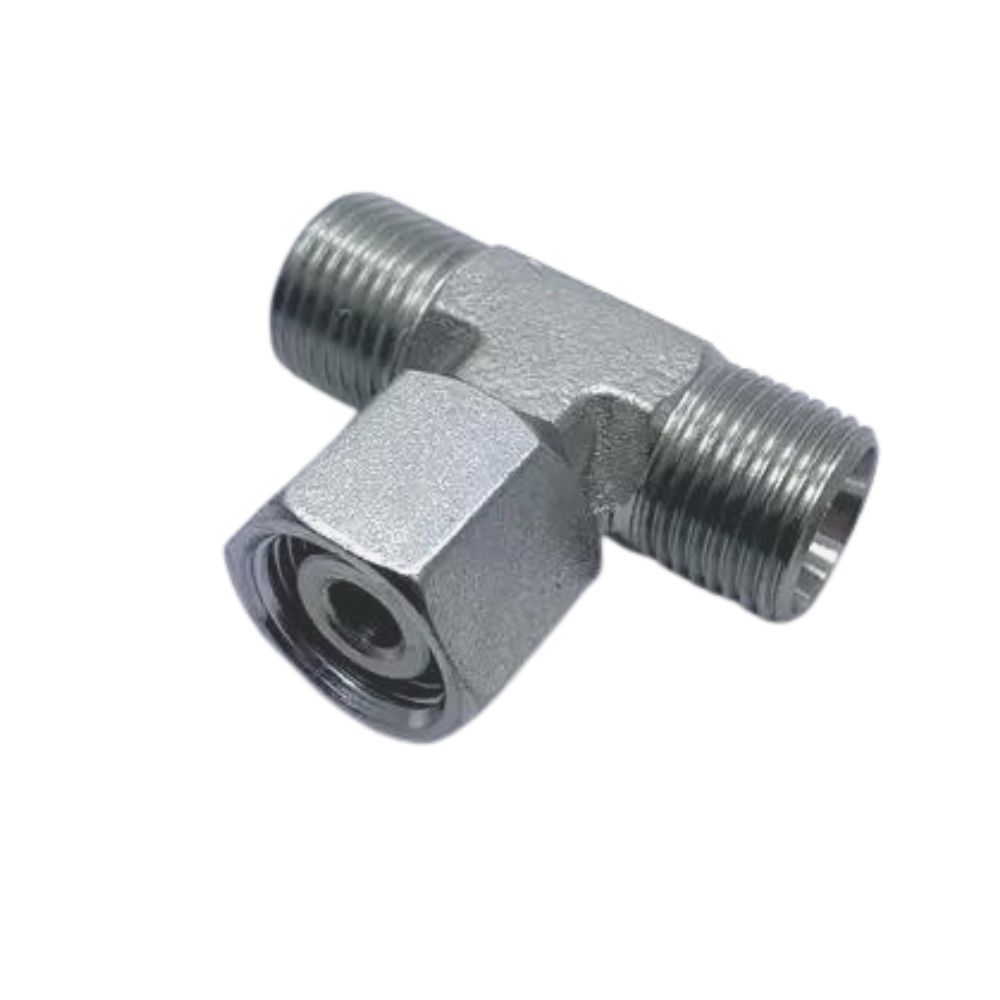

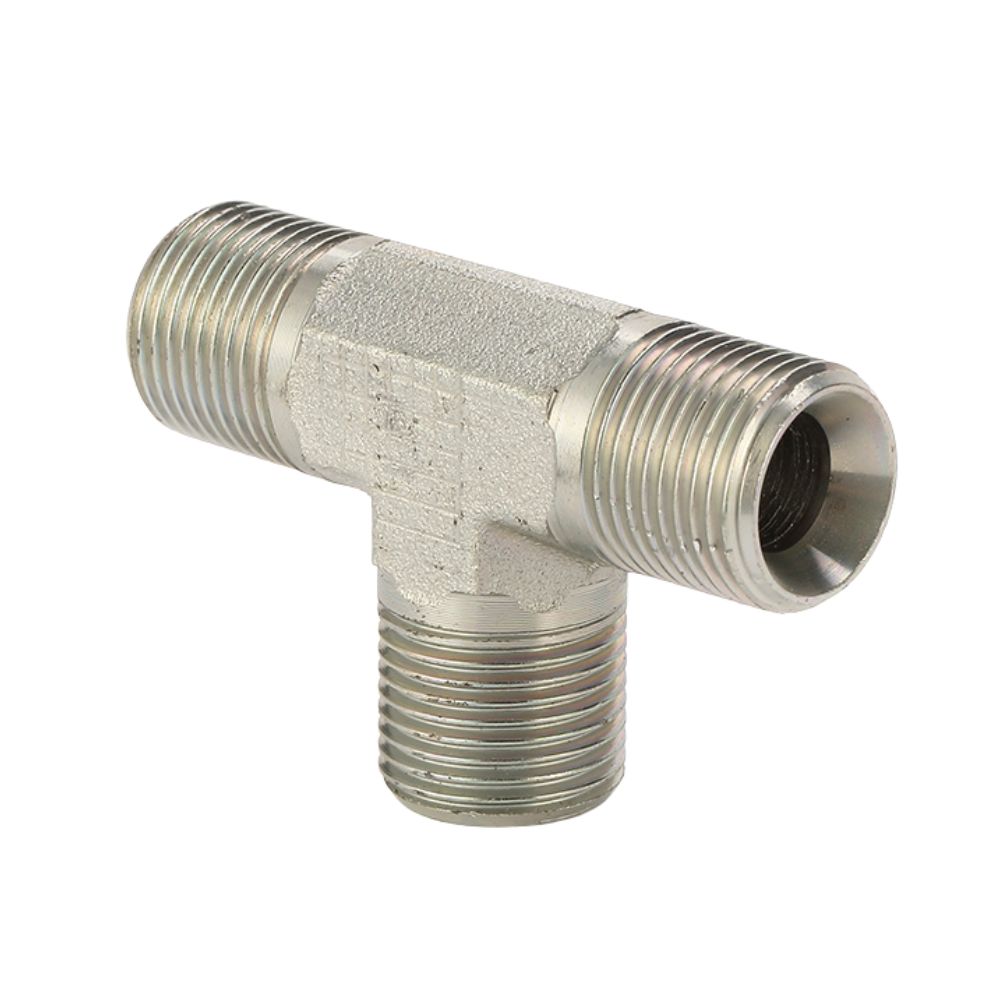

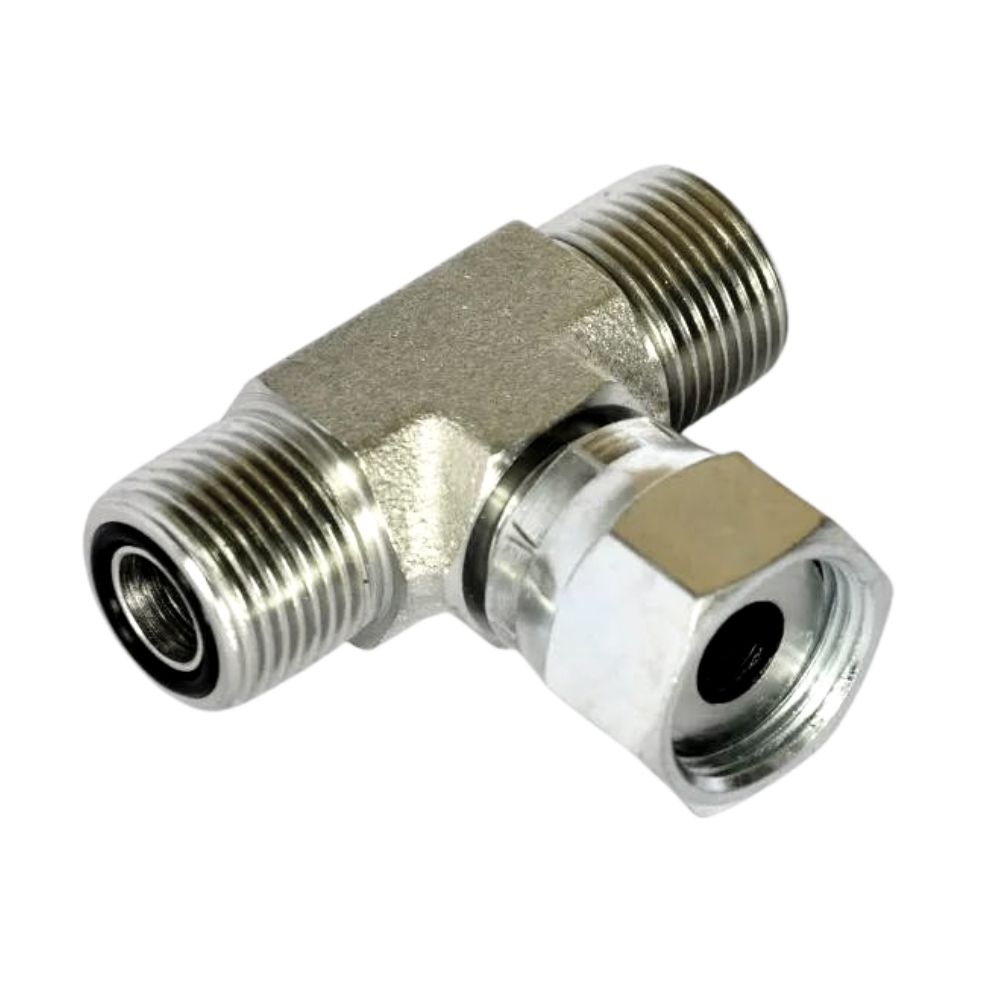

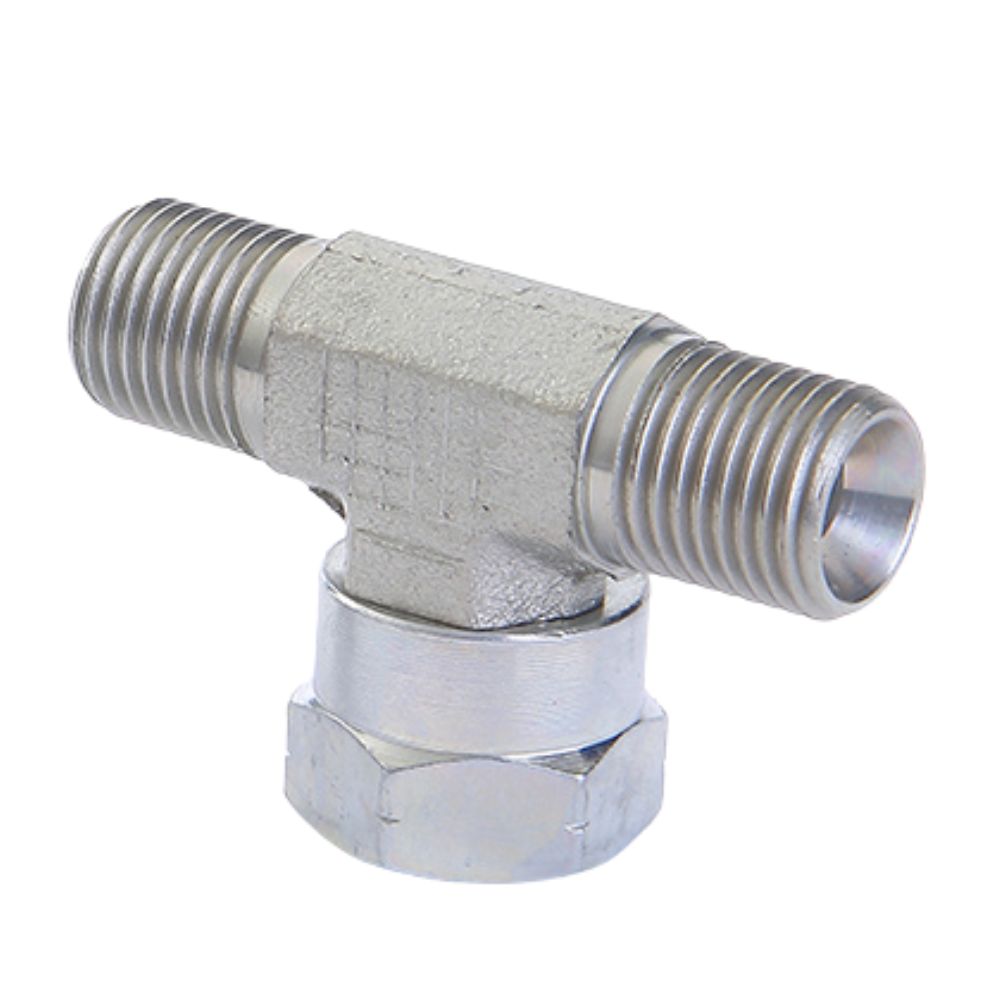

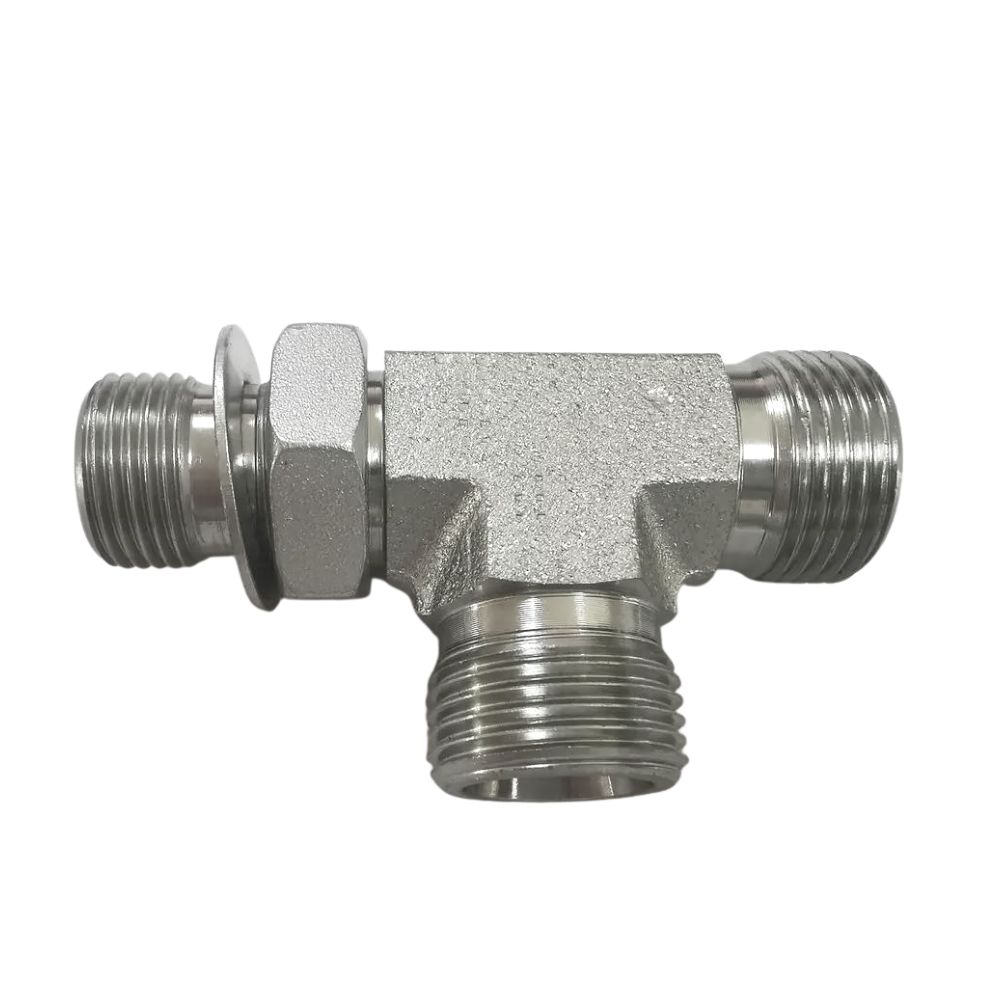

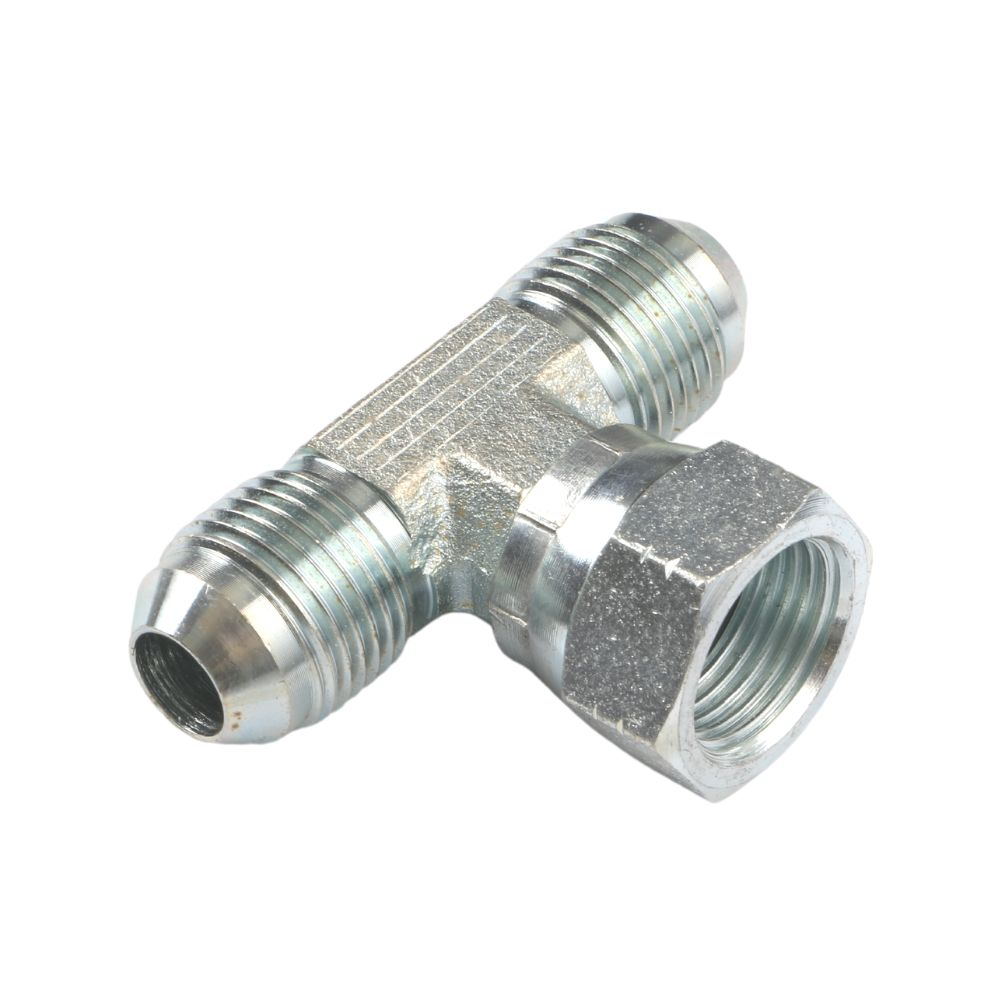

Tee fittings, or tee connectors, facilitate three-way connections in a fluid or gas system. These fittings have one inlet and two outlets (or vice versa), forming a T-shaped intersection. Tee fittings are commonly used to split or combine fluid or gas flow in a system, making them ideal for applications requiring distribution to multiple points. They are available in equal and reduced configurations, allowing for different flow rates and tube sizes to be connected.

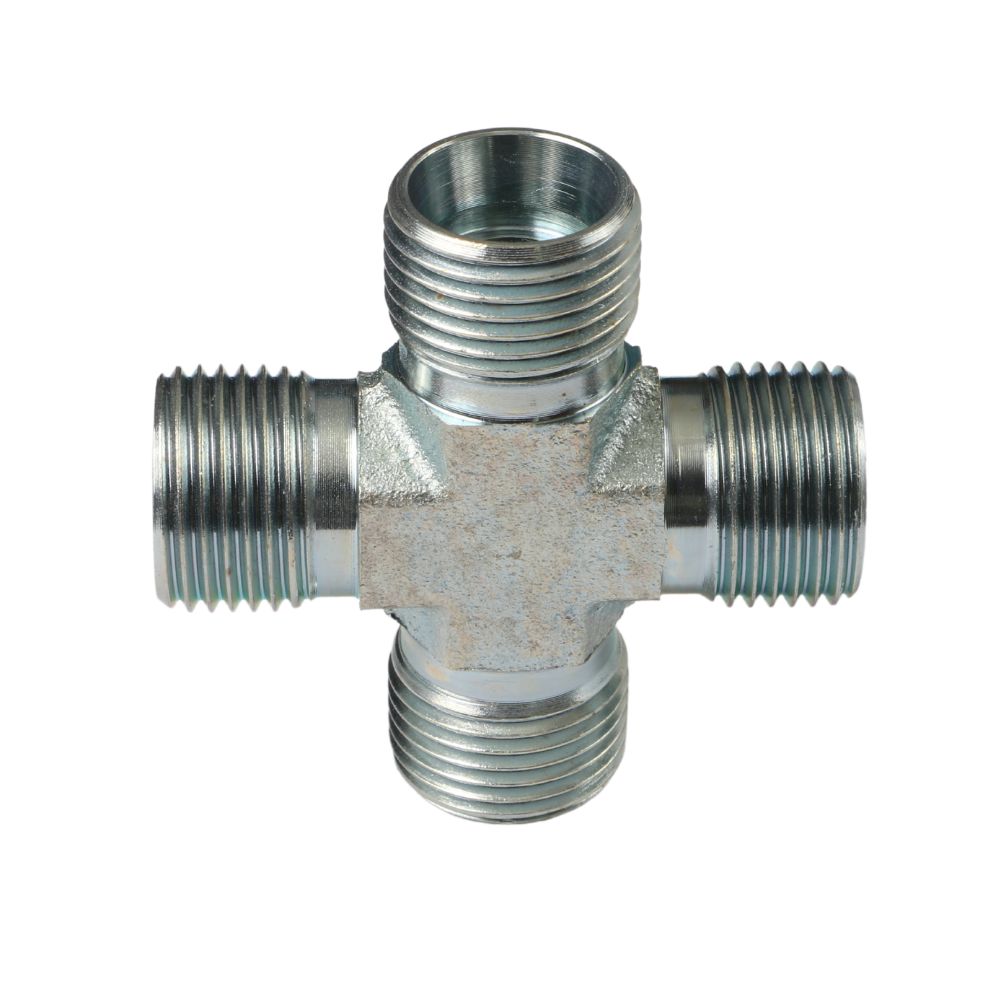

Cross Fittings

Cross fittings, also known as four-way fittings, enable four-way connections in a fluid or gas system. These fittings have one inlet and three outlets (or vice versa), forming a cross-shaped intersection. Cross fittings are used in applications where fluid or gas needs to be distributed to multiple branches from a single source. They are less common than tee fittings but are essential in complex systems that require multiple flow paths.

Material Variations

Metric bite type fittings are manufactured from a variety of materials to meet the demands of different applications and environments. The most common materials include:

Stainless Steel: Known for its corrosion resistance, strength, and durability, stainless steel fittings are ideal for harsh environments, such as marine and chemical processing applications.

Brass: Brass fittings offer excellent machinability, corrosion resistance, and conductivity, making them suitable for applications in plumbing, refrigeration, and low-pressure hydraulic systems.

Carbon Steel: Carbon steel fittings provide high strength and durability, making them suitable for high-pressure and heavy-duty applications, such as industrial machinery and automotive systems.

Applications of Metric Bite Type Fittings

Hydraulic Systems

In hydraulic systems, metric bite type fittings are crucial for maintaining the integrity and efficiency of fluid power systems. These fittings connect hydraulic hoses, tubes, and components, ensuring that high-pressure fluids are transferred safely and reliably. Common applications include:

Construction Equipment: Hydraulic excavators, bulldozers, and loaders rely on these fittings for the operation of hydraulic cylinders and motors.

Manufacturing Machinery: Presses, injection molding machines, and CNC machines use hydraulic systems with metric bite type fittings for precise control and movement.

Automotive Industry

The automotive industry extensively uses metric bite type fittings in various systems where durability and leak-proof connections are critical. These fittings are found in:

Fuel Lines: Ensuring secure and leak-free connections in fuel delivery systems.

Brake Systems: Providing reliable connections in hydraulic brake lines, crucial for vehicle safety.

Transmission Cooling Systems: Used in cooling lines to maintain optimal transmission temperatures.

Plumbing Systems

In plumbing systems, these fittings are used to connect pipes and tubes, ensuring a leak-proof seal that is vital for water distribution and waste management. Applications include:

Residential Plumbing: Connecting water supply lines to faucets, toilets, and showers.

Commercial Buildings: Ensuring reliable connections in water distribution systems for offices, hotels, and restaurants.

Irrigation Systems: Providing secure connections in garden and agricultural irrigation systems.

How Metric Bite Type Fittings Work

Metric bite type fittings function through a unique biting mechanism that creates a strong and leak-proof connection between tubing and the fitting itself. The core components of a metric bite type fitting include the body, nut, and ferrule (or cutting ring). Here’s a step-by-step breakdown of how they work:

Insertion: The tube is inserted into the fitting body until it reaches a defined stop. This ensures the tube is properly aligned within the fitting.

Tightening the Nut: When the nut is tightened, it forces the ferrule to move axially along the tube. As the ferrule advances, it starts to bite into the outer surface of the tube.

Biting Action: The ferrule’s sharp edge cuts into the tube, creating a secure grip. This biting action deforms the tube slightly, forming a tight, mechanical seal between the tube and the fitting body.

Sealing: The compression of the ferrule against the tube and fitting body forms a robust seal. This seal is capable of withstanding high pressures and prevents any leakage of fluids or gases.

The effectiveness of this mechanism relies on the precise engineering of the fitting components, ensuring that the ferrule bites uniformly into the tube and the seal remains intact even under fluctuating pressures and temperatures.

Assembly and Installation Process

Proper assembly and installation of metric bite type fittings are crucial for achieving a secure and leak-proof connection. Here is a step-by-step guide:

Preparation

Ensure that the tube end is cut squarely and is free from burrs. Use a tube cutter for a clean cut.

Clean the tube end to remove any debris, oil, or contaminants that might affect the sealing process.

Insertion

Insert the tube into the fitting body until it bottoms out against the internal shoulder of the fitting. This ensures that the tube is properly positioned for the biting action.

Initial Tightening:

Hand-tighten the nut onto the fitting body. This initial tightening aligns the tube and ferrule properly within the fitting.

Wrench Tightening:

Using a wrench, tighten the nut further according to the manufacturer’s specifications. Typically, this involves turning the nut a specific number of turns beyond hand-tight.

The common practice is to mark the position of the nut and then tighten it by an additional 1.5 to 2 turns for initial assembly, ensuring the ferrule bites securely into the tube.

Inspection

After tightening, inspect the connection to ensure there is no visible gap between the fitting body and the nut.

Check for any misalignment or improper seating of the tube within the fitting.

Maintenance Tips

Conduct Regular Inspections

Frequency: Schedule inspections at regular intervals based on the system’s operating conditions and manufacturer recommendations.

What to Look For: Check for signs of wear, corrosion, or damage on the fittings, tubing, and connected components.

Actions: If any wear or damage is detected, replace the affected components promptly to avoid system failure.

Clean the Fittings Periodically

Cleaning Frequency: Establish a routine cleaning schedule to maintain the fittings’ cleanliness and prevent contamination.

Cleaning Method: Use appropriate cleaning solutions and methods recommended by the manufacturer. Avoid abrasive materials that could damage the fittings.

Benefits: Regular cleaning prevents the buildup of dirt, debris, and contaminants that can compromise the seal and functionality of the fittings.

Apply Lubrication if Recommended by the Manufacturer

Lubrication Points: Identify the specific points on the fitting that require lubrication, such as the threads or ferrule.

Lubrication Type: Use the type of lubricant specified by the manufacturer to ensure compatibility and effectiveness.

Procedure: Apply the lubricant as directed during installation or maintenance to reduce friction and wear, and to ensure smooth assembly and disassembly.

Troubleshooting Common Issues

Leaks

Symptoms: The presence of fluid or gas escaping from the fitting connection.

Causes:

Improper installation (e.g., insufficient tightening or misalignment of the tube).

Worn or damaged components (e.g., ferrule, tube, or fitting body).

Solutions:

Check for proper installation by verifying the fitting is tightened according to manufacturer specifications.

Inspect the fitting and tubing for damage; replace any worn or damaged parts.

Reassemble the fitting, ensuring the tube is fully inserted and the nut is properly tightened.

Vibration

Symptoms: Excessive movement or noise from the fitting connection, potentially leading to leaks or component fatigue.

Causes:

Inadequately secured fittings.

High levels of vibration in the operating environment.

Solutions:

Ensure all fittings are securely tightened.

Consider using vibration-resistant fittings or supports to dampen the effects of vibration.

Implement additional supports or clamps to stabilize the tubing and fittings, reducing movement and the risk of fatigue.

Conclusion

In summary, metric bite type fittings are crucial for ensuring secure, leak-proof connections in fluid and gas systems across various industries. Their robust design, ease of installation, and versatility make them indispensable in applications ranging from hydraulics and pneumatics to automotive and HVAC systems. Regular maintenance and proper troubleshooting are essential to maximize their lifespan and efficiency. For tailored solutions and optimal performance, always seek professional advice to address specific needs and challenges in your systems.

FAQ

Metric bite type fittings are used to create secure, leak-proof connections in fluid and gas systems, commonly found in hydraulic, pneumatic, automotive, and HVAC applications.

The fittings themselves can often be reused if they are in good condition, but the ferrules typically should not be reused as they may not seal properly a second time.

Ensure the tube is cut squarely, deburred, and clean before insertion. Follow the manufacturer’s torque specifications when tightening the nut to create a proper seal.

Metric bite type fittings are commonly made from stainless steel, brass, and carbon steel, chosen based on the specific application’s pressure, temperature, and corrosion resistance requirements.

Regular inspections should be conducted at intervals recommended by the manufacturer or based on the system’s operating conditions, typically ranging from monthly to annually.

Check for proper installation and ensure the fitting is tightened according to specifications. If the leak persists, inspect for damage and replace any worn components as needed.

Contact Topa

Have a question or suggestion? Fill out the form below to get in touch with one of our experts.

Metric Bolt Measurements A Comprehensive Size Guide

Metric Bolt Measurements: A Comprehensive Size Guide

Metric Bolt Measurements: A Comprehensive Size Guide

Table of Contents

Introduction

Accurate bolt measurements are crucial in various industries, from automotive and aerospace to construction and manufacturing. These measurements ensure the integrity and safety of mechanical assemblies, preventing failures that can lead to costly downtime or even catastrophic accidents. This guide aims to provide a comprehensive understanding of metric bolt measurements, offering detailed insights into the components, dimensions, grades, and measurement techniques essential for selecting and using bolts correctly.

Basics of Metric Bolt Measurements

What are Metric Bolts?

Metric bolts are a type of fastener that conform to the metric measurement system, which is the predominant standard used globally. Unlike imperial bolts, which are measured in inches, metric bolts are specified in millimeters, facilitating uniformity and compatibility in international projects. These bolts are available in a variety of sizes and grades, each tailored to meet specific application needs. The use of metric bolts ensures precision and standardization across diverse industries, making them essential components in engineering, manufacturing, and construction.

Why Accurate Measurements Matter

Accurate bolt measurements are essential for ensuring the integrity and safety of mechanical assemblies. Incorrect bolt dimensions can lead to improper fits, which may result in mechanical failures, structural weaknesses, or even catastrophic accidents. Precise measurements ensure that the bolts fit correctly, providing the necessary strength and stability. This is particularly crucial in industries where safety and reliability are paramount, such as aerospace, automotive, and construction.

Components of a Metric Bolt

Overall Length

Head

The head of a metric bolt is the top part that is usually shaped to accommodate a specific type of tool, such as a wrench or a screwdriver. Common head shapes include hexagonal, round, and flat. The head size and shape are important for the application as they determine the tool required for installation and the amount of torque that can be applied.

Shank

The shank is the unthreaded portion of the bolt that lies between the head and the thread. The length of the shank varies depending on the bolt’s intended use. It provides additional strength and helps in positioning the bolt correctly in the assembly.

Thread

The thread is the helical ridge that runs along the bolt’s length, starting from the shank to the end of the bolt. Threads are crucial for the bolt’s ability to screw into a nut or a threaded hole, providing the necessary clamping force to hold components together. The pitch of the thread, which is the distance between adjacent threads, is a critical measurement in ensuring compatibility with nuts and threaded holes.

Nut

The nut is a separate component that works with the bolt to fasten components together. It has an internal thread that matches the bolt’s external thread. The correct pairing of bolt and nut threads is vital for achieving the desired clamping force and ensuring the assembly’s stability.

Industries Using Metric Bolts

Industries Using Metric Bolts

Metric bolts are widely used across various industries due to their standardization and reliability. Some of the key industries include:

Automotive: In the automotive industry, metric bolts are used extensively in the assembly of vehicles. They are essential for fastening parts such as engines, chassis, and body panels, ensuring the vehicle’s structural integrity and performance.

Construction: Construction projects often rely on metric bolts for assembling structural components, machinery, and equipment. These bolts are crucial for maintaining the safety and stability of buildings, bridges, and other infrastructures.

Machinery: In the manufacturing and machinery industries, metric bolts are used to assemble equipment, tools, and machines. They provide the necessary strength and precision required for the proper functioning of mechanical systems.

Understanding Bolt Dimensions

Diameter

Nominal Diameter

The nominal diameter of a bolt refers to the diameter of the bolt’s shank, which is the part without the threads. This measurement is crucial as it determines the bolt’s size category and ensures that it fits correctly in pre-drilled holes or nuts. The nominal diameter is typically specified in millimeters for metric bolts.

How to Measure Diameter

To measure the diameter of a bolt accurately, you can use a caliper. Place the caliper’s jaws around the unthreaded part of the bolt and read the measurement. Ensure that the caliper is perpendicular to the bolt to avoid skewed readings. For threaded sections, measuring across the threads at their widest point will give you the major diameter.

Length

Overall Length vs. Grip Length

Overall Length: The overall length of a bolt is the total length from the flat part of the head to the tip of the bolt. This measurement is essential for determining how far the bolt will extend into the material or components it is fastening.

Grip Length: The grip length is the unthreaded portion of the bolt, which lies between the head and the start of the threads. This section bears the load and provides the clamping force required in the assembly. It is important to choose a bolt with an appropriate grip length to ensure a secure hold.

Tools for Measuring Bolt Length

To measure the length of a bolt, you can use a ruler or a caliper. For longer bolts, a ruler is sufficient. Place the bolt alongside the ruler, starting from the head to the tip, and note the measurement. For more precision, especially with shorter bolts, a caliper is preferred. Ensure that the bolt is straight when taking the measurement to avoid inaccuracies.

Measure Banjo bolt Thread

Thread Pitch

Thread pitch is the distance between adjacent threads on a bolt, measured parallel to the bolt’s axis. It is usually specified in millimeters for metric bolts. For example, a bolt with a thread pitch of 1.5 mm has 1.5 millimeters between each thread. The thread pitch is critical for ensuring compatibility between the bolt and the nut or threaded hole, as it affects the fit and the fastening strength.

Methods for Measuring Thread Pitch

To measure thread pitch, you can use a thread gauge or a caliper. A thread gauge consists of multiple blades, each marked with a different pitch. Simply match the bolt’s threads to the gauge’s blades until you find the one that fits perfectly. Alternatively, using a caliper, measure the distance between the peaks of two adjacent threads and note the measurement.

Head Size

Different Types of Bolt Heads

Bolts come with various head types, each designed for specific applications and tools. Common types include:

Hexagonal Head: Widely used for its ease of installation with a wrench or socket.

Round Head: Often used where a low-profile head is needed.

Flat Head: Designed to sit flush with the material surface, providing a smooth finish.

Socket Head: Used in applications requiring a recessed head, installed with an Allen wrench.

Measuring Head Dimensions

To measure the head dimensions, you need to consider both the diameter and the height of the head. Use a caliper to measure the diameter across the flats for hexagonal heads or the overall diameter for round heads. Measure the height from the base to the top of the head. These measurements are important for ensuring that the bolt head fits within the intended space and can be properly engaged by the appropriate tool.

Understanding these dimensions is crucial for selecting the right bolt for your application, ensuring proper fit, and achieving the desired mechanical performance. Accurate measurement techniques and tools are essential for maintaining the integrity and safety of your assemblies.

Metric Bolt Grades and Strength

Bolt Grades

Metric bolts come in various grades, each indicating the bolt’s strength and suitability for different applications. The grade of a bolt is determined by its material composition and the heat treatment it has undergone. Higher grade bolts are made from stronger materials and are subjected to more rigorous heat treatments, making them suitable for applications that require higher strength and durability. Common metric bolt grades include:

Grade 4.6: Typically used for light-duty applications. It has a tensile strength of 400 MPa and a yield strength of 240 MPa.

Grade 8.8: One of the most common grades, suitable for medium-duty applications. It has a tensile strength of 800 MPa and a yield strength of 640 MPa.

Grade 10.9: Used for high-strength applications, this grade offers a tensile strength of 1000 MPa and a yield strength of 900 MPa.

Grade 12.9: The highest common grade, used in the most demanding applications. It has a tensile strength of 1200 MPa and a yield strength of 1080 MPa.

Markings and Identification

Some metric bolts are marked with their grade on the head, which makes it easy to identify their strength and material composition. These markings usually consist of two numbers separated by a dot. The first number represents one-tenth of the nominal tensile strength in MPa, while the second number is the ratio of yield strength to tensile strength. For example, a Grade 8.8 bolt has a tensile strength of 800 MPa and a yield strength of 80% of that, or 640 MPa. Additionally, bolts may have other markings to indicate the manufacturer’s identification or other specific attributes.

Strength Specifications

Tensile Strength

Tensile strength is the maximum amount of tensile (pulling) stress that a bolt can withstand before failing. It is a critical parameter for determining the suitability of a bolt for a particular application. High tensile strength is required in applications where the bolt will be subjected to significant stretching forces.

Yield Strength

Yield strength is the amount of stress at which a bolt begins to deform plastically. Below this stress, the bolt will return to its original shape when the load is removed. Above this stress, the bolt will be permanently deformed. Yield strength is an important consideration in applications where the bolt will be subjected to constant or fluctuating loads, as it indicates the load level beyond which the bolt will not maintain its shape.

Proof Load

Proof load is the maximum stress that a bolt can withstand without any permanent deformation. It is a safety margin below the yield strength, ensuring that the bolt remains functional under the specified load. Proof load testing is typically performed to verify the bolt’s quality and performance in real-world conditions.

Choosing the Right Grade

Selecting the right bolt grade is crucial for ensuring the safety, reliability, and performance of the assembly. Here are some factors to consider:

Load Requirements: Determine the tensile and shear loads the bolt will be subjected to. Higher loads require bolts with higher tensile and yield strength.

Environmental Conditions: Consider the operating environment, such as exposure to moisture, chemicals, or extreme temperatures. Stainless steel or coated bolts may be necessary for corrosive environments.

Material Compatibility: Ensure the bolt material is compatible with the materials being fastened. This helps prevent galvanic corrosion and other material-related issues.

Safety Margins: Always choose a bolt grade that provides a sufficient safety margin beyond the maximum expected load to account for unexpected stresses and ensure long-term reliability.

Cost and Availability: While higher-grade bolts offer superior strength, they are also more expensive. Balance the cost with the application’s requirements to make an economical choice without compromising safety.

How to Custom Metric Bolt Fitting

Create the Blueprint

The first step in customizing a metric bolt fitting is to create a detailed blueprint. This involves drafting a technical drawing that outlines all the specifications of the bolt, including its dimensions, thread type, head shape, and any special features. Ensure that the blueprint adheres to industry standards and includes precise measurements and tolerances. Collaboration with engineers or designers might be necessary to ensure the blueprint meets the required functionality and compatibility with other components.

banjo Thread Size

Select the Dimensions

Once the blueprint is ready, the next step is to select the appropriate dimensions for your custom bolt. This includes:

Diameter: Choose the nominal diameter based on the load requirements and the size of the holes it will pass through.

Length: Determine the overall length, ensuring it provides the necessary clamping force and fits the intended application.

Thread Pitch: Select the correct thread pitch to ensure compatibility with the corresponding nuts or threaded holes.

Accurate dimension selection is critical for ensuring the bolt performs as expected in its application.

Choose the Material

The material of the bolt is crucial for its strength, durability, and suitability for the intended environment. Consider the following factors when choosing the material:

Load Requirements: High-strength applications may require alloy steel or other high-strength materials.

Corrosion Resistance: For environments exposed to moisture or chemicals, consider materials like stainless steel or bolts with corrosion-resistant coatings.

Temperature Resistance: If the bolt will be used in high-temperature environments, select materials that can withstand the thermal stresses.

Common materials for metric bolts include carbon steel, alloy steel, stainless steel, and titanium. Each material has its own set of properties, so it’s important to choose one that matches the specific needs of your application.

Conclusion

In this comprehensive guide on metric bolt measurements, we covered essential aspects of understanding and selecting the right metric bolts for various applications. We defined metric bolts and emphasized the importance of accurate measurements. We explored bolt dimensions—diameter, length, thread pitch, and head size—along with measurement techniques. Additionally, we discussed bolt grades, strength specifications, and factors to consider when choosing the right grade. Finally, we outlined steps for customizing metric bolt fittings. To ensure accuracy, use proper tools, regularly calibrate instruments, double-check measurements, understand specifications, and consult experts. Apply this knowledge to enhance project reliability, and share the guide to promote best practices across industries.



FAQ

What are metric bolts?

Metric bolts are fasteners measured in millimeters, adhering to the metric system, which is the standard used worldwide.

How do I measure the diameter of a metric bolt?

Use a caliper to measure the diameter of the bolt’s shank (unthreaded part) or the major diameter (widest part) of the threaded section.

What is thread pitch?

Thread pitch is the distance between adjacent threads, measured parallel to the bolt’s axis. It ensures compatibility with nuts or threaded holes.

Why are bolt grades important?

Bolt grades indicate the strength and material composition of the bolt, helping to determine its suitability for different applications.

How can I ensure accurate bolt measurements?

Use high-quality measuring tools, regularly calibrate them, double-check measurements, and familiarize yourself with industry standards.

What factors should I consider when choosing a bolt grade?

Consider load requirements, environmental conditions, material compatibility, safety margins, and cost to select the appropriate bolt grade for your application.

Contact Topa

Have a question or suggestion? Fill out the form below to get in touch with one of our experts.

How to Measure Metric Grease Fitting Sizes Accurately

How to Measure Metric Grease Fitting Sizes Accurately

How to Measure Metric Grease Fitting Sizes Accurately

Table of Contents

Introduction

Metric grease fittings, also known as Zerk fittings, allow for the effective lubrication of machinery components, ensuring smooth operation and longevity. These small but vital components come in different sizes, and using the correct size is essential to prevent equipment failure, reduce downtime, and maintain safety standards. This comprehensive guide aims to provide clear, step-by-step instructions on how to measure metric grease fitting sizes accurately, ensuring that maintenance professionals and engineers can select the right fittings for their specific applications.

Understanding Metric Grease Fittings

Metric grease fittings are small components designed to facilitate the lubrication of mechanical systems. These fittings allow for the introduction of lubricant under pressure into bearing assemblies, pivot points, and other moving parts to reduce friction and wear. Unlike their imperial counterparts, metric grease fittings adhere to the metric system of measurements, making them essential for equipment and machinery designed with this standard.

There are several types of metric grease fittings, each suited for specific applications:

Straight Fittings: These are the most common type, featuring a straight-through passage for grease flow.

Angled Fittings: Available in 45-degree and 90-degree angles, these fittings are used where straight fittings cannot be installed due to space constraints.

Flush-Type Fittings: Designed to sit flush with the surface, these fittings are used in applications where protruding fittings could be damaged or interfere with operation.

Drive-Type Fittings: These fittings are installed by driving them into place and are used where threading is not feasible.

Button Head Fittings: These are larger fittings used in heavy machinery where higher volumes of grease are required.

Materials and Uses

Metric grease fittings are manufactured from various materials, each chosen for its specific properties and suitability for different environments:

Steel: The most common material used, steel fittings are durable and cost-effective, suitable for general-purpose applications.

Stainless Steel: Offering superior corrosion resistance, stainless steel fittings are ideal for harsh environments, including marine and chemical processing industries.

Brass: Known for its anti-corrosive properties, brass fittings are often used in applications involving water or mild chemicals.

Zinc-Plated Steel: These fittings provide an additional layer of corrosion resistance and are used in outdoor or moist environments.

Importance of Proper Sizing

Accurate sizing of metric grease fittings is paramount for several reasons:

Effective Lubrication: Properly sized fittings ensure that lubricant reaches all necessary parts of the machinery, reducing friction and wear.

Preventing Leaks: Incorrectly sized fittings can lead to leaks, resulting in insufficient lubrication and potential equipment failure.

Ease of Maintenance: Correctly sized fittings simplify the maintenance process, allowing for quick and efficient lubrication without the need for adapters or modifications.

Safety: Ensuring the right size fittings helps maintain the safety of the equipment, preventing malfunctions that could lead to accidents.

Step-by-Step Measurement Process

Accurately measuring metric grease fittings requires careful preparation and the right tools. This section will guide you through each step of the process to ensure precise measurements.



Preparation

Cleaning the Fitting: Before measuring, thoroughly clean the grease fitting to remove any dirt, grease, or debris. Use a solvent or degreaser and a brush to ensure all residues are removed, as contaminants can affect measurement accuracy.

Inspection: Inspect the fitting for any visible damage or wear. Bent or damaged fittings should not be used for measurement as they can provide inaccurate readings. Replace any defective fittings before proceeding.

Drying: Ensure the fitting is completely dry after cleaning. Moisture can also interfere with accurate measurements.

Measuring the Diameter

External Diameter

Select the Right Tool: Use a pair of digital or vernier calipers for precise measurement.

Position the Calipers: Open the calipers and place them around the external diameter of the fitting’s threaded part. Ensure the jaws of the calipers are perpendicular to the axis of the fitting to avoid skewed measurements.

Take the Measurement: Gently close the caliper jaws until they touch the fitting’s surface without applying excessive force. Read the measurement displayed on the calipers.

Record the Measurement: Note down the external diameter to the nearest hundredth of a millimeter for accuracy.

Internal Diameter

Select the Tool: For internal diameters, you can use either a pair of small calipers or a micrometer.

Insert the Calipers: Carefully insert the caliper jaws into the internal bore of the fitting. For micrometers, place the spindle inside the bore.

Take the Measurement: Open the calipers or extend the micrometer spindle until they touch the internal walls of the fitting. Ensure the tool is aligned properly to avoid angled measurements.

Record the Measurement: Read and record the internal diameter.

Measure Metric Grease Fitting

Measuring the Thread Pitch

Thread pitch is the distance between threads, measured in millimeters. It is crucial for ensuring compatibility with corresponding components. Accurate thread pitch measurement ensures that the fitting will mate correctly with the receiving part, preventing leaks and mechanical failures.

Using a Thread Gauge

Select the Thread Gauge: Choose a metric thread gauge that includes various pitch sizes.

Match the Threads: Align the teeth of the thread gauge with the threads of the fitting. Start with a pitch size that seems close to the fitting’s thread.

Check the Fit: If the gauge does not fit perfectly, try the next size until you find a match where the gauge teeth align seamlessly with the fitting’s threads.

Record the Pitch: Once you find the correct thread pitch, record the measurement indicated on the gauge.

Measuring the Length

Overall Length

Select the Right Tool: Use a ruler or a set of calipers.

Position the Tool: Align the ruler or calipers with the fitting’s axis to measure from end to end.

Take the Measurement: Measure the entire length of the fitting, including both the threaded and non-threaded parts.

Record the Measurement: Note down the overall length.

Threaded Length

Identify the Threaded Part: Locate the beginning and end of the threaded section of the fitting.

Position the Tool: Place the ruler or calipers at the start of the threads and extend them to the end of the threads.

Take the Measurement: Measure the length of the threaded part.

Record the Measurement: Note the threaded length separately from the overall length.

Common Mistakes and How to Avoid Them

Accurate measurement of metric grease fittings is crucial for ensuring the proper function and longevity of mechanical systems. However, several common mistakes can lead to incorrect measurements, which can cause equipment malfunctions and increased maintenance costs. Understanding these mistakes and how to avoid them is essential for any maintenance professional or engineer.

Incorrect Tool Usage

Common Mistakes:

Using the Wrong Tool: Using a ruler instead of calipers for diameter measurements, or not using a thread gauge for thread pitch, can lead to inaccurate readings.

Improper Calibration: Not calibrating measurement tools before use can result in significant errors.

Inappropriate Pressure: Applying too much or too little pressure with calipers can skew the measurements.

Incorrect Positioning: Misaligning calipers or micrometers can lead to inaccurate diameter and length measurements.

How to Avoid Them:

Choose the Right Tool: Ensure you are using the appropriate tool for each measurement. Use calipers for diameters, micrometers for small internal diameters, and thread gauges for thread pitch.

Calibrate Tools: Regularly calibrate your measurement tools according to the manufacturer’s instructions to ensure accuracy.

Apply Gentle Pressure: When using calipers, apply gentle and consistent pressure to avoid compressing or distorting the fitting.

Align Properly: Ensure that calipers and micrometers are perpendicular to the surface being measured. This alignment helps avoid angular discrepancies.

rust Metric Grease Fitting

Misreading Measurements

Common Mistakes:

Misinterpreting the Scale: Misreading the scale on a vernier caliper or micrometer can lead to incorrect measurements.

Recording Errors: Failing to record measurements immediately or incorrectly noting them down can cause confusion and errors.

Ignoring Decimal Points: Overlooking decimal points in digital readings can result in significant inaccuracies.

Tips on Accurate Reading and Recording:

Understand the Scale: Familiarize yourself with the scales on your measurement tools. For vernier calipers, understand how to read both the main scale and the vernier scale.

Double-Check Readings: Always double-check your readings before recording them. Cross-reference with a colleague if possible.

Use Digital Tools: If available, use digital calipers and micrometers for easier and more accurate readings.

Record Immediately: Write down measurements as soon as they are taken to avoid memory lapses or errors.

Check Decimal Points: Pay close attention to decimal points and ensure they are accurately recorded.

Ignoring Tolerances

Common Mistakes:

Neglecting Manufacturer Specifications: Ignoring the tolerances specified by the manufacturer can lead to poor fitting and mechanical failures.

Assuming Exact Fit: Believing that all fittings are manufactured to exact sizes without considering allowable variances can cause issues.

Importance of Considering Manufacturing Tolerances:

Fit and Function: Manufacturing tolerances account for slight variances in the production process. Understanding these tolerances ensures that parts will fit and function correctly even if there are minor differences in size.

Avoiding Over-tightening: Recognizing that fittings may vary within a specified range helps prevent over-tightening, which can damage parts and lead to leaks.

How to Account for Tolerances:

Refer to Specifications: Always refer to the manufacturer’s specifications for tolerances. These specifications provide an acceptable range of dimensions for each fitting.

Measure Multiple Times: Take multiple measurements to ensure consistency and accuracy. Variations in your readings can help you understand the tolerance range.

Adjust Measurements: If your measurements are close to the tolerance limits, consider the intended application and whether slight adjustments might be needed.

How to Choose the Suitable Metric Grease Fittings

Selecting the appropriate metric grease fittings is crucial for ensuring efficient lubrication and the smooth operation of mechanical systems. The right choice can prevent equipment failure, reduce maintenance costs, and extend the lifespan of machinery. Here’s a comprehensive guide on how to choose the suitable metric grease fittings.

Understand Your Application

Identify the Equipment Type:

Determine the type of machinery or equipment that requires lubrication. Different machines have different lubrication needs and constraints.

Operating Conditions:

Consider the operating environment, including temperature, humidity, and exposure to chemicals or corrosive substances. This will influence the material choice for the grease fittings.

Lubrication Requirements:

Understand the type and viscosity of the lubricant to be used, as this can affect the choice of fitting.

Consider the Size and Thread Type

Measure Existing Fittings:

If replacing existing fittings, measure the old ones to ensure a proper fit. Use calipers and thread gauges for accurate measurements.

Standard Sizes:

Refer to standard metric sizes to ensure compatibility with existing components. Cross-reference your measurements with industry standards.

Thread Type:

Ensure the thread type matches the receiving component. Common thread types include metric fine and coarse threads.

Evaluate Installation and Maintenance Requirements

Ease of Installation:

Choose fittings that are easy to install and do not require special tools or equipment.

Maintenance Accessibility:

Consider how easy it will be to access the fittings for regular maintenance. Angled fittings may be necessary for hard-to-reach areas.

Factor in Load and Pressure Conditions

Load Bearing Capacity:

Ensure the fittings can handle the load and pressure of the equipment. Heavy machinery may require sturdier fittings like button head fittings.

Pressure Rating:

Verify that the fittings can withstand the pressure of the lubrication system. Consult manufacturer specifications for pressure ratings.

Consult Manufacturer Specifications and Recommendations

Manufacturer Guidelines:

Always refer to the machinery or equipment manufacturer’s guidelines for recommended grease fitting types and specifications.

Industry Standards:

Follow industry standards and best practices for selecting grease fittings to ensure safety and compatibility.

Choosing the right metric grease fittings involves understanding your specific application requirements, selecting the appropriate type and material, ensuring the correct size and thread type, considering installation and maintenance needs, and consulting manufacturer guidelines. By following these steps, you can ensure optimal performance, efficiency, and longevity of your mechanical systems.

Conclusion

In conclusion, accurately measuring metric grease fittings is essential for ensuring proper lubrication and the efficient operation of machinery. We covered the types of metric grease fittings, including straight, angled, flush-type, and button head fittings, and the appropriate materials for different applications, such as steel, stainless steel, brass, and zinc-plated steel. Accurate measurements involve using the right tools, avoiding common mistakes, and considering manufacturing tolerances. Precise measurements prevent equipment failures, reduce maintenance costs, and extend machinery lifespan. We encourage you to apply these measurement techniques in your work and share your experiences to help others achieve optimal performance and reliability in their operations.

FAQ

Metric grease fittings, also known as Zerk fittings, are components used to lubricate mechanical systems by allowing grease to be injected into bearing assemblies and other moving parts.

Accurate measurement ensures proper lubrication, prevents leaks, reduces equipment failures, and extends the lifespan of machinery by ensuring the correct fitting size is used.

Common tools include calipers for measuring diameters, thread gauges for measuring thread pitch, and micrometers for precise internal diameter measurements.

Select the material based on the operating environment: steel for general use, stainless steel for corrosive environments, brass for applications involving water or mild chemicals, and zinc-plated steel for additional corrosion resistance.

The common types include straight fittings for direct access points, angled fittings for space-constrained areas, flush-type fittings for surfaces where protruding fittings could be damaged, and button head fittings for high-volume grease requirements in heavy machinery.

Double-check your measurements for accuracy and compare them with industry standards. If discrepancies persist, re-measure and consider manufacturing tolerances or consult with the fitting manufacturer for guidance.

Contact Topa

Have a question or suggestion? Fill out the form below to get in touch with one of our experts.

Understanding Metric Pipe Fitting Sizes A Quick Reference

Understanding Metric Pipe Fitting Sizes: A Quick Reference

Understanding Metric Pipe Fitting Sizes: A Quick Reference

Introduction

Metric pipe fitting sizes are a standardized system used globally in various industries, such as plumbing, automotive, and manufacturing, for connecting pipes and tubes. These fittings are essential for ensuring compatibility and efficiency in systems that rely on precise fluid or gas flow. The history of metric pipe fittings dates back to the push for international standardization, which aimed to simplify global trade and manufacturing processes. This guide is designed to help you understand metric pipe fitting sizes, offering a quick and easy reference for accurate and reliable installations.

Basics of Metric Pipe Fitting Sizes

Metric pipe fittings are components used to connect sections of pipe or tubing in systems that require the precise conveyance of fluids or gases. These fittings are measured using the metric system, which is based on meters and millimeters. This standardization allows for consistent and accurate sizing, ensuring that parts from different manufacturers can fit together seamlessly.

Common Materials Used

Metric pipe fittings are manufactured from a variety of materials, each chosen for its specific properties and suitability for different applications. Common materials include:

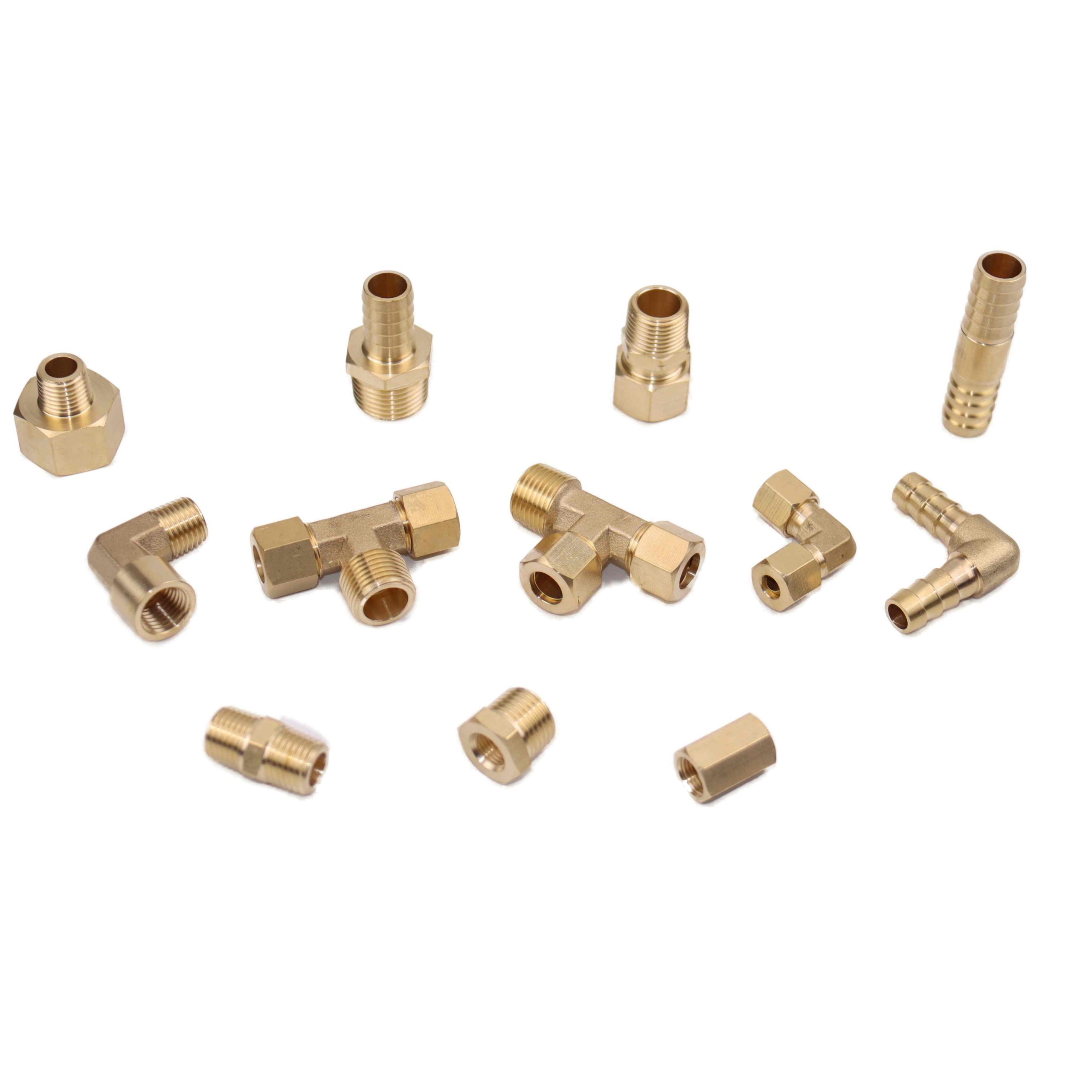

Brass: Known for its durability and resistance to corrosion, brass is often used in plumbing and heating applications.

Stainless Steel: Valued for its strength and resistance to rust and corrosion, stainless steel fittings are ideal for high-pressure and high-temperature environments.

Plastic: Lightweight and resistant to chemical corrosion, plastic fittings are commonly used in residential plumbing and irrigation systems.

Why Metric?

Using metric fittings offers several advantages compared to imperial fittings. One key advantage is the ease of measurement and calculation. The metric system is based on units of ten, which simplifies conversions and reduces the likelihood of errors during design, manufacturing, and installation. Additionally, metric fittings often provide more precise measurements, which is critical in applications requiring high accuracy.

Global Standardization and Its Benefits

Global standardization through the metric system offers significant benefits, particularly in international trade and manufacturing. With metric fittings, companies can source components from around the world without worrying about compatibility issues, as the sizes are universally recognized. This standardization facilitates smoother supply chains, reduces inventory complexity, and ensures that products meet international quality standards.

Understanding Measurements

How Metric Pipe Fittings Are Measured

Metric pipe fittings are measured using the metric system, typically in millimeters (mm). The key dimensions measured include the outer diameter (OD) and the inner diameter (ID) of the pipe, as well as the thread size if applicable. These measurements are critical for ensuring a proper fit and reliable performance in the assembled system.

Diameter: The diameter of a pipe fitting is one of its most crucial measurements. The outer diameter (OD) is the measurement across the widest point of the fitting, while the inner diameter (ID) is the measurement of the open space inside the fitting. These measurements ensure that the pipe and fitting will fit together properly.

Thread Size: For threaded fittings, the thread size is another essential measurement. This includes the pitch (the distance between threads), the thread angle, and the major diameter (the outer edge of the threads). Accurate thread measurements ensure a secure and leak-free connection.

Other Measurements: Additional measurements that may be important depending on the application include the wall thickness of the pipe (which affects its strength and flow capacity) and the overall length of the fitting. These measurements help in designing systems that are both efficient and durable.

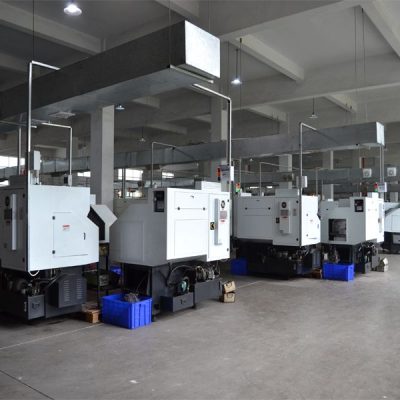

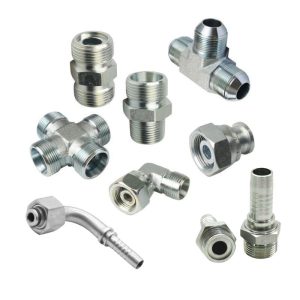

Topa metric hydraulic fitting Manufacturer in China Topa

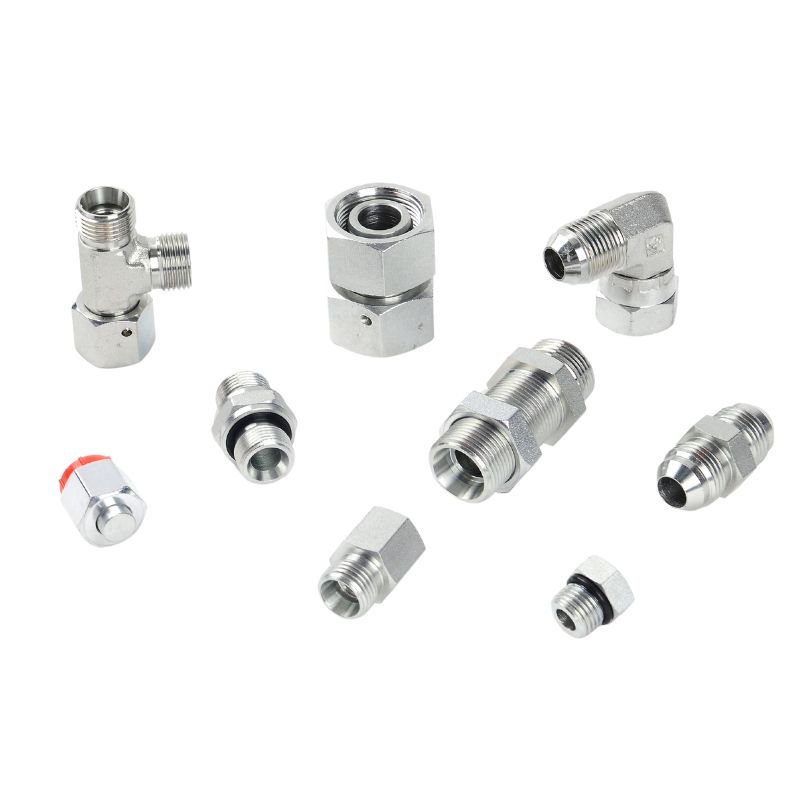

Types of Metric Pipe Fittings

Straight Fittings

Straight fittings, also known as straight connectors or couplings, are used to connect two sections of pipe or tubing in a straight line. They provide a secure and leak-proof connection, ensuring the continuous flow of fluids or gases without any change in direction. These fittings are commonly used in plumbing, hydraulic, and pneumatic systems, as well as in various industrial applications where a direct, uninterrupted pipeline is required.

Common Sizes and Variations

Straight fittings come in a variety of sizes to match the outer diameter (OD) of the pipes they are connecting. Common sizes include 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, and 20 mm. Variations include different thread types (e.g., BSP, NPT) and configurations, such as male-to-male, female-to-female, and male-to-female connectors.

Elbow Fittings

Elbow fittings are used to change the direction of a pipeline, typically by 90 degrees or 45 degrees. These fittings are essential in systems where the pipes need to navigate around obstacles or fit into confined spaces. Elbow fittings are widely used in plumbing, heating, and cooling systems, as well as in industrial piping networks.

Common Sizes and Variations

Common sizes for elbow fittings include 10 mm, 15 mm, 20 mm, 25 mm, and 32 mm. Variations include different angles (e.g., 45-degree, 90-degree), as well as short-radius and long-radius elbows. Additionally, elbows can be threaded or socket-welded, depending on the application and required connection type.

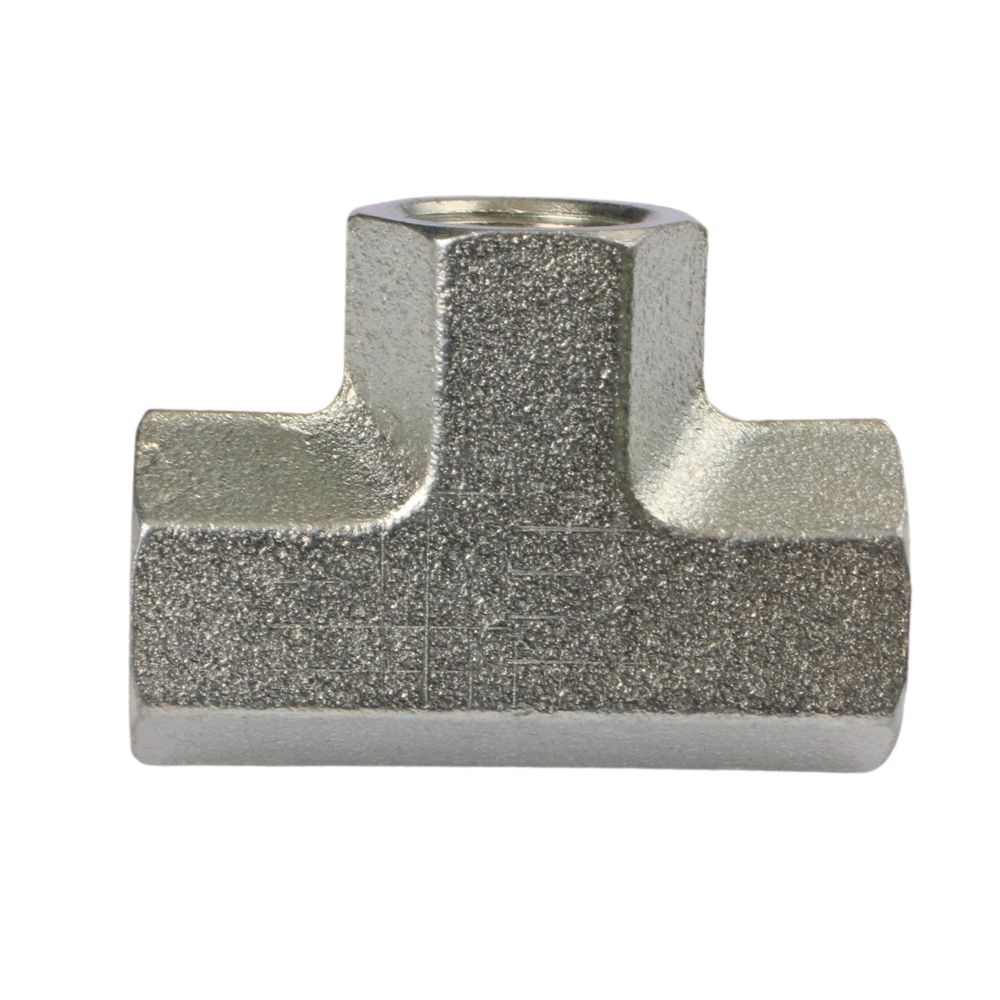

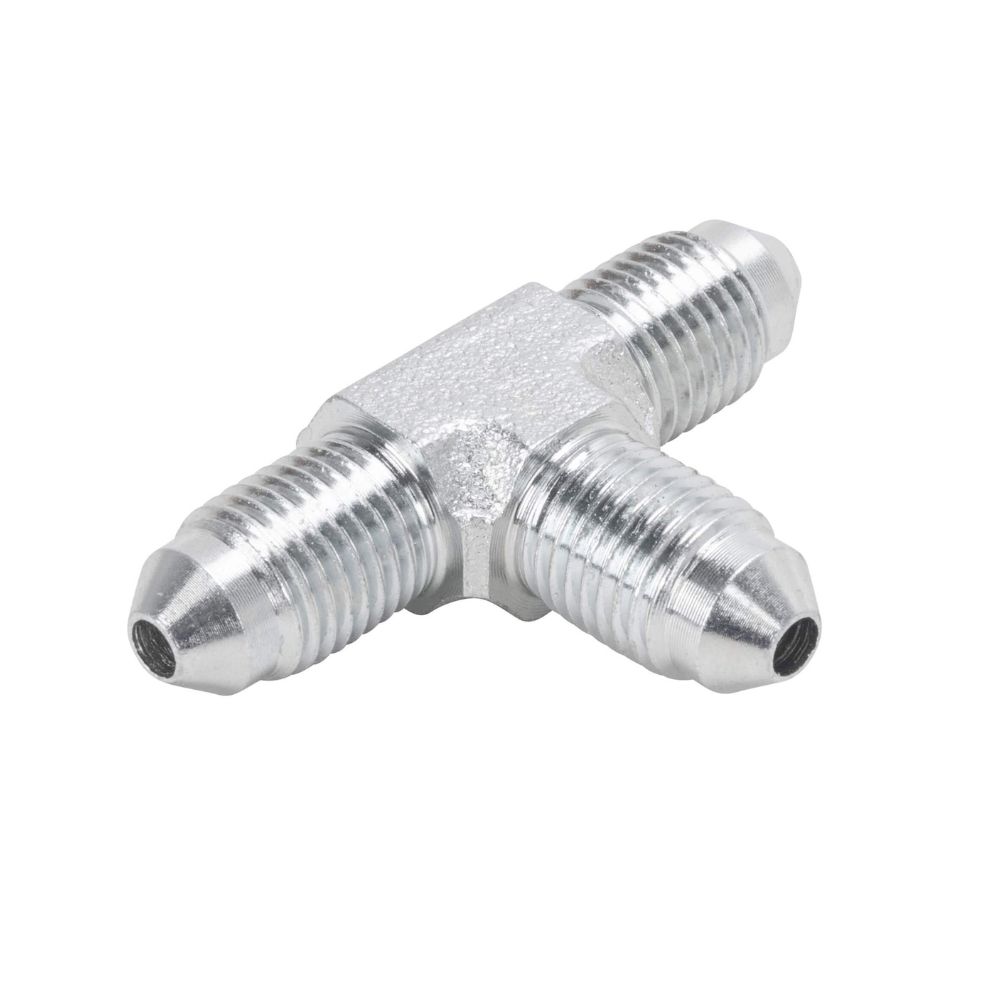

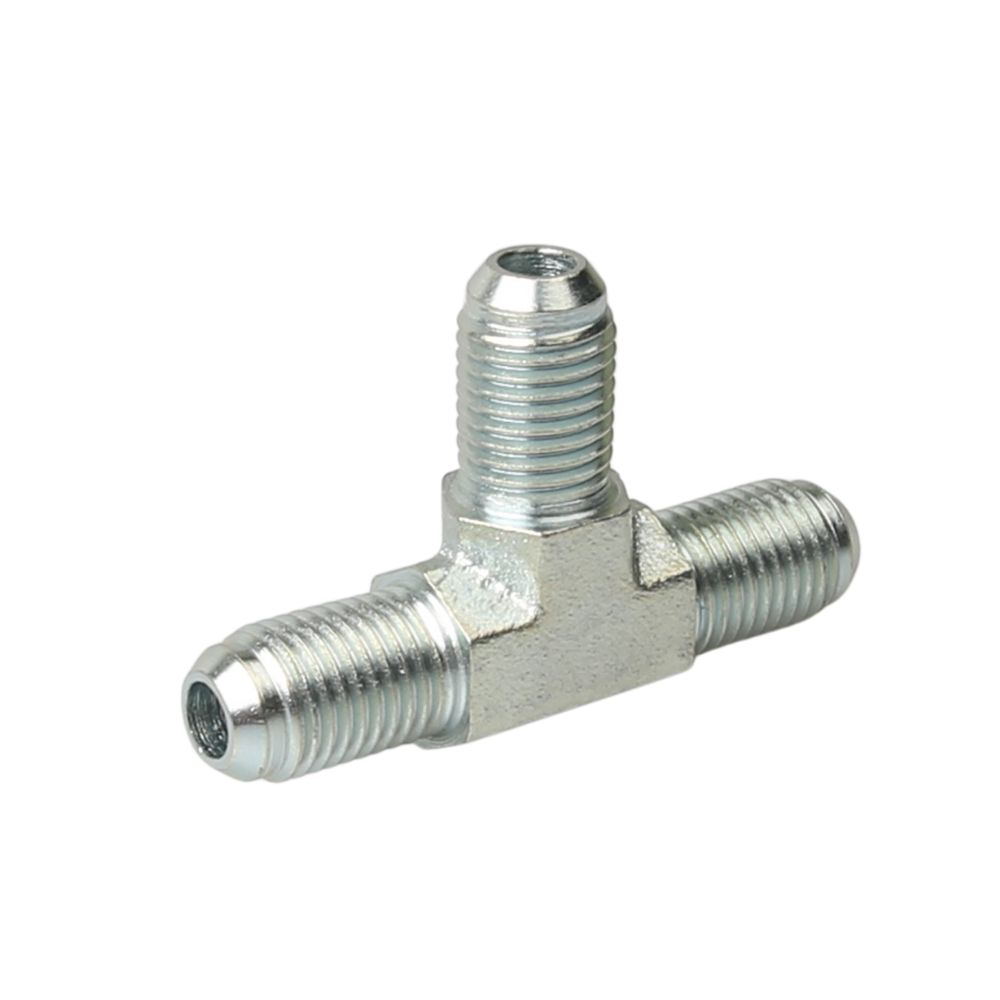

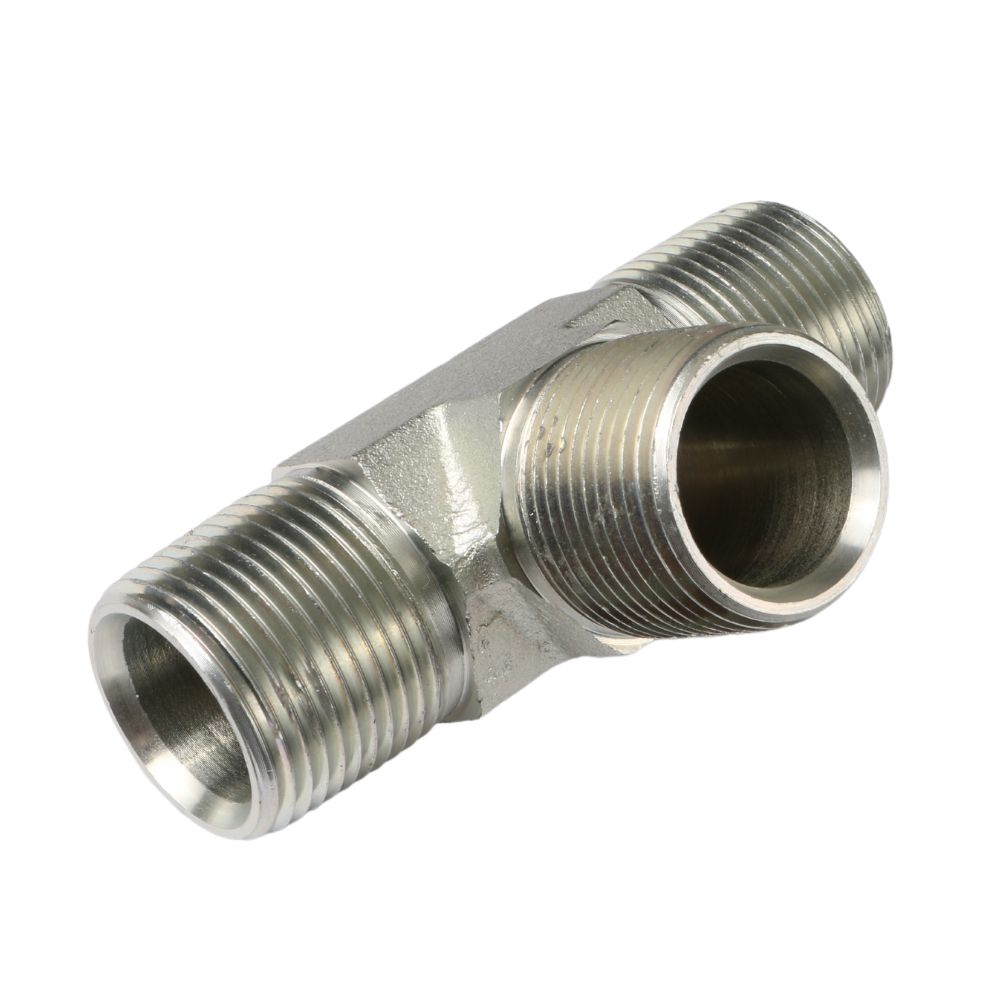

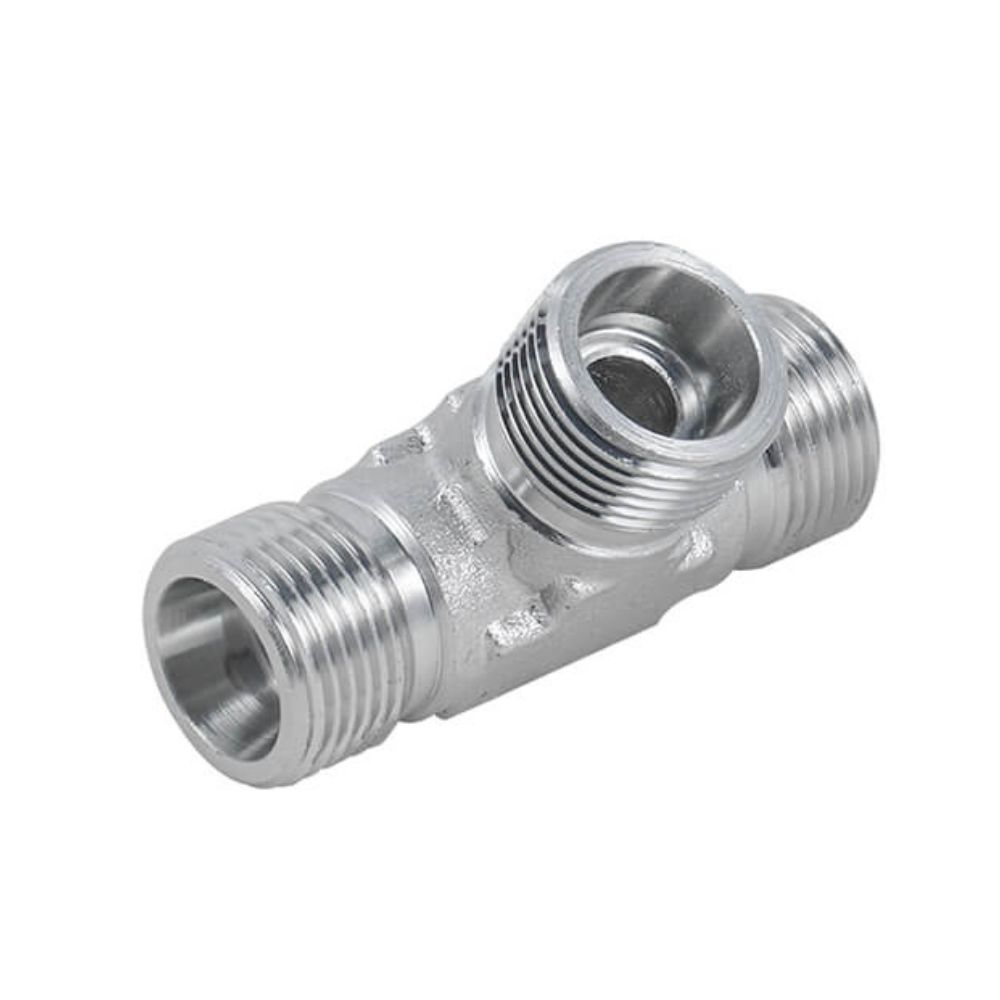

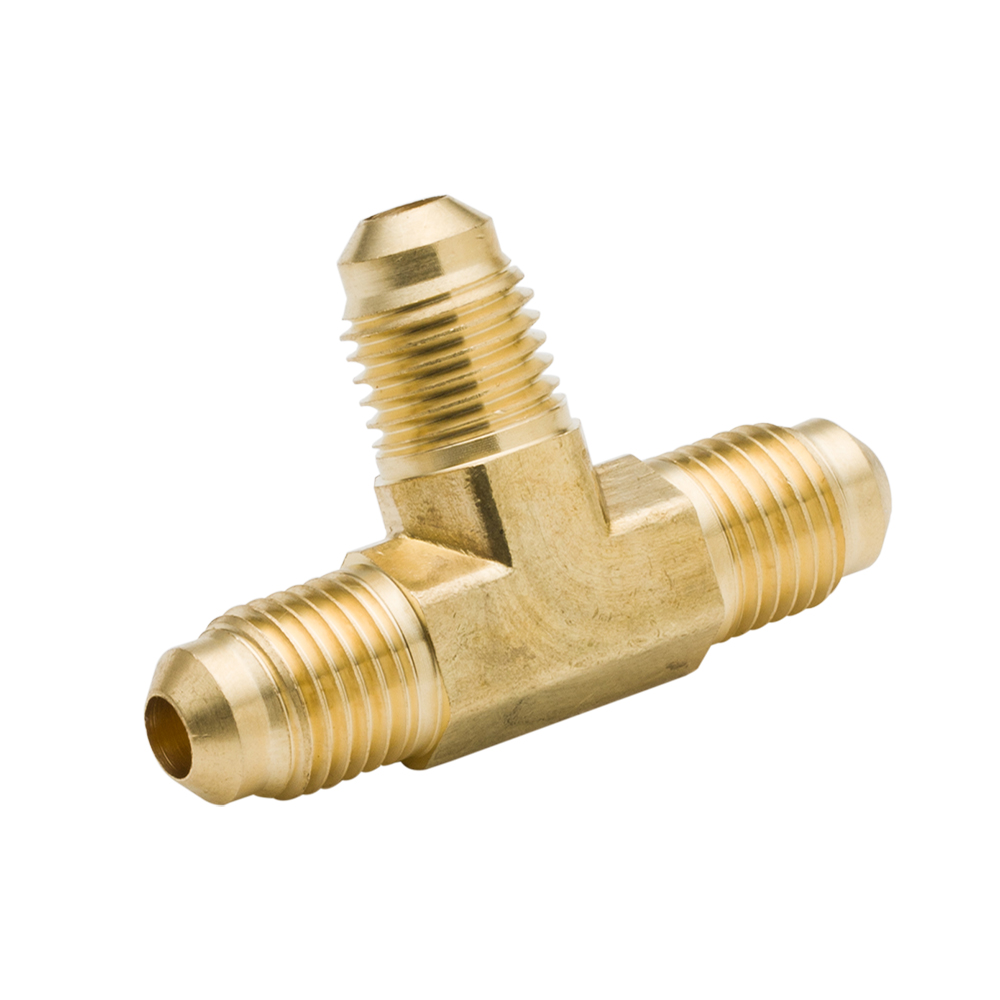

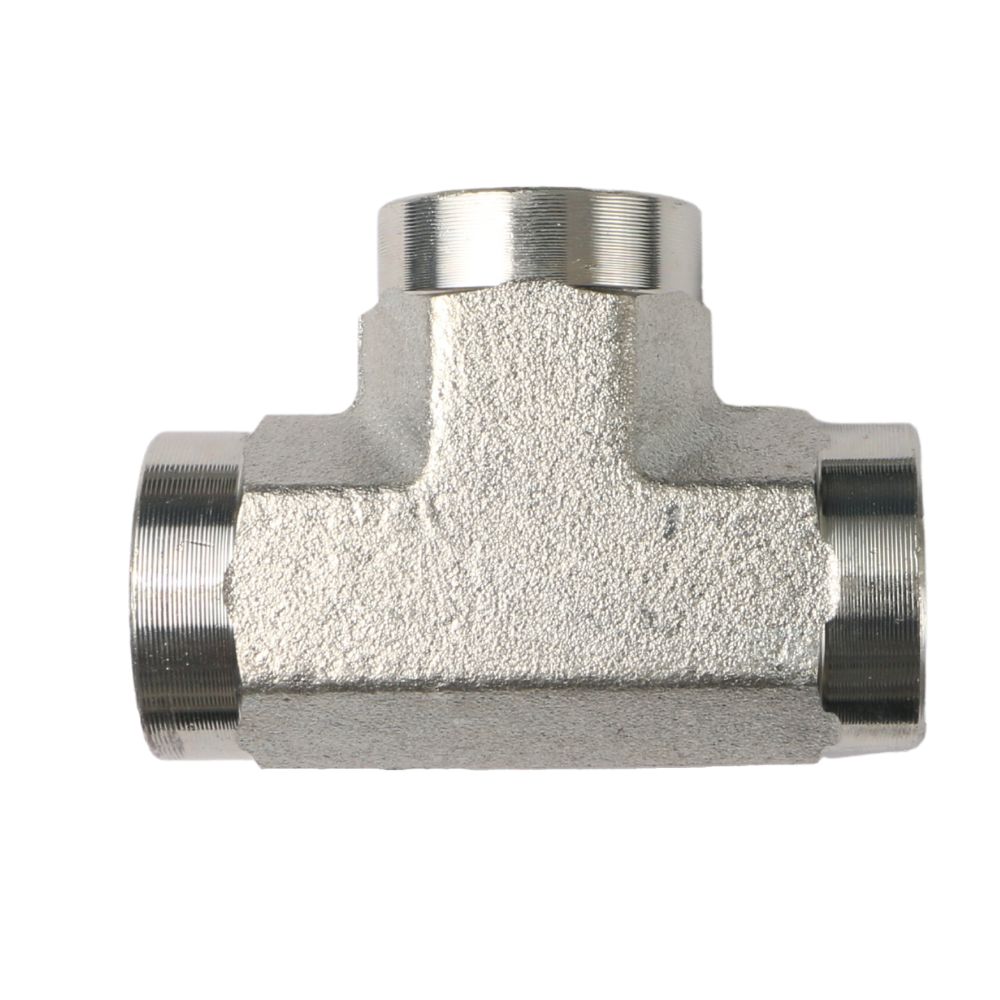

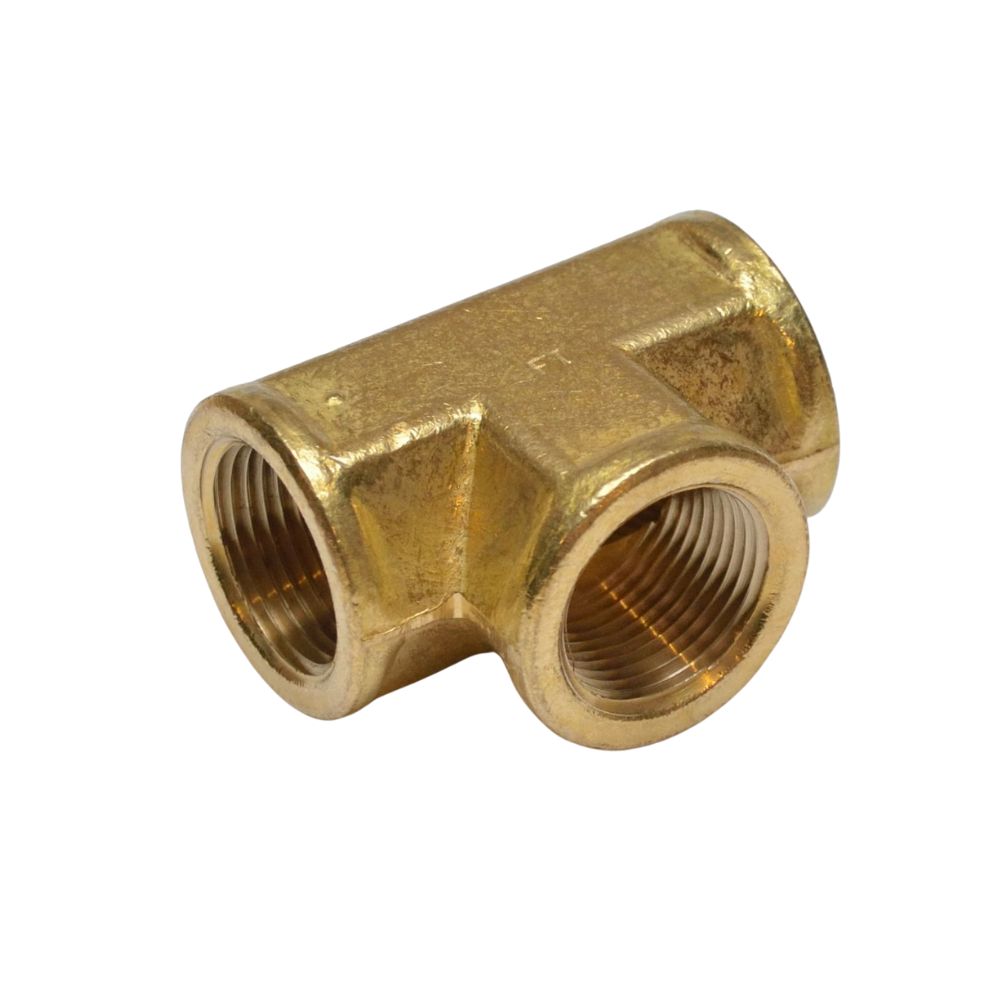

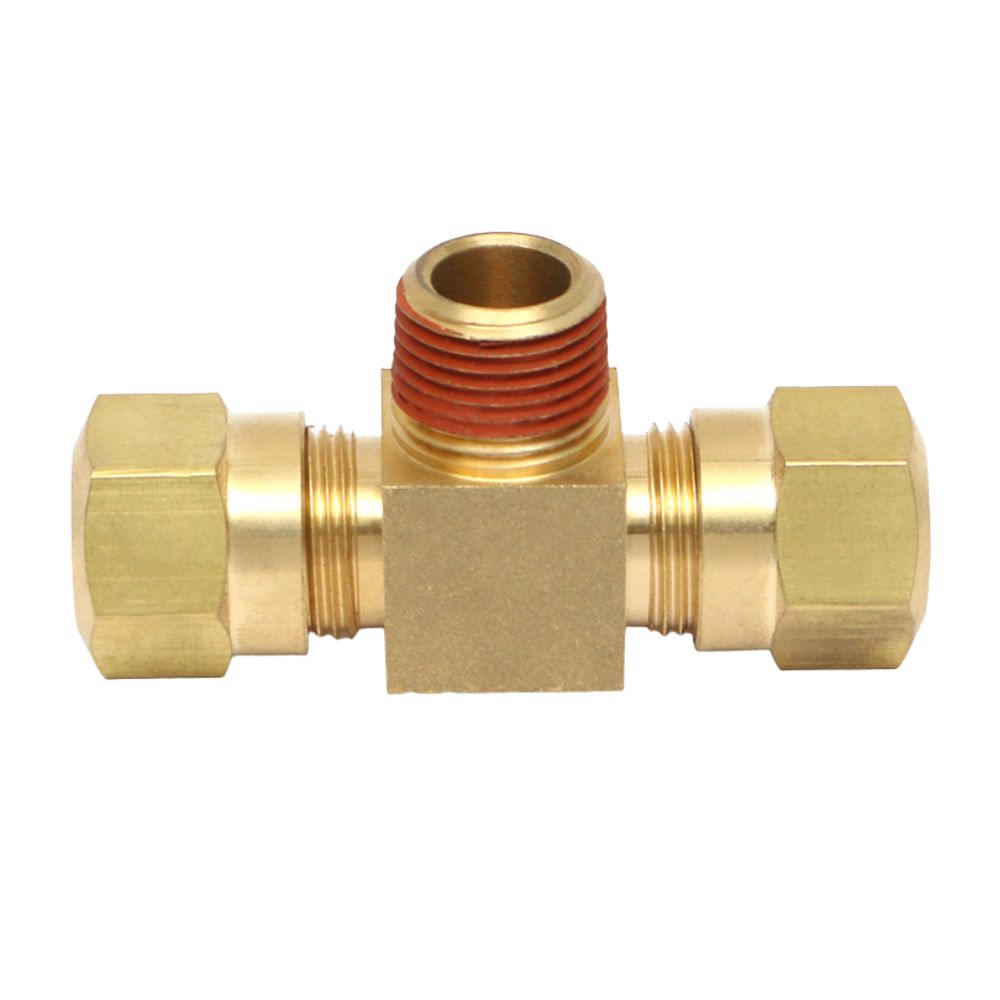

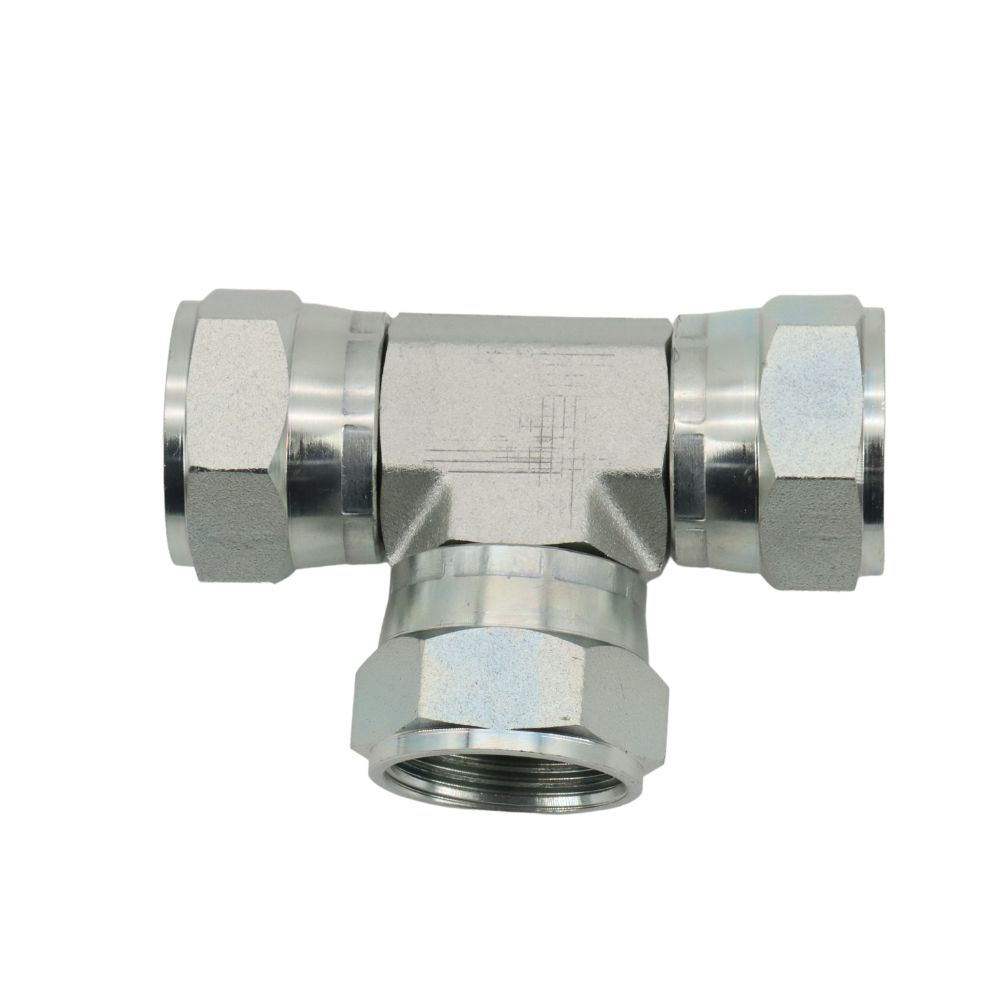

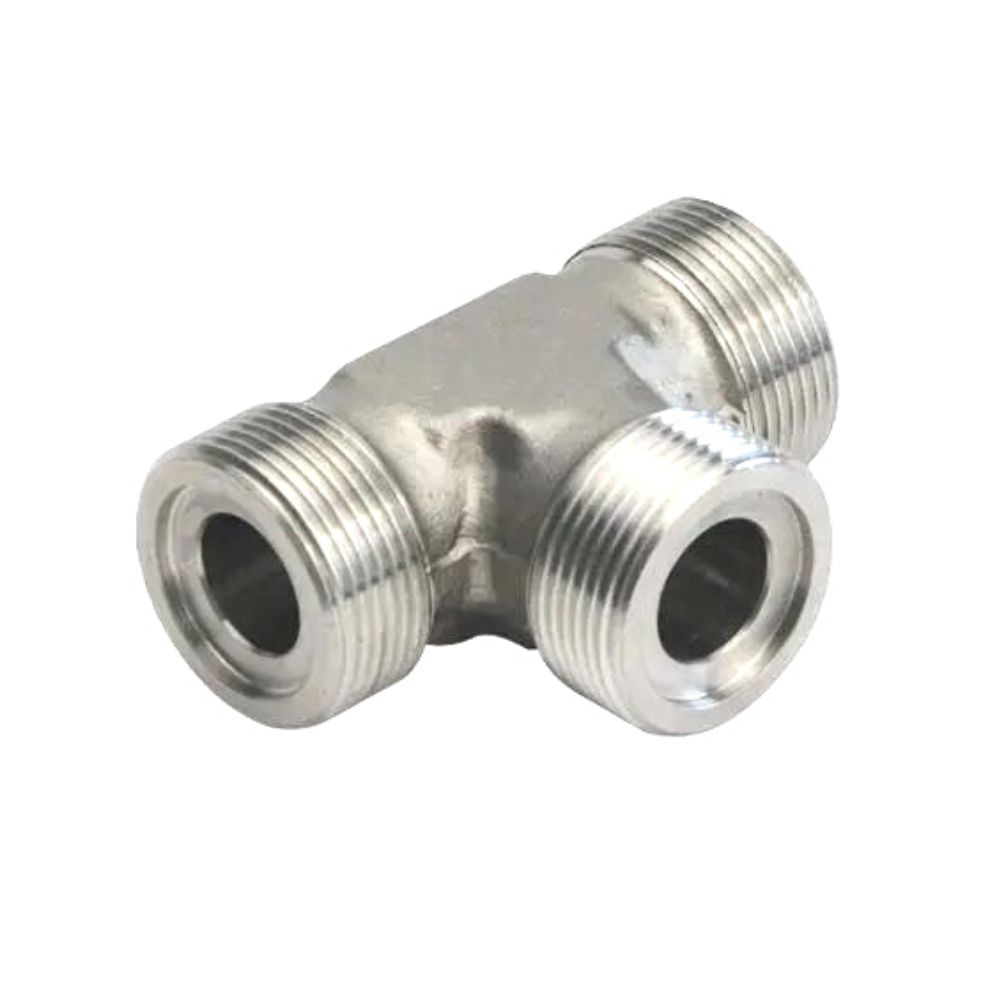

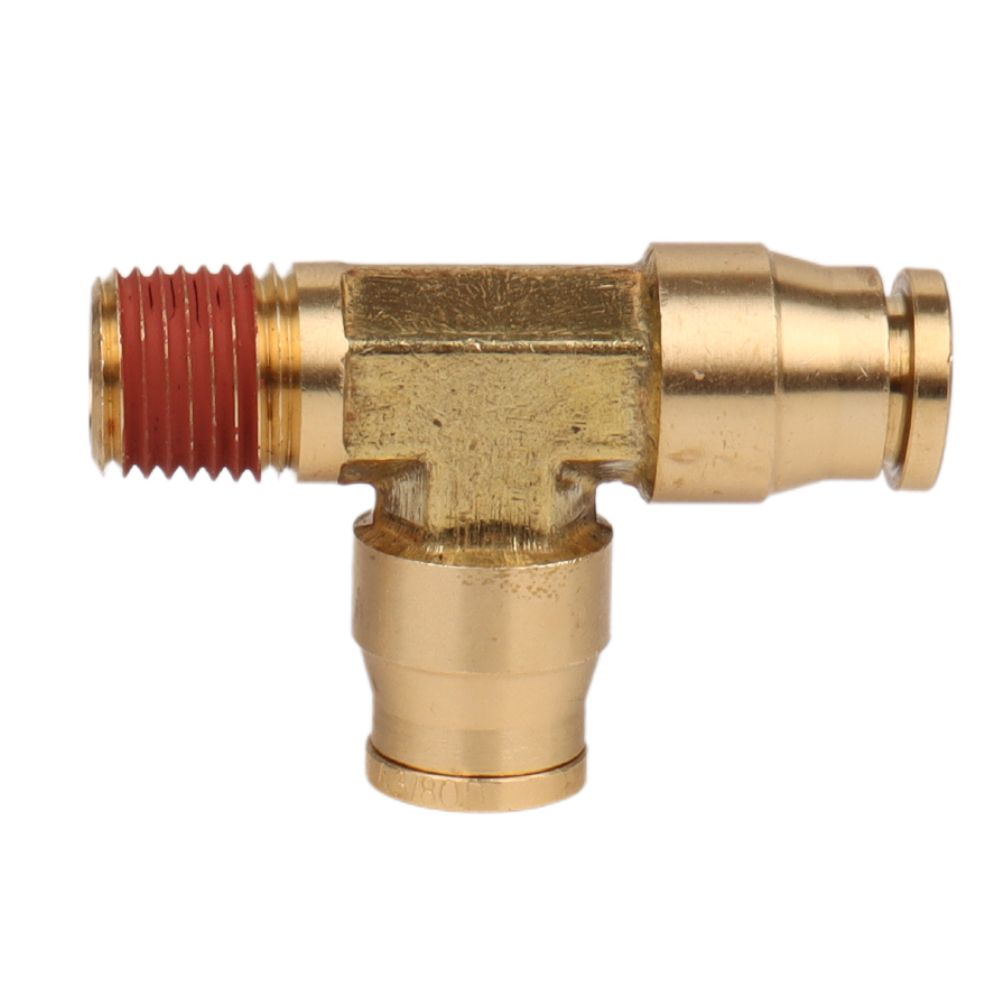

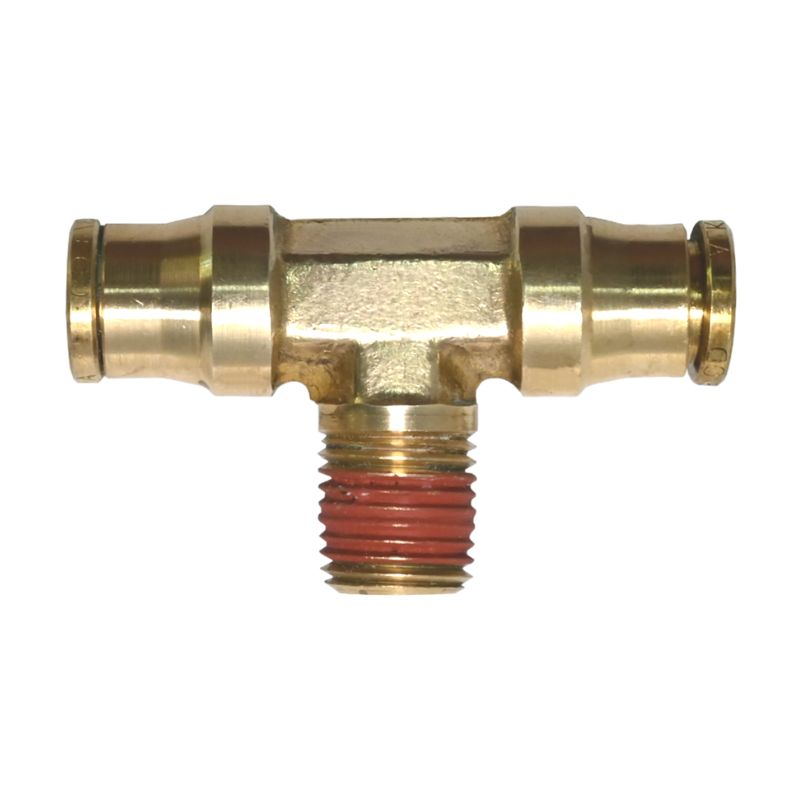

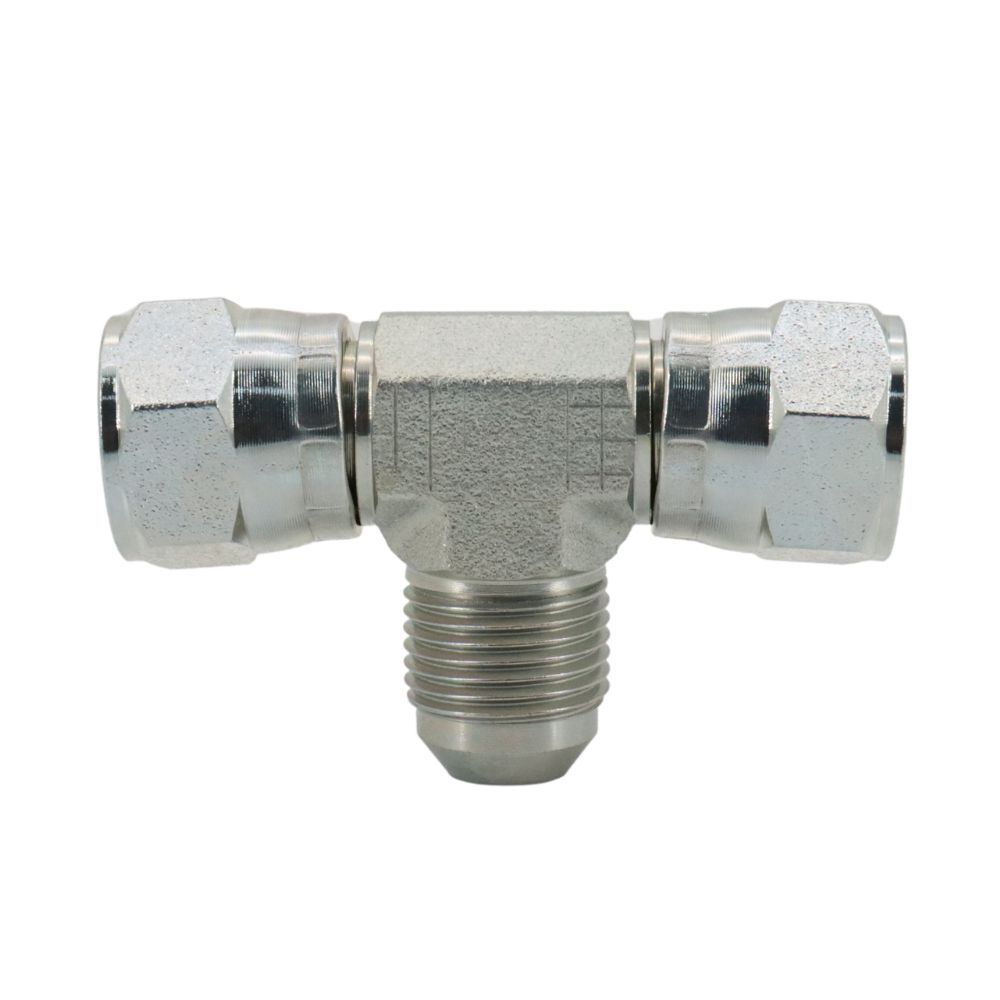

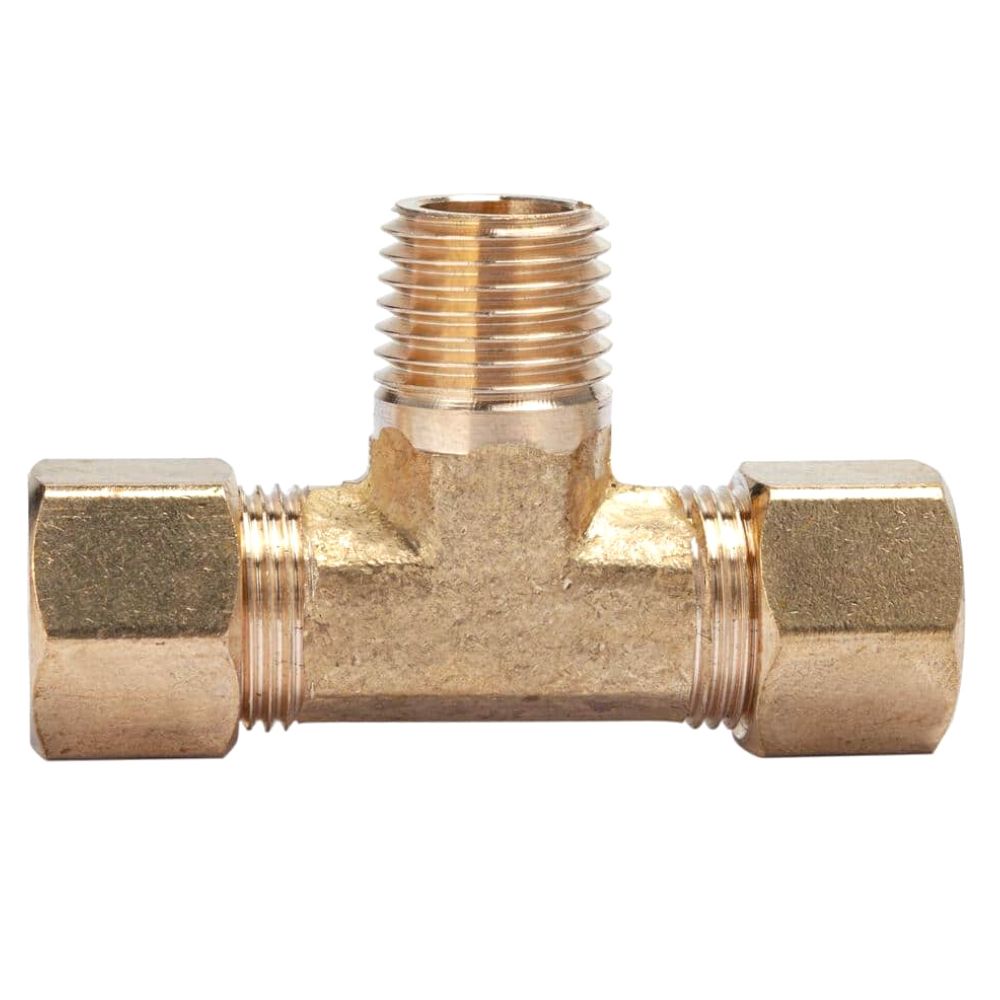

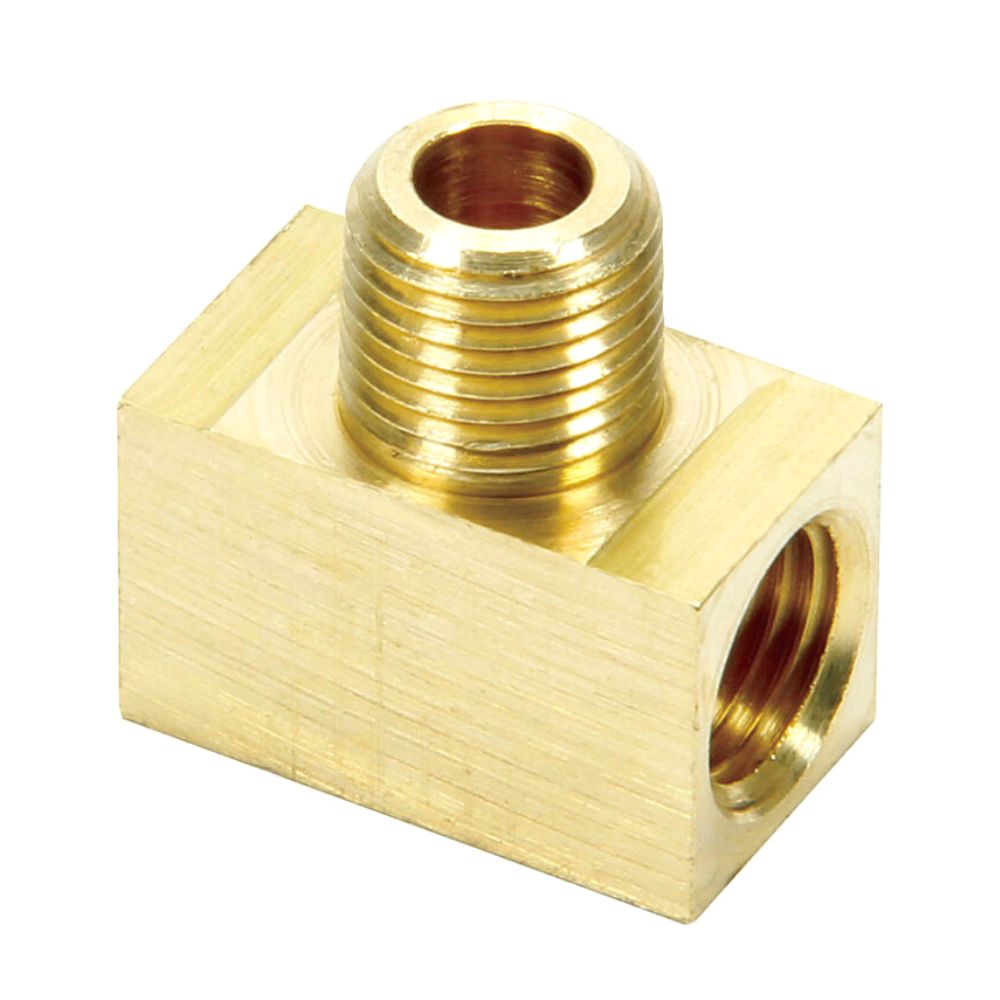

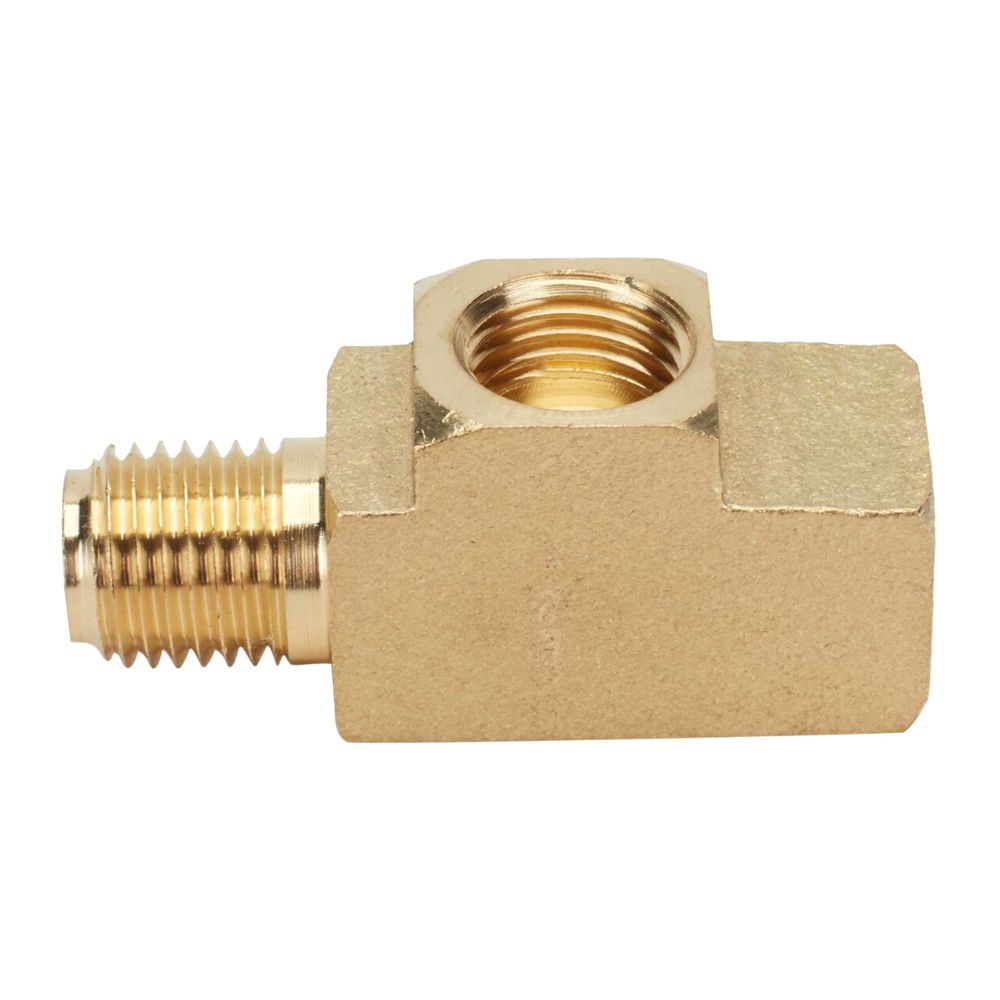

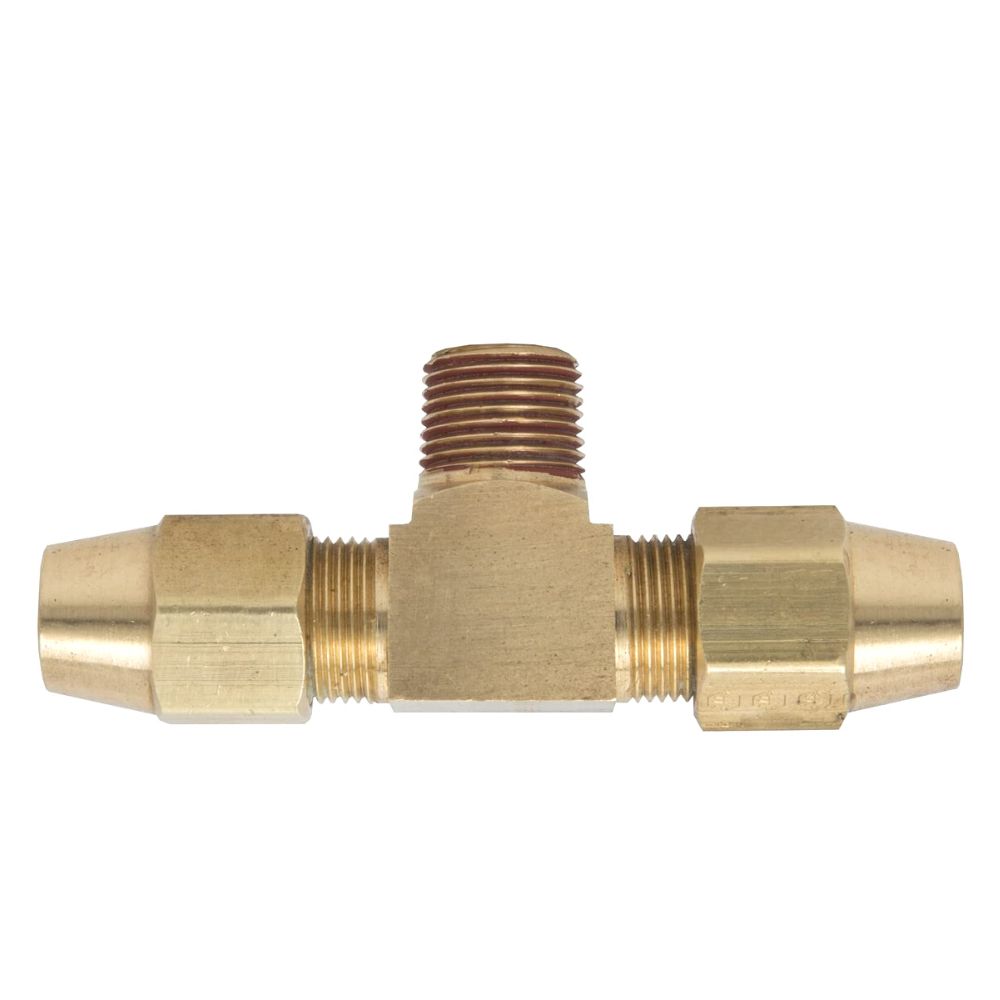

Tee Fittings

Tee fittings, also known as T-fittings, are used to connect three sections of pipe or tubing, forming a T-shaped intersection. These fittings allow for the branching off of a pipeline into two separate directions, making them ideal for distributing fluids or gases to multiple locations. Tee fittings are commonly found in plumbing, irrigation, and HVAC systems.

Common Sizes and Variations

Standard sizes for tee fittings include 10 mm, 15 mm, 20 mm, 25 mm, and 32 mm. Variations include equal tees (where all three branches are the same size) and reducing tees (where one or more branches are of different sizes). Tees can also have threaded or socket-welded connections.

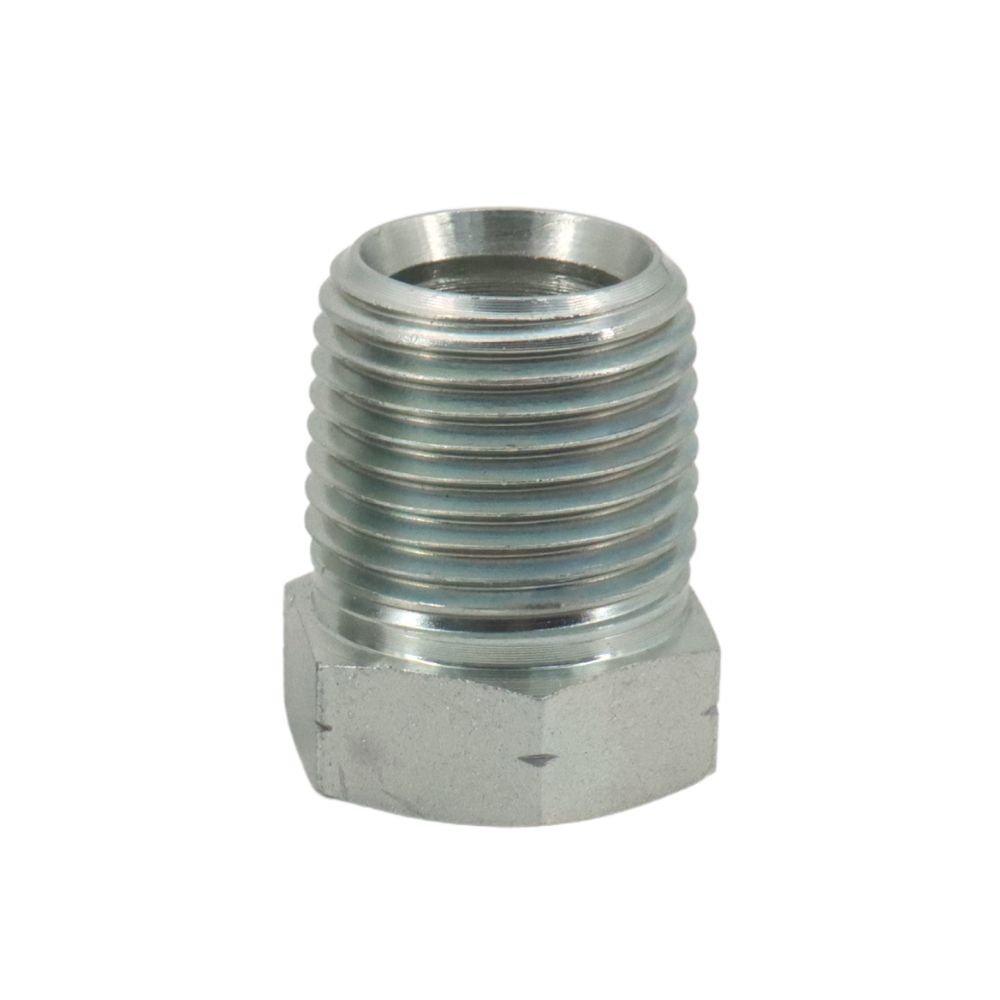

Reducer Fittings

Reducer fittings are used to connect pipes of different diameters, allowing for a smooth transition between larger and smaller pipes. These fittings are essential in systems where the flow rate or pressure needs to be adjusted by changing the pipe size. Reducers are commonly used in plumbing, HVAC, and industrial piping systems.

Common Sizes and Variations

Common sizes for reducer fittings include combinations such as 20 mm to 15 mm, 25 mm to 20 mm, and 32 mm to 25 mm. Variations include concentric reducers (which have a symmetrical shape) and eccentric reducers (which have an offset shape to prevent air pockets in horizontal pipelines). Reducers can also be threaded or socket-welded.

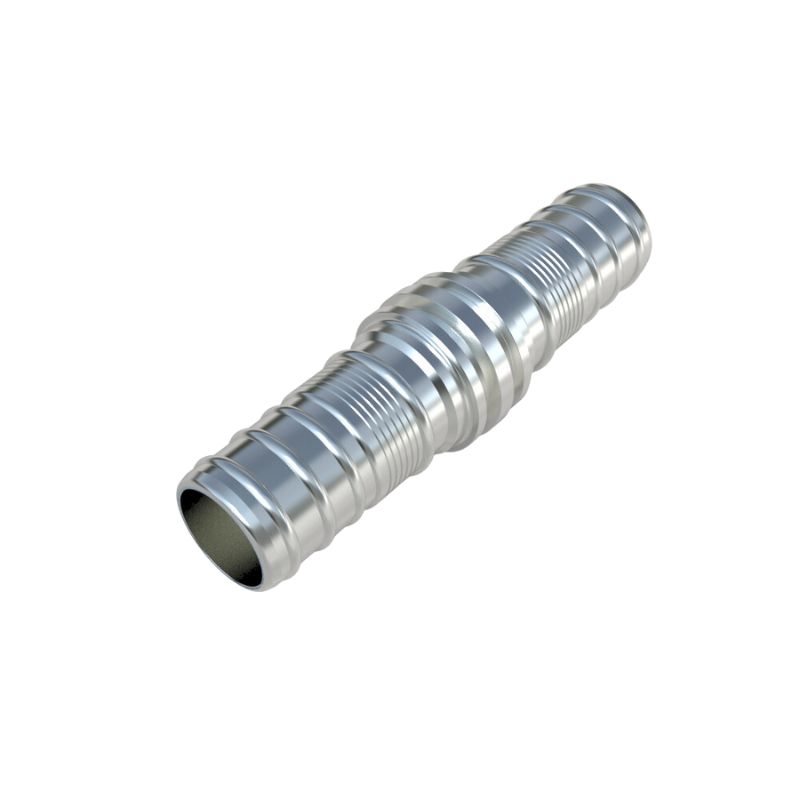

Coupling Fittings

Coupling fittings, also known as couplers, are short lengths of pipe used to connect two pipes together. They provide a secure and leak-proof connection, making them ideal for extending the length of a pipeline or repairing a damaged section. Couplings are widely used in plumbing, hydraulic, and pneumatic systems.

Common Sizes and Variations

Standard sizes for couplings include 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, and 20 mm. Variations include full couplings (which join two pipes of the same size) and reducing couplings (which join pipes of different sizes). Couplings can also have threaded or socket-welded connections.

Other Specialized Fittings

Specialized fittings are designed for specific applications and may not be as widely used as standard fittings. These include fittings like crosses, unions, caps, plugs, and flanges:

Crosses: Used to connect four sections of pipe in a cross-shaped intersection. Commonly used in fire sprinkler systems and certain industrial applications.

Unions: Allow for easy disconnection and reconnection of pipes, useful in systems that require regular maintenance or assembly.

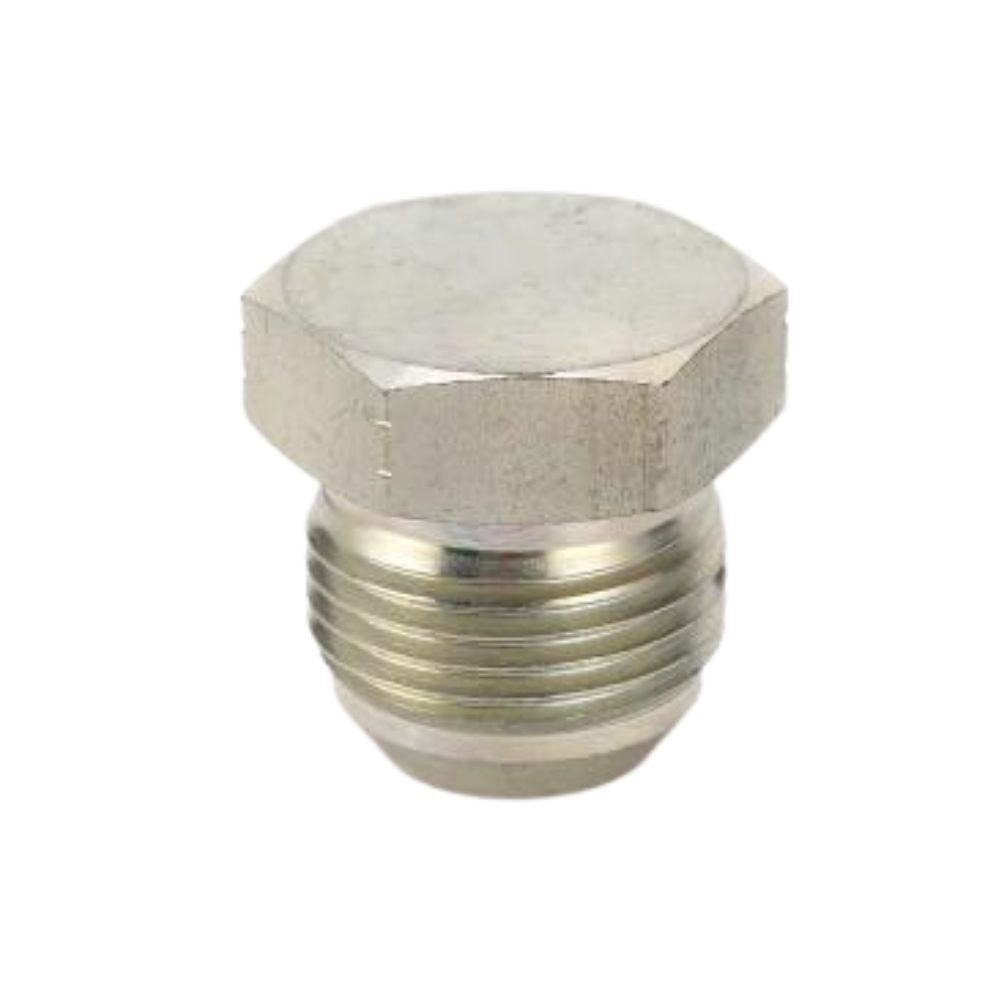

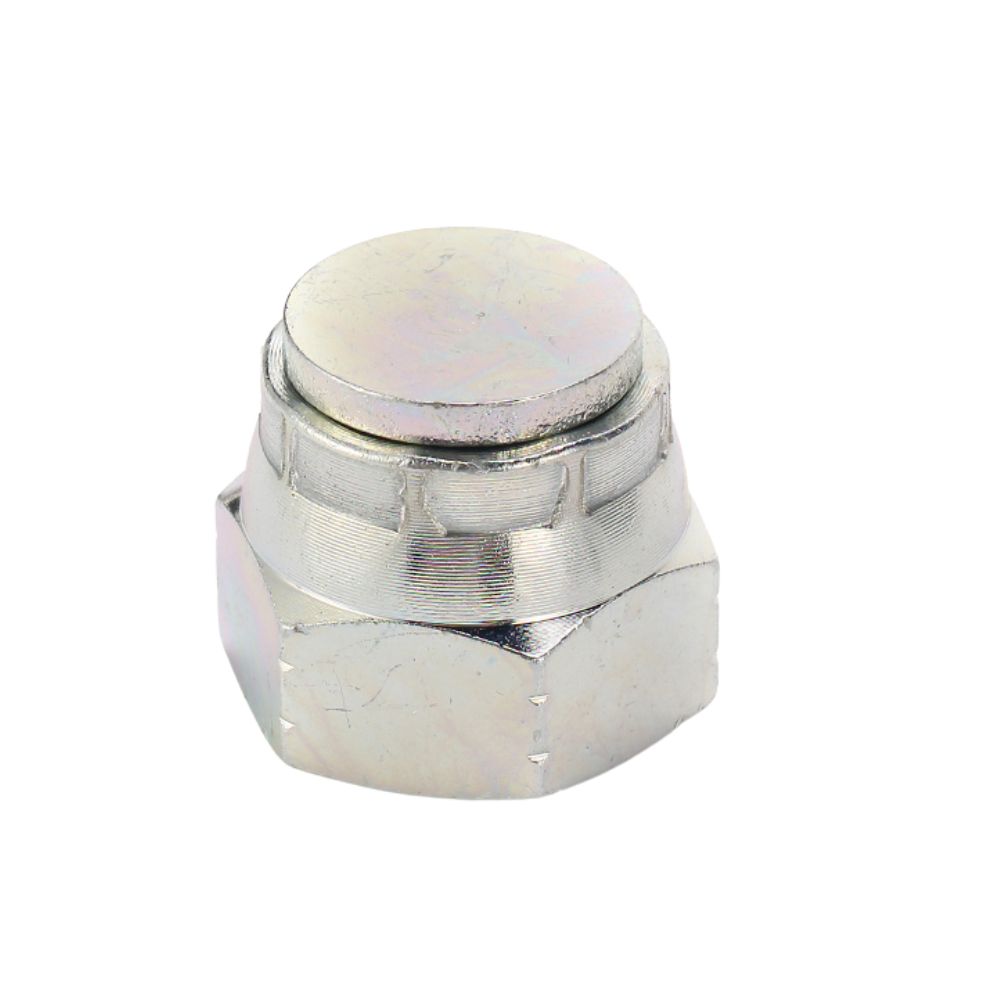

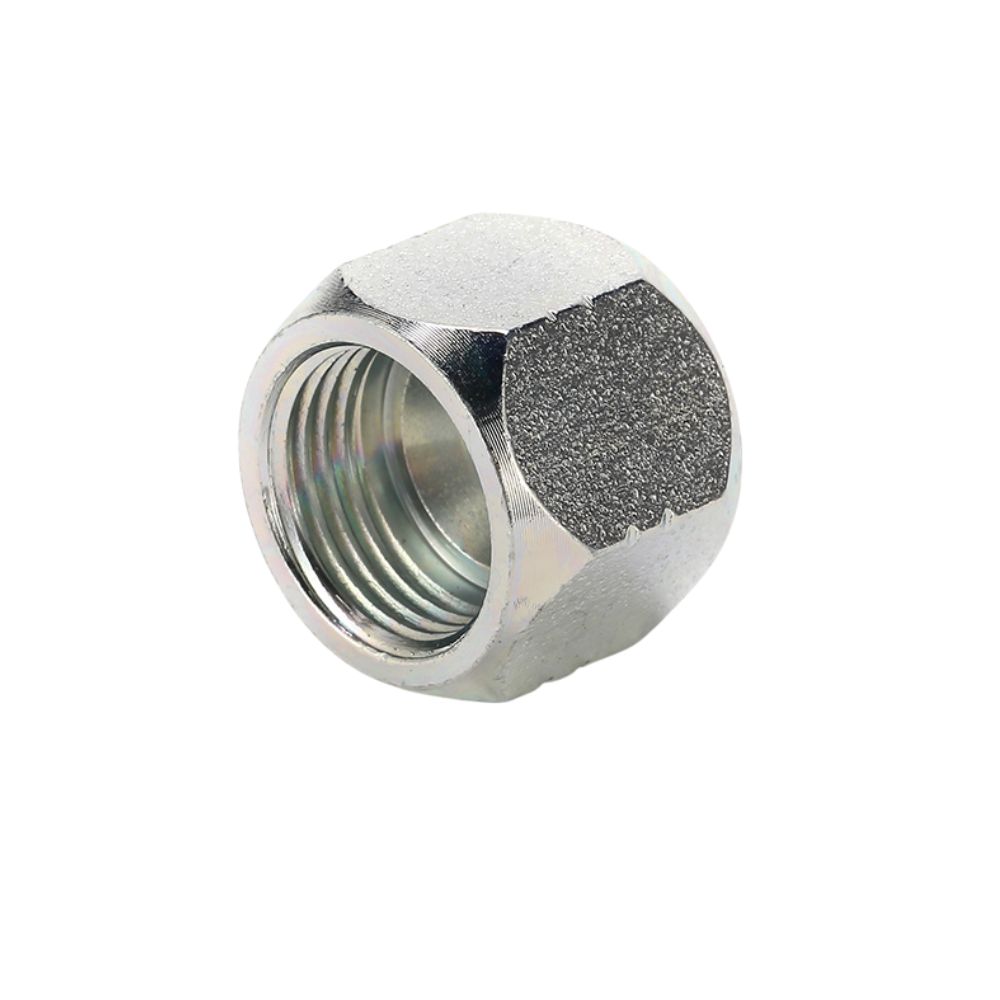

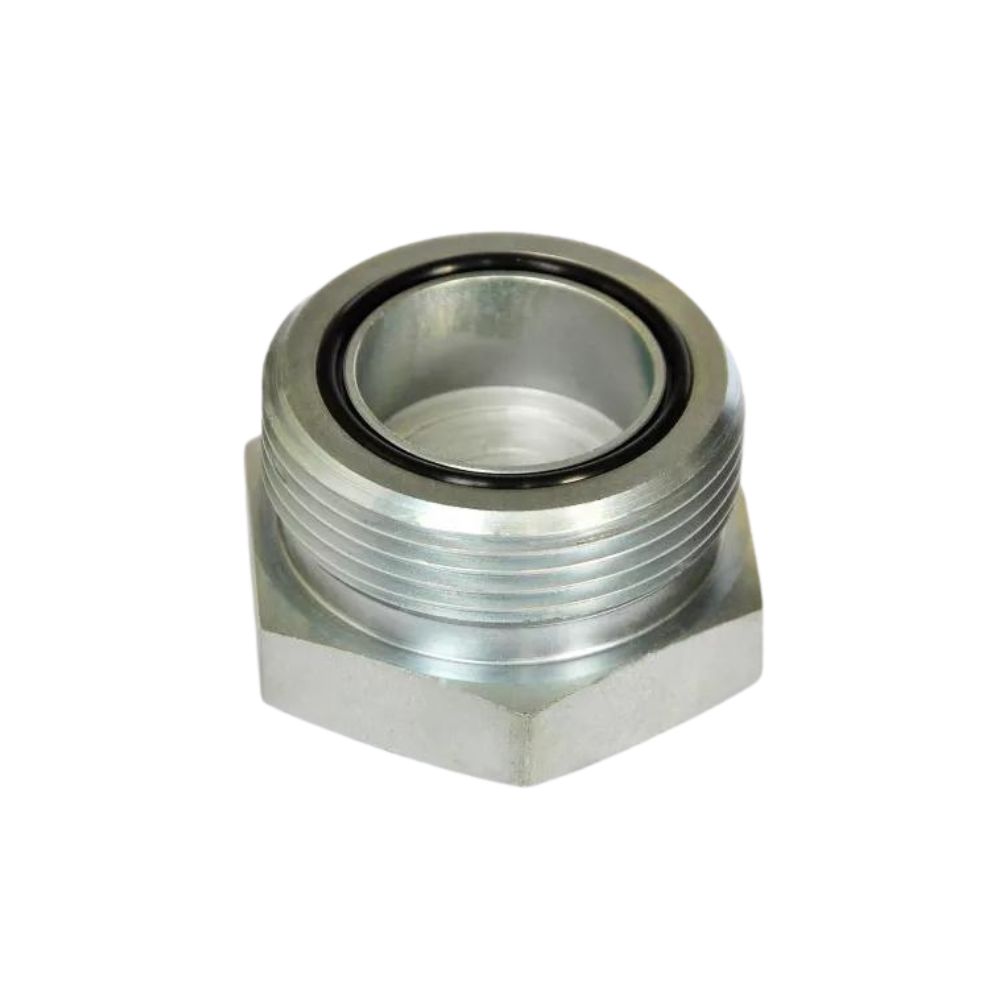

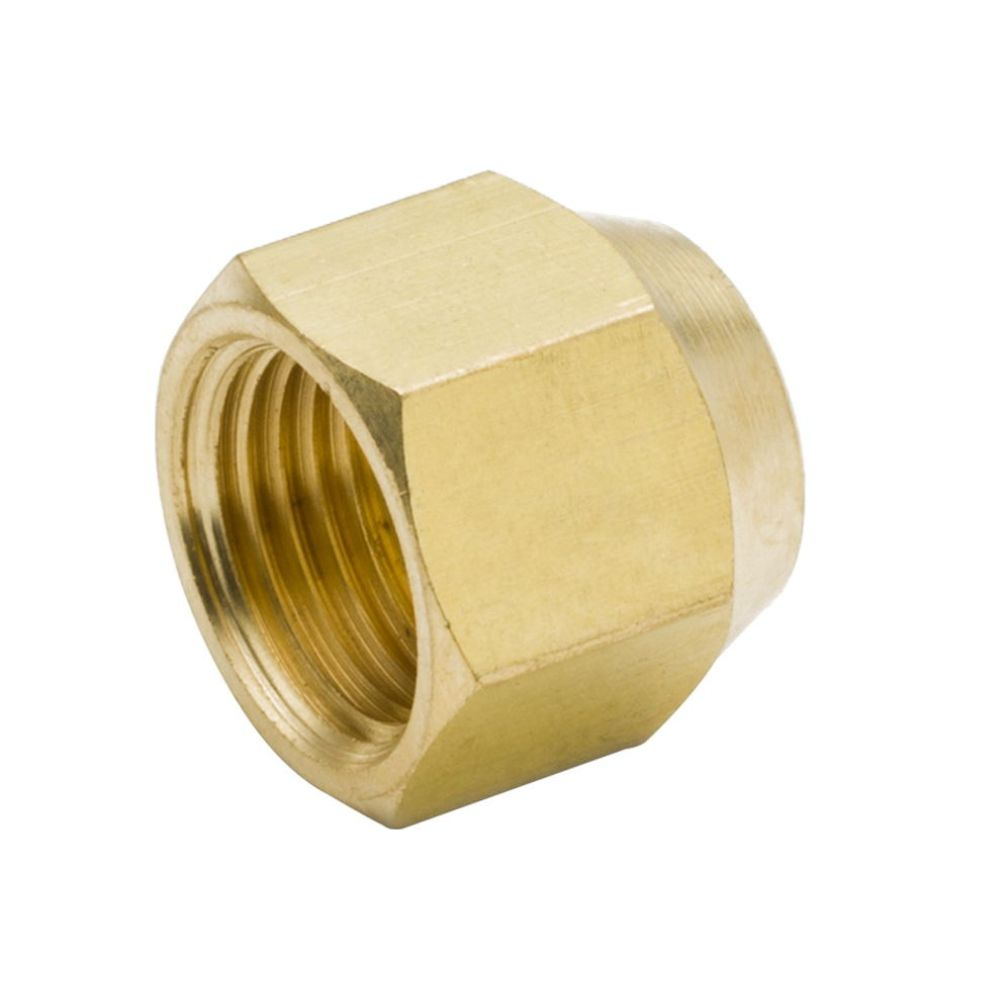

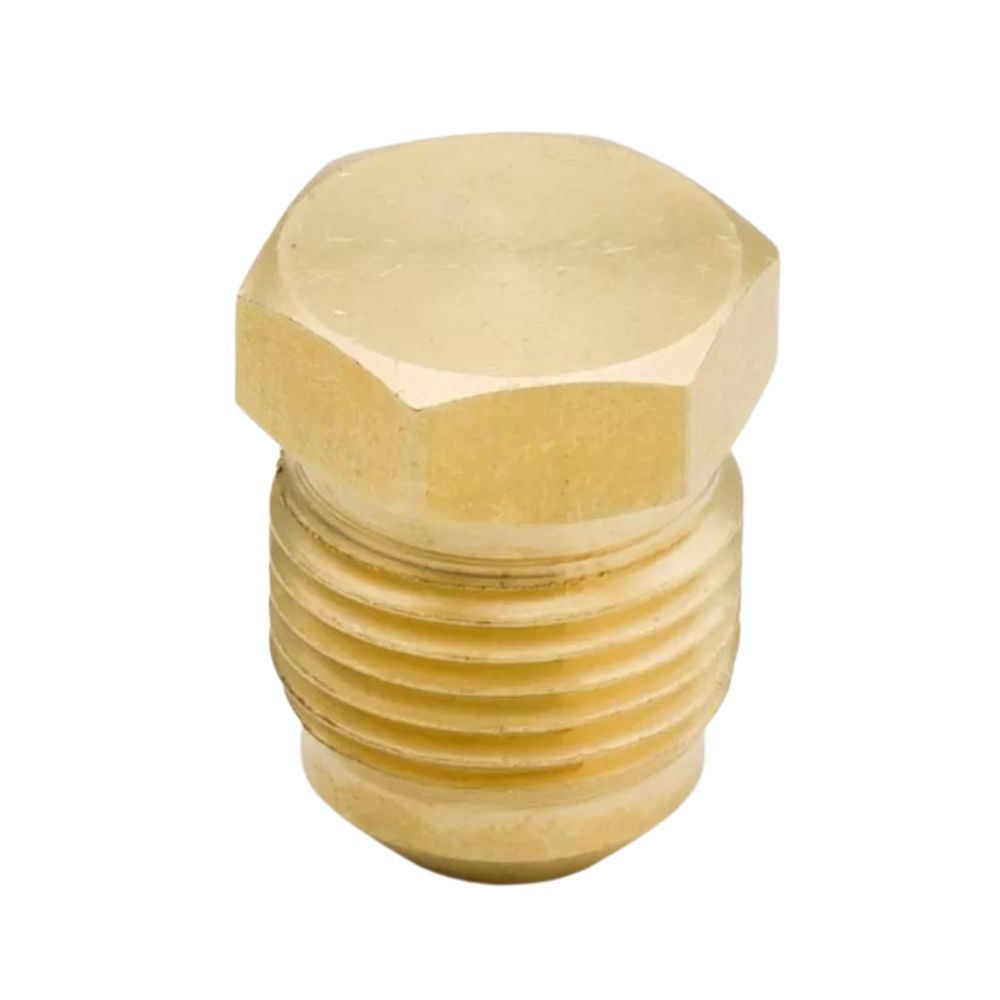

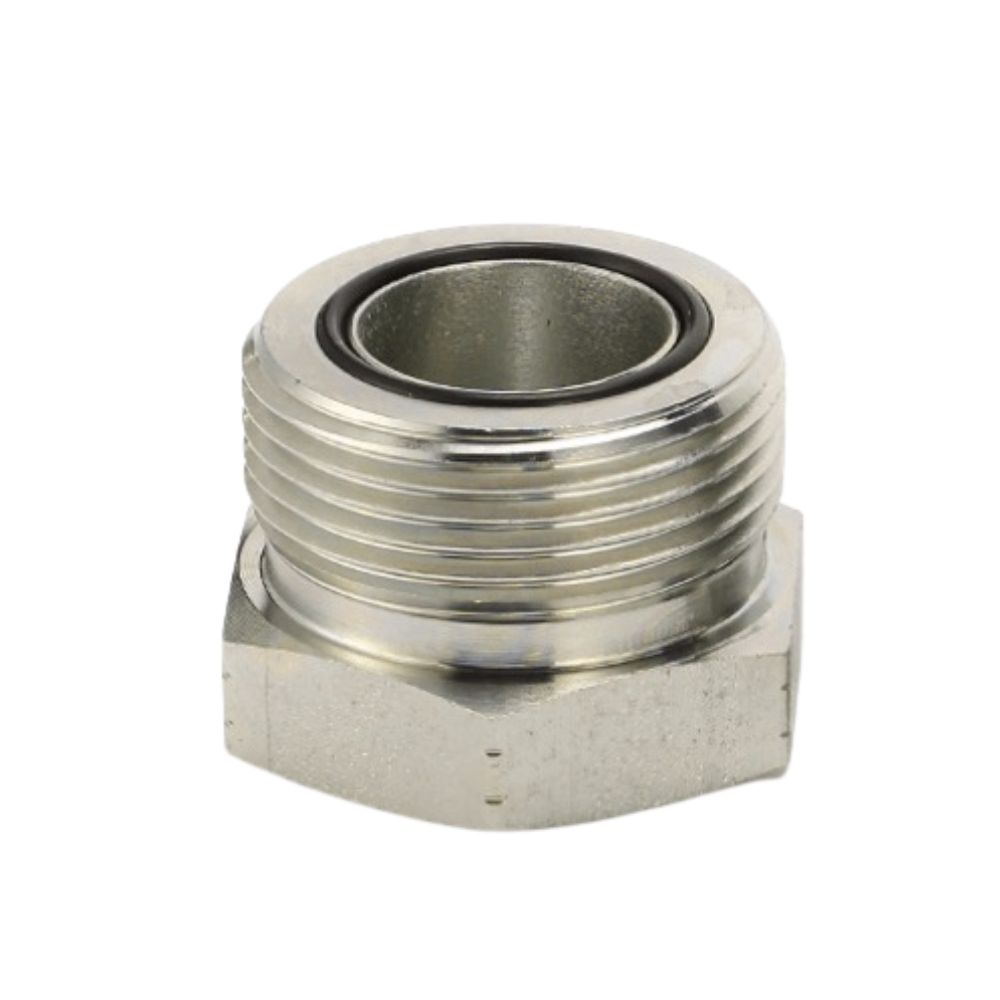

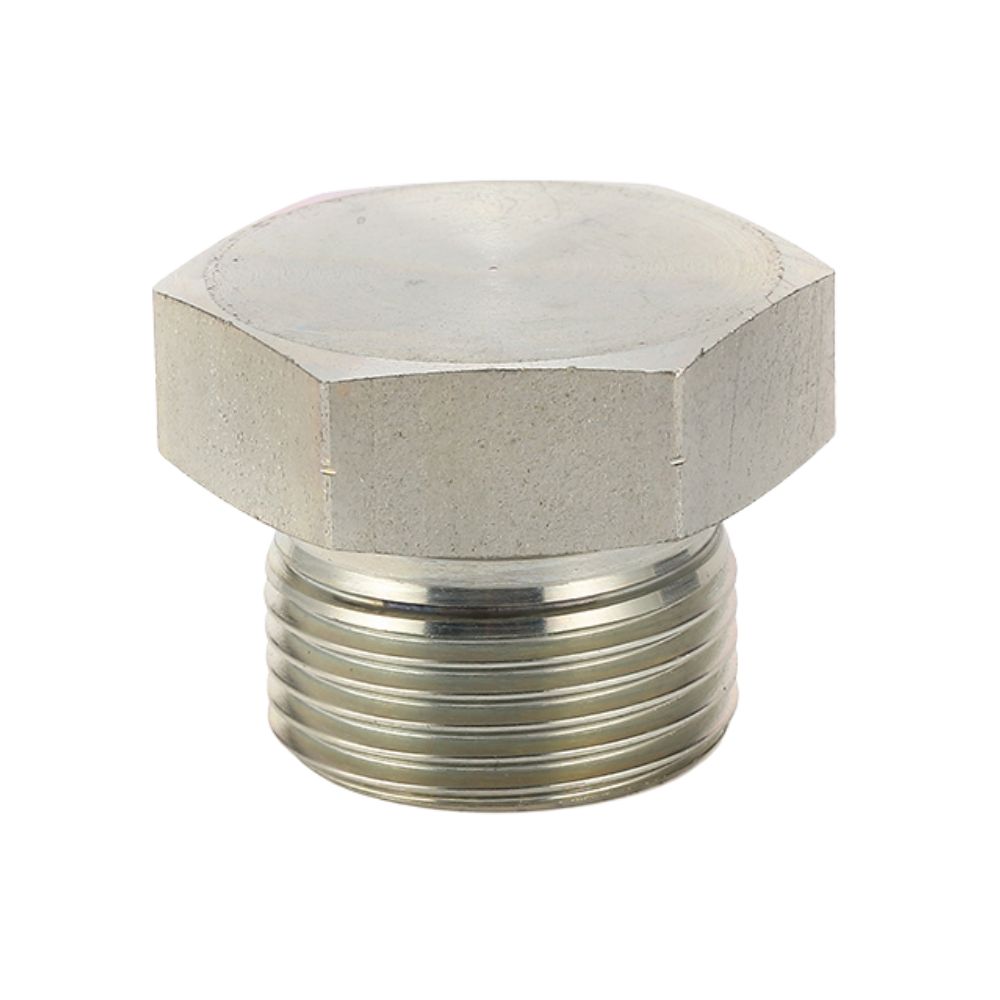

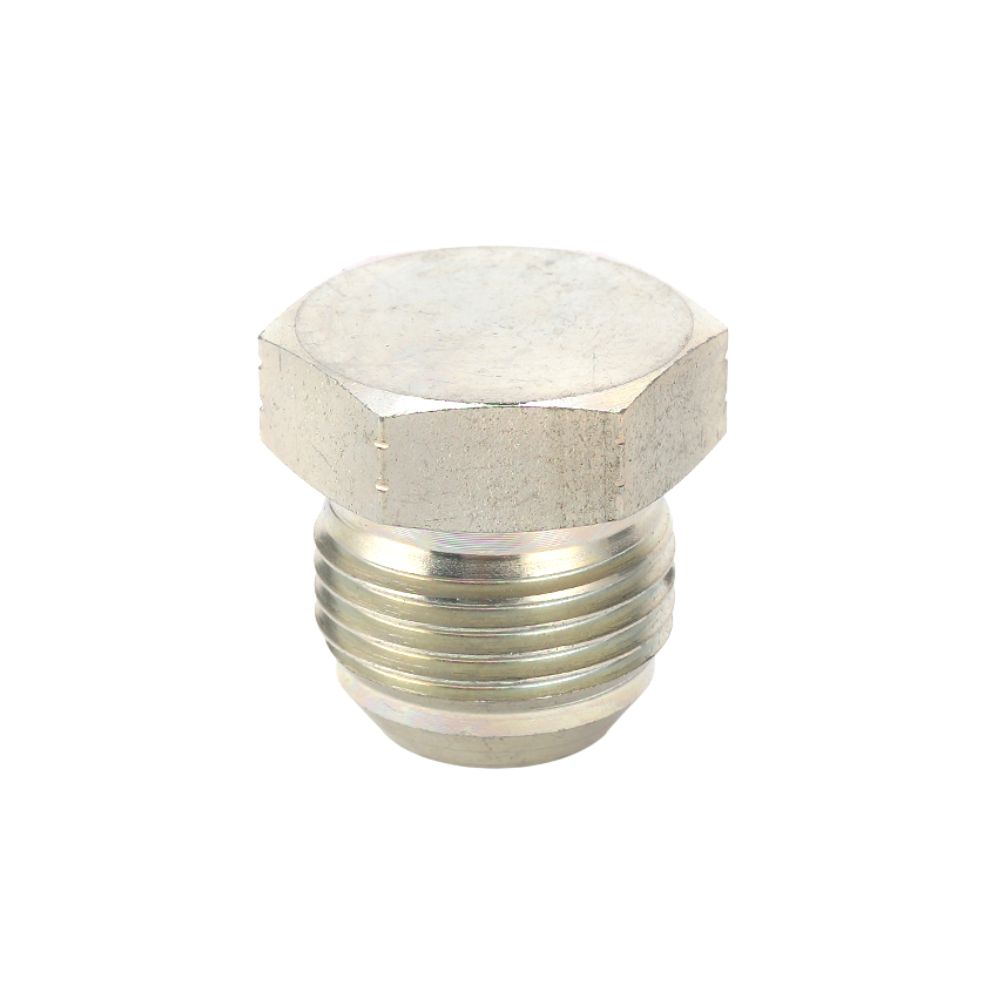

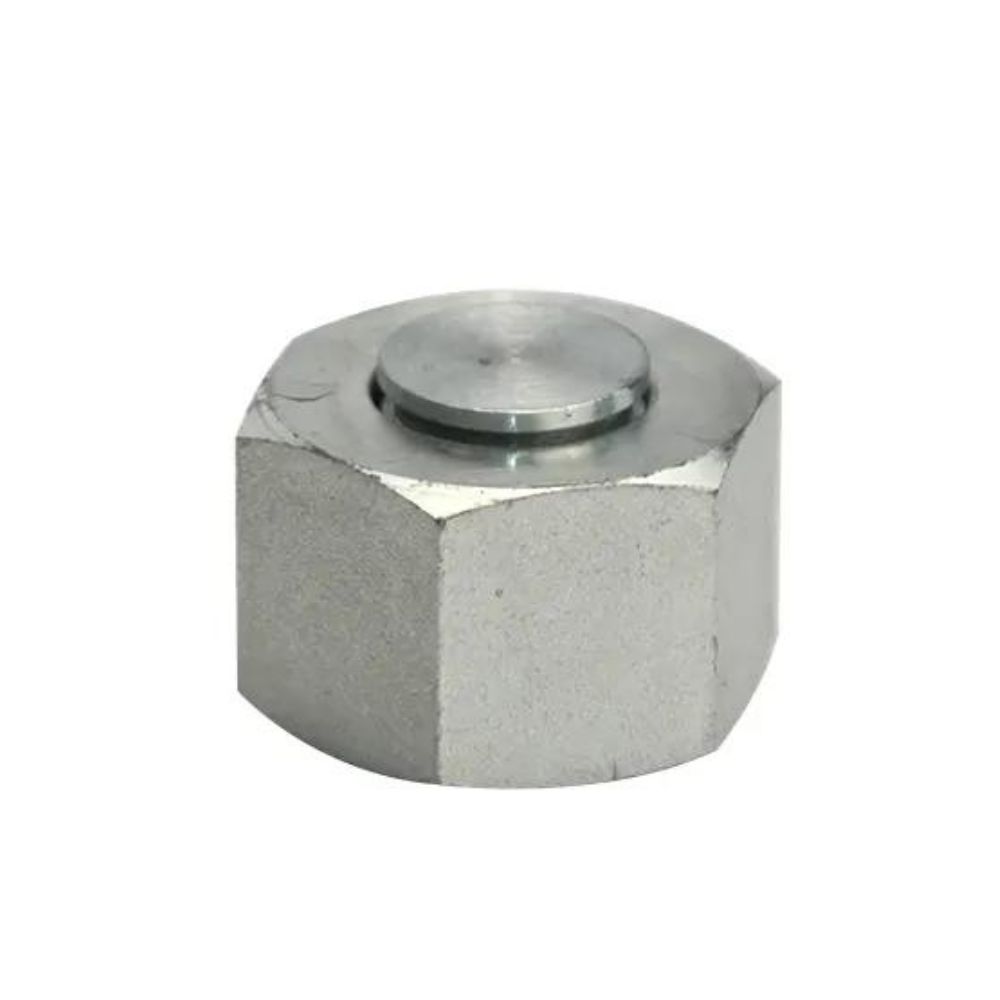

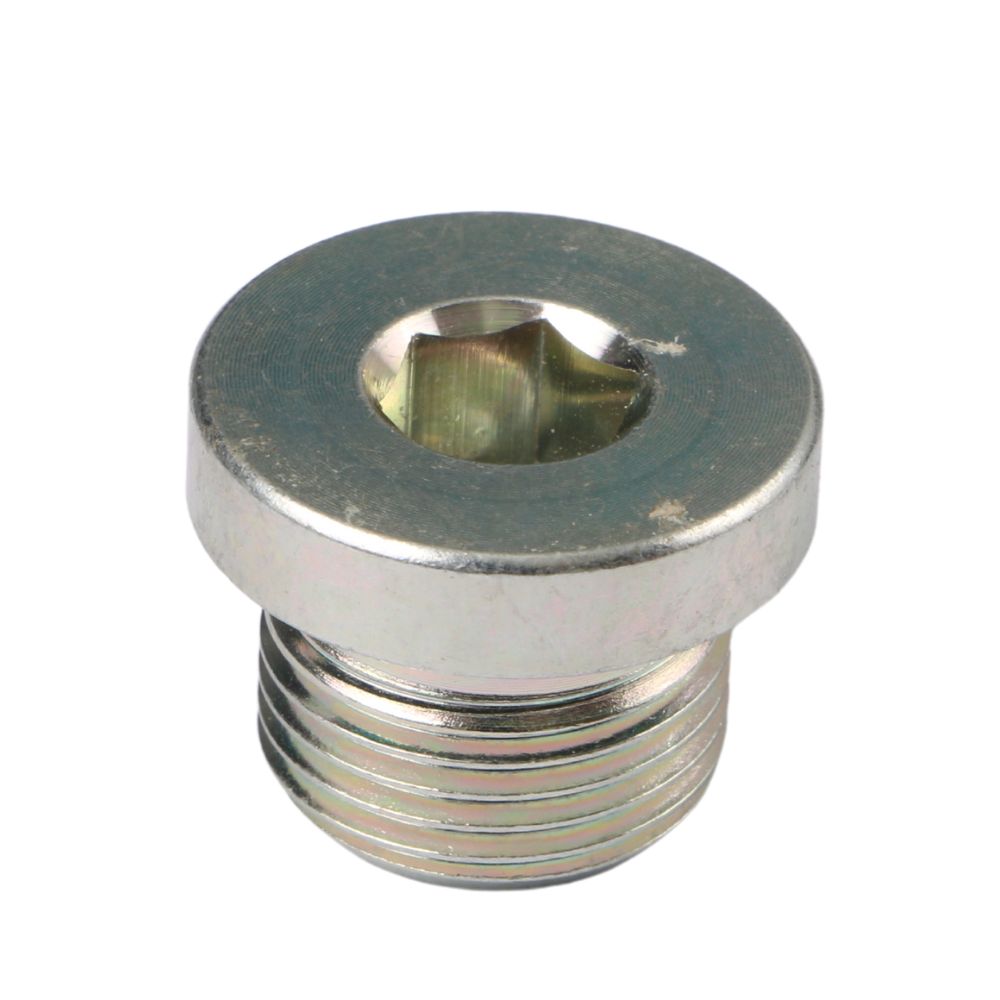

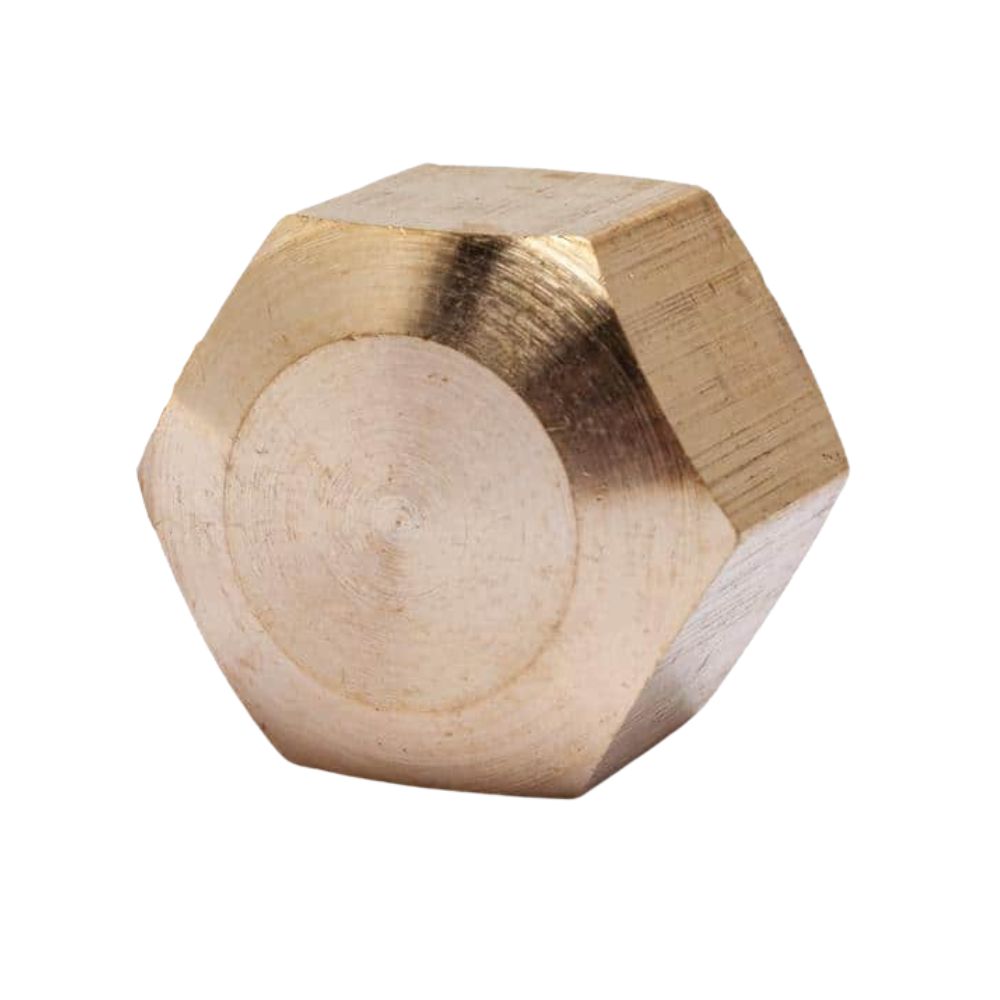

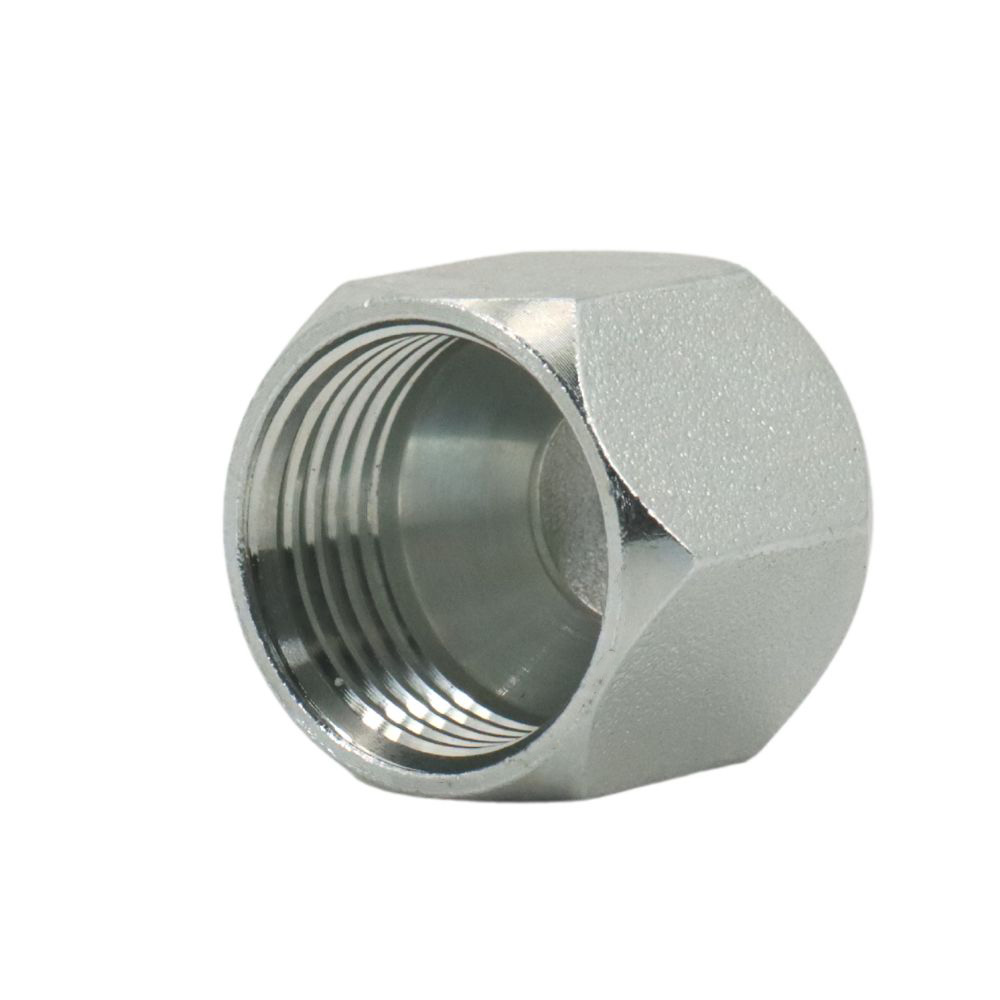

Caps and Plugs: Used to close off the ends of pipes, preventing the flow of fluids or gases. Essential for system shutdowns or future expansions.

Flanges: Provide a method for connecting pipes, valves, and other equipment with bolts, allowing for easy assembly and disassembly. Commonly used in high-pressure applications.

Selecting the Right Metric Pipe Fitting Size

Pressure Ratings

Definition: Pressure rating indicates the maximum pressure that a fitting can withstand without failing.

Importance: Ensuring that fittings match the pressure requirements of your system is critical for safety and performance.

Selection Tips: Check the specifications provided by the manufacturer. Always select fittings with a pressure rating equal to or higher than the system’s maximum pressure.

Temperature Ratings

Definition: Temperature rating specifies the range of temperatures that a fitting can endure without degrading.

Importance: Using fittings outside their temperature range can lead to failures such as leaks, material degradation, and system inefficiency.

Selection Tips: Consider the operating temperature of your system and select fittings designed to perform well within that range. For extreme temperatures, specialized fittings may be necessary.

Material Compatibility

Definition: Material compatibility ensures that the fitting material is suitable for the type of fluid or gas being conveyed.

Importance: Incompatible materials can cause corrosion, leaks, and system failures.

Selection Tips: Match the fitting material with the fluid or gas type. For example, stainless steel fittings are excellent for corrosive environments, while brass is suitable for water and air applications.

Metric Pipe Fitting Measurement Tips

Use Calipers for Precision

Digital Calipers: Provide highly accurate measurements of both the outer diameter (OD) and inner diameter (ID) of the pipe fittings. Ensure the calipers are zeroed before use.

Vernier Calipers: Also accurate, but require careful reading. Make sure to calibrate them periodically for consistent accuracy.

Thread Gauges for Threaded Fittings

Thread Pitch Gauges: Used to measure the thread pitch (the distance between threads). Select the gauge that fits snugly into the threads without forcing it.

Thread Diameter Gauges: Measure the major and minor diameters of the threads to ensure compatibility with mating parts.

Measuring Tape for Length

Flexible Measuring Tape: Ideal for measuring the overall length of pipes and fittings, especially when dealing with curved or irregular shapes.

hydraulic fittings measure tools Topa

Proper Measurement Points

Outer Diameter (OD): Measure across the widest point of the fitting. Ensure the caliper is perpendicular to the fitting to avoid inaccurate readings.

Inner Diameter (ID): Measure the open space inside the fitting. Ensure the caliper tips touch the inner walls without deforming the fitting.

Thread Size: Measure both the major and minor diameters of the thread. For male threads, measure the outermost points, and for female threads, measure the innermost points.

Practical Tips for Accurate Measurement

Ensure Cleanliness

Clean Fittings: Before measuring, clean the fittings thoroughly to remove any debris, oil, or dirt that could affect the measurement.

Dry Surfaces: Make sure the surfaces are dry to prevent slippage of measuring tools.

Avoid Deformation

Gentle Handling: Handle fittings gently to avoid deforming them during measurement. Deformation can lead to inaccurate readings.

Correct Tool Pressure: Apply consistent, gentle pressure when using calipers to avoid compressing the material.

Measure Multiple Times

Consistency Check: Measure each fitting multiple times to ensure consistency. Record each measurement and take the average to account for any minor discrepancies.

Different Angles: Measure from different angles to confirm uniformity, especially with threaded fittings.

Account for Tolerances

Manufacturer Specifications: Refer to manufacturer specifications for acceptable tolerances. Metric fittings are manufactured within certain tolerance ranges to ensure compatibility.

Fit and Function: Ensure that the measured dimensions fall within these tolerances to guarantee proper fit and function.

Use Appropriate Tools

Calibrated Instruments: Ensure all measuring instruments are calibrated regularly to maintain their accuracy.

Specialized Tools: Use specialized tools like micrometers for high-precision measurements if needed.

Tips for Ensuring a Proper Fit

Match the Sizes

Correct Diameter: Ensure the outer diameter of the pipe matches the inner diameter of the fitting for a snug fit.

Thread Compatibility: Verify that the thread pitch and diameter match between the fitting and the pipe.

Use Sealing Materials

Teflon Tape: Wrap Teflon tape around male threads to ensure a tight seal and prevent leaks.

Pipe Dope: Apply pipe dope (thread sealant) on threads to enhance sealing, especially in high-pressure applications.

Check for Alignment

Proper Alignment: Ensure that the pipes and fittings are properly aligned to avoid stress and potential leaks at the joints.

Support Systems: Use supports and brackets to maintain alignment and prevent sagging or misalignment over time.

Avoid Over-tightening

Tightening Technique: Tighten fittings until they are snug, then apply an additional quarter turn. Over-tightening can strip threads and cause leaks.

Regular Inspection and Maintenance

Routine Checks: Regularly inspect fittings for signs of wear, corrosion, or leaks.

Timely Replacement: Replace any worn or damaged fittings promptly to maintain system integrity.

Conclusion

In summary, understanding metric pipe fitting sizes involves knowing how to measure accurately, considering factors like pressure, temperature, and material compatibility, and using the correct tools and techniques for a secure installation. By following these guidelines, you can ensure efficient and reliable piping systems. For further reading and additional resources, refer to industry standards and guides. If you need expert advice or support, please contact us!

FAQ

What are metric pipe fittings?

Metric pipe fittings are components used to connect pipes or tubes in hydraulic, plumbing, and various other systems, measured using the metric system.

Why should I use metric fittings over imperial fittings?

Metric fittings provide easier and more precise measurements, facilitating global standardization and compatibility across different manufacturers.

How do I measure the size of a metric pipe fitting?

Use calipers to measure the outer diameter (OD) and inner diameter (ID), and thread gauges to determine thread size and pitch.

What materials are common for metric pipe fittings?

Common materials include brass, stainless steel, and plastic, each selected based on their properties and suitability for specific applications.

How do I ensure a proper fit for metric pipe fittings?

Ensure cleanliness, use appropriate sealing materials like Teflon tape, and avoid over-tightening. Align pipes correctly and check for consistency in measurements.

Where can I find more information or support for selecting metric pipe fittings?

Refer to industry standards, and manufacturer’s guides, or contact expert support for personalized advice and further resources.

Contact Topa

Have a question or suggestion? Fill out the form below to get in touch with one of our experts.

SAE Thread Fitting Types What You Need to Know

SAE vs Metric Grease Fittings: A Detailed Guide

SAE vs Metric Grease Fittings: A Detailed Guide

Introduction

Grease fittings are small components that play an important role in machinery maintenance by allowing easy and efficient application of lubricant to moving parts. Proper lubrication is critical to minimizing wear, preventing corrosion, and extending equipment life. This detailed guide is designed to give readers a comprehensive understanding of SAE and metric grease fittings, including their features, applications, compatibility and selection criteria, so they can make informed decisions about their maintenance practices.

Understanding Grease Fittings

Grease fittings, also known as grease nipples or zerks, are mechanical components designed to facilitate the application of lubricants to moving parts of machinery. These fittings serve as access points through which grease can be injected directly into bearings, joints, and other components, ensuring that they remain well-lubricated and function smoothly. The primary function of grease fittings is to provide a sealed and secure pathway for lubricant delivery, preventing contaminants from entering the system and ensuring that lubrication reaches the intended areas effectively.

There are several types of grease fittings, each suited to different applications and environments. The most common types include:

Standard Grease Fittings: These are the most widely used and come in various thread sizes to fit different machinery. They feature a ball check mechanism that prevents dirt and debris from entering the fitting.

Flush Grease Fittings: These are designed to be flush with the surface of the machinery, making them less prone to damage in environments where protruding fittings might be knocked off or damaged.

Button Head Grease Fittings: Characterized by their larger diameter heads, these fittings are used in heavy-duty applications where a large volume of grease is required. They are particularly useful in industrial and construction equipment.

Proper lubrication is paramount in machinery maintenance, as it significantly reduces friction and wear between moving parts. Without adequate lubrication, components can quickly degrade, leading to increased downtime, higher maintenance costs, and a shorter lifespan for the machinery. Grease fittings ensure that the lubricant is delivered precisely where it is needed, enhancing the performance and reliability of the equipment. Additionally, regular lubrication through grease fittings helps in preventing rust and corrosion, which can compromise the integrity of the machinery over time.

Overview of SAE Grease Fittings

SAE grease fittings are predominantly used in the automotive industry, given their origins. However, their use has expanded to various other sectors, including agriculture, construction, aerospace, and heavy machinery. These fittings are integral to the maintenance of equipment such as tractors, excavators, aircraft, and industrial machines. The standardized nature of SAE fittings makes them highly versatile, suitable for a wide range of applications where reliable lubrication is critical.

Characteristics and Specifications of SAE Grease Fittings

SAE grease fittings are known for their precise engineering and durability. Key characteristics and specifications include:

Thread Sizes: SAE grease fittings come in a variety of thread sizes to accommodate different equipment requirements. Common thread sizes include 1/4″-28, 1/8″-27, 5/16″-18, and 3/8″-24, among others. These sizes correspond to specific applications and ensure a secure fit within the designated lubrication points.

Pressure Ratings: SAE grease fittings are designed to withstand varying pressure levels, ensuring that they can handle the demands of different lubrication systems. Typical pressure ratings for these fittings range from 6,000 to 10,000 psi, depending on the specific type and application. This ensures that the fittings can deliver lubricant effectively without leaking or failing under high pressure.

Materials Used: SAE grease fittings are typically made from durable materials such as steel, stainless steel, and brass. Steel fittings are commonly used due to their strength and cost-effectiveness. Stainless steel fittings offer superior corrosion resistance, making them suitable for harsh environments.

Overview of Metric Grease Fittings

Metric grease fittings are widely used in industries and regions that have adopted the metric system, including Europe, Asia, and many parts of Africa and Latin America. Common applications include automotive manufacturing, heavy machinery, industrial equipment, and agricultural machinery. Metric fittings are essential in maintaining equipment such as cars, trucks, construction vehicles, and farm equipment. Their use in these industries ensures that machinery remains well-lubricated and operates efficiently, reducing downtime and maintenance costs.

Characteristics and Specifications of Metric Grease Fittings

Metric grease fittings are designed to meet specific engineering standards, ensuring they provide reliable and efficient lubrication. Key characteristics and specifications include:

Thread Sizes: Metric grease fittings come in a range of thread sizes to suit different machinery and applications. Common thread sizes include M6x1, M8x1, M10x1, and M12x1. These sizes denote the diameter and pitch of the threads, allowing for precise fitting and secure attachment within lubrication points.

Pressure Ratings: Metric grease fittings are built to withstand high-pressure environments, ensuring they can deliver lubricant effectively without leakage or failure. Typical pressure ratings for these fittings range from 6,000 to 10,000 psi, similar to SAE fittings. This ensures they can handle the demands of various lubrication systems and maintain consistent performance under pressure.

Materials Used: The materials used in the construction of metric grease fittings are chosen for their durability and resistance to wear and corrosion. Common materials include steel, stainless steel, and brass. Steel fittings are favored for their strength and affordability, making them suitable for general applications. Stainless steel fittings offer excellent corrosion resistance and are ideal for use in harsh or corrosive environments. Brass fittings are also used for their corrosion resistance and ease of machining, often found in specialized applications where precision is critical.

Key Differences Between SAE and Metric Grease Fittings

Measure Metric Grease Fitting drawing

Thread Types and Sizes Comparison

One of the most notable differences between SAE and Metric grease fittings lies in their thread types and sizes. SAE (Society of Automotive Engineers) grease fittings typically use imperial thread sizes, such as 1/4″-28, 1/8″-27, 5/16″-18, and 3/8″-24. These threads are specified in inches and follow the Unified Thread Standard (UTS).

On the other hand, Metric grease fittings use thread sizes measured in millimeters, such as M6x1, M8x1, M10x1, and M12x1. The “M” denotes that the threads are metric, and the numbers indicate the diameter and pitch of the threads. The pitch refers to the distance between threads, which is crucial for ensuring a proper fit.

This difference in thread types means that SAE and Metric grease fittings are not directly interchangeable. Using the wrong type of thread can result in poor fitment, potential leakage, and damage to the machinery.

Dimensional Differences and Tolerances

SAE and Metric grease fittings also differ in their dimensional standards and tolerances. SAE fittings follow the UTS dimensional standards, which have specific guidelines for thread depth, diameter, and pitch. These standards ensure consistency and compatibility among various SAE fittings.

Metric grease fittings adhere to the International Organization for Standardization (ISO) standards, which dictate the dimensions and tolerances for metric threads. ISO standards ensure that Metric fittings maintain consistent thread dimensions and pitches, facilitating their use in metric-based systems.

Dimensional differences and tolerances between SAE and Metric fittings can affect the ease of installation and the reliability of the seal. Properly adhering to these standards is essential to ensure that the fittings perform optimally and do not cause mechanical issues.

Pressure Ratings and Performance Differences

While both SAE and Metric grease fittings are designed to handle high pressures, there can be differences in their performance based on their construction and application. Typical pressure ratings for both types of fittings range from 6,000 to 10,000 psi. However, specific applications might require fittings that can handle higher or lower pressures.

SAE fittings are often used in applications with rigorous performance requirements, such as automotive and aerospace industries. Their pressure ratings and performance are standardized to meet the stringent demands of these sectors.

Metric fittings, while also capable of handling high pressures, are commonly used in industrial and machinery applications. Their performance standards are set to meet the needs of these environments, ensuring reliable lubrication under various conditions.

Selection Criteria

Choosing the right grease fittings for your machinery is crucial for ensuring efficient lubrication and long-term reliability. When selecting between SAE and Metric grease fittings, several factors should be considered to ensure compatibility, performance, and ease of maintenance.

BSP grease fittings wholesale

Performance Requirements

Load and Pressure: Assess the operational load and pressure requirements of your machinery. High-load and high-pressure applications may require fittings with specific pressure ratings. Ensure that the selected grease fittings can handle the maximum pressure without risk of leakage or failure.

Lubricant Delivery: Consider the type and viscosity of the lubricant used. Some fittings are designed to accommodate thicker greases, while others are optimized for lighter oils. The fitting should ensure consistent and effective lubricant delivery to the critical parts of the machinery.

Frequency of Lubrication: Determine how often the machinery requires lubrication. Frequent lubrication needs might necessitate fittings that are easy to access and use, while less frequent needs might allow for more secure, less accessible fittings.

Environmental Factors

Operating Environment: Evaluate the conditions in which the machinery operates. In harsh environments with exposure to dirt, dust, moisture, or chemicals, corrosion-resistant materials like stainless steel or brass may be necessary to ensure longevity and reliability.

Temperature Extremes: Consider the temperature range within which the machinery operates. Extreme temperatures can affect the performance and durability of grease fittings. Materials and designs that can withstand high or low temperatures without degradation are preferable.

Exposure to Contaminants: Machinery exposed to contaminants requires grease fittings with effective sealing mechanisms to prevent dirt and debris from entering the lubrication system. This ensures the lubricant remains clean and effective.

Maintenance Considerations

Ease of Installation and Removal: Choose grease fittings that are easy to install and remove. This is particularly important for machinery that requires frequent maintenance. Quick and straightforward installation helps reduce downtime and maintenance costs.

Compatibility with Existing Equipment: Ensure that the new grease fittings are compatible with the existing equipment. This includes matching thread sizes, types, and material compatibility. Using fittings that align with current standards and specifications prevents potential issues during maintenance.

Availability and Replacement: Consider the availability of the grease fittings in your region. Easily accessible fittings reduce downtime when replacements are needed. Standardized fittings (either SAE or Metric) that are widely available can be advantageous.

Durability and Longevity: Select fittings made from high-quality materials that offer durability and long service life. This minimizes the need for frequent replacements and ensures continuous, reliable lubrication.

Selecting the right grease fittings involves a comprehensive evaluation of performance requirements, environmental factors, and maintenance considerations. By understanding the specific needs of your machinery and the conditions it operates in, you can choose grease fittings that enhance lubrication efficiency, reduce maintenance efforts, and extend the lifespan of your equipment. Whether opting for SAE or Metric fittings, ensuring compatibility and reliability is key to achieving optimal machinery performance and operational efficiency.

Installation and Maintenance Tips

Preparation: Before installation, ensure that the fitting and the receiving hole are clean and free from debris or old grease. Use a clean cloth or brush to remove any contaminants.

Thread Sealing: Apply a suitable thread sealant or Teflon tape to the threads of the grease fitting to prevent leaks and ensure a secure fit. This is especially important in high-pressure applications.

Insertion: Carefully screw the grease fitting into the receiving hole by hand to avoid cross-threading. Once it is hand-tight, use a wrench or a special grease fitting installation tool to secure it firmly in place. Avoid over-tightening, which can damage the threads and the fitting.

Alignment: Ensure the grease fitting is aligned correctly to allow easy access for the grease gun. Misalignment can make future lubrication difficult and may cause damage during maintenance.

Common Installation Mistakes and How to Avoid Them

Cross-Threading: One of the most common mistakes is cross-threading the fitting during installation. To avoid this, always start threading the fitting by hand and ensure it is properly aligned before using a wrench.

Over-Tightening: Over-tightening can strip the threads or damage the fitting. Tighten the fitting until it is snug and then apply a slight additional turn for security. Do not force it beyond this point.

Inadequate Sealing: Failing to use a thread sealant can lead to leaks. Always apply a suitable sealant to the threads before installation.

Troubleshooting Common Problems

Grease Leakage: If grease is leaking around the fitting, check for proper installation and ensure that the threads are sealed correctly. Replace damaged or worn fittings.

Blocked Fittings: If no grease is coming out when you apply the grease gun, the fitting may be blocked. Remove the fitting and clean it or replace it if necessary. Check the passage in the machinery for blockages as well.

Fitting Damage: If the fitting is damaged, bent, or worn, replace it immediately. Operating with a damaged fitting can lead to insufficient lubrication and potential machinery failure.

Difficulty in Lubrication: If it is hard to attach the grease gun or apply grease, ensure that the fitting is the correct type and size for your equipment. Also, check that the grease gun is functioning properly and filled with the correct lubricant.

Conclusion

In this detailed guide, we have explored the differences between SAE and metric grease fittings. By thoroughly evaluating these needs and understanding the unique benefits of each standard, you can make an informed decision that ensures optimal lubrication, performance, and service life for your equipment.

FAQ

SAE grease fittings use imperial thread sizes and are commonly used in the US, while Metric grease fittings use metric thread sizes and are prevalent in Europe and Asia.

No, SAE and Metric grease fittings are not interchangeable due to differences in thread types and sizes.

Common materials for grease fittings include steel, stainless steel, and brass, chosen for their durability and corrosion resistance.

To prevent cross-threading, always start threading the fitting by hand, ensuring it is properly aligned before using a wrench to secure it.

Thread sealant prevents leaks and ensures a secure fit, especially important in high-pressure applications.

Regularly inspect grease fittings for wear, damage, and blockages. Follow the manufacturer’s recommended lubrication schedule and keep fittings clean to ensure optimal performance.

Contact Topa

Have a question or suggestion? Fill out the form below to get in touch with one of our experts.

Metric Hydraulic Fitting Identification Topa

Metric Hydraulic Fitting Identification

Metric Hydraulic Fitting Identification: Step-by-Step Guide

Table of Contents

Introduction

Metric hydraulic fittings are widely used due to their standardized measurements and compatibility with international systems. Accurate identification of these fittings is essential to maintain system integrity and avoid costly downtime. This guide aims to provide a comprehensive, step-by-step process for identifying metric hydraulic fittings, ensuring that you can accurately match and replace fittings in your hydraulic systems.

Understanding Metric Hydraulic Fittings

Metric hydraulic fittings are connectors designed to join sections of hydraulic hose, pipe, and tubing in a hydraulic system. These fittings are measured using the metric system, which is based on millimeters. They play a vital role in maintaining the flow of hydraulic fluid, thereby ensuring the proper operation of machinery.

Types of Metric Hydraulic Fittings

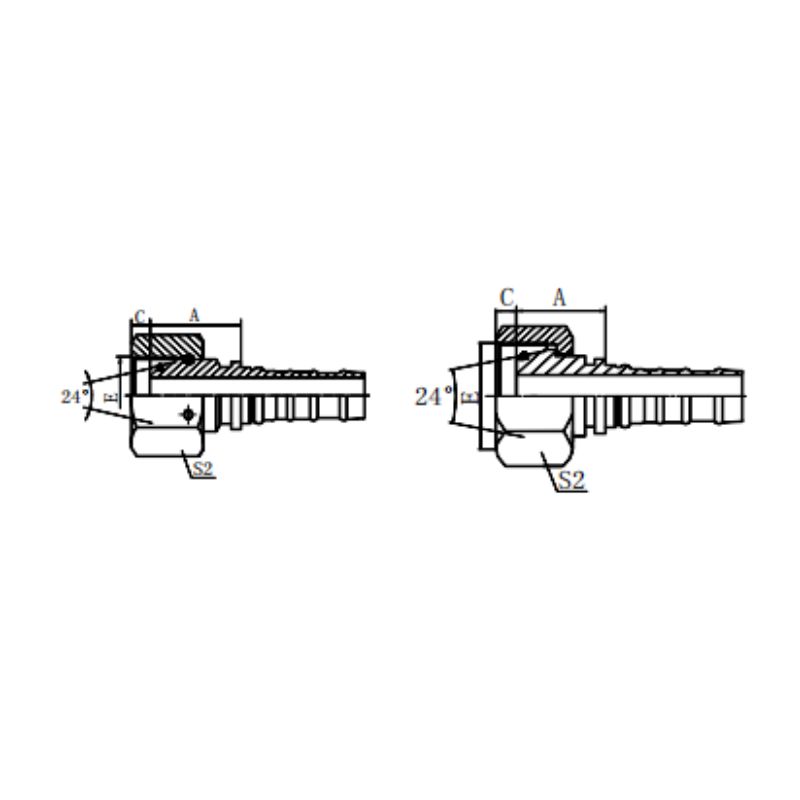

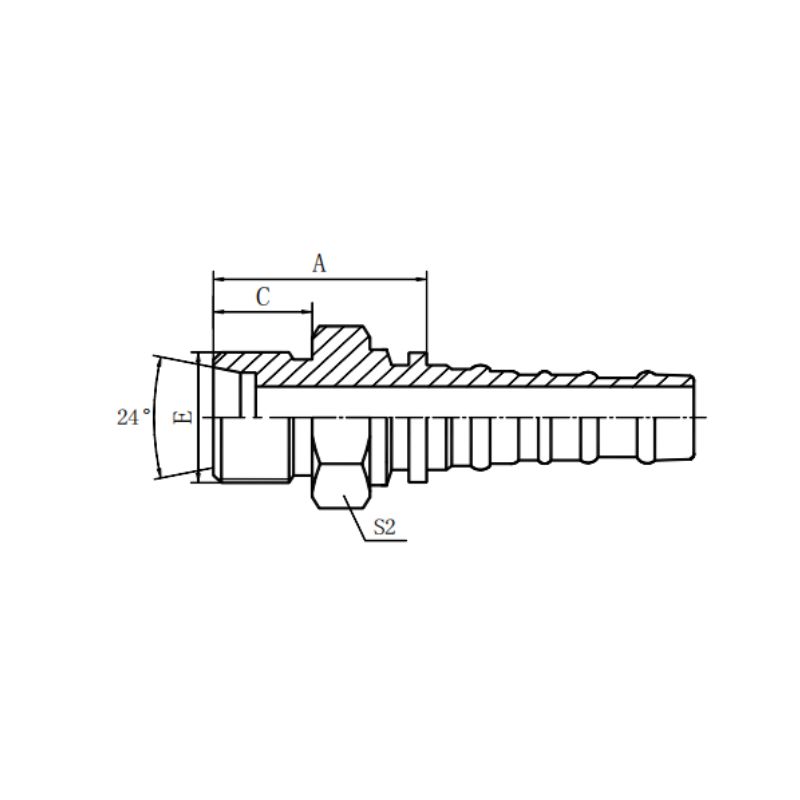

DIN 24° Fittings

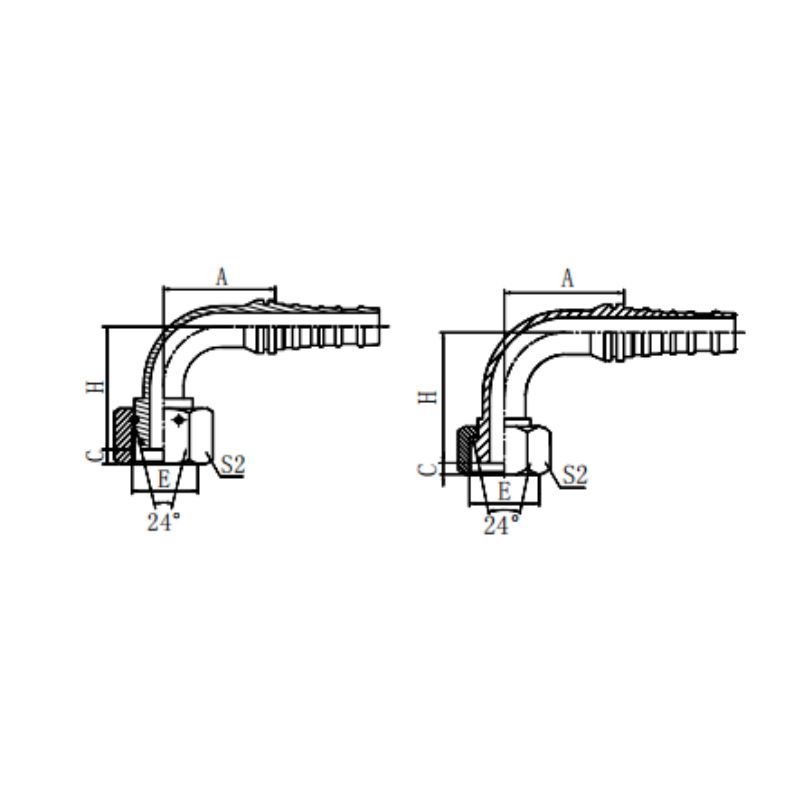

DIN 24° fittings feature a 24-degree cone seat and are a staple in European hydraulic systems. They come in both light (L) and heavy (S) series, differentiated by wall thickness and pressure capacity, ensuring a reliable metal-to-metal seal for high-pressure application

Metric Standpipe Fittings

Metric standpipe fittings are straight connectors typically used for joining two hydraulic hoses or a hose to a machine component. They are essential in systems requiring a straightforward, high-integrity connection, especially in heavy machinery and industrial applications.

Metric Flange Fittings

Metric flange fittings connect hydraulic hoses and pipes using a flange system that bolts directly to components. They are employed in high-pressure environments where a secure, rigid connection is necessary, often in industrial and mobile hydraulic systems.

Compression Fittings

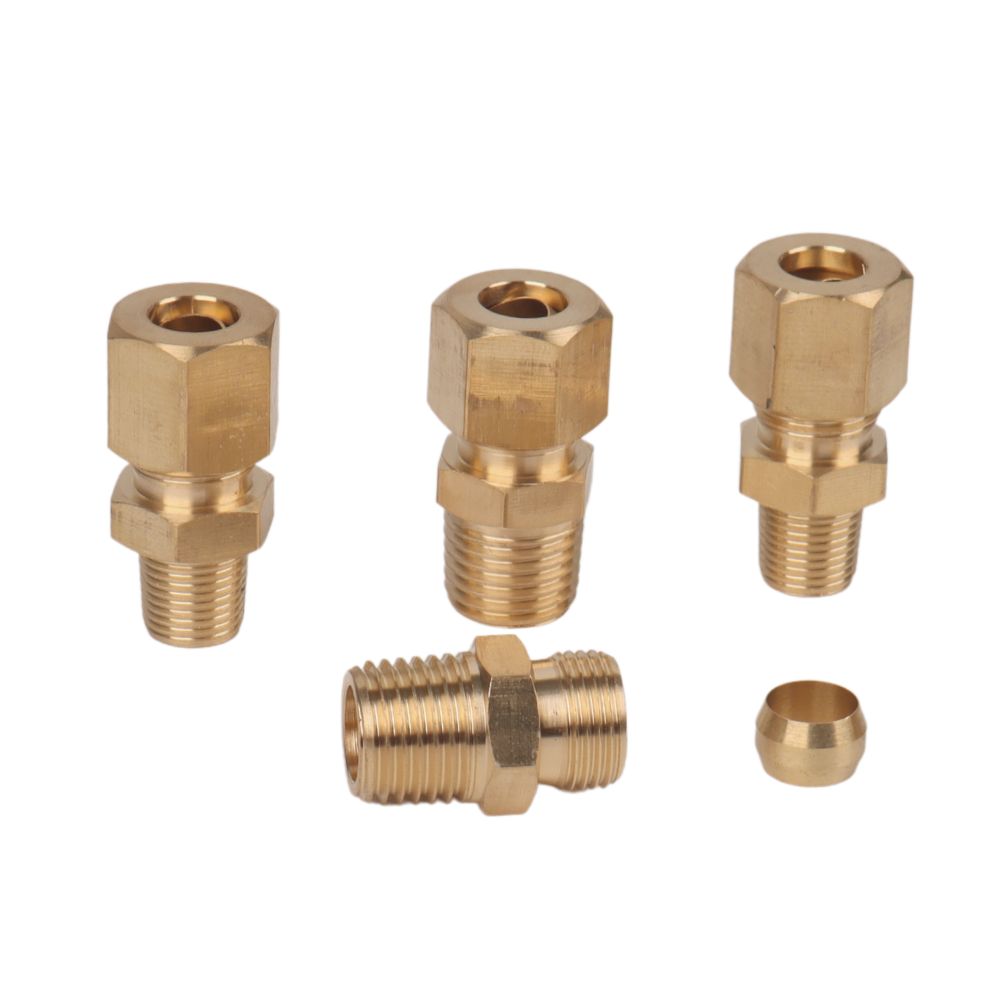

Compression fittings use a ferrule to compress the pipe as the fitting is tightened, ensuring a leak-proof connection. These fittings are used in hydraulic systems where reliable, easy-to-install connections are required, often in instrumentation and low to medium-pressure applications.

Parallel Threads

Maintain a constant diameter along the thread length. They typically require an additional sealing method, such as an O-ring or bonded seal, to ensure a leak-proof connection.

Tapered Threads

Decrease in diameter along the thread length, creating a seal through thread deformation. These threads can provide a reliable seal without additional sealing components.

Step-by-Step Identification Process

Determine the Metric Thread Type

Topa metric fitting

Identifying the thread type is the first and most crucial step in the identification process. Understanding whether the thread is parallel or tapered helps determine the appropriate sealing method and fitting compatibility. Here’s a detailed guide to determine the metric thread type:

Visual Inspection

Parallel Threads:

Description: Parallel threads maintain a consistent diameter along their entire length. When you measure the diameter at different points along the thread, it should remain the same.

Identification: Visually inspect the threads to see if they appear straight and uniform without tapering. These threads typically rely on an additional sealing mechanism, such as an O-ring, to ensure a leak-free connection.

Tapered Threads:

Description: Tapered threads gradually decrease in diameter from the base to the tip. This tapering helps create a tight seal as the threads are screwed together.

Identification: Observe the threads to check if they taper. Measure the diameter at several points along the length to confirm the tapering effect. The reduction in diameter is a clear indicator of tapered threads.

Use of Thread Gauges

Parallel Threads:

Fit: When using a thread gauge on parallel threads, the gauge should fit uniformly without any gaps along the length of the thread.

Procedure: Select the appropriate gauge for the estimated pitch and insert it into the threads. If the gauge fits snugly and evenly, it confirms the presence of parallel threads.

Tapered Threads:

Fit: For tapered threads, the thread gauge will fit tightly at one end and loosely at the other, reflecting the gradual decrease in diameter.

Procedure: Choose a thread gauge corresponding to the estimated pitch and insert it into the threads. If the gauge fits tightly at the start and becomes looser as it moves along the thread, this indicates a tapered thread.

hydraulic fittings measure tools Topa

Measurement with Calipers

Step-by-Step: Use a caliper to measure the thread’s outside diameter. Ensure the caliper is perpendicular to the thread axis to obtain an accurate reading.

Multiple Points: Measure the diameter at several points along the thread to determine if the diameter remains constant or changes.

Parallel Threads:

Consistency: Measure the diameter at different points along the thread. If the measurements are consistent, the threads are parallel.

Verification: Consistent measurements indicate the thread is parallel, confirming the absence of tapering.

Tapered Threads:

Decrease: Measure the diameter at multiple points along the thread. A noticeable decrease in diameter confirms the presence of tapered threads.

Verification: The decreasing measurements at different points along the thread indicate it is tapered, confirming the tapering effect.

Thread Form and Pitch

Metric Thread Pitch:

Measurement: Use a pitch gauge to measure the distance between threads. Insert the pitch gauge into the threads to determine the correct pitch.

Common Pitches: Common metric thread pitches include 1.0mm, 1.5mm, and 2.0mm. Ensure the pitch gauge fits snugly into the threads without any gaps.

Identifying the Form:

Thread Profile: Examine the thread profile and angle. Metric threads typically have a 60-degree thread angle, which is standard across various types.

Visual and Measurement: Use both visual inspection and measurement tools to identify the thread form. Ensure the threads match the 60-degree angle typically associated with metric threads.

Measure the Thread Diameter

Accurate measurement of the thread diameter is essential for correct fitting identification. Here’s a detailed guide to measuring the thread diameter using calipers:

Preparation

Clean the Threads:

Importance: Ensure that the threads are clean and free of debris or damage. Dirt or damage can distort measurements, leading to incorrect identification.

Method: Use a brush or cloth to clean the threads thoroughly, removing any dirt, grease, or residue.

Select the Correct Calipers:

Type: Use digital or vernier calipers for precise measurements. Digital calipers provide easy-to-read results, while vernier calipers offer high accuracy with a manual scale.

Calibration: Ensure that the calipers are calibrated correctly before use to guarantee accurate measurements.

Positioning the Calipers

Perpendicular Alignment:

Importance: Position the calipers perpendicularly to the axis of the thread. This ensures that the measurement is taken at the correct angle and not skewed.

Technique: Hold the calipers steady and make sure they are aligned straight across the thread peaks (crests).

Correct Placement:

Placement: Place the caliper jaws on the outermost points of the thread peaks (the crests). Avoid placing the calipers on the thread roots (the valleys), as this will give an incorrect diameter reading.

Precision: Make sure the calipers are centered and not off to one side, which could affect the measurement accuracy.

Taking the Measurement

Initial Measurement:

Procedure: Gently close the caliper jaws around the thread crests. Ensure that the calipers are not applying too much pressure, as this can compress the threads and give a false reading.

Care: Close the calipers slowly to avoid damaging the threads or the caliper itself.

Reading the Calipers:

Digital Calipers: Read the measurements displayed on the digital calipers. The digital readout will provide a precise and immediate measurement.

Vernier Calipers: If using vernier calipers, read the scale accurately. Align the vernier scale with the main scale to determine the precise measurement.

Double-Checking for Accuracy

Multiple Measurements:

Consistency: Take multiple measurements at different points along the thread length to ensure consistency. This helps to confirm that the thread diameter is uniform and the measurement is accurate.

Technique: Measure at the start, middle, and end of the threaded section to detect any variations.

Cross-Verification:

Reference Charts: Compare the measured diameter with standard thread diameter charts to verify accuracy. This step is crucial to ensure that the measured value matches standard dimensions for the specific thread type.

Confirmation: Use reputable sources or manufacturer specifications to cross-check the measurements.

Common Pitfalls to Avoid

Measuring at an Angle:

Error: Ensure that the calipers are not tilted or angled when taking the measurement. An angled measurement will give a larger or smaller diameter than the actual value.

Solution: Double-check the alignment of the calipers and adjust as needed to ensure they are perpendicular to the thread axis.

Damaged Threads:

Caution: Be cautious when measuring worn or damaged threads. In such cases, it may be necessary to take an average of multiple measurements or refer to original specifications if available.

Technique: Measure in several places and use the most consistent readings, or consult the fitting’s original design specifications for accurate dimensions.

Identify the Thread Pitch

Identifying the thread pitch is a critical step in the process of metric hydraulic fitting identification. The thread pitch is the distance between threads, measured in millimeters for metric threads. Here’s a detailed guide to accurately determine the thread pitch using thread gauges:

Using the Thread Gauge

Insert the Gauge:

Selection: Begin by selecting a thread gauge that you estimate to be close to the pitch of the thread you are measuring. This initial selection can be based on visual estimation or experience.

Insertion: Carefully insert the gauge into the threads of the fitting, ensuring it aligns with the thread grooves.

Check for Fit:

Snug Fit: Ensure the gauge fits snugly into the threads without any gaps. A proper fit means that the gauge’s teeth should align perfectly with the tread grooves.

Visual Inspection: Visually inspect to confirm that the gauge sits neatly in the thread grooves without any visible gaps or misalignment.

ring gauge Topa

Identifying the Correct Pitch

Trial and Error:

Multiple Gauges: If the first gauge does not fit correctly, try gauges with different pitches until you find one that fits snugly. This process may require several attempts with different sizes.

Adjustment: Slight adjustments and multiple trials help ensure the most accurate match.

Snug Fit:

Alignment: The correct gauge will sit neatly in the thread grooves without any play or misalignment. This indicates that the pitch of the gauge matches the pitch of the threads.

Verification: Confirm that the gauge fits securely along the entire length of the thread.

Verify Fit:

Rotation: Double-check the fit by slightly rotating the gauge in the threads. If it continues to fit snugly without slipping or binding, you have identified the correct pitch.

Consistency: Ensure the gauge remains aligned and fits securely through minor adjustments.

Common Metric Thread Pitches

Examples:

Common metric thread pitches include 0.5mm, 0.75mm, 1.0mm, 1.5mm, and 2.0mm. For hydraulic fittings, pitches like 1.0mm, 1.5mm, and 2.0mm are frequently encountered.

Standard Sizes:

Use reference charts to cross-check the pitch size. These charts list standard thread pitches for various fitting types and sizes, helping confirm your measurements.

Documentation

Record the Measurement:

Documentation: Once the correct thread pitch is identified, note it down along with the previously measured thread diameter. This documentation is crucial for cross-referencing and ensuring the accuracy of the fitting identification.

Accuracy: Proper documentation helps in future reference and verification, ensuring that the fitting type is accurately identified.

Common Challenges and Solutions

Incorrect Measurements

To avoid incorrect measurements, always use calibrated tools and measure multiple times. Calibrated tools ensure precision, and multiple measurements at different points along the thread help confirm consistency. Ensure the tools are properly positioned; the calipers should be perpendicular to the thread axis and placed correctly on the thread crests. Additionally, the fitting must be clean and undamaged, as dirt or deformations can lead to inaccurate readings. By maintaining clean threads and using precise, calibrated instruments, you can significantly reduce the risk of measurement errors.

Identifying Worn or Damaged Threads

Worn or damaged threads can complicate the identification process, as they may not match standard profiles. To address this, use thread repair tools to restore the thread profile to its original shape. These tools can help smooth out deformities and make the threads easier to measure accurately. If thread repair is not feasible, refer to the original equipment specifications or documentation to find the correct thread size and type. This approach ensures that even if the threads are damaged, you can still identify the fitting accurately by cross-referencing with the original specifications.

Distinguishing Similar Thread Types

Accurately identifying metric hydraulic fittings is essential for maintaining the efficiency and reliability of hydraulic systems. By following this step-by-step guide and utilizing the appropriate tools and reference materials, you can ensure precise fitting identification and avoid potential system failures. Use the steps and resources provided to enhance your maintenance practices and keep your hydraulic systems running smoothly.

Conclusion

In summary, banjo fittings play an indispensable role in the realm of hydraulic systems, providing a unique combination of flexibility, efficiency, and reliability. Their distinct design, characterized by a hollow bolt and an eye-shaped union, allows for a compact and versatile connection solution, particularly valuable in confined spaces and in systems requiring directional fluid flow. Understanding and respecting the intricacies of banjo fittings is not just about maintaining a component; it’s about ensuring the seamless operation, safety, and longevity of hydraulic systems.

FAQ

What tools are essential for identifying metric hydraulic fittings?

Essential tools include calipers, thread gauges, a magnifying glass, and reference charts. Ensure all tools are calibrated and specifically designed for metric threads.

How can I distinguish between parallel and tapered threads?

Measure the thread diameter at multiple points along its length. Parallel threads maintain a consistent diameter, while tapered threads show a decrease in diameter from base to tip.

What should I do if the threads are worn or damaged?

Use thread repair tools to restore the thread profile. If repair is not possible, refer to the original equipment specifications to determine the correct thread size and type.

How do I accurately measure the thread pitch?

Clean the threads and use a thread gauge set with various pitch sizes. Insert the gauge into the threads and ensure it fits snugly without gaps. Double-check the fit by rotating the gauge slightly.

What are common metric thread pitches used in hydraulic fittings?

Common metric thread pitches include 0.5mm, 0.75mm, 1.0mm, 1.5mm, and 2.0mm. For hydraulic fittings, 1.0mm, 1.5mm, and 2.0mm pitches are frequently encountered.

How can I differentiate between similar metric thread types?

Utilize detailed reference charts to compare measurements. Seek expert advice or consult manufacturer documentation if needed to ensure accuracy. This helps distinguish closely related thread types accurately.

Metric Hydraulic Fitting Types The Ultimate Guide Topa

Metric Hydraulic Fitting Types: The Ultimate Guide

Metric Hydraulic Fitting Types: The Ultimate Guide

Table of Contents

Introduction

Did you know that hydraulic systems power more than 70% of industrial machinery worldwide? In the world of hydraulic systems, understanding the types of metric hydraulic fittings is crucial for ensuring optimal performance and reliability. This guide aims to provide comprehensive and actionable information on metric hydraulic fittings, their types, and their applications.

What is the classification of metric hydraulic fittings?

Metric hydraulic fittings are connectors used in hydraulic systems to join components, ensuring a secure and leak-free connection. They come in various types such as threaded, flanged, and quick-connect fittings, and are essential for maintaining the efficiency and safety of hydraulic machinery by providing reliable and precise connections tailored to metric measurements.

Understanding Metric Hydraulic Fittings

Metric hydraulic fittings are components specifically designed to connect various parts of a hydraulic system, ensuring a secure and leak-proof assembly. These fittings are measured in metric units (millimeters), aligning with the international standard of measurement used in many countries, especially across Europe and Asia. The primary purpose of these fittings is to maintain the integrity and efficiency of hydraulic systems by providing reliable connections that can withstand high pressure and adverse environmental conditions.

Hydraulic systems rely heavily on these fittings to function correctly. Without proper fittings, the hydraulic fluid could leak, leading to a loss in pressure and efficiency, and potentially causing system failure. Therefore, choosing the right type of hydraulic fitting is crucial for the overall performance and longevity of the system.

Metric vs Imperial Fittings

The primary difference between metric and imperial fittings lies in their measurement units. Metric fittings are measured in millimeters, while imperial fittings are measured in inches. This distinction is significant because it affects the compatibility of components within a hydraulic system.

Metric Fittings: Metric fittings are commonly used in systems designed and manufactured in countries that follow the metric system, such as those in Europe and Asia. These fittings are preferred for their precision and compatibility with international standards. They are often used in applications that require high accuracy and consistency in measurements.

Imperial Fittings: Imperial fittings are prevalent in the United States and other regions that use the imperial system. These fittings are measured in inches and fractions of inches, making them compatible with equipment and systems designed to imperial specifications. Imperial fittings are commonly found in North American industries, including automotive and aerospace.

Metric standard threads fitting Chart Topa

Common Types of Metric Hydraulic Fittings

DIN (Deutsches Institut für Normung) Fittings

DIN fittings are standardized by the German Institute for Standardization (Deutsches Institut für Normung), ensuring a high level of precision and reliability. These fittings are widely utilized in European hydraulic systems due to their robust design and adherence to strict engineering standards. DIN fittings come in various styles, the most common being DIN 2353 and DIN 24°, each designed for specific applications and performance requirements.

DIN 2353 Fittings

DIN 2353 fittings are compression fittings designed for connecting hydraulic tubes. They are highly regarded for their ability to create leak-proof connections, even under high pressure. These fittings consist of a body, a ferrule, and a nut, which work together to form a secure connection. DIN 2353 fittings are available in three series, each defined by the tube’s outer diameter and wall thickness:

LL (Light Series): Suitable for low-pressure applications, often used in general industrial systems.

L (Light Series): Designed for medium-pressure applications, commonly found in automotive and industrial machinery.

S (Heavy Series): Built for high-pressure applications, typically used in heavy-duty industrial and mobile equipment.

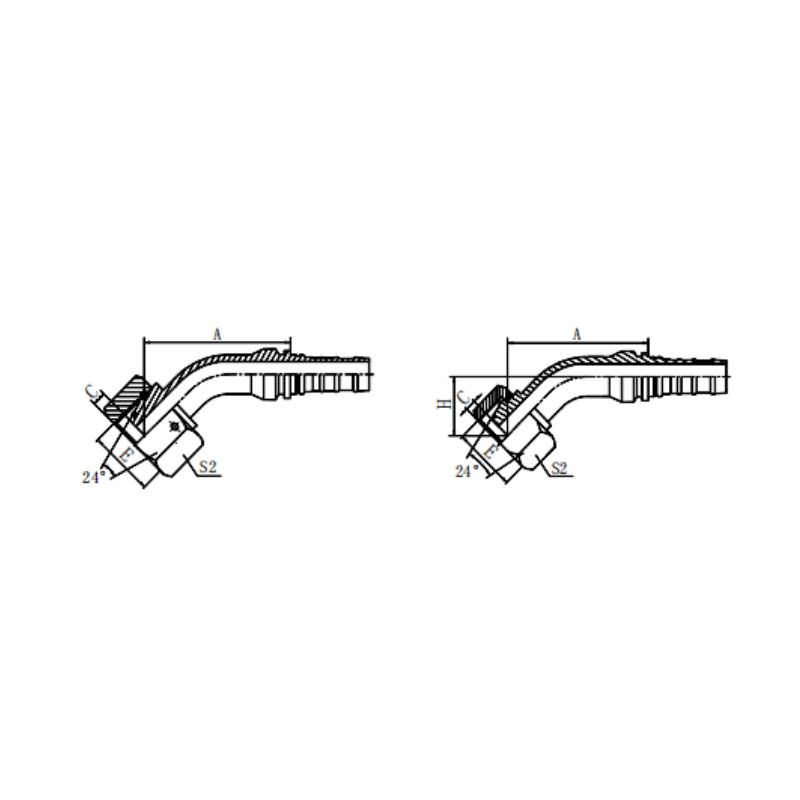

DIN 24° Fittings

DIN 24° fittings, also known as flare fittings, are used extensively in hydraulic systems for their ability to handle high pressure and provide a secure, leak-free connection. These fittings feature a 24° cone and a sealing ring that ensures a tight seal. They are particularly valued for their robustness and are often used in critical applications where system integrity is paramount.

Key Characteristics

Precision Engineering: DIN fittings are manufactured with high precision, ensuring consistent quality and performance across different applications. The stringent manufacturing standards ensure that each fitting meets the exact specifications required for safe and efficient hydraulic system operation.

Versatility: DIN fittings are available in various configurations, including straight, elbow, tee, and cross fittings, catering to a wide range of hydraulic applications. This versatility makes them suitable for complex hydraulic circuits where multiple connections are needed.

High Pressure Capability: DIN fittings are designed to withstand high pressure, making them ideal for demanding hydraulic applications. Their robust construction ensures that they can handle the extreme conditions often encountered in industrial and mobile hydraulic systems.

Corrosion Resistance: Many DIN fittings are made from materials like stainless steel, providing excellent resistance to corrosion and extending the lifespan of the fittings in harsh environments.

Metric Parallel Thread (M Thread)

Metric Parallel Threads, also known as M Threads, have a constant diameter throughout the threaded portion, making them simple to manufacture and use. These threads are standardized and widely used in various applications, particularly where low-pressure and ease of manufacturing are key considerations.

International Standards

ISO 724:

This standard specifies the basic dimensions and tolerances for metric threads, ensuring consistency and interchangeability across different applications and manufacturers. ISO 724 outlines the thread profiles, including major and minor diameters, pitch, and thread angle, which are essential for proper mating and performance.

ISO 261:

ISO 261 covers the standard pitch and diameter combinations for metric threads, providing a comprehensive framework for selecting the appropriate thread size for various applications. This standard helps in maintaining uniformity and compatibility, crucial for the widespread use of M Threads in international markets.

Metric Tapered Threads

Metric Tapered Threads are conical in shape, designed to provide a tightening fit that enhances sealing capability. The tapering of the threads ensures that as the connection is tightened, the threads wedge together, creating a seal that becomes tighter with increased torque. This characteristic makes them particularly suited for high-pressure applications where robust and reliable sealing is critical.

Key Characteristics

Conical Shape:

The threads are designed with a taper, meaning the diameter of the thread decreases from one end to the other. This conical shape allows the threads to form a tight, pressure-resistant seal as they are screwed together​

High-Pressure Capability:

Tapered threads are ideally suited for systems operating under high pressure. The design eliminates the need for secondary sealing methods, such as O-rings, by ensuring that the metal-to-metal contact is sufficient to prevent leaks even under high stress​.

Excellent Sealing:

The self-sealing nature of tapered threads provides robust sealing without the need for additional components. This inherent sealing capability makes them highly reliable in applications where preventing leaks is paramount.

International Standards

ISO 7-1:

This standard specifies the dimensions and requirements for pipe threads where pressure-tight joints are made on the threads. ISO 7-1 ensures that metric tapered threads are manufactured to a consistent specification, facilitating their reliable use in high-pressure applications globally.

Metric O-Ring Face Seal

Metric O-Ring Face Seal fittings are designed with a flat face and an O-ring on the end. This design enhances the sealing capabilities of the fittings, making them highly reliable in preventing leaks. ORFS fittings are particularly known for their ability to handle high-pressure environments, ensuring zero-leakage performance even under extreme conditions.

International Standards

ISO 8434-3:

ISO 8434-3 specifies the dimensions, performance requirements, and testing methods for O-Ring Face Seal (ORFS) fittings. This standard ensures that ORFS fittings meet stringent quality and performance criteria, providing confidence in their use across different applications and industries.

Komatsu Metric Threads

Komatsu metric threads are specialized thread types used exclusively in Komatsu machinery. These threads differ slightly from standard metric threads and are designed to meet the unique hydraulic system requirements of Komatsu equipment. This specialization ensures optimal performance and compatibility with Komatsu’s construction and mining machinery.

Komatsu-Specific Standards

Komatsu uses proprietary standards for its metric threads to ensure high performance and reliability. These standards are tailored to meet the specific needs of Komatsu machinery, ensuring that all hydraulic components work together seamlessly. While these standards are proprietary, they align with general industry practices to ensure quality and reliability

Japanese Industrial Standard (JIS)

Topa 28611 Metric JIS Fittings

JIS metric threads, while not technically metric, share many similarities with metric threads and are often used in conjunction with standard metric fittings. They are primarily utilized in Japanese-made equipment, ensuring compatibility and performance in various industrial applications.

International Standards

JIS B 0203:

This standard covers the specifications for tapered threads used in hydraulic fittings, ensuring that JIS threads meet specific dimensional and performance criteria. It guarantees the reliability and compatibility of these threads in hydraulic applications.

JIS B 8363:

Specifies the requirements for hydraulic hose fittings, including dimensions, materials, and performance standards. This ensures that JIS hydraulic hose fittings provide reliable and efficient connections in various hydraulic systems.​

Selecting the Right Metric Hydraulic Fittings

Selecting the appropriate metric hydraulic fittings is crucial for the efficient and safe operation of hydraulic systems. Here are the key factors to consider and guidance on application-based selection.

Factors to Consider

Pressure Ratings

Ensure that the fitting can withstand the maximum operating pressure of the hydraulic system. Using fittings with inadequate pressure ratings can lead to leaks or system failure under high-pressure conditions.

For example, DIN 2353 fittings are suitable for high-pressure applications, while M Threads are more appropriate for low-pressure systems.

Temperature Compatibility

Select fittings that can operate effectively within the temperature range of the system. High temperatures can affect the material properties and sealing capabilities of the fittings​.

Stainless steel fittings are often preferred for high-temperature environments due to their superior thermal resistance.

Material Selection

Choose fittings made from materials that suit the application’s requirements. Common materials include:

Steel: High strength, suitable for high-pressure applications but prone to corrosion if not treated.

Stainless Steel: Offers high strength and excellent corrosion resistance, suitable for both high-pressure and corrosive environments.

Brass: Good corrosion resistance and easier to work with, but not suitable for high-pressure, high-temperature environments.

material Topa China factory

Sizing and Thread Type

Match the fitting size and thread type to the system specifications. Incorrect sizing or thread type can lead to leaks and mechanical failures.

Ensure compatibility with the system’s metric threads (e.g., DIN, JIS, Komatsu) to maintain the integrity of the hydraulic connections.

Application-Based Selection

Selecting the right fittings also depends on the specific hydraulic application. Here are some examples to illustrate how to choose appropriate fittings for different scenarios:

High-Pressure Applications:

For applications such as hydraulic presses or heavy machinery, use fittings with high-pressure ratings like DIN 2353 flareless fittings or Metric O-Ring Face Seal (ORFS) fittings. These fittings provide secure and leak-proof connections even under high stress.

Corrosive Environments:

In environments exposed to corrosive substances, such as marine or chemical processing industries, stainless steel fittings are ideal due to their excellent corrosion resistance. ORFS fittings in stainless steel provide a robust solution for leak-free performance.

General Industrial Use:

For general industrial machinery that operates under moderate pressure and temperature conditions, brass fittings can be an economical and effective choice. Metric Parallel Threads (M Threads) are suitable for these applications due to their simplicity and ease of use.

Automotive Systems:

In automotive applications, particularly in Japanese vehicles and machinery, JIS fittings are often required. These fittings ensure compatibility with Japanese standards and provide reliable performance in automotive hydraulic systems.

Conclusion

Choosing the right metric hydraulic fittings is fundamental for maintaining the efficiency, safety, and reliability of hydraulic systems. Understanding the specific requirements of pressure ratings, temperature compatibility, material selection, and correct sizing/thread types is essential. Proper installation and regular maintenance further enhance system longevity and prevent costly downtime and repairs, ensuring optimal performance across various applications. By adhering to these best practices, you can achieve robust and leak-free hydraulic connections, supporting seamless operations and minimizing operational disruptions.



FAQ

What are the main types of metric hydraulic fittings?

The main types include Metric Parallel Thread (M Thread), Metric Tapered Threads, Metric O-Ring Face Seal (ORFS), Flareless Threads (DIN 2353), Komatsu Metric Threads, and Japanese Industrial Standard (JIS) fittings. Each type has specific characteristics suited for different applications.

How do Metric Tapered Threads provide sealing?

Metric Tapered Threads have a conical shape that ensures a secure, tight fit, which improves sealing as the connection is tightened. This design eliminates the need for additional sealing methods such as O-rings, making them ideal for high-pressure applications.

What is the primary use of Metric O-Ring Face Seal fittings?

ORFS fittings are used for their high-pressure capability and zero-leakage performance. They feature a flat face with an O-ring that provides a leak-proof seal, making them ideal for hydraulic systems in heavy machinery and high-pressure fluid transfer applications.

Why are Flareless Threads (DIN 2353) fittings suitable for high-pressure applications?

DIN 2353 fittings use a metal-to-metal bite mechanism that creates a strong, leak-proof seal, making them excellent for medium to high-pressure applications. Their design eliminates the need for flaring the tubing, simplifying installation and enhancing reliability.

What distinguishes Komatsu Metric Threads from standard metric threads?

Komatsu Metric Threads are specifically designed for Komatsu machinery, ensuring compatibility and optimal performance with Komatsu’s hydraulic systems. They differ slightly from standard metric threads to meet the unique requirements of Komatsu’s equipment.

How do JIS metric threads differ from other metric threads?

JIS metric threads, while similar to standard metric threads, are primarily used in Japanese-made equipment. They offer compatibility with many standard metric fittings and are known for their durable design and excellent sealing properties, making them ideal for hydraulic systems in Japanese automotive and industrial machinery.

Types of Hydraulic hose Fittings Topa

Hydraulic Hose Fitting Types: A Comprehensive Guide

Hydraulic Hose Fitting Types: A Comprehensive Guide

Table of Contents

Introduction

Hydraulic hose fittings act as the connectors that link hydraulic hoses to various system elements such as pumps, valves, cylinders, and other integral parts of a hydraulic circuit. Without these fittings, the transfer of hydraulic fluid would be inefficient, leading to potential system failures and decreased performance. Selecting the appropriate hydraulic hose fittings involves understanding various factors, including the type of threads, sealing methods, and compatibility with different fluids and environmental conditions.

Common Thread Types for Hydraulic Hose Fittings

NPT/NPTF (National Tapered Pipe/Fuel)

Appearance Characteristics

NPT (National Pipe Tapered) and NPTF (National Pipe Tapered Fuel) threads are characterized by their tapered design, which is a key visual feature. Unlike straight threads, the diameter of tapered threads decreases from the end of the fitting towards the beginning. This taper creates a wedging action as the male and female threads are tightened together. The taper typically follows a standard angle, making these fittings distinct and easily identifiable. When inspecting an NPT or NPTF fitting, you will notice that the thread peaks and valleys become progressively closer together towards the end of the fitting.

Sealing Method

The sealing method for NPT and NPTF threads relies primarily on thread deformation. As the tapered threads are screwed together, they deform slightly to fill the voids between the threads, creating a tight seal. This deformation is essential for achieving a leak-free connection. To further enhance the seal, it is common practice to use a thread sealant or tape, such as PTFE (Teflon) tape. The sealant fills in the microscopic gaps between the threads, preventing any fluid from escaping. This combination of mechanical deformation and sealant application makes NPT and NPTF threads highly effective in maintaining high-pressure hydraulic systems.

Country of Use

NPT and NPTF threads are predominantly used in the United States and Canada. They have become the standard for many industrial, commercial, and residential applications within these regions. This widespread adoption is due to their reliable performance in high-pressure and high-temperature environments. Industries such as oil and gas, manufacturing, and construction commonly utilize these fittings due to their robustness and ease of use. Moreover, the standards for NPT and NPTF threads are well-documented and widely accepted in North America.

NPT and NPTF threads are specified under various standards to ensure consistency and interchangeability. NPT threads are defined by the American National Standard Pipe Thread standards, often referred to as ANSI/ASME B1.20.1. On the other hand, NPTF threads are specified by the Dryseal Pipe Thread standards, which are designed to provide better sealing capabilities without the need for additional sealants. Despite these distinctions, both thread types share similar geometric characteristics, making them compatible in many applications. However, it is essential to select the correct type based on the specific requirements of the hydraulic system to ensure optimal performance and safety.

BSP (British Standard Pipe) Thread

BSPT (British Standard Pipe Tapered)

External Characteristics: BSPT (British Standard Pipe Tapered) threads feature a tapered design similar to that of NPT threads. This taper means that the thread’s diameter decreases from the end of the fitting towards the beginning, creating a wedging action when the threads are tightened together. This tapering ensures a tighter fit as the threads are engaged, which is essential for forming a reliable seal. The taper angle for BSPT threads is 55 degrees, making it distinct from other thread types.

International Standard: The standard governing BSPT threads is ISO 7-1. This international standard ensures consistency and compatibility of BSPT fittings used across different regions and applications.

Sealing Method: BSPT threads seal primarily through thread deformation. As the tapered threads are screwed together, they deform slightly to fill any gaps between the threads, creating a tight and secure connection. This sealing method is effective in preventing leaks, especially in high-pressure applications. The wedging action produced by the tapering enhances the seal, making BSPT fittings reliable in various industrial and hydraulic systems.

Country of Use: BSPT fittings are used globally, with significant prevalence in Europe and Asia. They are a standard choice in many industries, including plumbing, hydraulic systems, and gas distribution.

BSPP (British Standard Pipe Parallel)

External Characteristics: BSPP (British Standard Pipe Parallel) threads differ from BSPT threads in that they maintain a consistent diameter along the length of the fitting. Unlike tapered threads, BSPP threads do not wedge together, which means they rely on additional sealing mechanisms to prevent leaks. The threads are parallel and feature a 55-degree flank angle, similar to BSPT threads but without the taper.

International Standard: BSPP threads are standardized under ISO 228-1. This standard ensures that BSPP fittings are compatible and can be used interchangeably in various applications worldwide.

Sealing Method: BSPP threads seal using a washer or an O-ring. The washer or O-ring sits between the mating faces of the fittings and is compressed to create a seal. This method is highly effective in preventing leaks and is preferred in applications where a reliable seal is critical. The use of a washer or O-ring also allows for easier disassembly and reassembly, which is beneficial in maintenance and repair operations.

Country of Use: BSPP fittings are used globally, especially in Europe and Asia. They are often preferred for their reliable sealing mechanism, which does not rely on thread deformation.

JIC (Joint Industry Committee) Thread

Appearance Characteristics

JIC (Joint Industry Committee) fittings are distinguished by their 37-degree flare seating surface. This flare is a critical design feature that ensures a secure and tight fit. The male fitting has a 37-degree flared end, which mates with a corresponding female fitting that has a matching 37-degree internal flare. This precise angle is crucial for the metal-to-metal sealing method that JIC fittings employ. When the male and female fittings are tightened together, the flared surfaces create a strong, leak-proof connection. The fittings are typically made of durable materials such as stainless steel or brass, which are chosen for their strength and corrosion resistance.

International Standard

The design and specifications of JIC fittings are standardized under SAE J514. This standard outlines the dimensions, tolerances, and performance requirements for JIC fittings, ensuring compatibility and interchangeability across different manufacturers and applications.

Sealing Method

JIC fittings achieve their seal through metal-to-metal contact. The 37-degree flared surfaces of the male and female fittings form a seal when they are tightened together. This metal-to-metal sealing method is highly effective because it provides a large contact area, which distributes the pressure evenly and prevents leaks. The absence of additional sealing materials like O-rings or gaskets simplifies the design and reduces the risk of seal degradation over time.

Country of Use

JIC fittings are widely used in North America, where they have become a standard in many industries. Their reliability, ease of use, and ability to maintain a leak-free connection under high pressure make them a popular choice for various applications, including automotive, aerospace, and industrial hydraulic systems.

SAE Straight Thread

Appearance

SAE straight threads are characterized by their uniform diameter along the length of the fitting. Unlike tapered threads, SAE straight threads do not decrease in diameter and thus do not create a wedging action when tightened. Instead, they rely on a different sealing mechanism to ensure a leak-free connection. These fittings often include an O-ring, which plays a crucial role in the sealing process. The O-ring is typically seated in a groove on the male fitting, providing an additional layer of sealing integrity. The threads themselves provide mechanical strength, while the O-ring ensures the hydraulic fluid remains contained within the system.

International Standard

SAE straight threads are standardized under SAE J1926-1. This standard specifies the dimensions, tolerances, and performance requirements for SAE straight thread fittings. Adhering to this standard ensures that fittings from different manufacturers are compatible and can be used interchangeably.

Sealing Method

The primary sealing method for SAE straight thread fittings involves an O-ring. The O-ring is positioned in a groove on the male fitting. When the male and female fittings are screwed together, the O-ring is compressed against the flat face of the female fitting. This compression creates a tight seal that prevents hydraulic fluid from leaking. The use of an O-ring is advantageous because it provides a reliable seal even under high pressure. Additionally, the O-ring can accommodate minor imperfections in the mating surfaces, ensuring a robust and leak-free connection.

ORFS (O-Ring Face Seal) Thread

Appearance

ORFS (O-Ring Face Seal) fittings are distinctive due to their flat face design, which includes an O-ring situated in a groove on the face of the fitting. This flat face provides a large sealing surface area, which, when combined with the O-ring, ensures a reliable and robust seal.

International Standard

The specifications and dimensions for ORFS fittings are standardized under SAE J1453. This standard outlines the requirements for ORFS fittings, ensuring consistency and compatibility across different manufacturers. Adherence to this standard is crucial for maintaining the integrity and reliability of hydraulic systems that use these fittings. The SAE J1453 standard covers various aspects, including the material properties of the fittings and O-rings, dimensional tolerances, and performance under different pressures and temperatures.

Sealing Method

The primary sealing mechanism for ORFS fittings involves the compression of the O-ring. When the male and female fittings are joined, the O-ring on the flat face of the male fitting compresses against the flat surface of the female fitting. This compression creates a leak-free seal that can handle high pressures. The metal-to-metal contact between the flat faces provides structural support, while the O-ring ensures fluid containment. This sealing method is highly effective because it combines the strength of metal with the flexibility and sealing properties of the O-ring, making it suitable for both high-pressure and high-vibration environments.

Metric Thread

Appearance Characteristics

Metric threads often featuring either straight or tapered threads. The straight threads maintain a uniform diameter along the length of the fitting, while tapered threads gradually decrease in diameter, creating a wedging action when tightened. Metric threads are identified by their consistent pitch (the distance between threads) and diameter, which follow standardized measurements in millimeters.

International Standard

Metric fittings are standardized under several ISO norms to ensure consistency and interoperability. The key standards include:

ISO 6149: This standard covers metric threads for hydraulic fluid power systems and general use, specifying dimensions and performance requirements.

ISO 9974: This standard defines the specifications for metric adjustable and non-adjustable thread connectors.

DIN 2353: A German standard that specifies dimensions, design, and pressure ratings for metric thread fittings, widely adopted in Europe and other regions.

Adhering to these standards ensures that metric fittings from different manufacturers can be used interchangeably, providing flexibility and reliability in hydraulic systems.

Sealing Method

The sealing method for metric threads varies based on the type of thread and its application:

O-ring Seals: Many metric fittings use an O-ring seated in a groove on the male fitting, which compresses against the female fitting’s flat face. This method provides a reliable seal that can withstand high pressures and dynamic conditions.

Metal-to-Metal Contact: Some metric fittings rely on a metal-to-metal sealing method, where the threads themselves provide the seal through tight contact. This method is often used in applications where an O-ring might not be suitable, such as high-temperature environments or where there is a need for frequent disassembly and reassembly.

Classification

Metric threads are classified into three main series, each designed to handle different pressure capacities and usage scenarios:

Light Series (L): Suitable for lower-pressure applications, the light series fittings are used in less demanding environments.

Medium Series (M): These fittings are designed for medium-pressure applications and are commonly used in a wide range of hydraulic systems.

Heavy Series (S): Heavy series fittings are built to withstand high-pressure conditions and are used in the most demanding hydraulic applications, such as in heavy machinery and industrial equipment.

Country of Use

Metric fittings are predominantly used in Europe and Asia, where they are a standard choice for hydraulic systems and other applications. Their adoption in these regions is driven by the widespread use of the metric system and the standardized nature of the fittings, which ensures compatibility and ease of use.

Specialty Hose Fittings

Banjo Fitting

Banjo fittings feature a hollow, circular bolt that allows fluid to flow through it. The fitting typically consists of a hollow bolt with a spherical section and a mating socket. The bolt has an opening that aligns with a corresponding hole in the mating part, allowing fluid to pass through. This design not only enables 360-degree fluid transfer but also makes the fitting compact and ideal for tight spaces. The flat sealing surface on the bolt and the corresponding socket ensures a leak-free connection when tightened.

Barb Fittings

Exterior Features: Barb fittings have a distinctive barbed end designed to grip the inside of a hose. The barbs are ridged and tapered, allowing the hose to slide over them easily while providing a secure hold that prevents the hose from slipping off under pressure. These fittings are generally straightforward in design, featuring one or more barbs that increase in diameter away from the fitting base.

Material: Barb fittings are typically made from materials such as brass, stainless steel, or durable plastics. Brass and stainless steel are preferred for their resistance to corrosion and high strength, making them suitable for a variety of industrial applications. Plastic barb fittings, often made from materials like nylon or polyethylene, are used in less demanding, low-pressure applications due to their ease of installation and cost-effectiveness.

Bead Fittings

Bead fittings are identified by a prominent bead or raised ridge near the end of the fitting. This bead provides a positive stop for the hose when it is clamped in place, ensuring a secure connection. The body of the fitting is generally cylindrical, with the bead positioned strategically to prevent the hose from slipping off. This design makes bead fittings especially reliable for applications that involve high pressure or significant mechanical stress.

Additional Information

Specialty hose fittings are designed to meet the unique requirements of various applications, providing functionality and reliability where standard fittings may not suffice. Understanding the specific features and appropriate use cases for each type of specialty fitting is essential for optimizing the performance of hydraulic and fluid systems.

Banjo Fittings: These fittings are particularly useful in automotive and hydraulic systems where space is at a premium. Their ability to facilitate fluid flow in tight quarters makes them indispensable in fuel systems and brake lines.

Barb Fittings: Known for their ease of installation, barb fittings are commonly used in low-pressure applications such as irrigation systems, fuel lines, and air hoses. Their material versatility allows them to be used in a wide range of environments.

Bead Fittings: Bead fittings are designed for applications that require a highly secure connection, capable of withstanding high pressures and mechanical stresses. They are commonly used in HVAC systems, industrial machinery, and high-pressure hydraulic systems.

Identifying Hydraulic Hose Fittings

Measuring Techniques

Elimination Process When measure Hydraulic Hose Fittings

Thread Size: Measure the outside diameter of the thread using calipers. Place the caliper jaws on the outermost edges of the thread and read the measurement.

Diameter: Measure the inside diameter of the hose. Insert the caliper jaws inside the hose and expand until the jaws touch the inner walls. Record the measurement.

Pitch: Measure the distance between threads using a thread pitch gauge. Place the gauge teeth on the threads until they fit snugly with no gaps.

Tools Needed: Ensure you have calipers and thread pitch gauges to get accurate measurements.

Visual Recognition

Thread Shape: Observe the shape of the threads. Different types of fittings have unique thread patterns. For example, BSPT threads have a tapered profile, while BSPP threads are parallel.

O-rings: Check for the presence of O-rings, which are common in ORFS and some SAE fittings. The O-ring location and type can help identify the fitting.

Flare Angle: Look at the flare angle. JIC fittings have a 37° flare, while SAE fittings typically have a 45° flare. The flare angle can help distinguish between different fitting types.

Using Charts and Guides:

Manufacturer’s Charts: Utilize charts provided by manufacturers to match fitting specifications. These charts often include detailed diagrams and measurements that can help you identify the correct fitting.

Online Guides: Refer to online guides and resources. Many hydraulic fitting suppliers and manufacturers offer comprehensive guides that detail the specifications and identification techniques for various fittings.

Conclusion

Understanding the various types of hydraulic hose fittings is essential to maintaining the efficiency and safety of hydraulic systems across multiple industries. By applying the knowledge gained in this guide, you can make informed decisions about hydraulic hose fittings to ensure optimal performance and safety of your hydraulic system. For more detailed information, be sure to contact Topa.

FAQ

What are the most common types of hydraulic hose fittings?

The most common types include NPT (National Pipe Tapered), BSP (British Standard Pipe), JIC (Joint Industry Council), SAE (Society of Automotive Engineers) Straight Thread, ORFS (O-Ring Face Seal), and DIN Metric fittings.

How do I identify the correct hydraulic hose fitting?

Identification involves measuring the thread size (outside diameter), diameter (inside diameter of the hose), and pitch (distance between threads) using calipers and thread pitch gauges. Visual recognition, such as checking for unique features like thread shape and O-rings.

How do I prevent leaks in hydraulic hose fittings?

To prevent leaks, ensure that fittings are properly matched and correctly installed. Use the appropriate sealants, such as Teflon tape for tapered threads or O-rings for ORFS fittings. Regular maintenance checks to tighten loose fittings and replace worn seals can also help prevent leaks.

How do I properly install hydraulic hose fittings?

Proper installation involves ensuring that the fittings are clean and free from debris, using the correct tools, and following the manufacturer’s guidelines. It’s important to tighten fittings to the recommended torque to avoid leaks and damage.

What are the maintenance tips for hydraulic hose fittings?

Routine maintenance includes regularly inspecting fittings for signs of wear, corrosion, or damage, ensuring that all connections are secure, and replacing any worn or damaged components promptly.

What factors should I consider when selecting a hydraulic hose fitting?

Key factors include the pressure rating, fluid compatibility, environmental conditions (such as temperature and exposure to chemicals), and the specific application requirements.

Types of Hydraulic Fittings Topa

Hydraulic Fittings Types: The Ultimate Guide

Hydraulic Fittings Types: The Ultimate Guide

Table of Contents

Introduction

The core advantage of hydraulic systems lies in their ability to provide high power density and variable force and motion control. Hydraulic fittings are critical components within hydraulic systems, serving as connectors between hoses, tubes, and other components. Understanding the different types of hydraulic fittings is crucial for ensuring system integrity, performance, and safety. Incorrect fitting selection or installation can lead to leaks, system failures, and potential safety hazards. Therefore, a comprehensive knowledge of hydraulic fittings helps in maintaining the efficiency, reliability, and longevity of hydraulic systems.

What are Common Hydraulic Fittings Types?

Common hydraulic fittings types include threaded fittings (NPT, BSP, JIC, SAE), flare fittings (37-degree and 45-degree), O-Ring Face Seal (ORFS) fittings, quick connect fittings, compression fittings, and crimp fittings. Each type serves specific purposes, such as ensuring secure connections, preventing leaks, and facilitating easy assembly and disassembly. Understanding these types is crucial for selecting the right fitting for your hydraulic system, ensuring optimal performance and safety.

Main Types of Hydraulic Fittings

Threaded Fittings and Hose Fittings

Threaded Fittings:

Threaded fittings are characterized by their external and internal threads, which allow them to be screwed together with corresponding threaded components. These fittings are commonly made from materials such as steel, stainless steel, and brass, and are often used in stationary hydraulic systems for their strong and secure connections. They are typically utilized in applications where the components need to be disassembled and reassembled for maintenance or repairs.

Hose Fittings:

Hose fittings connect flexible hydraulic hoses to various system components. These fittings usually have a barb or a ferrule that grips the hose securely. They are designed to absorb movement and vibration, making them ideal for mobile applications where flexibility is crucial. Hose fittings are often made from materials like brass, stainless steel, and other durable metals, ensuring they can withstand high-pressure environments and frequent movement.

Flare Fittings

Features and Use

Flare fittings are designed with a flared end that connects to a corresponding fitting, creating a tight, leak-proof seal. The flared end typically forms a conical shape, allowing the tubing to sit securely against the fitting. This design is particularly effective in high-pressure applications, where maintaining a robust seal is critical.

Types

37-degree Flare: The flared end forms a 37-degree angle.

Uses: Ideal for high-pressure hydraulic systems and compatible with JIC (Joint Industry Council) standards. Commonly used in industrial and military applications for their durability and reliability.

45-degree Flare: The flared end forms a 45-degree angle.

Uses: Frequently found in automotive and refrigeration applications. These fittings are suited for systems where the pressures are generally lower compared to those requiring 37-degree flare fittings. They are widely used in automotive fuel lines and refrigeration systems.

Tee and Cross Fittings

Tee Fittings:

Tee fittings have a T-shaped design with three openings: one inlet and two outlets. This configuration allows them to split a single flow into two separate flows or combine two flows into one. They are commonly used in hydraulic systems to branch off lines to different components or systems.

Cross Fittings:

Cross fittings feature a cross-shaped design with four openings: one inlet and three outlets. They are used in more complex hydraulic systems where multiple branching or merging of fluid lines is required. These fittings are essential for distributing fluid in multiple directions from a single source.

Flange Fittings

Flanged Hose Fittings:

Flanged hose fittings typically have a hose end on one end to securely attach to a hose and a flat end on the other end to install an O-ring. Flanges provide a stable connection and are ideal for high-pressure applications that require a firm and reliable seal.

Flange Connectors:

Flange connectors utilize a similar flat circular design with bolt holes, but are used to connect pipes or other components in hydraulic systems. They provide a strong, stable connection that ensures system integrity at high pressures.

Pressure range:

  • 3000psi/Code 61: For medium pressure applications, providing a safe and reliable connection.
  • 6000psi/Code 62: Designed for high pressure systems to ensure durability and leak-proof performance.
  • 9000psi: For use in ultra-high pressure environments, providing superior strength and reliability for critical applications.

Compression Fittings

Components of the Compression Fitting

Compression fittings are composed of three primary parts: the body, the nut, and the ferrule(s).

  • The Body: The body is the main structure of the fitting, featuring an inlet for the pipe or tube. It provides the foundation for the connection and typically includes internal threading to accommodate the nut.
  • The Nut: The nut fits over the pipe and threads onto the body. As it tightens, it forces the ferrule(s) into the body, compressing them around the pipe. This action ensures a tight, leak-proof connection. The nut is usually hexagonal, allowing for easy tightening with a standard wrench.
  • The Ferrule(s): Ferrules are ring-like components placed between the body and the nut. Depending on the type of fitting, there may be one (single ferrule) or two (double ferrule). When the nut is tightened, the ferrule(s) are compressed between the nut and the body, creating a seal by gripping the pipe. Ferrules are typically made from metal, such as brass or stainless steel, for durability and effective sealing.
Single ferrule vs double ferrule

Characteristics

Compression fittings are valued for their ability to create a reliable, leak-proof seal without the need for soldering or welding. They are used in various applications, including hydraulic, pneumatic, and plumbing systems, where ease of installation and maintenance is critical. Their design allows for the connection and disconnection of pipes and tubes without damaging the components, making them reusable and versatile.

Types

Single Ferrule:

  • Characteristics: Single ferrule fittings have a simple design and are easy to install. They consist of one ferrule that compresses around the pipe as the nut is tightened.
  • Uses: These fittings are suitable for low to medium-pressure applications where ease of installation is prioritized. Commonly used in household plumbing, low-pressure hydraulic systems, and basic pneumatic applications.

Double Ferrule:

  • Characteristics: Double ferrule fittings provide a better seal with two ferrules, one in front and one in back. This design offers more secure connections by distributing the compressive force more evenly around the pipe.
  • Uses: These fittings are more suitable for high-pressure applications, providing enhanced reliability and leak prevention. They are commonly found in high-pressure hydraulic systems, critical pneumatic systems, and in industries where safety and precision are crucial, such as chemical processing and oil and gas.

To install a compression fitting

Insert the Pipe: Insert the pipe into the fitting body until it reaches the internal stop.

Add the Ferrule(s): Place the ferrule(s) onto the pipe.

Tighten the Nut: Thread the nut onto the body and begin tightening. As the nut is tightened, the ferrule(s) are compressed between the nut and the fitting body, creating a tight, leak-proof seal.

Ensure Proper Compression: For double ferrule fittings, the rear ferrule helps the front ferrule to form a tighter seal by gripping the pipe and preventing movement.

Proper installation is critical to ensuring the integrity and efficiency of the connection. Over-tightening can damage the ferrules or pipe, while under-tightening can result in leaks. Always follow manufacturer guidelines for the best results.

Crimp Fittings

Crimp fittings are designed with a fitting body and a cylindrical metal sleeve that fits over the end of a hose. The sleeve, when crimped, ensures a permanent and secure connection. The fittings are typically made from durable metals like steel or brass, providing robustness and reliability for high-pressure applications.

Crimping Process

  • Insert the Hose: Insert the end of the hose into the fitting body until it reaches the internal stop.
  • Position the Sleeve: Slide the metal sleeve over the end of the hose.
  • Crimp the Sleeve: Use a hydraulic crimping machine to compress the sleeve uniformly around the hose.

Reusable Hydraulic Hose Fitting

Components

Reusable fittings are designed to increase the flexibility and cost-effectiveness of hydraulic systems. These fittings consist of three main components:

Fitting Body: This section has a threaded end on one section and a hose end on the other, which is also threaded and can be fitted with a sleeve. It is usually made of durable metal to ensure longevity and resistance to high pressure.

Sleeve: The sleeve contains the threads and can be installed with the fitting body.

Typical Applications:

  • Maintenance and Repair: In industries where hoses are frequently replaced or adjusted, such as maintenance workshops and service centers, reusable fittings offer a practical solution.
  • Agriculture: Agricultural equipment, such as tractors and irrigation systems, often require hose adjustments. Reusable fittings allow for quick and easy replacements, ensuring minimal downtime.
  • Construction: Construction machinery that operates in harsh environments can benefit from the versatility of reusable fittings, making it easier to manage hose replacements on-site.

Specialized Hydraulic Fittings

Swivel Fittings

Appearance:

Swivel fittings are characterized by their ability to rotate along one or more axes. They typically consist of two main parts: a rotating joint and a fixed part that connects to the hose or system. The rotating joint allows for 360-degree movement, making it easier to manage hose orientation and alignment.

Usage:

Swivel fittings are used in applications where hoses need to rotate or move frequently without causing kinks or stress on the connection points. They are commonly found in machinery and equipment that require dynamic movements, such as robotics, automotive applications, and heavy machinery.

Advantages:

  • Enhanced Flexibility: Allows for greater movement and adjustment of hoses.
  • Reduced Wear and Tear: Minimizes the risk of hose damage due to twisting or bending.
  • Improved Hose Life: Extends the lifespan of hoses by preventing kinks and stress at connection points.

Quick Connections

Quick connections are designed for fast and easy connection and disconnection of hydraulic lines. They typically consist of a male and a female part that snap together securely without the need for tools.

Function:

Quick connections are used to simplify the process of connecting and disconnecting hydraulic hoses, especially in applications where frequent changes are necessary. They are ideal for use in mobile equipment, agricultural machinery, and industrial settings.

Different Types of Hydraulic Quick Couplers

Push-to-Connect Couplers

These couplers allow for a quick and straightforward connection by simply pushing the two halves together. They typically have an automatic locking mechanism that ensures a secure connection.

Threaded Couplers

These couplers use threads to connect and secure the two halves. They provide a robust and leak-proof connection, suitable for high-pressure applications.

Flat Face Couplers

Designed with a flat face to minimize fluid loss during disconnection and to prevent the introduction of air and contaminants into the hydraulic system.

Ball Valve Couplers

Utilize a ball valve mechanism for quick and easy connection and disconnection. They are designed to withstand high pressures and provide a secure seal.

Bayonet Couplers

These couplers use a bayonet locking mechanism, similar to those found in electrical connectors, which requires a push-and-twist motion to lock.

Wing Nut Couplers

Feature wing nut-style handles that allow for easy manual tightening and loosening. They provide a secure connection without the need for additional tools.

Dry Break Couplers

Designed to prevent any fluid loss during disconnection. They feature a sealing mechanism that closes off the flow of fluid before the coupler is fully disconnected.

High-Flow Couplers

Engineered to handle high flow rates with minimal pressure drop. They often have larger internal diameters to accommodate the increased flow.

Dust Cap and Plug Couplers

Include dust caps and plugs to protect the coupler ends when not in use, preventing dirt and debris from contaminating the hydraulic system.

Bulkhead Fittings

Bulkhead fittings are specialized components designed to create a secure passage for hoses or pipes through walls, panels, or bulkheads. They typically feature a threaded body that allows for easy and secure installation.

Key Characteristics:

  • Threaded Body: The threaded design enables easy mounting and secure fastening through walls or panels.
  • Dual-Sided Connection: Provides connection points on both sides of the wall or panel, facilitating fluid transfer through enclosed systems.
  • Durable Materials: Usually made from robust metals like brass, stainless steel, or plastic, ensuring long-lasting performance and resistance to corrosion.

Banjo Fitting

Banjo fittings are distinguished by their unique round, banjo-like shape. They consist of two main components:

Hollow Bolt: This component allows fluid to pass through its center.

Spherical Union: Attached to the hollow bolt, this part enables rotation and connection to the hose or other components, facilitating fluid flow even in tight or confined spaces.

Functions

Banjo fittings are primarily used to connect hoses to system components in areas where space is limited and conventional fittings are impractical. Their design allows for rotation and flexibility, making them ideal for complex hydraulic and fuel systems.

Common Applications:

  • Fuel Systems: Used to ensure secure and leak-proof connections in fuel lines.
  • Braking Systems: Essential in automotive and motorcycle braking systems for their ability to fit into tight spaces and provide reliable fluid transfer.
  • Hydraulic Lines: Utilized in various hydraulic systems to connect hoses in confined areas while maintaining fluid integrity and pressure.

Types

Single Banjo: Features one fluid passage.

  •  Use Case: Typically used in systems where a single line needs to be connected, such as in standard fuel or brake line applications.

Double Banjo: Features two fluid passages.

  •  Use Case: Ideal for applications where multiple lines need to be connected simultaneously, such as complex hydraulic systems or dual fuel setups.

Grease Fitting

Grease fittings, also known as Zerk fittings, are small, standardized components used to facilitate the injection of lubricants into mechanical systems. They typically feature a ball check valve that allows grease to enter but prevents contaminants from escaping.

Key Characteristics:

  • Ball Check Valve: Prevents backflow and contamination, ensuring that only clean grease enters the system.
  • Standardized Size: Typically follow industry standards for thread size and shape, making them compatible with most grease guns.
  • Material: Commonly made from durable metals such as steel or brass to withstand high pressures and resist corrosion.

Function

Grease fittings serve the critical function of maintaining the lubrication of moving parts within machinery and mechanical systems. Proper lubrication reduces friction, minimizes wear, and prolongs the lifespan of components.

  • Lubrication Point: Provides an access point for grease guns to inject lubricant directly into bearings, joints, and other moving parts.
  • Contamination Prevention: The ball check valve design ensures that dirt and debris do not enter the lubrication system, maintaining the integrity of the lubricant and the components it protects.
  • Ease of Maintenance: Facilitates regular maintenance and lubrication, making it easier to keep machinery operating smoothly and efficiently.

Classification

  • Straight Grease Fittings: Feature a straight design for direct access.
  • Angled Grease Fittings: Come in various angles, such as 45 degrees or 90 degrees.
  • Flush Grease Fittings: Sit flush with the surface, providing a low-profile connection.
  • Button Head Grease Fittings: Have a larger head designed for high-volume grease delivery.
  • Drive-Type Grease Fittings: Driven into place rather than threaded, providing a secure fit without the need for threading.

Test Fitting

Test fittings are specialized components designed to facilitate the monitoring and testing of hydraulic systems. They typically feature ports or valves that allow for the connection of diagnostic equipment, such as pressure gauges or sensors, without disrupting the system’s operation.

Key Characteristics:

  • Pressure Port: Provides an access point for measuring system pressure.
  • Sealing Mechanism: Ensures a leak-proof connection when diagnostic tools are attached.
  • Durability: Constructed from high-quality materials like stainless steel or brass to withstand high pressures and harsh environments.
  • Compatibility: Designed to work with a range of diagnostic tools and sensors, adhering to industry standards for thread sizes and connection types.

Function

The primary function of test fittings is to accurately measure and monitor hydraulic system parameters, such as pressure and flow, without disassembling or disrupting the system.

  • Pressure Monitoring: Allows for real-time measurement of system pressure, aiding in diagnostics and troubleshooting.
  • System Testing: Facilitates the testing of hydraulic circuits and components to ensure they are operating within specified parameters.
  • Maintenance: Provides an easy access point for routine system checks, helping to prevent failures and extend the lifespan of the system.

Choosing the Right Hydraulic Fitting

Factors to Consider

When selecting hydraulic fittings, several crucial factors must be taken into account to ensure optimal performance and longevity of the hydraulic system. These factors include pressure ratings, temperature compatibility, fluid compatibility, and application requirements.

Pressure Ratings:

  • Consideration: Ensure the fitting can withstand the maximum operating pressure of the hydraulic system. Different fittings are rated for different pressure ranges.
  • Importance: Using a fitting with an insufficient pressure rating can lead to failures, leaks, and potential system damage.

Temperature Compatibility:

  • Consideration: Choose fittings that can operate effectively within the temperature range of the system’s environment and the fluid being used.
  • Importance: Fittings that cannot handle extreme temperatures (either high or low) may degrade, causing leaks or failures.

Fluid Compatibility:

  • Consideration: Ensure that the fitting material is compatible with the hydraulic fluid to prevent corrosion, swelling, or deterioration.
  • Importance: Incompatible materials can lead to chemical reactions that weaken the fitting, resulting in leaks or system contamination.

Application Requirements:

  • Consideration: Assess the specific needs of the application, including space constraints, movement, and environmental conditions (such as exposure to chemicals or harsh environments).
  • Importance: Selecting fittings that match the application’s demands ensures the reliability and efficiency of the hydraulic system.

Compatibility with Hydraulic Hoses

different types of hydraulic hoses Topa

Ensuring compatibility between hydraulic fittings and hoses is vital for maintaining system integrity and performance.

Matching Fittings with Hoses:

  • Consideration: Use fittings that are designed to work with the specific type and size of hose in your system. Check manufacturer specifications for compatibility.
  • Importance: Properly matched fittings and hoses prevent leaks, maintain pressure, and ensure a secure connection.

Importance of Correct Sizing:

  • Consideration: Accurate sizing of fittings and hoses is essential to avoid issues such as leaks or reduced flow rates. Measure both the internal and external dimensions as specified by the manufacturer.
  • Importance: Incorrect sizing can lead to fitting failures, inefficient system performance, and potential safety hazards.

Common Mistakes to Avoid

Avoiding common mistakes in the selection and installation of hydraulic fittings can save time, and money, and prevent system failures.

Misidentification of Threads:

  • Mistake: Using the wrong thread type (e.g., NPT, BSP, JIC) can cause improper connections.
  • Solution: Verify thread type using thread gauges and refer to manufacturer specifications to ensure correct identification.

Over-tightening or Under-tightening:

  • Mistake: Over-tightening can damage threads and fittings, while under-tightening can result in leaks.
  • Solution: Follow manufacturer torque specifications to achieve the correct tightness, using appropriate tools to avoid over or under-tightening.

Ignoring Material Compatibility:

  • Mistake: Using fittings made from incompatible materials can lead to corrosion or degradation when exposed to certain fluids or environmental conditions.
  • Solution: Check the chemical compatibility of fitting materials with the hydraulic fluid and environmental factors. Consult material compatibility charts and manufacturer recommendations.

Conclusion

In this guide, we covered the various types of hydraulic fittings. Each type has unique features, applications, and advantages, essential for maintaining system integrity and performance. By understanding the characteristics and uses of each fitting type, you can make informed decisions and enhance the reliability of your hydraulic systems. Apply this knowledge to optimize your hydraulic systems and ensure their safe and efficient operation.

FAQ

What are the most common types of hydraulic fittings?

The most common types of hydraulic fittings include crimp fittings, reusable fittings, quick-connect couplers, swivel fittings, banjo fittings, and bulkhead fittings.

What is the difference between crimp fittings and reusable fittings?

Crimp fittings provide a permanent connection using a crimping tool to secure the hose, while reusable fittings can be detached and reattached to new hoses, making them ideal for frequent hose changes.

What are quick-connect couplers used for?

Quick-connect couplers are designed for fast and easy connection and disconnection of hydraulic lines, commonly used in applications where frequent hose changes are required, such as in agricultural machinery and mobile equipment.

How do swivel fittings benefit hydraulic systems?

Swivel fittings allow for 360-degree rotation, reducing hose stress and preventing kinks, which enhances the flexibility and longevity of hydraulic hoses in systems with dynamic movements.

What is the purpose of a banjo fitting in hydraulic systems?

Banjo fittings are used to connect hoses to components in tight spaces, allowing fluid to pass through the fitting while enabling rotation, commonly found in fuel systems and braking systems.

Why are bulkhead fittings important in hydraulic applications?

Bulkhead fittings provide a secure connection point through walls or panels, ensuring a stable and leak-proof connection for hoses or pipes in tanks, reservoirs, and other enclosed systems.
