Hydraulic Hose Identification

Hydraulic Hose Identification: Using the STAMP Method

Introduction

Incorrect hose selection can lead to catastrophic failures, costly downtime, and even serious safety hazards. This article will introduce a systematic approach known as the STAMP method, which is the cornerstone of selecting the correct hydraulic hose for any application, ensuring that all critical factors are systematically considered.

The Significance of Proper Hydraulic Hose Identification

When it comes to maintaining and operating hydraulic systems, the importance of correctly identifying hydraulic hoses cannot be overstated. Misidentifying a hydraulic hose might seem like a small oversight, but it can have disastrous consequences. Here’s why proper hose identification is absolutely crucial:

Preventing Equipment Damage: Imagine a scenario where a hydraulic hose that is not suited for high pressure is mistakenly used in a high-pressure application. The hose could burst, leading not only to system downtime but also to potential damage to expensive machinery. By ensuring each hose matches the system’s requirements, you drastically reduce the risk of damaging critical components.

Enhancing Safety: Hydraulic hose failures can be dangerous. In high-pressure applications, a burst hose can fling about violently, posing serious risks to operator safety. Correct hose identification helps prevent these kinds of accidents, ensuring a safer work environment.

Optimizing System Efficiency: A hydraulic system is only as good as its weakest component. Using hoses that perfectly match the specifications of the system helps maintain optimal efficiency. Whether it’s the right material to handle the fluid type, the correct diameter to manage fluid flow, or the appropriate length to fit the system layout, each factor plays a part in system performance.

Understanding the STAMP Method

Navigating the complexities of hydraulic hose selection is made simpler with the STAMP method. This approach breaks down into five crucial elements—Size, Temperature, Application, Material, and Pressure—each accompanied by Ends considerations for fitting types. Here’s how each component plays a critical role in ensuring the right hose selection:

S=Size

When considering the size of a hydraulic hose, it’s essential to focus on both the inner diameter and the length. These dimensions are not arbitrary; they are chosen based on the specific requirements of the hydraulic system they will serve.

Inner Diameter: The diameter must be adequate to accommodate the flow rate of the fluid without causing excessive friction or heat buildup, which can degrade the hose over time. If the diameter is too small, it will restrict flow, resulting in a high velocity that can erode the inner lining of the hose and lead to premature failure. Conversely, a hose that is too large for the system can result in insufficient fluid velocity, leading to inefficiencies such as poor hydraulic response and increased energy consumption to move the fluid.

Length: The length of the hose also plays a crucial role. It should be long enough to connect the necessary components without stressing the hose, which can occur if the hose is stretched to meet connection points. However, excessive length can lead to complications such as pressure drops, potential kinks, and greater overall system complexity. Additionally, longer hoses contain more fluid and therefore add to the hydraulic fluid’s compressibility factor, which can affect the performance and responsiveness of the system.

T=Temperature

Hoses are exposed to various temperatures based on the fluid they carry and their environmental conditions.

Operating Temperature Range: Each hose is designed to operate within a specific temperature range. This range includes the minimum and maximum temperatures the hose material can withstand without degradation. If a hose is subjected to temperatures outside this range, the material may become too soft or too brittle, leading to structural failures such as cracks, leaks, or bursts.

Material Selection: The material composition of the hose is critical in determining its temperature tolerance. Common materials include synthetic rubbers like Nitrile and Neoprene, which offer good resistance to oil-based hydraulic fluids and can handle a broad range of temperatures. For higher temperature applications, hoses made from materials like EPDM (ethylene propylene diene monomer) or Silicone might be necessary due to their ability to withstand higher heat without degrading.

Heat-induced Expansion and Contraction: Thermal expansion and contraction can affect hose integrity and fitting security. Materials that expand significantly with temperature increases might compromise the tightness of the connection points, potentially leading to leaks. Similarly, contraction in cold environments can make the hoses stiff and brittle, increasing the risk of cracking.

Environmental Considerations: External environmental conditions also play a role in hose selection. For instance, hoses used outdoors in regions with extreme temperature variations need to be durable enough to handle these changes without failing. Hoses used near hot machinery or in direct sunlight must also be resistant to ambient heat sources.

Application-specific Requirements: Certain applications may require hoses that can handle extreme bursts of heat, such as those found near engines or exhaust systems. In these cases, specialized high-temperature hoses with reinforced heat resistance need to be used to ensure safety and functionality.

A=Applications

Selecting the right hydraulic hose for a specific application involves a detailed understanding of the hydraulic system’s requirements and the operational environment. Here’s how to ensure the hose you choose meets your applications:

System Design Requirements: Each hydraulic system is designed for specific tasks and operational parameters. The chosen hose must accommodate the system’s pressure ratings, flow rates, and fluid type. For instance, a system designed for high-pressure operations such as hydraulic jacks or industrial machinery will require hoses with strong reinforcement layers that can handle the pressure without bursting.

Environmental Conditions: The operating environment plays a critical role in hose selection. Hoses exposed to harsh chemicals, and abrasive materials need materials specifically designed to withstand these conditions. For example, hoses used in a marine environment should have excellent resistance to water, salt, and possibly UV light, while hoses used in mining or construction need to be highly abrasion-resistant.

Flexibility and Space Constraints: In many hydraulic systems, especially in complex machinery or compact spaces, the hoses must be flexible enough to fit into tight spaces or around corners without kinking or bending in ways that impede fluid flow. Flexibility is also important to accommodate the movement of machine parts relative to each other.

Rigidity for High-Pressure Operations: While flexibility is important, certain high-pressure applications may require more rigid hoses to ensure stability and durability under pressure. Hoses with multiple reinforcement layers or stiffer materials may be needed to prevent expansion under pressure, which can affect the hydraulic system’s efficiency and responsiveness.

Custom Requirements: Some systems may have specific requirements based on their operational needs, such as non-conductive hoses for use in electrical environments or food-grade hoses for applications involving food products. Each of these scenarios demands hoses designed with particular characteristics to safely and efficiently handle the job.

M=Material

Choosing the correct material for a hydraulic hose is paramount because the hose needs to handle the specific chemical properties of the fluid it transports. Chemical incompatibility can lead to severe issues, such as degradation of the hose material, which compromises the integrity and safety of the entire hydraulic system. Here’s how to ensure the hose material is appropriate for the application:

Understanding Fluid Types: Hydraulic systems can use a variety of fluids, including mineral oils, synthetic oils, glycol-water-based fluids, and more. Each type of fluid has specific chemical properties that can affect the inner lining of the hose. For instance, synthetic oils can degrade certain types of rubber that are stable with mineral oils.

Hose Material Selection: The most common materials for hydraulic hose liners are synthetic rubbers like Nitrile, which is resistant to oil-based hydraulic fluids, and Polytetrafluoroethylene (PTFE), which is compatible with more aggressive chemicals like acids and alkalis.

Nitrile Rubber (NBR): Good for oils and fuels because of its resistance to swelling. It performs well with most mineral and oil-based hydraulic fluids but is not suitable for phosphates-ester-based fluids.
Polytetrafluoroethylene (PTFE): Known for its high chemical resistance, it can handle nearly all industrial chemicals, making it ideal for applications involving corrosive fluids.
Chloroprene (Neoprene): Offers good weather resistance and handles moderate acids and other chemicals. It is often used in refrigerants in air conditioning systems.
Ethylene Propylene Diene Monomer (EPDM): Excellent for glycol-based brake fluids and steam applications but not suitable for oil-based fluids.

P=Pressure

The working pressure of a hydraulic hose must match or exceed the maximum operating pressure of the system. It’s essential to consider not just the normal operating pressure but also any transient spikes that can occur during operations. These spikes can result from rapid changes in load or sudden obstructions, like when a backhoe strikes a rock, causing a sharp, short-lived increase in pressure.

Static vs Dynamic Systems

Hydraulic systems can be categorized into static and dynamic:

Static Systems: These systems use non-moving fluids to transmit force. An example is a hydraulic jack, where pressure applied to a confined liquid is used to lift heavy loads.
Dynamic Systems: In these systems, fluid is in motion, driven by pumps to transfer energy to various components. Backhoes and other heavy machinery typically operate on dynamic hydraulic systems.
Operating Pressure: Each hydraulic hose is rated for a specific maximum operating pressure. It’s essential that the hose’s rating meets or exceeds the highest pressure expected in the hydraulic system under normal conditions. Using a hose with a pressure rating lower than the system’s requirement can lead to hose rupture, leakage, or complete failure.

Pressure Spikes

Hydraulic systems can experience transient pressure spikes that exceed the normal operating pressure, often due to sudden changes in load or velocity. These spikes can be significantly higher than the average working pressure and can cause damage if the hose is not designed to handle such stress. Therefore, it’s important to choose a hose that can tolerate these occasional increases. Many hoses are designed to handle pressure spikes up to a certain percentage of their rated capacity without sustaining damage.

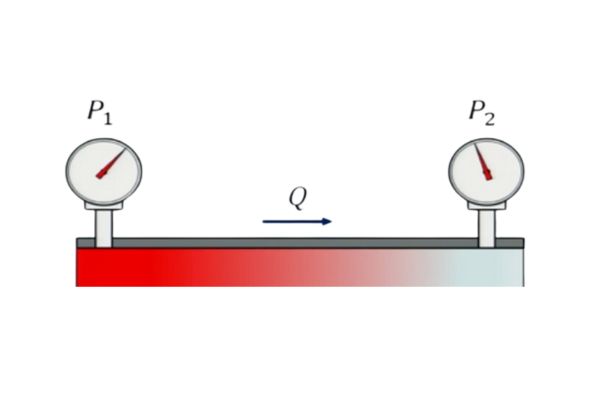

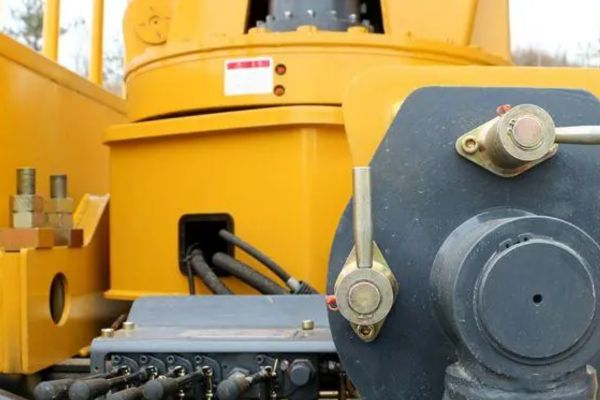

Managing Pressure Drop

Pressure drop within hydraulic systems can significantly affect performance and is influenced by several factors:

Friction and Viscosity: As fluid moves through a hose, it experiences friction, particularly if the hose’s inner diameter (ID) is too small, leading to increased resistance and heat. The viscosity of the fluid also plays a role, with thicker fluids slowing down the flow and increasing pressure drop.

Ambient and Fluid Temperatures: Temperature affects fluid viscosity. In colder environments, fluids thicken, increasing pressure drop, whereas they thin out in warmer conditions, potentially reducing pressure drop but also leading to other risks like seal damage.

Hose Length and Diameter: Longer hoses increase the surface area where friction can occur, elevating pressure drop. Similarly, a hose with a small diameter can restrict flow, increasing velocity and pressure drop. Conversely, a larger diameter hose reduces pressure drop, allowing for smoother fluid flow.

Couplings and Adapters: Changes in direction or reductions in hose bore size at couplings and adapters can create turbulence or restrictions, increasing pressure drop.

Safety Factor: Typically, hydraulic hoses are selected with a safety factor in mind. This factor generally ranges from 4:1 to 8:1, meaning the hose is capable of withstanding four to eight times its rated working pressure before failing. This safety factor accounts for variations in pressure, weaknesses in the hose material over time, and unforeseen spikes in pressure.

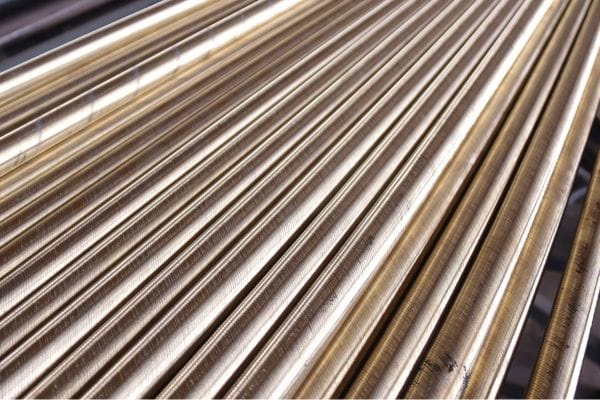

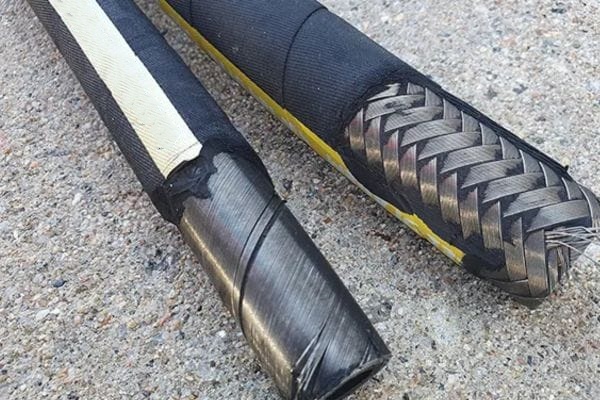

Reinforcement Layers: Hoses are reinforced with layers of wire braid or spiral-wound wire to strengthen them against high pressure. The number of layers and the strength of the reinforcement will determine the maximum pressure the hose can withstand. High-pressure applications typically require hoses with multiple layers of reinforcement.

Practical Guide to Applying the STAMP Method

The STAMP method provides a structured approach to selecting the right hydraulic hose for specific applications. Here’s a step-by-step guide to effectively apply this method, ensuring that your hydraulic system operates safely and efficiently:

Measure the Hose Size Accurately

Proper hose size is crucial for system efficiency and preventing leaks. Use precise measuring tools like calipers to determine the inner diameter (ID) and outer diameter (OD) of the hose. This measurement ensures that the hose can accommodate the flow rate without excessive pressure loss or velocity that might lead to hose wear or failure.

Consult Material Compatibility Charts

Different hydraulic fluids require hoses made from materials that can resist the chemical properties of the fluid. Consult material compatibility charts to ensure the hose material is suitable for the type of fluid in your system. These charts are typically provided by hose manufacturers and detail how different materials react to various hydraulic fluids, including oils, solvents, and acids.

Check Temperature and Pressure Ratings

Verify that the hose can withstand the maximum operating temperature and pressure of the hydraulic system. Hoses are rated for specific temperature ranges and maximum pressures. Exceeding these ratings can lead to hose degradation, loss of integrity, and potential failure. Consider both the fluid temperature and the ambient temperature in which the hose will operate.

Select Appropriate Fittings

Choosing the right fittings is just as important as selecting the hose. Ensure the fittings you choose match the hose in terms of size, material, and design. This compatibility is crucial to create a secure, leak-free connection. The fittings should also be suitable for the system’s pressure and not introduce any weak points.

Common Mistakes in Hydraulic Hose Identification

In the selection and maintenance of hydraulic hoses, certain pitfalls can lead to system inefficiencies, premature hose failure, or even dangerous blowouts. Recognizing these common mistakes can significantly improve the reliability and safety of hydraulic systems. Here’s an overview of typical errors and how to avoid them:

Mismatching Material Compatibility

One of the most critical mistakes in hydraulic hose selection is the failure to match hose materials with the chemical properties of the fluid being transported. This oversight can lead to:

Chemical Degradation: Certain hose materials may degrade when exposed to specific chemicals in hydraulic fluids, such as oils, solvents, or acids.

Corrosion: Incompatible materials can corrode when exposed to certain fluids, leading to weakened hose structure and eventual failure.

Prevention Tip: Always consult material compatibility charts provided by manufacturers to ensure that the hose material is suitable for the type of fluid used in your system.

Underestimating Pressure Spikes

Another frequent error is neglecting to account for pressure spikes in hydraulic systems. These spikes can occur due to sudden changes in load or blockages and may exceed the normal operating pressure by a significant margin.

Hose Bursts: If a hose is not rated to handle occasional spikes, it may burst under pressure, leading to potential safety hazards and system downtime.

System Stress: Even if the hose does not burst, pressure spikes can stress other components of the hydraulic system, reducing overall life expectancy.

Prevention Tip: Ensure that the chosen hose has a maximum pressure rating that accommodates potential spikes, typically by selecting a hose with a burst pressure rating at least four times higher than the system’s maximum operating pressure.

Ignoring Installation Errors

Improper installation of hydraulic hoses can also lead to issues such as leaks, restricted flow, or hose damage:

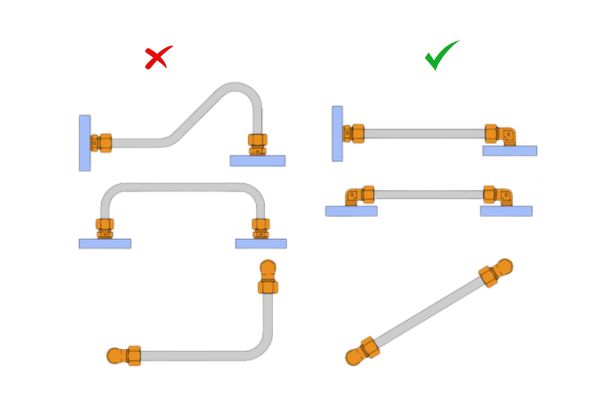

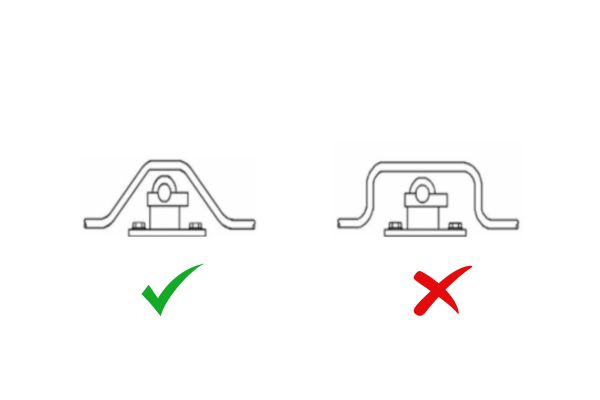

Improper Routing: Hoses that are bent too tightly, or routed near sharp edges or high-heat areas, can degrade faster or become damaged.

Inadequate Length: Hoses that are too short may be subject to excessive tension, whereas hoses that are too long can kink or tangle.

Prevention Tip: Follow proper routing practices as specified in installation manuals, and ensure that there is enough hose length to allow for movement without stretching or compressing the hose excessively.

Overlooking Environmental Factors

The environment in which a hydraulic hose operates can significantly affect its durability and performance. Common oversights include:

Temperature Extremes: Failing to consider the ambient temperature range can lead to improper hose selection.

Abrasive Conditions: Exposure to abrasive materials can wear down the hose cover and eventually the reinforcement layers.

Prevention Tip: Choose hoses with protective covers suitable for the operating environment and consider using additional protective sleeves or guards where necessary.

By following these guidelines, you can improve the reliability, efficiency and safety of your hydraulic system, avoid costly failures and maximize operational efficiency.

FAQ

What factors should I consider when selecting a hydraulic hose?

Consider the STAMP factors: Size, Temperature, Application, Material, and Pressure, to ensure the hose meets the specific requirements of your hydraulic system.

How do I ensure the hose material is compatible with my hydraulic fluid?

Refer to material compatibility charts to verify that the hose material can resist the chemical properties of the fluid used in your system.

What should I do to accommodate pressure spikes in my hydraulic system?

Choose a hose with a burst pressure rating at least four times higher than the maximum operating pressure to handle pressure spikes safely.

How can incorrect hose fittings affect my hydraulic system?

Mismatched or improper fittings can introduce weak points, leading to potential leaks and hose failures, so ensure fittings match the hose in terms of size, material, and design.

What common mistakes should I avoid when selecting hydraulic hoses?

Avoid mismatches in material compatibility and underestimating pressure requirements. Also, ensure proper installation to prevent physical damage and premature wear.

How does environmental exposure affect hydraulic hose selection?

Consider the operational environment, such as temperature extremes and exposure to abrasive elements, and select hose materials and coverings that can withstand these conditions.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Mar, 2024

Unlock the Secrets of Hydraulic Hose Laylines

Unlock the Secrets of Hydraulic Hose Layline

Understanding Hydraulic Hose Laylines

Definition and Purpose

A hydraulic hose layline acts as a critical identifier within the complex ecosystem of hydraulic systems, akin to an identity card for each hose. This identifier is not merely for show; it is a carefully designed feature that encodes essential data about the hose’s manufacture and capabilities. Laylines are more than a convenience—they are a necessity for ensuring that components within a hydraulic system are compatible, operate safely under designated pressures and temperatures, and meet the rigorous standards required for reliable performance. By offering a quick and accessible reference, laylines significantly streamline the process of system maintenance, component selection, and safety compliance.

Components of a Layline

The information encapsulated within a layline is comprehensive, covering all aspects necessary to ascertain the hose’s suitability for specific applications and environments. Let’s delve into each component of a layline to understand its significance fully:

Manufacturer’s Name

The inclusion of the manufacturer’s name on the layline provides a direct link to the hose’s origins. This is more than a brand identifier; it’s a mark of accountability and quality assurance. In cases of warranty claims or the need for specific product support, knowing the manufacturer is paramount. This detail assures users of the hose’s provenance and the manufacturing standards adhered to during its production.

Hose Size

The size of a hose is critical for ensuring the correct flow rate and fitting compatibility within a hydraulic system. Hose size on a layline is typically indicated in terms of the inner diameter, often in inches or millimeters. This measurement is crucial for matching the hose with the system’s required flow dynamics and ensuring that connections are leak-proof and secure.

Temperature Range

Hydraulic systems can operate in a variety of environments, from the cold to extreme heat. The temperature range specified on a layline informs users of the operational limits of the hose, ensuring that it can perform optimally without risk of damage from overheating or becoming brittle in cold conditions. This information is vital for selecting hoses that will maintain integrity and reliability under specific working temperatures.

Pressure Rating

The pressure rating denotes the maximum pressure that a hose can safely handle. This figure is usually presented in units such as psi (pounds per square inch) or bar. Selecting a hose with an appropriate pressure rating is fundamental to preventing premature hose failure, which can lead to leaks, bursts, and potentially hazardous situations. It ensures that the hose can withstand the system’s operational pressures, including any surges or spikes.

Standards

Laylines often reference specific industry standards, such as those set by the Society of Automotive Engineers (SAE) or the International Organization for Standardization (ISO). These standards signify that the hose has been designed, manufactured, and tested to meet recognized benchmarks of quality, safety, and performance. Compliance with these standards ensures that the hose can be reliably integrated into hydraulic systems that adhere to the same or compatible guidelines.

Date of Manufacture

Understanding the age of a hydraulic hose is crucial for effective maintenance and lifecycle management. The date of manufacture helps users track the hose’s service life, informing maintenance schedules and replacement planning. It is also essential for warranty purposes, providing a clear timeline of the hose’s usage period.

Deciphering Layline Codes

Manufacturer's Identification

The ability to recognize the manufacturer from the layline is not just about identifying who made the hose but understanding the quality and reliability associated with that manufacturer’s products. Each manufacturer may use unique identifiers, such as logos or specific alphanumeric codes, which serve as a hallmark of quality and a point of contact for warranty or technical support issues. Identifying the manufacturer allows users to access detailed product specifications, historical performance data, and support resources, ensuring the hose aligns with the operational standards and expectations of the hydraulic system.

Size and Pressure Ratings

The size of a hose, typically denoted by its inner diameter, and its pressure rating are among the most crucial pieces of information on a layline. These figures, often represented numerically with units of measurement (e.g., inches, millimeters for size, psi, or bar for pressure), are indispensable for selecting a hose that fits the system’s requirements. The size influences the flow rate and velocity of the hydraulic fluid, while the pressure rating indicates the maximum pressure the hose can withstand without failure. Correct interpretation of these values ensures the hose will perform safely and efficiently under the system’s operating conditions, preventing potential malfunctions or hazards.

Temperature and Compatibility

Understanding the temperature range and fluid compatibility of a hydraulic hose is essential for ensuring its longevity and effectiveness in specific environments. Temperature ranges are usually indicated in degrees Celsius or Fahrenheit and signify the operational limits within which the hose can function without degradation. Symbols or abbreviations may also be present to denote the hose’s compatibility with different types of hydraulic fluids, such as petroleum-based oils, water-glycol solutions, or synthetic fluids. These markers are critical for selecting a hose that will not deteriorate or fail when exposed to particular hydraulic fluids or operating temperatures, thereby safeguarding system integrity.

Standards and Certifications

Laylines often feature abbreviations representing the standards and certifications the hose meets, such as SAE (Society of Automotive Engineers) or ISO (International Organization for Standardization) specifications. For example, a hose marked with “SAE J517” complies with the SAE’s specifications for hydraulic hoses. These certifications inform users of the hose’s adherence to international quality and safety benchmarks, ensuring its suitability for specific applications and its interoperability within global markets. Knowledge of these standards allows users to make informed choices, selecting hoses that meet the regulatory and performance criteria necessary for their hydraulic systems.

The Significance of Date Codes and Batch Numbers

Manufacturing Date

The manufacturing date on a hydraulic hose is more than just a timestamp; it’s a crucial piece of data for managing the hose’s lifecycle and ensuring system reliability. Often encoded to conserve space, this date reveals when the hose was made, enabling users to calculate its age and anticipate when it might need replacement. This information is instrumental in establishing preventive maintenance schedules, which are vital for minimizing downtime and avoiding catastrophic system failures. Additionally, the manufacturing date is often required for warranty claims, serving as proof of the hose’s age and determining eligibility for replacement or repair under warranty terms. Understanding how to read and interpret these encoded dates ensures that hydraulic system operators can maintain their systems efficiently and effectively.

Batch Numbers

Batch numbers serve as a critical link back to the specifics of the hose’s production, including the materials used, the manufacturing conditions, and the quality control measures in place at the time of manufacture. This information is invaluable for quality control purposes, allowing manufacturers and users to trace the origins of a hose should any issues arise. In the event of a defect or recall, batch numbers enable quick identification of affected hoses, facilitating targeted actions to rectify the issue. This traceability is not only essential for maintaining high standards of quality and safety but also for complying with regulatory requirements in many industries. By leveraging batch numbers, companies can manage recalls efficiently, minimizing the impact on their operations and reputation.

The encoding of manufacturing dates and the inclusion of batch numbers on hydraulic hose laylines highlight the industry’s commitment to quality, safety, and accountability. These markers provide a wealth of information that, when decoded, can significantly enhance the management and maintenance of hydraulic systems. By paying close attention to these details, users can ensure their hydraulic hoses are always in top condition, contributing to the overall health and efficiency of their hydraulic systems.

Practical Tips for Using Layline Information

Selection

When selecting a hydraulic hose, the layline information is your first checkpoint for compatibility with your system. This includes ensuring that the hose’s size is adequate for the required flow rate and that it fits correctly with other components. The pressure rating must meet or exceed the maximum pressure of the hydraulic system to prevent leaks or bursts under pressure. Temperature range is also critical, as the hose must be capable of operating efficiently within the environmental conditions it will be exposed to. Additionally, fluid compatibility symbols or abbreviations guide you in choosing a hose that won’t degrade when in contact with the hydraulic fluid used in your system. This careful matching process ensures optimal system performance and longevity.

Maintenance

The proactive use of layline information for maintenance schedules is a strategic approach to hydraulic system care. The manufacturing date, prominently displayed on the layline, is a key factor in determining the hose’s age and, by extension, its expected lifespan. This allows maintenance teams to implement timely replacements, circumventing potential hose failures that could lead to system downtime or even hazardous situations.

Moreover, the layline provides a snapshot of the hose’s operational history and environmental exposure, enabling tailored inspection schedules. For instance, hoses used in extreme temperatures or corrosive environments may require more frequent inspections. By integrating layline data into maintenance planning, it’s possible to forecast wear and tear with greater accuracy, scheduling inspections and replacements to preempt failures. This not only prolongs the life of the hydraulic hoses but also enhances the reliability and efficiency of the entire hydraulic system.

Troubleshooting

In the event of hydraulic system malfunctions, the layline serves as an invaluable diagnostic tool. A thorough review of the hose’s specifications—its size, pressure rating, temperature range, and fluid compatibility—can swiftly reveal mismatches between the hose and its intended application. Such mismatches might be the root cause of common issues like leaks, bursts, or reduced system efficiency.

Early identification of these incompatibilities or signs of hose failure can significantly streamline the troubleshooting process. It allows maintenance personnel to focus their efforts on rectifying the specific problem, whether that means replacing an incorrectly sized hose, addressing compatibility issues, or adjusting the system to accommodate the hose’s specifications. Quick and accurate diagnosis based on layline information minimizes downtime and resource expenditure, facilitating efficient repairs that restore system operation.

Common Mistakes and Misconceptions

Misreading Laylines

One of the most prevalent errors in dealing with hydraulic hoses is the misinterpretation of layline information. This can occur with any aspect of the layline, from hose size and pressure ratings to standards compliance. For instance, mistaking the hose size can lead to improper fitting connections, causing leaks or restricted flow within the system. Misunderstanding pressure ratings may result in selecting a hose that cannot withstand the system’s operational pressures, leading to dangerous failures under stress.

Each manufacturer may have a unique coding system for their laylines, making it imperative for users to familiarize themselves with these nuances. Investing time in learning how to accurately read and interpret these codes is crucial. It ensures that the selected hoses are fully compatible with the system’s requirements, thereby avoiding costly errors and potential safety hazards.

Overlooking Important Details

Another common pitfall is overlooking critical details conveyed in the layline, such as the temperature range or the manufacturing date. Ignoring the temperature range can result in using a hose in environments for which it was not designed, either too hot or too cold, compromising its integrity and functionality. Similarly, disregarding the manufacturing date can lead to the use of older, potentially degraded hoses, risking failures and leaks.

The consequences of overlooking these details can be significant, ranging from reduced system efficiency and premature hose failure to severe safety risks. It’s essential to approach layline information comprehensively, considering every component of the layline in the context of the hose’s intended application. This holistic understanding safeguards against the inadvertent selection of unsuitable components, ensuring the hydraulic system operates safely and efficiently.

Conclusion

Fully grasping the wealth of information provided by hydraulic hose laylines is pivotal for the safety, maintenance, and efficiency of hydraulic systems. By applying the knowledge shared in this exploration, hydraulic system users can unlock the full potential of their systems, ensuring optimal performance and reliability. Let the secrets of laylines guide you toward a more informed and effective use of hydraulic technology.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Mar, 2024

6 Ways to Protect Hydraulic Hoses

Introduction

Neglecting hose maintenance can be costly, not only in terms of safety and reduced efficiency, but also financially. Downtime, repairs and replacements due to hose failures can result in huge expenses. Recognizing and meeting the need for proper protection of hydraulic hose is critical to extending hose life and maintaining operational integrity.

Use the Right Hose for the Job

The initial and perhaps most crucial step in safeguarding hydraulic hose is selecting the appropriate hose for the job at hand. This process involves two primary considerations: the pressure requirements of the application and the chemical compatibility between the hose and the hydraulic fluid.

Pressure Requirements

Every hydraulic system operates under a specific pressure range. Selecting a hose that can handle the system’s maximum pressure is vital to prevent the risk of hose bursts and leaks, which can lead to system failures and safety hazards. Hoses are designed to withstand certain pressure levels, and using one that meets or exceeds the application’s requirements ensures that it can endure the operational stress without compromising performance or safety.

Chemical Compatibility

The compatibility of hose materials with the hydraulic fluid is another critical factor. Hydraulic fluids vary in their chemical compositions, and some can be particularly aggressive towards certain hose materials, leading to degradation from the inside out. This degradation can weaken the hose structure, leading to failures such as leaks, bursts, or complete hose breakdowns. It is imperative to select a hose made from materials that are resistant to the type of hydraulic fluid used in the system. This compatibility helps in preventing internal damage and prolonging the hose’s lifespan.

Regular Inspection and Maintenance

Routine inspection and maintenance are pivotal in extending the lifespan of hydraulic hose and ensuring the safety and efficiency of hydraulic systems. Establishing a systematic inspection and maintenance schedule is essential for early detection and mitigation of potential hose failures.

Establishing an Inspection Schedule

Creating a consistent schedule for hose inspection is crucial. The frequency of inspections should be determined by the operational intensity and environmental conditions of the hydraulic system. For high-demand or severe-service applications, more frequent inspections are advisable. Inspections should focus on identifying signs of wear and tear, such as abrasions, cuts, and leaks, as well as any notable changes in the hose’s color or texture, which could indicate degradation.

Key Inspection Points

Abrasion and Wear: Look for areas where the hose’s outer cover is worn down, which could expose the reinforcement layer to further damage.

Cuts and Damage: Inspect for cuts or other physical damage that could compromise the hose’s integrity.

Leakage: Check for signs of fluid leaks, which could indicate a failing hose or connection.

Color and Texture Changes: Notice any changes in the hose’s color or texture, which might suggest chemical degradation or exposure to excessive heat.

Importance of Preventive Maintenance

Preventive maintenance, including the timely replacement of hoses showing signs of significant wear or damage, is vital. This approach allows for the correction of issues before they lead to system failure or safety hazards. Preventive maintenance strategies might include the rotation of hoses within the system, periodic cleaning to remove contaminants that could degrade the hose materials, and the replacement of hoses that are near the end of their service life, even if they have not yet failed.

Proper Installation Techniques

Ensuring the longevity and reliability of hydraulic hoses begins with their proper installation. Adhering to manufacturer guidelines and best practices during the installation process can prevent many common issues that contribute to premature hose failure.

Adherence to Manufacturer Guidelines

Manufacturers provide specific instructions for hose installation that include recommended routing paths, bending radii, and securing methods. These guidelines are designed to ensure optimal performance and minimize stress on the hose. For example, exceeding the recommended bending radius can lead to kinking, which not only restricts fluid flow but also weakens the hose structure over time.

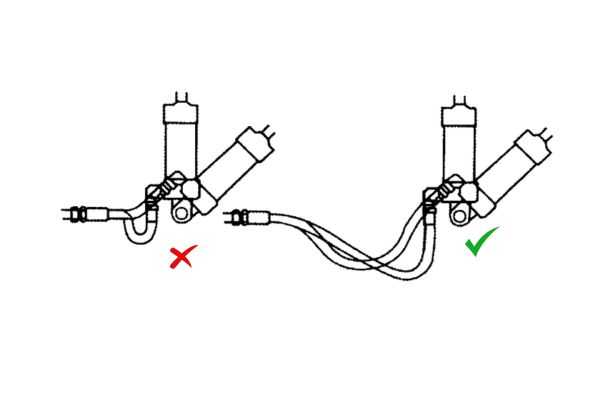

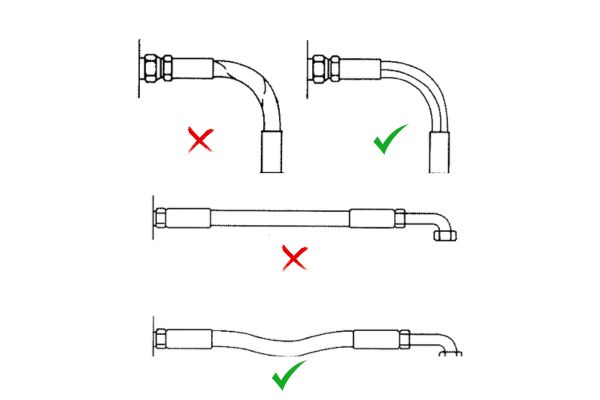

Avoiding Kinks and Twists

Kinks and twists in a hose can severely restrict hydraulic fluid flow, leading to increased pressure and potential system failures. During installation, care must be taken to ensure that hoses are laid out smoothly, without any sharp bends or twists. This not only facilitates efficient fluid movement but also prevents the weakening of the hose’s structure.

Preventing Undue Stress

Undue stress on hoses can be mitigated through proper routing and securement. Hoses should be routed away from sharp edges, moving parts, and high-temperature areas to avoid abrasion, cuts, and heat damage. Additionally, securing hoses with clamps or brackets at appropriate intervals can prevent unnecessary movement that could lead to wear and tear.

Importance of Correct Installation

Proper installation is crucial for several reasons:

Minimizes Pressure Drops and Leaks: Correctly installed hoses are less likely to suffer from leaks or significant pressure drops, ensuring the system operates at peak efficiency.

Extends Hose Life: By preventing kinks, twists, and undue stress, hoses can operate within their design parameters, which extends their service life.

Reduces Maintenance Costs: Properly installed hoses are less prone to failure, which can significantly reduce the costs associated with maintenance and downtime.

Invest in Protective Sleeving

Investing in protective sleeving and wraps is a crucial measure for enhancing the durability and safety of hoses. This additional layer of defense shields hoses from a variety of external factors that can lead to premature wear or failure.

Benefits of Protective Sleeving

Abrasion Protection: Sleeving acts as a barrier against rough surfaces, reducing the risk of the outer hose cover being worn down.

Temperature Resistance: Certain sleeving materials can insulate hoses from extreme heat or cold, maintaining the integrity of the hose material.

Chemical Resistance: Sleeving can also protect hoses from harmful chemicals that may splash onto the hose surface, which could otherwise degrade the hose material over time.

Types of Protective Sleeving

Nylon Sleeving

Known for its excellent abrasion resistance, nylon sleeving is ideal for environments where hoses are subjected to constant wear and tear from rubbing against other surfaces. The durability of nylon ensures that the underlying hose remains intact and functional, even in settings with high levels of movement or vibration.

Silicone Sleeving

Silicone sleeving offers superior protection against a wide range of temperatures, making it suitable for applications that involve extreme heat or cold. This type of sleeving can withstand temperatures that would degrade other materials, ensuring that hoses are protected whether they’re near hot engines or exposed to cold outdoor conditions.

Fire-Resistant Fabrics

For applications that pose a risk of fire or are near high-temperature components, fire-resistant fabric sleeving is a must. These materials can withstand direct exposure to flames and high heat, preventing hose damage in critical situations. Their use is essential in minimizing the risk of fire-related hose failures and enhancing overall safety.

Spiral Wraps

Spiral wraps are a type of protective covering that can be wound around a hydraulic hose to provide an additional layer of defense against external abrasion, impacts, and entanglement. They are designed to be flexible and durable, offering protection while allowing for the natural movement of the hose. Spiral wraps are particularly useful in environments where hoses are exposed to frequent contact with rough surfaces or where multiple hoses are bundled together, as they help to reduce wear and extend the lifespan of the hoses.

Hose Restraints

Hose restraints are safety devices used to secure hydraulic hose and prevent whipping in the event of a high-pressure hose failure. When a pressurized hose becomes detached from its fitting, the rapid release of energy can cause the hose to whip violently, posing a serious danger to nearby personnel and equipment. Hose restraints are designed to contain the hose within a certain area, minimizing the risk of injury and damage. They are typically constructed from strong, flexible materials like nylon or wire rope and are crucial in high-pressure applications for enhancing workplace safety.

Velocity Fuse

A velocity fuse is a hydraulic safety device designed to shut off the flow of hydraulic fluid in the event of a hose burst or sudden increase in flow rate, which could indicate a failure in the system. When the flow rate exceeds a predetermined threshold, the velocity fuse activates, blocking the flow of hydraulic fluid to prevent potential damage or injury from uncontrolled movement of hydraulic machinery. Velocity fuses are essential components in systems where hose failures can lead to catastrophic outcomes, providing an automatic response to unexpected increases in fluid velocity.

Selecting the Right Protective Sleeving

The choice of protective sleeving should be based on the specific environmental challenges and operational hazards present in the application area. Consider factors such as the level of abrasion, the range of temperatures the hoses will be exposed to, and the potential for fire or chemical exposure. By matching the sleeving material to the application’s needs, you can significantly reduce the risk of hose damage and extend the service life of your hydraulic system components.

Investing in the appropriate type of protective sleeve is a proactive measure that pays off in the long run. It not only protects hoses from physical damage and environmental stressors but also contributes to safer and more reliable hydraulic system operations. As with all components of a hydraulic system, selecting and installing protective sleeving requires careful consideration to ensure optimal protection and performance.

Avoid Excessive Heat Exposure

Exposure to excessive heat is a critical factor that can significantly compromise the integrity of hoses. Heat can accelerate the aging process, leading to increased susceptibility to cracking, brittleness, and other forms of degradation. Understanding how to mitigate these risks is essential for maintaining hose functionality and longevity.

Mitigating Heat Exposure

Implementing Heat Shields: Heat shields can be installed to protect hydraulic hoses from direct exposure to high temperatures. These shields are designed to reflect heat away from the hose, thereby reducing the temperature to which the hose is exposed. Heat shields are particularly useful in environments where hoses are routed near engines, exhaust systems, or other hot surfaces.

Routing Hoses Away from Hot Surfaces: Whenever possible, hoses should be routed away from hot surfaces to minimize heat exposure. This might involve reconfiguring the layout of hydraulic components or using longer hoses to allow for a safer routing path. Keeping hoses at a safe distance from heat sources helps in maintaining their structural integrity over time.

Using High-Temperature Hoses: In applications where high temperatures are unavoidable, it is advisable to use hoses that are specifically designed to withstand elevated temperatures. These hoses are made from materials that can endure higher heat without degrading, thus offering better performance and durability in demanding conditions.

Importance of Temperature Management

Managing the temperature exposure of hydraulic hose is crucial for several reasons:

Prolonging Hose Life: By protecting hoses from excessive heat, their lifespan can be significantly extended, reducing the need for frequent replacements.

Maintaining Hydraulic Efficiency: Proper temperature management ensures that the hydraulic fluid remains within its optimal operating temperature range, thereby maintaining system efficiency and preventing fluid degradation.

Enhancing Safety: Reducing the risk of hose failure due to heat exposure contributes to overall system safety, preventing leaks and potential fire hazards associated with hydraulic fluid contact with hot surfaces.

Hydraulic Hose Routing Best Practices

Proper routing of hydraulic hoses is crucial for ensuring the longevity and efficiency of the hose and the safety of the hydraulic system. Effective hose routing helps minimize the risks of abrasion, interference, and damage from surrounding components. Here are some best practices for hydraulic hose routing:

Clear of Moving Parts and Sharp Edges

Hoses should be routed away from moving parts to prevent wear and potential damage from repeated contact. Additionally, avoiding sharp edges is critical to prevent cutting and abrasion of the hose exterior. Protective sleeving can be used in areas where contact with sharp edges is unavoidable.

Avoid High-Temperature Areas

Routing hoses away from high-temperature sources is essential to prevent heat-related damage. Excessive heat can deteriorate hose materials, leading to premature failure. If avoiding high-temperature areas is not possible, using heat-resistant hoses and installing heat shields or reflective sleeves can provide necessary protection.

Use Clamps and Brackets

Securing hoses with clamps and brackets at regular intervals helps stabilize hoses and prevents excessive movement. This not only reduces wear but also aids in maintaining the desired hose shape and path, preventing kinks and bends that could restrict fluid flow.

Allow for Adequate Bend Radius

Ensuring that hoses have an adequate bend radius is important to prevent kinking and to maintain fluid flow efficiency. Tight bends can cause hose walls to collapse, leading to flow restriction and increased pressure. Always follow the manufacturer’s specifications for minimum bend radius.

Facilitate Inspection and Maintenance

Hose routing should also consider ease of access for inspection and maintenance. Hoses should be routed in a way that allows for easy visual inspection and replacement if necessary. This practice helps in early detection of wear or damage and simplifies maintenance tasks.

Avoid Twist and Torsion

Hoses should be installed to avoid twisting, as torsion can weaken the hose structure and lead to failure. During installation, ensure that hose fittings are correctly aligned to prevent inducing twist in the hose.

Plan for Thermal Expansion and Contraction

Routing should take into account the thermal expansion and contraction of hoses. Allow enough slack and flexibility in hose routes to accommodate length changes due to temperature variations, ensuring that the hose is not under undue tension or compression.

Conclusion

Adopting these practices not only extends the life of hydraulic hoses but also contributes to the overall safety, efficiency, and reliability of hydraulic systems. By emphasizing preventive measures and proper care, users can significantly reduce the likelihood of hose failures, minimize maintenance costs, and ensure uninterrupted system operation. This holistic approach to hose management underscores the importance of attention to detail and proactive maintenance in the complex ecosystem of hydraulic systems.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Mar, 2024

Top 7 Reasons for Hydraulic Hose Failure

Introduction

Hydraulic hose failures can have serious consequences. These effects go beyond operational inefficiencies to include significant safety risks, costly downtime, and substantial financial losses. At high pressures, hose failures can lead to dangerous fluid jets that pose a serious threat to personnel safety. The purpose of this article is to provide an in-depth look at the primary causes behind hydraulic hose failures, revealing the complexities of hose operation and maintenance. By understanding the root causes of these failures, stakeholders can implement effective preventative measures.

Abrasion and Wear

External Abrasion

One of the most prevalent causes of hydraulic hose failure is external abrasion. This occurs when the hose’s outer cover is worn down through continuous contact with surrounding equipment, other hoses, or environmental factors like debris and rough surfaces. This wear and tear can lead to the degradation of the hose’s outer layer, exposing the reinforcement layers beneath. Once the reinforcement is compromised, the hose’s ability to withstand pressure is significantly reduced, leading to leaks or catastrophic failures.

Common Sources

The common sources of abrasion include but are not limited to:

Equipment Contact: Hoses rubbing against parts of the machinery they are attached to or other nearby structures.

Debris and Particulate Matter: Exposure to small, hard particles that can erode the hose’s outer layer over time.

Environmental Conditions: Operations in harsh environments, where hoses are exposed to rough terrain, sharp edges, or corrosive elements.

Prevention Tips

To combat the issue of abrasion and wear, several strategies can be employed:

Proper Hose Routing: Ensuring hoses are correctly routed to avoid unnecessary contact with abrasive surfaces or high-risk areas.

Protective Sleeves: Utilizing protective sleeves or covers made from materials designed to withstand abrasion can shield hoses from external damage.

Regular Inspections: Conducting regular inspections of hydraulic hoses as part of a maintenance routine can help identify early signs of wear and tear, allowing for proactive measures before failure occurs.

Improper Installation

Installation Errors

Improper installation of hydraulic hoses is a significant contributor to their premature failure. Errors during installation can range from using hoses of inappropriate length, failing to adhere to the required bending radius, or incorrect attachment of fittings. Each of these errors can introduce undue stress on the hose, leading to weak points where failure is more likely to occur. For instance, a hose that is too short may not have sufficient slack to accommodate movement or vibration, whereas a hose that is too long could lead to kinking or unnecessary abrasion against surrounding components.

Consequences

The consequences of improper installation are multifaceted and can severely impact the integrity and performance of hydraulic systems. Increased stress on the hose from stretching, compression, or bending beyond its design limits can lead to the development of leaks, the appearance of cracks, or even a complete rupture. These failures not only necessitate costly repairs or replacements but also pose significant safety risks to operators.

Installation Best Practices

To ensure the longevity and reliability of hydraulic hoses, adhering to the following best practices during installation is crucial:

Adherence to Manufacturer Specifications: Always consult and follow the manufacturer’s guidelines for hose length, bending radius, and fitting types. Manufacturers provide these specifications to optimize the performance and durability of their products under operational conditions.

Correct Fitting Attachment: Make sure that fittings are securely and correctly attached to the hose. This includes using the right tools to crimp or secure the fittings without damaging the hose structure.

Consideration of Movement and Vibration: Account for potential movement and vibration in the system’s design to prevent undue stress on the hoses. This may involve incorporating slack in the hose length or using clamps to secure hoses away from points of high wear or potential abrasion.

Professional Training: Ensure that personnel involved in the installation of hydraulic hoses are adequately trained and familiar with best practices and safety guidelines. Proper training can significantly reduce the risk of installation errors and subsequent hose failures.

Temperature Extremes

Temperature Effects

Hydraulic hoses are designed to operate within a specific temperature range, and deviating from these recommended limits can significantly impact their performance and longevity. Operating hoses at temperatures higher than recommended can lead to the degradation of the hose material, resulting in softening, loss of strength, and an increased risk of rupture. Conversely, exposure to temperatures below the minimum can cause hoses to become brittle, less flexible, and more susceptible to cracking or breaking. Both scenarios undermine the structural integrity of the hose and its ability to maintain a secure conveyance of hydraulic fluid under pressure.

Examples

High-Temperature Failure: In an industrial setting, a hydraulic hose used near a high-heat source exceeded its maximum temperature rating, leading to the softening of its rubber components. This resulted in a leak that not only caused a significant operational delay but also posed safety risks due to the sudden loss of hydraulic control.

Low-Temperature Breakdown: In a cold climate, construction equipment experienced hydraulic hose failure because the hoses became too rigid in sub-zero temperatures. This rigidity led to cracks forming in the hose when it was subject to movement, ultimately causing a complete system failure.

Guidelines

To mitigate the risks associated with temperature extremes, consider the following guidelines:

Suitable Temperature Ratings: Select hoses that have temperature ratings appropriate for the operating environment of the machinery. Manufacturers specify these ratings to ensure optimal performance and durability.

Use of Insulation or Cooling Systems: In applications where hoses are exposed to high temperatures, consider using insulation to protect them from heat sources. Similarly, in hot operating environments, cooling systems can help maintain hydraulic fluid at a safe operating temperature.

Regular Monitoring: Implement a routine check to monitor the condition of hoses operating in extreme temperatures. This can help identify potential issues before they lead to failure.

Environmental Considerations: When selecting hydraulic hoses, consider the environmental conditions they will be exposed to, including the potential for temperature fluctuations between day and night or seasonal changes.

Chemical Compatibility

Compatibility Issues

Selecting hydraulic hoses that are compatible with both the hydraulic fluid they will carry and potential external contaminants is crucial for ensuring the longevity and reliability of the hose. Hydraulic fluids vary in chemical composition, and not all hose materials are resistant to the specific types of fluids or external chemical exposures they may encounter. Incompatibility between the hose material and the fluid can lead to hose degradation, compromising the system’s integrity and safety.

Material Degradation

Chemical exposure can cause various forms of degradation in hose materials, such as:

Swelling and Softening: Certain rubber materials may absorb fluids, leading to swelling and a loss of physical strength. This can result in a hose that is more prone to abrasion and tear.

Cracking and Hardening: Exposure to aggressive chemicals or even prolonged exposure to certain hydraulic fluids can cause the hose material to harden and become brittle, leading to cracks and leaks.

Chemical Reaction: Some hose materials may chemically react with specific hydraulic fluids or external contaminants, causing the material to degrade or the fluid to become contaminated, which can adversely affect system performance.

Material Selection Recommendations

When selecting a hydraulic hose, consider the following to ensure chemical compatibility:

Consult Compatibility Charts: Manufacturers often provide chemical compatibility charts for their hose materials. These charts are an invaluable resource for determining which materials are suitable for use with specific hydraulic fluids and external contaminants.

Understand the Application Environment: Consider all possible chemical exposures in the application environment, not just the hydraulic fluid. This includes environmental contaminants, cleaning agents, and any other chemicals the hose might come into contact with.

Select Specialty Hoses for Harsh Environments: For applications involving aggressive chemicals, high temperatures, or other harsh conditions, specialty hoses designed for chemical resistance may be necessary. These hoses are made from materials specifically engineered to withstand challenging environments.

Pressure Surges and Overloading

Pressure Rating Exceedance

Exposing hydraulic hoses to pressures beyond their rated capacity is a precarious practice that can lead to catastrophic failures. Hydraulic hoses are designed to operate safely up to a specific maximum pressure. When this threshold is exceeded, even momentarily due to pressure surges, the integrity of the hose is compromised. This can result in the weakening of the hose structure, leading to bursts and leaks. A burst hose not only halts operations due to the immediate loss of hydraulic fluid but also poses significant safety risks to nearby personnel, potentially resulting in injuries from the sudden release of high-pressure fluid.

Understanding Impulse Cycles

Impulse cycles refer to the rapid fluctuations in pressure and velocity that hoses experience during regular hydraulic system operations. These cycles can be particularly demanding on hoses, as the repeated pressures and relaxations can stress hoses beyond their limits over time. Selecting hoses that are designed to endure the specific impulse cycles of a system is crucial. Hoses that are not suited for the system’s pressure dynamics may fail prematurely due to fatigue, leading to leaks or bursts. Manufacturers often test hoses for a specific number of impulse cycles at a given pressure to ensure reliability under dynamic conditions.

Preventive Measures

To prevent pressure-related failures in hydraulic systems, consider the following tips:

Employ Pressure-Relief Valves: Incorporating pressure-relief valves in the hydraulic system can help manage unexpected surges in pressure, thereby protecting hoses from being subjected to pressures that exceed their design limits.

Choose the Right Hose: Select hoses based on the maximum operating pressure of the system, including any potential surges. Ensure that the hose’s rated pressure meets or exceeds the highest pressure it will encounter during operation.

Regular System Checks: Regularly monitor the hydraulic system’s pressure levels to identify any fluctuations that may indicate issues with pressure control components. Early detection of pressure spikes can prevent hose failures.

Use Proper Hose Assemblies: Ensure that hose assemblies, including fittings and connectors, are also rated for the system’s maximum pressure. Mismatched components can create weak points prone to failure under high-pressure conditions.

Age and Deterioration

Lifecycle and Aging

Over time, hydraulic hoses naturally undergo aging, a process that can significantly impact their functionality and integrity. Signs of aging in hoses include visible cracking on the surface, increased stiffness, and a loss of elasticity. These changes are indicators that the hose’s material properties are degrading, which can compromise its ability to withstand operational pressures and may lead to leaks or bursts under normal conditions.

Environmental Factors

Environmental factors play a significant role in accelerating the deterioration of hydraulic hoses. Exposure to UV light, for instance, can cause the materials in the hose to break down, leading to brittleness and cracking. Similarly, ozone, a common atmospheric pollutant, can also cause cracking and degradation of rubber components. These environmental elements can drastically shorten the expected lifespan of a hydraulic hose, leading to premature failure.

Maintenance Strategies

To combat age and environmental deterioration, implementing a proactive maintenance strategy is essential. Here are some tips to help prevent failures due to aging:

Regular Inspections: Conduct periodic visual inspections of all hydraulic hoses, looking for signs of aging, wear, or environmental damage. Pay special attention to hoses exposed to harsh conditions.

Environmental Protection: Where possible, protect hoses from direct sunlight, extreme temperatures, and ozone. This can involve rerouting hoses away from sources of heat or UV exposure, or using protective sleeves.

Scheduled Replacement: Based on the manufacturer’s recommendations and your observations from regular inspections, establish a schedule for replacing hoses that are nearing the end of their useful life. This approach prevents unexpected failures and allows for planned downtime, if necessary.

Contamination

Internal Wear from Contamination

Contamination within the hydraulic fluid is a critical concern that can lead to hose and system failure. Particulate matter, such as dirt, metal shavings, and other debris, can cause significant internal wear and tear on hydraulic hoses and components. This wear can degrade the hose’s interior surfaces, leading to leaks, blockages, and ultimately, system failure. Similarly, water contamination in the hydraulic fluid can lead to corrosion of metal components, including fittings and connectors, further compromising the system’s integrity.

Role of Filtration

Effective filtration plays a pivotal role in maintaining a clean hydraulic system. Filtration systems are designed to remove particulate and water contamination from hydraulic fluid, thereby protecting hoses and other hydraulic components from premature wear and failure. Regular maintenance of the filtration system, including timely replacement of filter elements, is essential to ensure that it continues to function effectively, providing clean, contaminant-free fluid for the hydraulic system.

Contamination Prevention Tips

To prevent contamination and maintain system cleanliness, consider the following strategies:

Closed System Handling: Always handle hydraulic fluid in a way that minimizes its exposure to the environment. Use clean containers and funnels when transferring fluid, and ensure that storage containers are sealed properly.

Cleanliness During Hose Replacement: When replacing hydraulic hoses, take care to prevent contaminants from entering the system. Clean the area around connection points thoroughly before disconnecting hoses, and cap or cover open fittings and hoses promptly.

Regular Fluid Analysis: Periodic analysis of hydraulic fluid can provide early warning of contamination issues. This allows for corrective actions, such as filtering or replacing the fluid, before significant damage occurs.

Proper Ventilation: Ensure that the hydraulic system’s reservoir is properly ventilated to prevent the ingress of contaminants while allowing for the release of moisture and pressure.

Conclusion

In this article, we have explored the major causes of hydraulic hose failure, including abrasion, improper installation, temperature extremes, chemical incompatibility, pressure surges, aging and deterioration, and contamination. Understanding these common causes of failure and taking preventative measures is critical to maintaining the integrity and safety of your hydraulic system. We encourage readers to take proactive maintenance measures to minimize these risks. Regular inspections, proper installation, choosing the right materials, and keeping the system clean are key strategies for preventing hose failures. Let’s work together to ensure the reliability and safety of our hydraulic systems.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Feb, 2024

6 Mistakes to Avoid When Installing Hydraulic Hoses

Introduction

Proper installation of hydraulic hoses is critical for the efficient and safe operation of hydraulic systems. These hoses, essential for transmitting hydraulic power, require careful handling to ensure they meet the demands of their application. Incorrect installation can lead to a myriad of problems, from reduced system performance and increased wear to catastrophic failures that might cause system downtime, environmental hazards, and even pose serious safety risks to operators. Ensuring that hydraulic hoses are installed correctly not only maximizes their lifespan but also maintains the reliability and safety of the hydraulic system as a whole.

Not Selecting the Correct Hose Size

Selecting the correct hose size is a critical factor in the design and operation of hydraulic systems. The consequences of choosing a hose that is either too large or too small can be significant, affecting everything from the system’s efficiency to its overall safety. Understanding the implications of hose size selection is essential for anyone involved in the maintenance, design, or operation of hydraulic systems.

Importance of Hose Size Selection

The size of a hydraulic hose dictates the flow rate and pressure within the system. It is vital to match the hose size with the system’s requirements to ensure optimal performance. A hose that is too small can restrict flow, leading to increased pressure losses and heat generation. Conversely, a hose that is too large for the system can result in inadequate pressure, which may lead to inefficient operation and the inability to perform work as intended.

Consequences of Incorrect Hose Size

Pressure Losses: An undersized hose can create significant pressure drops, making the hydraulic system work harder to maintain the desired flow rate. This inefficiency can lead to increased energy consumption and operational costs.

Inadequate Flow Rates: Just as problematic as pressure losses, inadequate flow rates can occur when a hose is not appropriately sized for the system. This can prevent the hydraulic system from reaching its full operational potential, affecting the speed and performance of the hydraulic machinery.

Premature System Failure: Continuous operation under the wrong hose size conditions can stress the hydraulic components, leading to wear and tear. Over time, this can cause the system to fail prematurely, necessitating costly repairs or replacements.

Safety Risks: The incorrect hose size not only impacts system efficiency but can also pose safety risks. For instance, a hose that is too small may burst under high pressure, while a hose that is too large could detach from its fittings. Both scenarios can lead to dangerous leaks and potential injury to operators.

Ignoring Temperature Ratings

Hydraulic hoses are engineered to operate efficiently within designated temperature ranges, which vary depending on the hose material and construction. Ignoring these temperature ratings can result in significant operational problems, safety hazards, and increased costs due to premature hose failure. Understanding the importance of adhering to specified temperature limits is crucial for the longevity and reliability of hydraulic systems.

Importance of Temperature Ratings

Temperature ratings are established based on the hose material’s ability to withstand continuous exposure to high and low temperatures. These ratings ensure that the hose can perform under the specific thermal conditions of a hydraulic system without losing its structural integrity or performance capabilities.

Consequences of Using Hoses Outside Temperature Ratings

Material Degradation: Exposure to temperatures beyond the hose’s rated capacity can cause the material to harden or soften, depending on whether the temperature is too high or too low. This degradation affects the hose’s strength and can lead to cracks, leaks, or complete failure.

Loss of Flexibility: High temperatures can make hose materials more pliable, while extremely low temperatures can cause them to become brittle. In either scenario, the hose may lose its ability to flex appropriately, leading to kinking, bending, and ultimately, failure.

Premature Failure: Continuous operation outside the recommended temperature range accelerates wear and tear on the hose, significantly reducing its service life. This not only leads to more frequent replacements but also increases the risk of sudden hose failures that can halt operations and require emergency repairs.

Safety Hazards: A hose failure due to temperature-induced degradation can pose serious safety risks. For instance, a burst hose can release high-pressure hydraulic fluid, leading to potential injury to operators and damage to surrounding equipment.

Selecting the Right Hose

To mitigate these risks, it’s essential to select a hydraulic hose that is rated for the system’s operational temperature range. This includes both the ambient temperature in the environment where the hose will be used and the temperature of the fluid being conveyed. When selecting a hose, consider:

Maximum and Minimum Temperature Ratings: Ensure the hose can handle the highest and lowest temperatures it will be exposed to during operation.

Thermal Conductivity: Some hose materials are better suited for high-temperature applications due to their thermal resistance and conductivity.

Application Specifics: Consider the application’s unique requirements, including temperature spikes, fluid compatibility, and environmental conditions.

Overlooking Hose Compatibility

Ensuring hose compatibility with the hydraulic fluid is paramount in the maintenance and operation of hydraulic systems. This compatibility is crucial because the hydraulic fluid can have a significant chemical interaction with the hose material, affecting the hose’s integrity and functionality. Using incompatible hoses can lead to various issues, including chemical degradation, swelling, and deterioration, which compromise the system’s reliability and safety.

The Importance of Hose and Fluid Compatibility

Hydraulic hoses are made from various materials, each with specific properties and resistance levels to different types of hydraulic fluids. The interaction between the hose material and the hydraulic fluid can significantly impact the hose’s durability and performance. For instance, certain types of rubber hoses may degrade when exposed to synthetic hydraulic fluids, while others are specifically designed to handle such fluids without any adverse effects.

Consequences of Incompatibility

Chemical Degradation: Incompatible hydraulic fluid can break down the hose material at the molecular level, leading to weakening of the hose structure. This degradation can cause leaks, which may start as weeping through the hose material and progress to significant leaks or bursts.

Swelling and Deterioration: Some hose materials may absorb components of the hydraulic fluid, leading to swelling. This swelling can reduce the hose’s inner diameter, affecting fluid flow and pressure. Over time, the material may also deteriorate, leading to cracks, splits, and ultimately, hose failure.

Hose Failure: The ultimate consequence of using incompatible hoses and fluids is hose failure. This can occur suddenly and without warning, leading to the immediate loss of hydraulic power, potential damage to machinery, and safety hazards for nearby personnel.

Ensuring Compatibility

To avoid these issues, it’s crucial to ensure that the hose material is compatible with the hydraulic fluid used in the system. This involves:

Consulting Compatibility Charts: Many hose and fluid manufacturers provide compatibility charts that detail which materials are suitable for use with different types of fluids.

Understanding Fluid Properties: Be aware of the chemical composition of the hydraulic fluid, including any additives that might affect compatibility.

Choosing the Right Hose Material: Select a hose material that is known to be compatible with the hydraulic fluid. This may include synthetic rubbers, thermoplastics, or other materials designed for specific fluid types.

Regular Inspection and Maintenance: Even with compatible hoses, regular inspection for signs of wear, degradation, or leaks is essential. This helps catch potential issues early, before they lead to failure.

Incorrect Hose Routing

Incorrect hose routing in hydraulic systems can significantly impact hose longevity and system reliability. Proper routing is crucial to prevent physical damage to hoses, which can lead to leaks, reduced performance, and potential safety hazards. Here, we discuss the importance of correct hose routing and how improper practices can result in premature hose failure.

The Impact of Incorrect Hose Routing

Excessive Wear and Abrasion: Hoses that are incorrectly routed may come into contact with sharp edges or rub against surfaces or other hoses. This constant friction can wear down the hose’s outer cover, exposing the reinforcement layer and leading to leaks or bursts.

Bending Radius Violations: Every hydraulic hose has a minimum bending radius specified by the manufacturer. Routing hoses too tightly can exceed this limit, leading to kinking, reduced flow, and increased pressure on the hose walls. This not only affects system efficiency but also significantly shortens the hose’s lifespan.

Exposure to High-Temperature Components: Hoses routed too close to high-temperature components, such as engines or exhaust systems, can undergo material degradation. The heat can soften the hose material, reducing its pressure-carrying capacity and leading to failure.

Vibration Damage: Hydraulic systems, particularly those on mobile equipment, can generate significant vibration. Hoses not properly secured or routed to accommodate movement can fatigue over time, leading to cracks and leaks.

Tips for Optimal Routing Practices

Follow Manufacturer Guidelines: Always adhere to the manufacturer’s specifications for minimum bending radius and temperature ratings when routing hoses.

Use Clamps and Guards: Secure hoses with clamps to prevent unnecessary movement and use guards or sleeves to protect hoses from abrasion and high temperatures.

Plan for Movement: Account for the movement of machine components and hydraulic actuators. Ensure that hoses have enough slack to accommodate full range of motion without stretching or compressing.

Avoid Sharp Bends: Route hoses to avoid sharp bends and twists that can strain the hose and lead to failure. Use elbow fittings where necessary to maintain a smooth flow path.

Keep Hoses Away from High Heat: Route hoses away from hot surfaces and components. If unavoidable, use heat shields or insulating sleeves to protect the hoses.

Failing to Properly Secure Hoses

Proper securing of hydraulic hoses is essential to the longevity and reliability of hydraulic systems. Without adequate support, hoses can move excessively under pressure, leading to premature wear, abrasion, and leaks. Ensuring that hoses are correctly clamped and supported minimizes these risks and maintains system integrity.

Importance of Proper Hose Securing

Prevents Excessive Movement: Hydraulic hoses can experience significant movement due to the flow of fluid under pressure. Proper securing with clamps and supports restricts this movement, reducing the risk of wear and abrasion against other parts of the machinery.

Reduces Risk of Abrasion and Leaks: When hoses rub against other components, the outer cover can be worn away, exposing the reinforcement layer. This not only weakens the hose but can also lead to leaks, which compromise the system’s efficiency and safety.

Maintains Hose Shape and Prevents Kinking: Unsupported hoses may bend or twist beyond their designed bending radius, leading to kinking. Kinks can restrict fluid flow and increase pressure within the system, potentially causing hose burst or system failure.

Strategies for Proper Hose Securing

Use of Clamps and Supports: Clamps and supports should be used to hold hoses in place, especially where there is a risk of movement or abrasion. Clamps should be tight enough to secure the hose but not so tight as to cause damage to the hose cover.

Consideration of Hose Routing: When installing hydraulic hoses, consider the routing to minimize the potential for movement and ensure there is no contact with sharp edges or high-temperature components. Proper routing can significantly reduce the need for excessive clamping.

Regular Inspection and Maintenance: Regularly inspect hose clamps and supports as part of routine maintenance. Check for signs of wear, loose clamps, or any movement that could lead to hose damage. Adjust or replace clamps and supports as necessary to ensure ongoing hose security.

Selection of Appropriate Clamps and Supports: Choose clamps and supports that are suitable for the hose size and type, as well as for the environmental conditions (e.g., temperature, exposure to chemicals). Ensure that the materials used for clamping and support do not react chemically with the hose or hydraulic fluid.

Allow for System Movement: In systems where movement is unavoidable, such as in mobile hydraulic equipment, ensure that hoses are supported in a way that allows for this movement without causing stress or strain on the hose.

Neglecting Pre-Installation Inspection

Neglecting the pre-installation inspection of hydraulic hoses can have serious consequences for the safety, efficiency, and reliability of hydraulic systems. This inspection is a critical step in the installation process, designed to identify any potential issues with hoses before they are integrated into the system. By ensuring that hoses are free from defects such as cuts, abrasions, or signs of degradation, the risk of leaks or hose failure under pressure can be significantly reduced.

Importance of Pre-Installation Inspection

Identifies Manufacturing Defects: Even new hoses can have defects resulting from the manufacturing process. Inspecting hoses before installation allows for the identification and replacement of defective hoses before they cause problems.

Prevents Premature Hose Failure: Defects like cuts or abrasions can weaken a hose, making it more susceptible to failure under the pressures of normal operation. Catching these issues early prevents unexpected downtime and the potential for catastrophic system failures.

Ensures System Safety: A compromised hose can burst or leak, posing safety risks to operators and nearby personnel. Pre-installation inspections help ensure that all components of the hydraulic system are safe for use.

Reduces Maintenance Costs: By identifying and addressing potential hose issues before installation, the need for emergency repairs and unscheduled maintenance can be minimized, leading to lower overall maintenance costs.

Conducting Effective Pre-Installation Inspections

Visual Inspection: Carefully examine the entire length of the hose for any visible signs of damage, such as cuts, cracks, or abrasions. Pay special attention to the ends of the hose, where damage is more likely to occur during handling and shipping.

Flexibility Check: Gently bend the hose to ensure it has not become brittle or excessively stiff, which could indicate degradation or unsuitability for the intended application.

Fitting and End Connection Inspection: Check the fittings and end connections for any signs of corrosion, damage, or wear that could compromise the hose’s connection to the hydraulic system.

Conclusion

In conclusion, adhering to best practices during the installation of hydraulic hoses is essential to ensure the longevity and safety of the hydraulic system. Proper selection, installation, and testing of hydraulic hoses can prevent many common issues and ensure that the system operates efficiently and safely. Encouraging these practices among technicians and operators can help minimize downtime and extend the life of hydraulic equipment.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Feb, 2024

Understanding the Process of Hydraulic Hose Manufacturing

Understanding Hydraulic Hoses Manufacturing Process

Introduction

Hydraulic hose manufacturing is an important part of the modern industrial world, supporting the operations of various industries such as construction, manufacturing and automotive. These hoses are vital for transferring hydraulic fluids under pressure between the different components of a hydraulic system, allowing machinery and equipment to operate efficiently and safely. This article aims to unravel the entirety of the hydraulic hose manufacturing process, providing insight into the intricacies and specialties involved.

The Basics of Hydraulic Hoses

Hydraulic hoses are integral components of hydraulic systems, serving as flexible conduits for the transmission of hydraulic fluid. Their primary function is to transfer fluid between different parts of a system, facilitating the smooth operation of machinery by maintaining the necessary pressure levels. The construction of hydraulic hoses is complex, involving multiple layers that each serve a specific purpose:

Inner Tube: This layer directly carries the hydraulic fluid. It’s made from materials compatible with the fluid to prevent degradation.

Reinforcement Layer: This layer is designed to support the hose structurally, enabling it to withstand the internal pressures generated by the hydraulic fluid. It’s typically made from high-strength materials like steel wire.

Outer Cover: The outermost layer protects the hose from external elements, including abrasion, UV radiation, and chemicals, ensuring the hose’s durability and longevity.

Types of Hydraulic Hoses

Hydraulic hoses vary in design to suit different applications, characterized by their pressure ratings, temperature ranges, and compatibility with various fluids. Selecting the appropriate hose for a specific application is crucial for ensuring optimal performance and safety. The main types of hydraulic hoses include:

General-Purpose Hoses: These hoses are designed for moderate pressure and temperature applications, suitable for a wide range of activities in industrial and mobile equipment.

High-Pressure Hoses: Specifically engineered to handle high-pressure operations, these hoses are ideal for hydraulic systems that operate under intense pressure conditions.

Specialized Hoses: Tailored for specific conditions, such as high-temperature environments or corrosive fluid transfer, these hoses are made with unique materials and designs to meet the demands of particular applications.

Each type of hydraulic hose plays a vital role in its respective hydraulic system, ensuring efficient and safe operation across various industries. The selection process involves considering the hose’s pressure rating, temperature compatibility, and fluid type, among other factors, to match the specific requirements of the application.

Raw Materials Used in Hydraulic Hose Manufacturing

Hydraulic hose manufacturing utilizes a range of materials, each selected for its specific properties to ensure the hose meets the required performance standards for various applications. The composition and quality of these materials are crucial for the hose’s functionality and durability.

Rubber Components in Hydraulic Hoses

Inner Tube

Material: Nitrile rubber is predominantly used for the inner tube of hydraulic hoses.

Properties: This material is highly valued for its resistance to oils, making it ideal for transporting hydraulic fluid. It ensures that the hose can handle the fluid without the risk of degradation over time.

Function: Serving as the fluid conduit, the inner tube’s compatibility with hydraulic fluid is crucial for the hose’s overall performance and longevity.

Outer Cover

Material: The outer cover of hydraulic hoses is often made from synthetic rubber.

Properties: Synthetic rubber is chosen for its robustness against environmental challenges, including adverse weather conditions, exposure to UV radiation, and resistance to physical abrasions.

Role: This layer plays a critical role in maintaining the hose’s structural integrity, protecting it from external damage that could compromise its function.

Steel Wire Reinforcement

Material: The reinforcement layer is constructed from high-strength steel wire, integral to the hose’s design to ensure it can withstand internal pressures.

Design Options:

Braided: Offers more flexibility and is typically employed in hoses designed for lower-pressure applications.

Spiraled: Provides greater strength and is used in high-pressure hoses where rigidity is required to maintain the hose’s shape and function under pressure.

Selection Criteria: The choice between braided and spiraled reinforcements is dictated by the hose’s intended pressure rating and the need for flexibility. This decision is crucial for aligning the hose’s capabilities with its specific application requirements, ensuring optimal performance and durability.

Impact of Material Selection on Hose Properties

The materials used in hydraulic hose manufacturing directly influence the hose’s performance characteristics, including:

Flexibility: The type of rubber and the construction of the reinforcement layer determine the hose’s flexibility, affecting how easily it can be installed and routed within a hydraulic system.

Pressure Rating: The strength and arrangement of the reinforcement layer play a significant role in determining the maximum pressure the hose can handle.

Temperature Resistance: Both the rubber compounds and the reinforcement materials must be able to withstand the operating temperature range of the hydraulic system. High-temperature applications may require special rubber formulations to prevent degradation.

Compatibility with Fluids: The inner tube’s material must be compatible with the type of hydraulic fluid used. Different fluids may require different rubber compounds to ensure compatibility and prevent material breakdown.

Step-by-Step Manufacturing Process of Hydraulic Hoses

The manufacturing process of hydraulic hoses is intricate and involves multiple stages, each critical to ensuring the final product meets the necessary quality and performance standards. Here’s a detailed breakdown of these key stages:

Extrusion

Process: The prepared rubber compound is fed into an extruder, a machine designed to heat and press the rubber through a die, shaping it into a continuous tube.

Control: Precision in the extrusion process is vital. Manufacturers must carefully control the temperature and pressure to ensure the tube maintains uniform thickness and diameter throughout its length.

Result: This step transforms the rubber compound into the hose’s inner tube, giving it its basic shape and size.

Curing

Vulcanization: The extruded tube undergoes vulcanization, a curing process that involves heating the rubber in a controlled environment.

Chemical Process: This heat initiates a chemical reaction that cross-links the rubber molecules, significantly enhancing the material’s strength and elasticity.

Outcome: The result is a durable inner tube capable of resisting the pressures and temperatures encountered in hydraulic systems while maintaining flexibility.

Reinforcement Layer

The application of the reinforcement layer is a crucial step in hydraulic hose manufacturing, as it provides the necessary strength to handle the hydraulic pressures the hose will face. This process involves several detailed steps to ensure the hose can withstand operational stresses without failure.

Preparation of Reinforcement Material

Steel Wire Specifications: The steel wire for the reinforcement layer is selected based on the intended pressure rating of the hose. The wire’s strength and diameter are critical factors that determine the hose’s capacity to withstand internal pressures.

Coating: To enhance the wire’s properties, it may undergo a coating process. Coating serves dual purposes: it provides corrosion resistance, protecting the wire from environmental factors, and improves adhesion to the rubber, ensuring a stronger bond between the wire and the hose’s inner tube.

Application of the Reinforcement Layer

Braiding or Spiraling: Depending on the hose’s design and intended use, the reinforcement layer is applied using either a braiding or spiraling machine.

Braided Hoses: Offer higher flexibility and are generally used in applications where the hose needs to accommodate movement or tight bending radii. They are suited for lower-pressure applications.

Spiral Hoses: Provide increased strength and rigidity, making them ideal for high-pressure applications. The spiral construction allows the hose to maintain its shape and integrity under high pressure without collapsing.

Bonding Process

Heat and Pressure: After the reinforcement layer is applied, it is bonded to the inner tube using a combination of heat and pressure. This bonding process is crucial for the structural integrity of the hose, ensuring that the layers adhere tightly to each other.

Adhesion Strength: The quality of the bond between the inner tube and the reinforcement layer directly affects the hose’s ability to handle pressure. A strong, uniform bond ensures that the hose can withstand the hydraulic fluid’s pressure without the layers separating or the hose failing.

Outer Cover

The application of the outer cover is the final major step in the manufacturing process of hydraulic hoses, encapsulating the reinforced tube to provide protection against external factors. This stage is crucial for ensuring the hose’s durability and suitability for its intended environment.

Material Preparation

Synthetic Rubber or Thermoplastic: The choice of material for the outer cover includes synthetic rubber or thermoplastic, selected based on the hose’s application requirements.

Additives: These materials are blended with additives to enhance their resistance to abrasion, UV radiation, and chemicals. This preparation aims to ensure the outer cover can withstand harsh environmental conditions, protecting the hose from external damage and degradation.

Extrusion Process

Layer Formation: The prepared material for the outer cover is then extruded over the reinforced tube. During extrusion, the material is heated and pressed through a die, enveloping the reinforcement layer to form the hose’s external surface.

Vulcanization: In many cases, this step includes a vulcanization process similar to that used for the inner tube. Vulcanizing the outer cover while it is in contact with the reinforcement layer ensures a strong bond between them, contributing to the hose’s overall strength and integrity.

Curing Stage

Final Curing: After the outer cover is applied, the entire hose assembly undergoes another curing process. This step is vital for ensuring that all layers of the hose—inner tube, reinforcement layer, and outer cover—are firmly bonded together.

Property Finalization: The curing process also serves to finalize the physical properties of the hose, ensuring it meets all specifications for performance, durability, and resistance to environmental factors.

Quality Control

Ensuring the quality of hydraulic hoses is paramount throughout their manufacturing process. Quality control (QC) measures are rigorously applied at each stage to guarantee that the hoses not only meet the required specifications but also adhere to performance criteria essential for their application in hydraulic systems. This comprehensive QC approach encompasses several key areas.

Dimensional Checks

Purpose: To verify that the hoses have the correct dimensions, including length, diameter, and thickness, ensuring they match the design specifications.

Process: Utilizing precision measuring tools and techniques, QC personnel meticulously measure the hoses. These checks are conducted at various stages, from the extrusion of the inner tube to the application of the outer cover, to ensure consistent compliance with specified dimensions.

Material Inspections

Raw Material Verification: Before entering the production process, all materials (rubber compounds, steel wire for reinforcement, and materials for the outer cover) undergo inspection to confirm their quality and suitability for hose manufacturing.

Property Testing: Materials are tested for their physical and chemical properties, ensuring they meet the standards required for durability, flexibility, and resistance to hydraulic fluids, environmental conditions, and operational stresses.

Adhesion Tests

Layer Bonding: Critical to hose integrity, the adhesion between the inner tube, reinforcement layer, and outer cover is scrutinized. Tests are conducted to assess the strength of the bond, ensuring that the layers remain securely bonded under the pressures and temperatures experienced during use.

Methods: Various methods, including peel tests and pressure tests, are employed to evaluate adhesion quality. These tests help in identifying any potential weaknesses in the bonding process that could lead to hose failure.

Performance Criteria Verification

Pressure Testing: Hoses are subjected to pressure tests beyond their rated capacity to ensure they can withstand operational stresses without bursting or leaking.

Flexibility and Abrasion Resistance: Additional tests evaluate the hose’s flexibility, ensuring it can bend without cracking or losing integrity, and its resistance to abrasion, ensuring it can withstand wear from contact with surfaces and particles.Adhesion Tests

Conclusion

Understanding the manufacturing process for hydraulic hoses highlights the complexity and precision required to produce these vital components. From the selection of materials to the detailed steps involved in manufacturing, every aspect of the process ensures that hydraulic hoses meet the requirements of a wide range of industrial applications.At Topa, we are committed to delivering the highest quality hydraulic hoses as an excellent manufacturer of hydraulic products by adhering to every step of the production process. If you have any purchasing plans, or questions, please feel free to contact us!

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Feb, 2024

Avoid These Mistakes When Measuring Hydraulic Hose

Introduction

A slight misjudgment in the dimensions of a hydraulic hose can precipitate a cascade of malfunctions, ranging from reduced performance to catastrophic system failures. One prevalent misunderstanding is the assumption that the outer diameter of a hose is the key metric for selection, disregarding the crucial role of the inner diameter in facilitating optimal fluid flow and pressure management. Additionally, the significance of accounting for hose length flexibility and the impact of pressure on hose dimensions are frequently overlooked or misunderstood. The goal of this article is to equip readers with the essential knowledge and techniques to navigate the pitfalls of hydraulic hose measurement.

Understanding Hydraulic Hose Measurement

The anatomy of a hydraulic hose is integral to its function within a hydraulic system. A hydraulic hose comprises several key dimensions and components, each playing a crucial role in the hose’s performance and compatibility with the system. These include the inner diameter (ID), outer diameter (OD), length, and fittings.

Inner Diameter (ID): The ID is crucial as it determines the flow rate of the fluid within the hose. A hose with an ID too small for the system’s requirements may restrict flow, leading to increased pressure and potential system damage.

Outer Diameter (OD): The OD is important for fitting the hose in tight spaces within machinery. It must be compatible with the hose clamps and protective sleeves used to secure and protect the hose.

Length: The length of the hose must be sufficient to connect two points in the hydraulic system without tension or excessive slack. Incorrect length can lead to hose failure due to fatigue or kinking.

Fittings: Fittings are the connection points between the hose and the hydraulic system components. They must match the hose in terms of size, thread type, and configuration to ensure a leak-free and secure connection.

Importance of Accurate Measurements

Accurate measurements of these components are paramount for several reasons:

Efficiency: Correct hose dimensions ensure optimal fluid flow and pressure, which are essential for the hydraulic system’s efficiency. For instance, a hose with an ID too narrow for its application can cause excessive pressure drops, reducing the system’s overall efficiency.

Safety: Over- or under-sized hoses can fail, leading to dangerous leaks or bursts. For example, a hose that is too short may be under constant tension, increasing the risk of a rupture that could injure personnel or damage machinery.

Compatibility: Accurate measurement ensures that the hose fits well with other system components, avoiding leaks or disconnections at fittings. An incorrectly sized fitting can cause leaks, leading to system inefficiency and potential environmental contamination.

Common Mistakes in Measuring Hydraulic Hose

Mistake #1: Not Accounting for Hose Length Changes Under Pressure

Explanation: Hydraulic hoses can elongate or contract under pressure, a phenomenon often overlooked during the measurement process. This oversight can lead to hoses that are either too short, causing tension, or too long, leading to kinks or excess material that can snag or wear prematurely.

Avoidance: To prevent this, always consider the manufacturer’s specifications for length change under pressure and measure hoses in a way that accounts for this potential expansion or contraction. This might mean adding a small percentage to the length for hoses expected to operate under high pressure.

Mistake #2: Ignoring the Configuration of Hose Assemblies

Explanation: The path a hose takes between two points can significantly affect the required length. Ignoring bends, twists, and turns in the hose’s path can result in a hose that is too short to comfortably reach or too long, causing it to loop excessively or interfere with nearby components.

Avoidance: Always measure the path the hose will take in its final installed position, including any necessary bends and loops. Use a flexible measuring tape to mimic the hose’s path accurately.

Mistake #3: Confusing Inner Diameter with Outer Diameter

Explanation: Selecting a hose based on its outer diameter rather than its inner diameter is a common mistake. The inner diameter dictates the flow rate and velocity of the hydraulic fluid, which are critical for the system’s performance and efficiency.

Avoidance: Always use the inner diameter as the primary dimension for selecting a hydraulic hose. Ensure that you have the correct tools, such as calipers, to measure the inner diameter accurately if the specifications are not readily available.

Measuring Hose Length Correctly

The Right Tools for the Job

To ensure accurate measurements, it’s essential to use the right tools. A flexible measuring tape, calipers, and a notepad for recording measurements are indispensable. Each tool serves a specific purpose: the measuring tape for length, calipers for inner and outer diameters, and the notepad to keep track of your findings.

Step-by-Step Guide

Prepare the Hose: Lay the hose flat on a clean, straight surface. If measuring a new hose, ensure it’s fully extended without any kinks or twists.

Measure the Length: Using the flexible measuring tape, start at one end of the hose. If dealing with hose assemblies that include fittings, begin your measurement from the end of the fitting, not the hose itself. Follow the hose’s natural path to the other end, keeping the tape measure snug but not tight.

Account for Hose Assemblies with Fittings:

For Fixed Fittings: Measure from fitting end to fitting end. Be aware that fixed fittings cannot be adjusted or twisted, so their orientation should be considered in the length.

For Reusable Fittings: If the fittings can be removed and reused, measure the hose length from end to end, excluding the fittings, then add the length of each fitting as specified by the manufacturer.

Record Measurements: Write down the length measurement. If your system requires precise length due to space constraints, consider adding a small margin to accommodate any potential measurement errors or hose expansion/contraction.

Measure Diameter: Use calipers to measure the inner diameter (ID) of the hose. Place the caliper’s ends inside the hose, gently expand them until they snugly fit the hose’s inner walls, then read the measurement. Repeat for the outer diameter (OD) by measuring the hose’s exterior.

Accounting for Hose Length Tolerance

Understanding Manufacturer Tolerance

Manufacturer tolerance refers to the allowable deviation from the specified measurements that a product can have and still be considered acceptable. In the context of hydraulic hoses, tolerance affects the length, inner diameter (ID), and outer diameter (OD) of the hose. These tolerances are critical to consider during the measurement and selection process to ensure the hose fits and functions correctly within the hydraulic system.

For instance, a hose specified to be 2 meters long with a tolerance of ±1% can actually measure anywhere from 1.98 to 2.02 meters. Similarly, tolerances apply to the ID and OD, affecting the flow rate and compatibility with fittings.

Common Tolerances Provided by Manufacturers

Hose Length Tolerance:

±1% to ±2% for lengths under 2 meters

±1% for lengths over 2 meters

Inner Diameter Tolerance:

±0.5mm for hoses under 12mm ID

±0.75mm for hoses between 12mm and 25mm ID

±1% for hoses over 25mm ID

Outer Diameter Tolerance:

±0.75mm for hoses under 20mm OD

±1% for hoses over 20mm OD

These are general guidelines, and specific tolerances can vary between manufacturers and hose types. Always refer to the manufacturer’s specifications when selecting a hose for critical applications.

The Role of Hose Flexibility and Bend Radius

Hose Flexibility

Hose flexibility refers to the ease with which a hydraulic hose can be bent or flexed during installation and use. This characteristic is crucial for several reasons:

System Design: Flexible hoses accommodate tighter bends, allowing for more compact and efficient system layouts.

Installation Ease: High flexibility facilitates easier installation, especially in confined spaces or complex configurations.

Dynamic Applications: In systems where components move relative to each other, flexibility ensures the hose can adapt without stress or damage.

Flexibility is determined by the hose’s construction, including the type of reinforcement and the materials used. However, it’s essential to balance flexibility with the hose’s ability to withstand pressure, as increased flexibility can sometimes reduce a hose’s pressure rating.

Minimum Bend Radius

The minimum bend radius is the smallest radius at which a hose can be bent without damaging it or significantly reducing its life. It is a critical factor in hose selection for several reasons:

Preventing Hose Failure: Bending a hose tighter than its minimum bend radius can lead to kinking, cracking of the outer cover, or even rupture of the reinforcement layer.

Ensuring System Reliability: Adhering to the minimum bend radius recommendations helps maintain the integrity and reliability of the hydraulic system.

Optimizing Flow: Proper bend radius prevents restrictions in fluid flow, ensuring the system operates efficiently.

Impact on Measurement and Selection

When measuring for a new hose or replacing an existing one, it’s vital to consider both the flexibility and the minimum bend radius. Here’s how:

Incorporating Flexibility: Recognize that more flexible hoses can navigate tighter spaces and bends. This can influence the length you need, as a more flexible hose might take a shorter path than a less flexible one.

Accounting for Bend Radius: When planning the hose route, ensure that any bends do not exceed the hose’s minimum bend radius. This may affect the length of the hose required, as you might need additional length to accommodate a gentler bend.

Considering Thermal Expansion and Contraction

Temperature changes can significantly impact the physical dimensions of hydraulic hoses, affecting their length, inner diameter, and outer diameter. This phenomenon, known as thermal expansion and contraction, must be considered in the measurement and selection of hydraulic hoses to ensure system integrity under varying operational temperatures.

Effects of Temperature Changes

As temperature increases, materials expand; as it decreases, they contract. The extent of this dimensional change depends on the material’s thermal expansion coefficient, which varies between different hose materials.

Illustrative Example:

Consider a 10-meter long synthetic rubber hydraulic hose with a thermal expansion coefficient of 0.00014 per degree Celsius (°C). If the operational temperature range of the system is -20°C to 80°C, the maximum temperature variation is 100°C.

The change in length (∆L) can be calculated using the formula:

ΔL=L×ΔT×α

Where:

L is the original length (10 meters),

ΔT is the temperature change (100°C),

α is the thermal expansion coefficient (0.00014/°C).

ΔL=10×100×0.00014=0.14meters

This means the hose could expand by up to 140mm over this temperature range, which is significant in precision hydraulic systems.

Guidelines for Accommodating Thermal Changes

Know Your Materials: Understand the thermal expansion coefficients of the hose materials you are using. This information is typically provided by the manufacturer.

Calculate Expansion/Contraction: Use the thermal expansion formula to estimate the potential change in hose length over the expected temperature range of your system. Incorporate these calculations into your system design and hose selection process.

Allow for Movement: Design your system to accommodate the expansion and contraction of hoses. This may involve installing longer hoses than static measurements suggest, using expansion loops, or incorporating flexible joints.

Use Temperature-Resistant Hoses: For systems with significant temperature variations, consider using hoses made from materials with lower thermal expansion coefficients or those specifically designed to withstand temperature extremes.

Regular Inspections: Implement a schedule for regular inspections of hydraulic hoses in systems exposed to temperature fluctuations. Look for signs of stress, such as stretching, compression, or wear, that could indicate inadequate accommodation for thermal expansion or contraction.

Importance of Detailed System Requirements

Understanding the specific requirements of a hydraulic system is fundamental to selecting the correct hose length and type. System pressure, temperature, and the application’s nature significantly influence hose selection, ensuring compatibility and optimal performance. Detailed knowledge of these factors enables precise matching of hose capabilities to system demands, preventing premature failure and maximizing efficiency.

System Pressure

Peak vs. Operating Pressure: Know both the operating pressure and any potential peak pressures the system may encounter. Hoses should be selected based on their ability to withstand peak pressures without compromising safety or longevity.

Impulse Cycles: Consider the number of impulse cycles a hose will undergo. High impulse applications require hoses designed to withstand repeated pressure spikes.

Temperature

Ambient and Fluid Temperature: Both the temperature of the environment and the hydraulic fluid affect hose selection. Hoses must be chosen to tolerate the maximum and minimum temperatures they will encounter.

Thermal Expansion: As discussed, temperature variations can cause hoses to expand or contract. Select hoses with appropriate thermal tolerance to ensure system integrity under temperature fluctuations.

Application

Static vs. Dynamic: Determine whether the hose will be used in a static application or one involving movement. Dynamic applications require more flexible hoses with a higher fatigue resistance.

Environment: Consider environmental factors such as exposure to chemicals, UV light, abrasion, and potential mechanical damage. Hoses come with various covers and reinforcements to protect against these external factors.

Compatibility: Ensure the hose material is compatible with the hydraulic fluid used. Incompatibility can lead to hose degradation and system contamination.

Checklist for Hose Selection

Pressure Requirements:

Operating pressure

Peak pressure

Impulse cycles

Temperature Requirements:

Maximum and minimum ambient temperature

Maximum and minimum fluid temperature

Application Requirements:

Type of application (static or dynamic)

Environmental conditions (chemicals, UV, abrasion)

Fluid compatibility

Hose Specifications:

Inner diameter for flow requirements

Outer diameter for fitting and space constraints

Length, considering installation and thermal expansion

Flexibility and bend radius for installation and operation

Material and construction for durability and compatibility

Decision Matrix for Hose Selection

Requirement	Option 1	Option 2	Option 3	Notes
Operating Pressure	High	Medium	Low	Select hose rated above peak pressure
Temperature Range	High Temp	Moderate Temp	Low Temp	Consider ambient and fluid temps
Application	Dynamic	Static	–	Flexibility and fatigue resistance
Environmental Factors	Harsh	Moderate	Mild	Resistance to abrasion, chemicals, UV
Fluid Compatibility	Compatible	Incompatible	–	Material must withstand fluid

Avoiding Measurement Errors in Replacement Hoses

When replacing hydraulic hoses, accurate measurement is crucial to ensure the new hose fits and functions correctly within the system. Incorrect measurements can lead to improper hose selection, resulting in leaks, pressure drops, or even system failures.

Common Pitfalls to Avoid

Ignoring Hose Condition: Do not assume the old hose’s length is correct if it appears stretched, compressed, or otherwise deformed.

Overlooking System Updates: Be aware of any system modifications since the original hose was installed. Changes might require adjustments in hose length or specifications.

Mismatching Fittings: Ensure that the new hose’s fittings exactly match those of the old hose. Even slight differences can prevent proper installation or cause leaks.

Replacement Measurement Guide

Step	Description	Tips
1. Identify Fittings	Determine the types and sizes of the fittings.	Use identification charts for accuracy.
2. Measure Hose Length	Measure the total length of the hose, including fittings.	Lay the hose flat and straight for an accurate measurement.
3. Verify Hose Diameter	Measure the inner diameter (ID) and outer diameter (OD).	Use calipers for precise measurements.
4. Check Hose Specifications	Look for any markings indicating pressure rating or material.	Match or exceed the specifications of the old hose.
5. Consider System Requirements	Factor in pressure, temperature, and application needs.	Choose a hose that meets or exceeds system demands.
6. Account for Flexibility and Radius	Ensure the new hose can navigate the required bends.	Verify the minimum bend radius to avoid kinking.

Conclusion

By following these strategies and avoiding common pitfalls, you can accurately measure and select a replacement hydraulic hose, ensuring it meets the system’s requirements and operates safely and efficiently.

In the realm of hydraulics, there is very little margin for error and the only way to ensure proper installation of a hydraulic system is through intricate hose measurements. This article is a detailed tutorial that I hope every reader will take seriously when designing and maintaining hydraulic systems. If you still have any questions, feel free to come and ask our expert tutors.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Feb, 2024

Basic Testing Methods for Hydraulic Hoses and Fittings

Introduction

In the realm of hydraulic systems, the integrity of hoses and fittings is non-negotiable for ensuring operational safety and efficiency. This introduction delves into the basic testing methods essential for evaluating the performance and durability of hydraulic hoses and fittings. By adhering to standardized testing protocols, one can significantly mitigate the risks associated with hydraulic system failures.

Understanding Hydraulic Hose and Fitting Testing

Hydraulic hose and fitting testing is a crucial process in the maintenance and operation of hydraulic systems. It consists of several inspections and tests to ensure these components can endure the operational demands they will face. This section elaborates on the process, its importance, and the standards guiding these tests.

Importance of Testing

Testing hydraulic hoses and fittings is essential for several reasons:

Safety: The primary concern in hydraulic systems is the safety of the operators and the environment. A failure in a hydraulic hose or fitting can lead to high-pressure leaks or bursts, potentially causing injuries or environmental damage.

System Efficiency and Reliability: Proper testing ensures that every component in a hydraulic system operates within its intended specifications, leading to a more efficient and reliable system overall.

Cost-Efficiency: By identifying potential failures before they occur, testing can save costs associated with downtime, repairs, and replacements.

Meeting Industry Standards and Certifications

Adhering to industry standards and certifications is not just a regulatory requirement; it’s a benchmark for quality and safety. Two of the most recognized standards in hydraulic system components testing are:

SAE (Society of Automotive Engineers): SAE sets global standards for engineering professionals in various industries, including automotive, aerospace, and commercial vehicles. For hydraulic hoses and fittings, SAE standards cover aspects like dimensions, performance, and testing methodologies.

ISO (International Organization for Standardization): ISO standards are internationally agreed upon by experts to ensure quality, safety, and efficiency. ISO standards for hydraulic hoses and fittings cover similar aspects to SAE but are recognized and followed globally.

Types of Hydraulic Hose and Fitting Tests

Testing hydraulic hoses and fittings is essential for ensuring the safety and efficiency of hydraulic systems. These tests simulate operational conditions to verify that components can perform as required.

Visual Inspection

Visual inspection serves as the foundational step in the testing and maintenance regimen for hydraulic hoses and fittings, emphasizing the importance of early detection in preventing system failures. This proactive approach ensures that potential issues are identified and addressed before they escalate into more significant problems that could disrupt system operation, lead to downtime, or cause safety hazards. The process of visual inspection includes several key checks:

Cracks and Abrasions

Inspectors look for any signs of surface wear, such as cracks and abrasions on the hose’s outer cover. These defects can compromise the hose’s structural integrity, making it susceptible to further damage and eventual failure. Surface wear often indicates material degradation, which can be caused by environmental factors such as ultraviolet (UV) light, ozone, extreme temperatures, or chemical exposure. Early detection of these signs allows for timely replacement of the hose, preventing leaks or bursts under pressure.

Leaks

The presence of fluid leakage, especially around fittings, is a clear indicator of potential issues. Leaks can result from improper installation, such as incorrect tightening of fittings, or from seal failure, which may be due to material incompatibility or wear. Identifying leaks early helps prevent fluid loss, which can compromise the hydraulic system’s efficiency and lead to environmental contamination or safety risks.

Damaged Fittings

Fittings that are bent, corroded, or otherwise damaged pose a significant risk to the connection’s integrity between the hose and the hydraulic system. Damage to fittings can result from mechanical impact, corrosion due to chemical exposure, or general wear and tear. Such defects can impair the fitting’s ability to maintain a secure and leak-free connection, necessitating their inspection and replacement to ensure system reliability.

Kinking or Twisting

Deformations such as kinking or twisting of the hose can severely impede fluid flow, potentially leading to pressure build-ups and the risk of hose burst. Kinking is often the result of improper hose routing or installation, while twisting can occur if the hose is not correctly aligned with the fitting during installation. These issues not only affect system performance but can also shorten the hose’s lifespan.

Pressure Testing

Pressure testing is an indispensable component of the evaluation process for hydraulic hoses and fittings, aimed at validating their capacity to handle designated operational pressures without compromise. This testing is bifurcated into static and dynamic pressure testing, each addressing different aspects of a component’s pressure resilience.

Static Pressure Testing

Static pressure testing is a straightforward yet critical test where a constant pressure is applied to the hydraulic hose and fittings for a predetermined period. The primary objectives of this test are to:

Ensure Integrity: The test confirms that the hose and fittings can hold the applied pressure without any form of degradation, such as leaks or bursts.

Validate Design Specifications: It verifies that the components meet the pressure requirements as per their design specifications, ensuring they are suitable for their intended operational environment.

Detect Weak Points: Any potential weaknesses in the hose assembly, including issues with the hose itself or the crimping quality of the fittings, are identified under controlled conditions rather than in the field.

This form of testing is crucial for components expected to operate under constant pressure levels during their service life, providing a baseline assurance of their capability to perform as required.

Dynamic Pressure Testing

Dynamic pressure testing takes the evaluation a step further by simulating the pressure fluctuations that hydraulic hoses and fittings would encounter in real-world operations. This test is essential for several reasons:

Replicates Operational Conditions: It mimics the varying pressures that occur during the normal operation of hydraulic systems, offering a more realistic assessment of component performance.

Evaluates Endurance: By subjecting the components to cycles of pressurization and depressurization, the test assesses their ability to endure repetitive stress, which is critical for dynamic applications.

Identifies Fatigue Resistance: The test highlights the hose and fittings’ resistance to fatigue, ensuring they do not fail prematurely under cyclic loading conditions.

Dynamic pressure testing is particularly relevant for hydraulic systems in mobile equipment and machinery, where the hydraulic components are subjected to constant variations in pressure due to the operational demands of the system.

Burst Testing

Burst testing is a pivotal process in assessing the strength and reliability of hydraulic hoses and fittings, providing essential data on their maximum pressure capacity before failure. This test is integral to establishing the safety margins for hydraulic components, ensuring that they are robust enough to handle unexpected surges in pressure without catastrophic failure. The methodology and significance of burst testing are outlined below:

Methodology of Burst Testing

Incremental Pressure Increase: The test involves subjecting the hydraulic hose or fitting to increasing pressures until the component ultimately fails. This incremental approach allows for the precise determination of the failure point.

Controlled Environment: Burst testing is conducted in a controlled environment to ensure the safety of personnel and to accurately measure the pressure at which failure occurs.

Failure Analysis: The point of failure provides critical insights into the component’s structural integrity and the effectiveness of the material and design used. Analyzing the mode of failure can also inform improvements in future designs.

Significance of Burst Testing

Safety Margins: By determining the maximum pressure a component can withstand, engineers can establish safety margins that guide the operational pressure limits. This ensures that hydraulic systems are designed with a buffer to prevent components from being operated near their failure point.

Quality Assurance: Burst testing is a crucial aspect of quality assurance for hydraulic components, confirming that they meet the high standards required for safe and effective operation.

Regulatory Compliance: Many industries have regulatory requirements for the minimum burst pressure for hydraulic hoses and fittings. Burst testing ensures compliance with these regulations, avoiding the risks of fines or operational shutdowns.

System Design: The data obtained from burst testing are instrumental in the hydraulic system design process, allowing engineers to select components that provide the best balance between performance, cost, and safety.

Flex Impulse Testing

Flex impulse testing is a specialized evaluation aimed at ensuring hydraulic hoses can endure the dual stresses of flexing movements and impulse pressures, which are common in many hydraulic system applications. This test is particularly relevant for dynamic systems where hoses are expected to operate under constant movement and pressure variations, such as in mobile machinery, construction equipment, and industrial automation systems.

Process of Flex Impulse Testing

Simulated Operational Stresses: The test simulates the operational conditions a hose would experience in a real-world setting by subjecting it to repeated flexing and pressure pulses. This dual simulation is crucial for assessing the hose’s performance under conditions that mimic actual use.

Cycling Between Flexed Positions: The hose is moved between different flexed positions under pressure, which tests the hose’s flexibility and strength simultaneously. This action replicates the constant movements and adjustments typical in hydraulic systems.

Pressure Impulses: Along with flexing, the hose is also subjected to impulse pressures, sudden and extreme variations in pressure that test the resilience of the hose’s structure and material composition. These impulses are critical for assessing how well the hose can handle spikes in pressure without failure.

Significance of Flex Impulse Testing

Durability Assessment: This test provides valuable data on the durability and expected lifespan of hydraulic hoses under flexing and impulse conditions. By understanding how a hose will perform over time, manufacturers and users can make informed decisions about hose selection and system design.

Preventing Premature Failures: Flex impulse testing helps identify potential weaknesses in hose designs, materials, or manufacturing processes that could lead to premature failure when subjected to dynamic stresses. This early detection allows for adjustments in design or material selection to enhance hose performance and reliability.

Design Optimization: The results from flex impulse testing are instrumental in the design and development of hoses intended for dynamic applications. They allow engineers to optimize hose construction, selecting materials and designs that offer the best performance under flexing and impulse stresses.

Safety and Efficiency: By ensuring that hydraulic hoses can withstand the conditions they’ll face in operation, flex impulse testing contributes to the overall safety and efficiency of hydraulic systems. It helps prevent leaks, bursts, and system failures that could result in downtime, costly repairs, or safety hazards.

Vacuum Testing

Vacuum testing is a critical assessment for hydraulic hose assemblies, focusing on their ability to maintain integrity under negative pressure conditions. This test is essential for applications where hoses are expected to either sustain a vacuum or are at risk of collapse due to external pressures.

Process of Vacuum Testing

Application of Vacuum: A vacuum is applied to the interior of the hose assembly to create negative pressure conditions. This mimics the operational environment for hoses used in vacuum applications or those exposed to external pressures higher than the internal pressure.

Monitoring for Leaks: While the vacuum is maintained, the hose and fittings are closely monitored for signs of leakage. The presence of leaks would indicate a compromised seal or flaws in the hose material or fitting connections.

Assessing Structural Integrity: The test also evaluates the structural integrity of the hose under vacuum conditions. It checks for any deformation, such as collapsing or buckling, which could impede fluid flow or cause a failure in service.

Importance of Vacuum Testing

Ensuring Sealing Capabilities: Vacuum testing verifies the effectiveness of the sealing mechanisms between the hose and fittings, ensuring that the assembly can maintain a secure seal under negative pressure. This is crucial for preventing air ingress, which could affect system performance or contaminate the fluid being transported.

Preventing Hose Collapse: For hoses that operate under vacuum or are subjected to higher external pressures, the test ensures that the hose material and design are robust enough to prevent collapse. A hose collapse could lead to blockages, affecting the efficiency and safety of the hydraulic system.

Identifying Potential Failures: By identifying weak points in hose assemblies under vacuum conditions, this test helps in preempting failures that could lead to system downtime or safety hazards. Early detection of such issues allows for corrective measures before the components are put into operation.

Application-Specific Testing: Vacuum testing is particularly relevant for industries and applications where vacuum conditions are prevalent, such as in material handling, chemical processing, and certain manufacturing processes. It ensures that hose assemblies are fit for purpose, offering reliability and performance suited to specific operational needs.

Compatibility Testing

Compatibility testing is a fundamental aspect of assessing hydraulic hose and fitting suitability for specific applications, especially concerning the hydraulic fluids they will encounter. This testing is crucial for ensuring that the materials composing the hoses and fittings do not adversely react when exposed to various hydraulic fluids under operational conditions.

Process of Compatibility Testing

Immersion of Components: The core of compatibility testing involves immersing hoses and fittings in the hydraulic fluid they are expected to carry. This immersion is conducted at temperatures that replicate the operational environment to accurately simulate real-world conditions.

Observation Period: After immersion, the components are observed over a set period. This duration allows for the identification of any slow-reacting chemical interactions that might not be immediately apparent.

Evaluation of Effects: The key outcomes evaluated include changes in the material’s properties such as swelling, hardening, cracking, or degradation. Any of these changes could compromise the integrity of the hose or fitting and, by extension, the safety and efficiency of the hydraulic system.

Importance of Compatibility Testing

Preventing Material Degradation: Compatibility testing ensures that the materials used in hoses and fittings are resistant to degradation when exposed to hydraulic fluids. This is crucial for maintaining the structural integrity of these components throughout their operational life.

Avoiding Swelling and Cracking: Certain materials may swell or crack upon exposure to specific chemicals in hydraulic fluids. Compatibility testing identifies these risks, ensuring that selected materials will remain stable and functional.

Ensuring System Reliability: By verifying the compatibility of hoses and fittings with the hydraulic fluids, this testing helps in maintaining the overall reliability of the hydraulic system. It prevents leaks, ruptures, and failures that could arise from incompatible material-fluid interactions.

Supporting Safe Operations: The safety of hydraulic systems is paramount, and compatibility testing plays a vital role in preventing accidents and leaks that could pose risks to operators and the environment. By ensuring materials are chemically compatible with the fluids they will carry, the risk of hazardous leaks or bursts is significantly reduced.

Optimizing Performance: Beyond safety and reliability, compatibility testing is essential for optimizing the performance of hydraulic systems. Components that are compatible with the hydraulic fluids they use can maintain their designed efficiency and functionality, supporting the system’s overall performance.

Interpreting Test Results

Interpreting the results of hydraulic hose and fitting tests is a crucial step in ensuring the safety, efficiency, and reliability of hydraulic systems. The outcomes of these tests provide valuable insights into the performance characteristics and limitations of the components. Understanding how to analyze these results, including the implications of various failure modes, is essential for determining the usability and safety margins of hoses and fittings. This process involves several key considerations:

Analyzing Test Outcomes

Compliance with Standards: Test results should first be compared against industry standards, such as those set by ISO and SAE. Compliance with these standards ensures that hoses and fittings meet minimum safety and performance criteria.

Performance Benchmarks: Results should also be evaluated against manufacturer specifications and performance benchmarks. This comparison can identify any discrepancies between expected and actual performance levels.

Understanding Failure Modes

Identifying Weak Points: The nature and conditions of test failures can pinpoint specific weaknesses in hoses and fittings. For instance, a failure during burst testing might indicate a material flaw or design limitation.

Material and Design Evaluation: Analyzing failure modes helps in assessing the suitability of materials and design choices for specific applications. This analysis can lead to design improvements or material changes to enhance component performance and safety.

Determining Usability and Safety Margins

Establishing Safety Margins: Test results, especially from burst and impulse testing, help establish safety margins. These margins indicate the difference between operational pressures and the point at which failure occurs, providing a buffer to ensure safe operation.

Operational Life Expectancy: The results from flex impulse and compatibility testing can inform decisions on the operational life expectancy of hoses and fittings. Understanding how these components degrade over time or under specific conditions allows for more accurate maintenance and replacement schedules.

Environmental and Chemical Suitability: Compatibility testing results are particularly important for determining which hydraulic fluids are safe to use with specific hoses and fittings. This ensures that components are not subjected to environments that could accelerate wear or cause premature failure.

Conclusion

In conclusion, the basic testing methods for hydraulic hoses and fittings are crucial for maintaining effective and safe hydraulic systems. These tests, guided by established protocols and standards, are essential for assessing the reliability, durability, and safety of hydraulic components. By diligently applying these tests, the hydraulic industry can continue to advance, providing systems that meet the ever-increasing demands of modern applications while ensuring the safety of operators and the environment. The commitment to rigorous testing is a commitment to excellence, underscoring the critical role of these procedures in the lifecycle of hydraulic systems.

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Sep, 2023

Six Steps to Replace Hydraulic Hoses

Hydraulic hoses are the lifeblood of many mechanical systems and are critical to the transfer of fluids at high pressures. Knowing when and how to replace them is critical. In this guide, you will find valuable tips and step-by-step instructions for replacing hydraulic hoses effectively and safely.

Why Hose Needs to Be Replaced

Regular checks for visible wear, leaks, and system performance are essential. If you notice any of these warning signs, it’s time to replace the hose.

First, look for cracks, abrasions or any visible wear on the hose. These signs are early indications of hose deterioration. Ignore these signs at your own peril. A deteriorating hose can rupture, causing unnecessary downtime or, worse, a dangerous work environment.

Next, look out for leaks and spills. If you notice hydraulic fluid seeping out of a hose or its connections, this is a red flag. Leaks can affect the performance of your hydraulic system and lead to costly repairs. In addition, hydraulic fluid is often flammable and can pose a serious safety hazard. Therefore, hose leaks are not just a performance issue, but a safety issue that requires immediate action.

Finally, monitor machine performance. If you’re experiencing slower cycle times or reduced efficiency, a damaged hose may be the culprit. Reduced performance often leads to increased operating costs and decreased productivity. So, if you notice that your machine isn’t running as well as it used to, check the hoses.

In conclusion, replacing hoses as part of routine maintenance can save time and money and ensure the longevity of your hydraulic system. So, always be alert to these signs and take prompt action.

Safety Precautions

In the hydraulic maintenance industry, safety is more than just a word; it is the most important cornerstone of any operation. As a seasoned professional, I cannot emphasize enough the importance of observing safety precautions before performing any maintenance or repair work. Let’s focus on three basic safety measures that should never be overlooked.

First, have the right protective equipment. Safety goggles can protect your eyes from flying debris, and gloves can protect your hands from sharp edges or hot surfaces. This equipment is your first line of defense against accidents, which can happen even to seasoned professionals.

Next, make sure the machine is completely shut down and depressurized. Think of it this way: a charged hydraulic system is like a loaded gun. It is unpredictable and dangerous. Always turn off the machine and relieve any built-up pressure before touching a hose or fitting. This simple step could be the difference between a routine repair and an emergency room visit.

Lastly, and most critically, never perform maintenance on a pressurized system. I’ve seen people try to take shortcuts, thinking they can quickly replace hoses or tighten fittings while the system is pressurized. You should never do this. If disconnected, a pressurized hose can swing violently, posing a serious danger to you and those around you.

In conclusion, when servicing hydraulic systems, always wear protective gear, make sure the system is shut down and depressurized, and never attempt to work on an energized system. These are not only best practices, but also essential to ensure the safety of you and those around you. So the next time you perform hydraulic repair work, remember these three pillars of safety. They could save your life.

Tools and Hoses

When it comes to replacing hydraulic hoses, the right tools and knowledge about the type of hose are your best friends. Let’s go over the essential tools so you can confidently and safely solve any hose-related problems.

Tools

● Adjustable wrench

You will need an adjustable wrench. This is a versatile tool that is indispensable when loosening and tightening fittings. You want to ensure a good grip, so choose a high-quality, ergonomically designed wrench. An ill-fitting wrench may break the edges of the fitting, making the job more difficult.

● Hose cutter

A hose cutter is also a must-have. You cannot use ordinary scissors or utility knives here. Hose cutters are designed to make clean cuts without abrading the hose material. Worn edges can affect the connection and lead to leaks or bursts. Always make sure your cutter is sharp and well-maintained for optimal performance.

● Hose crimper machine

The third essential tool is a crimper. It is used to securely fasten the fitting to the hose. It is a specialized tool that applies precise force to crimp the fitting onto the hose to create a leak-proof seal. A poorly crimped hose can lead to leaks or even worse, complete failure under pressure.

Hose Type

As professionals in hydraulic repair, let’s take an in-depth look at the characteristics and ideal applications of three common hydraulic hoses: steel wire braided hose, spiral wound hose, and thermoplastic hose.

● Braided hoses

Starting with wire braided hoses, these hoses are the workhorses of the hydraulics world. Made from one or more layers of braided steel wire, these hoses offer a good balance of strength and flexibility. This makes them suitable for a wide range of applications from mobile machinery to industrial hydraulics. Their sturdy construction ensures that they can withstand moderate pressure, making them an excellent choice for most standard operations.

● Spiral hoses

Next, let’s talk about spiral-wound hoses. This hose is reinforced with a spiral layer of steel wire and is capable of withstanding extremely high pressures. If you’re operating heavy machinery like excavators, loaders, or hydraulic presses, spiral-wound hoses are the way to go. Their ability to handle ultra-high pressures makes them indispensable in these applications, ensuring that these large machines operate safely and efficiently.

● Thermoplastic hoses

Finally, thermoplastic hoses are another option. They are lighter in weight and highly flexible. This flexibility makes them ideal for applications that require tight wiring. However, they are best suited for less demanding tasks. Think of them as the flexible and agile players in the hydraulic hose lineup. While they can withstand pressure to a certain extent, they are not suitable for heavy-duty, high-pressure environments.

Preliminary Preparation Steps

A clear understanding of the task at hand is the key to successfully and safely completing the job. Proper preparation is your best aid in any hose replacement job. As an experienced hydraulic parts repairer, allow me to introduce you to the critical preliminary steps that should never be omitted.

The first step is to identify the problem hose. Take the time to thoroughly inspect each hose. Look for obvious signs such as cracks, fraying, or any other wear and tear. These imperfections can evolve into bigger problems such as leaks or complete failure. If a hose doesn’t pass a visual inspection, it should be replaced.

Once you’ve identified the problematic hose, it’s time to focus on safety measures. Before you consider disassembling anything, consult the machine’s owner’s manual. This is your roadmap to understanding the device’s specific safety protocols. Trust me, the last thing you want to do is skip this step and end up facing an avoidable safety hazard.

Finally, it’s time for the important step of shutting down and depressurizing the machine. Shutting down the machine releases all the pressure built up in the hydraulic system. If not properly depressurized, a pressurized hydraulic system can become a ticking time bomb, posing a risk of injury or death.

Step-by-Step Guide

Replacing hydraulic hoses may seem like a daunting task, but with the right tools and a systematic approach, it can be done efficiently and safely. The following is a step-by-step guide based on years of professional experience in hydraulic repair.

Identification of Hose Types and Sizes

You need to determine the type and size of hose that needs to be replaced. You can usually find this information in your system’s technical documentation or find a manufacturer’s technician to ask to make sure you purchase the correct type and size. The wrong choice can lead to inadequate pressure distribution and possible leaks, which can lead to system inefficiency or failure.

Drill Hydraulic Fluid

Once we have found the right hose, we can start draining the hydraulic fluid. Place a drain pan underneath the hose you are replacing and put on goggles as well as gloves to prevent the hydraulic fluid from hurting you. The drain pan catches any hydraulic fluid that may spill when you disconnect the hose. Draining the fluid minimizes mess and is environmentally friendly.

Disconnect the Broken Hose

Now you are ready to disconnect the old hose. Use an adjustable wrench to loosen the fitting. Use even pressure so that the fitting doesn’t come off. Once loosened, you can remove the hose. Now, this may sound simple, but it is critical. Stripped or damaged fittings can lead to leaks, so proceed with caution.

Inspect Old Hose

Once the hose is removed, it’s time to inspect it. Check the hose and fittings for visible signs of wear or damage. Look out for cracks, corrosion, or any other signs that these parts have reached the end of their useful life. Keeping track of the parts that need to be replaced will help avoid unexpected repairs down the road.

Install New Hose

The next step is to install the new hose. Before installing, carefully measure the hose and cut it to your system’s specifications. Incorrect measurements can lead to stress and premature failure, so measure correctly. Once cut, it’s time to install the fittings. Use a crimper to secure these fittings, making sure to ensure that the fittings are stable; poorly secured fittings can pose a safety hazard.

Post-Replacement Steps

Great, you’ve successfully installed a new hydraulic hose. However, before you call it a day and start your machine, there are some critical post-replacement steps that should not be skipped. As a hydraulic repair professional, I can tell you that these steps are just as important as the installation itself.

Repressurize the System

The first step is to repressurize the system. Do not rush this. Refer to the manufacturer’s guidelines and re-pressurize slowly and carefully. Sudden pressurization can damage the new hose or even cause the entire system to fail.

Test

Next, we move on to the testing phase. Now is the time to scrutinize the hoses and fittings. Turn the system on and look closely for any leaks or abnormalities. If you find even a small drip, shut down the system and double-check the fittings. Never ignore that a small leak today could lead to a big problem tomorrow. While checking, evaluate the efficiency of the system. Listen for strange noises and note the performance of the machine.

Safety Checks

Finally, perform a thorough safety check. In addition to the hose you just replaced, make sure that all safety measures are in place for the entire system. Ensuring that everything is working properly is not only good practice, but also vital to the safe operation of the machine.

☆ Tips and Warnings

Replacing a hose is more than just unscrewing one part and screwing on another. It’s a multi-step process that requires focus, precision, and most importantly, respect for the complexity of the hydraulic system.

Tips for Choosing the Right Hose

First, let’s talk about choosing the right hose. One word: quality. Sure, you may find a cheaper hose, but will it last? More importantly, will it jeopardize your system or even your safety? You want a hose that is cost-effective. This means that it may not be the cheapest, but it excels in terms of durability and reliability.

Safety Precautions

Next is safety precautions. I’ve seen too many people ignore basic safety protocols, and this never ends well. Always wear safety goggles and gloves. Make sure the machine is turned off and depressurized before starting any work. This is not just a suggestion, but a must-do.

Troubleshooting Advice

Now, let’s say you’ve replaced the hose and you still find a leak. First, don’t panic. Shut down the system and recheck the connections to make sure all of them are a tight fit. If the leak persists, it’s time to call a professional. There’s no shame in asking for help, especially with a critical piece of equipment like a hydraulic system.

Conclusion

Replacing hydraulic hoses isn’t just about swapping parts; it’s about understanding the intricacies of your hydraulic system to ensure it functions safely and efficiently. By paying close attention to signs of wear, using quality hoses, adhering to safety protocols, and employing a systematic replacement process, you can prolong the life of your hydraulic system while ensuring a safer work environment. If you have any questions, please contact Topa!

Aug, 2023

How to Crimp Hydraulic Hose Fittings

How to Crimp Hydraulic Hose Fittings - The Final Guide

The process of preparing, crimping, and maintaining hydraulic hoses and fittings is meticulous and requires attention to detail at every stage. From gathering the correct tools and materials to ensuring compatibility between hoses and fittings, each step is critical to the overall safety and efficiency of the system. Calibration and safety checks on the crimping machine set the stage for the actual crimping process, followed by a rigorous post-crimping inspection. Troubleshooting common problems and regular maintenance are also critical to the system’s longevity. This guide describes all the operations involved in crimping hose fittings, so please continue to follow us for more information.

Tools and Materials

Prepare the equipment

First, gather all the tools and materials you will need. This is not only to get organized but to ensure a smooth and safe operation. Below is your checklist:

Hydraulic hoses
Fittings
Crimping machine
Calipers or tape measure
Lubricant
Safety equipment (gloves, goggles)

Hydraulic hoses

Select hydraulic hoses that are compatible with the fluid being used. The hose should also meet the pressure requirements of the system. Keep in mind that high-quality hoses last longer and are a cost-effective choice in the long run.

Fittings

Choose fittings that are compatible with the hose. Choose fittings that are the same size and material as the hose. Mismatched fittings can lead to leaks and even system failure.

Hose Saw

A hose saw ensures precise cuts, setting the stage for a secure crimp. Don’t skimp on this; accuracy here sets the tone for the entire process.

Crimping Machine

Invest in a reliable crimping machine. This is a core part of your operation, so don’t cut corners. A good machine will provide you with a consistent, high-quality crimp that will save you time and money in the long run.

Measuring Tools

You’ll need calipers or a tape measure to ensure accurate measurements. This is critical to achieving a secure fit of the hose to the fitting.

Lubricant

Lubricant helps insert the fitting into the hose. It also minimizes tool wear.

Safety Gear

Never underestimate the importance of safety gear. Gloves protect your hands and goggles keep any impurities out of your eyes.

Pre-crimping Preparation

Preparation is key before you begin crimping. Proper preparation ensures a secure, long-lasting connection that can withstand the stresses of a hydraulic system.

Choosing the right hose

Compatibility is paramount: Make sure the hose is compatible with the hydraulic fluid being used. Mismatches can lead to leaks and even system failure.

Value for money: Don’t settle for less. Consider the durability of the hose and how often it needs to be replaced. Sometimes spending a little more up front can save you money in the long run.

Choosing fittings

Material Matters: Fitting material should be compatible with hydraulic fluid. Stainless steel is usually a good choice.

Size and shape: Make sure the size and shape of the fitting matches the hose. This will ensure a tight, leak-free connection.

Value for money: As with hoses, consider the long-term value. A slightly more expensive but more durable fitting may be a wise investment.

Measure twice, cut once

Use calipers or a tape measure to accurately measure the length of the hose you need. This avoids waste and ensures a tight fit with the fitting.

Marking depth

Before inserting the hose into the fitting, apply some lubricant to ease the process. Push the hose into the fitting as far as it will go, then mark the depth with chalk or a marker. This way, you can double-check after crimping to make sure it’s safe.

Cleaning is critical

Before proceeding, clean the hose and fittings to remove any contaminants. This reduces the risk of system failure due to dirt or debris.

Loading specifications

Before starting to crimp, ensure that the correct specification has been loaded into the crimper by selecting the correct die and ferrule for the hose diameter.

Crimping Process

Preparation

Ensure that the crimping machine is ready for use before touching the hydraulic hose.

Calibration: This is not a simple operation. Calibrate the machine for the hose and fittings being used. An improperly calibrated machine can result in a weak crimp, which can lead to failure.

Safety check: Make sure all safety features are enabled. Wear your goggles and gloves for your personal safety.

Alignment

Before you even think about crimping, it’s important to align first. Place the hose and fittings side by side to ensure they are perfectly aligned. This step is critical because even a slight misalignment can result in an uneven crimp. Uneven crimping isn’t just an aesthetic issue; it can lead to leaks and even catastrophic system failure.

Insertion

When you begin inserting the fitting, lubricate both ends of the hose. Not only will this ease insertion, but it will also minimize wear and tear on the hose and fitting. After inserting the hose into the fitting, pause and double check the alignment. If all is well, you can use a cork hammer to gently tap the fitting to make sure it is secured at the insertion mark you made earlier.

Machine Operation

Now that the hose and fitting are fully aligned and inserted, the next step is the big one – crimping. Place the hose and fitting into the crimping machine, making sure the fitting is positioned just above the mold. Double check any other settings on the machine before pressing the crimp button. Crimp pressure must be just right; crimping too tightly or too loosely can lead to hose failure. If you are unsure of the crimping procedure or machine parameters, consult your supplier immediately. It is better to ask than to risk a failed crimp.

Quality check

You have completed the crimping, but it is not over yet. Before removing the hose from the machine, grab a caliper and measure the crimp diameter. Compare the measurement to the specifications provided by the supplier or manufacturer. If the numbers match, you have successfully completed a perfect crimp. If they don’t match, you’ll need to adjust the machine settings and try again.

Post-crimp Inspection

You have calibrated the machine, aligned the hoses and fittings, and successfully completed the crimp. But the job isn’t over yet. The post-crimp inspection is the last line of defense against potential system failure. It’s the final and critical step in ensuring the safety, efficiency and longevity of your hydraulic system. Let’s take a closer look.

Visual Inspection

Inspect the crimp: Carefully inspect the crimp to make sure it is even all around. Uneven crimps are not only a cosmetic problem, they also create weak points that can fail under pressure.

Installation position: Carefully check the position of the joint. If it moves during the crimping process, the crimp is not perfect.

Check the hose for any visible signs of wear, such as cracks or abrasions. A damaged hose is a ticking time bomb that could result in system failure or injury to personnel.

Measurement Verification

Crimp Diameter: Use calipers to measure the crimp diameter. Compare this measurement to the manufacturer’s specifications to ensure it is within acceptable limits.

Hose Length: Check the length of the hose to make sure it has not stretched or contracted during the crimping process. Any noticeable change in length may affect system performance.

Installation Depth: Refer to markings made prior to crimping. Ensure that the fitting is inserted at the correct depth as this is essential for a secure fit.

Pressure Test

Initial Test: Start with a low-pressure test to identify any immediate problems, such as leaks or weak spots. This is the first opportunity to identify problems before they escalate.

High-Pressure Test: Gradually increase the pressure to the hose’s maximum working limit. Look out for any leaks or deformation that may occur under high pressure.

Continuous Pressurization: Maintain the maximum pressure for a set period of time (usually about 30 minutes to an hour) to ensure that the hose is able to withstand long-term operating pressure. This is the ultimate guarantee of a safe and reliable hydraulic system.

Troubleshooting Common Problems

Even with the best preparation and execution, problems can occur. Knowing how to troubleshoot common problems can save time and money and potentially prevent dangerous situations from occurring. Let’s dive into some of the most common problems you may encounter.

Incomplete crimp

Symptom: The hose slips out of the fitting, or you notice a visible gap in the crimp.

Solution: Recalibrate the crimper and double-check the die size. Make sure you are using the correct pressure to complete the crimp.

Misalignment

Symptom: Hose and coupling are not perfectly aligned, resulting in an uneven crimp.

Solution: Re-align the hose and fitting to ensure they are perfectly parallel before crimping. If necessary, use a cork mallet to gently tap the fitting into the correct position.

Leaks

Symptom: Fluid leaks at connection points can lead to reduced system efficiency and potential failure.

Solution: Double-check the compatibility of fittings and hoses. Make sure crimp pressure is within specified limits. If leaks persist, consider replacing hoses or fittings.

Maintenance Tips

Proper maintenance ensures the long life of the hydraulic system, which determines whether the system will run smoothly for many years. Here we present some basic maintenance tips to extend the life of hydraulic hose fittings.

Regular Inspections

● Visual Inspection: Periodically inspect hoses and fittings for any signs of wear, cracks, or leaks. A quick visual inspection can catch problems before they become major issues.

● Pressure Tests: Perform regular pressure tests to make sure the system can handle the operating load. This can help you identify weaknesses that may need attention.

Proper Storage

● Climate control: Store hoses and fittings in a climate-controlled environment to prevent premature aging due to temperature fluctuations.

● Organized inventory: Maintain an organized inventory to locate and replace parts quickly, reducing downtime during maintenance or repair.

When to Replace Hoses and Fittings

● Material Fatigue: Look for signs of material fatigue, such as cracking or discoloration. These are telltale signs that replacement is needed.

● Operational Failures: If you’re experiencing frequent operational problems such as pressure drops or leaks, it may be time to replace some parts.

Conclusion

Crimping hydraulic hoses and fittings involves multiple steps, each with its own best practices and quality checks. Follow all of our steps closely and you can complete the crimping task perfectly. Post-crimp inspections and pressure tests ensure the reliability of your system, while regular maintenance extends its service life. If you are in doubt about how to operate and use a crimping machine, contact us for help!

Why Choose Topa?

When it comes to hydraulic systems, the quality of your hoses and couplings can make or break your operation. That’s where Topa comes in. With over 15 years of experience in the hydraulics industry, Topa offers a full line of hydraulic fittings and hoses to meet the most advanced safety and quality requirements.

Topa offers a variety of thread standards such as metric, JIC, BSP and NPT. Whether you need standard or customized fittings, Topa has you covered.

Topa’s hydraulic fittings are compatible with leading brands such as Parker, Manuli, Eaton and Gates. This ensures seamless integration into existing hydraulic systems.

Topa utilizes a strict quality control system. From material testing to spot checks and full thread testing, each fitting undergoes multiple layers of quality checks.

Topa products comply with international standards such as ISO, SAE and DIN. We also have CE, TUV and BV certifications to ensure you get products that meet global quality standards.

With the experience of our excellent workers and engineers, Topa not only provides products, but also valuable knowledge and solutions for hydraulic hoses and couplings.

Topa’s sales team is available online 24/7 to help you select the right hydraulic fittings for your application.

Topa is not just a supplier, it is your partner for success. With their extensive product range, quality control and excellent customer service, they offer a one-stop solution for all your hydraulic needs. So the next time you’re in the market for hydraulic hoses and fittings, remember that Topa offers both quality products and peace of mind. For more help or advice, please feel free to contact us.

Apr, 2024

Hydraulic Hose Identification: Using the STAMP Method

Table of Contents

Introduction

The Significance of Proper Hydraulic Hose Identification

Understanding the STAMP Method

S=Size

T=Temperature

A=Applications

M=Material

P=Pressure

Static vs Dynamic Systems

Pressure Spikes

Managing Pressure Drop

Practical Guide to Applying the STAMP Method

Measure the Hose Size Accurately

Consult Material Compatibility Charts

Check Temperature and Pressure Ratings

Select Appropriate Fittings

Common Mistakes in Hydraulic Hose Identification

Mismatching Material Compatibility

Underestimating Pressure Spikes

Ignoring Installation Errors

Overlooking Environmental Factors

FAQ

More Posts

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Mar, 2024

Unlock the Secrets of Hydraulic Hose Layline

Understanding Hydraulic Hose Laylines

Definition and Purpose

Components of a Layline

Manufacturer’s Name

Hose Size

Temperature Range

Pressure Rating

Standards

Date of Manufacture

Deciphering Layline Codes

Manufacturer's Identification

Size and Pressure Ratings

Temperature and Compatibility

Standards and Certifications

The Significance of Date Codes and Batch Numbers

Manufacturing Date

Batch Numbers

Practical Tips for Using Layline Information

Selection

Maintenance

Troubleshooting

Common Mistakes and Misconceptions

Misreading Laylines

Overlooking Important Details

Conclusion

More Posts

How to Troubleshoot Reusable Hydraulic Hose Fittings

How to Select the Right Reusable Hydraulic Hose Fittings

How to Maintain Reusable Hydraulic Hose Fittings

Hydraulic Hose Identification

Hydraulic Fitting Types

Hydraulic Compression Fitting Types and Applications

Mar, 2024

6 Ways to Protect Hydraulic Hoses

Table of Contents

Introduction

Use the Right Hose for the Job

Pressure Requirements

Chemical Compatibility

Regular Inspection and Maintenance

Establishing an Inspection Schedule

Key Inspection Points

Importance of Preventive Maintenance

Proper Installation Techniques

Adherence to Manufacturer Guidelines

Avoiding Kinks and Twists
