Hydraulic flange fittings allow for a secure and leak-free connection, which is essential for efficient fluid transfer. These fittings are key components in hydraulic systems that ensure seamless operation and reliability under varying pressures and environmental conditions. By securely connecting pipes, tubes, or hoses, hydraulic flange couplings prevent fluid leakage, thereby maintaining system integrity and optimizing performance. Their importance lies not only in functional reliability but also in their ability to improve operational safety and reduce maintenance costs.

What are Hydraulic Flange Fittings?

Hydraulic flange fittings are essential components characterized by a flat surface featuring grooves and an O-ring on one end. This design is meticulously crafted to establish a robust seal, crucial for containing fluids under high pressures within hydraulic systems. The opposite end of these fittings is adaptable, typically connecting to either a hose or threaded component, thereby enabling versatile applications across diverse industrial environments.

One pivotal aspect of hydraulic flange fittings is their integration with flange clamps. These clamps play a pivotal role in ensuring the fittings’ secure attachment to pipes or machinery, thereby enhancing system reliability. By facilitating easy assembly and disassembly, hydraulic flange fittings with flange clamps allow for efficient maintenance procedures, minimizing downtime and operational disruptions.

Types of Hydraulic Flange Fittings

Hydraulic systems rely on various types of flange fittings to ensure secure connections and efficient fluid transfer across different applications and industries. Here’s an overview of the key types:

Hydraulic Hose Flange Fitting

Hydraulic hose flange fittings are specialized components essential for securely connecting hoses to hydraulic systems, ensuring reliable fluid transfer and containment. These fittings are available in various pressure ratings tailored to different operational needs:

SAE Code 61/3000 psi: This type of hydraulic hose flange fitting is well-suited for medium-pressure hydraulic applications. It provides a secure connection that can withstand pressures up to 3000 pounds per square inch (psi), making it suitable for a wide range of industrial and mobile hydraulic equipment.

SAE Code 62/6000 psi: Designed for higher-pressure hydraulic systems, SAE Code 62 fittings offer robust performance under increased pressure levels. With a pressure rating of 6000 psi, these fittings are commonly used in demanding hydraulic applications where durability and reliability are crucial, such as heavy machinery and construction equipment.

High-pressure/9000 psi: For extreme high-pressure environments, hydraulic hose flange fittings rated at 9000 psi provide exceptional strength and sealing capabilities. These fittings are specifically engineered to handle intense hydraulic pressures found in specialized industrial applications, including mining operations, offshore drilling rigs, and high-performance hydraulic systems.

Each type of hydraulic hose flange fitting is meticulously designed to ensure compatibility with specific pressure requirements and operational conditions. By selecting the appropriate fitting based on pressure ratings and application needs, industries can achieve optimal performance, reliability, and safety in their hydraulic systems.

Hydraulic flange fittings China Manufacturer Topa in China

Thread Flange Fitting

Thread flange fittings are versatile components designed with threads on both the inside and outside, facilitating the connection of pipes or valves in hydraulic and fluid handling systems. This dual-threaded design offers significant advantages in terms of assembly, disassembly, and maintenance:

Versatile Connectivity: Thread flange fittings provide a flexible solution for joining pipes or valves without requiring welding. The threaded design allows for easy installation and removal, making them ideal for applications where frequent assembly and disassembly are necessary.

Sealing Capabilities: Properly tightened threaded flange fittings create a secure seal, preventing leaks and ensuring reliable fluid containment. This sealing capability is crucial for maintaining system integrity and operational safety in hydraulic applications.

Slip-On Flanges

Slip-on flanges are characterized by their simple yet effective design, which facilitates easy installation and alignment in various industrial applications. Here’s a detailed overview of their external features and typical uses:

External Appearance: Slip-on flanges feature a flat, circular shape with a raised face on the sealing surface. This raised face helps in creating a tight seal when the flange is welded to the pipe, ensuring leak-free operation. They also have a smooth inner bore that matches the pipe diameter, allowing for seamless flow of fluids through the system.

Usage and Applications: Slip-on flanges are commonly used in scenarios where ease of installation and cost efficiency are priorities. They are particularly favored in less critical applications or systems with moderate pressure requirements. Industries such as water treatment plants, low-pressure hydraulic systems, and plumbing installations often utilize slip-on flanges due to their straightforward installation process and lower initial cost compared to other flange types.

Limitations in High-Pressure Environments: While slip-on flanges offer advantages in terms of ease of installation, they may have limitations in high-pressure environments. The welding connection, while robust, may not provide the same level of strength and pressure resistance as weld neck or socket weld flanges. Therefore, slip-on flanges are typically recommended for applications where moderate pressures are anticipated and where the operational demands do not require the highest level of structural integrity.

SAE Socket Weld Flange flat factory

Socket Weld Flanges

Socket weld flanges have a socket-like end with an internal bore that matches the outer diameter of the pipe. This design allows the pipe to be inserted into the socket, creating a precise fit. The flange also features a flat, circular face with bolt holes for securing it to another flange or component using bolts and nuts. The sealing surface may be raised to accommodate a gasket for optimal sealing.

Usage and Applications: Socket weld flanges are primarily used in systems where moderate pressures and smaller pipe sizes are involved. They are particularly suitable for piping systems handling fluids such as water, steam, oil, and gas in industries such as petrochemical, chemical processing, and food processing. Their robust construction and secure weld connection make them ideal for applications requiring reliable sealing and fluid containment.

Connection Method: The installation of socket weld flanges involves inserting the pipe into the socket end and then performing fillet welding around the joint. This welding method creates a strong and permanent connection that enhances structural integrity and minimizes the risk of leaks. Socket weld flanges are preferred for their simplicity in installation and maintenance, allowing for easy inspection and disassembly when necessary.

Flow Dynamics: Due to their smooth internal bore and precise fit with the pipe, socket weld flanges promote excellent flow dynamics within the system. This feature reduces turbulence and pressure drop, contributing to efficient fluid transfer and operational efficiency.

Blind Flanges

Blind flanges are flat, solid plates with no openings or bores. They feature a raised face on the sealing surface, which accommodates a gasket for creating a tight seal when bolted to another flange or component. The bolt holes around the perimeter allow for secure attachment using bolts and nuts.

Functionality: The primary function of blind flanges is to block off or seal the end of a pipeline, valve, or pressure vessel opening. By preventing the flow of fluids or gases, blind flanges ensure system integrity and safety during maintenance, inspection, or when future expansion is anticipated. They are commonly used to isolate sections of pipelines or equipment that require temporary or permanent closure.

Applications: Blind flanges find widespread application in various industries, including oil and gas, chemical processing, pharmaceuticals, and water treatment plants. They are essential in hydraulic systems where fluid control, system isolation, or pressure containment is critical. Blind flanges are particularly useful during system shutdowns, maintenance procedures, or when performing hydrostatic testing to verify the integrity of pipelines or vessels.

Types and Variations: Blind flanges are available in different types to accommodate specific operational requirements. They may include standard blind flanges with raised faces for standard sealing applications or special blind flanges designed for high-pressure or corrosive environments. The selection of materials such as carbon steel, stainless steel, or alloy steel ensures compatibility with varying fluid types and system conditions.

Installation and Maintenance: Installing blind flanges involves aligning the flange with the pipe or equipment opening and bolting it securely in place. The use of a suitable gasket between the flange faces ensures a leak-proof seal. Maintenance of blind flanges typically involves periodic inspection, gasket replacement, and ensuring proper bolt torque to maintain sealing integrity.

Lap Joint Flanges

Lap joint flanges are unique components designed to facilitate easy assembly, alignment, and maintenance in hydraulic and industrial piping systems. Here’s a detailed exploration of their features and practical applications:

Component Design: Lap joint flanges consist of two main components:

Stub End: A short piece of pipe with a welded or flanged connection to the pipeline.

Backing Flange: A circular disc with bolt holes that slides over the pipe end and overlaps the stub end.

Assembly and Installation: The installation of lap joint flanges involves:

Welding the stub end to the pipe.

Sliding the backing flange over the pipe end until it rests against the stub end.

Securing the flange to the stub end using bolts and nuts through the bolt holes in the backing flange.

Sealing and Compatibility: Lap joint flanges utilize a gasket placed between the stub end and the backing flange to achieve a secure seal. This sealing method allows for easy replacement of the gasket when necessary, enhancing maintenance efficiency. Lap joint flanges are available in various materials and pressure ratings to suit different operational requirements, ensuring compatibility with diverse piping configurations and fluid handling applications.

Applications: Lap joint flanges find widespread use in industries where versatility, ease of maintenance, and system adaptability are essential. They are commonly employed in chemical processing, petrochemical, food and beverage, and power generation industries. Their ability to facilitate quick assembly and disassembly makes them ideal for systems that undergo frequent upgrades, modifications, or inspection procedures.

Selection Considerations for Hydraulic Flange Fittings

Choosing the appropriate hydraulic flange fittings involves careful consideration of several key factors to ensure optimal performance, longevity, and safety in hydraulic operations. Here’s an expanded look at the critical selection considerations:

Material Compatibility

Hydraulic systems operate with a variety of fluids, each having specific chemical properties that can affect the materials used in flange fittings. It’s essential to select materials such as stainless steel, carbon steel, or alloy steel that offer compatibility with the fluid being conveyed. This prevents corrosion, degradation, or contamination of the fluid and ensures the durability of the fittings over time.

Pressure Ratings

Hydraulic flange fittings are rated to withstand different pressure levels, ranging from low to ultra-high pressures. It’s crucial to match the pressure rating of the fittings with the operating pressures of the hydraulic system. Using fittings with insufficient pressure ratings can lead to leaks, system failures, or safety hazards. Conversely, over-specifying pressure ratings may result in unnecessary costs. Careful assessment of the system’s pressure requirements ensures reliable performance under operational conditions.

Temperature Variations

Hydraulic systems may operate across a wide range of temperatures, from extreme cold to high heat environments. Flange fittings should be selected based on their ability to withstand these temperature variations without compromising performance or structural integrity. Temperature considerations also affect the choice of sealing materials, ensuring effective sealing and preventing leakage under fluctuating thermal conditions.

Environmental Conditions

The operating environment plays a significant role in the selection of hydraulic flange fittings. Factors such as exposure to moisture, chemicals, abrasive materials, UV radiation, and atmospheric conditions must be evaluated. Choosing fittings with appropriate corrosion resistance, weatherproofing, and durability ensures longevity and reliability in harsh environments. Environmental factors also influence maintenance intervals and lifecycle costs associated with hydraulic systems.

System Compatibility and Integration

Hydraulic flange fittings should integrate seamlessly with existing system components, including pipes, valves, pumps, and other fittings. Compatibility considerations include dimensional compatibility (size and type), connection methods (welding, threading, socket welding), and alignment requirements. Proper integration enhances system efficiency, minimizes installation complexities, and supports operational reliability.

Quality and Standards Compliance

Selecting hydraulic flange fittings that comply with industry standards and quality certifications (such as ASTM, ASME, and ISO) ensures conformity to safety, performance, and reliability benchmarks. Certification indicates that fittings have undergone rigorous testing and meet specified criteria for material strength, dimensional accuracy, and manufacturing consistency. Adhering to recognized standards enhances confidence in the fittings’ performance and longevity.


Hydraulic flange fittings stand as essential components that play a pivotal role in maintaining the integrity, efficiency, and safety of hydraulic systems across various industrial applications. Through a comprehensive understanding of their types, applications, and critical selection criteria, professionals can make informed decisions to enhance system performance and reliability.


Hydraulic flange fittings are essential components used to connect pipes, hoses, or valves in hydraulic systems. They ensure secure connections that withstand high pressures, facilitating efficient fluid transfer in various industrial applications.

Common types include weld neck, slip-on, socket weld, blind, and lap joint flanges. Each type has specific features and advantages suited to different operational needs, from high-pressure environments to systems requiring frequent maintenance.

Consider factors such as material compatibility, pressure ratings, temperature variations, and environmental conditions. Choosing fittings that match these criteria ensures optimal performance, longevity, and safety in hydraulic operations.

They are typically made from materials like stainless steel, carbon steel, or alloy steel, selected based on their compatibility with the fluid being conveyed and environmental conditions. These materials offer corrosion resistance and durability.

Hydraulic flange fittings play a critical role in maintaining system integrity, minimizing leaks, and supporting efficient fluid handling. They are essential for ensuring operational reliability, safety, and compliance with industry standards.

For detailed specifications, technical guidance and expert advice, we recommend that you contact Topa, our specialized technicians are always ready to respond to you!

Contact Topa

Have a question or suggestion? Fill out the form below to get in touch with one of our experts.

9 Shocking Flange Fitting Failures You Can Easily Avoid

9 Shocking Flange Fitting Failures You Can Easily Avoid

9 Shocking Flange Fitting Failures You Can Easily Avoid

Table of Contents


This article delves into the critical role of flange hydraulic fittings within industrial piping systems, emphasizing their importance in maintaining fluid flow under various operational conditions. It outlines the potential risks associated with flange hydraulic fitting failures, including leaks and industrial accidents, thereby highlighting the necessity of proper understanding, installation, and maintenance of these components. Through this discussion, the article aims to provide insights into ensuring the safety and efficiency of industrial operations by focusing on the correct practices related to flange fittings.

Understanding Flange Hydraulic Fittings

Flange hydraulic fittings are components that connect sections of pipes, valves, pumps, and other equipment within piping systems. Their primary function is to facilitate the assembly and disassembly of these systems for maintenance and repair purposes. These fittings are available in a range of shapes and sizes, tailored to meet specific operational demands such as pressure, temperature, and flow rates.

Industrial Applications

Flange hydraulic fittings are utilized in a wide array of industries. Key sectors include oil and gas, water treatment, and manufacturing. Their use across these diverse fields underscores their critical role in maintaining operational continuity and safety. The deployment of flange hydraulic fittings in critical industrial applications underlines their essential role in the seamless operation of piping systems. Their design and functionality ensure that systems can handle the required pressures and temperatures, thus safeguarding against potential failures and ensuring system integrity.

The Top 10 Flange Hydraulic Fitting Failures

Using Mismatched Flange and Pipe Sizes

Risks of Mismatch

When flange and pipe sizes are mismatched, the consequences can be immediate and severe. Even the slightest discrepancy in size can lead to gaps that compromise the seal, resulting in leaks. These leaks not only pose risks to safety and environmental standards but also lead to operational inefficiencies, including the loss of valuable resources and potential shutdowns for repairs. Moreover, mismatches can introduce undue stress on the pipeline, accelerating wear and tear and leading to premature failure of components.

Ensuring Correct Sizing

Preventing the pitfalls associated with mismatched flange and pipe sizes requires a meticulous approach throughout the lifecycle of the piping system:

Design Phase: During the design phase, accurate specifications for both flanges and pipes must be established, ensuring that all components are compatible in size. This step often involves detailed engineering calculations and a thorough understanding of the operational requirements of the system.

Procurement Process: When ordering flanges and pipes, double-checking the specifications is crucial to avoid mismatches. This includes verifying the nominal size, pressure rating, and other relevant standards to ensure they match the system’s design specifications.

Installation and Assembly: During installation, careful examination of the flanges and pipes to ensure size compatibility is essential. This includes checking for any deviations in the specifications of the received components from those ordered.

Ongoing Maintenance: Regular maintenance and inspections should include checks for signs of leaks, which could indicate sizing issues or wear and tear that has led to a mismatch over time. Addressing these issues promptly can prevent more significant failures.

Ignoring Flange Ratings

Flange ratings are a crucial aspect of flange fittings in piping systems. These ratings indicate the maximum pressure the flange can withstand at a specific temperature. Flange ratings ensure the safe operation of piping systems under various conditions. They are determined based on standards such as ASME B16.5 or the equivalent, which consider factors like material strength and design.

Consequences of Ignoring Flange Ratings

Failure to adhere to these ratings can result in:

Leaks: When the system operates beyond the rated capacity, it may cause gasket failure or deformation, leading to leaks.

Flange Failure: Exceeding the pressure rating can cause the flange itself to fail, which might result in a burst or catastrophic failure of the piping system.

System Downtime: Any failure requires repairs or replacement, leading to operational downtime and financial losses.

Preventative Measures

Selection: Ensure that the selected flange meets or exceeds the system’s maximum operating pressure and temperature.

Installation: Proper installation according to the flange and gasket manufacturer’s guidelines is crucial to maintain the integrity of the flange connection.

Inspection and Maintenance: Regular inspections can identify potential issues before they lead to failure. Maintenance should include checking for signs of wear, corrosion, or damage.

Neglecting Proper Gasket Selection

hydraulic flange seal

Gaskets are essential for creating a leak-proof seal between flange connections in piping systems. The selection of gaskets involves choosing the right material and size to match the operational conditions of the system. The material of the gasket must be compatible with the fluids being transported in the system to prevent chemical degradation. Common gasket materials include rubber, PTFE, and graphite, each with distinct properties suitable for different applications. The size and thickness of the gasket must precisely match the flanges to ensure a complete seal. Incorrect sizing can lead to gaps or excessive compression, both of which can compromise the seal’s integrity.

Temperature and Pressure Considerations

Gaskets must be selected based on the temperature and pressure conditions of the system. High temperatures or pressures require gaskets made from materials that can maintain their sealing properties under these conditions.

Overlooking Bolt Tightening Sequence

Bolt tightening sequence is crucial for ensuring the integrity of flanged connections in piping systems. This sequence impacts how evenly pressure is distributed across the flange, affecting the overall seal and stability of the connection.

Impact of Incorrect Sequence

Not following the correct sequence can lead to uneven pressure distribution. This imbalance can cause areas of the gasket to be compressed more than others, leading to potential leaks and reducing the effectiveness of the seal. Over time, this uneven pressure can also contribute to the degradation of the flange and gasket, leading to potential failures.

Correct Sequence for Bolt Tightening

The standard practice involves tightening bolts in a star pattern, similar to the method used for car wheel nuts. This approach ensures that pressure is applied evenly across the entire flange. The process typically involves several passes at increasing torque values to gradually and evenly compress the gasket and secure the flange.

Initial Hand Tightening: Bolts should be initially tightened by hand to ensure that the gasket is positioned correctly and that there are no gaps.

First Pass: Using a torque wrench, the bolts are tightened in a star pattern to a specified fraction of the final torque value, often 30% to 50%.

Subsequent Passes: Additional passes are made, increasing the torque value with each pass until the final torque specification is reached.

Final Check: A final pass is made to verify that all bolts have been tightened to the correct torque.

Using Damaged or Worn Flanges

worn flange fitting Topa

The condition of flanges in a piping system is critical to maintaining the integrity and safety of the operation. Flanges that are damaged or worn can compromise the system, leading to failures that may have severe consequences.

Risks of Using Damaged or Worn Flanges

Using flanges that are not in optimal condition can lead to several issues:

Leaks: Damaged or worn flanges may not seal properly, leading to leaks that can affect system efficiency and safety.

System Failure: In severe cases, the failure of a damaged or worn flange can result in system breakdown, causing operational disruptions and potential safety hazards.

Increased Maintenance Costs: Using compromised flanges can lead to more frequent repairs and maintenance, increasing operational costs.

Importance of Regular Inspections

To prevent the risks associated with using damaged or worn flanges, regular inspections are essential. These inspections should assess the flanges for:

Physical Damage: Checks for cracks, warping, or other physical damage that could impair the flange’s ability to form a seal.

Corrosion: Inspection for signs of corrosion that can weaken the flange and make it susceptible to failure.

Wear: Evaluation of the flange surface for signs of wear that could prevent a proper gasket seal.

Corrective Actions

When damaged or worn flanges are identified, the following corrective actions should be taken:

Replacement: Flanges that are significantly damaged or worn should be replaced to ensure the integrity of the piping system.

Repair: In some cases, minor damage may be repairable. However, this should only be done if the repair can restore the flange to a condition where it can safely perform its intended function.

Upgrading: If recurrent issues with flanges are identified, it may be necessary to upgrade to flanges made of more durable materials or designs that better suit the operational conditions.

Incorrect Flange Alignment

Flange alignment in piping systems plays a crucial role in ensuring a tight and efficient seal between connections. Proper alignment is necessary to distribute pressure evenly and maintain the integrity of the seal, preventing potential leaks and failures.

Consequences of Misalignment

Misalignment of flanges can result in several issues within the piping system:

Uneven Pressure Distribution: When flanges are not aligned correctly, it can lead to uneven pressure distribution across the gasket. This uneven pressure can cause the gasket to fail, resulting in leaks.

Increased Stress on Piping Components: Incorrect alignment may also put additional stress on pipes, flanges, and bolts, leading to accelerated wear, fatigue, and eventual failure of these components.

Reduced System Efficiency: Leaks and failures due to misalignment can significantly reduce the efficiency of the piping system, leading to increased maintenance costs and downtime.

Ensuring Correct Alignment

To avoid the issues associated with incorrect flange alignment, the following steps should be taken:

Use of Alignment Tools: Specialized tools and techniques should be employed to ensure flanges are aligned correctly before bolting. This may include the use of flange alignment pins or levels.

Inspection and Adjustment: Flanges should be visually inspected for alignment as part of the assembly process. Any misalignment detected should be corrected before proceeding with the bolting and sealing process.

Failure to Use the Correct Lubrication

Lubrication in flanged connections is critical for the proper tightening of bolts and effective compression of gaskets. It plays a pivotal role in achieving the desired seal integrity and longevity of the flange assembly.

Consequences of Inappropriate Lubrication

Using incorrect or inadequate lubrication can lead to several issues:

Compromised Bolt Integrity: Incorrect lubrication may affect the torque applied to bolts, leading to under or over-tightening. This can strain the bolts, reducing their lifespan and potentially causing them to fail.

Gasket Performance: Without proper lubrication, gaskets may not compress evenly or sufficiently, resulting in leaks. This undermines the integrity of the flange connection and the overall system.

Leakage and Reduced Flange Life: Inadequate lubrication can accelerate wear on both the gasket and the flange surfaces, leading to early failure and reduced operational life of the flange assembly.

Selecting the Correct Lubrication

To ensure the longevity and reliability of flange connections, the correct lubrication must be selected based on:

Compatibility with Gasket Material: The lubricant should not degrade the gasket material. Compatibility charts or manufacturer recommendations can guide the selection process.

Operating Conditions: The lubricant must withstand the environmental and operational conditions (e.g., temperature, pressure, exposure to chemicals) of the system without losing its properties.

Ease of Application: The chosen lubricant should be easy to apply uniformly across all bolt threads and gasket surfaces to ensure consistent performance.

Not Accounting for Thermal Expansion

Thermal expansion is a natural phenomenon where materials expand upon heating and contract when cooled. In piping systems, temperature variations are common, and if not properly accounted for, thermal expansion can significantly affect flange connections.

Effects on Flange Connections

Misalignment: As materials expand or contract, flange connections can become misaligned, leading to leaks and reduced efficiency.

Stress: Thermal expansion can introduce additional stress on flange connections, potentially leading to deformation or failure.

Seal Integrity: Changes in material dimensions due to thermal expansion can compromise the integrity of seals, increasing the likelihood of leaks.

Mitigation Strategies

To mitigate the risks associated with thermal expansion in flange connections, the following strategies can be employed:

Expansion Joints: Incorporating expansion joints into piping systems can accommodate thermal expansion and contraction, reducing stress on flange connections.

Material Selection: Choosing materials with similar thermal expansion coefficients for both flanges and adjoining pipes can minimize the differential expansion effects.

Design Considerations: Piping systems should be designed to allow for movement due to thermal expansion. This may include the strategic placement of loops or bends that can absorb the expansion.

Poor Welding Practices

Welding is a critical process in the fabrication and maintenance of flange connections in piping systems. The quality of welding directly impacts the integrity and reliability of the connection, making it essential to ensure high-quality welding practices.

Implications of Substandard Welding

Compromised Connection Integrity: Poor welding can lead to weak joints that may fail under normal operating pressures, causing leaks or catastrophic failures.

Increased Maintenance and Repair Costs: Substandard welding often requires rework, leading to increased maintenance costs and operational downtime.

Safety Hazards: Faulty welding can pose significant safety risks, including the potential for explosive failures in systems carrying hazardous materials.

Ensuring High-Quality Welding

To prevent flange failures due to poor welding practices, several measures should be implemented:

Certified Professionals: Only welders certified in the appropriate welding techniques should be employed. Certification ensures that welders have the necessary skills and knowledge to produce high-quality welds.

Appropriate Welding Procedures: Welding procedures should be selected based on the materials being joined, the operating conditions of the system, and the specific requirements of the connection. These procedures should be strictly followed to ensure consistency and quality.

Pre-Welding Preparation: Proper preparation of the welding surfaces is essential. This includes cleaning the surfaces to be joined and ensuring that they are properly aligned and fit for welding.

Quality Control Measures: Implementing quality control measures, such as non-destructive testing (NDT) and inspection by qualified personnel, can help identify and rectify any defects in welds before the system is put into operation.


Meticulous attention to every detail, from the initial selection of components to installation to ongoing maintenance, is required to prevent flange joint failures from occurring. Preventing flange joint failures is a collective endeavor that requires the participation of all stakeholders. By adhering to the guidelines outlined in this discussion, industries can achieve a higher standard of safety and efficiency and ensure that their operations continue to run smoothly and without disruption.


What is a common cause of flange hydraulic fitting leaks?

Flange hydraulic fitting leaks often occur due to improper bolt tightening. Uneven or insufficient tightening can cause the gasket to misalign, leading to leaks. To avoid this, use a torque wrench and follow the manufacturer’s recommended torque specifications for uniform bolt tightening​

How can I prevent flange misalignment during installation?

Misalignment can cause stress on the flange and lead to failures. Ensure that the flanges are aligned correctly before tightening the bolts. Use alignment tools and check for any angular or parallel misalignment to prevent undue stress on the system

Why is gasket selection crucial for flange fittings?

Using the wrong gasket material or size can lead to seal failure. Select a gasket that matches the chemical compatibility and temperature requirements of your hydraulic system. Refer to the manufacturer’s guidelines for the appropriate gasket type

What are the risks of using damaged or worn-out flanges?

Damaged or worn-out flanges can compromise the integrity of the seal and lead to leaks or bursts. Regularly inspect flanges for signs of wear, corrosion, or damage, and replace any faulty components immediately to maintain system safety

How does improper flange assembly affect performance?

Incorrect assembly, such as improper bolt sequence or uneven torque application, can cause uneven gasket compression, leading to leaks. Follow a star or cross pattern when tightening bolts and ensure even pressure is applied across the flange face

What should I consider when selecting flange materials?

Selecting the wrong flange material can result in corrosion or mechanical failure. Choose materials that are compatible with the operating environment and the fluids being transported. Consult with material compatibility charts and industry standards to make informed decisions​

What are Flange Plugs Installation & Maintenance Tips

What are Flange Plugs

What are Flange Plugs: Installation & Maintenance Tips


In the world of industrial equipment and machinery, flange plug caps, while not as visible as other components, are essential in a variety of industries, from plumbing to heavy machinery. Their primary function is to securely close flanges, a method of connecting pipes, valves, pumps, and other equipment to form piping systems. They are designed to ensure that the connection is not only airtight but also secure and leak-proof. The purpose of this article is to take an in-depth look at the installation and maintenance of flange plugs to ensure their longevity and reliability.

Understanding Flange Plug

Definition and Basic Function

In the world of industrial equipment, flange plug caps, play a critical role, albeit often out of the limelight. Essentially, these are components used to cap off or block pipe ends in a system, ensuring no unwanted escape of materials. This function is not only about stopping flow but also about maintaining pressure and preserving the integrity of the system. Flange hydraulic plugs are particularly crucial in high-pressure environments where the secure containment of gases or liquids is paramount. They fit snugly into the flange, a flat rim or collar typically at the end of a pipe, providing a tight and secure closure. This is vital for preventing leaks and ensuring the safety and efficiency of the entire system.

Types of Flange Plug Caps

Diving deeper into the types of flange plug caps,, it becomes clear that diversity is key. The variety in materials and designs is extensive, catering to a broad spectrum of industrial needs. Materials range from robust metals like steel, known for its strength and durability, to versatile plastics, chosen for their resistance to corrosion and chemicals. The choice between a metal and a plastic flange plug, for example, hinges on factors like the type of fluid being transported, the environmental conditions, and the pressure requirements of the system. Besides material, the design also varies, with some plugs intended for temporary use during maintenance, while others are permanent fixtures. This variety allows for tailored solutions, ensuring that each system gets the specific type of flange plug it requires for optimal performance.

Advantages of Using Plugs

Benefits in Plumbing and Piping

Flange hydraulic plugs, while seemingly modest in their appearance, significantly boost the efficiency and reliability of plumbing and piping systems. Their primary role is to provide a secure and leak-proof seal, a critical function in systems that transport fluids under varying pressures. This sealing capability is essential, not only for maintaining the desired pressure within the system but also for ensuring the safety and integrity of the entire setup. The strength and durability of flange plug caps, make them a cost-effective solution. By offering a long-term sealing option, they reduce the frequency of maintenance and replacement, leading to cost savings and reduced operational downtime. In high-pressure environments, the robustness of flange plug caps, becomes even more apparent, as they can withstand intense pressure without succumbing to wear and tear, thus maintaining system integrity and reducing the risk of costly failures.

Environmental and Safety Benefits

The environmental and safety advantages of using flange plug caps, are equally significant. In terms of environmental protection, these plugs play a pivotal role. They prevent the accidental release of substances, which could be harmful to the environment. This is particularly crucial in industries dealing with hazardous materials, where leaks or spills could have severe environmental repercussions. From a safety perspective, flange pipe plugs contribute to creating a safer workplace. By preventing leaks and spills, they minimize the risk of accidents and potential hazards that could endanger workers. This aspect is particularly vital in settings where the release of gases or liquids could pose a risk of fire, explosion, or exposure to toxic substances. The robust design of these plugs, tailored to withstand various environmental and operational conditions, further bolsters workplace safety by enhancing the reliability and resilience of industrial systems.

Installation of Flange Plug Caps

Preparation and Tools Required

Before embarking on the installation of flange plug caps,, a comprehensive preparation process and the right set of tools are imperative. Essential tools include an appropriate set of wrenches or socket sets, suitable for the specific size of the flange plug. Additionally, safety equipment like gloves and protective eyewear is non-negotiable to ensure personal safety. The selection of the correct flange plug is crucial; it must correspond to the size and material of the pipe or valve it is intended for. If the system requires, a thread sealant should be on hand to ensure a watertight seal. Prior to installation, it’s vital to conduct a thorough inspection of the system where the flange plug will be fitted. This includes ensuring the pipe or valve is completely depressurized, cleaned, and free from any residual fluids or debris. It is also essential to check the compatibility of the flange plug material with the system to prevent any chemical reactions or material degradation.

flange Plug installation

Step-by-Step Installation Guide

The installation process of a flange plug, while straightforward, requires careful attention to ensure a secure and leak-proof seal. The first step involves cleaning the flange surface thoroughly, removing any rust, debris, or remnants of previous sealants. If the plug is threaded, apply a suitable thread sealant evenly on its threads. This helps in preventing leaks and ensuring a tight fit. Carefully align the plug with the flange, ensuring that it is seated properly. Using the correct size wrench, start tightening the plug in a crisscross pattern. This method ensures even distribution of pressure and prevents potential warping or damage to the flange. It’s important not to over-tighten the plug, as this could strip the threads or crack the flange. Once the plug is securely fitted, perform a visual inspection to check for proper alignment and seal. If applicable, gently repressurize the system and check for any signs of leakage. For ongoing maintenance, it’s advisable to periodically inspect the flange plug for signs of wear or damage, ensuring the ongoing integrity of the system.

Maintenance and Troubleshooting

Regular Maintenance Tips

Regular maintenance of flange plug caps, is not just about prolonging their lifespan; it is about ensuring the ongoing efficiency and safety of the entire system they serve. Routine checks should be conducted, focusing on the physical condition of the flange plug caps,. This includes looking for any visible signs of wear and tear, such as cracks or erosion, especially in environments where they are exposed to harsh chemicals or extreme temperatures. Additionally, it’s crucial to check for any signs of leakage around the plug. If the system involves fluids or gases under high pressure, even the smallest leak can be a precursor to larger problems. Cleaning the plugs and the surrounding areas regularly is also important to prevent any build-up of debris, which can compromise the plug’s integrity. It’s recommended to follow a maintenance schedule, which can be as frequent as monthly or quarterly, depending on the usage and environmental conditions.

Common Issues and Troubleshooting

When it comes to troubleshooting common issues with flange plug caps, it’s important to first understand the typical problems that can arise. One of the most common issues is the loosening of the plug over time. This can be due to several factors, including thermal expansion, vibration, or even improper installation. If a plug becomes loose, it’s vital to re-tighten it according to the manufacturer’s specifications, ensuring not to overtighten, as this can damage the plug or the flange. Another common issue is corrosion, which can be identified by a change in color or the appearance of rust. Corroded flange plug caps, should be replaced immediately to prevent system failure. In situations where problems persist or the cause of the issue is unclear, seeking professional help is advisable. A professional can provide a comprehensive inspection and recommend appropriate solutions, ensuring the continued effectiveness and safety of the system.

Advanced Applications of Flange Plug

Flange plug caps, though small in size, play a monumental role in a variety of industrial and commercial contexts. Beyond the conventional uses in plumbing and piping, their applications extend into sectors like oil and gas, chemical processing, and even aerospace. For instance, in the oil and gas industry, flange plug caps, are integral in ensuring the safe handling and transportation of petroleum products. Their robustness and ability to withstand extreme pressures and temperatures make them indispensable in this high-stakes environment. In chemical processing plants, flange plug caps are used to maintain the integrity of reactors and storage tanks, especially those containing corrosive or reactive chemicals. These plugs prevent any potential leaks, thus averting possible hazardous situations. Similarly, in the aerospace industry, they are used in fuel and hydraulic systems of aircraft, ensuring the reliability and safety of these critical systems.

The Economic Impact of Flange Plug

Cost-Efficiency Analysis

Understanding the cost-efficiency of flange hydraulic plugs requires a thorough analysis of their economic impact compared to other sealing solutions. Flange hydraulic plugs stand out for their cost-saving potential, particularly when evaluated over the long term. The initial investment in flange hydraulic plugs is generally moderate, and when this is juxtaposed with the longevity and durability they offer, the cost benefits become clear. They require less frequent replacement and maintenance, which translates to lower ongoing costs. This aspect is crucial in large-scale operations where the costs of downtime and maintenance can quickly escalate. The reliability of flange plugs in providing a secure seal also means a reduced likelihood of system failures and subsequent financial losses, making them a financially prudent choice in the long run.

Impact on Business Operations

The role of hydraulic plugs in enhancing the efficiency and productivity of business operations is significant. Their robust design and reliable performance ensure that systems operate smoothly, reducing the frequency and duration of downtimes. This is particularly important in industries where continuous operation is key to profitability. The dependability of hydraulic plugs in maintaining the integrity of systems means that businesses can avoid costly interruptions caused by system failures or leaks. Additionally, the simplicity of their installation and maintenance means that they do not require specialized skills, further reducing operational costs. The economic impact of these factors is substantial, contributing positively to the overall financial health of businesses that rely on efficient and uninterrupted system operations.


In this comprehensive look at flange plug caps, we delve into their basic nature, various applications, and the key role they play in different industrial environments. We also cover the key aspects of installation, maintenance, and the significant economic impact that these small but mighty components have on business operations. In addition, we address the legal and compliance aspects that are integral to the use of these devices. In conclusion, we make it clear that the proper understanding, installation, and maintenance of flange plug caps is critical to the safety, efficiency, and legal compliance of any operation.


What is a flange plug?

A flange plug is a component used to seal or close off the end of a flanged pipe or fitting, preventing fluid or gas flow.

What materials are flange plug caps made from?

Flange hydraulic plugs are commonly made from materials like carbon steel, stainless steel, aluminum, and plastic, depending on the application requirements.

Can hydraulic plugs handle high-pressure applications?

Yes, hydraulic plugs designed for high-pressure applications are available, typically made from robust materials and designed to withstand significant pressure levels.

What are the common types of flange plugs?

Common types include blind plugs, threaded hydraulic plugs, and slip-on plugs, each suited for different sealing needs and installation methods.

How to install a flange plug properly?

To install a flange plug, align it with the flanged opening, insert bolts, and tighten evenly in a crisscross pattern to ensure a secure and leak-free seal.

What are the maintenance tips for flange plug?

Regularly inspect for signs of wear or corrosion, ensure bolts are tightened to the correct torque, and replace seals or gaskets as needed to maintain integrity.

How do I select the correct flange plug size?

Select the flange plug size based on the nominal pipe size (NPS) and flange rating, ensuring compatibility with the flanged connection.

Are flange plug caps reusable?

Depending on the material and condition, many flange fitting plugs can be reused after inspection and proper cleaning, though seals or gaskets may need replacement.

A Comprehensive Guide to Pipe Flanges Topa

A Comprehensive Guide to Pipe Flanges

A Comprehensive Guide to Pipe Flanges


Piping flanges are critical components that connect pipes, valves, pumps and other equipment used in the construction and maintenance of industrial piping systems. They facilitate the assembly and disassembly of piping structures, making maintenance, inspection, or overhaul during system modifications easier. The purpose of this guide is to provide an in-depth discussion of pipe flanges, giving the reader a comprehensive understanding of the types, materials, specifications and applications of pipe flanges.

Understanding Pipe Flanges

At its core, a pipe flange is a mechanical device designed to connect sections of pipe or to join a pipe to a pressure vessel, pump, valve, or any other piece of equipment. Flanges provide flexibility in piping systems, enabling the disassembly for cleaning, inspection, or modification. The fundamental role of pipe flanges extends beyond mere connectivity; they also provide strength and support, ensuring a sealed and secure system capable of withstanding operational pressures and environmental conditions.Key components of a pipe flange assembly include the flanges themselves, gaskets to ensure a tight seal, bolts, and nuts for securing the flange connection.

Types of Pipe Flanges

Weld Neck Flanges

Weld neck flanges are distinguished by their long tapered hub, which provides important stress distribution benefits. These flanges are welded to the pipe, ensuring a strong, tight connection. Ideal for high-pressure and high-temperature applications, weld neck flanges are commonly used in demanding environments such as the petrochemical industry.


Stress Distribution: The tapered hub provides excellent stress distribution, significantly reducing the risk of stress-induced failures.

Durability: These flanges are highly resistant to dents, deformations, and leaks, making them suitable for long-term use in demanding environments.

High-Pressure Resistance: Ideal for applications involving high pressure, where the integrity of the connection is critical.


Cost: The complexity of the design and the need for precision welding make weld neck flanges more expensive than other types.

Installation: Requires skilled labor and careful preparation to install correctly, adding to the overall project timeline and cost.

Slip-On Flanges

Slip-on flanges are designed to slip over the end of a pipe and then welded in place, both at the inside and outside of the flange. This type is simpler and less costly than weld neck flanges, making it suitable for low-pressure applications.


Ease of Alignment: The ability to slide the flange over the pipe before welding allows for easier alignment, which is particularly beneficial in complex piping systems or in tight spaces.

Cost-Effectiveness: Lower material costs and reduced labor for installation make slip-on flanges an economical choice for many projects.

Versatility: Suitable for various applications, particularly where the operational pressures and temperatures are within moderate ranges.


Pressure Limitations: Slip-on flanges are less robust under high pressure compared to weld neck flanges, making them unsuitable for high-pressure applications.

Potential for Leakage: The design of slip-on flanges, which involves welding both inside and outside the flange, can be more prone to leakage if not properly welded, especially in systems subject to fluctuating pressure or temperature.

Blind Flanges

Blind flanges are indispensable in the world of piping, serving a critical function by sealing the end of pipes, pressure vessels, or valve openings. They are essentially ‘blank’ flanges and contain no center hole, making them ideal for terminating piping systems or isolating sections of a pipeline for maintenance, testing, or repair. The versatility and robustness of blind flanges allow them to be utilized across various industries, including oil and gas, petrochemical, and water treatment facilities.

The design of a blind flange is straightforward yet highly effective. It is mounted to the end of a pipe, a valve opening, or at any juncture where a blockage is required. Depending on the application, it can be bolted into place, allowing for the possibility of future system modifications or expansions.


Versatility: Can be used in various applications, including high-pressure scenarios.

Safety: Provides a secure method to seal off sections of a pipeline, ensuring safe maintenance and inspection activities.

Future Expansions: Facilitates the expansion of existing piping systems by allowing sections to be sealed off temporarily.


Limited Accessibility: Once installed, blind flanges restrict access to the system, making them less suitable for systems requiring frequent access or modification.

Threaded Flanges


Threaded flanges offer a unique solution in environments where welding is impractical or hazardous. These flanges are screwed directly onto the pipe without the need for welding, making them ideal for low-pressure applications or in systems where explosive gases are present, and welding could pose a significant risk.

Threaded flanges are designed with threads inside the flange bore which match the external threads on the pipe. This design allows for easy installation and removal, making them perfect for temporary connections or in places where welding is not an option.


No Welding Required: Eliminates the need for hot work permits in hazardous areas, reducing installation time and cost.

Easy Installation and Removal: Can be installed without specialized labor, making them ideal for temporary setups or emergency repairs.


Pressure and Temperature Limitations: Not suitable for high-pressure or high-temperature applications due to the potential for leaks.

Socket Weld Flanges

Socket weld flanges are designed for use in smaller-diameter high-pressure applications. Their design incorporates a socket into which the pipe fits. The pipe is then welded to the flange both around the outer diameter and inside the socket, creating a smooth flow path that minimizes turbulence and erosion.

The design of socket weld flanges is aimed at enhancing the strength of the connection and improving the flow characteristics within the pipe. The internal weld provides a smooth bore with the added strength of a fillet weld around the outside of the flange. This design is particularly advantageous in high-pressure applications where flow integrity and leak prevention are critical.


Strong Connection: Provides a robust and high-integrity joint suitable for high-pressure applications.

Smooth Fluid Flow: The internal welding creates a smooth bore that minimizes turbulence and erosion.


Alignment Challenges: Precise alignment is required before welding to ensure a proper fit and seal.

Potential for Stress: The welding process can introduce stresses if not performed correctly, potentially affecting the integrity of the connection.

Lap Joint Flanges

Lap joint flanges are a preferred choice in piping systems that require frequent disassembly for inspection, cleaning, or maintenance. These flanges work in tandem with stub ends, which are welded to the pipe. The flange itself does not come into direct contact with the fluid in the pipe, which allows for the use of less expensive materials for the flange than the stub end.

The unique design feature of a lap joint flange is its ability to rotate freely around the pipe. This is particularly useful in applications where bolt hole alignment is difficult, as it allows for easy alignment of the bolt holes after the stub end has been welded to the pipe. The stub end also provides a smooth and consistent face for the gasket to seal against, enhancing the integrity of the joint.


Flexibility in Maintenance: The ability to freely rotate makes maintenance and inspection tasks simpler and more efficient.

Cost-Effectiveness: Allows for the use of less expensive materials for the flange in corrosive applications, as the flange does not come into contact with the process fluid.


Requirement for Stub Ends: The need for a stub end can add to the overall cost of the piping system, both in terms of materials and installation.

Materials and Specifications

The selection of materials and adherence to specifications are critical factors in the manufacturing and application of pipe flanges. Flanges are made from a variety of materials, each chosen for its specific properties and suitability for different environments and pressures. The manufacturing and dimensional standards for pipe flanges, governed by internationally recognized organizations, ensure consistency, quality, and safety across all industries.

Materials Used in Pipe Flange Manufacturing

Carbon Steel: Widely used due to its strength and durability. Carbon steel flanges are suitable for high-pressure and temperature applications but are susceptible to corrosion.

Stainless Steel: Known for its resistance to corrosion and oxidation, stainless steel is ideal for use in corrosive environments. It can withstand a wide range of temperatures, making it suitable for various applications.

Alloy Steel: Alloy steel flanges are used in applications requiring higher strength and corrosion resistance. Alloys like chrome-molybdenum steel are common in high-temperature and pressure environments.

Aluminum: Offers excellent corrosion resistance and is lighter than steel. Aluminum flanges are commonly used in the chemical industry and in applications where weight is a concern.

Nickel Alloys: Nickel alloy flanges are ideal for severe environments exposed to high temperatures, corrosive chemicals, and high pressures. They are often used in the petrochemical and nuclear industries.

Standards and Specifications

The manufacturing and dimensional standards for pipe flanges ensure uniformity and compatibility across global industries. Some of the key standards include:

ANSI/ASME B16.5: Governs the dimensions, tolerances, and materials for flanges up to 24 inches in diameter in various pressure classes.

ASME B16.47: Covers larger flanges in sizes ranging from 26 inches to 60 inches, specifying requirements for Series A (MSS SP-44) and Series B (API 605) flanges.

ISO Standards: International standards that provide specifications for flanges used in various industries worldwide, ensuring global interoperability.

DIN Standards: Widely used in Europe, DIN standards specify flange dimensions and materials for a wide range of applications.

Installation and Maintenance

The proper installation and maintenance of pipe flanges are critical to ensuring a leak-free piping system that operates efficiently and safely over its intended lifespan. This chapter provides a general guide to the installation process, routine maintenance practices, and troubleshooting common issues like misalignment and gasket failure.

install Pipe Flanges Topa

Installation Guide


Inspect the flange, gasket, and mating surface for any damage or irregularities.

Ensure the compatibility of the flange, gasket, and bolts/nuts in terms of size, pressure rating, and material.


Align the flange faces parallel to each other with the pipe or equipment nozzle to ensure an even seal across the gasket surface.

Gasket Placement:

Place the gasket evenly between the flanges. Ensure that the gasket type is suitable for the fluid, temperature, and pressure of the system.


Insert bolts and hand-tighten nuts to ensure the flange and gasket are correctly positioned.

Use a calibrated torque wrench to tighten the bolts in a cross-pattern sequence to the specified torque. This ensures even distribution of pressure on the gasket.

Final Inspection:

Inspect the assembly for alignment and uniform gasket compression.

Check for any gaps or misalignment that could indicate improper installation.

Routine Maintenance Tips

Regular Inspections:

Conduct visual inspections for signs of leakage, corrosion, or damage to the flange, bolts, and gasket.

Use ultrasonic or other non-destructive testing methods to detect hidden flaws or leaks.

Gasket Replacement:

Replace gaskets during maintenance shutdowns or if there is evidence of compression set or damage.

Bolt Tightening:

Periodically check and retorque bolts, especially after the system has undergone temperature or pressure cycles that could cause loosening.

Troubleshooting Common Issues


Misalignment can cause uneven pressure on the gasket and lead to leaks. Realign the flanges using suitable tools and techniques, ensuring parallel alignment.

Gasket Failure:

Gasket failure is often due to incorrect selection, over-tightening, or chemical degradation. Inspect the failed gasket to determine the cause and replace it with a suitable type.

Bolt Stress:

Uneven bolt tightening can lead to leaks. Ensure all bolts are tightened uniformly to the manufacturer’s recommended torque settings.

Choosing the Right Pipe Flange for Your Project

Factors to Consider

Size and Pressure Rating:

The flange size must match the diameter of the pipe to which it will be connected. The pressure rating, denoted by classes ranging from 150 to 2500 in most standards, should align with the maximum pressure the system will encounter.


Material selection is based on the system’s exposure to corrosive substances, temperature ranges, and the type of fluid being transported. Common materials include carbon steel for general applications, stainless steel for corrosion resistance, and alloy steel for high temperature and pressure conditions.

Flange Type:

The choice of flange type (weld neck, slip-on, blind, threaded, lap joint, socket weld) depends on the specific application, including the need for strength, ease of installation, and maintenance requirements. For example, weld neck flanges are preferred in high-pressure applications, while slip-on flanges might be chosen for lower pressure environments.

Standards and Specifications:

Ensure the flange meets international standards (such as ANSI, ASME, ISO, or DIN) relevant to your industry and application. Compliance with these standards guarantees compatibility and safety.

Operational Environment:

Consider the environmental conditions the flange will be exposed to, including temperature extremes, potential corrosive elements, and physical wear. This consideration is crucial for selecting materials and types that will withstand these conditions.


While not a technical specification, the cost is a practical consideration. The goal is to select a flange that meets all technical requirements without unnecessary expenditure, balancing initial costs with long-term operational expenses.


Understanding piping flanges is fundamental to designing, installing and maintaining an effective piping system. In this guide, we explore all aspects of piping flanges, including their types, materials, specifications, installation, maintenance methods, and considerations needed to select the right flange for a project. Each section has been carefully designed to provide field professionals with the knowledge they need.

If you still have doubts about pipe flanges, welcome to contact Topa, we will answer you as soon as possible!

Flexible Metal Hoses

Flange End Flexible Metal Hoses Assembly

Topa supplies all kinds of flange end flexible metal hose assemblies, our flexible metal hose has weld plated, slip-on, stub end, and raise face flange end. Those thread end corrugated metal hoses are flexible metal hoses, that can be applied in oil, gas, chemical, and food applications. We promise to supply high-quality flexible metal hoses.

If you have any questions about flange end flexible metal hoses, please contact us!

Flexible Metal Hoses Assembly Video

This video is about the details of Topa flange end flexible metal hoses assembly.

Topa can provide all sizes, materials, lengths, and threads. We will follow the production process strictly and produce each batch of hose products carefully, and we will carry out a full set of quality control for the products, welcome you to order.

If you have any questions about flexible metal hoses,  please contact us.

Flexible Metal Hose Catalog

This catalog is about flexible metal hoses.

Topa can offer all kinds of hydraulic flexible metal hoses, and our catalog also including all of them.

Please contact us If you need more information on flexible metal garden hoses or would like some free samples.

flexible metal hose catalog Topa
your name
With Country Code
what can we do for you?

Interlock Flange

Interlock Flange

Interlock hose flanges have the flange ports and the o-ring seal in those port surfaces. Interlock flange has 3000psi, 6000psi types. Those fittings are used conjunction with interlocking hose clamps to connect high-pressure hoses. Topa can provises all types of interlock hose flange, such as straight interlock flange, 45-degree interlock flange, and 90-degree interlock flange.

If you have any questions of interlock flange fittings, please contact us!

87313 interlock flange Topa

87313 interlock flange

87343 interlock flange Topa

87343 interlock flange

87393 interlock flange Topa

87393 interlock flange

87613 interlock flange Topa

87613 interlock flange

87643 interlock flange Topa

87643 interlock flange

87693 interlock flange fittingTopa

87693 interlock flange

Interlock Flange Video

This video is about the details of Topa interlock flange.

Interlock flange fittings are made of high-quality metal materials. Those fittings can be applied in high-pressure hydraulic systems.

Please contact with us if you have any questions about hydraulic hose tail flange or other products.

Interlock Flange Catalog

This catalog is about interlock hose flange.

Topa can offer all kind of hydraulic interlock hose flanges, and our catalog also including all of them.

Please contact us If you need more information of hydraulic hose fittings, or would like some free samples.

hydraulic hose fitting catalog
your name
With Country Code
what can we do for you?

Hydraulic Hose Flange Fittings

Hydraulic Hose Flange Fittings

Hydraulic hose flange fittings are types of hydraulic hose fittings used to connect a hydraulic hose to a flange on machines or components. This type of fitting is commonly used in high-pressure hydraulic applications.

Topa can provide large sizes and materials for hydraulic hose fitting. Please contact us if you need more information on the hydraulic hose fitting.

Hydraulic Hose Flange Fittings Video

This video shows the details of hydraulic hose flange fitting.

Hydraulic hose flange fittings are commonly used in applications such as mining, construction, and oil and gas. All of those applications need a leak-free and reliable seal.

If you have any questions about flange fittings, please contact us.

Hydraulic Hose Fitting Catalog

Topa offers various types of hydraulic hose fittings, and this catalog includes all of them.

Please contact us If you need more information or assistance in selecting the right hydraulic hose fittings, or would like some free samples.

hydraulic hose fitting catalog
your name
With Country Code
what can we do for you?

Metric Bite Type Adapter

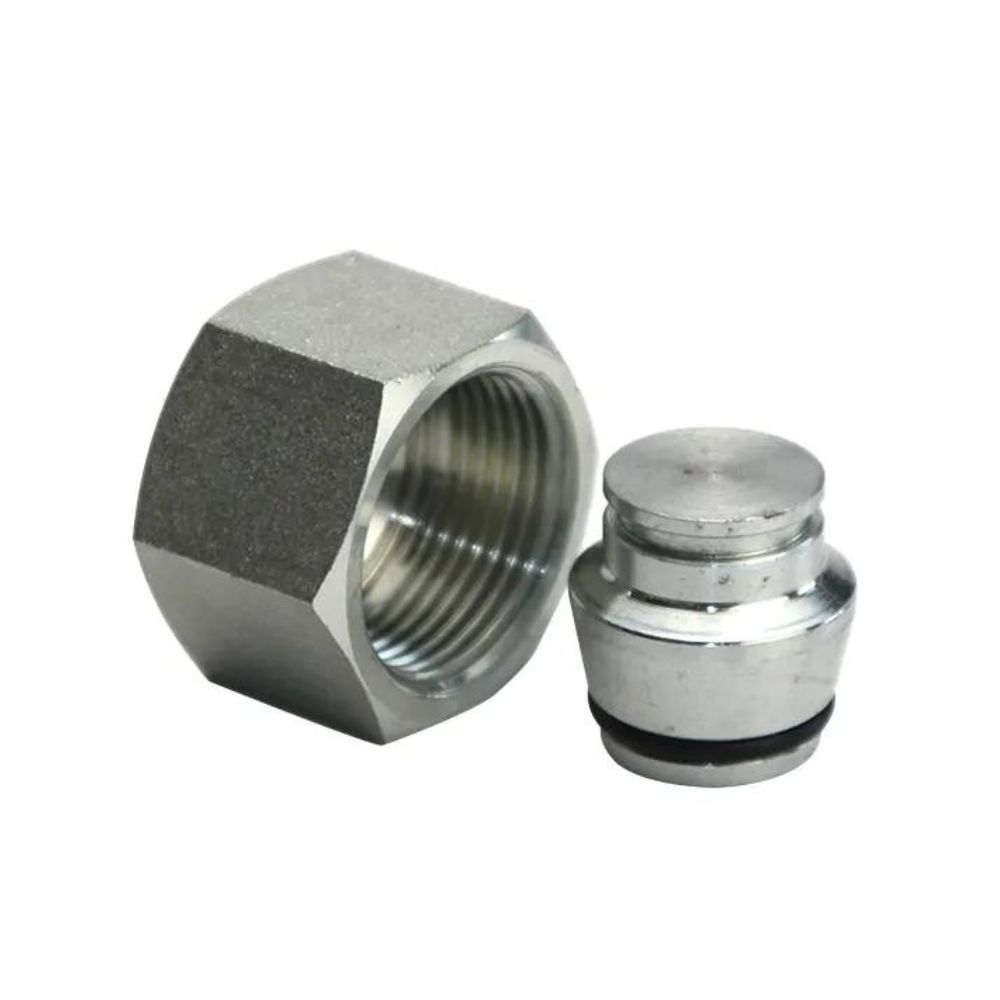

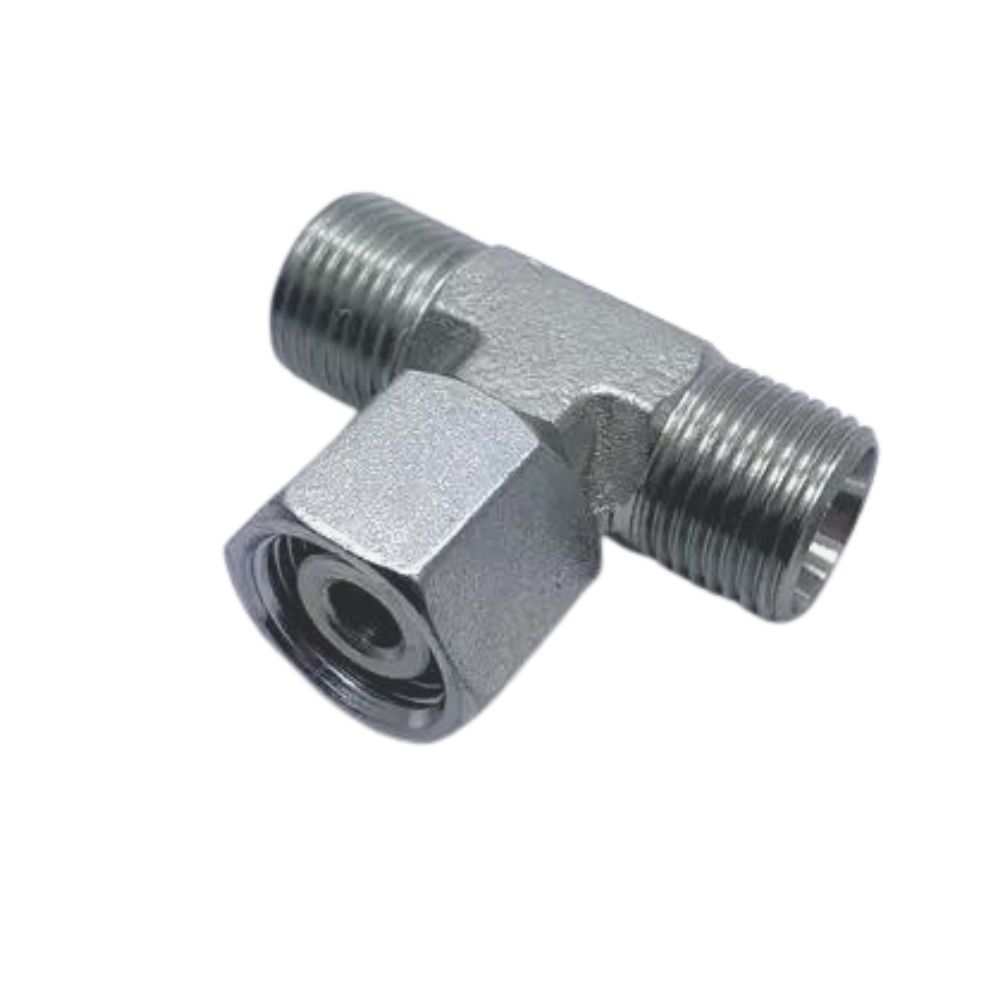

Metric Bite Type Adapter

The metric bite-type adapter typically refers to a type of hydraulic fitting used in fluid power systems. A metric bite-type adapter fitting typically consists of a body, a sleeve, and a nut.

Topa can offer all kinds of high-quality metric adapters. Therefore, if you have questions about hydraulic metric adapters, please contact us and we will answer your questions as soon as possible.

Metric Bite Type Adapter Video

This video shows the details of hydraulic metric bite type adapter.

Metric bite type adapter can often be used in hydraulic systems for heavy machinery and equipment, as well as in the automotive and aerospace industries.

If you have any questions about metric tube adapters or other products, please contact us.

Metric Fitting Catalog

Topa offers various types of metric fittings, and this catalog includes all of them.

Please contact us if you need more information on metric fittings or would like some free samples.

METRIC hydraulic fitting catalog Topa
your name
With Country Code
what can we do for you?

JIC to Flange hydraulic fitting

JIC to Flange hydraulic fitting

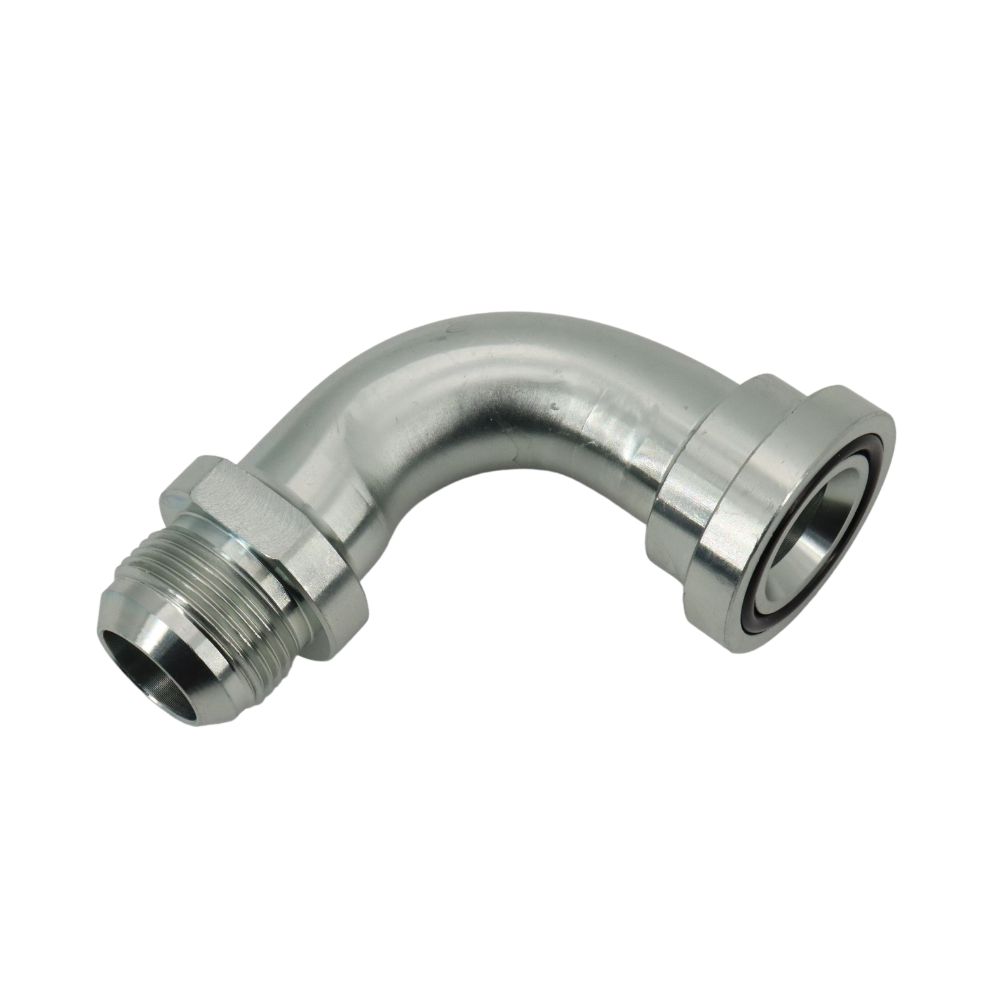

Topa can supply all types and sizes of JIC to Flange hydraulic fittings. They have two threaded ends that are wrenched, solvent welded or soldered to a compatible hydraulic hose to create a seal. If you have needs for JIC to Flange hydraulic fitting, please contact us for more information.

1700 JIC Flange Adapter

1703 JIC Flange Adapter

1700 JIC Flange Adapter

1800 JIC Flange Adapter

1803 JIC Flange Adapter

1804 JIC Flange Adapter

Topa JIC to Flange Hydraulic Fitting

This video is about Topa JIC to flange fitting, it includes different types of JIC to Flange hydraulic fittings.

If you have any questions about our JIC to Flange hydraulic fittings or need assistance in selecting the right sizes and types for your application, our expert team is here to help. We pride ourselves on offering exceptional customer service and technical support to ensure you have a seamless experience with Topa.

Please feel free to contact us for more detailed information or any inquiries you may have. Thank you for choosing Topa as your trusted partner for high-quality hydraulic fittings.

JIC Flange Fitting Catalog

Topa offers different types of JIC hydraulic fitting, this catalog includes all kinds of  JIC hydraulic fittings.

If you need more information on JIC  hydraulic fitting, please contact us.

your name
With Country Code
what can we do for you?

Flange one-piece hydraulic fitting

Flange one-piece hydraulic fitting

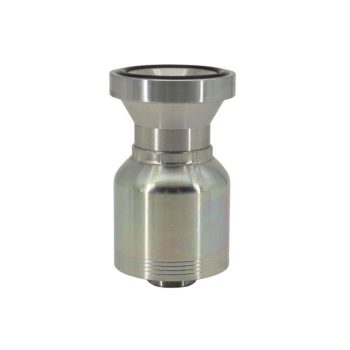

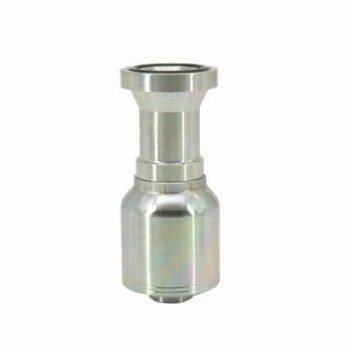

Topa can supply different types and sizes of flange hydraulic one-piece fittings. All of those fittings are available in many kinds of materials and can used in lots of applications. If you have needs of hydraulic fittings, please contact us for more information.

Topa Flange One-piece hydraulic fittings

This video is about topa flange one-piece hydraulic fitting, it includes all the types of flange hydraulic one-piece fitting. Topa can provides different sizes for our customs.If you have any questions of flange hydraulic fitting, please contact us.

Flange one-piece hydraulic fitting catalog

Topa offers different types of flange one-piece hydraulic fitting, this catalog includes all kinds of  flange hydraulic fittings. If you need more information of flange one-piece hydraulic fitting, please contact us.

Flange hydraulic one-piece fitting catalog
your name
With Country Code
what can we do for you?
