Description:

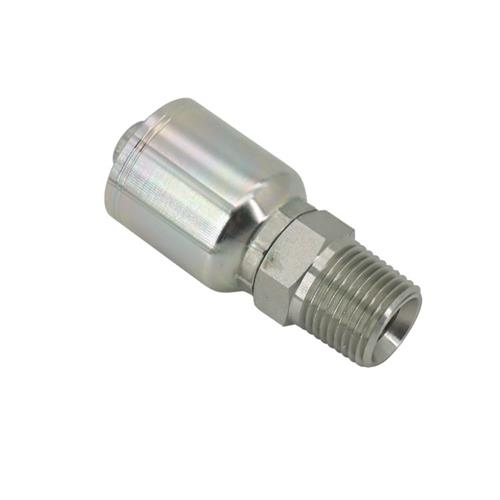

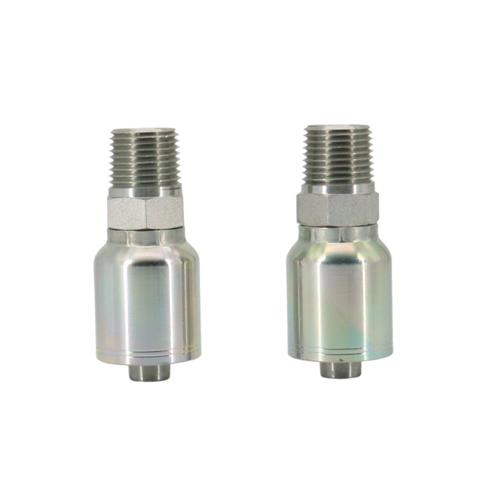

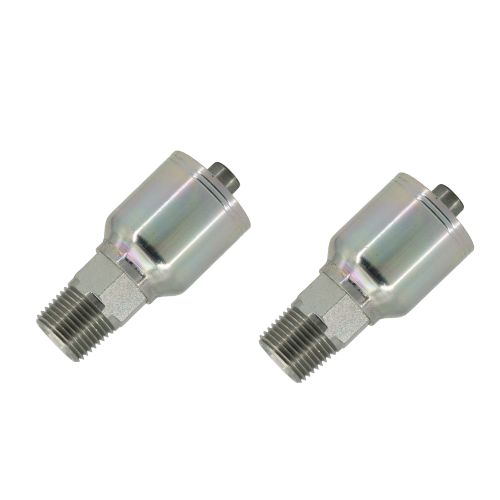

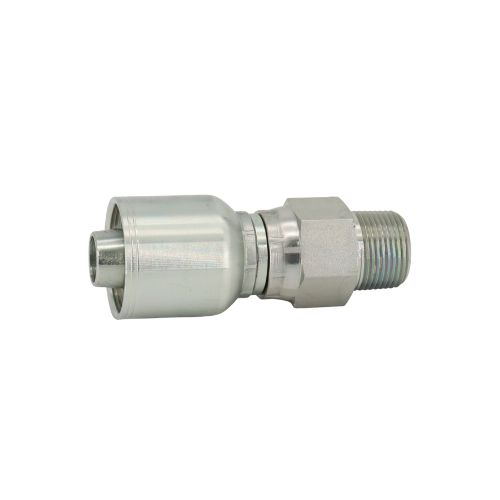

MP hose fittings is 43 Series crimp-style hydraulic fittings, male pipe NPT Swivel. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.
The 43 Series hydraulic fittings offer easy assembly, a wide selection of shapes and end forms, hose compatibility and the ability to be used in a wide range of markets.
If you want free samples, please contact us.
Features and Benefits:
• No Leakage
• Perfect seal
• Easy to operate
• Quick assembly
• Carbon steel, steel and stainless steel
Categories: hydraulic fittings, NPT thread, Products
Part No. | 1- Hose Bore | 2- Thread | Dimensions | ||||
| Size | Inch | DN |
| A(mm) | B(mm) | H(mm) |
TP43-04-04MP | 4 | 1/4″ | 6 | 1/4″-18 | 49 | 27 | 14.2 |
TP43-04-06MP | 4 | 1/4″ | 6 | 3/8″-18 | 51 | 29 | 17.4 |
TP43-04-08MP | 4 | 1/4″ | 6 | 1/2″-14 | 55 | 33 | 22.2 |
TP43-05-04MP | 5 | 5/16″ | 8 | 1/4″-18 | 49 | 27 | 17.4 |
TP43-05-06MP | 5 | 5/16″ | 8 | 3/8″-18 | 51 | 29 | 17.4 |
TP43-06-04MP | 6 | 3/8″ | 10 | 1/4″-18 | 57 | 29 | 17.4 |
TP43-06-06MP | 6 | 3/8″ | 10 | 3/8″-18 | 57 | 29 | 17.4 |
TP43-06-08MP | 6 | 3/8″ | 10 | 1/2″-14 | 63 | 35 | 22.2 |
TP43-08-06MP | 8 | 1/2″ | 12 | 3/8″-18 | 63 | 29 | 22.2 |
TP43-08-08MP | 8 | 1/2″ | 12 | 1/2″-14 | 67 | 33 | 22.2 |
TP43-08-12MP | 8 | 1/2″ | 12 | 3/4″-14 | 70 | 35 | 26.9 |
TP43-10-06MP | 10 | 5/8″ | 16 | 3/8″-18 | 67 | 28 | 22.2 |
TP43-10-08MP | 10 | 5/8″ | 16 | 1/2″-14 | 72 | 33 | 22.2 |
TP43-10-12MP | 10 | 5/8″ | 16 | 3/4″-14 | 73 | 34 | 26.9 |
TP43-12-08MP | 12 | 3/4″ | 20 | 1/2″-14 | 74 | 35 | 26.9 |
TP43-12-12MP | 12 | 3/4″ | 20 | 3/4″-14 | 74 | 35 | 26.9 |
TP43-12-16MP | 12 | 3/4″ | 20 | 1″-11.5 | 83 | 46 | 34.9 |
TP43-16-12MP | 16 | 1″ | 25 | 3/4″-14 | 86 | 42 | 34.9 |
TP43-16-16MP | 16 | 1″ | 25 | 1″-11.5 | 90 | 46 | 34.9 |
TP43-20-20MP | 20 | 1.1/4″ | 32 | 1.1/4″-11.5 | 102 | 56 | 44.5 |
TP43-24-24MP | 24 | 1.1/2″ | 40 | 1.1/2″-11.5 | 87 | 50 | 50.8 |
TP43-32-32MP | 32 | 2″ | 50 | 2″-11.5 | 115 | 54 | 63.5 |
10143 NPT one-piece hydraulic fittings have many different sizes and dimensions, they can apply in lots of applications. If you want more information, please contact us.
