Description
Dash Size |
Thread | Hose Size |
A |
D |
EØ |
H |
190235– |
|
|
|
|
| |
4S | 7/16-24 | –04 | 2.36 | 1.62 | .13 | 1.69 |
7–4S | 11/16-18 | –04 | 2.12 | 1.36 | .13 | 1.84 |
8–4S | 3/4-18 | –04 | 2.12 | 1.36 | .13 | 1.84 |
5S | 1/2-20 | –05 | 2.53 | 1.75 | .18 | 1.69 |
6S | 5/8-18 | –06 | 2.63 | 1.73 | .24 | 1.73 |
7–6S | 11/16-18 | –06 | 2.63 | 1.73 | .24 | 1.73 |
6–8S | 5/8-18 | –08 | 3.04 | 1.89 | .28 | 1.73 |
7–8S | 11/16-18 | –08 | 3.04 | 1.89 | .28 | 1.73 |
8S | 3/4-18 | –08 | 3.04 | 1.89 | .36 | 1.75 |
10S | 7/8-18 | –10 | 3.44 | 2.15 | .46 | 2.22 |
8–12S | 3/4-18 | –12 | 3.49 | 1.92 | .39 | 1.75 |
190325– |
|
|
|
|
| |
6S | 5/8-18 | –06 | 3.67 | 2.77 | .24 | 2.73 |

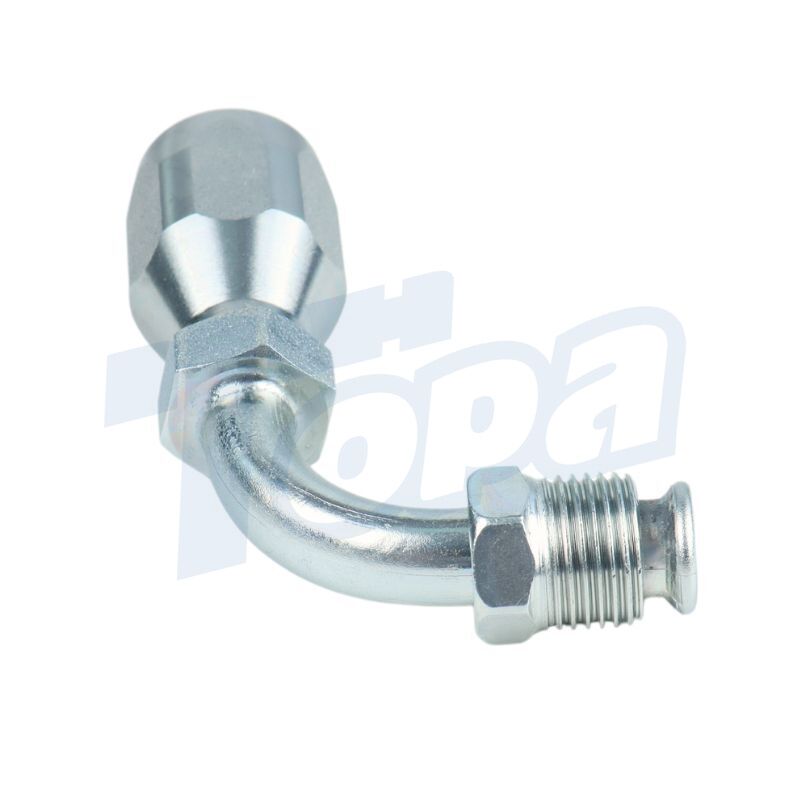

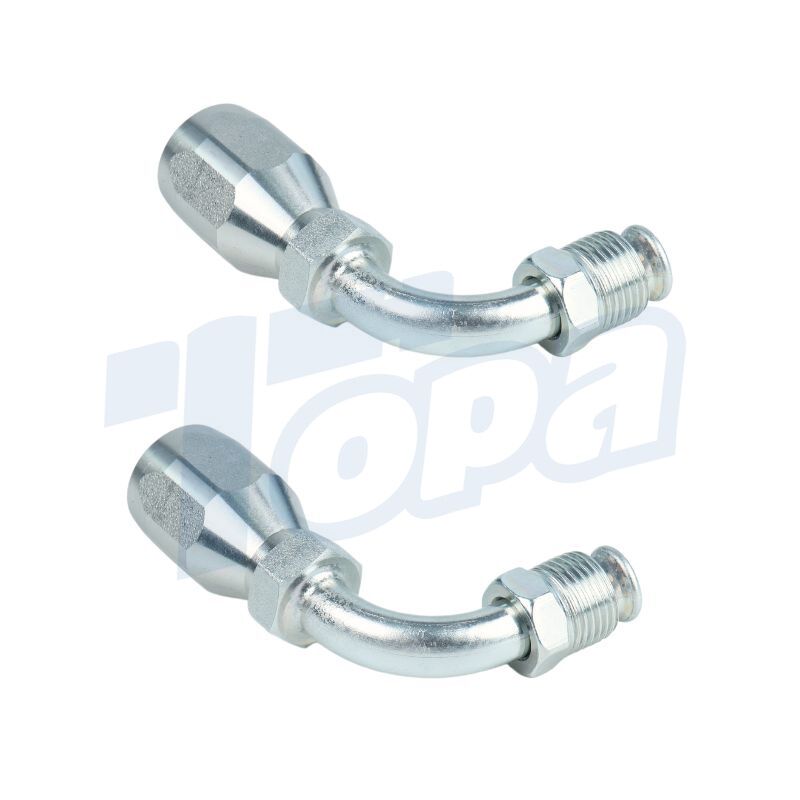

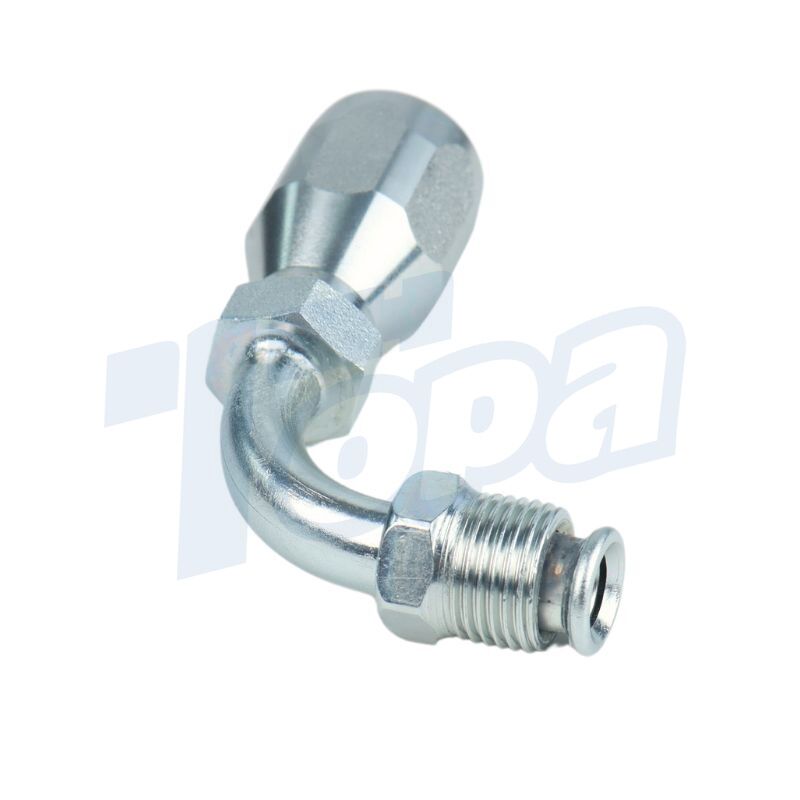

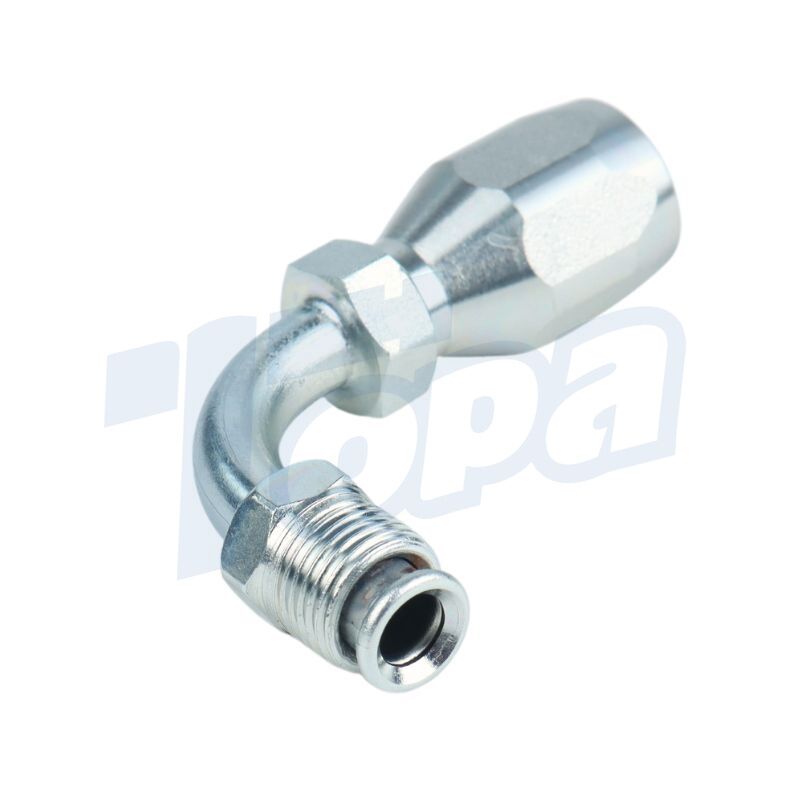

SAE 90° Elbow Inverted Flare Reusable Hydraulic Fittings Video
This video shows information about the 90° elbow inverted flare reusable hydraulic fittings.
Inverted flare reusable fittings fit various applications in fluid transfer systems, especially in automotive and hydraulic systems. Topa can supply all sizes and materials of reusable fittings.
If you have any questions about the hydraulic reusable fittings, please contact us!
