Metric Hose Fittings

Description:

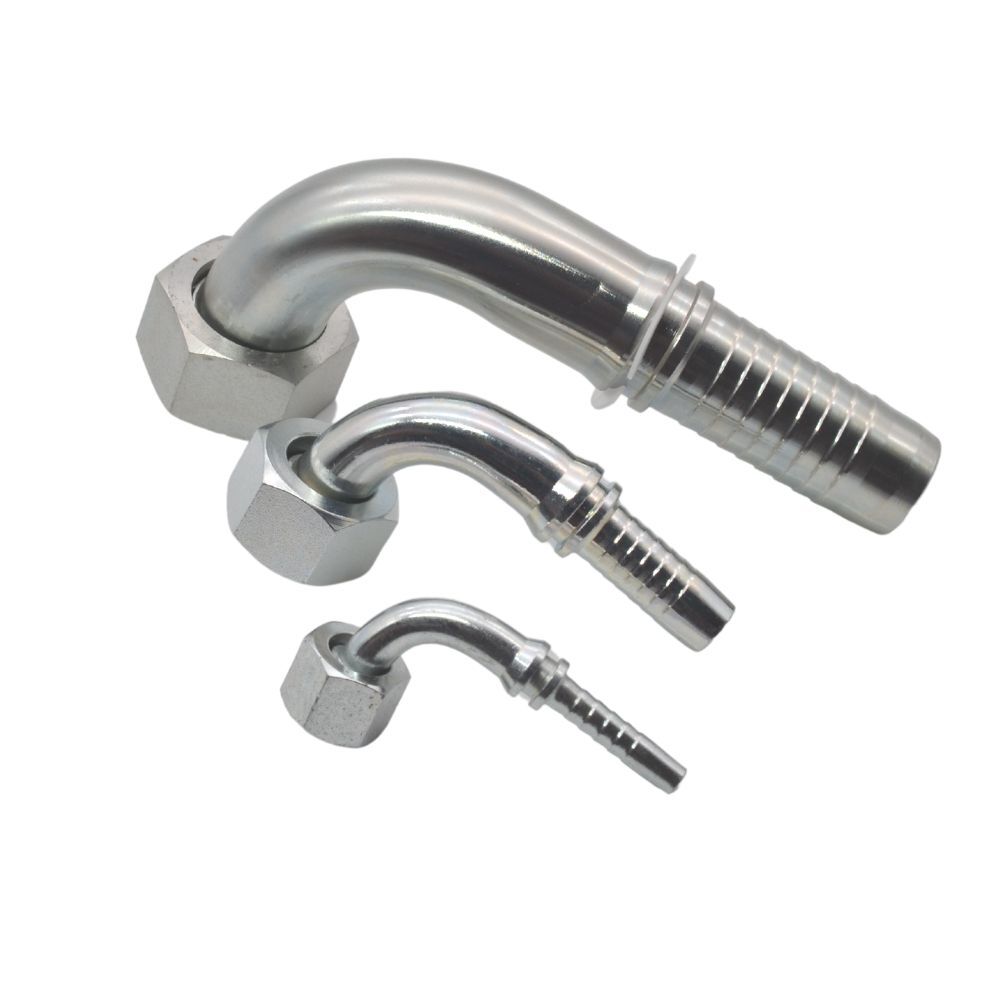

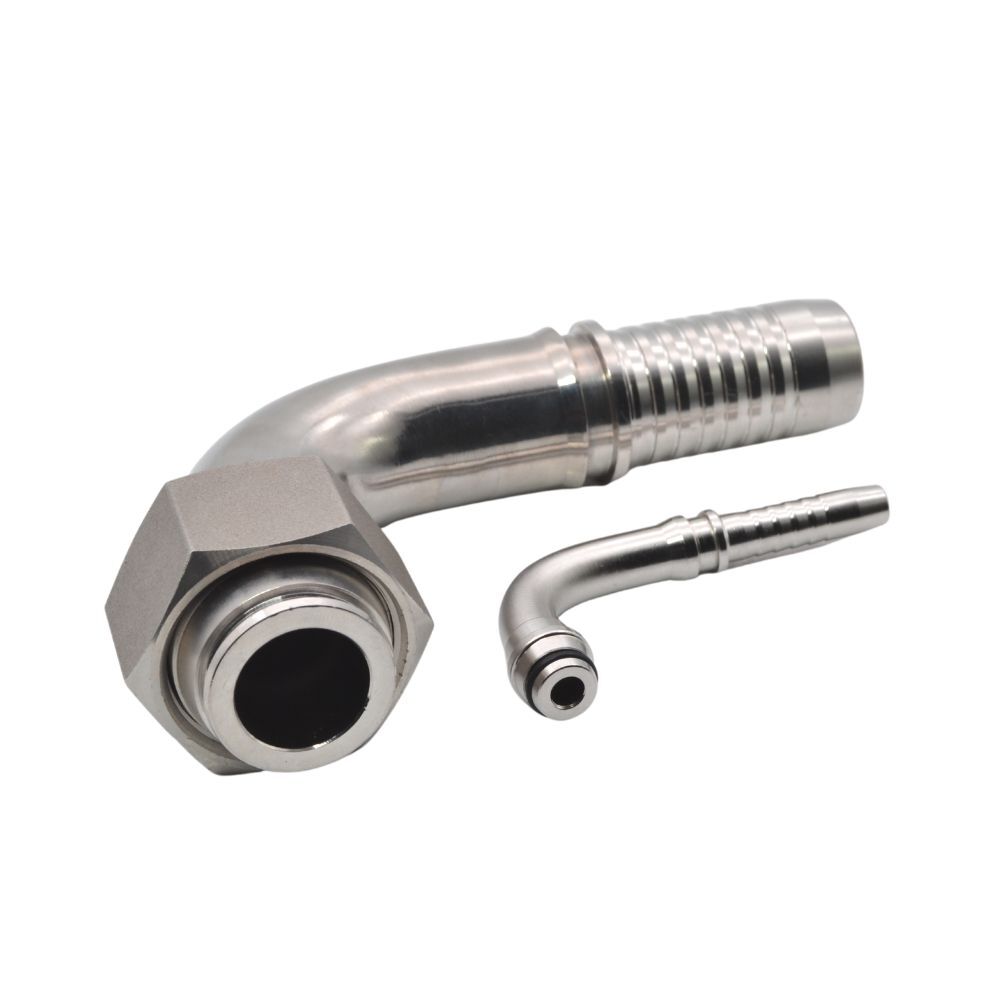

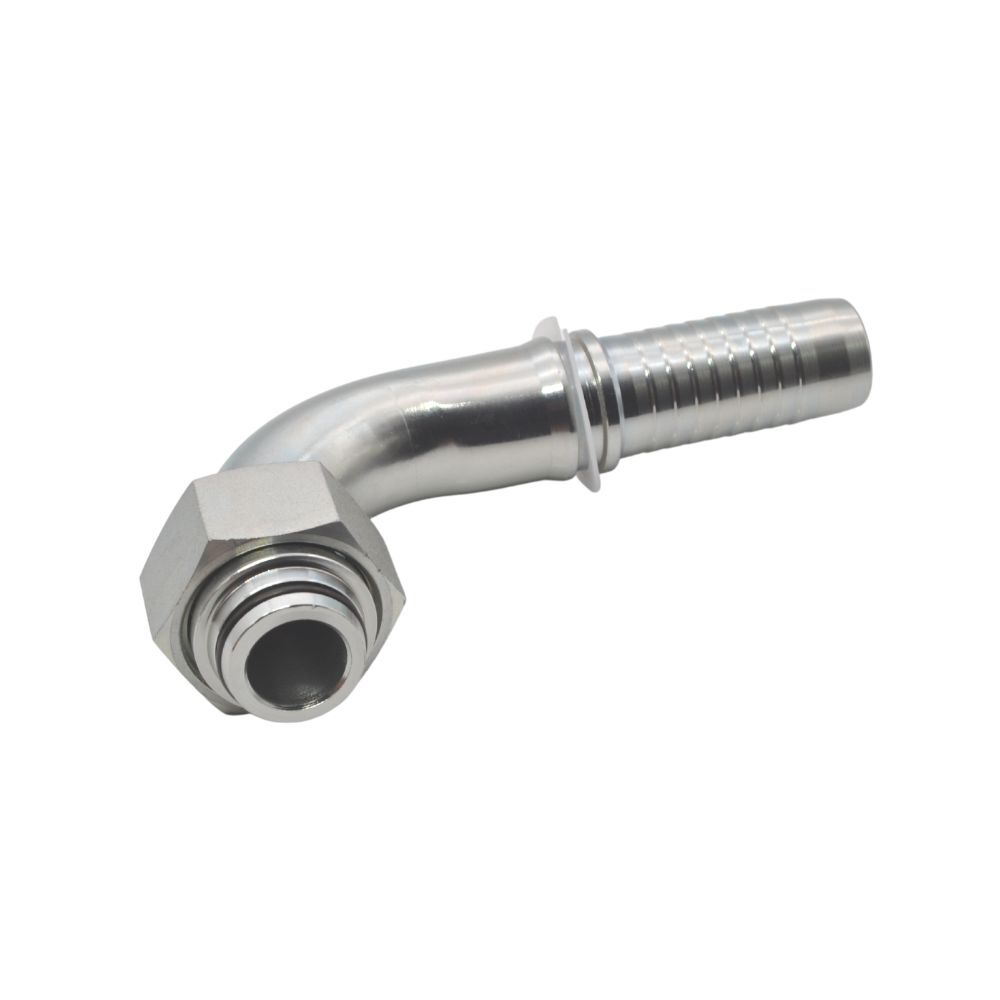

20491 90-degree female 24-degree cone L.T. hydraulic hose fitting has a female metric thread and an o-ring seal, which can create a strong seal between hoses and tubes.

The 20491 fittings are commonly used in medium or high-pressure hydraulic fluid systems, and it typically seals using an o-ring or sealing washer.

Feel free to ask if you have any questions about the hydraulic metric fitting.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize



Description

PART NO.

THREAD E

HOSE BORE

TUBE O.D.

O RING

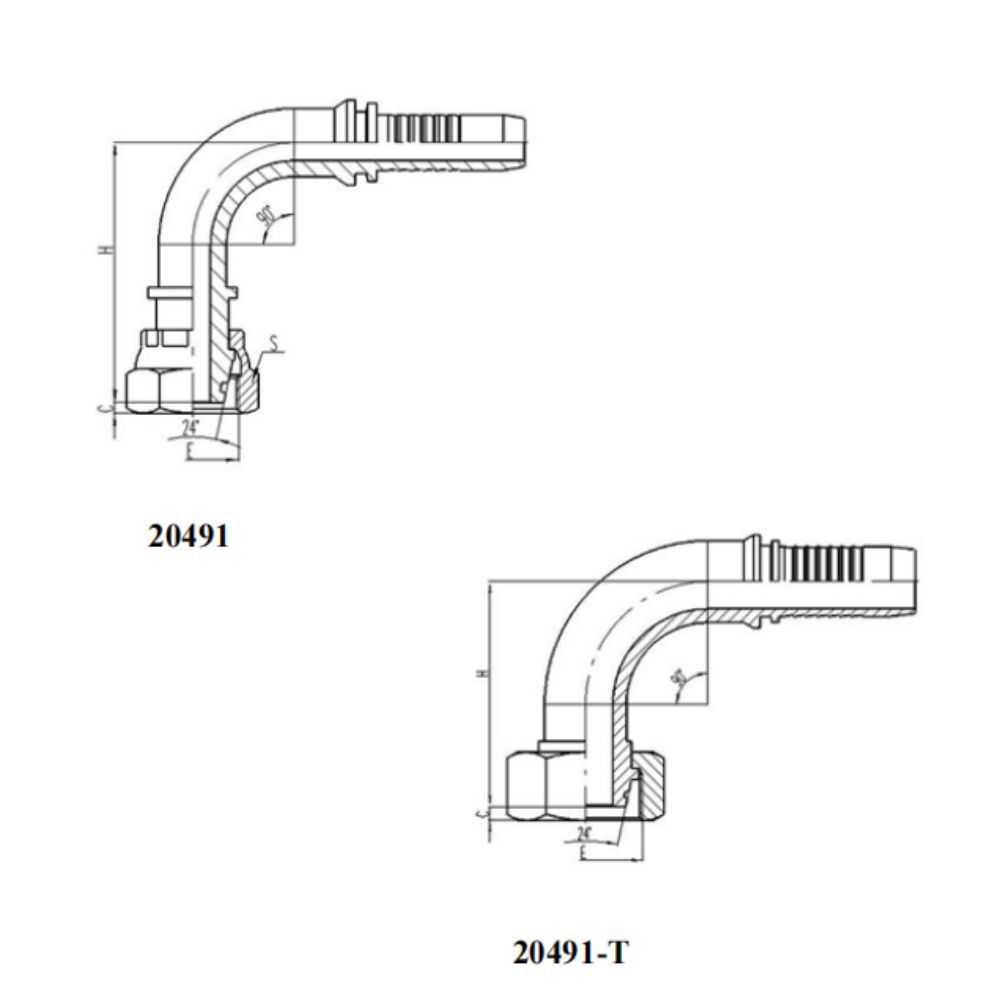

DIMENSIONS

DN

DASH

A

C

H

S2

20491-12-03

M12*1.5

5

03

6

O04.5*1.5

26.5

1

41.5

17

20491-12-04

M12*1.5

6

04

6

O04.5*1.5

30

1

44.5

17

20491-14-04

M14*1.5

6

04

8

O06.5*1.5

30

2

46

19

20491-16-04

M16*1.5

6

04

10

O08.0*1.5

30

2

46.5

22

20491-16-05

M16*1.5

8

05

10

O08.0*1.5

33

2

49.5

22

20491-16-06

M16*1.5

10

06

10

O08.0*1.5

35.3

2

51.8

22

20491-18-05T

M18*1.5

8

05

12

O10.0*2.0

33

2.5

42

22

20491-18-06

M18*1.5

10

06

12

O10.0*2.0

35.3

2.5

53.3

24

20491-22-06T

M22*1.5

10

06

15

O12.0*2.0

35.3

2.5

47.3

27

20491-22-08

M22*1.5

12

08

15

O12.0*2.0

41

2.5

61

27

20491-26-08T

M26*1.5

12

08

18

O15.0*2.0

42

2.5

51

32

20491-26-10

M26*1.5

16

10

18

O15.0*2.0

56.5

2.5

67.5

32

20491-26-12

M26*1.5

20

12

18

O15.0*2.0

65.5

2.5

77

32

20491-27-10T

M27*1.5

16

10

18

O15.0*2.0

56.5

2.5

67.5

32

20491-27-12

M27*1.5

20

12

18

O15.0*2.0

65.5

2.5

77

32

20491-30-10T

M30*2

16

10

22

O20.0*2.0

56.5

4

57.2

36

20491-30-12

M30*2

20

12

22

O20.0*2.0

65.5

4

80

36

20491-36-12T

M36*2

20

12

28

O26.0*2.0

65.5

4

69

41

20491-36-14T

M36*2

22

14

28

O26.0*2.0

71.2

4

70

41

20491-45-16T

M45*2

32

16

35

O32.0*2.5

76.7

5

75

55

20491-45-20T

M45*2

32

20

35

O32.0*2.5

91.5

5

88.5

55

20491-52-20T

M52*2

32

20

42

O38.0*2.5

93

5.5

87

60

20491-52-24T

M52*2

40

24

42

O38.0*2.5

109.4

5.5

104

60
