Description
DN | I.D | O.D | Pitch distance | Wall Thickness | |
(mm) | in | (mm) | (mm) | (mm) | (mm) |
6 | 1/4 | 6 | 8.8 | 2 | 0.2 |
8 | 5/16 | 7.80 | 11.3 | 3 | 0.2 |
10 | 3/8 | 11.00 | 15.7 | 3 | 0.2 |
12 | 1/2 | 11.6 | 18 | 3 | 0.2 |
15 | 5/8 | 14.4 | 21.5 | 3.5 | 0.3 |
20 | 3/4 | 19.4 | 27 | 4.5 | 0.3 |
25 | 1 | 24.4 | 32.5 | 5 | 0.3 |
32 | 1 1/4 | 31.4 | 40 | 5.5 | 0.3 |
40 | 1 1/2 | 39.4 | 5o | 6 | 0.3 |
50 | 2 | 49.4 | 63 | 7.5 | 0.3 |
65 | 2 1/2 | 64.4 | 81 | 9 | 0.3 |
80 | 3 | 79.2 | 98 | 10.5 | 0.4 |
100 | 4 | 99.2 | 120 | 13 | 0.4 |
125 | 5 | 124 | 150 | 14.5 | 0.5 |
150 | 6 | 149 | 180 | 17.5 | 0.5 |
200 | 8 | 198.8 | 240 | 24 | 0.6 |
250 | 10 | 248.4 | 300 | 28 | 0.8 |
300 | 12 | 298 | 355 | 33.5 | 1 |
Note: This is only a reference parameter, if you need other parameters of metal bellows, please contact us!
Metric Metal Flexible Hose Assembly Video
This video shows information about Metric flexible metal hose.

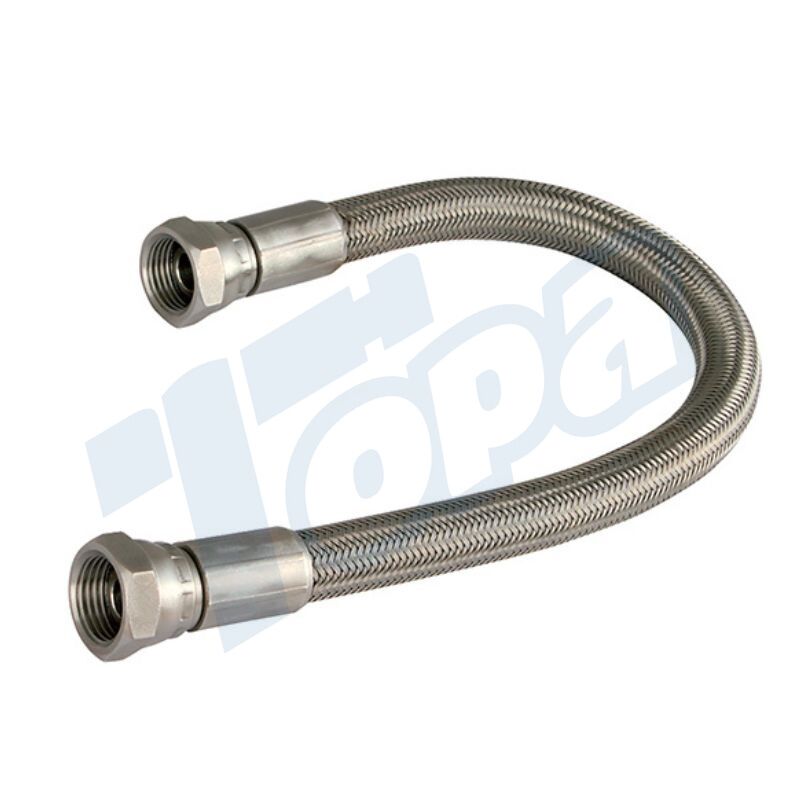

Flexible metal hose is available in stainless steel, carbon steel, and steel. We promise to produce the best quality corrugated metal hoses. Our hoses can be used in the chemical industry, food industry, agriculture, and oil and gas applications.
If you have any questions about flexible metal hose for water, please contact us!
