JIS Hydraulic Hose Fitting

Description:

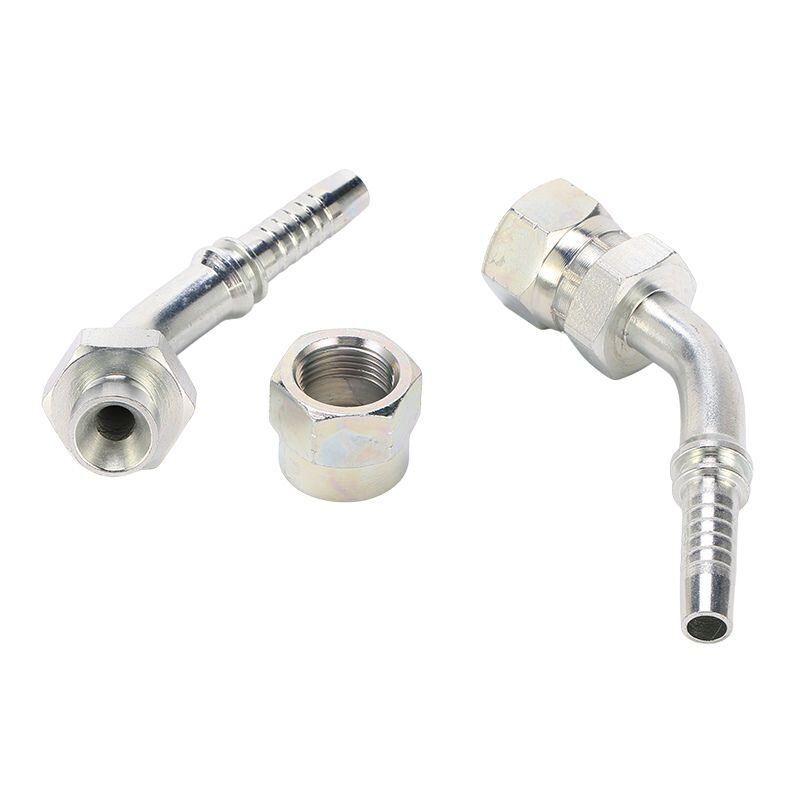

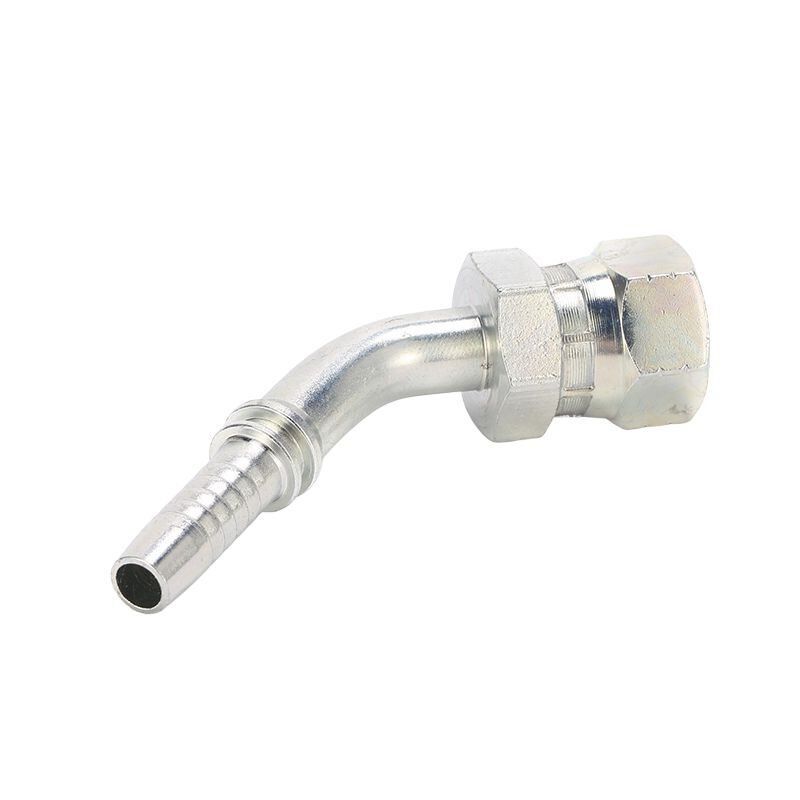

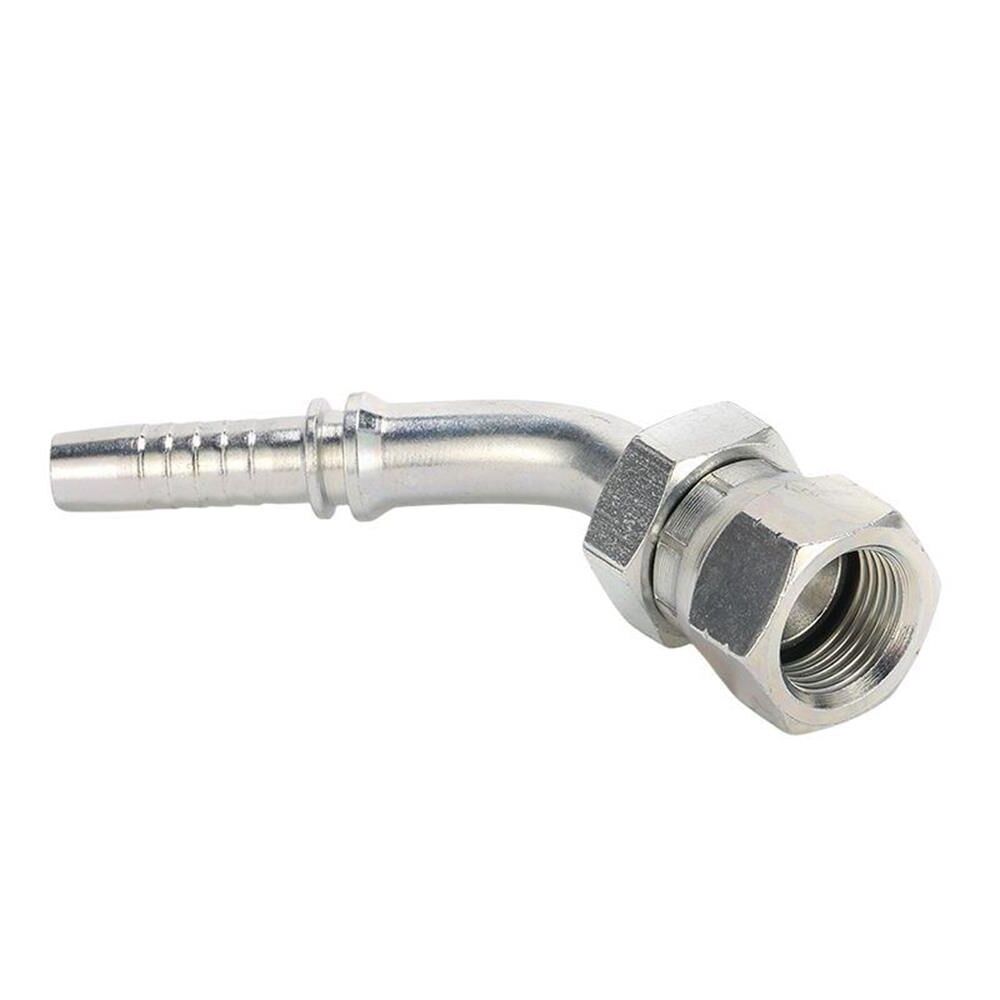

29641/29641-W is a female JIS hose fitting that has an internal 60-degree cone seat thread and a 45-degree elbow.

A JIS female hose fitting is a type of fitting used for connecting hoses in hydraulic and pneumatic systems.

Feel free to ask any questions about the JIS flare fittings.

Features and Benefits:

• Leak-tight
• Reliable
• Free samples
• Customize



Description

PART NUMBER

DN

DASH

C

S2

H

S 1

E

A

29641-04-04

G1/4″ × 19

6

4

43.4

8

21.3

19

19

29641-06-06

G3/8″ × 19

10

6

48.9

9

24.6

22

22

29641-08-08

G1/2″ × 14

12

8

62.5

12

27.5

27

27

29641-12-12

G3/4″ × 14

20

12

81.3

13.5

33.9

32

32

29641-16-16

G1″ × 11

25

16

87.3

16

36

41

41

29641-20-20

G1.1/4″ × 11

32

20

107

18.5

46.5

50

50

29641-24-24

G1.1/2″ × 11

38

24

123

19

50.8

55

55

29641-32-32

G2″ × 11

51

32

143

23

60

70

70

29641/29641-W 45° JIS Hydraulic Hose Fitting Video

This video shows information about 29641 JIS hydraulic hose fitting.

Typically, JIS standard pipe fitting is commonly used in high-pressure hydraulic applications such as in industrial machinery, construction equipment, and automotive systems.

If you have any questions about JIS hydraulic fitting, please contact us.
