Description:

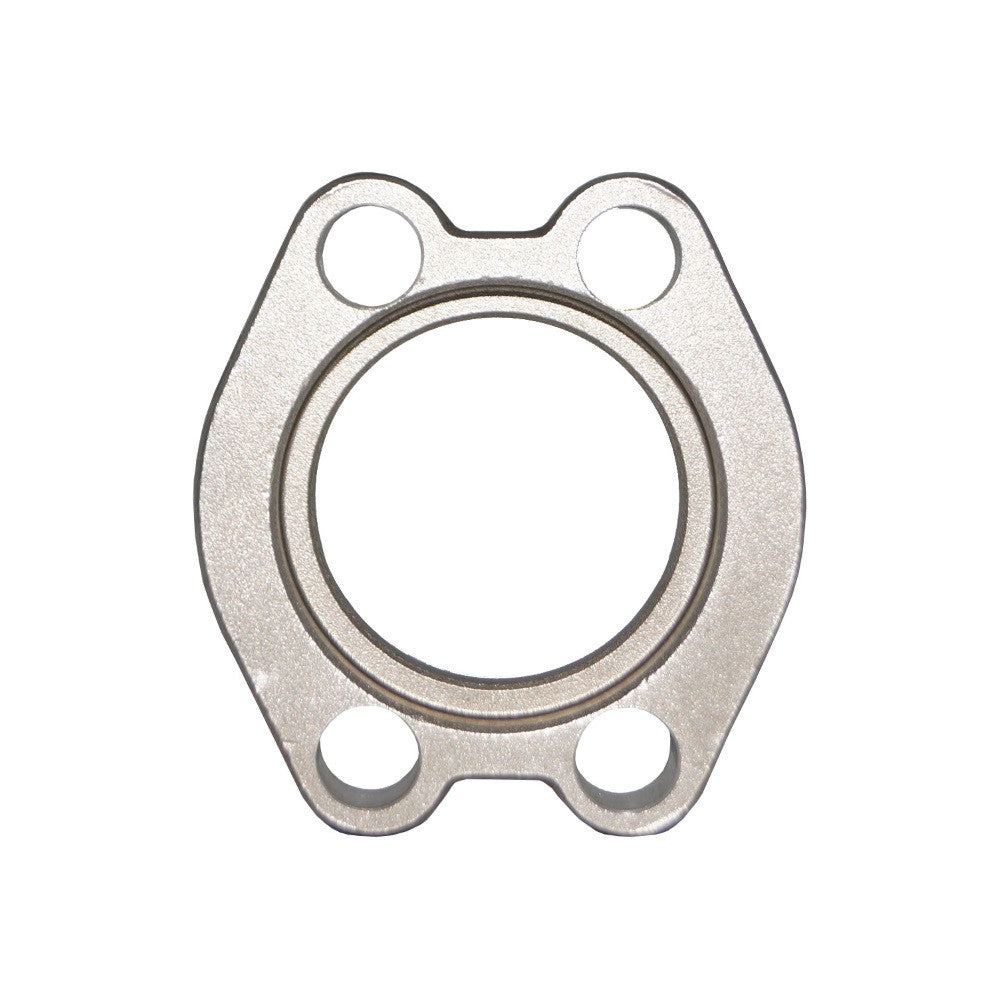

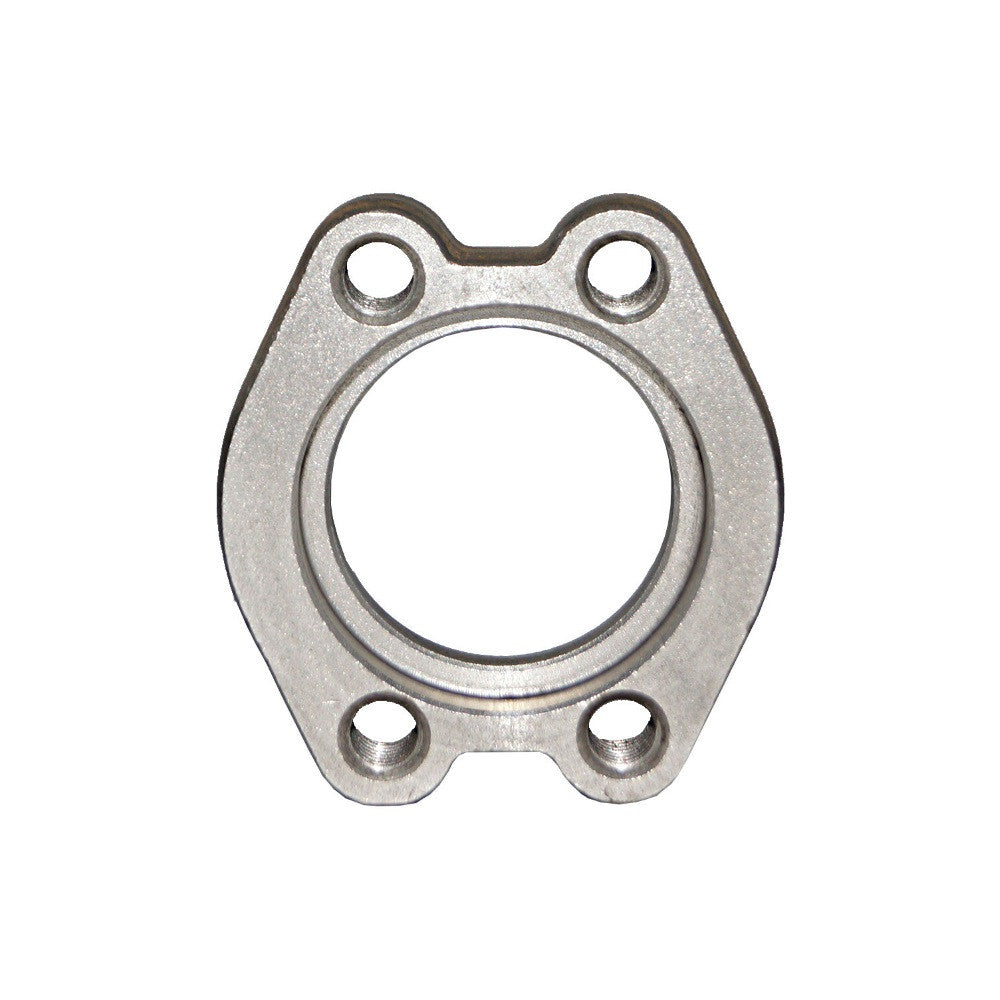

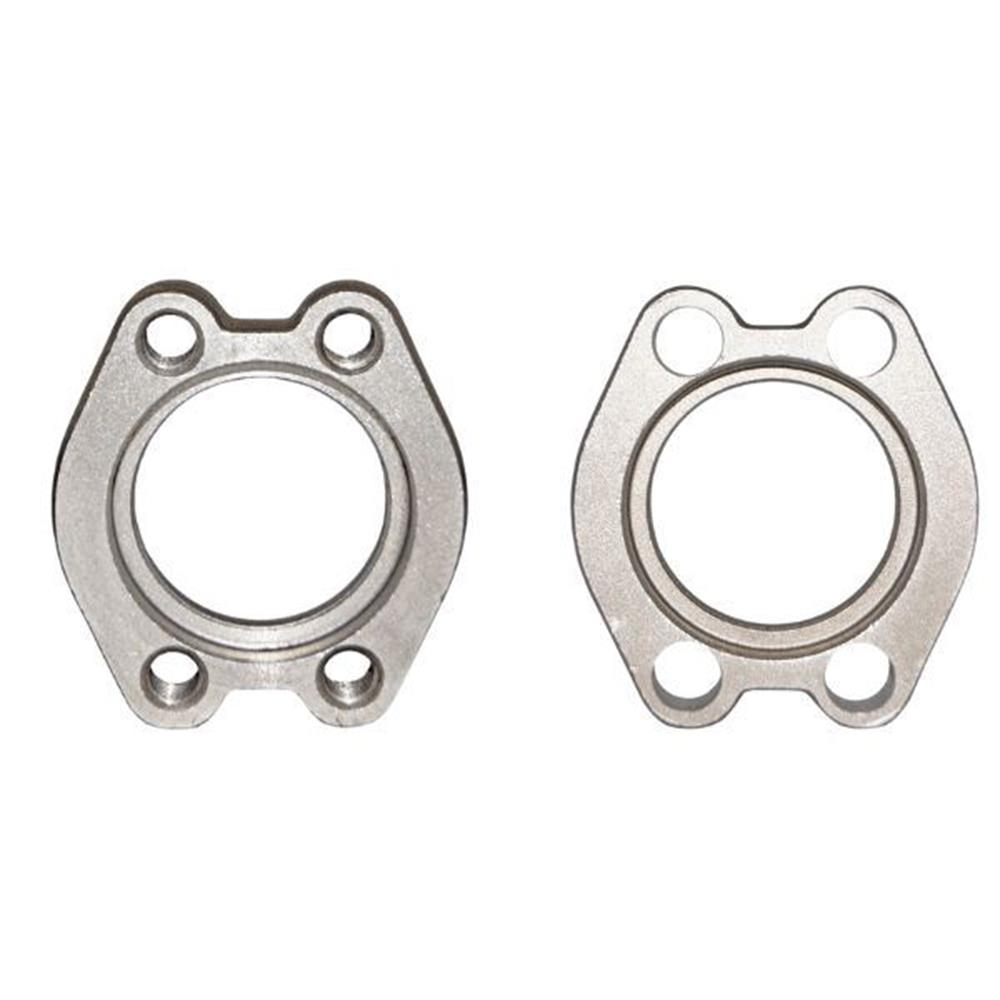

A hydraulic uncut SAE split flange is a type of uncut split flange manufactured in accordance with ISO 6162 and SAE J518 standards.
There are two pressure series for hydraulic SAE Socket Weld Flange: 3000 psi and 6000 psi.
Please get in touch with us for free samples or more information on split flange hydraulic fittings.
Features and Benefits:
• Strong seal
• Temperature resistance
• High-pressure resistance
• No leaks
Categories: SAE, Flange, Code 62, Code61, Carbon steel,

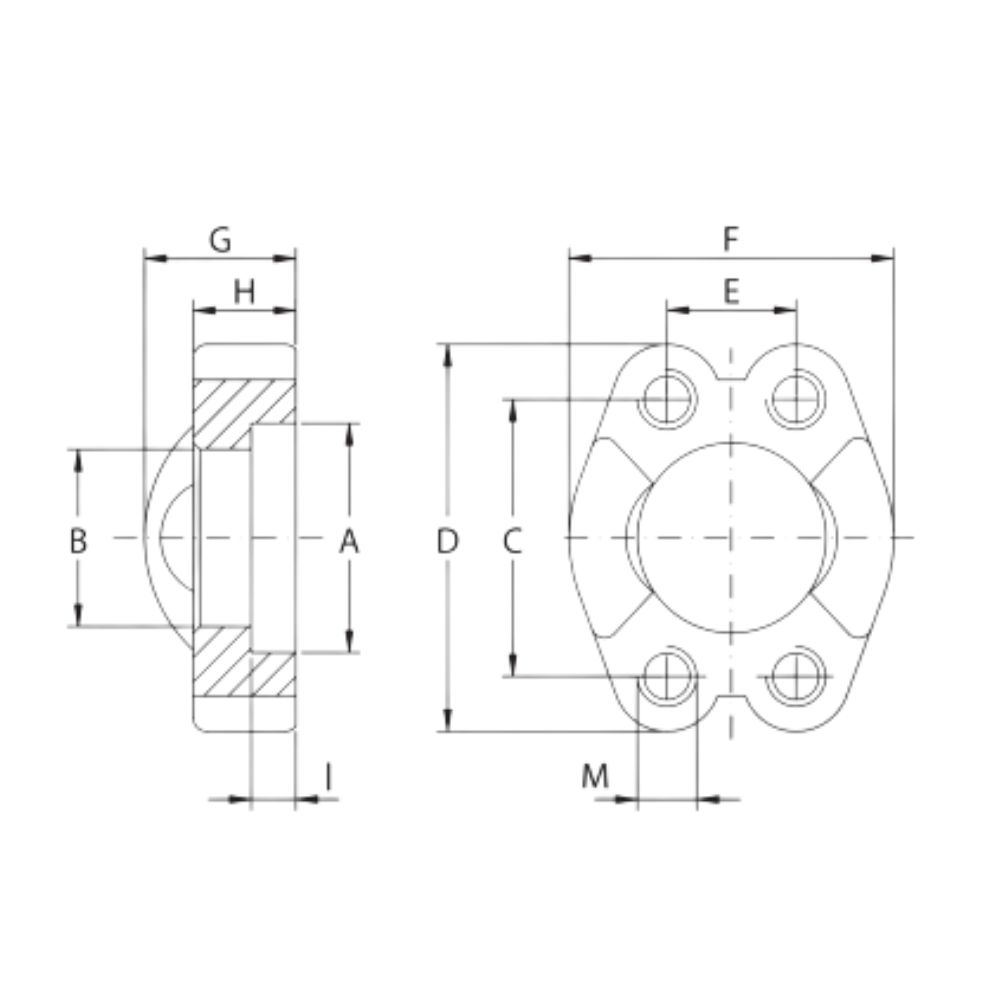

MAX. W.P (kg/cm²） | Size | Type | Dimension | Wt Kg | |||||||||
A | B | C | D | E | F | G | H | I | M | ||||
3000PSI | |||||||||||||
345 | 1/2″ | GFSI301 | 30.96 | 24.26 | 38.1 | 54 | 17.48 | 45.6 | 19 | 13 | 6.22 | M8 | 0.12 |
345 | 3/4″ | GFSI302 | 38.89 | 32.13 | 47.63 | 65 | 22.23 | 51.8 | 22 | 14 | 6.22 | M10 | 0.16 |
345 | 1″ | GFSI303 | 45.24 | 38.48 | 52.37 | 70 | 26.19 | 58.4 | 24 | 16 | 7.49 | M10 | 0.22 |
276 | 1″1/4 | GFSI304 | 51.59 | 43.69 | 58.72 | 79 | 30.18 | 72.6 | 22 | 14 | 7.49 | M10 | 0.3 |
207 | 1″1/2 | GFSI305 | 61.09 | 50.8 | 69.85 | 94 | 35.71 | 82.2 | 25 | 16 | 7.49 | M12 | 0.43 |
207 | 2″ | GFSI306 | 72.24 | 62.74 | 77.77 | 102 | 42.88 | 96.4 | 26 | 16 | 9.02 | M12 | 0.56 |
172 | 2″1/2 | GFSI307 | 84.94 | 74.93 | 88.9 | 114 | 50.8 | 108.2 | 38 | 19 | 9.02 | M12 | 0.74 |
138 | 3″ | GFSI308 | 102.39 | 90.93 | 106.38 | 135 | 61.93 | 130.6 | 41 | 22 | 9.02 | M16 | 1.3 |
34 | 3″1/2 | GFSI309 | 115.1 | 102.36 | 120.65 | 152 | 69.85 | 139 | 28 | 22 | 10.72 | M16 | 1.27 |
34 | 4″ | GFSI310 | 127.79 | 115.06 | 130.18 | 162 | 77.77 | 152 | 35 | 25 | 10.72 | M16 | 1.65 |
34 | 5″ | GFSI311 | 153.19 | 140.46 | 152.4 | 184 | 92.08 | 180 | 41 | 28 | 10.72 | M16 | 2.5 |
6000PSI | |||||||||||||
414 | 1/2″ | GFSI601 | 32.54 | 24.64 | 40.49 | 56 | 18.24 | 47.2 | 22 | 16 | 7.24 | M8 | 0.16 |
414 | 3/4″ | GFSI602 | 42.06 | 32.51 | 50.8 | 71 | 23.8 | 60 | 28 | 19 | 8.26 | M10 | 0.34 |
414 | 1″ | GFSI603 | 48.41 | 38.86 | 57.15 | 81 | 27.76 | 69.6 | 33 | 24 | 9.02 | M12 | 0.51 |
414 | 1″1/4 | GFSI604 | 54.76 | 44.45 | 66.68 | 95 | 31.75 | 77.2 | 38 | 27 | 9.78 | M14 | 0.8 |
414 | 1″1/2 | GFSI605 | 64.29 | 51.56 | 79.38 | 113 | 36.5 | 95 | 43 | 30 | 12.07 | M16 | 1.44 |
414 | 2″ | GFSI606 | 80.16 | 67.56 | 96.82 | 133 | 44.45 | 113.8 | 52 | 37 | 12.07 | M20 | 2.1 |
In this video, a comprehensive explanation of the hydraulic uncut SAE split flange is given.
Additionally, hydraulic uncut SAE split flanges are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.
Please contact us if you have any questions about the hydraulic split flange size chart.
