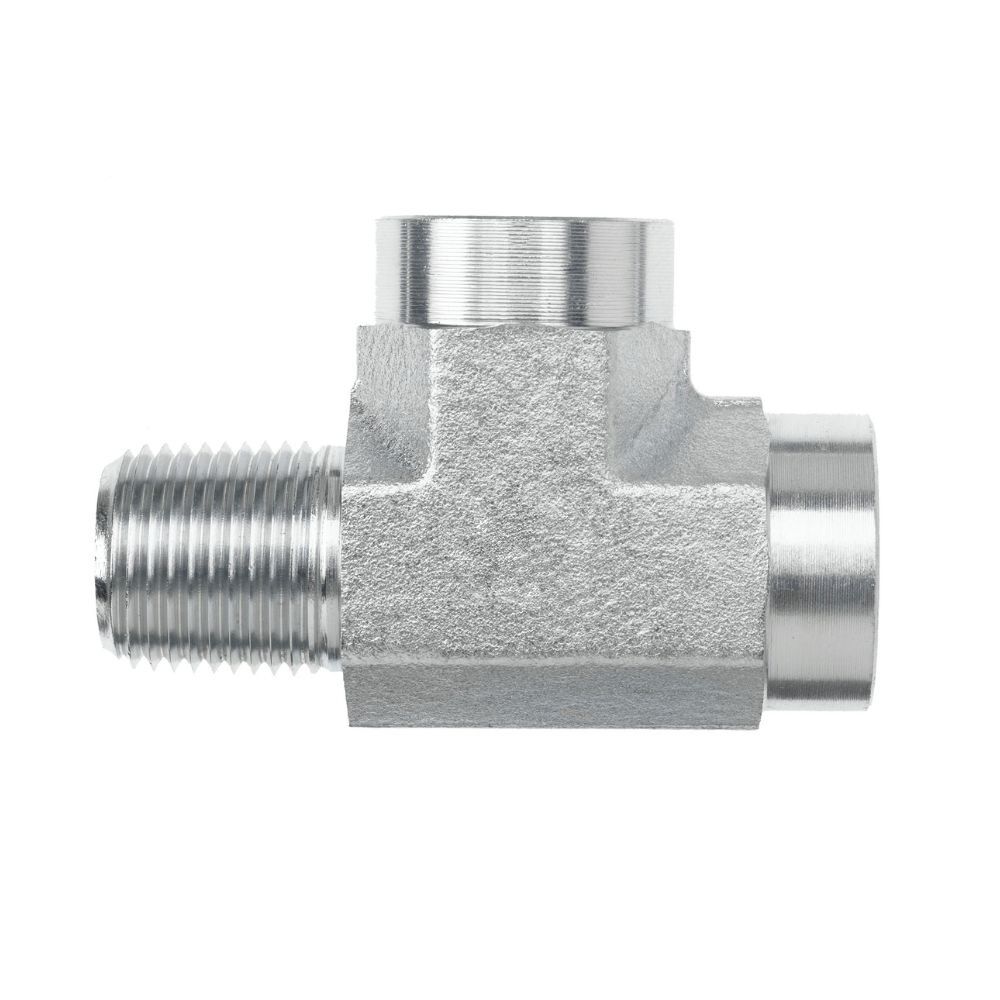

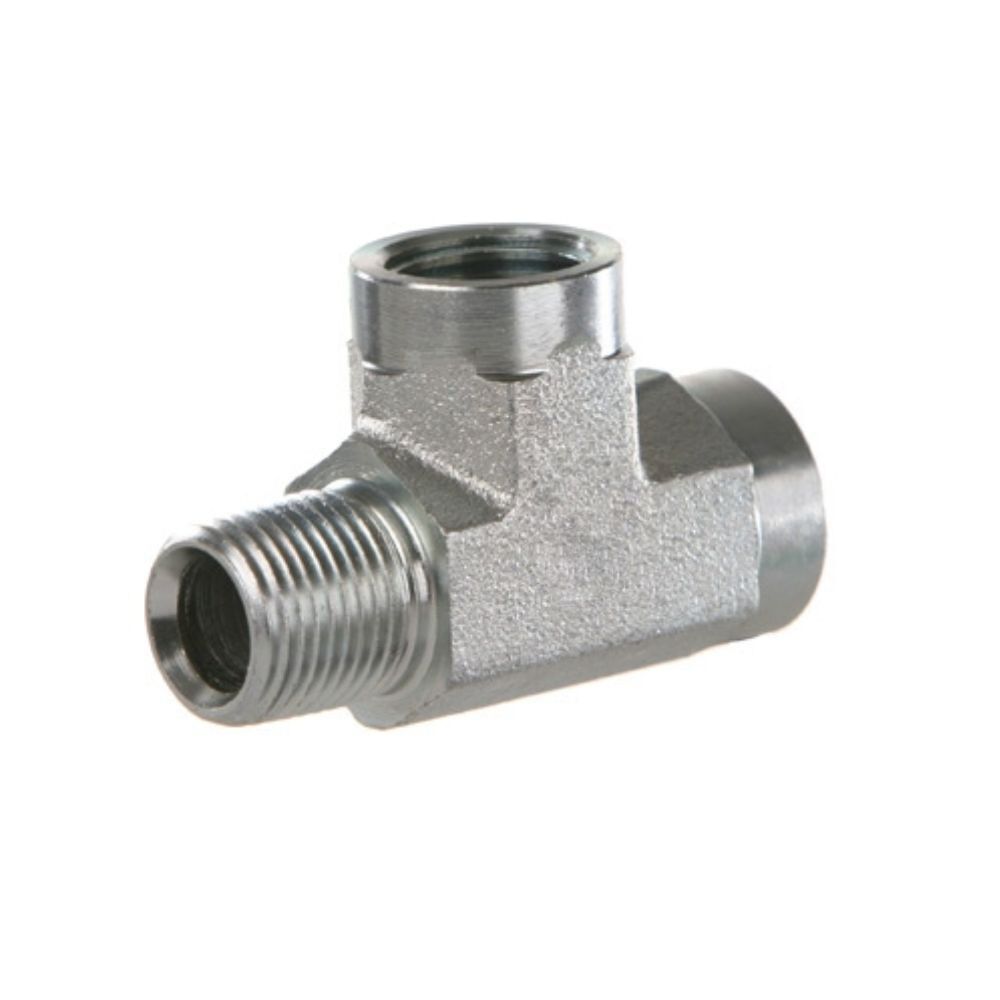

Description

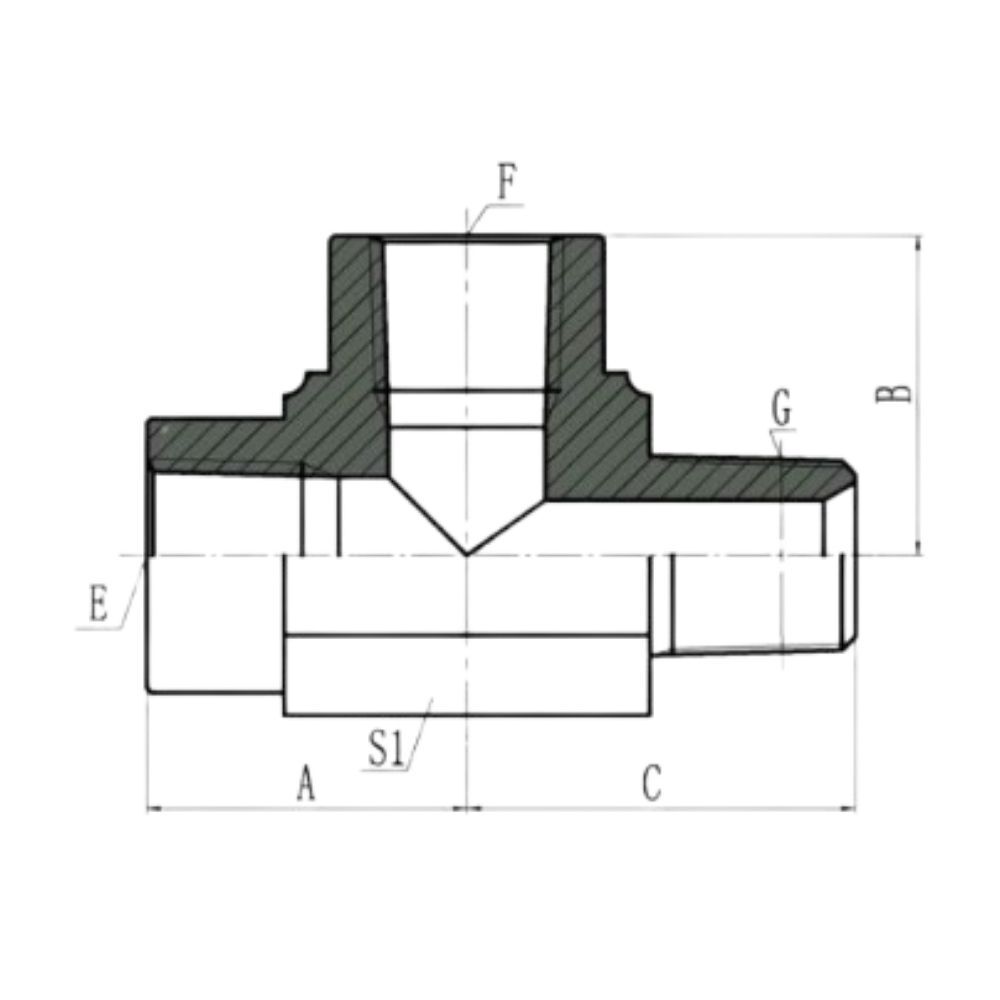

PART | THREAD | DIMENSIONS | |||||
E | F | G | A | B | C | S1 | |
HN-02 | Z1/8”*27 | Z1/8**27 | Z1/8”*27 | 20 | 20 | 24.5 | 16 |
HN-04 | Z1/4”*18 | Z1/4″*18 | Z1/4”*18 | 25 | 25 | 28.5 | 19 |
HN-06 | Z3/8”*18 | Z3/8”*18 | Z3/8”*18 | 27 | 27 | 33.5 | 24 |
HN-08 | Z1/2”*14 | Z1/2”*14 | Z1/2”*14 | 35 | 35 | 42.5 | 30 |
HN-12 | Z3/4”*14 | Z3/4”*14 | Z3/4”*14 | 37 | 37 | 45.2 | 33 |
HN-16 | Z1”*11.5 | Z1”*11.5 | Z1”*11.5 | 44 | 44 | 54.7 | 41 |
HN-20 | Z1.1/4”*11.5 | Z1.1/4”*11.5 | Z1.1/4*11.5 | 48 | 48 | 58.5 | 48 |
HN NPTF Hydraulic Tee Fitting Video
This video shows information about HN NPTF hydraulic tee fitting.
Typically, hydraulic tee fittings are commonly used in hydraulic applications such as in industrial machinery, construction equipment, and hydraulic systems.
If you have any questions about hydraulic tee fittings, please contact us.
