Description:

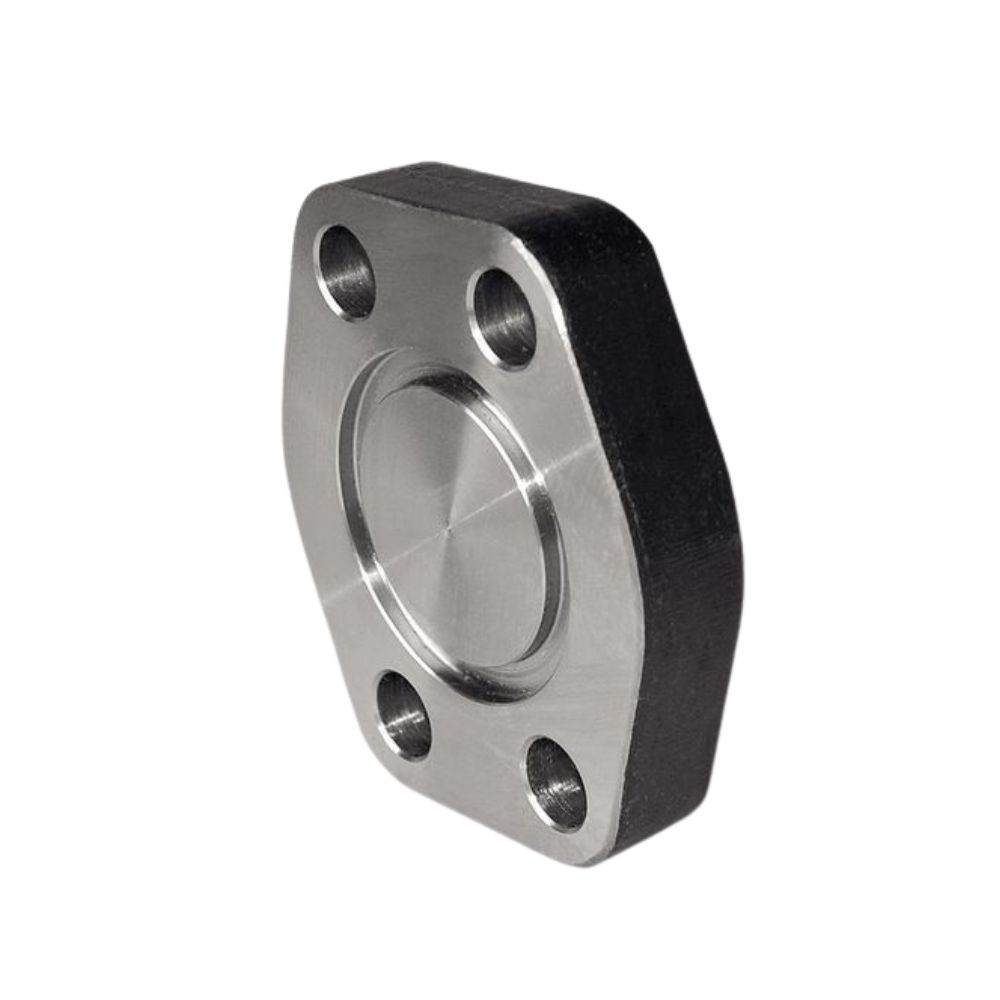

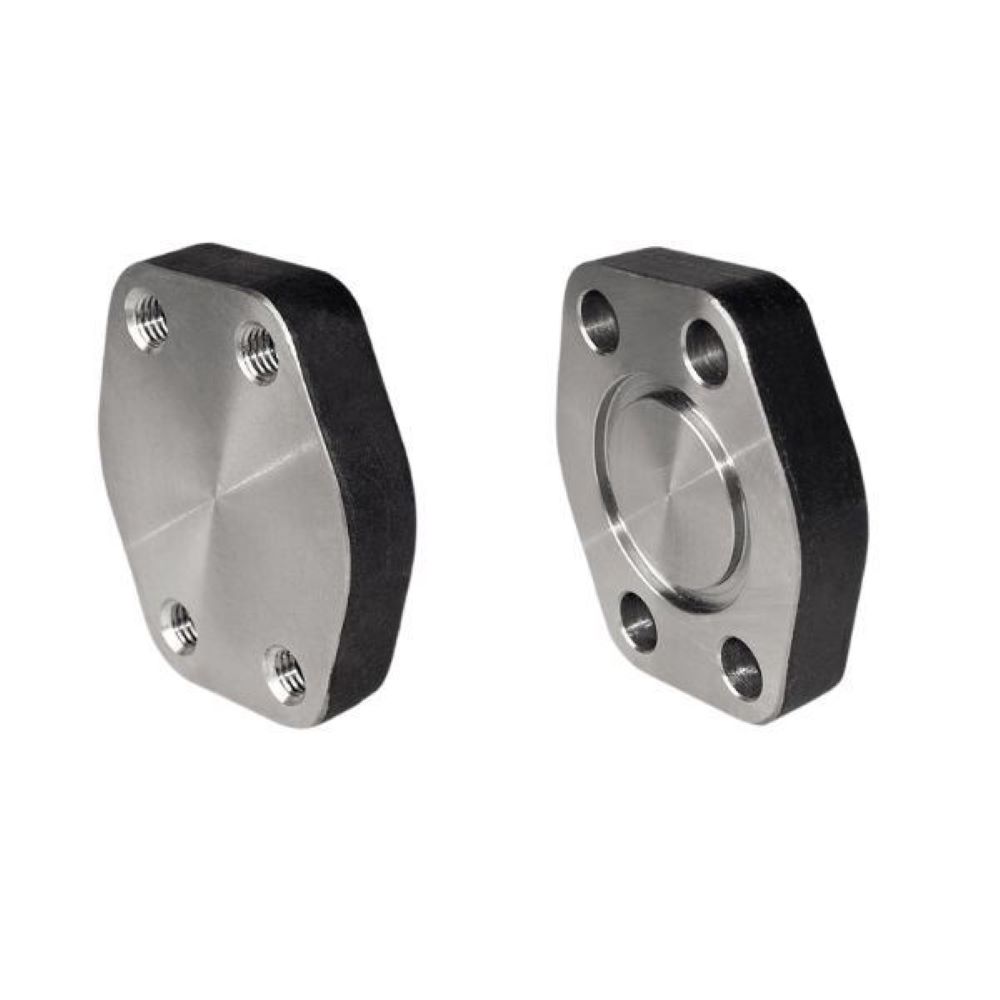

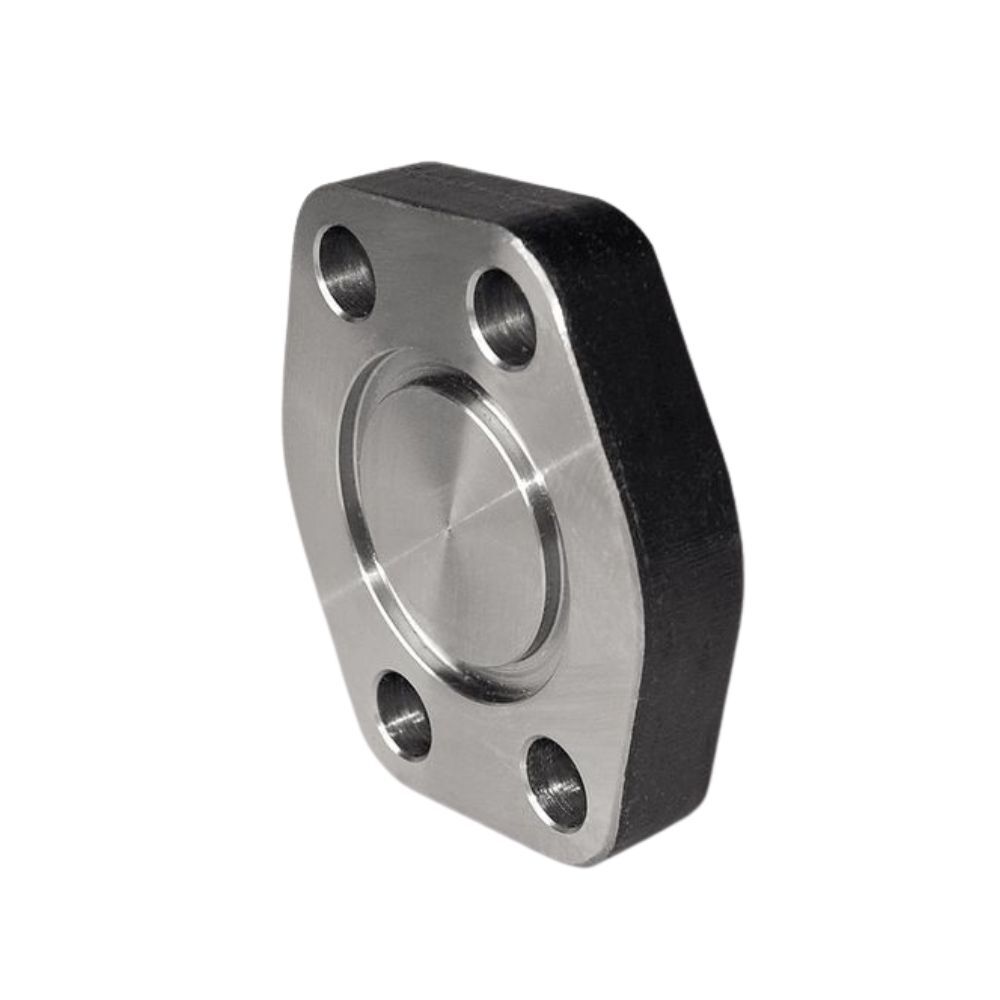

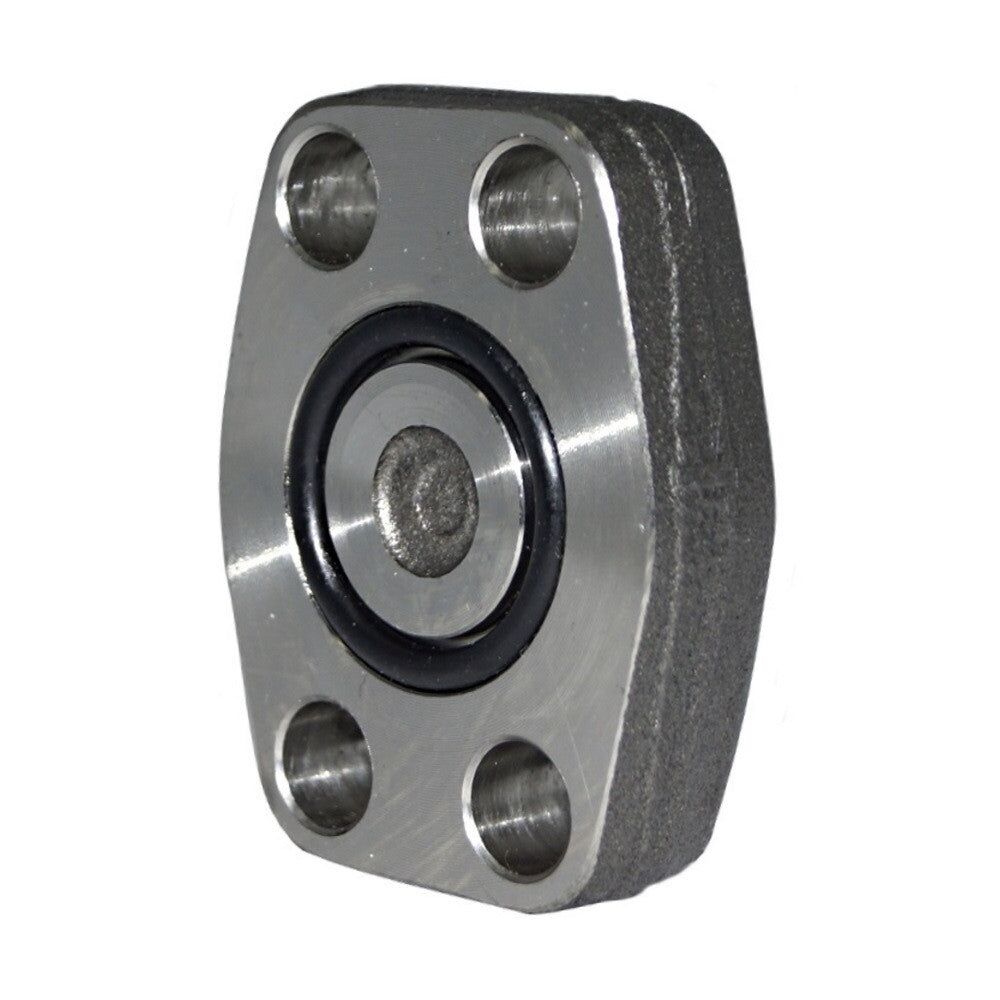

A hydraulic SAE blind flange is a type of flange manufactured in accordance with ISO 6162 and SAE J518 standards. There are two pressure series for hydraulic SAE Socket Weld Flange: 3000 psi and 6000 psi.
A blind flange is a solid disc that is used to stop a pipe or shut it off. The O-ring sealing ring is attached to the mating surface, and the blind flange contains mounting holes all the way around the flange. However, the blind flange lacks any apertures, making it impossible for fluid to travel through.
Please get in touch with us for free samples or more information on hydraulic sae flanges.
Features and Benefits:
• Strong seal
• Temperature resistance
• High-pressure resistance
• No leaks
Categories: SAE, Flange, Code 62, Code61, Carbon steel,

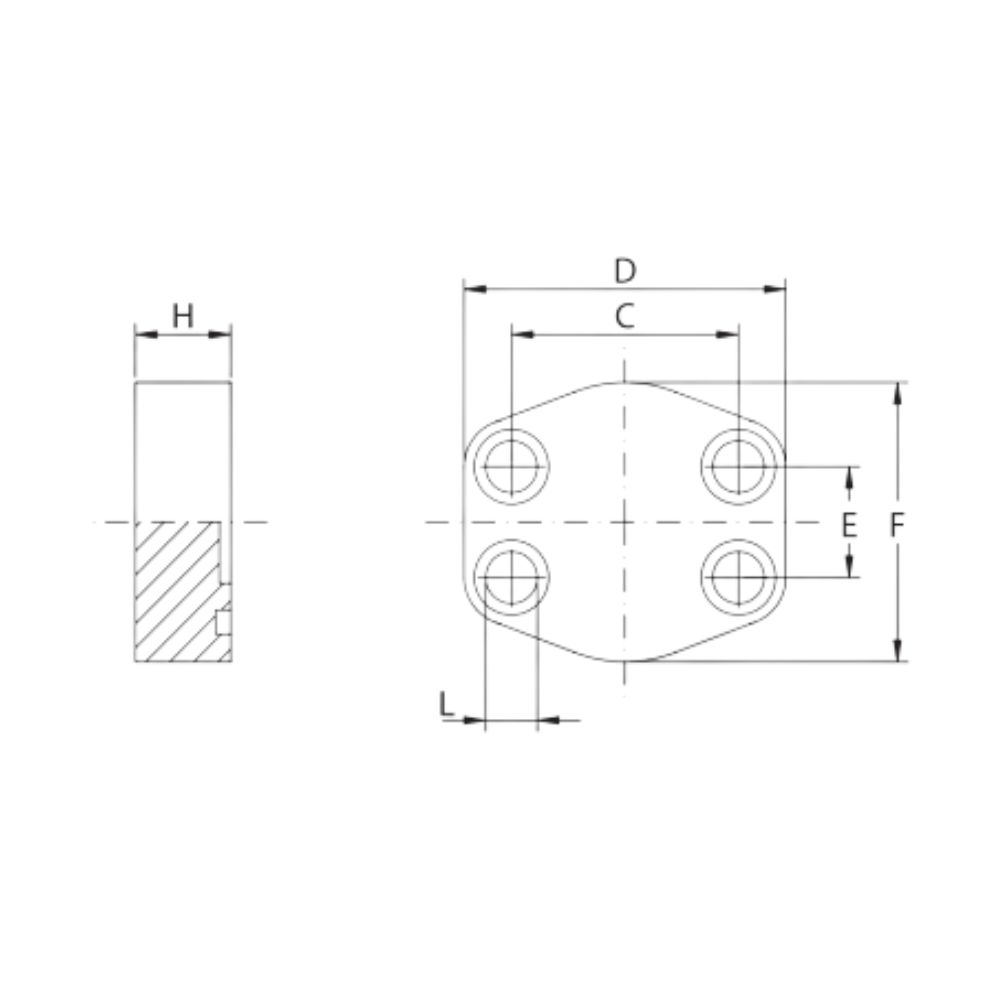

MAX. W.P (kg/cm²） | Size | Type | Dimension | M | Unc | O-ring | |||||
C | D | E | F | H | L | ||||||
SERIE 3000 | |||||||||||
345 | 1/2″ | AFC080 | 38.1 | 56 | 17.48 | 46 | 16 | 9 | M8x30 | 5/16×1″1/4 | 4075 |
345 | 3/4″ | AFC100 | 47.63 | 65 | 22.23 | 50 | 18 | 11 | M10x35 | 3/8×1″1/2 | 4100 |
345 | 1″ | AFC102 | 52.37 | 70 | 26.19 | 60 | 19 | 11 | M10x35 | 3/8×1″1/2 | 4131 |
276 | 1″1/4 | AFC104 | 58.72 | 79 | 30.18 | 68 | 18 | 11.5 | M10x40 | 7/16×1″3/4 | 4150 |
207 | 1″1/2 | AFC106 | 69.85 | 93 | 35.71 | 78 | 20 | 13.5 | M12x45 | 1/2×1″3/4 | 4187 |
207 | 2″ | AFC108 | 77.77 | 102 | 42.88 | 90 | 20 | 13.5 | M12x45 | 1/2×1″3/4 | 4225 |
172 | 2″1/2 | AFC110 | 88.9 | 114 | 50.8 | 105 | 20 | 13.5 | M12x45 | 1/2×1″3/4 | 4275 |
138 | 3″ | AFC112 | 106.38 | 134 | 61.93 | 124 | 24 | 17.5 | M16x50 | 5/8×2″ | 4337 |
34 | 3″1/2 | AFC114 | 120.65 | 152 | 69.85 | 136 | 22 | 17.5 | M16x50 | 5/8×2″ | 4387 |
34 | 4″ | AFC116 | 130.18 | 162 | 77.77 | 146 | 25 | 17.5 | M16x50 | 5/8×2″ | 4437 |
34 | 5″ | AFC118 (•) | 152.4 | 190 | 92.08 | 170 | 28 | 17.5 | M16x50 | 5/8×2″ | 4537 |
SERIE 6000 | |||||||||||
414 | 1/2″ | AFC401 | 40.49 | 56 | 18.24 | 48 | 16 | 9 | M8x30 | 5/16×1″1/4 | 4075 |
414 | 3/4″ | AFC402 | 50.8 | 71 | 23.8 | 60 | 19 | 11 | M10x35 | 3/8×1″1/2 | 4100 |
414 | 1″ | AFC403 | 57.15 | 81 | 27.76 | 70 | 24 | 13 | M12x45 | 7/16×1″3/4 | 4131 |
414 | 1″1/4 | AFC404 | 66.68 | 95 | 31.75 | 78 | 27 | 15 * | M14x45 | 1/2×1″3/4 | 4150 |
414 | 1″1/2 | AFC405 | 79.38 | 112 | 36.5 | 94 | 30 | 17 | M16x50 | 5/8×2″ | 4187 |
414 | 2″ | AFC406 | 96.82 | 134 | 44.45 | 114 | 30 | 21 | M20x60 | 3/4×2″1/2 | 4225 |
414 | 2″1/2 | AFC507 | 123.8 | 180 | 58.7 | 152 | 45 | 26 | M24x80 |
| 4275 |
414 | 3″ | AFC508 | 152.4 | 208 | 71.4 | 178 | 55 | 33 | M30x100 |
| 4337 |
In this video, a comprehensive explanation of the hydraulic SAE blind flange is given.
Additionally, hydraulic SAE blind flanges are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.
Please contact us if you have any questions about the 4 bolt flange hydraulic fitting.
