Hydraulic Hose Crimping Ferrule

Description:

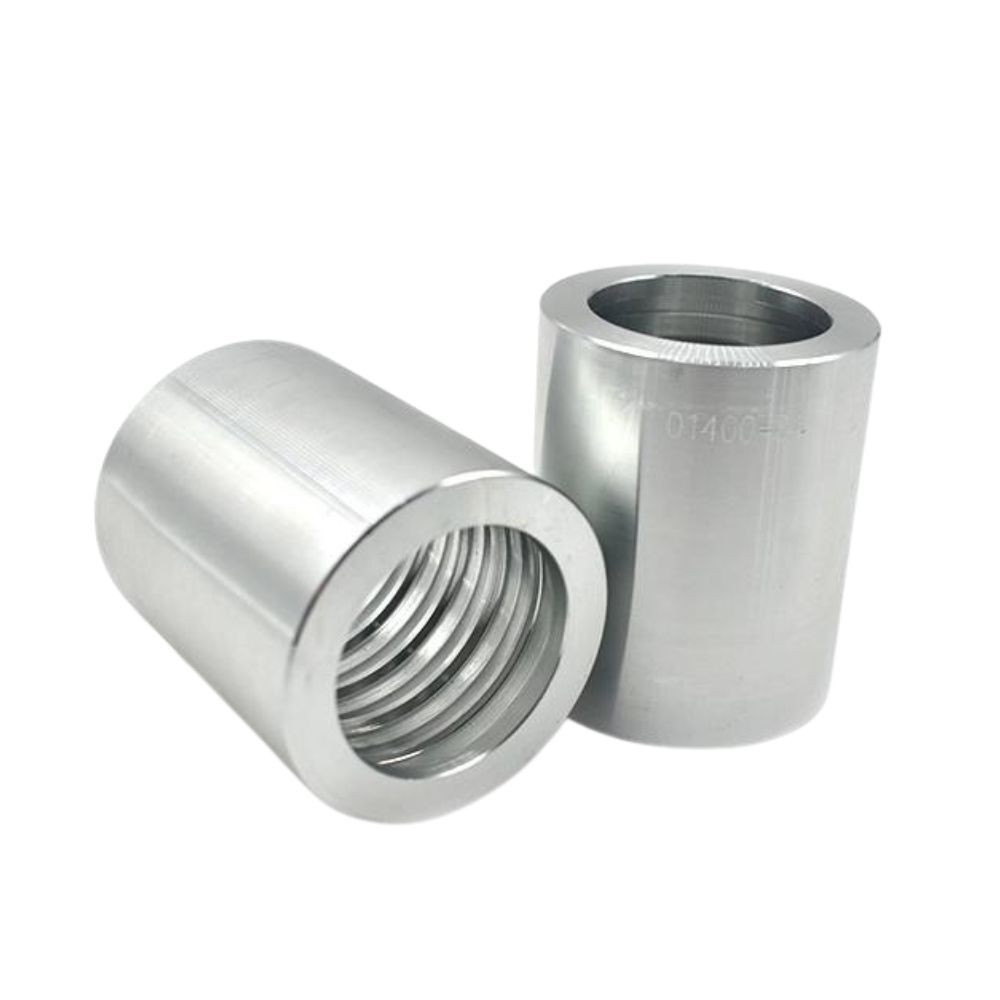

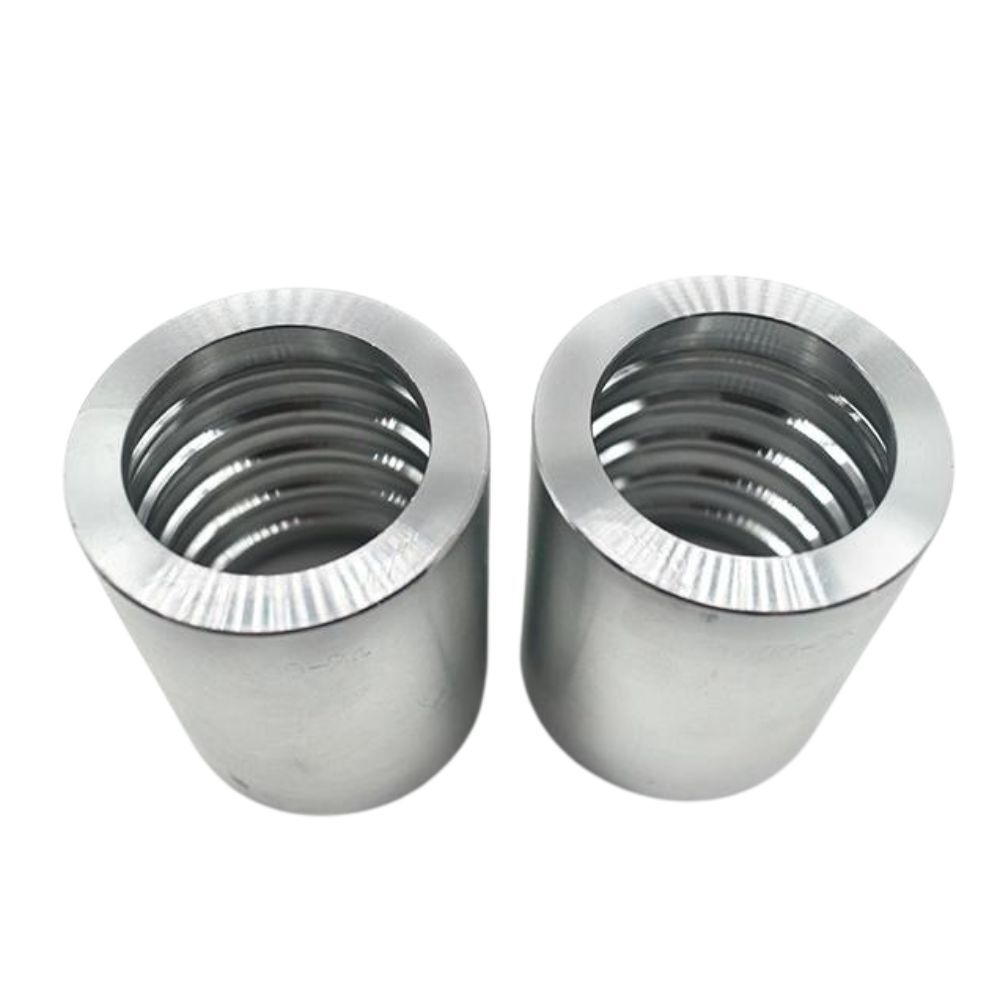

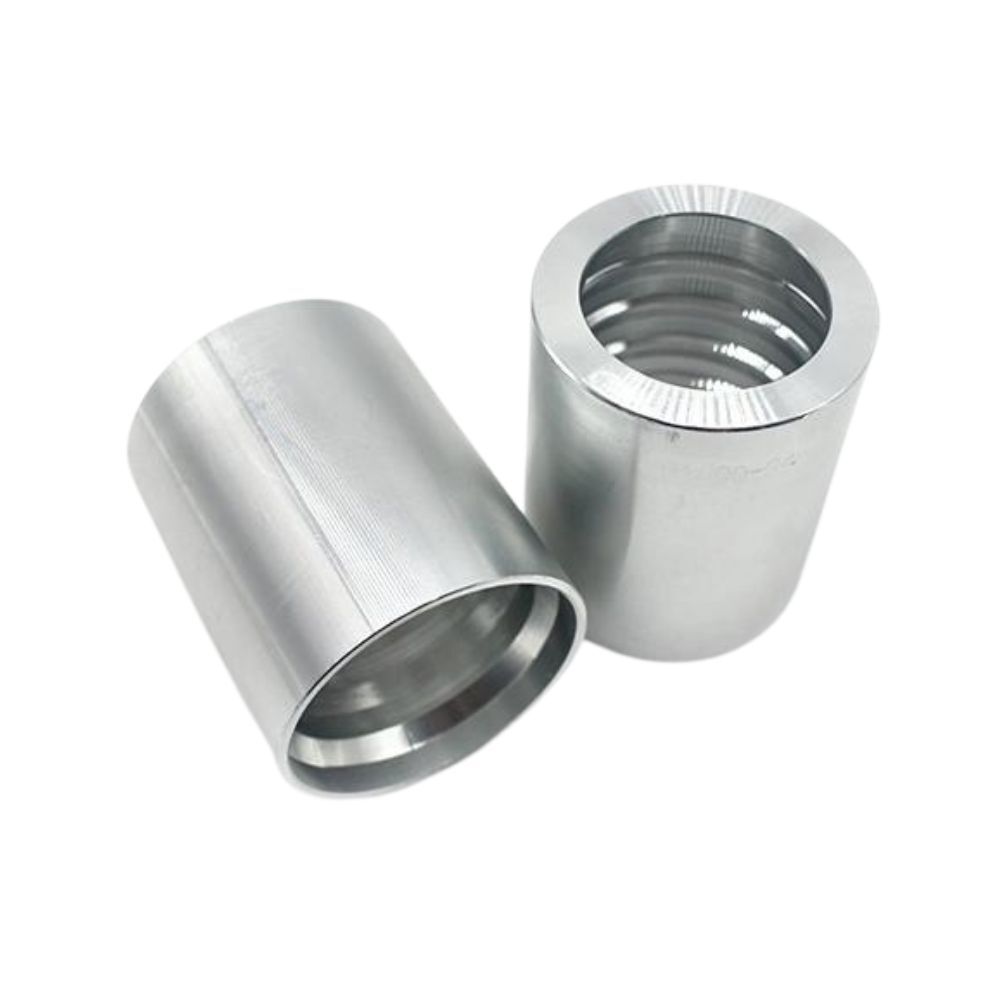

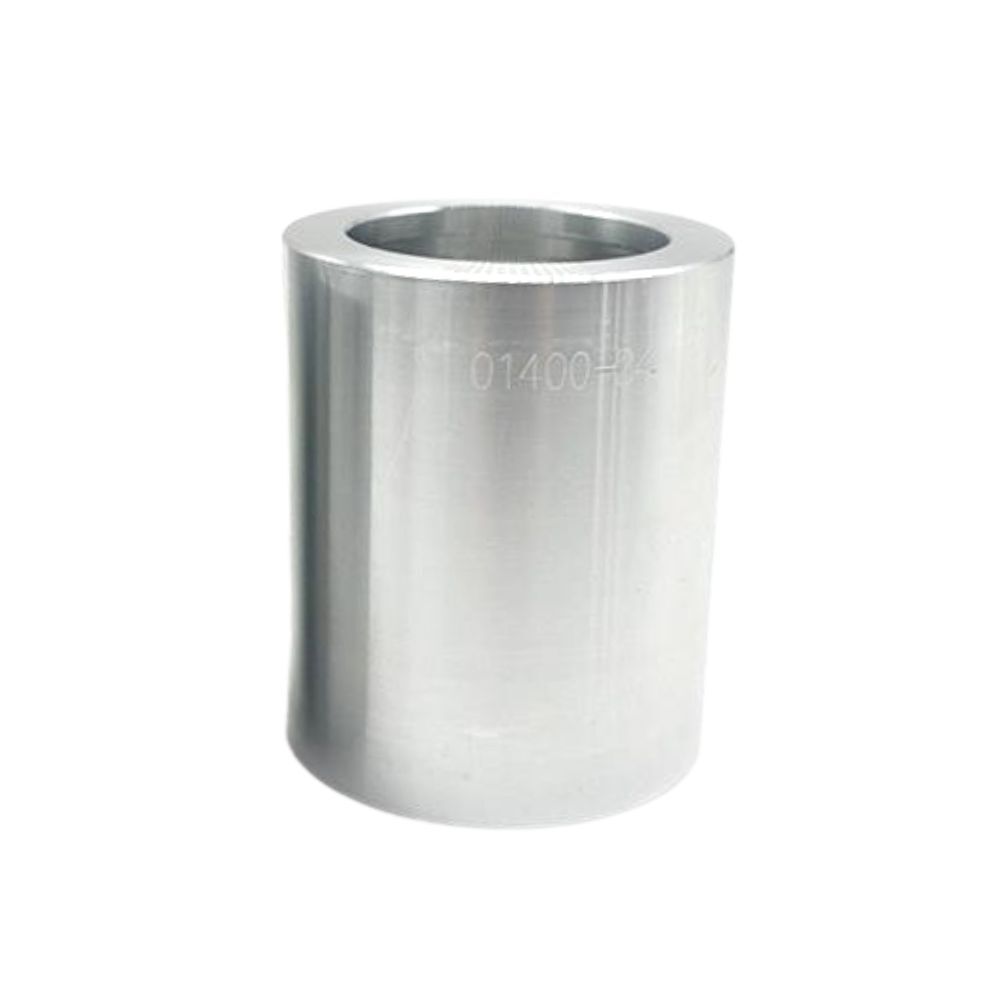

01400 Hydraulic crimp hose ferrule is a type of hose ferrule used for hydraulic 4-spiral hose, R12/20-24 hoses.

Typically, a hose sleeve/ferrule is crimped onto the end of a hydraulic hose to secure the hose to a fitting where a leak-free seal can be formed.

Feel free to ask any questions about the fuel hose ferrule.

Features and Benefits:

• Secure
• Strength
• Easy to operate
• Customize

Description

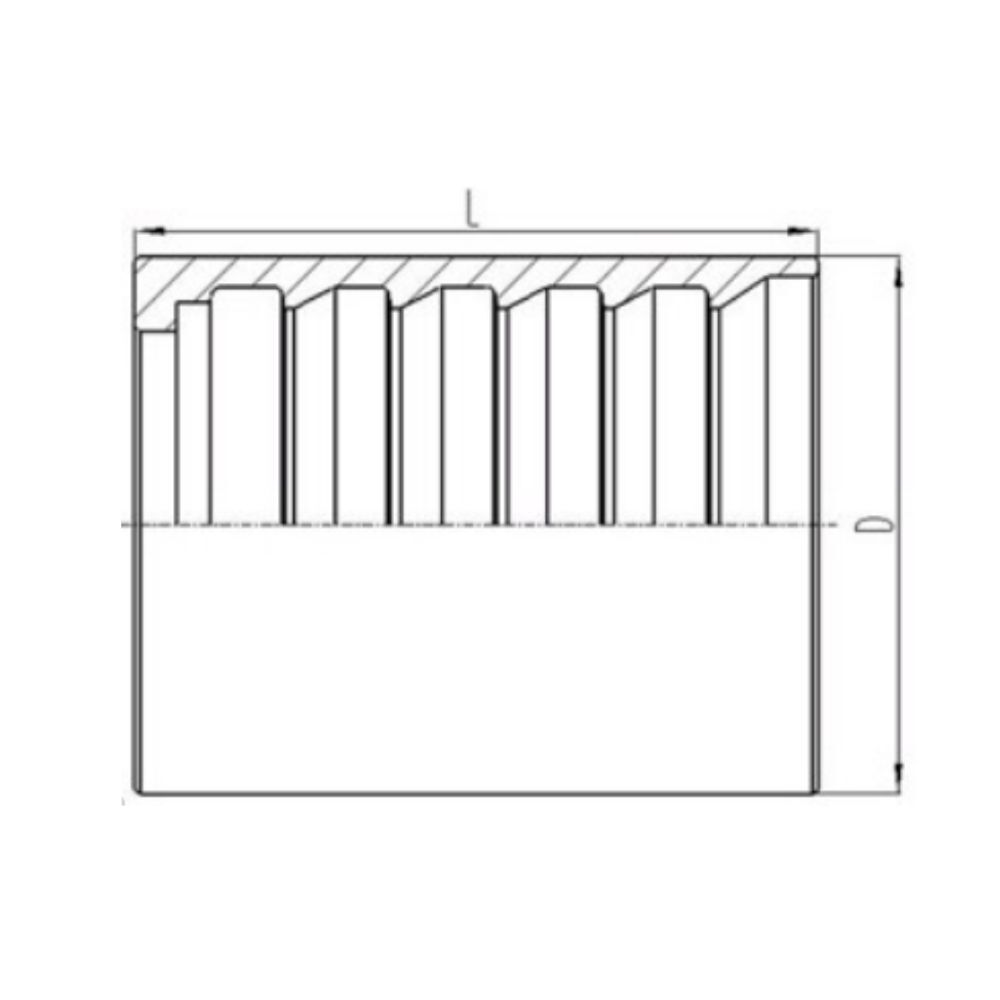

	HOSE BORE		DIMENSIONS
PART NO.	DN	DASH	D	L
01400-04	6	4	22	37.5
01400-06	10	6	27.5	39
01400-08	12	8	31.5	41
01400-10	16	10	34	43
01400-12	20	12	39	51
01400-14	22	14	43.5	54
01400-16	25	16	46.5	61.5
01400-20	32	20	55.5	67.5
01400-24	38	24	63.5	75
01400-32	51	32	78	79

01400 Hydraulic Hose Crimping Ferrule Video

This video shows information about hydraulic hose crimping ferrule 01400.

Hydraulic hose ferrules 01400 are available in a large number of sizes and materials. And ferrules play a critical role in construction equipment, agriculture, automotive, and industry.

If you have any questions about rubber hose ferrule, please contact us.
