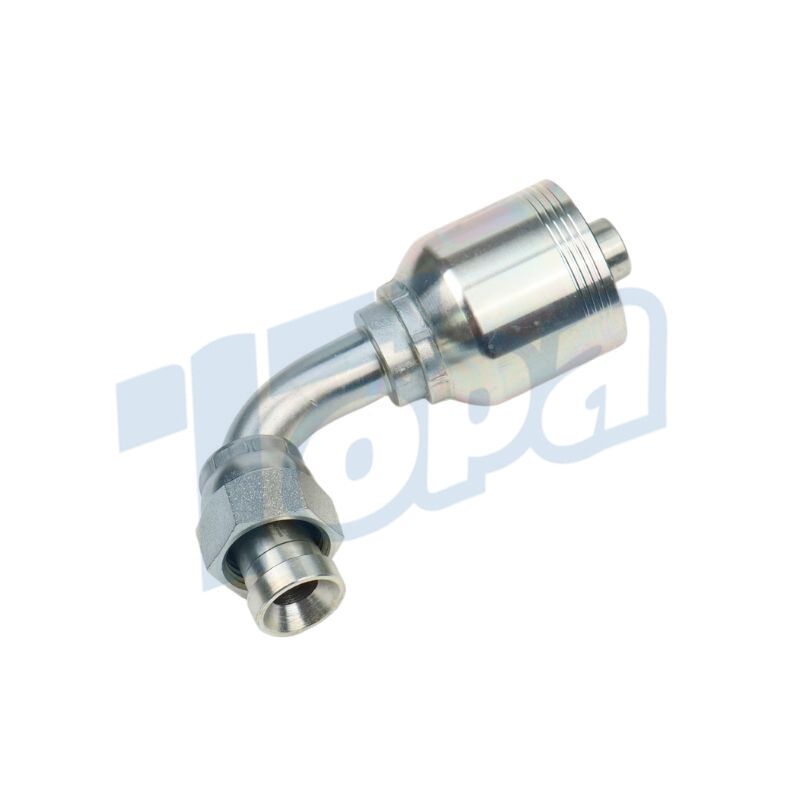

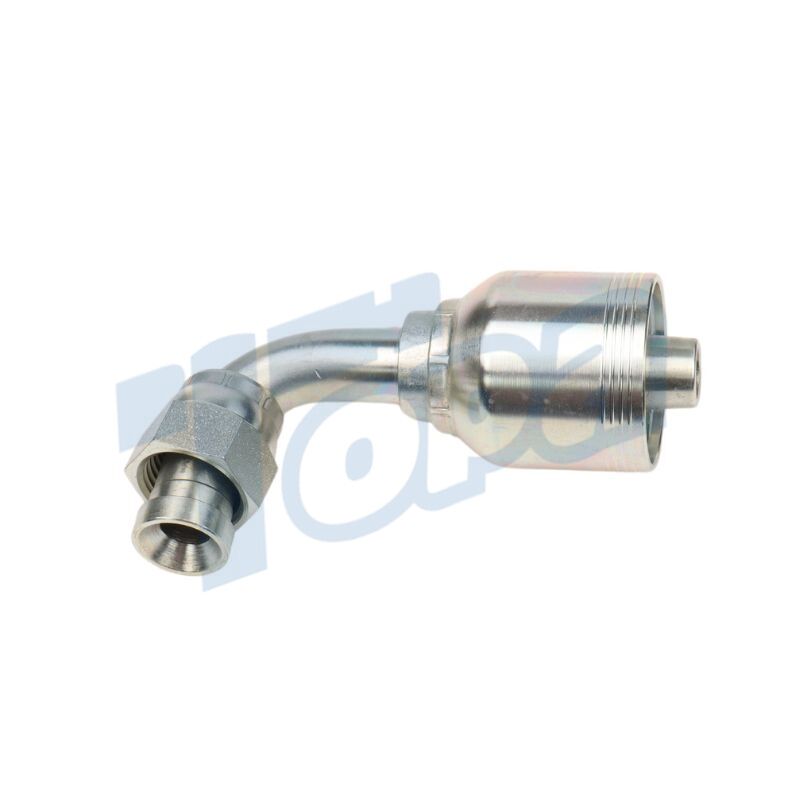

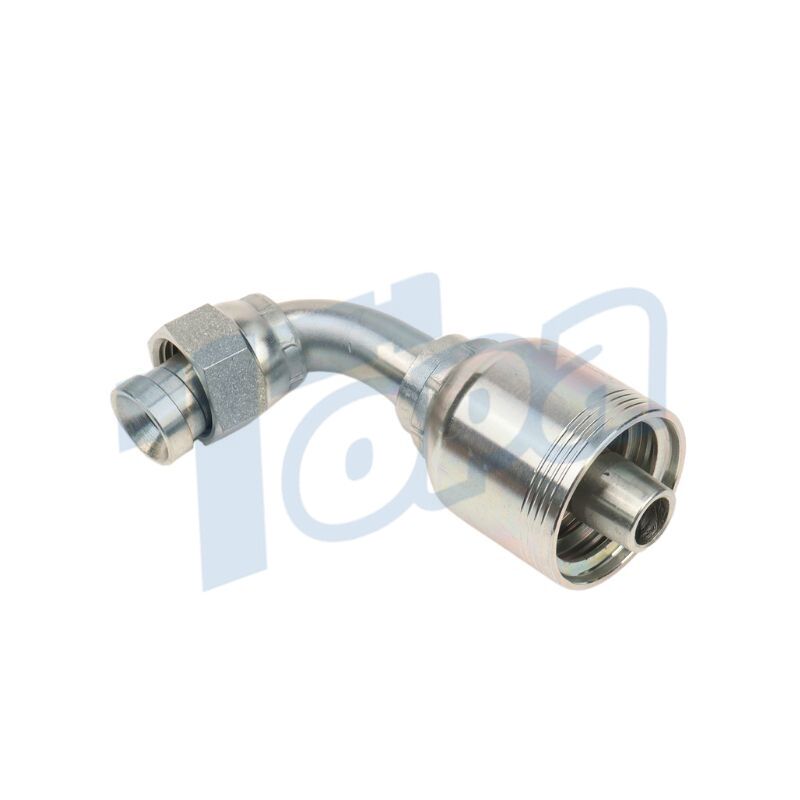

13971 JIC Hydraulic Crimp Fittings

Topa’s JIC hydraulic hose crimp fittings are designed to provide a secure connection and leak-free seal for hydraulic systems. Its construction is described in more detail below:

Connection 1: Female JIC Thread

Connection 2: Hose End

Material selection: Carbon steel; Stainless steel

Maximum Operating Pressure: 350 bar

Shape: Elbow 90° Short Drop

Product types: Crimped Fittings

Applications: Industrial Equipment, Manufacturing, Transportation, Oil & Gas

If you want hydraulic crimped hose fittings, just contact Topa. We can supply standard hose fittings, and also can custom crimped hose fittings for your special needs!

Description

Part No.	Hose Bore			Thread	W- HEX (mm)	Dimensions
Part No.	Size	Inch	DN	Thread	W- HEX (mm)	A(mm)	B(mm)	E(mm)
06-06FJ9	6	3/8″	10	9/16″-18	17.4	70	42	29
06-08FJ9	6	3/8″	10	3/4″-16	22.2	70	42	29
08-08FJ9	8	1/2″	12	3/4″-16	22.2	71	38	31
08-10FJ9	8	1/2″	12	7/8″-18	25.4	71	38	31
08-12FJ9	8	1/2″	12	1.1/16″-12	31.7	71	38	31
12-12FJ9	12	3/4″	20	1.1/16″-12	31.7	102	61	50
16-16FJ9	16	1″	25	1.5/16″-12	38.1	128	81	62
20-20FJ9	20	1.1/4″	32	1.5/8″-12	50.8	140	93	82
24-24FJ9	24	1.1/2″	40	1.7/8″-12	53.9	151	91	86
32-32FJ9	32	2″	50	2.1/2″-12	73	206	135	134

13971 JIC Crimp Hydraulic Fittings Video

The 13971 JIC hydraulic hose crimp fitting manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video expands, you will see the entire process of hydraulic hose crimp fittings from raw material cutting to final completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.
