Hydraulic Crimp Fitting

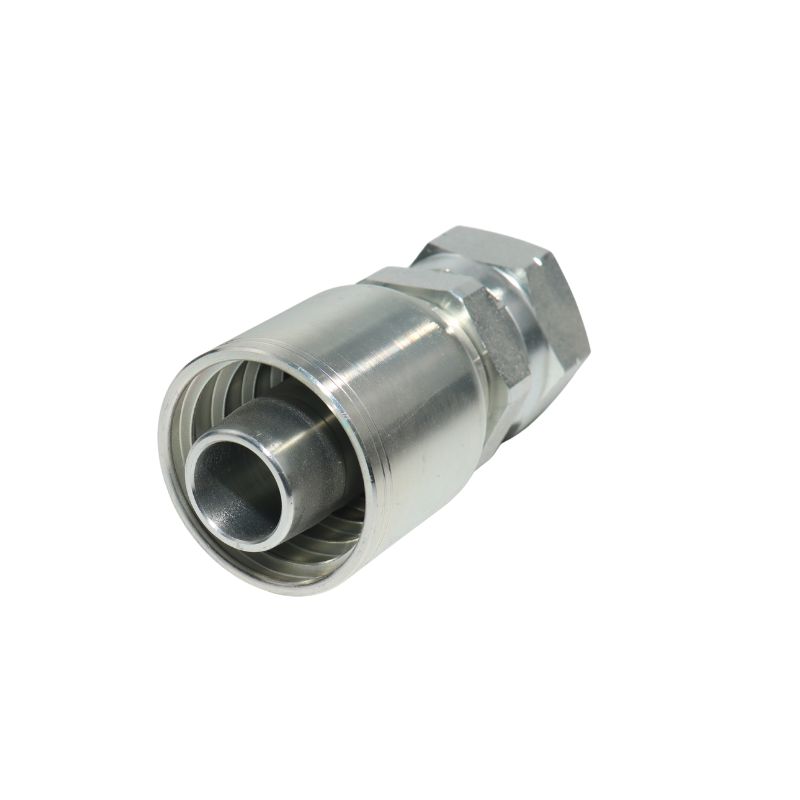

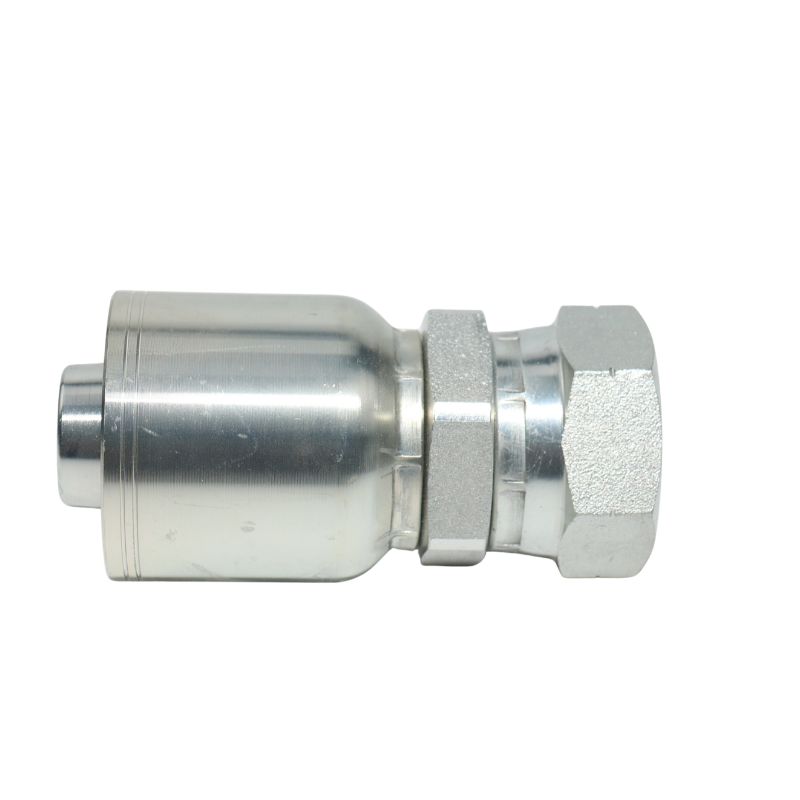

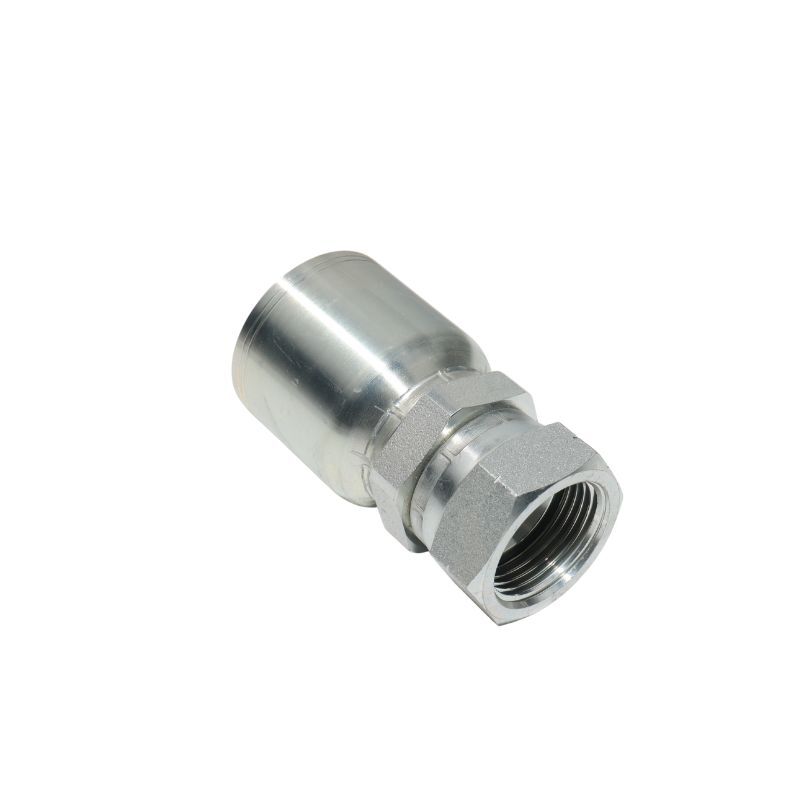

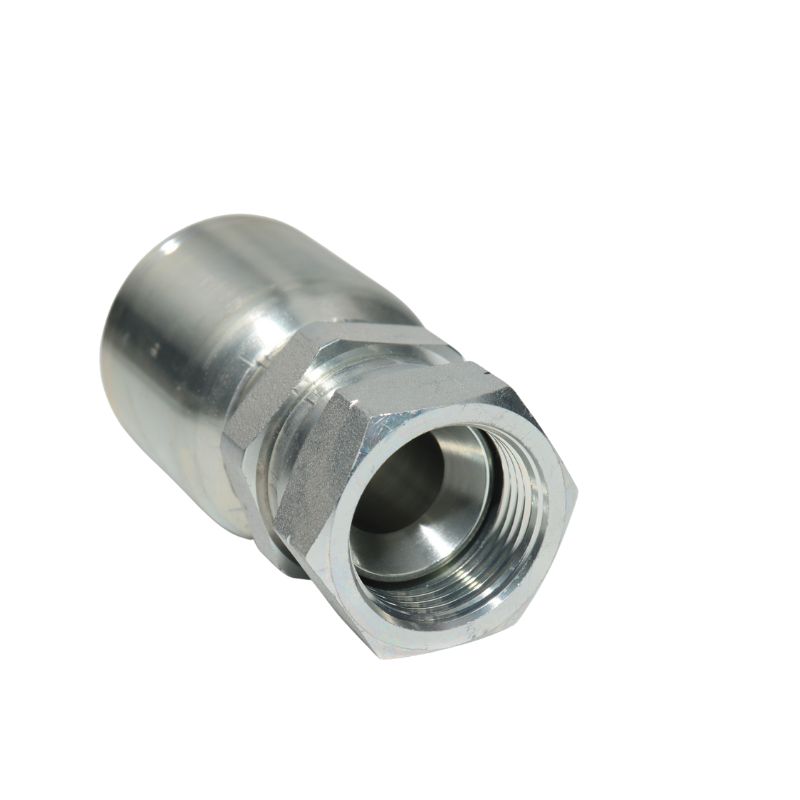

1FU43 JIS Hydraulic Crimp Fitting

Topa’s JIC hydraulic hose crimp fittings are designed to provide a secure connection and leak-free seal for hydraulic systems. Its construction is described in more detail below:

Connection 1: Female JIS

Connection 2: Hose End

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimped Fittings

Applications: Industrial Equipment, Manufacturing, Transportation, Agriculture

If you want hydraulic crimped hose fittings, just contact Topa. We can supply standard hose fittings, and also can custom crimped hose fittings for your special needs!

Description

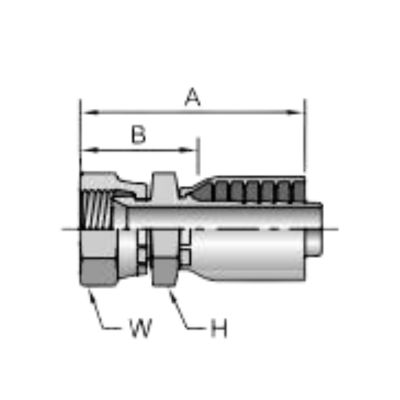

Part No.	1- Hose Bore			2- Thread	W- HEX	Dimensions
Part No.	Size	Inch	DN	2- Thread	W- HEX	A(mm)	B(mm)	H(mm)
04-04JIS	4	1/4″	6	1/4″-19	19	41	21	17
06-06JIS	6	3/8″	10	3/8″-19	22	49	22	22
08-08JIS	8	1/2″	12	1/2″-14	27	55	24	27
10-12JIS	10	5/8″	16	3/4″-14	32	65	27	27
12-12JIS	12	3/4″	19	3/4″-14	36	66	27	32
16-16JIS	16	1″	25	1″-11	41	77	32	36
20-20JIS	20	1.1/4″	32	1.1/4″-11	50	85	38	46
24-24JIS	24	1.1/2″	40	1.1/2″-11	55	102	43	55
32-32JIS	32	2″	50	2″-11	73	119	48	60

1FU43 JIS Hydraulic Crimp Fitting Video

The JIS crimp hose fitting manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video unfolds, you will see the entire process of hydraulic crimp fittings from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.
