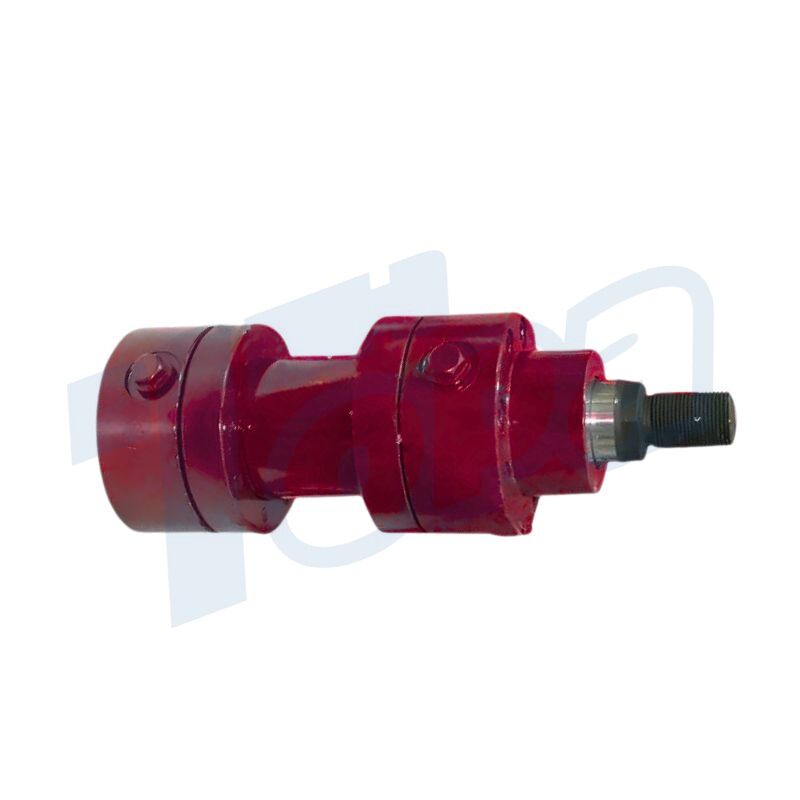

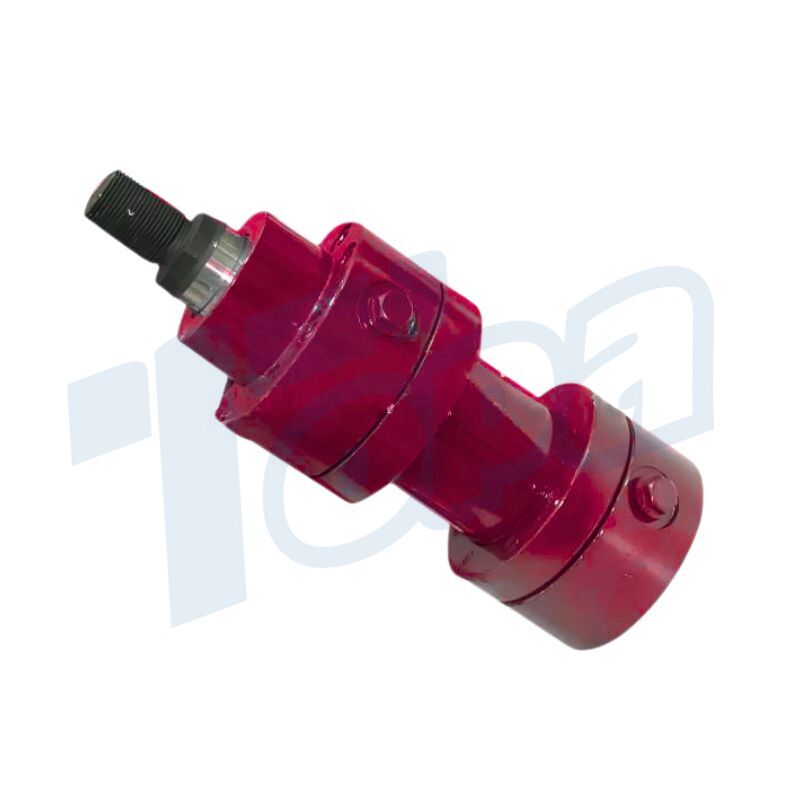

Industrial High Pressure Hydraulic Cylinder

Barrel: This is the main body of the cylinder, which can withstand high pressure.

Piston: Located inside the cylinder barrel, the piston divides the cylinder into two chambers and moves back and forth under hydraulic pressure.

Piston Rod: A sturdy rod attached to the piston that extends outside the cylinder and transmits the force generated inside the cylinder to an external mechanism.

End caps: Securely fastened to the ends of the cylinder, they seal off the hydraulic fluid and withstand internal pressure.

Seals: Prevent fluid leakage and ensure that internal pressure is maintained.

Connecting rod seals: Guide the piston rod in and out and contain seals that prevent leakage.

Ports: Includes inlets and outlets for hydraulic fluids that control the movement of the piston


As a high pressure hydraulic cylinder factory, Topa typically manufactures hydraulic cylinders using high-grade materials such as hardened steel or special alloys. The operation of these hydraulic cylinders is based on hydraulic fluid dynamics. Fluid is pumped into the cylinder to move the piston and create a force transmitted through the piston rod. The movement can be precisely controlled to perform a variety of tasks.

Industrial heavy-duty hydraulic cylinders are designed to operate at high pressures, typically ranging from 3,000 to 10,000 psi, to handle significant loads and forces. And their stroke length or the distance the piston can travel is customized to the specific application.


High Strength: Made from robust materials like steel or alloys, these cylinders can withstand high pressures and harsh industrial environments.

Efficient Performance: They are designed to efficiently convert hydraulic energy into mechanical force, providing powerful and precise movements.

Versatility: These cylinders can be adapted for a wide range of stroke lengths and sizes, making them suitable for different industrial applications.

Reliability: Known for their reliability, these cylinders ensure consistent performance, essential in industrial settings.

Low Maintenance: Their sturdy construction and quality materials make them relatively low maintenance, reducing downtime and operational costs.


Manufacturing: Used in automated machinery and production lines for tasks like lifting, pressing, and assembling.

Construction Equipment: In bulldozers, excavators, and cranes, these cylinders provide the necessary force for lifting and moving heavy loads.

Agricultural Machinery: Essential in tractors and harvesting equipment for various farming operations.

Mining: Used in heavy-duty drilling and earth-moving machinery for mining operations.

Transportation and Logistics: In loading docks and material handling equipment, they facilitate the lifting and moving of heavy goods.

Topa's Customized Services

polish Hydraulic Cylinder Topa

Topa’ customization and quality inspection process for industrial heavy-duty, high-pressure hydraulic cylinders strictly adheres to the fabrication process:

Consultation: We begin with a discussion with the customer. Understand your specific needs, focusing on application, pressure range, stroke length and dimensions.

Customized Design: Our engineering team creates a design based on the customer’s exact specifications.

Material Selection: We select strong, durable materials suitable for high-pressure and heavy-duty use.

Automated Machining: Every component, including the barrel and piston rod, is precision machined for optimal performance.

Assembly: Skilled technicians meticulously assemble the cylinders to ensure perfect alignment of each part.

Pressure Testing: Every cylinder is pressure tested to ensure it can withstand the specified operating pressure.

Leak Testing: We conduct thorough leak tests to ensure the integrity of seals and joints.

At Topa, we are committed to providing customized, high-quality hydraulic solutions to meet the unique needs of your industrial applications. If you need quality hydraulic cylinders, contact us.

Industrial High Pressure Hydraulic Cylinder

The process of making industrial heavy-duty, high-pressure hydraulic cylinders at Topa Hydraulics begins with the selection of materials based on each customer’s specific needs. Next, the desired pressure range, stroke length, and cylinder dimensions are known. Our engineering team then employs automated machinery to produce the hydraulic cylinders.

Once assembled, each cylinder undergoes rigorous testing. This includes a pressure test to ensure that the cylinder can withstand the maximum pressure specified. We then perform leakage tests to ensure that no fluid leaks occur during operation. We also carry out structural inspections to check for any defects or weaknesses. Only after passing all these tests can the hydraulic cylinders be put into operation.

If you are looking for a high quality, heavy duty, high pressure hydraulic cylinder that meets your specific requirements, contact us today!
