Description:

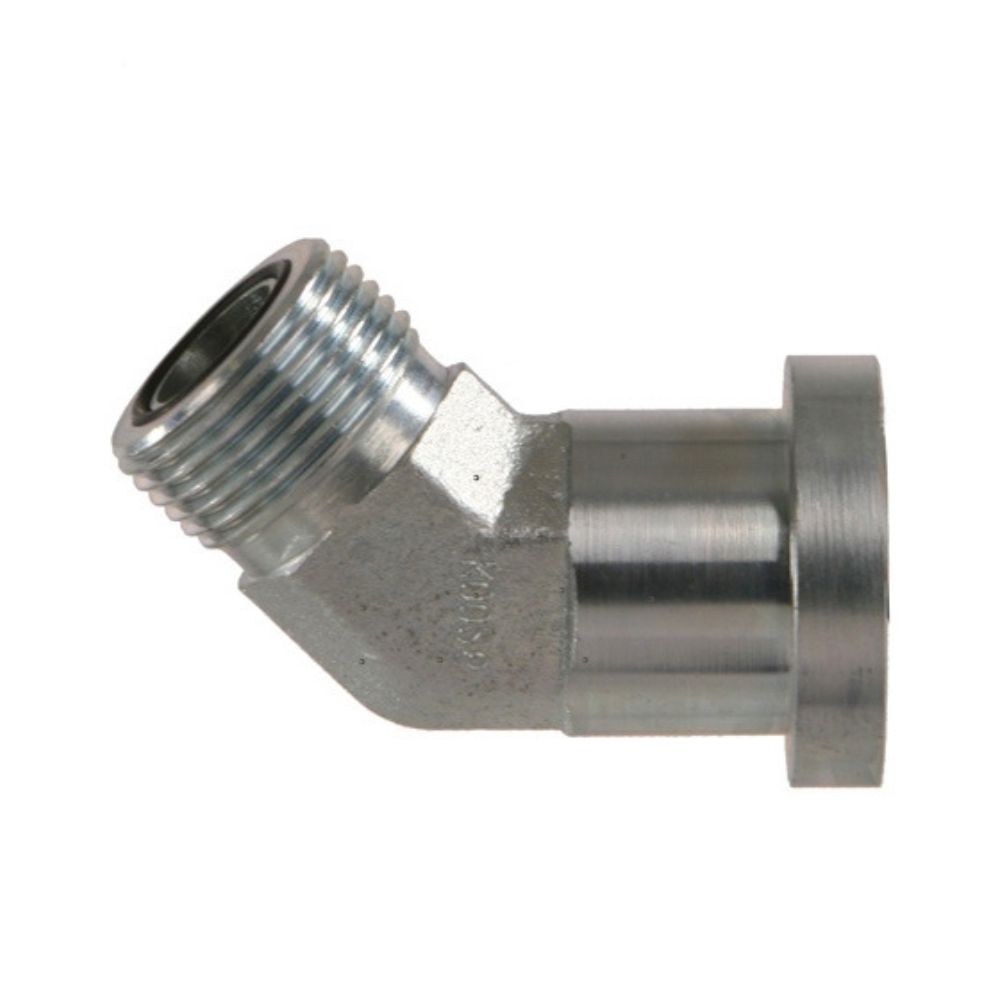

FS1803 Hydraulic Male Elbow 45° ORFS Code62 Flange is a 45-degree elbow flange adapter with an o-ring face seal. In addition, the maximum fitting pressure of the FS1803 flange is 6000 PSI.
Flange fitting is typically screwed together and used to connect pipes, pumps, valves, and other components of a piping system. And the O-ring seal is used to prevent leakage at the joint of two pipes or tubes.
If you have any questions about sae 6000 flange dimensions, please contact us.
Features and Benefits:
• Vibration resistance
• Strong seal
• High-pressure resistance
• No leaks
Categories: ORFS, Code 62, Carbon steel, Adapter, Elbow 45°

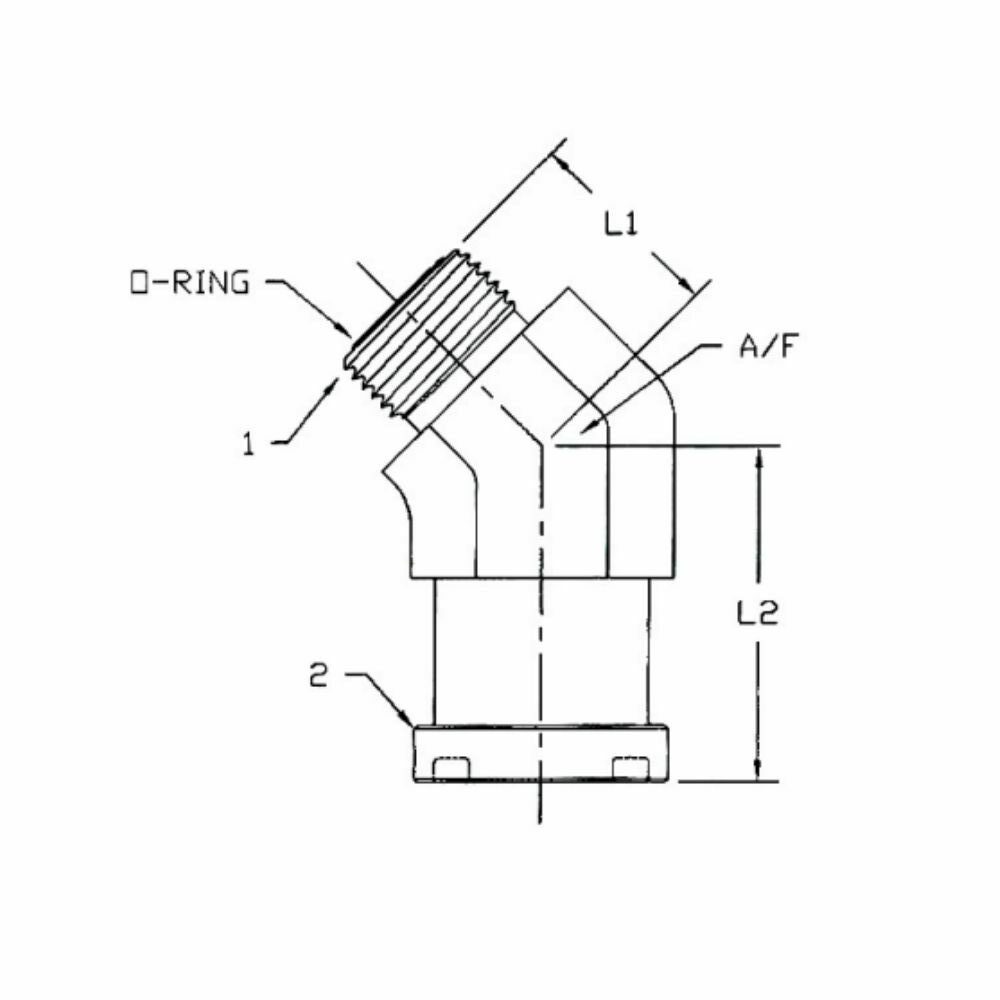

PART NO. | TUBE O.D. | 1THREAD | 2FLANGE | L1(in.) | L2(in.) | A/F(in.) |
FS1803-12-12-FG | 3/4 | 1-3/16-12 | 3/4 | 1.280 | 1.850 | 1.312 |
FS1803-16-16-FG | 1 | 1-7/16-12 | 1 | 1.470 | 1.850 | 1.312 |
FS1803-20-20-FG | 1-1/4 | 1-11/16-12 | 1-1/4 | 1.590 | 2.040 | 1.625 |
FS1803-24-24-FG | 1-1/2 | 2-12 | 1-1/2 | 1.780 | 2.380 | 1.875 |
FS1803 Hydraulic Male Elbow 45° ORFS Code62 Flange is made clear in this video.
In addition, ORFS hydraulic flange fittings FS1803 come in a range of sizes, shapes, and applications, making them suitable for use in a range of hydraulic fluid systems.
So please get in touch with us if you have any inquiries concerning code 62 flange fittings.
